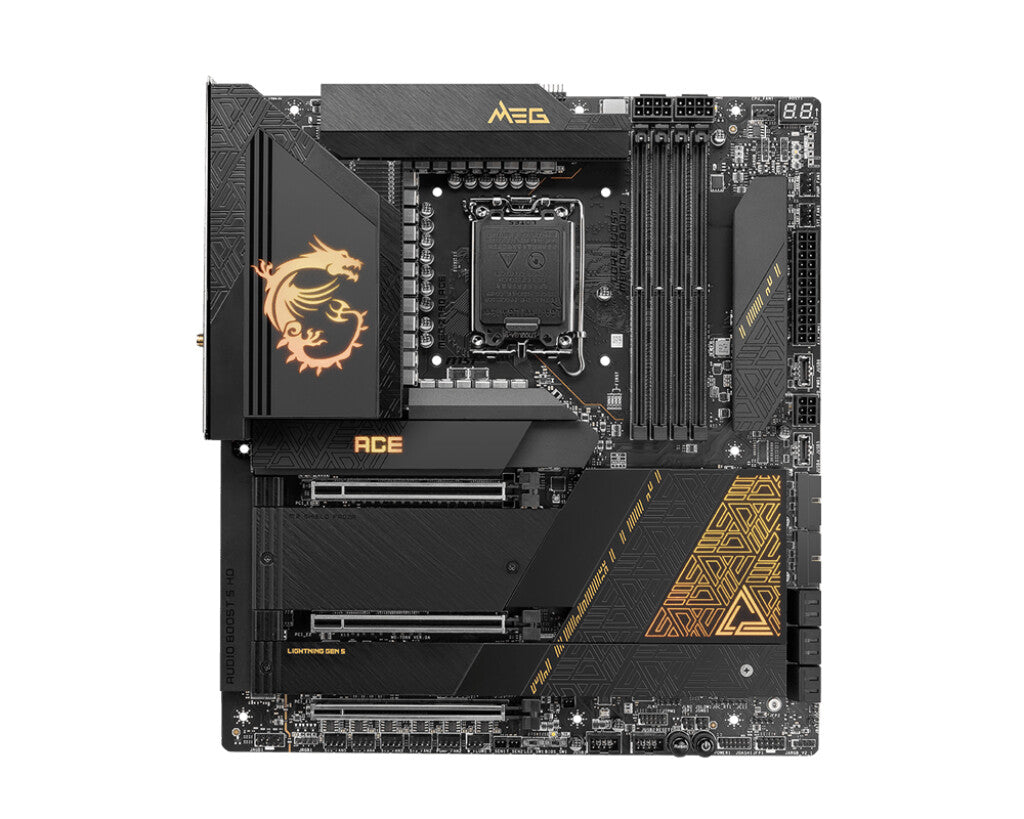

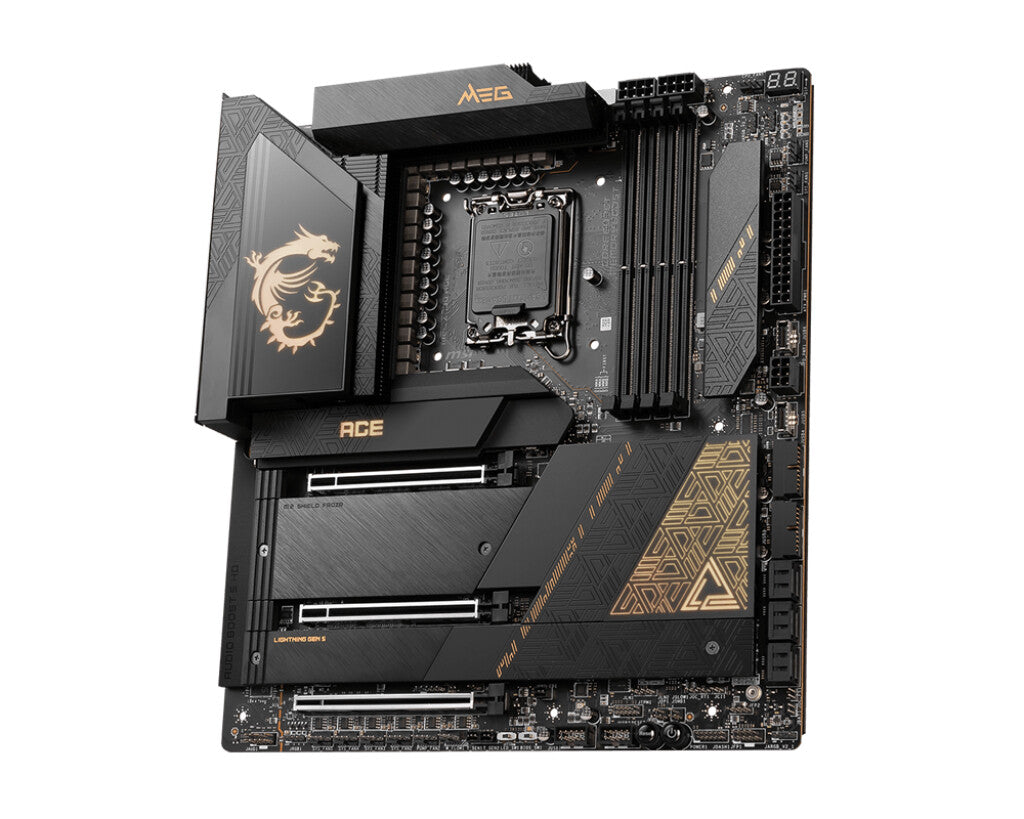

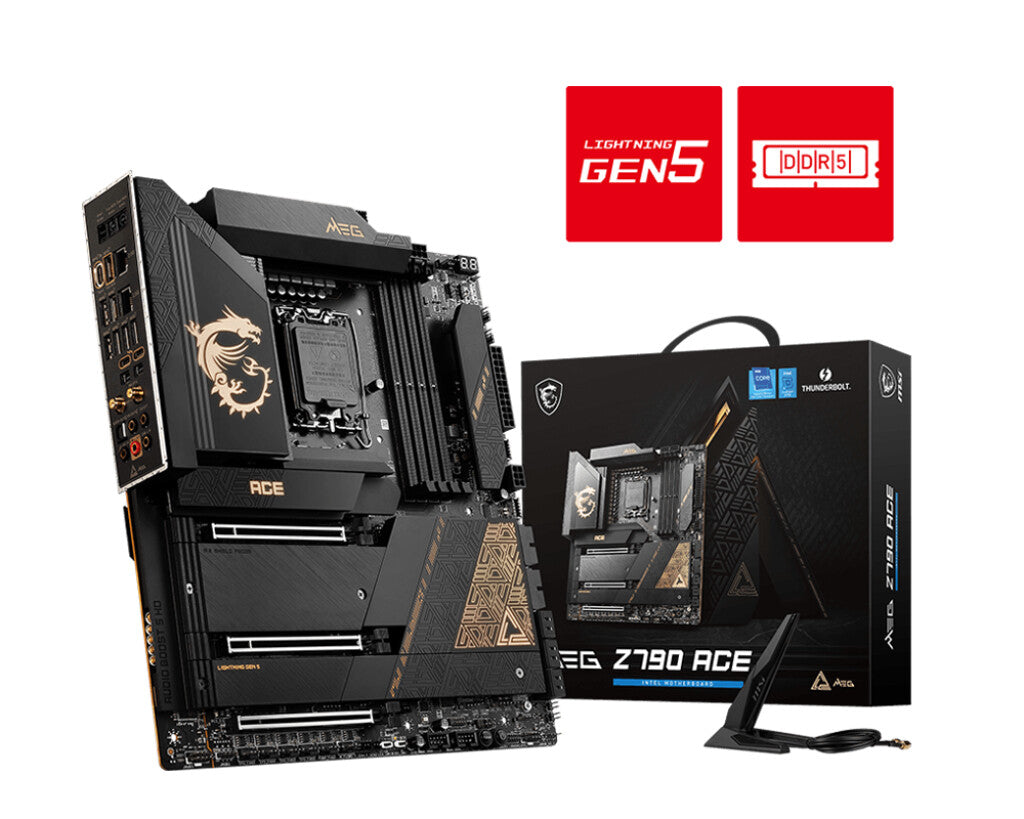

    MSI MEG Z790 ACE Extended ATX motherboard - Intel Z790 LGA 1700

    MSI MEG Z790 ACE Extended ATX motherboard - Intel Z790 LGA 1700

    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    IN STOCK
    EAN: 4711377025546 SKU: 81216714 MPN: MEG Z790 ACE
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
    • Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
    • Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience
    • Extreme Power Design: 24+1+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance
    • Maximum 5 x M.2 Connectors: Onboard quintuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster
    • Outstanding Cooling Solution: Stacked Fin Array, Direct Touch Cross Heat-pipe, Aluminum Backplate, 7W/mK thermal pads, double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature
    • Dual 2.5G LAN with latest Wi-Fi 6E solution: Onboard dual 2.5G LAN with the latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience
    • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G with one 60W USB Power Delivery
    • DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
    • 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise
    • Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience

    MEG Z790 ACE Intel LGA 1700 E-ATX Motherboard, 4x DDR5~128GB, 1x PCI-E x 16, 1x PCI-E x 8, 5x M.2, 6x SATA, 2x USB 3.2, 4x USB 2.0, 2x USB-C

    MEG Z790 ACE
    Furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the latest 13th Gen Intel® Core processor by combining elite hardware system support and premium durability, the MEG Z790 ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking the processor, memory, and graphics card at the highest level.

    THE REVELATION OF LEGEND
    The MEG series is revealed as a legend that represents the ultimate elegance in gaming.
    With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be.

    Stacked Fin Array Design
    Stacked fin array design enlarges up to 50% heat dissipation, provides the maximum surface of heat dissipation.

    Direct Touch Cross Heat-pipe
    The U-shape dual heat-pipe connect three MOS heatsinks to enlarge the surface of heat dissipation.

    Double-sided M.2 Shield Frozr
    Double-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster

    Aluminum Backplate
    The aluminum baseplate cool down the MOSFET temperature with dedicated thermal pads.

    7W/mK Thermal Pad
    High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

    Enlarged PCH Heatsink
    MSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.

    DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
    Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

    MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatica

    Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

    MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

    DUAL PUMP FAN HEADER FOR OPTIMIZED WATER COOLING
    Designed to support the most popular All-In-One & customized water cooling solutions on the market, MEG Z790 ACE features the exclusive dual pump PIN headers to fit multiple water cooling solutions demands. The dedicated pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy, safe installation and a perfect fit.

    LIGHTNING GEN 5 PCI-E
    Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

    SMT PCIE 5.0 SLOT
    The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

    REINFORCED,
    HEAVY SOLDERED CONNECTIONS
    Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

    FAST AND FUTURE-READY STORAGE
    MSI MEG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

    Experience Thunderbolt 4 with unprecedented interface bandwidth speeds up to true 40Gbp and support for up to six daisy-chained devices. Additionally, Maximum 8K display support, Multi-Port Accessory Architecture and USB 4.0 compliant provide reliable connectivity and better user experience.

    HIGH QUALITY AUDIO CAPACITORS
    A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.











    Processor
    Supported processor sockets LGA 1700
    Compatible processor series Intel® Celeron®, Intel® Pentium® Gold
    Processor socket LGA 1700
    Processor manufacturer Intel
    Memory
    Unbuffered memory Yes
    Maximum internal memory 128 GB
    Supported memory clock speeds 4800,5000,5200,5400,5600,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz
    Non-ECC Yes
    Memory channels Dual-channel
    Number of memory slots 4
    Supported memory types DDR5-SDRAM
    Storage controllers
    RAID levels 0, 5, 10
    Internal storage capacity 10 GB
    Supported storage drive interfaces M.2, PCI Express
    Supported storage drive types HDD & SSD
    Graphics
    Parallel processing technology support Not supported
    Internal I/O
    RGB LED pin header Yes
    TPM connector Yes
    Chassis intrusion connector Yes
    CPU fan connector Yes
    Front panel connector Yes
    Front panel audio connector Yes
    Number of SATA III connectors 6
    USB 3.2 Gen 2 (3.1 Gen 2) connectors 2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    USB 2.0 connectors 4

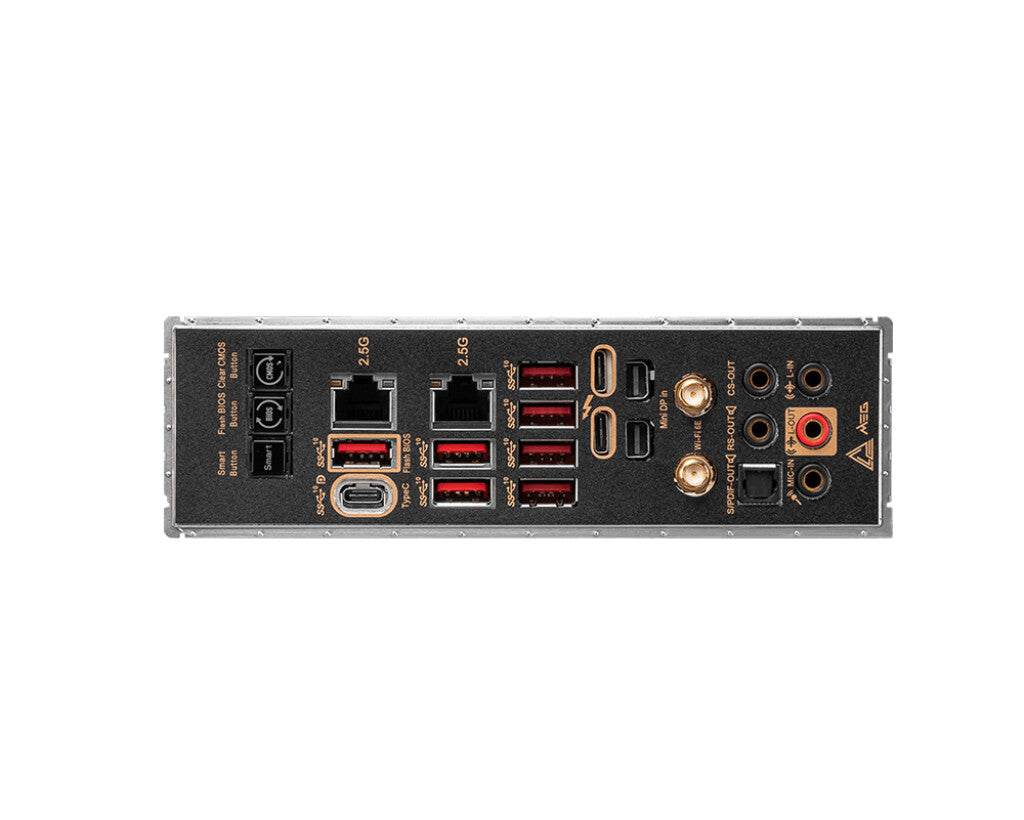

    Rear panel I/O ports
    S/PDIF out port Yes
    DisplayPort version 1.4
    DisplayPorts quantity 1
    HDMI version 2.1
    HDMI ports quantity 1
    Ethernet LAN (RJ-45) ports 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 7
    Network
    Bluetooth version 5.3
    Bluetooth Yes
    Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
    Top Wi-Fi standard Wi-Fi 6 (802.11ax)
    Wi-Fi Yes
    Ethernet interface type 2.5 Gigabit Ethernet
    Ethernet LAN Yes
    Features
    Windows operating systems supported Windows 10 x64, Windows 11 x64
    Audio output channels 7.1 channels
    Motherboard chipset Intel Z790
    Motherboard chipset family Intel
    Motherboard form factor Extended ATX
    Component for PC
    Expansion slots
    Number of M.2 (M) slots 4
    BIOS
    BIOS memory size 256 Mbit
    BIOS type UEFI AMI
    Weight & dimensions
    Depth 277 mm
    Width 304.8 mm
    Packaging content
    Cables included SATA
