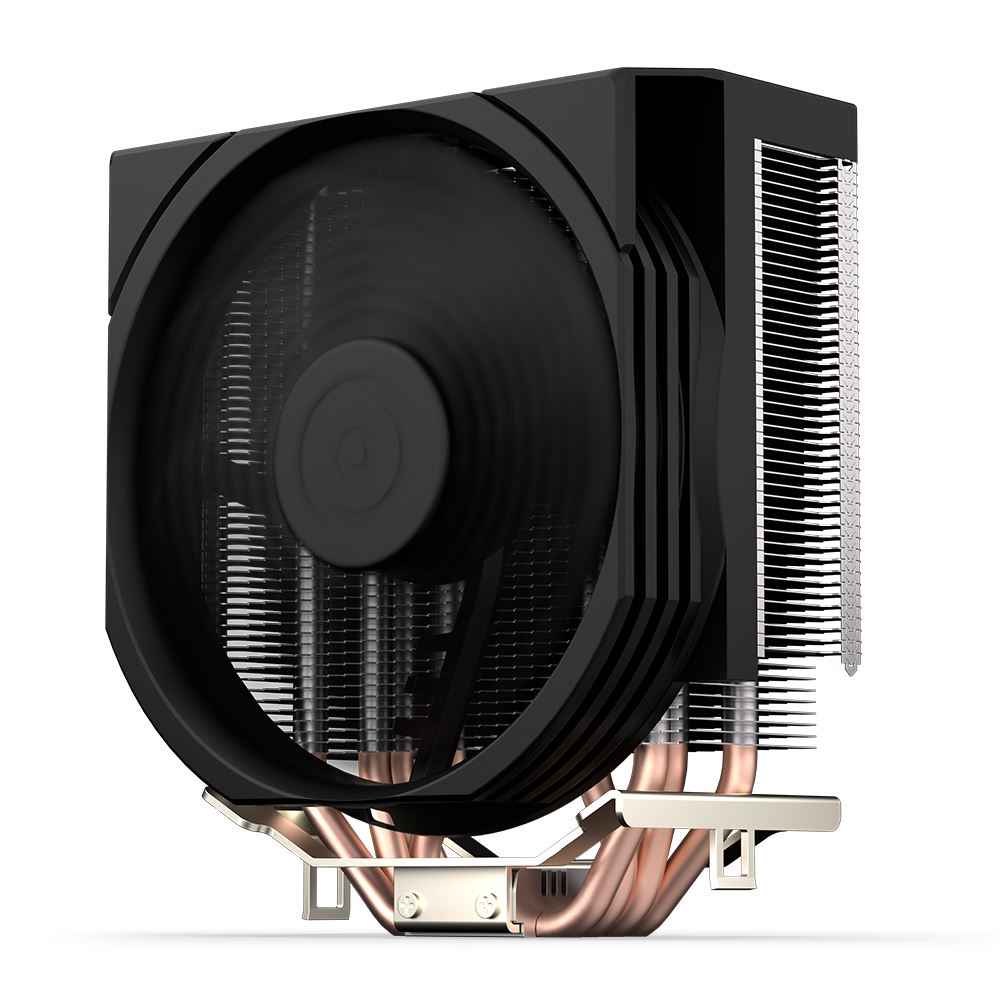

ENDORFY Spartan 5 MAX - Air Processor Cooler - 120mm

The Spartan 5 MAX is a short (at the highest point it’s 14.6 cm) cooler, with which you will start a cold winter in your CPU. The arctic breeze is ensured by a 120 mm Fluctus fan. We put it on a densely finned heatsink with four heat pipes, so you don't have to worry about hot flashes. With such a package you can render and design without worrying that your CPU will suddenly turn blue (unless you have colorful lights in stock).

The Spartan 5 MAX is also compatible with many sockets (from older ones like AM2 and LGA1156 to AM5 and LGA1700) and tall RAM sticks. Thanks to our God mode video instructions, you can set it up in mere minutes.

Quiet, quieter, the Spartan 5 MAX
If you happen to breathe louder, you may miss the sound of the Spartan 5 MAX working. This bad boy is as quiet as students taking a written exam – except that our cooler remains silent even when the work is done.

14.6 cm of power
At first glance, the Spartan 5 MAX seems small, but we added the word "MAX" to its name for a reason. The cooler is a short king, only 14.6 cm tall – thanks to this, it can fit in small cases and keeps the arctic-low temperature in them. It blows cold even when you pull an all-night gaming session after a busy day of work.

Assembly in a moment
You can literally mount the Spartan 5 MAX in a moment without additional fancy tools. Together with the cooler, we’ve released video instructions that will guide you step by step through the whole process. By the way, we've taken care of the usually hardest things – we've installed a 120 mm Fluctus fan for you – so you'll be able to handle the whole process easily, even if it's your first time assembling a PC.

6-year  warranty
We have been in the industry for a long time, and we know that the ENDORFY logo = high quality that cannot be faked. That's why with the Spartan 5 MAX cooler you get a long, 6-year  warranty (although you probably won't use it anyway). 

Performance
Suitable location	Processor
Thermal Design Power (TDP)	180 W
Number of heat pipes	4
Type	Air cooler
Fan diameter	12 cm
Supported processor sockets	LGA 2011 (Socket R), Socket AM2+, LGA 2011-v3 (Socket R), LGA 2066, Socket AM3+, Socket AM4, LGA 1200 (Socket H5), Socket AM5, Socket FM1, LGA 1700, Socket FM2+
Number of fans	1 fan(s)
Mean time between failures (MTBF)	100000 h
Compatible products	CCC, CE, FCC, UKCA, RoHS
Design
Number of heat pipes	4
Number of fans	1 fan(s)
Product colour	Black
Technical details
Thermal Design Power (TDP)	180 W
Number of heat pipes	4
Type	Air cooler
Fan diameter	12 cm
Supported processor sockets	LGA 2011 (Socket R), Socket AM2+, LGA 2011-v3 (Socket R), LGA 2066, Socket AM3+, Socket AM4, LGA 1200 (Socket H5), Socket AM5, Socket FM1, LGA 1700, Socket FM2+
Number of fans	1 fan(s)
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA
Power
Thermal Design Power (TDP)	180 W
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 25 x 120 mm
Radiator width	14.6 cm
Radiator depth	6.5 cm
Radiator height	12.5 cm
Endurance
Mean time between failures (MTBF)	100000 h
Packaging content
Mounting kit	Yes
Installation instruction	Yes

i

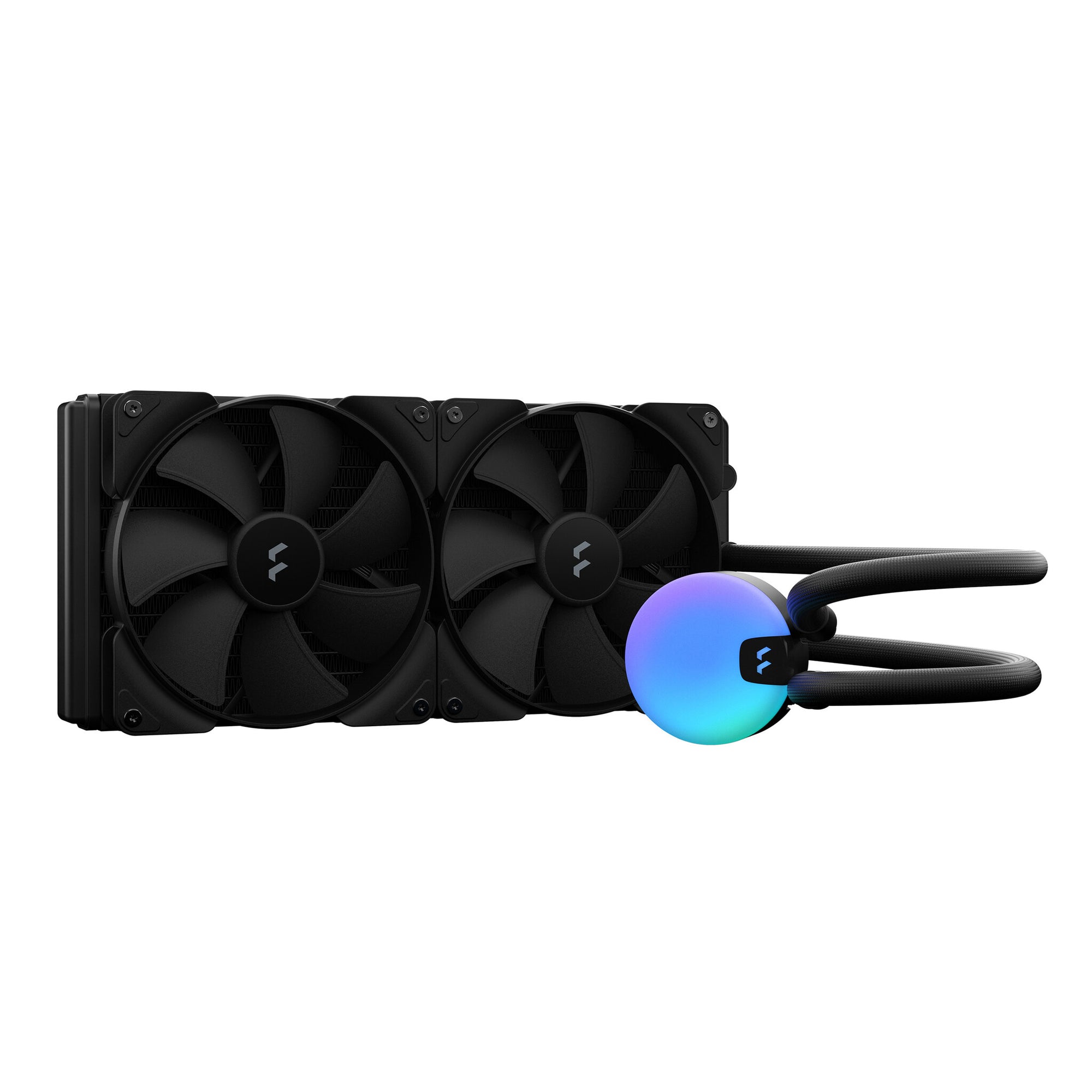

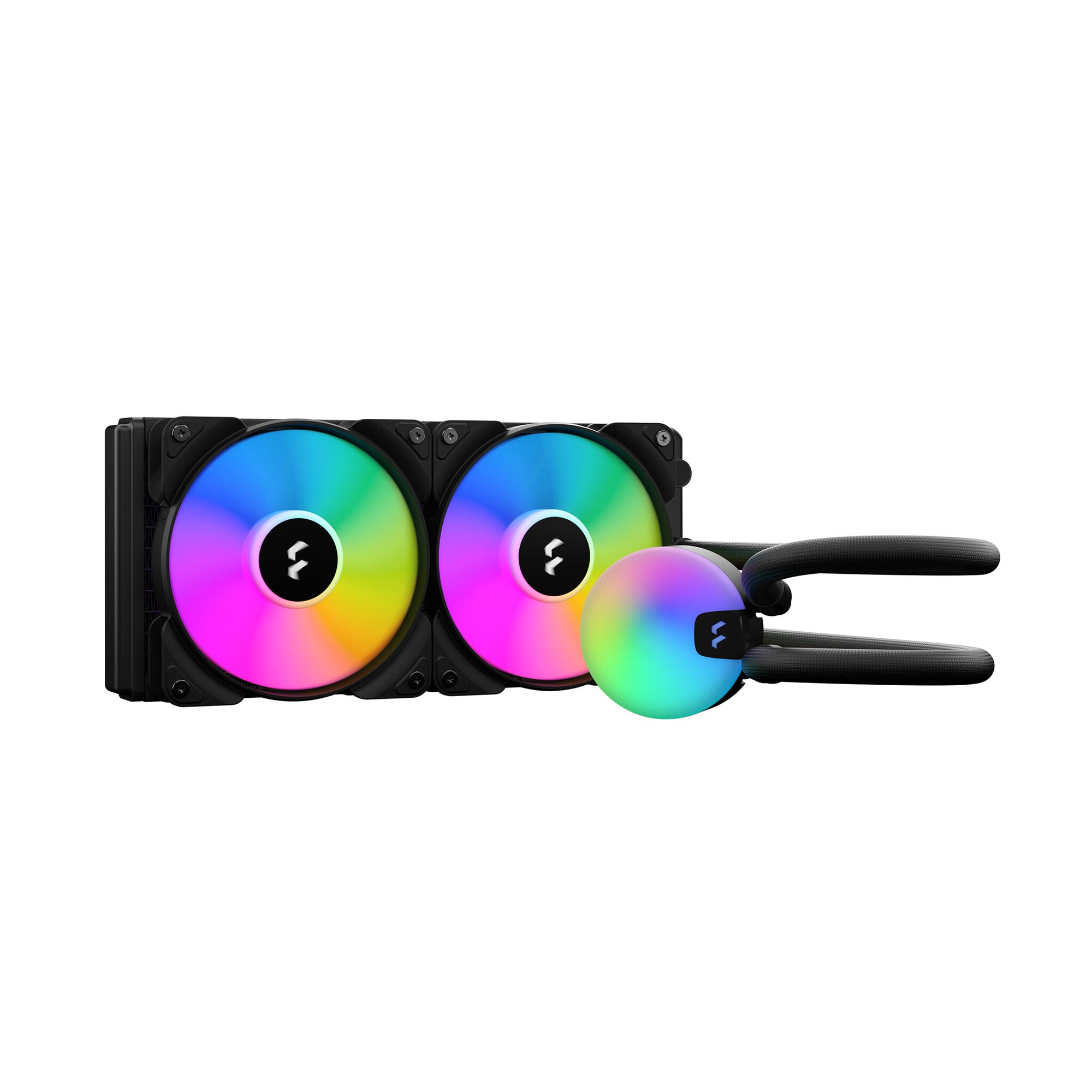

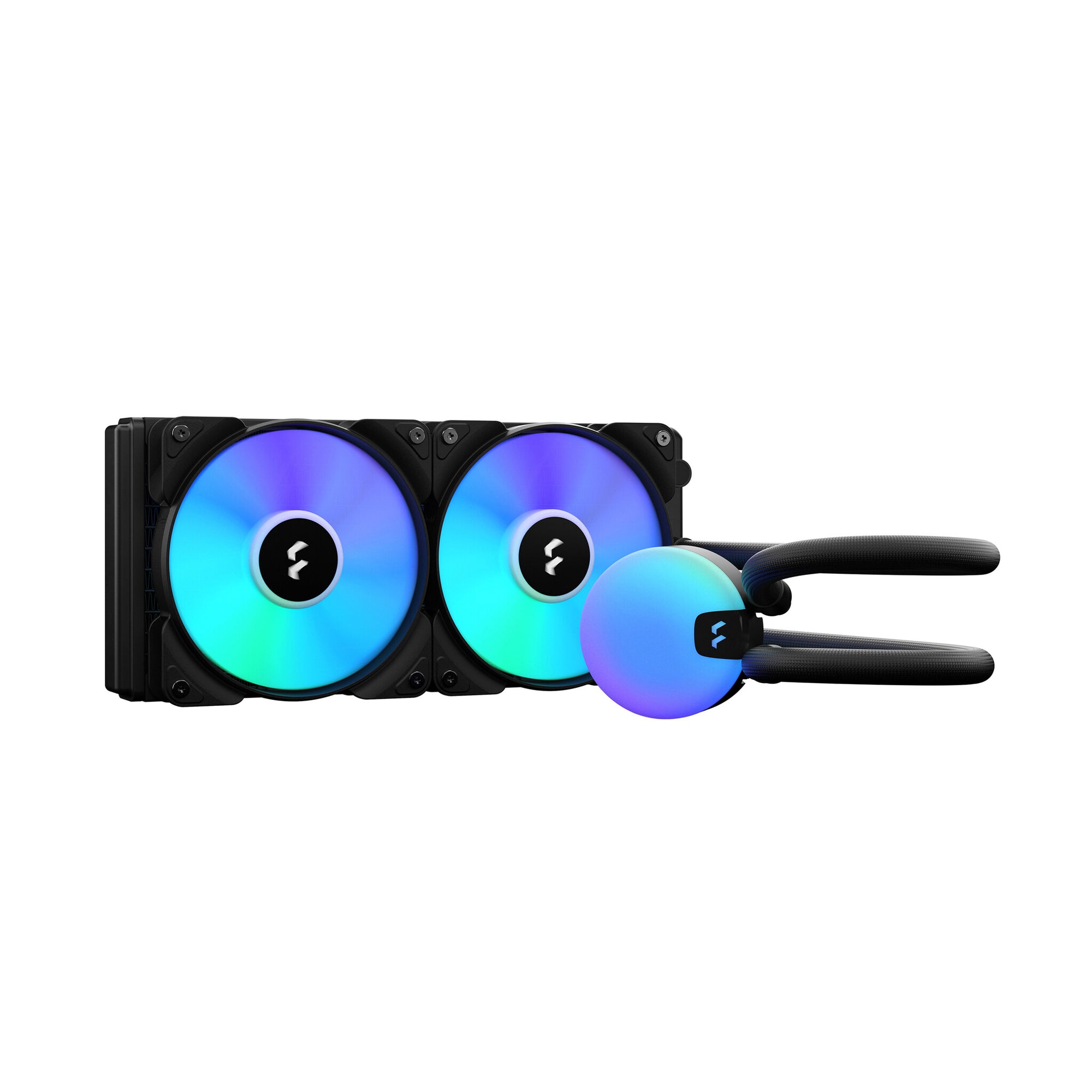

Fractal Design Lumen S24 V2 RGB - All-in-one Liquid Processor Cooler in Black - 240mm

Water cooling, 2x 120 mm fans, 500-2000 RPM, Aluminum Radiator, RGB

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

The right way up
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Low-permeability rubber tubes with braided nylon sleeves

From subtle to stunning
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller

Color-coordinate your cooling
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma

Forget the thermal paste
- Thermal paste is pre-applied to ensure a proper and pain-free installation
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing

Common denominators
- Supports the most common sockets for both Intel and AMD
- Compatible with LGA 1700 and AM5

Powerful aspects
Aspect fans for low turbulence and chaining support

Performance
Fan's mean time to failure (MTTF)	90000 h
Pump's mean time to failure (MTTF)	50000 h
Pump motor speed	4000 RPM
Quantity per pack	1 pc(s)
Pump bearing technology	Ceramic bearing
Fan bearing technology	Rifle bearing
Pump noise level	22 dB
Pulse-width modulation (PWM) support	Yes
Maximum air pressure	2.34 mmH2O
Minimum air pressure	0.23 mmH2O
Maximum airflow	56 cfm
Minimum airflow (imperial)	13 cfm
Noise level (high speed)	33.2 dB
Noise level (low speed)	10 dB
Rotational speed (max)	2000 RPM
Rotational speed (min)	500 RPM
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket FM2+
Fan diameter	12 cm
Type	All-in-one liquid cooler
Suitable location	Processor

Design
Illumination colour	Multi
Number of LEDs	6
Illumination LED	Yes
Fins material	Aluminium
Number of fans	2 fan(s)
Base plate material	Copper
Radiator material	Aluminum
Product colour	Black

Power
Pump voltage	12 V
Pump current	340 mA
Fan voltage	12 V
Fan current	0.37 A

Weight & dimensions
Package weight	1.77 kg
Package height	205 mm
Package depth	332 mm
Package width	137 mm
Tube length	40 cm
Radiator height	2.7 cm
Radiator depth	27.2 cm
Radiator width	12 cm

Packaging content
Mounting kit	Yes
Package type	Box

i

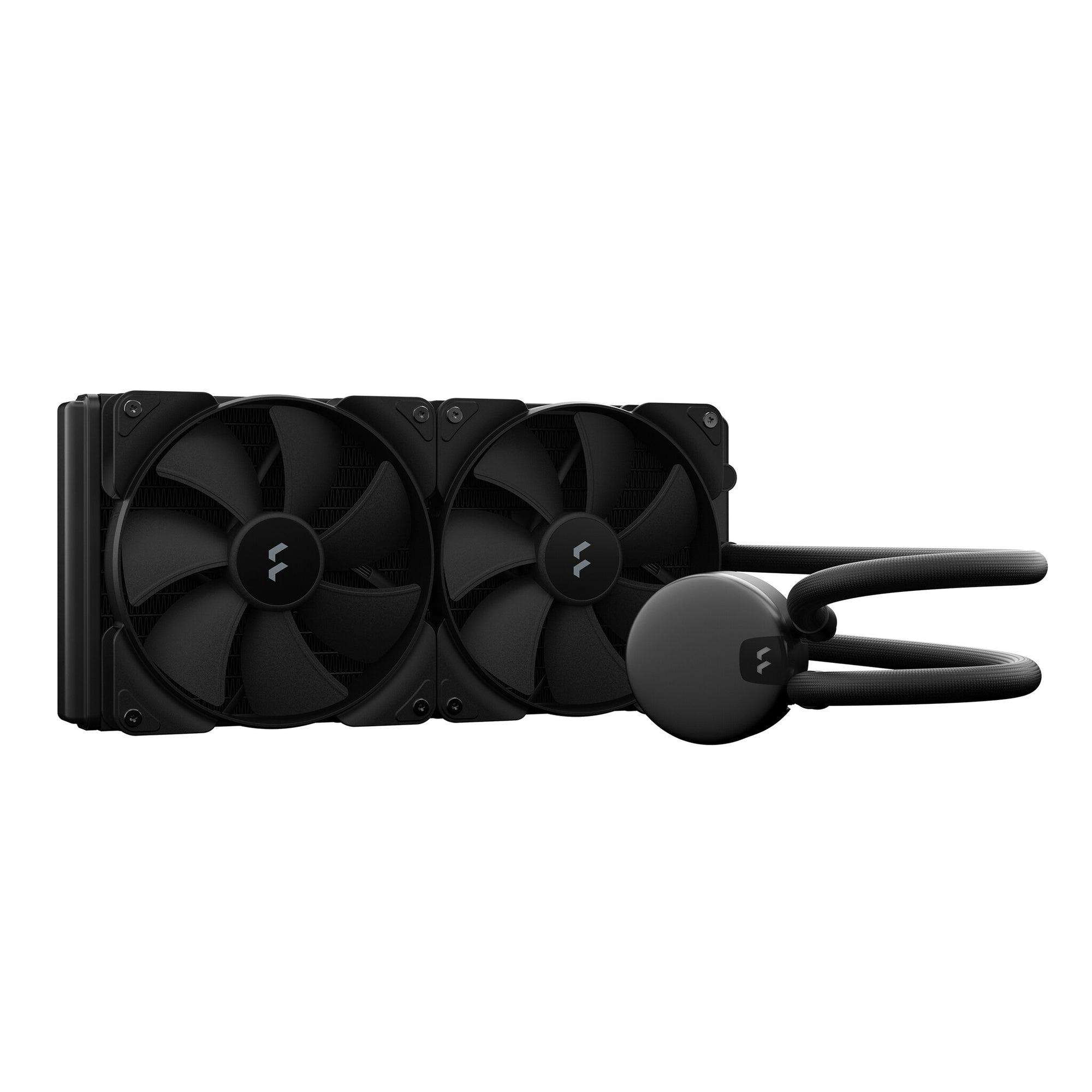

Fractal Design Lumen S28 V2 - All-in-one Liquid Processor Cooler in Black - 280mm

Water cooling, 2x 140 mm fans, 500-1700 RPM, Aluminum Radiator

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

The right way up
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Low-permeability rubber tubes with braided nylon sleeves

From subtle to stunning
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller

Powerful aspects
Aspect fans for low turbulence and chaining support

Forget the thermal paste
- Thermal paste is pre-applied to ensure a proper and pain-free installation
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing

Common denominators
- Compatible with LGA 1700 and AM5
- Supports the most common sockets for both Intel and AMD

Color-coordinate your cooling
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma

Performance
Fan's mean time to failure (MTTF)	90000 h
Pump's mean time to failure (MTTF)	50000 h
Pump motor speed	4000 RPM
Quantity per pack	1 pc(s)
Pump bearing technology	Ceramic bearing
Fan bearing technology	Rifle bearing
Pump noise level	22 dB
Pulse-width modulation (PWM) support	Yes
Maximum air pressure	2.05 mmH2O
Minimum air pressure	0.3 mmH2O
Maximum airflow	78 cfm
Minimum airflow (imperial)	20 cfm
Noise level (high speed)	35.5 dB
Noise level (low speed)	10 dB
Rotational speed (max)	1700 RPM
Rotational speed (min)	500 RPM
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket FM2+
Fan diameter	14 cm
Type	All-in-one liquid cooler
Suitable location	Processor

Design
Illumination colour	Multi
Number of LEDs	6
Illumination LED	Yes
Fins material	Aluminium
Number of fans	2 fan(s)
Base plate material	Copper
Radiator material	Aluminum
Product colour	Black

Power
Pump voltage	12 V
Pump current	340 mA
Fan voltage	12 V
Fan current	0.24 A

Weight & dimensions
Package weight	2 kg
Package height	183 mm
Package depth	369 mm
Package width	171 mm
Tube length	40 cm
Radiator height	2.7 cm
Radiator depth	31.3 cm
Radiator width	14 cm

Packaging content
Mounting kit	Yes
Package type	Box

i

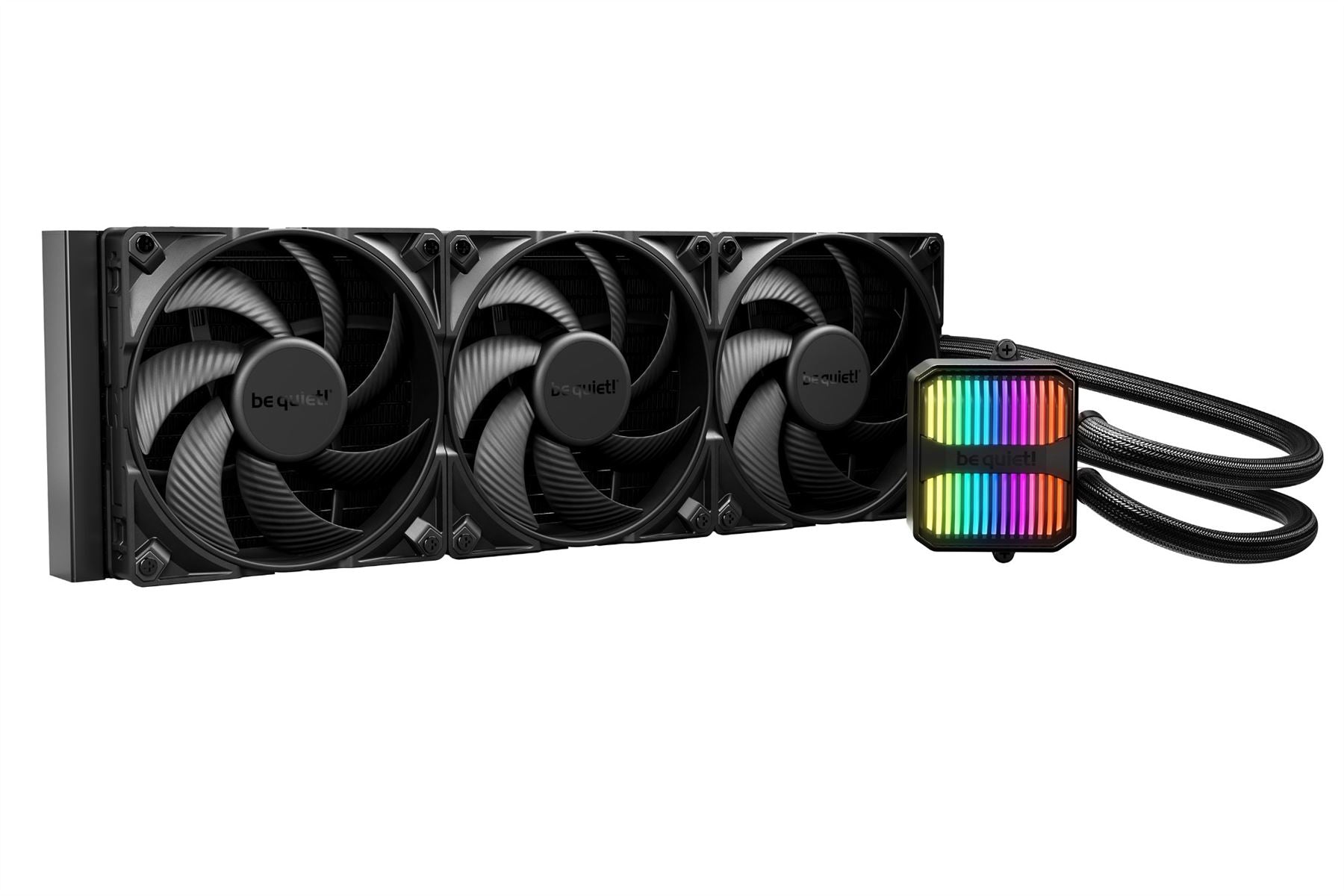

be quiet! Silent Loop 3 - All-in-one Liquid Processor Cooler in Black - 420 mm

Superior technology and cooling
Silent Loop 3 420mm is the virtually inaudible and incredibly high performing All-in-One water cooling unit with state-of-the-art technology. Silent Loop 3 is the epitome of a German engineered piece of hardware that embodies what be quiet! is associated with.

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Fluid Dynamic Bearing (FDB)
Noise level (low speed)	19.4 dB
Noise level (high speed)	34.3 dB
Type	All-in-one liquid cooler
Fan diameter	14 cm
Supported processor sockets	Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket TR5
Maximum airflow	78.4 cfm
Maximum air pressure	2.36 mmH2O
Airflow	133.2 m³/h
Number of fans	3 fan(s)
Quantity per pack	1 pc(s)
Pump connector	4-pin
Pump motor speed (min)	1700 RPM
Pump motor speed (max)	3500 RPM
Pump motor speed	3500 RPM
Fan speed (max)	1900 RPM
Fan's mean time to failure (MTTF)	300000 h
Design
Fan connector	4-pin
Number of fans	3 fan(s)
Illumination colour	Multi
Product colour	Black
Cable length	0.5 m
Illumination LED	Yes
Radiator material	Aluminum
Base plate material	Copper
LED connector type	3-pin
Technical details
Noise level (low speed)	19.4 dB
Noise level (high speed)	34.3 dB
Type	All-in-one liquid cooler
Fan diameter	14 cm
Supported processor sockets	Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket TR5
Maximum airflow	78.4 cfm
Maximum air pressure	2.36 mmH2O
Airflow	133.2 m³/h
Number of fans	3 fan(s)
Cable length	0.5 m
Fan connector	4-pin
Illumination LED	Yes
Sustainability certificates	Triman
Warranty period	3 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
Ports & interfaces
Fan connector	4-pin
Pump connector	4-pin
Power
LED voltage	5 V
Fan power consumption	3.6 W
Fan voltage	12 V
Fan current	0.3 A
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package depth	499 mm
Package width	204 mm
Package height	154 mm
Width	140 mm
Package weight	3.3 kg
Depth	52 mm
Height	475 mm
Weight	2.01 kg
Cable length	0.5 m
Radiator width	14 cm
Radiator depth	45.7 cm
Radiator height	2.7 cm
Tube length	40 cm
Waterblock width	8 cm
Waterblock depth	5.6 cm
Waterblock height	9.35 cm
Packaging data
Package depth	499 mm
Package width	204 mm
Package height	154 mm
Package weight	3.3 kg
Package type	Box
Indication
Illumination colour	Multi
Packaging content
Screws included	Yes
Package type	Box
Mounting kit	Yes
Thermal grease	Yes
Manual	Yes
CPU bracket(s)	Yes
Other features
Pump connector	4-pin
Thermal grease	Yes
LED voltage	5 V
Logistics data
Shipping (inner) case width	42.4 cm
Shipping (inner) case length	51.1 cm
Shipping (inner) case height	33.6 cm
Shipping (inner) case gross weight	14.8 kg
Products per shipping (inner) case	4 pc(s)

i

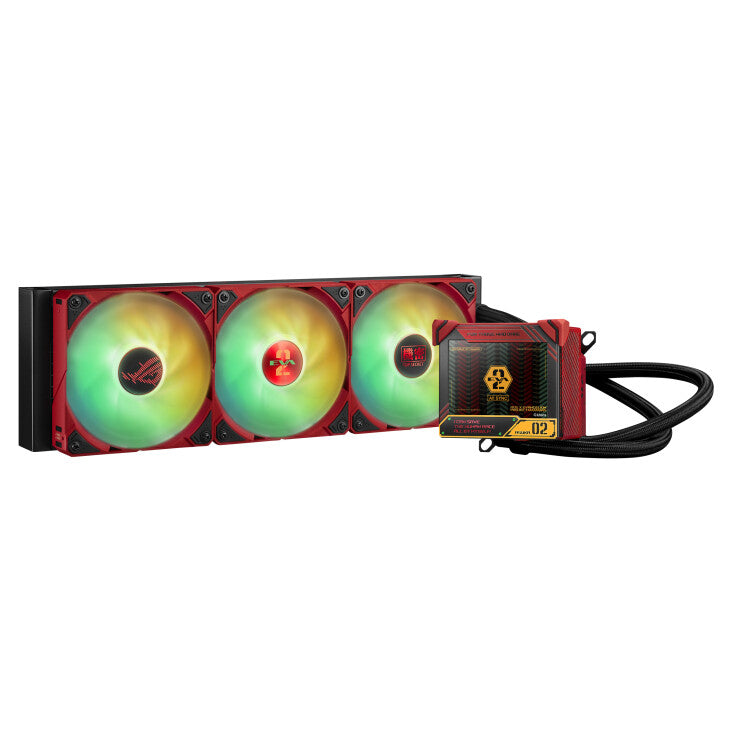

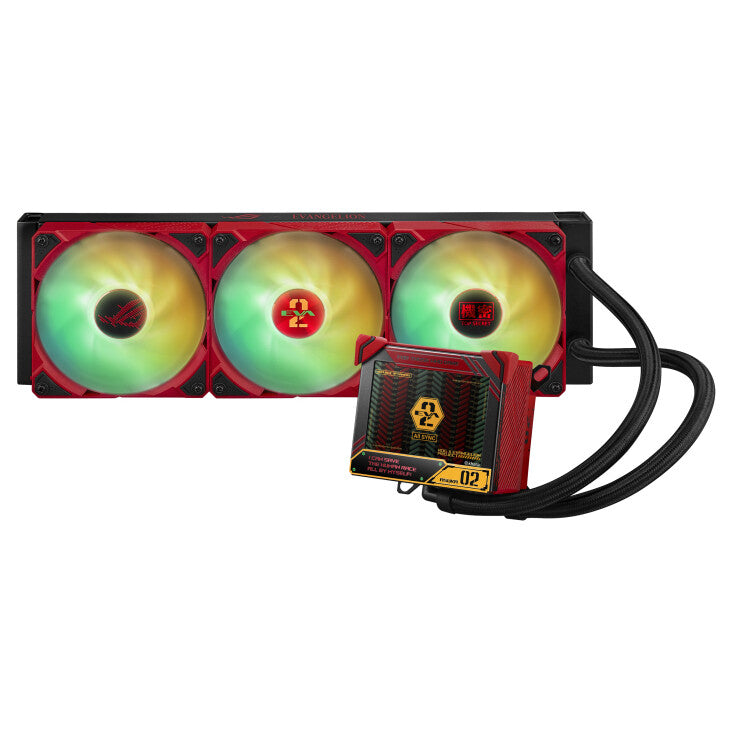

ASUS ROG RYUJIN III 360 ARGB "EVA-02 Edition" - All-in-one Liquid Processor Cooler - 360mm

ROG Ryujin III 360 ARGB EVA-02 Edition all-in-one liquid CPU cooler with 3.5" LCD, Asetek 8th gen pump, pump embedded fan and ROG 120mm magnetic daisy-chainable ARGB radiator fans

ROG continues the EVANGELION project for gamers with a brand-new machine design centered around EVA-02 and Asuka. The second collection debuted with motherboards, graphics cards, cardholder gaming cases, all-in-one coolers, peripherals, and gear. Build the full machine and achieve high levels of synchronization with Asuka.

COOLER THAN COOL
ROG Ryuijn III 360 ARGB
EVA-02 EDITION AIO
ROG Ryujin III 360 ARGB EVA-02 Edition embodies the spirit of Evangelion, with its aluminum bezel adorned with Asuka's classic lines and the design of EVA-02 armor. In addition to monitoring system vital signs to keep a rig stable in the heat of battle, the Ryujin’s expansive 3.5-inch LCD screen can display a collection of Asuka and EVA-02-themed animated GIFs. Meanwhile, three special 120 mm fans feature ROG and EVA-02 stickers, and offer customizable ARGB lighting effects. Through an advanced magnetic connector, these fans simultaneously transmit control signals and power, ensuring that the user's Evangelion always has ample cooling capability to face the next opponent.

Magnetic Daisy-Chainable Fans
The customizable ARGB fans snap together with a magnetic connector that links the fans and transmits control signals and power. Only one cable is required for all three fans, making installation and cable management a breeze

Full Color 3.5” LCD Display
The pioneering 3.5-inch LCD built into the pump block delivers live hardware status monitoring, or you can choose from a selection of pre-designed and custom animated GIFs to personalize your build.

Exploded View
The 8th Gen Asetek pump sports a 3-phase motor for higher flow and quieter operation, riding on a larger cold plate ideally sized for the latest Intel and AMD processors.

Performance
Fan static pressure	3.88 mmH2O
Pump motor speed (min)	800 RPM
Pump motor speed (max)	3600 RPM
Fan speed (min)	600 RPM
Fan speed (max)	2200 RPM
Maximum airflow	70.07 cfm
Minimum airflow (imperial)	21.08 cfm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Fan diameter	12 cm
Type	All-in-one liquid cooler
Suitable location	Processor

Design
Display type	LCD
Water block material	Copper
Illumination colour	Multi
Illumination LED	Yes
Number of fans	3 fan(s)
Radiator material	Aluminum
Product colour	Black, Red

Weight & dimensions
Package weight	3.23 kg
Package height	180 mm
Package depth	187 mm
Package width	425 mm
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Weight	1.78 kg
Waterblock height	10.1 cm
Waterblock depth	9.1 cm
Waterblock width	8.9 cm
Tube length	40 cm
Radiator height	3 cm
Radiator depth	12 cm
Radiator width	40 cm

Packaging content
Screws included	Yes
Cables included	Fan

Other features
Noise level	36.45 dB

i

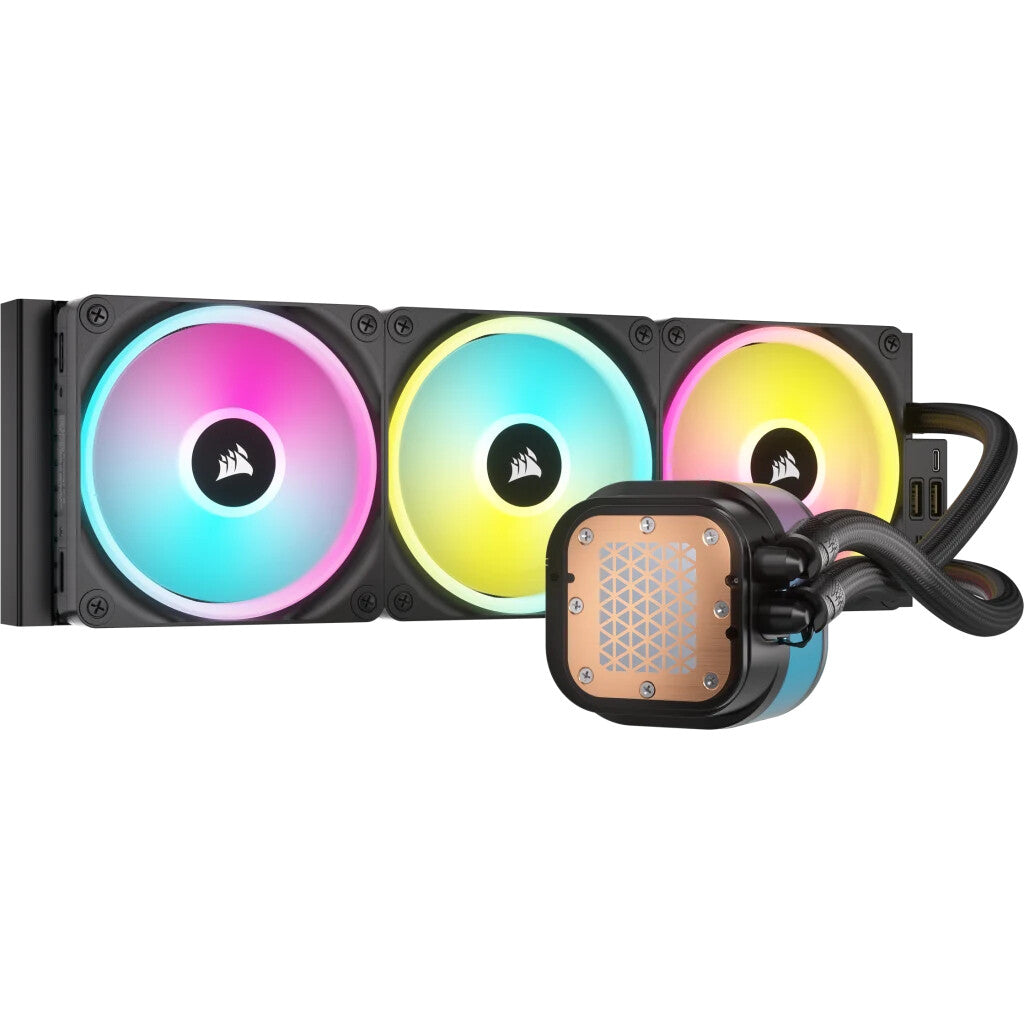

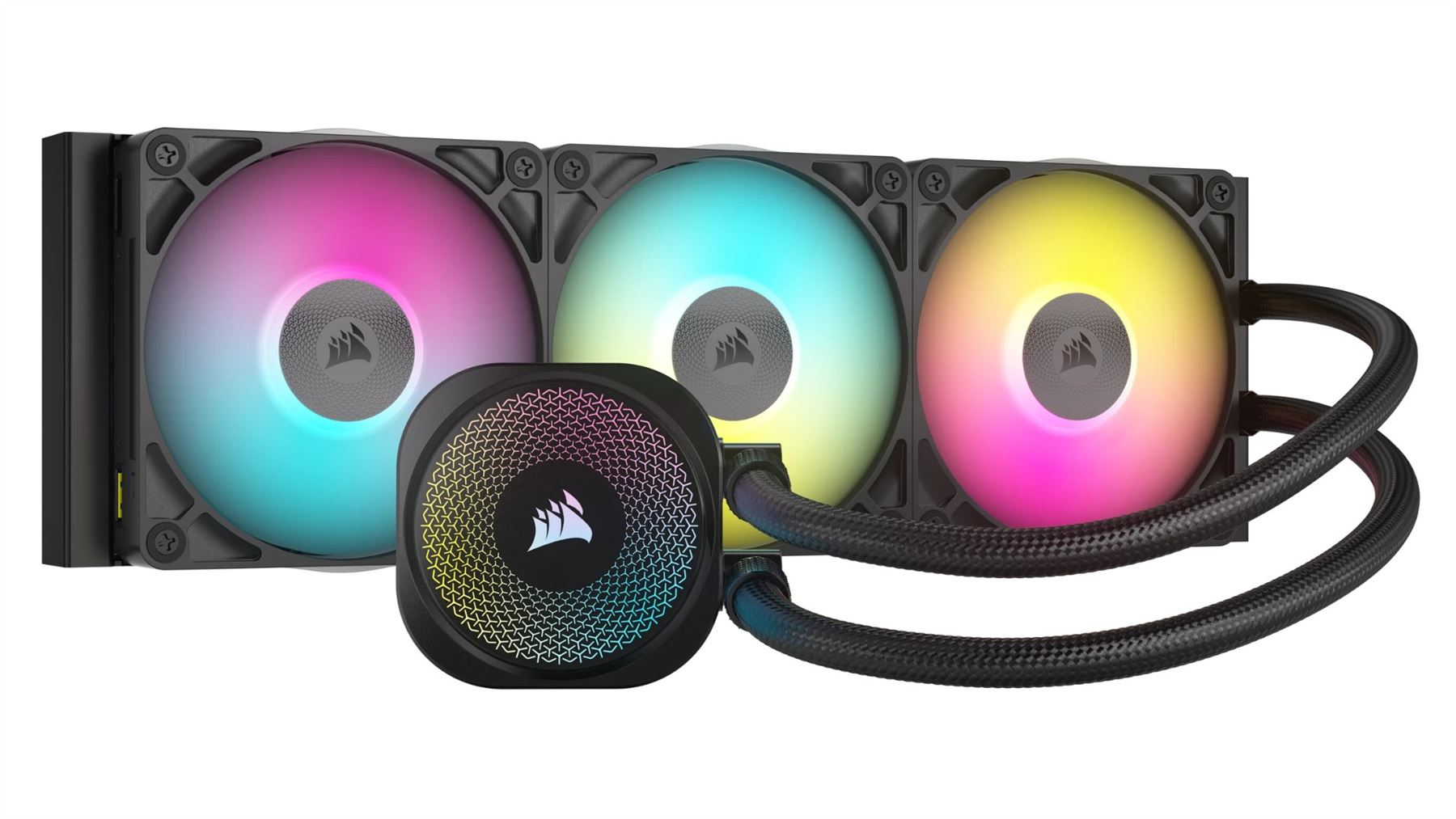

Corsair iCUE LINK H150i LCD - Liquid Processor Cooler in Black - 360mm

3 fans, 480 - 2400RPM, 16.44 - 63.1 CFM, 0.17 - 3.8mm-H2O, 397 x 120 x 27mm, 2.69kg, Black

iCUE LINK H150i LCD Liquid CPU Cooler
A powerful all-in-one CPU cooler with an ultra-bright 2.1" IPS LCD screen, leveraging revolutionary iCUE LINK technology for easier, faster, and cleaner building than ever before.

iCUE LINK H150i LCD
360mm ALL-IN-ONE CPU COOLER
SIMPLICITY AT ITS BEST
BUILD BETTER. BUILD SMARTER.
Redefine the way you build a DIY PC with a groundbreaking single-cable technology that automatically detects and configures your PC fans, CPU coolers, and other internal components.

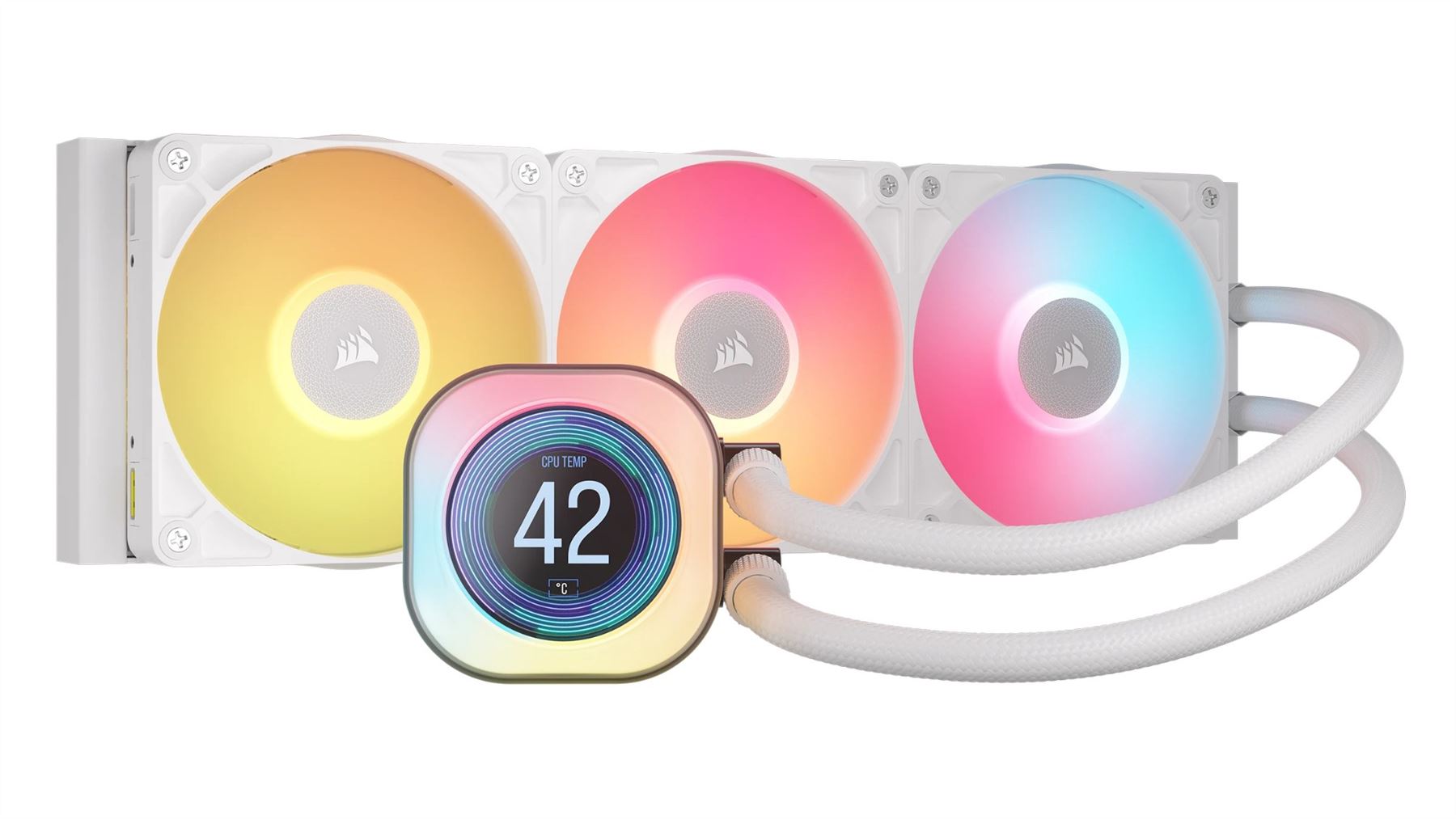

THE EASY WAY TO BUILD A PC
Reduce cable clutter with a network of smart, interconnected components.

LINK YOUR COMPONENTS
The iCUE LINK ecosystem uses a single connector for all iCUE LINK devices.

UNITE YOUR SETUP
Each component connects directly to the next, creating a chain of devices.

BRILLIANT IPS LCD DISPLAY
A custom 2.1" IPS LCD screen with 480x480 resolution and an ultra-bright 600cd/m² backlight displays real-time CPU temperature, your favorite animated GIF, funniest meme, or your team’s logo at 30 FPS in over 16.7 million colors.

LIGHT YEARS AHEAD
- EFFICIENT AND QUIET CPU COOLING
High-performance pump head and split-flow copper cold plate
- EFFORTLESS INSTALLATION
Single cable connects to included hub with automatic installation
- UNPARALLELED LIGHTING
QX RGB fans with 34 LEDs per fan and exclusive Time Warp lighting mode

NEXT-GEN AIO CPU COOLING
Boost your processor's performance with a split-flow copper cold plate with pre-applied CORSAIR XTM70 thermal paste. QX140 RGB fans ramp up to 2,000 RPM, complete with stunning lighting and next to no wiring for a flawless look.

- IN THE SPOTLIGHT
24 RGB LEDs encircling the screen and 20 LEDs on the pump base provide a brilliant backdrop, with hidden connections to ensure no distractions from the view.
- YOUR SETUP AT YOUR COMMAND
Adjust fan and pump speeds, control and synchronize RGB lighting, and monitor CPU and coolant temperatures in iCUE.
- iCUE LINK SYSTEM HUB INCLUDED
Included CORSAIR iCUE LINK System Hub - connect up to 14 iCUE LINK devices (seven per port) in any order.

ZERO RPM MODE
PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads.

EXTREME PERFORMANCE THERMAL PASTE
All iCUE LINK LCD AIOs include pre-applied CORSAIR XTM70 Extreme Performance thermal paste for maximum heat transfer from your high-end processor to the cooler cold plate.

For reliably high cooling performance, every step in the heat transfer and dissipation chain matters.

LOOK YOUR BEST
Stand out with the perfect blend of performance
and aesthetics.

Don't just build a PC, create a masterpiece.

Performance
Fan static pressure	3.8 mmH2O
Quantity per pack	3 pc(s)
Maximum airflow	63.1 cfm
Minimum airflow (imperial)	16.44 cfm
Rotational speed (max)	2400 RPM
Rotational speed (min)	480 RPM
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Supported processor sockets	Socket AM4, Socket AM5
Fan diameter	12 cm
Type	Air cooler
Suitable location	Processor

Design
Fan controller	Yes
Number of fans	3 fan(s)
Base plate material	Copper
Radiator material	Aluminum
Product colour	Black

Weight & dimensions
Weight	2.69 kg
Tube length	45 cm
Radiator height	2.7 cm
Radiator depth	12 cm
Radiator width	39.7 cm

i

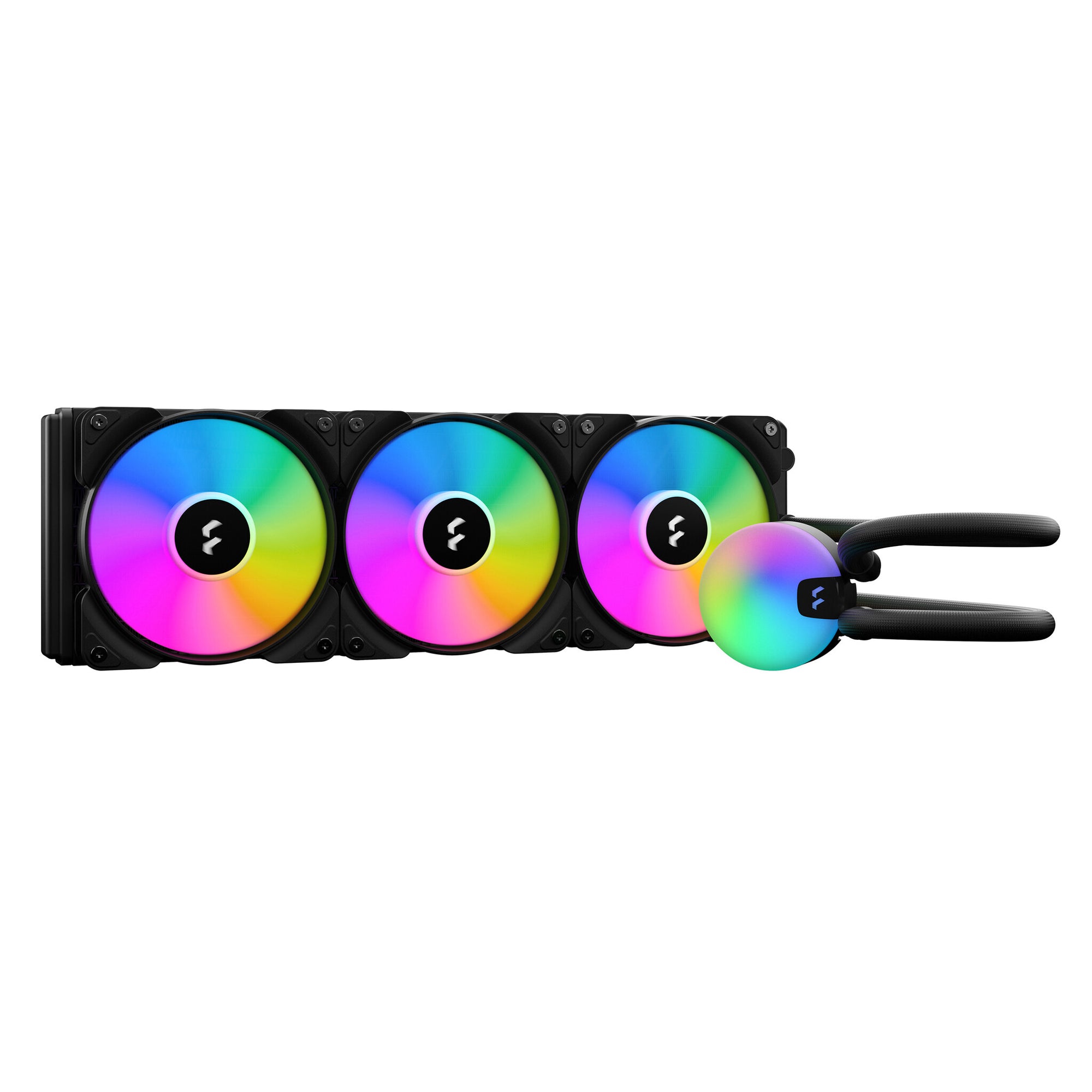

Fractal Design Lumen S36 v2 RGB - All-in-one Liquid CPU Cooler in Black - 360 mm

Water cooling, 3x 120 mm fans, 500-2000 RPM, Aluminum Radiator, RGB

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

The right way up
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Low-permeability rubber tubes with braided nylon sleeves

From subtle to stunning
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller

Color-coordinate your cooling
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma

Forget the thermal paste
- Thermal paste is pre-applied to ensure a proper and pain-free installation
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing

Common denominators
- Compatible with LGA 1700 and AM5
- Supports the most common sockets for both Intel and AMD

Powerful aspects
Aspect fans for low turbulence and chaining support

Performance
Fan's mean time to failure (MTTF)	90000 h
Pump's mean time to failure (MTTF)	50000 h
Pump motor speed	4000 RPM
Quantity per pack	1 pc(s)
Pump bearing technology	Ceramic bearing
Fan bearing technology	Rifle bearing
Pump noise level	22 dB
Pulse-width modulation (PWM) support	Yes
Maximum air pressure	2.34 mmH2O
Minimum air pressure	0.23 mmH2O
Maximum airflow	56 cfm
Minimum airflow (imperial)	13 cfm
Noise level (high speed)	33.2 dB
Noise level (low speed)	10 dB
Rotational speed (max)	2000 RPM
Rotational speed (min)	500 RPM
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket FM2+
Fan diameter	12 cm
Type	All-in-one liquid cooler
Suitable location	Processor

Design
Illumination colour	Multi
Number of LEDs	6
Illumination LED	Yes
Fins material	Aluminium
Number of fans	3 fan(s)
Base plate material	Copper
Radiator material	Aluminum
Product colour	Black

Power
Pump voltage	12 V
Pump current	340 mA
Fan voltage	12 V
Fan current	0.37 A

Weight & dimensions
Package weight	2.2 kg
Package height	205 mm
Package depth	448 mm
Package width	137 mm
Tube length	40 cm
Radiator height	2.7 cm
Radiator depth	39.2 cm
Radiator width	12 cm

Packaging content
Mounting kit	Yes
Package type	Box

i

StarTech.com 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155 with PWM

Performance
Suitable location	Processor
Type	Cooler
Operating temperature (T-T)	-10 - 70 °C
Supported processor sockets	LGA 1156 (Socket H)
Mean time between failures (MTBF)	40000 h
Design
Product colour	Black
Technical details
Type	Cooler
Supported processor sockets	LGA 1156 (Socket H)
Airflow	65.61 CFM
Power
Voltage	12 V
Rated current	0.35 A
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 65%
Colour
Product colour	Black
Weight & dimensions
Package depth	101 mm
Package width	102 mm
Package height	85 mm
Package weight	313 g
Weight	272 g
Endurance
Mean time between failures (MTBF)	40000 h
Packaging data
Package depth	101 mm
Package width	102 mm
Package height	85 mm
Package weight	313 g
Other features
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 65%
Rotational speed	3000 RPM
Dimensions (WxDxH)	95 x 95 x 55 mm
Airflow	65.61 CFM
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080

Add a Variable Speed PWM-Controlled CPU Cooler to an LGA1156/1155 System

The FAN1156PWM CPU Cooler with PWM Cooling Fan for Socket LGA1156/1155 systems provides reliable and efficient cooling for compatible Intel Core i3/i5/i7 CPUs.

With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- PWM control allows for dynamically variable fan speeds for maximum efficiency
- 95mm Ever Lubricate bearing fan for increased reliability and lifespan compared to traditional sleeve-bearing designs
- Backed by a StarTech.com 2-year warranty and free lifetime technical support

i

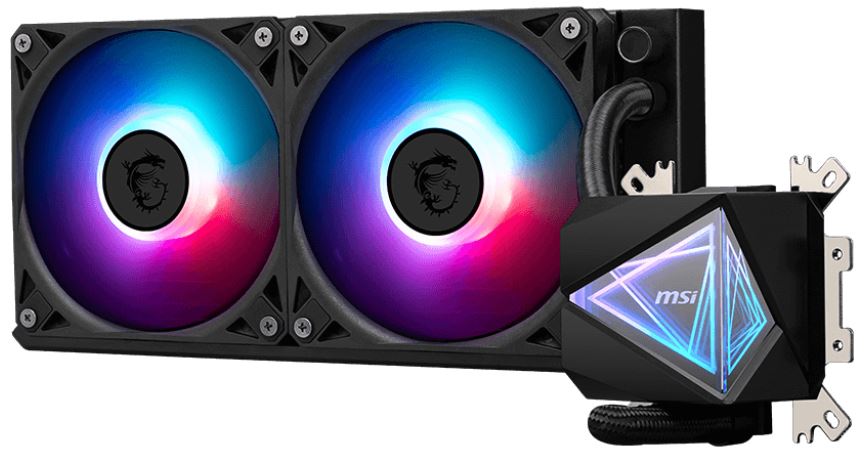

MSI MAG CORELIQUID 240R V2 Liquid CPU Cooler '240mm Radiator, 2x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'

The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.

ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.

LGA 1700 COMPATIBLE
The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.

PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.

EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

Performance
Suitable location	Computer case
Fan connector	4-pin
Rotational speed (min)	500 RPM
Rotational speed (max)	2000 RPM
Bearing type	Dual ball bearing
Noise level (low speed)	14.3 dB
Noise level (high speed)	34.3 dB
Type	Cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
Minimum airflow (imperial)	21.63 cfm
Maximum airflow	78.73 cfm
Number of fans	2 fan(s)
Pump motor speed	4200 RPM
Fan speed (min)	500 RPM
Fan speed (max)	2000 RPM
Design
Fan connector	4-pin
Number of fans	2 fan(s)
Illumination colour	Blue, Green, Red
Product colour	Black
Illumination LED	Yes
Radiator material	Aluminum
Technical details
Noise level (low speed)	14.3 dB
Noise level (high speed)	34.3 dB
Type	Cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
Minimum airflow (imperial)	21.63 cfm
Maximum airflow	78.73 cfm
Number of fans	2 fan(s)
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Power
Rated voltage	12 V
Power consumption (typical)	5.88 W
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Width	80.6 mm
Depth	66.8 mm
Height	48.6 mm
Radiator width	27.4 cm
Radiator depth	12 cm
Radiator height	2.7 cm
Indication
Illumination colour	Blue, Green, Red
Other features
Country of origin	China
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080

i

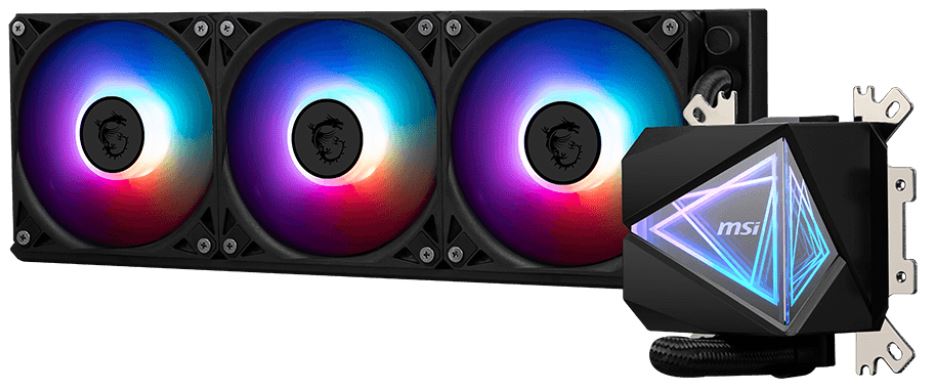

MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'

CONQUER THE BATTLEFIELD
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.

ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.

LGA 1700 COMPATIBLE
The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.

PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.

EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

DIY 2.0 � INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

MORE SILENCE THAN EXPECTED
MAG CORELIQUID 360R V2's noise level is significantly lower than that of competitor's by 10%.

COOLING YOU CAN'T HEAR
For those who prefer a quieter environment, a bundled noise reducer cable changes the fans' speed to produce less sound while still providing good airflow.

EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.

Performance
Suitable location	Motherboard, Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	500 RPM
Rotational speed (max)	2000 RPM
Bearing type	Ball bearing
Type	Liquid cooling kit
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket SP3, Socket TR4, Socket sTRX4
Minimum airflow (imperial)	21.63 cfm
Maximum airflow	78.73 cfm
Minimum air pressure	0.23 mmH2O
Maximum air pressure	2.39 mmH2O
Number of fans	3 fan(s)
Pump connector	3-pin
Fan diameter 2	12 cm
Fan noise level (min)	14.3 dB
Fan noise level (max)	34.3 dB
Pump noise level	18 dB
Fan bearing technology	Ball bearing
Pump bearing technology	Ceramic bearing
Pump motor speed	4200 RPM
Fan speed (min)	500 RPM
Fan speed (max)	2000 RPM
Design
Fan connector	4-pin
Number of fans	3 fan(s)
Product colour	Black
Illumination LED	Yes
Radiator material	Aluminum
Technical details
Type	Liquid cooling kit
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket SP3, Socket TR4, Socket sTRX4
Minimum airflow (imperial)	21.63 cfm
Maximum airflow	78.73 cfm
Minimum air pressure	0.23 mmH2O
Maximum air pressure	2.39 mmH2O
Number of fans	3 fan(s)
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Pump connector	3-pin
Power
Fan power consumption	1.8 W
Pump power consumption	4.08 W
Pump voltage	12 V
Pump current	340 mA
Fan voltage	12 V
Fan current	0.15 A
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Radiator width	39.4 cm
Radiator depth	12 cm
Radiator height	2.7 cm
Tube length	40 cm
Waterblock width	8.06 cm
Waterblock depth	6.68 cm
Waterblock height	4.86 cm
Other features
Pump connector	3-pin
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080

i

ARCTIC Freezer 8A - Compact AMD CPU Cooler

ARCTIC has CPU coolers for all areas of application. Whether for high-end gaming or silent PCs, our large range includes everything from high-performance tower coolers to compact and inexpensive alternatives to boxed coolers. Broad compatibility and innovative features are part of our standard repertoire.

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Number of fins	46
Fins material	Aluminium
Bearing type	Fluid Dynamic Bearing (FDB)
Thermal Design Power (TDP)	350 W
Number of heat pipes	2
Heat pipes diameter	6 mm
Type	Air cooler
Operating temperature (T-T)	0 - 40 °C
Fan diameter	10 cm
Supported processor sockets	Socket AM4, Socket AM5
Number of fans	2 fan(s)
Fan speed (min)	200 RPM
Fan speed (max)	2300 RPM
Design
Fan connector	4-pin
Number of fins	46
Fins material	Aluminium
Number of heat pipes	2
Number of fans	2 fan(s)
Product colour	Aluminium, Black
Technical details
Thermal Design Power (TDP)	350 W
Number of heat pipes	2
Heat pipes diameter	6 mm
Type	Air cooler
Fan diameter	10 cm
Supported processor sockets	Socket AM4, Socket AM5
Number of fans	2 fan(s)
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Thermal Design Power (TDP)	350 W
Fan voltage	12 V
Fan current	0.13 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Aluminium, Black
Weight & dimensions
Fan dimensions (W x D x H)	100 x 100 x 25 mm
Package depth	171 mm
Package width	131 mm
Package height	110 mm
Heat pipes diameter	6 mm
Width	108 mm
Package weight	589 g
Depth	83 mm
Height	136 mm
Weight	415 g
Packaging data
Package depth	171 mm
Package width	131 mm
Package height	110 mm
Package weight	589 g
Package type	Box
Packaging content
Package type	Box

i

ARCTIC Freezer 8i - CO Compact Intel CPU Cooler for Continuous Operation

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Number of fins	46
Fins material	Aluminium
Bearing type	Fluid Dynamic Bearing (FDB)
Thermal Design Power (TDP)	350 W
Number of heat pipes	2
Heat pipes diameter	6 mm
Type	Air cooler
Operating temperature (T-T)	0 - 40 °C
Fan diameter	10 cm
Supported processor sockets	LGA 1700/ LGA 1851
Number of fans	2 fan(s)
Fan speed (min)	200 RPM
Fan speed (max)	2300 RPM
Design
Fan connector	4-pin
Number of fins	46
Fins material	Aluminium
Number of heat pipes	2
Number of fans	2 fan(s)
Product colour	Aluminium/ Black
Technical details
Thermal Design Power (TDP)	350 W
Number of heat pipes	2
Heat pipes diameter	6 mm
Type	Air cooler
Fan diameter	10 cm
Supported processor sockets	LGA 1700/ LGA 1851
Number of fans	2 fan(s)
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Thermal Design Power (TDP)	350 W
Fan voltage	12 V
Fan current	0.13 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Aluminium/ Black
Weight & dimensions
Fan dimensions (W x D x H)	100 x 100 x 25 mm
Package depth	171 mm
Package width	131 mm
Package height	110 mm
Heat pipes diameter	6 mm
Width	108 mm
Package weight	618 g
Depth	83 mm
Height	136 mm
Weight	415 g
Packaging data
Package depth	171 mm
Package width	131 mm
Package height	110 mm
Package weight	618 g
Package type	Box
Packaging content
Package type	Box

ARCTIC has CPU coolers for all areas of application. Whether for high-end gaming or silent PCs/ our large range includes everything from high-performance tower coolers to compact and inexpensive alternatives to boxed coolers. Broad compatibility and innovative features are part of our standard repertoire.

i

ARCTIC Freezer 8i - Compact Intel CPU Cooler

ARCTIC has CPU coolers for all areas of application. Whether for high-end gaming or silent PCs, our large range includes everything from high-performance tower coolers to compact and inexpensive alternatives to boxed coolers. Broad compatibility and innovative features are part of our standard repertoire.

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Number of fins	46
Fins material	Aluminium
Bearing type	Fluid Dynamic Bearing (FDB)
Thermal Design Power (TDP)	350 W
Number of heat pipes	2
Heat pipes diameter	6 mm
Type	Air cooler
Operating temperature (T-T)	0 - 40 °C
Fan diameter	10 cm
Supported processor sockets	LGA 1700, LGA 1851
Number of fans	2 fan(s)
Fan speed (min)	200 RPM
Fan speed (max)	2300 RPM
Design
Fan connector	4-pin
Number of fins	46
Fins material	Aluminium
Number of heat pipes	2
Number of fans	2 fan(s)
Product colour	Aluminium, Black
Technical details
Thermal Design Power (TDP)	350 W
Number of heat pipes	2
Heat pipes diameter	6 mm
Type	Air cooler
Fan diameter	10 cm
Supported processor sockets	LGA 1700, LGA 1851
Number of fans	2 fan(s)
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Thermal Design Power (TDP)	350 W
Fan voltage	12 V
Fan current	0.13 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Aluminium, Black
Weight & dimensions
Fan dimensions (W x D x H)	100 x 100 x 25 mm
Package depth	171 mm
Package width	131 mm
Package height	110 mm
Heat pipes diameter	6 mm
Width	108 mm
Package weight	618 g
Depth	83 mm
Height	136 mm
Weight	415 g
Packaging data
Package depth	171 mm
Package width	131 mm
Package height	110 mm
Package weight	618 g
Package type	Box
Packaging content
Package type	Box

i

ARCTIC Freezer 8A - CO Compact AMD CPU Cooler for Continuous Operation

ARCTIC has CPU coolers for all areas of application. Whether for high-end gaming or silent PCs, our large range includes everything from high-performance tower coolers to compact and inexpensive alternatives to boxed coolers. Broad compatibility and innovative features are part of our standard repertoire.

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Number of fins	46
Fins material	Aluminium
Bearing type	Fluid Dynamic Bearing (FDB)
Thermal Design Power (TDP)	350 W
Number of heat pipes	2
Heat pipes diameter	6 mm
Type	Air cooler
Operating temperature (T-T)	0 - 40 °C
Fan diameter	10 cm
Supported processor sockets	Socket AM4, Socket AM5
Number of fans	2 fan(s)
Fan speed (min)	200 RPM
Fan speed (max)	2300 RPM
Design
Fan connector	4-pin
Number of fins	46
Fins material	Aluminium
Number of heat pipes	2
Number of fans	2 fan(s)
Product colour	Aluminium, Black
Technical details
Thermal Design Power (TDP)	350 W
Number of heat pipes	2
Heat pipes diameter	6 mm
Type	Air cooler
Fan diameter	10 cm
Supported processor sockets	Socket AM4, Socket AM5
Number of fans	2 fan(s)
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Thermal Design Power (TDP)	350 W
Fan voltage	12 V
Fan current	0.13 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Aluminium, Black
Weight & dimensions
Fan dimensions (W x D x H)	100 x 100 x 25 mm
Package depth	171 mm
Package width	131 mm
Package height	110 mm
Heat pipes diameter	6 mm
Width	108 mm
Package weight	589 g
Depth	83 mm
Height	136 mm
Weight	415 g
Packaging data
Package depth	171 mm
Package width	131 mm
Package height	110 mm
Package weight	589 g
Package type	Box
Packaging content
Package type	Box

i

GIGABYTE AORUS WATERFORCE X II 360 ICE AIO Liquid CPU Cooler - 3x120mm ARGB Fans/ full-color LCD/ DAISY-CHAIN/ Intel LGA 1851 and AMD AM5 Compatible

Performance
Suitable location	Processor
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3)/ LGA 1151 (Socket H4)/ LGA 1155 (Socket H2)/ LGA 1156 (Socket H)/ LGA 1200 (Socket H5)/ LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5/ Socket TR4/ Socket TR5
Maximum airflow	72 cfm
Maximum air pressure	3.15 mmH2O
Number of fans	3 fan(s)
Fan noise level (min)	12 dB
Fan noise level (max)	37.5 dB
Pump bearing technology	Ceramic bearing
Pump motor speed (min)	2500 RPM
Pump motor speed (max)	3000 RPM
Fan speed (min)	800 RPM
Fan speed (max)	2400 RPM
Design
Number of fans	3 fan(s)
Material	Aluminium/ Copper
Illumination colour	Multi
Product colour	White
Illumination LED	Yes
Base plate material	Copper
Number of fans supported	3
Technical details
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3)/ LGA 1151 (Socket H4)/ LGA 1155 (Socket H2)/ LGA 1156 (Socket H)/ LGA 1200 (Socket H5)/ LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5/ Socket TR4/ Socket TR5
Maximum airflow	72 cfm
Maximum air pressure	3.15 mmH2O
Number of fans	3 fan(s)
Material	Aluminium/ Copper
Noise level	37.5 dB
Illumination LED	Yes
Warranty period	6 year(s)
Power
Thermal Design Power (TDP)	300 W
Colour
Product colour	White
Weight & dimensions
Package depth	419 mm
Package width	213 mm
Package height	132 mm
Package weight	2.78 kg
Radiator width	39.4 cm
Radiator depth	11.9 cm
Radiator height	2.7 cm
Pump width	8.76 cm
Pump depth	8.76 cm
Pump height	7.77 cm
Packaging data
Package depth	419 mm
Package width	213 mm
Package height	132 mm
Package weight	2.78 kg
Indication
Illumination colour	Multi
Packaging content
CPU bracket(s)	Yes
Other features
Noise level	37.5 dB
Number of fans supported	3

Experience superior cooling performance with GIGABYTE CPU coolers. Designed with advanced thermal solutions and high-quality components/ our coolers ensure optimal temperature regulation for your processor. From air to liquid cooling solutions/ GIGABYTE offers reliability and efficiency/ allowing you to push your CPU to its limits with confidence and peace of mind.

i

GIGABYTE GAMING 360 Liquid CPU Cooler- 3x120mm ARGB Fans/ slide-in interlocking mechanism/ DAISY-CHAIN/ Intel LGA 1851 and AMD AM5 Compatible

Performance
Suitable location	Processor
Number of fins	21
Bearing type	Ball bearing
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1200 (Socket H5)/ LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5
Maximum airflow	61.61 cfm
Maximum air pressure	2.73 mmH2O
Number of fans	3 fan(s)
Quantity per pack	1 pc(s)
Number of fan blades	7
Fan noise level (min)	13.8 dB
Fan noise level (max)	35.8 dB
Pump bearing technology	Ceramic bearing
Pump motor speed (max)	4500 RPM
Fan speed (min)	500 RPM
Fan speed (max)	2200 RPM
Design
Number of fins	21
Number of fans	3 fan(s)
Material	Aluminium/ Copper
Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
Number of fan blades	7
Base plate material	Copper
Number of fans supported	3
Technical details
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1200 (Socket H5)/ LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5
Maximum airflow	61.61 cfm
Maximum air pressure	2.73 mmH2O
Number of fans	3 fan(s)
Material	Aluminium/ Copper
Noise level	36.9 dB
Illumination LED	Yes
Warranty period	3 year(s)
Power
Thermal Design Power (TDP)	300 W
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 25 x 3 mm
Package depth	195.5 mm
Package width	465 mm
Package height	143 mm
Package weight	2.34 kg
Weight	1.66 kg
Radiator width	40.3 cm
Radiator depth	12 cm
Radiator height	3.5 cm
Waterblock width	6.6 cm
Waterblock depth	6.6 cm
Waterblock height	6.3 cm
Pump width	6.6 cm
Pump depth	6.6 cm
Pump height	6.3 cm
Packaging data
Package depth	195.5 mm
Package width	465 mm
Package height	143 mm
Package weight	2.34 kg
Indication
Illumination colour	Multi
Packaging content
CPU bracket(s)	Yes
Other features
Noise level	36.9 dB
Number of fans supported	3

Experience superior cooling performance with GIGABYTE CPU coolers. Designed with advanced thermal solutions and high-quality components/ our coolers ensure optimal temperature regulation for your processor. From air to liquid cooling solutions/ GIGABYTE offers reliability and efficiency/ allowing you to push your CPU to its limits with confidence and peace of mind.

i

GIGABYTE AORUS WATERFORCE X II 240 AIO Liquid CPU Cooler - 2x120mm ARGB Fans/ full-color LCD/ DAISY-CHAIN/ Intel LGA 1851 and AMD AM5 Compatible

Performance
Suitable location	Processor
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3)/ LGA 1151 (Socket H4)/ LGA 1155 (Socket H2)/ LGA 1156 (Socket H)/ LGA 1200 (Socket H5)/ LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5/ Socket TR4/ Socket TR5
Maximum airflow	72 cfm
Maximum air pressure	3.15 mmH2O
Number of fans	2 fan(s)
Fan noise level (min)	12 dB
Fan noise level (max)	37.5 dB
Pump bearing technology	Ceramic bearing
Pump motor speed (min)	2500 RPM
Pump motor speed (max)	3000 RPM
Fan speed (min)	800 RPM
Fan speed (max)	2400 RPM
Design
Number of fans	2 fan(s)
Material	Aluminium/ Copper
Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
Base plate material	Copper
Number of fans supported	2
Technical details
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3)/ LGA 1151 (Socket H4)/ LGA 1155 (Socket H2)/ LGA 1156 (Socket H)/ LGA 1200 (Socket H5)/ LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5/ Socket TR4/ Socket TR5
Maximum airflow	72 cfm
Maximum air pressure	3.15 mmH2O
Number of fans	2 fan(s)
Material	Aluminium/ Copper
Noise level	37.5 dB
Illumination LED	Yes
Warranty period	6 year(s)
Power
Thermal Design Power (TDP)	300 W
Colour
Product colour	Black
Weight & dimensions
Package depth	373 mm
Package width	188 mm
Package height	132 mm
Package weight	2.37 kg
Radiator width	27.7 cm
Radiator depth	11.9 cm
Radiator height	2.7 cm
Pump width	8.76 cm
Pump depth	8.76 cm
Pump height	7.77 cm
Packaging data
Package depth	373 mm
Package width	188 mm
Package height	132 mm
Package weight	2.37 kg
Indication
Illumination colour	Multi
Packaging content
CPU bracket(s)	Yes
Other features
Noise level	37.5 dB
Number of fans supported	2

Experience superior cooling performance with GIGABYTE CPU coolers. Designed with advanced thermal solutions and high-quality components/ our coolers ensure optimal temperature regulation for your processor. From air to liquid cooling solutions/ GIGABYTE offers reliability and efficiency/ allowing you to push your CPU to its limits with confidence and peace of mind.

i

GIGABYTE GAMING 240 Liquid CPU Cooler- 2x120mm ARGB Fans/ slide-in interlocking mechanism/ DAISY-CHAIN/ Intel LGA 1851 and AMD AM5 Compatible

Performance
Suitable location	Processor
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5
Maximum airflow	61.61 cfm
Maximum air pressure	2.73 mmH2O
Number of fans	2 fan(s)
Fan noise level (min)	13.8 dB
Fan noise level (max)	35.8 dB
Pump bearing technology	Ceramic bearing
Pump motor speed (max)	4500 RPM
Fan speed (min)	500 RPM
Fan speed (max)	2200 RPM
Design
Number of fans	2 fan(s)
Material	Aluminium/ Copper
Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
Base plate material	Copper
Number of fans supported	3
Technical details
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5
Maximum airflow	61.61 cfm
Maximum air pressure	2.73 mmH2O
Number of fans	2 fan(s)
Material	Aluminium/ Copper
Illumination LED	Yes
Warranty period	3 year(s)
Power
Thermal Design Power (TDP)	300 W
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 25 x 2 mm
Package depth	350 mm
Package width	221.5 mm
Package height	143 mm
Package weight	1.54 kg
Weight	1.36 kg
Radiator width	28.4 cm
Radiator depth	12 cm
Radiator height	3.5 cm
Tube length	39.5 cm
Waterblock width	6.6 cm
Waterblock depth	6.6 cm
Waterblock height	6.3 cm
Pump width	6.6 cm
Pump depth	6.6 cm
Pump height	6.3 cm
Packaging data
Package depth	350 mm
Package width	221.5 mm
Package height	143 mm
Package weight	1.54 kg
Indication
Illumination colour	Multi
Packaging content
CPU bracket(s)	Yes
Other features
Number of fans supported	3

Experience superior cooling performance with GIGABYTE CPU coolers. Designed with advanced thermal solutions and high-quality components/ our coolers ensure optimal temperature regulation for your processor. From air to liquid cooling solutions/ GIGABYTE offers reliability and efficiency/ allowing you to push your CPU to its limits with confidence and peace of mind.

i

GIGABYTE GAMING 240 ICE Liquid CPU Cooler- 2x120mm ARGB Fans/ slide-in interlocking mechanism/ DAISY-CHAIN/ Intel LGA 1851 and AMD AM5 Compatible

Performance
Suitable location	Processor
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5
Maximum airflow	61.61 cfm
Maximum air pressure	2.73 mmH2O
Number of fans	2 fan(s)
Fan noise level (min)	13.8 dB
Fan noise level (max)	35.8 dB
Pump bearing technology	Ceramic bearing
Pump motor speed (max)	4500 RPM
Fan speed (min)	500 RPM
Fan speed (max)	2200 RPM
Design
Number of fans	2 fan(s)
Material	Aluminium/ Copper
Illumination colour	Multi
Product colour	White
Illumination LED	Yes
Base plate material	Copper
Number of fans supported	3
Technical details
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5
Maximum airflow	61.61 cfm
Maximum air pressure	2.73 mmH2O
Number of fans	2 fan(s)
Material	Aluminium/ Copper
Illumination LED	Yes
Warranty period	3 year(s)
Power
Thermal Design Power (TDP)	300 W
Colour
Product colour	White
Weight & dimensions
Fan dimensions (W x D x H)	120 x 25 x 2 mm
Package depth	350 mm
Package width	221.5 mm
Package height	143 mm
Package weight	1.54 kg
Weight	1.36 kg
Radiator width	28.4 cm
Radiator depth	12 cm
Radiator height	3.5 cm
Tube length	39.5 cm
Waterblock width	6.6 cm
Waterblock depth	6.6 cm
Waterblock height	6.3 cm
Pump width	6.6 cm
Pump depth	6.6 cm
Pump height	6.3 cm
Packaging data
Package depth	350 mm
Package width	221.5 mm
Package height	143 mm
Package weight	1.54 kg
Indication
Illumination colour	Multi
Packaging content
CPU bracket(s)	Yes
Other features
Number of fans supported	3

Experience superior cooling performance with GIGABYTE CPU coolers. Designed with advanced thermal solutions and high-quality components/ our coolers ensure optimal temperature regulation for your processor. From air to liquid cooling solutions/ GIGABYTE offers reliability and efficiency/ allowing you to push your CPU to its limits with confidence and peace of mind.

i

GIGABYTE AORUS WATERFORCE X II 360 AIO Liquid CPU Cooler - 3x120mm ARGB Fans/ full-color LCD/ MAGNETIC interlocking mechanism/ DAISY-CHAIN/ Intel LGA 1851 and AMD AM5 Compatible

Performance
Suitable location	Processor
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3)/ LGA 1151 (Socket H4)/ LGA 1155 (Socket H2)/ LGA 1156 (Socket H)/ LGA 1200 (Socket H5)/ LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5/ Socket TR4/ Socket TR5
Maximum airflow	72 cfm
Maximum air pressure	3.15 mmH2O
Number of fans	3 fan(s)
Fan noise level (min)	12 dB
Fan noise level (max)	37.5 dB
Pump bearing technology	Ceramic bearing
Pump motor speed (min)	2500 RPM
Pump motor speed (max)	3000 RPM
Fan speed (min)	800 RPM
Fan speed (max)	2400 RPM
Design
Number of fans	3 fan(s)
Material	Aluminium/ Copper
Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
Base plate material	Copper
Number of fans supported	3
Technical details
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3)/ LGA 1151 (Socket H4)/ LGA 1155 (Socket H2)/ LGA 1156 (Socket H)/ LGA 1200 (Socket H5)/ LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5/ Socket TR4/ Socket TR5
Maximum airflow	72 cfm
Maximum air pressure	3.15 mmH2O
Number of fans	3 fan(s)
Material	Aluminium/ Copper
Noise level	37.5 dB
Illumination LED	Yes
Warranty period	6 year(s)
Power
Thermal Design Power (TDP)	300 W
Colour
Product colour	Black
Weight & dimensions
Package depth	419 mm
Package width	213 mm
Package height	132 mm
Package weight	2.78 kg
Radiator width	39.4 cm
Radiator depth	11.9 cm
Radiator height	2.7 cm
Pump width	8.76 cm
Pump depth	8.76 cm
Pump height	7.77 cm
Packaging data
Package depth	419 mm
Package width	213 mm
Package height	132 mm
Package weight	2.78 kg
Indication
Illumination colour	Multi
Packaging content
CPU bracket(s)	Yes
Other features
Noise level	37.5 dB
Number of fans supported	3

Experience superior cooling performance with GIGABYTE CPU coolers. Designed with advanced thermal solutions and high-quality components/ our coolers ensure optimal temperature regulation for your processor. From air to liquid cooling solutions/ GIGABYTE offers reliability and efficiency/ allowing you to push your CPU to its limits with confidence and peace of mind.

i

GIGABYTE GAMING 360 ICE Liquid CPU Cooler- 3x120mm ARGB Fans, slide-in interlocking mechanism, DAISY-CHAIN, Intel LGA 1851 and AMD AM5 Compatible

Performance
Suitable location	Processor
Number of fins	21
Bearing type	Ball bearing
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5
Maximum airflow	61.61 cfm
Maximum air pressure	2.73 mmH2O
Number of fans	3 fan(s)
Quantity per pack	1 pc(s)
Number of fan blades	7
Fan noise level (min)	13.8 dB
Fan noise level (max)	35.8 dB
Pump bearing technology	Ceramic bearing
Pump motor speed (max)	4500 RPM
Fan speed (min)	500 RPM
Fan speed (max)	2200 RPM
Design
Number of fins	21
Number of fans	3 fan(s)
Material	Aluminium, Copper
Illumination colour	Multi
Product colour	White
Illumination LED	Yes
Number of fan blades	7
Base plate material	Copper
Number of fans supported	3
Technical details
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5
Maximum airflow	61.61 cfm
Maximum air pressure	2.73 mmH2O
Number of fans	3 fan(s)
Material	Aluminium, Copper
Noise level	36.9 dB
Illumination LED	Yes
Warranty period	3 year(s)
Power
Thermal Design Power (TDP)	300 W
Colour
Product colour	White
Weight & dimensions
Fan dimensions (W x D x H)	120 x 25 x 3 mm
Package depth	195.5 mm
Package width	465 mm
Package height	143 mm
Package weight	2.34 kg
Weight	1.66 kg
Radiator width	40.3 cm
Radiator depth	12 cm
Radiator height	3.5 cm
Waterblock width	6.6 cm
Waterblock depth	6.6 cm
Waterblock height	6.3 cm
Pump width	6.6 cm
Pump depth	6.6 cm
Pump height	6.3 cm
Packaging data
Package depth	195.5 mm
Package width	465 mm
Package height	143 mm
Package weight	2.34 kg
Indication
Illumination colour	Multi
Packaging content
CPU bracket(s)	Yes
Other features
Noise level	36.9 dB
Number of fans supported	3

i

GIGABYTE AORUS WATERFORCE II 240 AIO Liquid CPU Cooler - 2x120mm ARGB Fans/ slide-in interlocking mechanism/ DAISY-CHAIN/ Intel LGA 1851 and AMD AM5 Compatible

Performance
Suitable location	Processor
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3)/ LGA 1151 (Socket H4)/ LGA 1155 (Socket H2)/ LGA 1156 (Socket H)/ LGA 1200 (Socket H5)/ LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5
Maximum airflow	64.25 cfm
Maximum air pressure	2.93 mmH2O
Number of fans	2 fan(s)
Fan noise level (min)	12.8 dB
Fan noise level (max)	36.9 dB
Pump bearing technology	Ceramic bearing
Pump motor speed (min)	1600 RPM
Pump motor speed (max)	3400 RPM
Fan speed (min)	800 RPM
Fan speed (max)	2300 RPM
Design
Number of fans	2 fan(s)
Material	Aluminium/ Copper
Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
Base plate material	Copper
Number of fans supported	2
Technical details
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3)/ LGA 1151 (Socket H4)/ LGA 1155 (Socket H2)/ LGA 1156 (Socket H)/ LGA 1200 (Socket H5)/ LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5
Maximum airflow	64.25 cfm
Maximum air pressure	2.93 mmH2O
Number of fans	2 fan(s)
Material	Aluminium/ Copper
Noise level	36.9 dB
Illumination LED	Yes
Warranty period	5 year(s)
Power
Thermal Design Power (TDP)	300 W
Colour
Product colour	Black
Weight & dimensions
Package depth	375 mm
Package width	209 mm
Package height	143 mm
Package weight	2.07 kg
Radiator width	27.7 cm
Radiator depth	11.9 cm
Radiator height	2.7 cm
Pump width	7.28 cm
Pump depth	7.28 cm
Pump height	6.51 cm
Packaging data
Package depth	375 mm
Package width	209 mm
Package height	143 mm
Package weight	2.07 kg
Indication
Illumination colour	Multi
Packaging content
CPU bracket(s)	Yes
Other features
Noise level	36.9 dB
Number of fans supported	2

Experience superior cooling performance with GIGABYTE CPU coolers. Designed with advanced thermal solutions and high-quality components/ our coolers ensure optimal temperature regulation for your processor. From air to liquid cooling solutions/ GIGABYTE offers reliability and efficiency/ allowing you to push your CPU to its limits with confidence and peace of mind.

i

GIGABYTE AORUS WATERFORCE II 360 ICE AIO Liquid CPU Cooler - 3x120mm ARGB Fans/ slide-in interlocking mechanism/ DAISY-CHAIN/ Intel LGA 1851 and AMD AM5 Compatible

Performance
Suitable location	Processor
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3)/ LGA 1151 (Socket H4)/ LGA 1155 (Socket H2)/ LGA 1156 (Socket H)/ LGA 1200 (Socket H5)/ LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5
Maximum airflow	64.95 cfm
Maximum air pressure	2.93 mmH2O
Number of fans	3 fan(s)
Fan noise level (min)	12.8 dB
Fan noise level (max)	36.9 dB
Pump bearing technology	Ceramic bearing
Pump motor speed (min)	1600 RPM
Pump motor speed (max)	3400 RPM
Fan speed (min)	800 RPM
Fan speed (max)	2300 RPM
Design
Number of fans	3 fan(s)
Material	Aluminium/ Copper
Illumination colour	Multi
Product colour	White
Illumination LED	Yes
Base plate material	Copper
Number of fans supported	3
Technical details
Thermal Design Power (TDP)	300 W
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3)/ LGA 1151 (Socket H4)/ LGA 1155 (Socket H2)/ LGA 1156 (Socket H)/ LGA 1200 (Socket H5)/ LGA 1700/ LGA 1851/ Socket AM4/ Socket AM5
Maximum airflow	64.95 cfm
Maximum air pressure	2.93 mmH2O
Number of fans	3 fan(s)
Material	Aluminium/ Copper
Noise level	36.9 dB
Illumination LED	Yes
Warranty period	5 year(s)
Power
Thermal Design Power (TDP)	300 W
Colour
Product colour	White
Weight & dimensions
Package depth	470 mm
Package width	209 mm
Package height	143 mm
Package weight	2.52 kg
Radiator width	39.4 cm
Radiator depth	11.9 cm
Radiator height	2.7 cm
Pump width	7.28 cm
Pump depth	7.28 cm
Pump height	6.51 cm
Packaging data
Package depth	470 mm
Package width	209 mm
Package height	143 mm
Package weight	2.52 kg
Indication
Illumination colour	Multi
Packaging content
CPU bracket(s)	Yes
Other features
Noise level	36.9 dB
Number of fans supported	3

Experience superior cooling performance with GIGABYTE CPU coolers. Designed with advanced thermal solutions and high-quality components/ our coolers ensure optimal temperature regulation for your processor. From air to liquid cooling solutions/ GIGABYTE offers reliability and efficiency/ allowing you to push your CPU to its limits with confidence and peace of mind.

i

MSI MAG CORELIQUID 240R V2 Liquid CPU Cooler '240mm Radiator, 2x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'

The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.

ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.

LGA 1700 COMPATIBLE
The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.

PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.

EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

Performance
Suitable location	Computer case
Fan connector	4-pin
Rotational speed (min)	500 RPM
Rotational speed (max)	2000 RPM
Bearing type	Dual ball bearing
Noise level (low speed)	14.3 dB
Noise level (high speed)	34.3 dB
Type	Cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
Minimum airflow (imperial)	21.63 cfm
Maximum airflow	78.73 cfm
Number of fans	2 fan(s)
Pump motor speed	4200 RPM
Fan speed (min)	500 RPM
Fan speed (max)	2000 RPM
Design
Fan connector	4-pin
Number of fans	2 fan(s)
Illumination colour	Blue, Green, Red
Product colour	Black
Illumination LED	Yes
Radiator material	Aluminum
Technical details
Noise level (low speed)	14.3 dB
Noise level (high speed)	34.3 dB
Type	Cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
Minimum airflow (imperial)	21.63 cfm
Maximum airflow	78.73 cfm
Number of fans	2 fan(s)
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Power
Rated voltage	12 V
Power consumption (typical)	5.88 W
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Width	80.6 mm
Depth	66.8 mm
Height	48.6 mm
Radiator width	27.4 cm
Radiator depth	12 cm
Radiator height	2.7 cm
Indication
Illumination colour	Blue, Green, Red
Other features
Country of origin	China
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080

i

Currency

Currency

PC Components - Processor Cooling

Currency

Currency

PC Components - Processor Cooling

Search
