Unite as one
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Processor | |
---|---|
Supported processor sockets | Socket AM5 |
Compatible processor series | AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen |
Processor socket | Socket AM5 |
Processor manufacturer | AMD |
Memory | |
---|---|
Maximum internal memory | 128 GB |
Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
Number of memory slots | 4 |
Supported memory types | DDR5-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 10 |
Supported storage drive interfaces | M.2, SATA |
Graphics | |
---|---|
Parallel processing technology support | Not supported |
Internal I/O | |
---|---|
Chassis intrusion connector | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel connector | Yes |
Front panel audio connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 2.0 connectors | 4 |

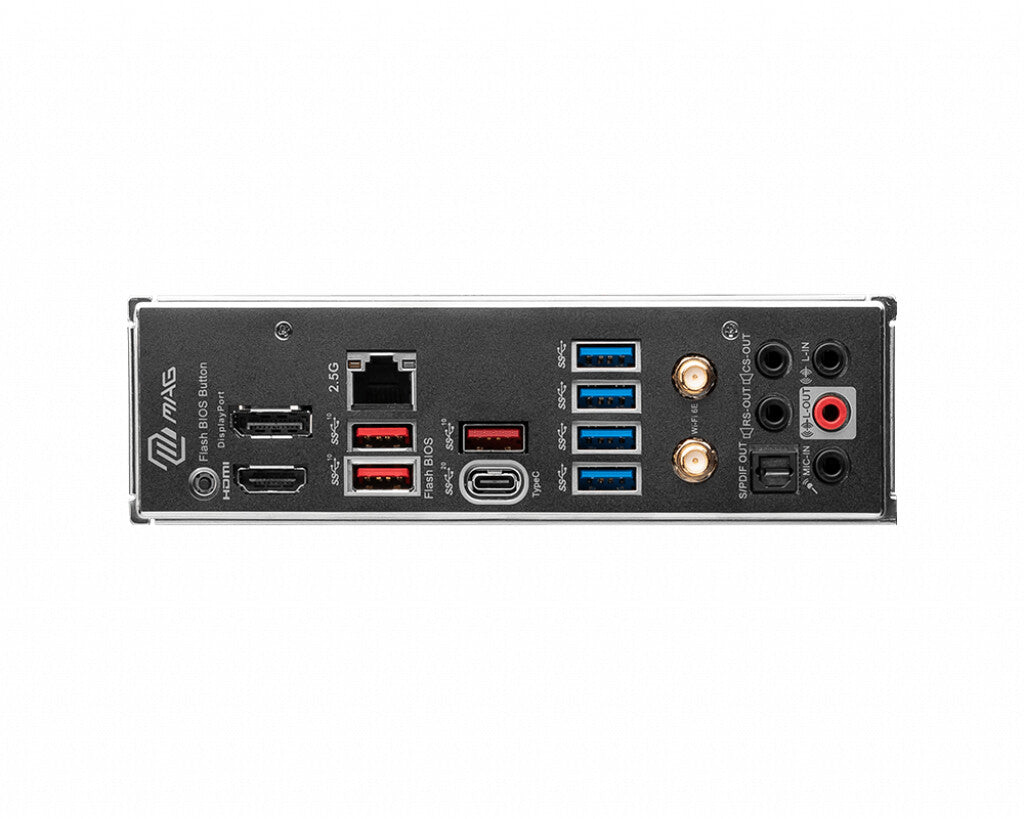

Rear panel I/O ports | |
---|---|
Microphone in | Yes |
Line-in | Yes |
Headphone outputs | 1 |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Network | |
---|---|
Bluetooth version | 5.2 |
Bluetooth | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi | Yes |
LAN controller | Realtek RTL8125B |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 11 x64 |
PC health monitoring | Fan |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC4080 |
Motherboard chipset | AMD B650 |
Motherboard chipset family | AMD |
Motherboard form factor | micro ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 2 |
PCI Express x16 (Gen 3.x) slots | 1 |
BIOS | |
---|---|
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Weight & dimensions | |
---|---|
Depth | 243.8 mm |
Width | 243.8 mm |
