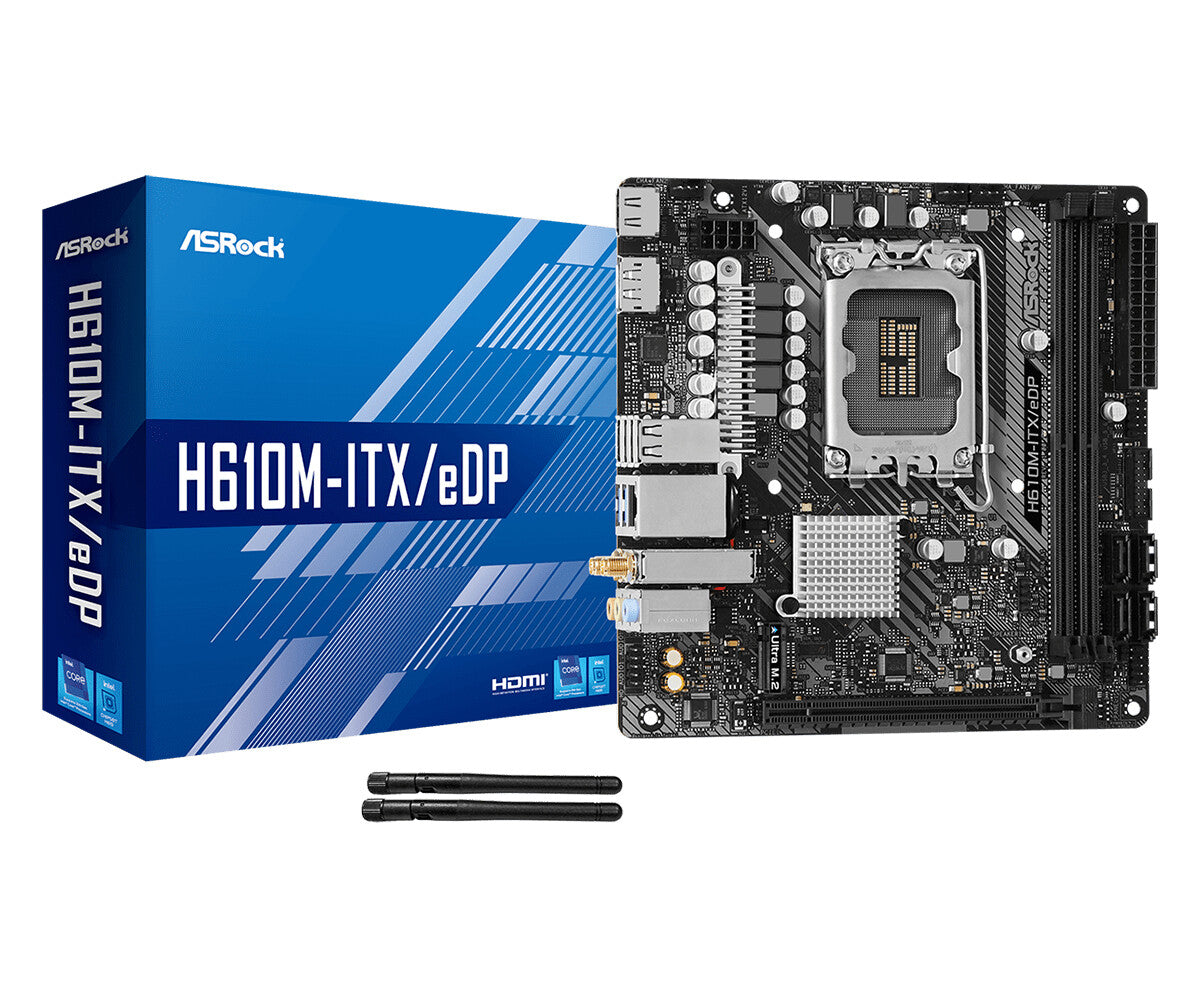

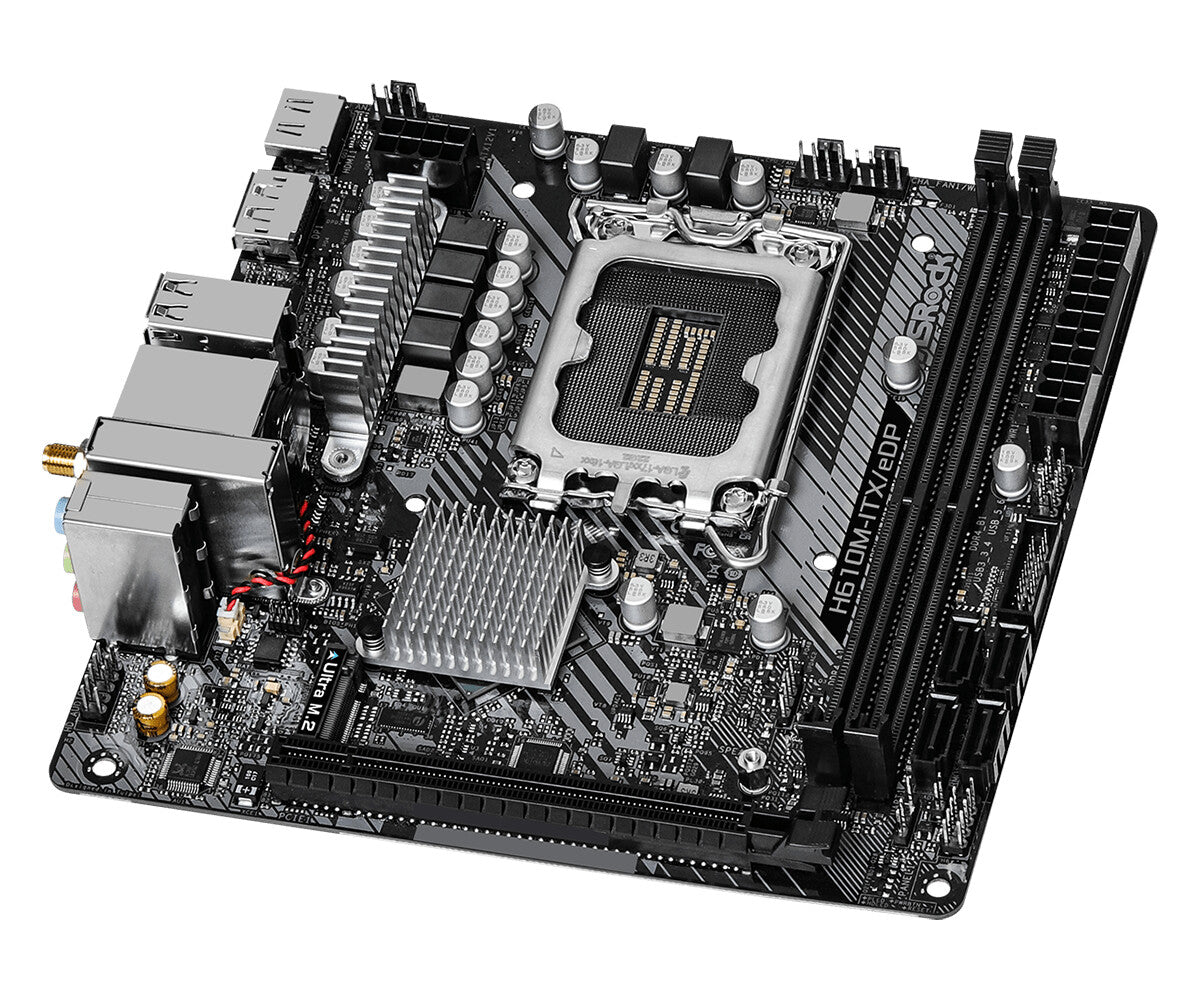

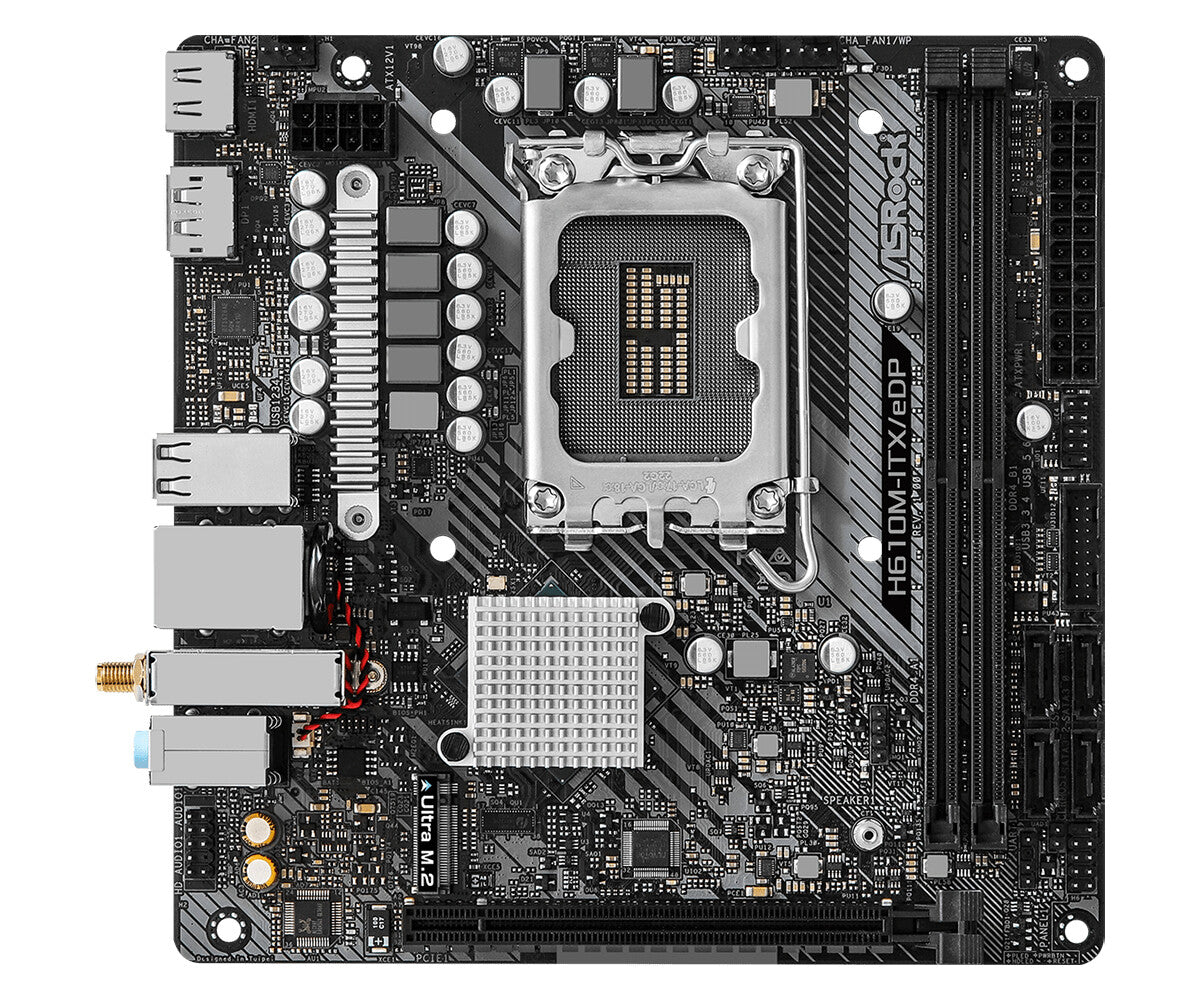

    Asrock H610M-ITX/EDP mini ITX motherboard - Intel H610 LGA 1700

    Asrock H610M-ITX/EDP mini ITX motherboard - Intel H610 LGA 1700

    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    IN STOCK
    EAN: 4710483939983 SKU: 92867706 MPN: H610M ITX/EDP
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
    • 6 Phase Dr.MOS Power Design
    • Supports DDR4 3200MHz
    • 1 PCIe 4.0 x16
    • Graphics Output Options: HDMI, DisplayPort
    • Realtek ALC897 7.1 CH HD Audio Codec
    • 4 SATA3
    • 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
    • 4 USB 3.2 Gen1 (2 Front, 2 Rear)
    • 6 USB 2.0 (2 Front, 4 Rear)
    • Intel® Gigabit LAN
    • Intel® 802.11ac WiFi + Bluetooth 5.1

    LGA 1700, Intel H610, 2 x DDR4 DIMM, 128Mb AMI UEFI, 7.1 CH HD Audio, Gigabit LAN, 802.11 a/b/g/n/ac, Bluetooth 5.1, Mini-ITX

    Built in eDP Signal Connector
    Supports ASRock 13.3” Side Panel kit

    An eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously - power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock’s exclusive 13.3” Side Panel Kit.. The ideal 13.3" Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs - doubles productivity or entertainment.

    Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
    The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

    Intel® Gigabit LAN
    Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

    Dual Band 802.11ac WiFi
    No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.

    Dual Graphics Outputs
    Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

    HDMI 4k @60Hz
    Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

    Full Spike Protection
    Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

    Processor
    Maximum number of SMP processors 1
    Compatible processor series Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
    Processor socket LGA 1700
    Processor manufacturer Intel
    Memory
    Unbuffered memory Yes
    Maximum internal memory 64 GB
    Non-ECC Yes
    ECC Yes
    Memory channels Dual-channel
    Memory slots type DIMM
    Number of memory slots 2
    Supported memory types DDR4-SDRAM
    Storage controllers
    Supported storage drive interfaces M.2, SATA III
    Supported storage drive types HDD & SSD
    Internal I/O
    Number of chassis fan connectors 1
    CPU fan connector Yes
    ATX Power connector (24-pin) Yes
    Front panel audio connector Yes
    Number of SATA III connectors 4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 2.0 connectors 1

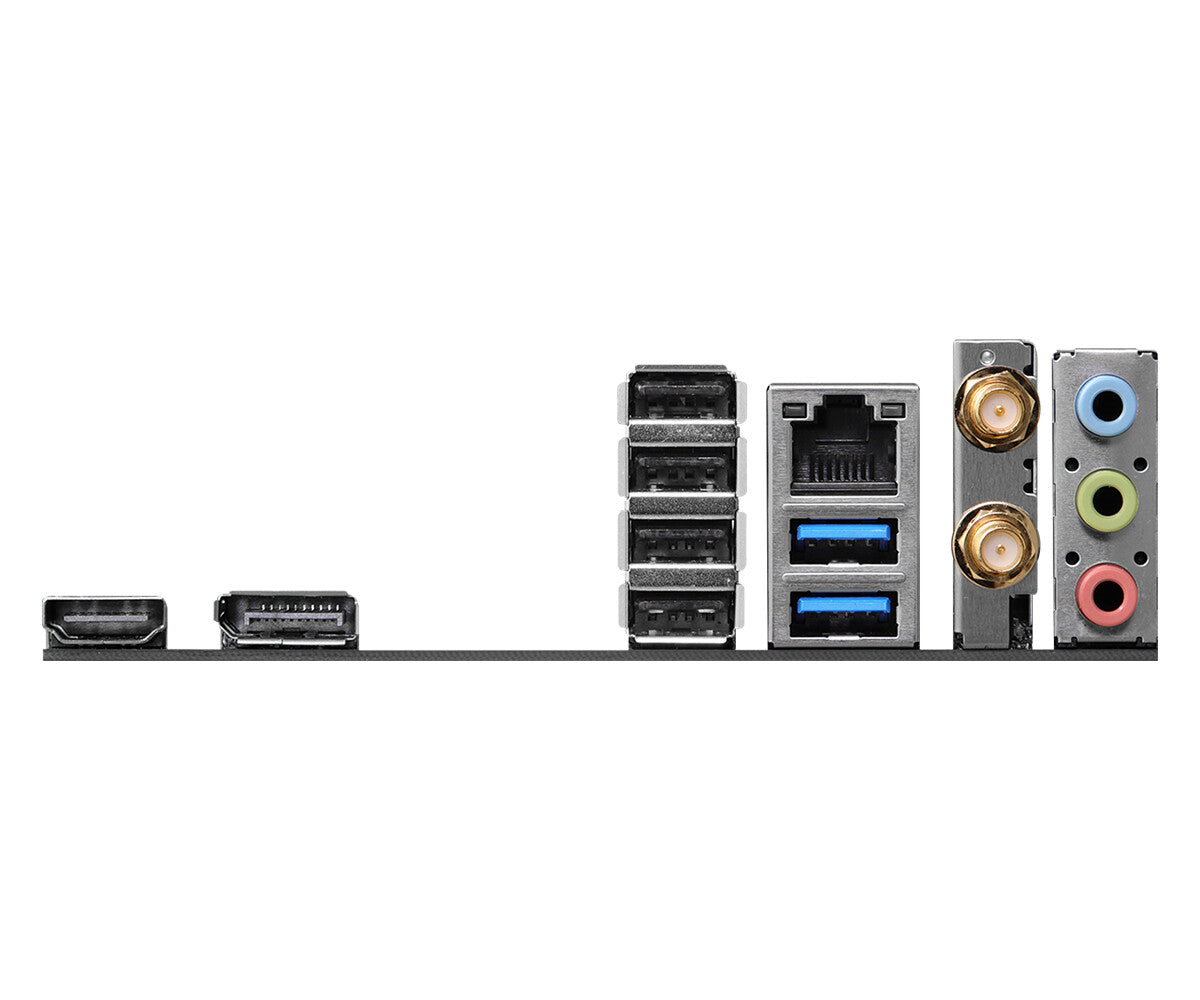

    Rear panel I/O ports
    Microphone in Yes
    Line-in Yes
    DisplayPort version 1.4
    DisplayPorts quantity 1
    HDMI ports quantity 1
    Ethernet LAN (RJ-45) ports 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
    USB 2.0 ports quantity 4
    Network
    Bluetooth version 5.1
    Bluetooth Yes
    Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
    Top Wi-Fi standard Wi-Fi 5 (802.11ac)
    Wi-Fi Yes
    Wake-on-LAN ready Yes
    LAN controller Intel® I219-V
    Ethernet interface type Gigabit Ethernet
    Ethernet LAN Yes
    Features
    Windows operating systems supported Windows 10 x64, Windows 11 x64
    Audio output channels 7.1 channels
    Audio chip Realtek ALC897
    Motherboard chipset Intel H610
    Motherboard chipset family Intel
    Motherboard form factor mini ITX
    Component for PC
    Expansion slots
    Number of M.2 (M) slots 1
    PCI Express x16 (Gen 4.x) slots 1
    BIOS
    System Management BIOS (SMBIOS) version 2.7
    ACPI version 6.0
    BIOS memory size 128 Mbit
    BIOS type UEFI AMI
    Weight & dimensions
    Depth 170 mm
    Width 170 mm
    Packaging content
    Cables included SATA
