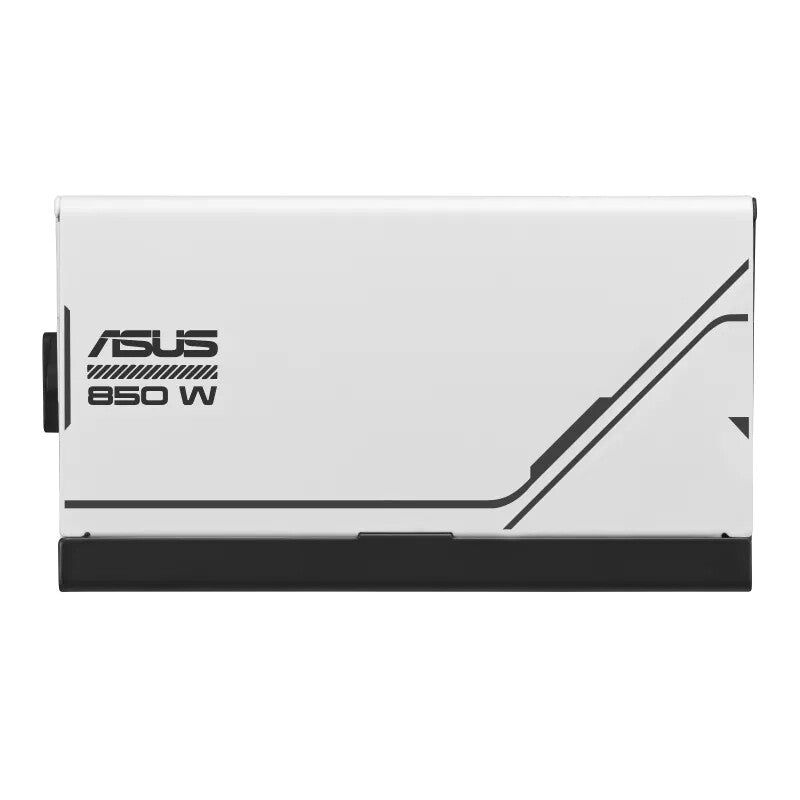

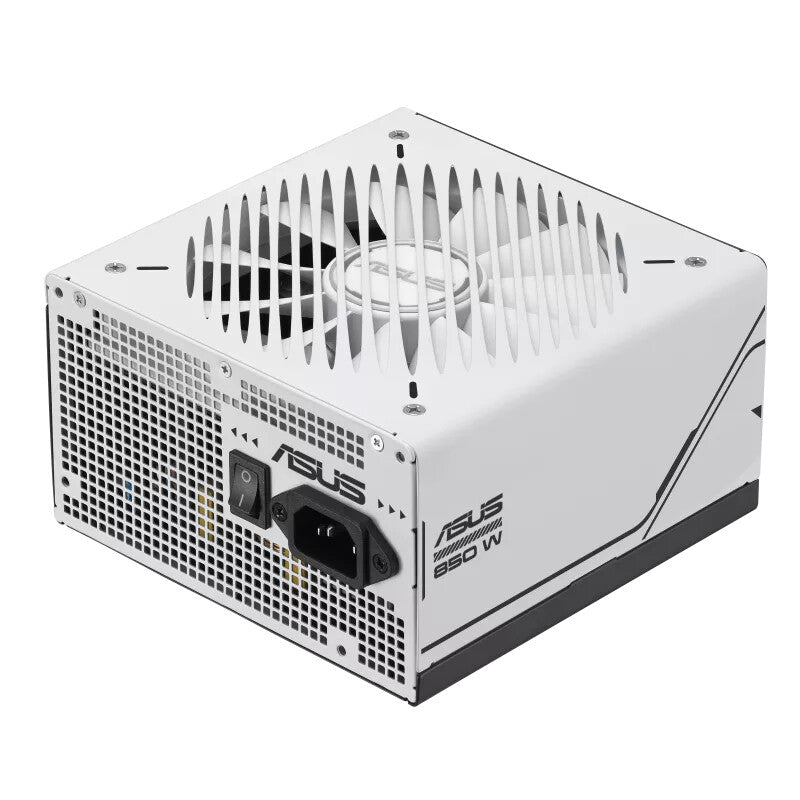

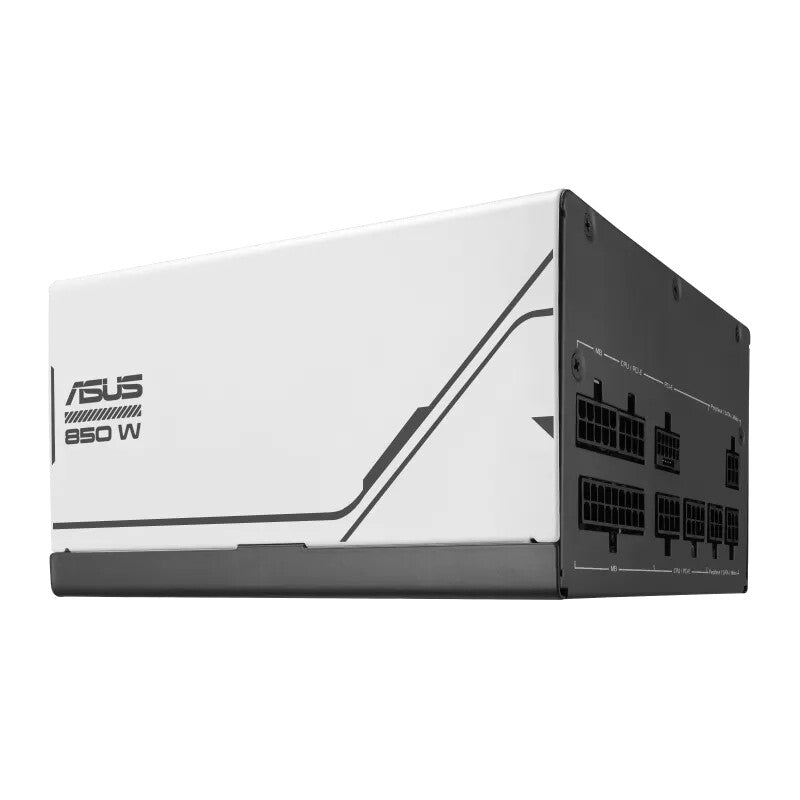

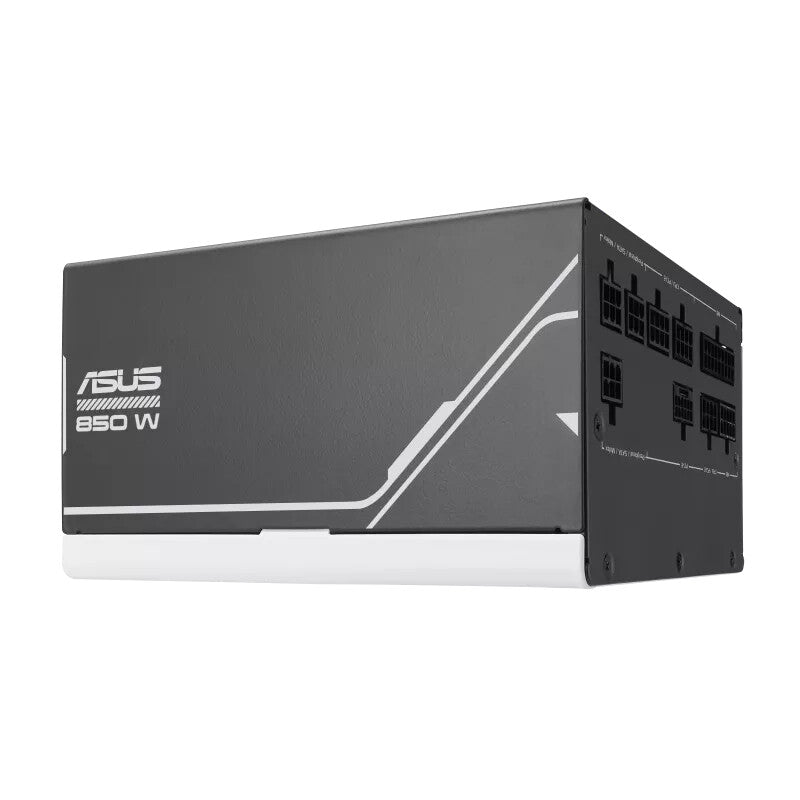

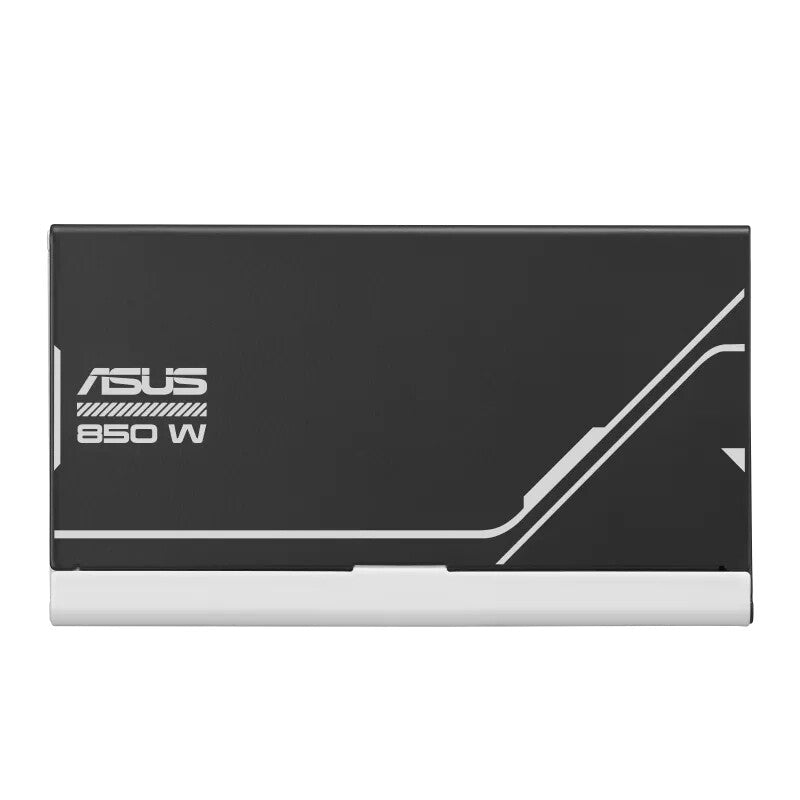

PRIME PERFORMANCE
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
DUAL BALL FAN BEARINGS

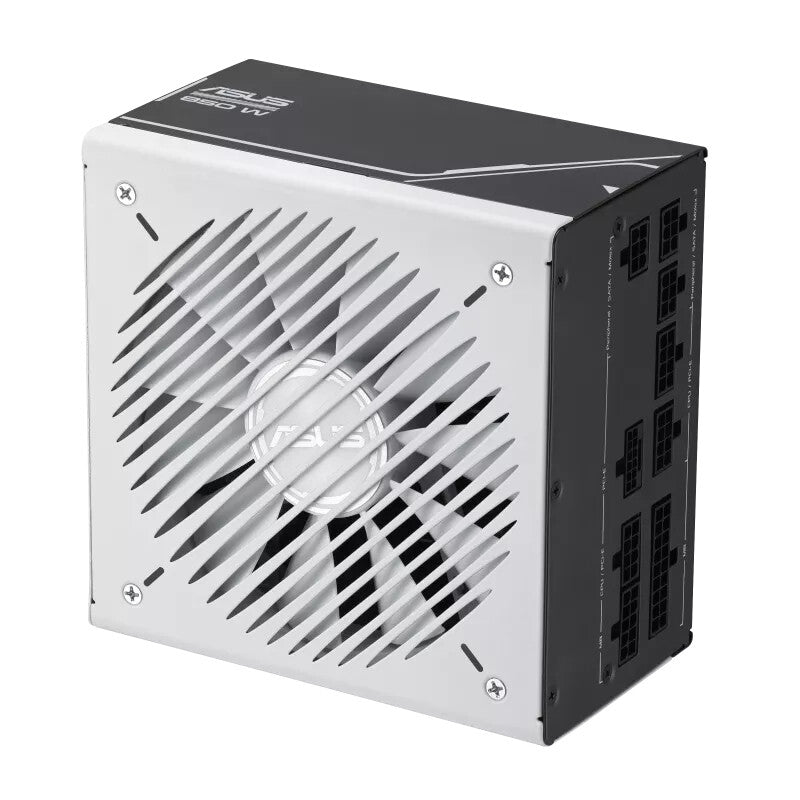

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
80 PLUS GOLD CERTIFICATION

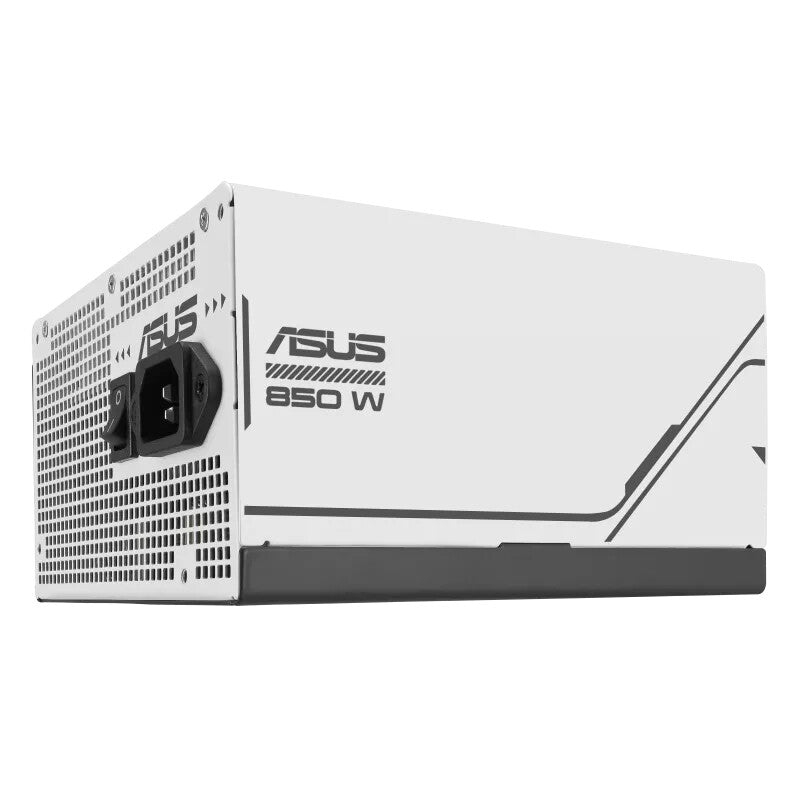

The ASUS Prime 850W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 COMPATIBLE
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 850W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 70.5 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 110 W |
Combined power (+12V) | 846 W |
Combined power (+3.3V) | 110 W |
AC input voltage | 100 - 240 V |
Total power | 850 W |
Ports & interfaces | |
---|---|

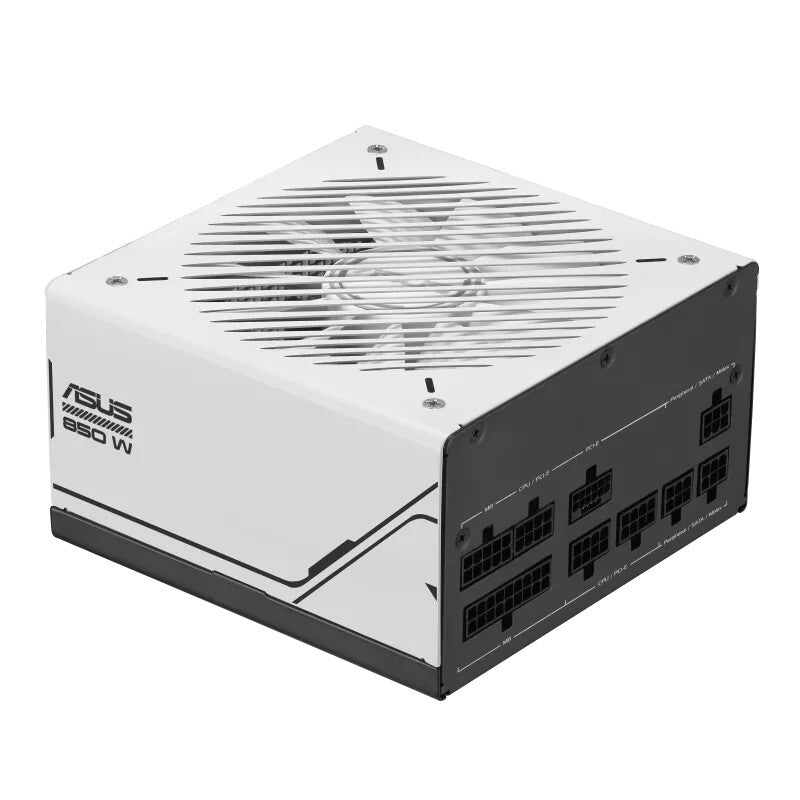

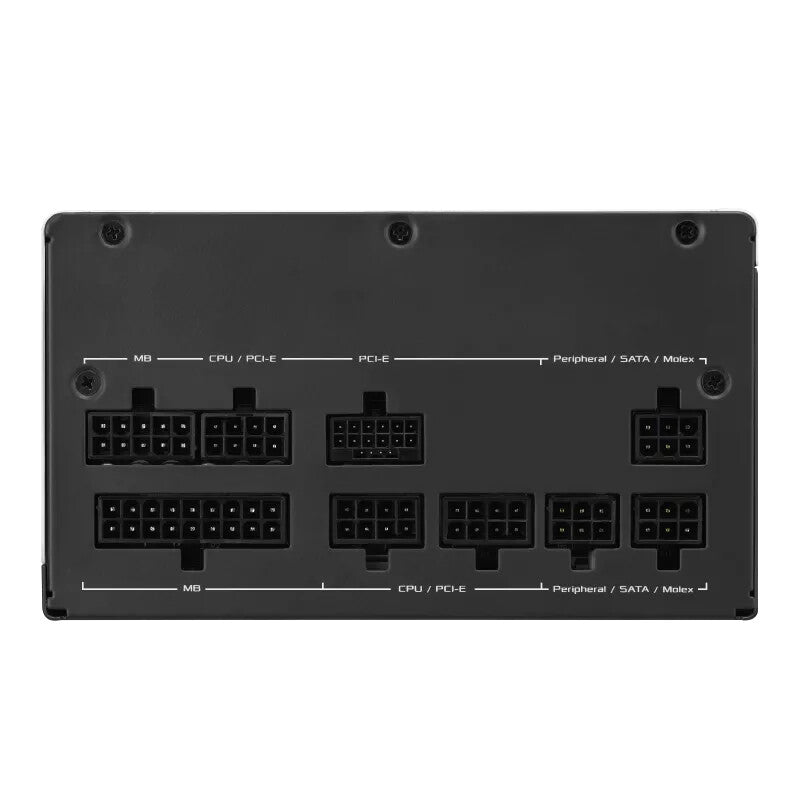

Cabling type | Fully-Modular |
CPU power cable length | 65 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 67.5 cm |
PCI Express power connectors (8-pin) | 3 |
PCI Express power connectors (16-pin) | 1 |
Peripheral (Molex) power cable length | 150,400 mm |
Peripheral (Molex) power connectors (4-pin) | 3 |
SATA power cable length | 120,400 mm |
Number of SATA power connectors | 5 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Bearing technology | DBB |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|

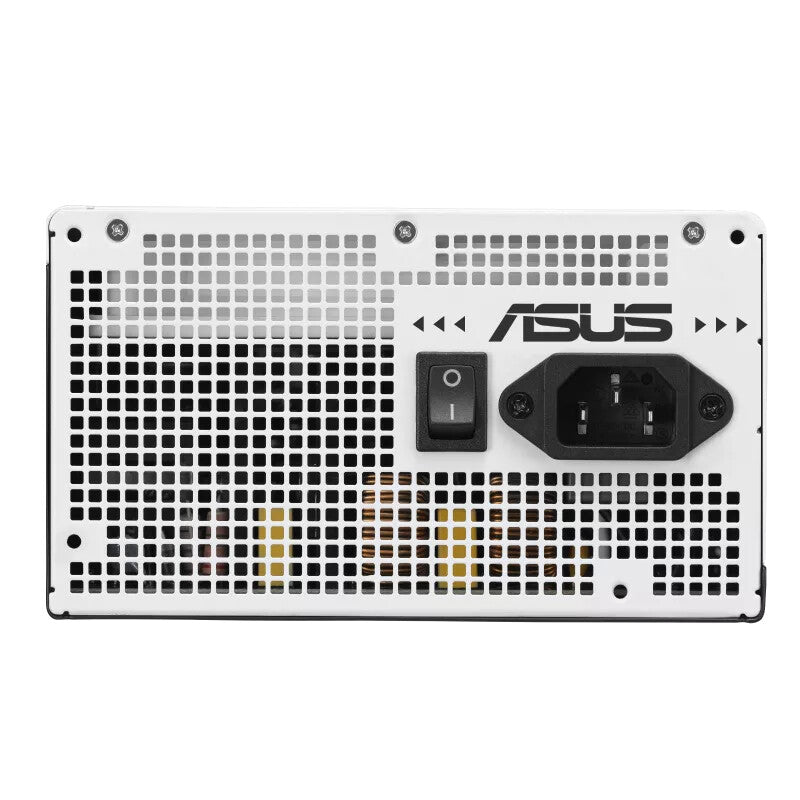

On/off switch | Yes |
Fan location | Top |
Number of fans | 1 fan(s) |
Cooling type | Active |
Product colour | Black, White |
Packaging content | |
---|---|
Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Weight | 1.5 kg |
Height | 86 mm |
Depth | 150 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 2.72 kg |
Technical details | |
---|---|
Compliance certificates | RoHS |
