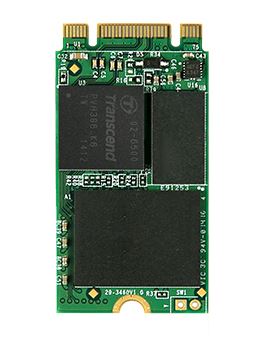

Transcend's SATA III 6Gb/s M.2 SSD 400S boasts ultra compact dimensions to address the high performance needs and strict size limitations of small form factor devices, best suited for Ultrabooks and thin, light notebooks. Featuring a powerful controller, exceptional transfer speeds, and MLC NAND flash memory, the M.2 SSD 400S easily handles everyday computing tasks as well as demanding multimedia applications, delivering steadfast reliability.
MLC NAND flash inside
Transcend's M.2 SSD 400S is manufactured with reliable, top-tier MLC NAND flash memory to ensure superior stability and endurance, making it well-suited to high-end applications.
Perfect for your Ultrabook
Compliant with all M.2 form factors from Type 2242, 2260, to 2280, Transcend's MLC M.2 SSDs are perfect for use in Ultrabooks and lightweight notebooks. Measured at just 42mm in length, the M.2 SSD 400S makes for an easy upgrade to your computer, taking up little space while giving it a much needed energy boost.
Superior transfer speeds
Featuring the M.2 standard (42mm), the next generation SATA III 6Gb/s interface and a powerful controller, Transcend's M.2 SSD 400S reaches incredible read and write speeds of up to 530MB/s and 400MB/s. When used as a cache, the M.2 SSD 400S provides 1.5 times faster boot time than conventional hard drives.
Trusted endurance. Steadfast reliability.
Transcend's M.2 SSD 400S offers great Terabytes Written (TBW) values (up to 740 TBW) indicating the total amount of data you can write into the drive over its lifetime. You can count on the drive to stay reliable even under an intensive workload.
Store more in less space
The M.2 form factor enables expansion and integration of functions onto a single form factor module solution. M.2 SSDs include a smaller form factor but with larger capacities than that of mSATA and half-slim SSDs.
Potent and feature-laden
Despite its extra-small dimensions, the M.2 SSD 400S boasts a DDR3 DRAM cache and contains advanced features to enhance the performance of the SSD.
Error Correcting Code (ECC)
Detects and corrects transfer errors to prevent data corruption
Garbage Collection
Relocates existing data to release memory blocks
Wear-leveling
Distributes data evenly across memory cells to prolong SSD's lifespan
DDR3 DRAM cache
Stores a temporary copy of the most active data to shorten access times
DevSleep
Intelligently shuts down SATA interface when not in use to prolong device's battery life
SSD Scope software
Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.
Guaranteed quality
Transcend’s solid state drives are built to the highest standards and rigorously tested, and offer outstanding quality, performance, and reliability.
| Features | |
|---|---|
| Certification | CE/FCC/BSMI/KC/RCM |
| TBW rating | 360 |
| Linux operating systems supported | Kernel 2.6.31 |
| Mac operating systems supported | No |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Active garbage collection | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Native Command Queuing (NCQ) | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Random write (4KB) | 50000 IOPS |
| Random read (4KB) | 70000 IOPS |
| Write speed | 200 MB/s |
| Read speed | 530 MB/s |
| Data transfer rate | 6 Gbit/s |
| Component for | Laptop |
| Memory type | MLC |
| Interface | Serial ATA III |
| SSD capacity | 128 GB |
| SSD form factor | M.2 |
| Power | |
|---|---|
| Operating voltage | 3.3 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5 g |
| Height | 22 mm |
| Depth | 3.58 mm |
| Width | 42 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |

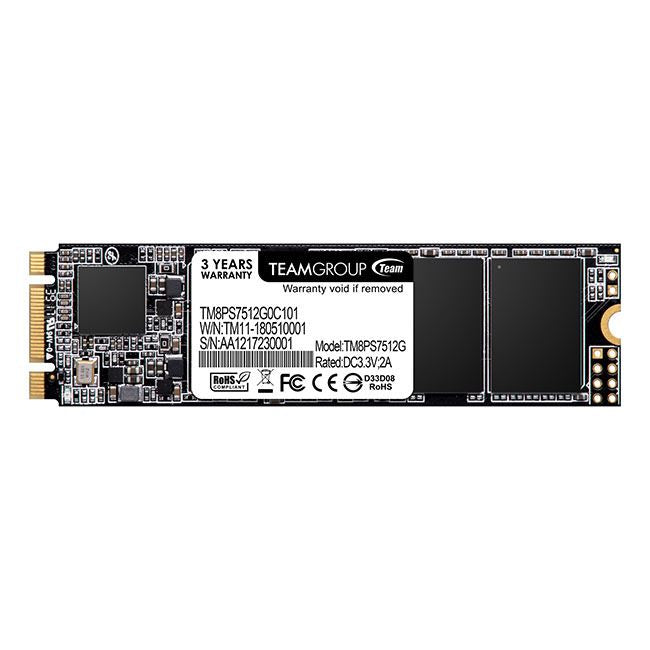

Next generation M.2 SATA solid state drive
Team group MS30 M.2 SATA solid state drive is the next generation M.2 (NGFF, Next Generation Form Factor) high speed solid state drive. It provides mobile computing devices an excellent storage performance with ultra-compact size and lightweight.
High speed transfer, high compatibility and high capacity
MS30 M.2 SATA solid state drive uses the latest SATA III 6Gb/s transfer interface and offers excellent transfer efficiency and compatibility. For different environment usage, MS30 comes in two sizes, 22x80mm and 22x42mm, and both of them are fully compliant with the M.2 specification. In addition, the capacity is increased to 1TB, which is capable of satisfying all kinds of specification requirements for motherboards, laptops, mobile devices and developing embedded devices.
Smart Response Technology
Intel Smart Response Technology is supported. MS30 M.2 SATA solid state drive allows user to set the solid state drive as the cache memory between the hard disk drive (HDD) and the computer, so the hard drive with high capacity can have a fast response time like the system of solid state drive and improves the overall working efficiency.
Comprehensive smart technology
MS30 M.2 SATA solid state drive supports advanced garbage collection, wear leveling, TRIM command and power saving function of the next generation. It provides excellent solution for performance, power efficiency and service life.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 1500000 h |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Write speed | 480 MB/s |
| Read speed | 550 MB/s |
| Data transfer rate | 6 Gbit/s |
| Component for | PC/Laptop |
| NVMe | No |
| Interface | Serial ATA III |
| SSD capacity | 512 GB |
| SSD form factor | M.2 |
| Power | |
|---|---|
| Operating voltage | 3.3 V |
| Operational conditions | |
|---|---|
| Operating shock | 500 G |
| Operating vibration | 20 G |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 10 g |
| Height | 3.5 mm |
| Depth | 80 mm |
| Width | 22 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
| Other features | |
|---|---|
| Product colour | Black |

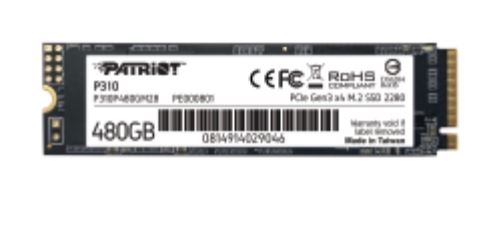

The P310 m.2 SSD provides great improvements to start-up, loading, and transfer times over traditional hard disk drives. The P310’s advanced firmware offers SmartECC technology, thermal throttling, and end-to-end data path protection to ensure data integrity, durability, and reliability for everyday tasks. Elevate your computer’s performance with the P310 SSD to experience quick application loading times for a better overall flawless productivity while transferring various applications without lag.
| Features | |
|---|---|
| Certification | CE, FCC, RoHS |
| TBW rating | 120 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| End-to-End Data Protection | Yes |
| PCI Express interface data lanes | x4 |
| Sequential write speed (CDM) | 1000 MB/s |
| Sequential read speed (CDM) | 1700 MB/s |
| Sequential write speed (ATTO) | 1000 MB/s |
| Sequential read speed (ATTO) | 1700 MB/s |
| Random write (4KB) | 250000 IOPS |
| Random read (4KB) | 280000 IOPS |
| Write speed | 1000 MB/s |
| Read speed | 1700 MB/s |
| Hardware encryption | No |
| Component for | PC/Laptop |
| NVMe version | 1.3 |
| NVMe | Yes |
| Interface | PCI Express 3.0 |
| SSD capacity | 480 GB |
| SSD form factor | M.2 |
| Power | |
|---|---|
| Power consumption (idle) | 0.38 W |
| Operational conditions | |
|---|---|
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Technical details | |
|---|---|
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 9 g |
| Height | 3.8 mm |
| Depth | 80 mm |
| Width | 22 mm |
| Packaging data | |
|---|---|
| Package type | Hanging box |
| Package weight | 20 g |
| Package height | 99.6 mm |
| Package depth | 6.6 mm |
| Package width | 130.8 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |

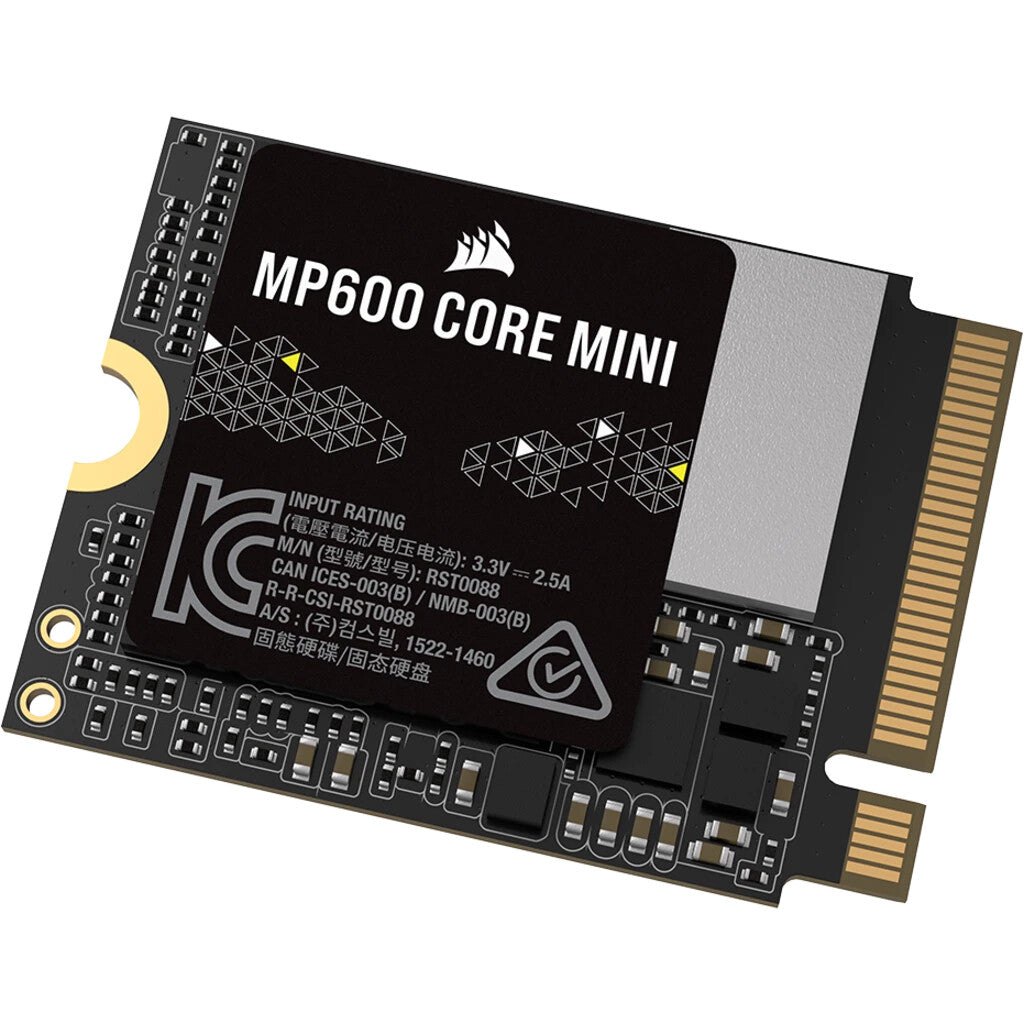

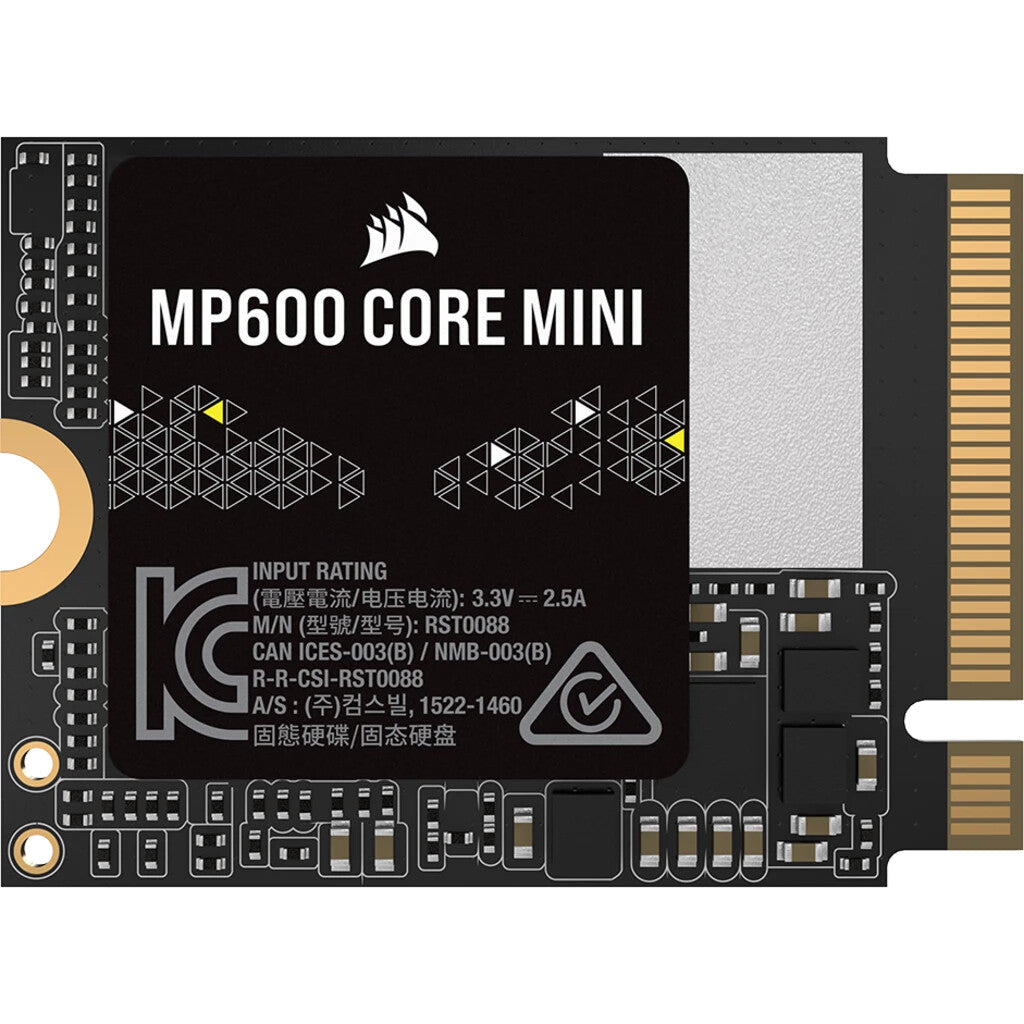

ULTRA COMPACT FORM FACTOR
Add speedy high-capacity SSD storage to your handheld gaming PC and small form factor devices.
HIGH-SPEED PCIe GEN4 x4 NVMe 1.4 M.2 INTERFACE
The MP600 MINI provides impressive storage space and performance for PCIe Gen4-compatible systems.
WIDE COMPATIBILITY
Easily upgrade your handheld gaming device, tablet, or other thin and light devices.
HIGH-DENSITY 3D QLC NAND TECHNOLOGY
Provides the ideal mix of capacity, performance, and value.
| Features | |
|---|---|
| M.2 SSD size | 2230 (22 x 30 mm) |
| Write speed | 3800 MB/s |
| Read speed | 5000 MB/s |
| Hardware encryption | No |
| Component for | Universal |
| NVMe version | 1.4 |
| NVMe | Yes |
| Memory type | QLC 3D NAND |
| Interface | PCI Express 4.0 |
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Operational conditions | |
|---|---|
| Operating shock | 1500 G |
| Storage relative humidity (H-H) | 0 - 93% |
| Maximum operating temperature | 65 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 65 °C |
| Weight & dimensions | |
|---|---|
| Weight | 25 g |
| Depth | 22 mm |
| Width | 30 mm |

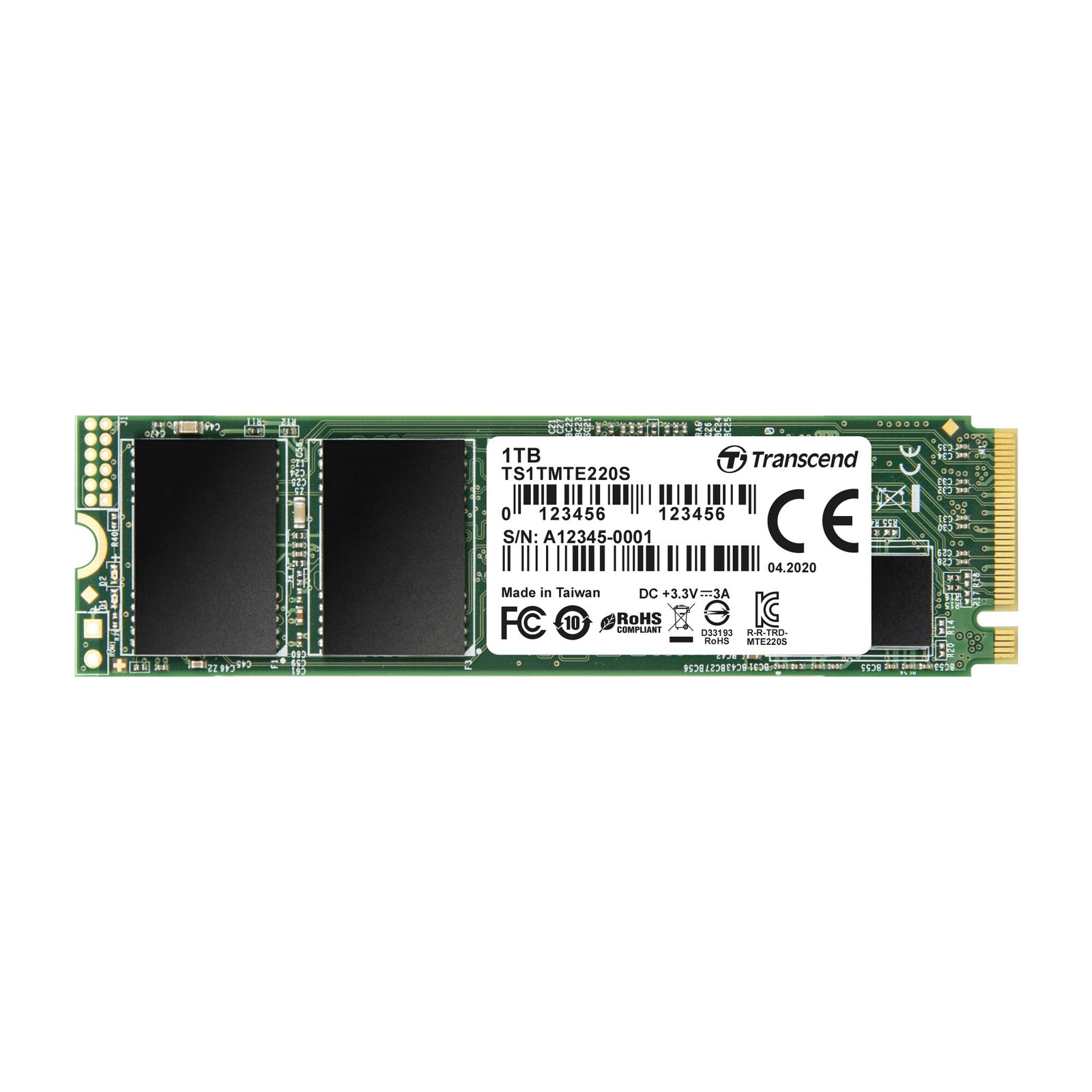

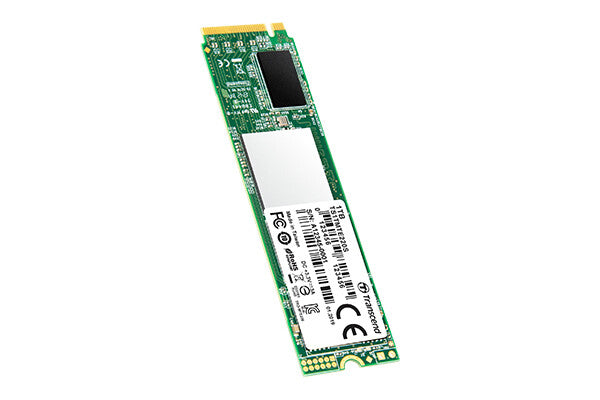

Transcend's PCIe SSD 220S aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing heavy workloads with no system lags or slowdowns of any kind. Utilizing the PCI Express® Gen3 x4 interface supported by the latest NVMe™ standard, 3D NAND flash memory, an 8-channel controller, and a DRAM cache, the PCIe SSD 220S offers supreme transfer speeds that override others.
Supreme transfer speeds
Transcend's PCIe SSD 220S follows NVMe 1.3 and utilizes the PCIe™ Gen3 x4 interface, meaning four lanes are used for transmitting and receiving data simultaneously. Its 8-channel controller supports ultra high data throughput, resulting in compelling performance of up to 3,500MB/s read and 2,700MB/s write.
Note: Performance is based on CrystalDiskMark v5.0.2.
Understanding the PCIe interface
PCIe (or PCI Express®) is a much faster interface than SATA (or Serial ATA) for connecting a host computer to solid-state storage devices over one or more lanes consisting of one transmit and one receive serial interface in each lane, meaning it can better fulfill new performance requirements.
Understanding the NVMe standard
NVMe (or NVM Express®) is a host controller interface standard designed to address the needs of enterprise and client applications that utilize PCI Express-based solid-state storage. NVMe calls for better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency.
3D expansion to break through limits
Unlike planar NAND memory, 3D NAND flash features memory cells stacked vertically in multiple layers. 3D NAND overcomes density limitations of 2D planar NAND, and delivers a higher level of performance and endurance.
Better endurance, higher reliability
Transcend's PCIe SSD 220S is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality 3D NAND flash chips, and engineered dynamic thermal throttling mechanism, the PCIe SSD 220S guarantees superior endurance and stability for high-end applications.
SSD Scope software
Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.
Guaranteed quality
To ensure the utmost level of quality, Transcend SSDs undergo rigorous testing at all stages of production, including tests for vibration, temperature and humidity, speed, and functionality.
| Features | |
|---|---|
| Certification | CE/FCC/BSMI/KC/RCM |
| TBW rating | 2200 |
| Linux operating systems supported | Kernel 2.6.31 |
| Mac operating systems supported | No |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mean time between failures (MTBF) | 2000000 h |
| S.M.A.R.T. support | Yes |
| PCI Express interface data lanes | x4 |
| Random write (4KB) | 340000 IOPS |
| Random read (4KB) | 300000 IOPS |
| Write speed | 2800 MB/s |
| Read speed | 3500 MB/s |
| Hardware encryption | No |
| Component for | PC/Laptop |
| NVMe version | 1.3 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Interface | PCI Express 3.0 |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Power | |
|---|---|
| Operating voltage | 3.3 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 8 g |
| Height | 80 mm |
| Depth | 3.58 mm |
| Width | 22 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |

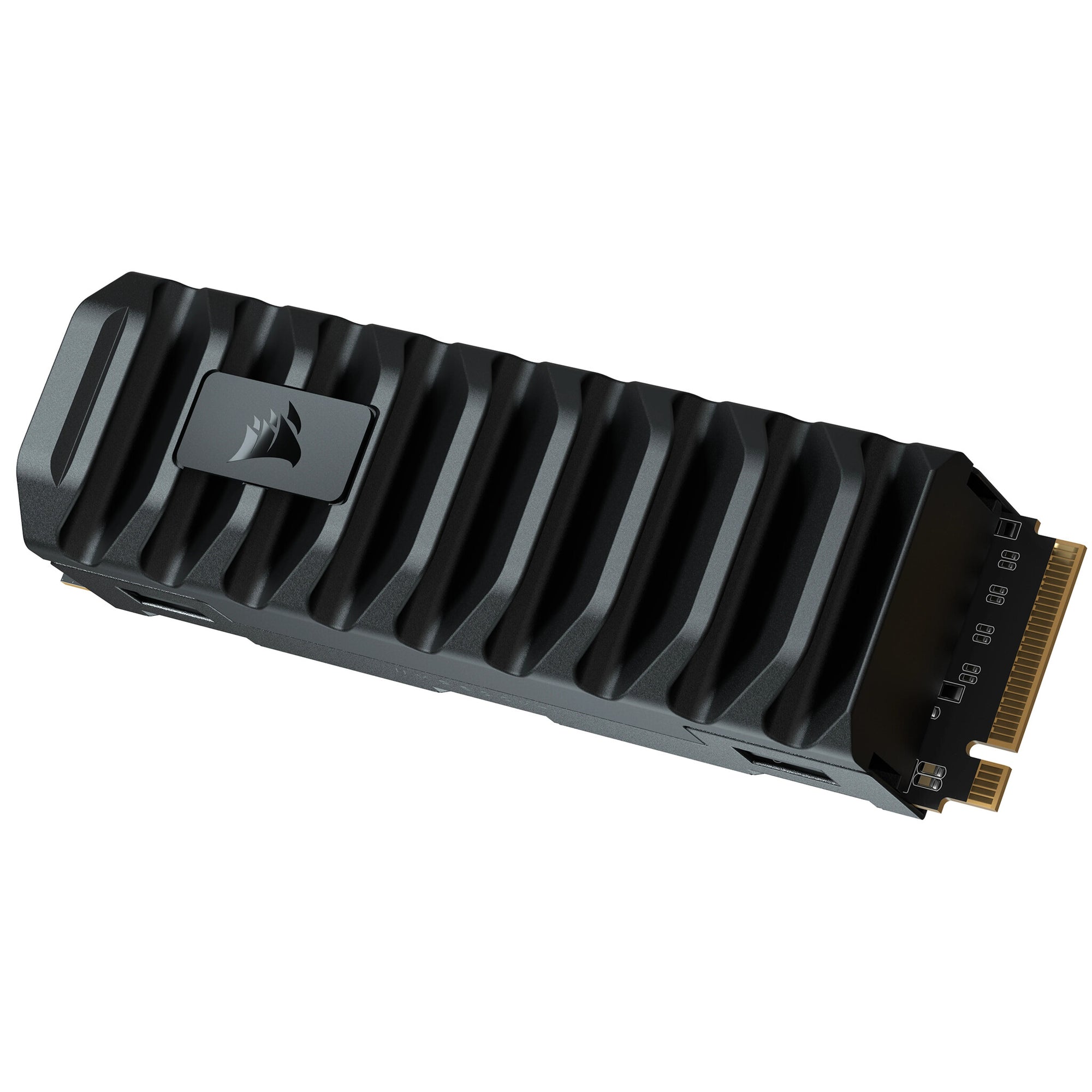

EXTREME GEN4 STORAGE PERFORMANCE
A PCIe Gen4 x4 extreme data performance controller delivers phenomenal read, write, and response times that leave standard M.2 SSDs in the dust.
High-speed Gen4 PCIe x4 NVMe 1.4 M.2 Interface
Leveraging PCIe Gen4 NVMe 1.4 technology for maximum bandwidth, the MP600 PRO XT delivers incredible storage performance.
Built-in Aluminum Heatspreader
Helps disperse heat and reduce throttling, so your SSD maintains sustained high performance.
High-density 3D TLC NAND
Combines high-speed performance with outstanding endurance up to 3000TB written, ensuring that your drive will last and perform well through many years of use.
M.2 2280 Form Factor
Fits directly into your motherboard with no need for cables.
| Features | |
|---|---|
| TBW rating | 700 |
| Mean time between failures (MTBF) | 1600000 h |
| S.M.A.R.T. support | No |
| DevSlp (device sleep) support | Yes |
| PCI Express interface data lanes | x4 |
| Sequential write speed (CDM) | 5800 MB/s |
| Sequential read speed (CDM) | 7100 MB/s |
| Random write (4KB) | 1200000 IOPS |
| Random read (4KB) | 900000 IOPS |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| NVMe version | 1.4 |
| NVMe | Yes |
| Memory type | 3D TLC NAND |
| Interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Power | |
|---|---|
| Power consumption DevSlp (device sleep) | 2 mW |
| Operating voltage | 3.3 V |
| Operational conditions | |
|---|---|
| Operating shock | 1500 G |
| Maximum operating temperature | 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 66 g |
| Height | 19 mm |
| Depth | 80 mm |
| Width | 23 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
| Other features | |
|---|---|
| Cooling type | Heatsink |

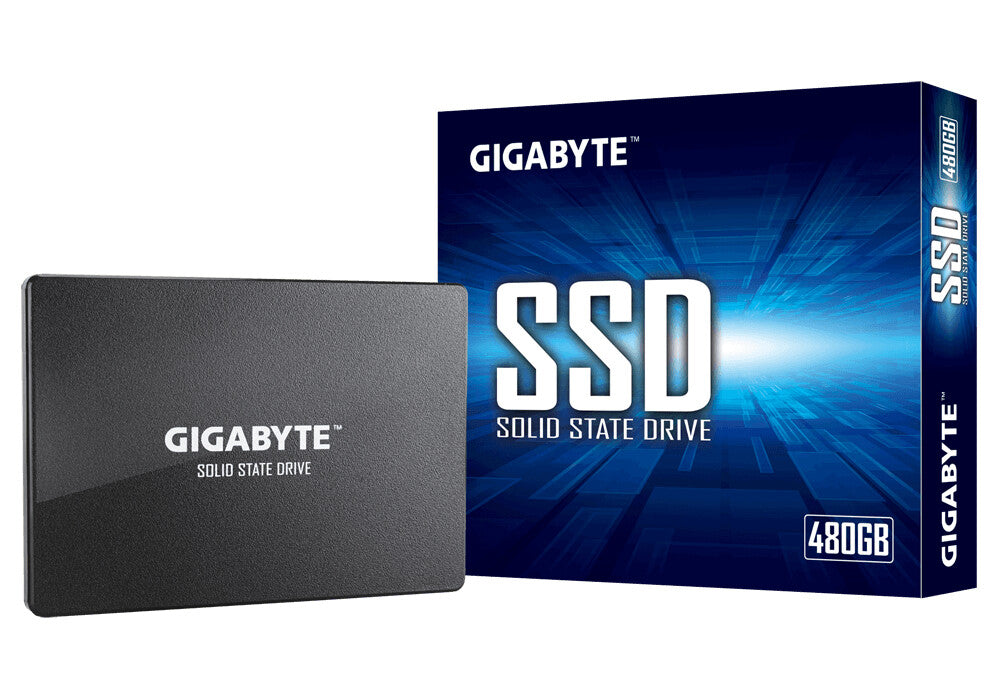

SSD Tool Box
The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support.
| Features | |
|---|---|
| TBW rating | 200 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Random write (4KB) | 70000 IOPS |
| Random read (4KB) | 75000 IOPS |
| Write speed | 480 MB/s |
| Read speed | 550 MB/s |
| Data transfer rate | 6 Gbit/s |
| Component for | PC/Laptop |
| NVMe | No |
| Interface | Serial ATA III |
| SSD capacity | 480 GB |
| SSD form factor | 2.5" |
| Power | |
|---|---|
| Power consumption (idle) | 0.17 W |
| Power consumption (write) | 2.61 W |
| Power consumption (read) | 2.24 W |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Height | 7 mm |
| Depth | 100 mm |
| Width | 69.8 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |

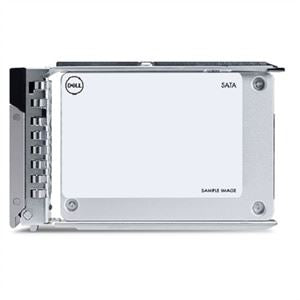

Increase the storage capacity of your Dell™ System with 1.92TB Solid State Drive from Dell. It boasts a storage capacity of up to 1.92TB, enabling users to store large amounts of data. This drive delivers enhanced data transfer speed of up to 6Gbit/s.
| Features | |
|---|---|
| Compatible products | PowerEdge R340PowerEdge R840PowerEdge R740PowerEdge R940PowerEdge R7425PowerEdge R440PowerEdge R6415PowerEdge R640PowerEdge R740XDPowerEdge R7415PowerEdge C6420 |
| Data transfer rate | 6 Gbit/s |
| Component for | Server/workstation |
| NVMe | No |
| Interface | Serial ATA III |
| SSD capacity | 1.92 TB |
| SSD form factor | 2.5" |

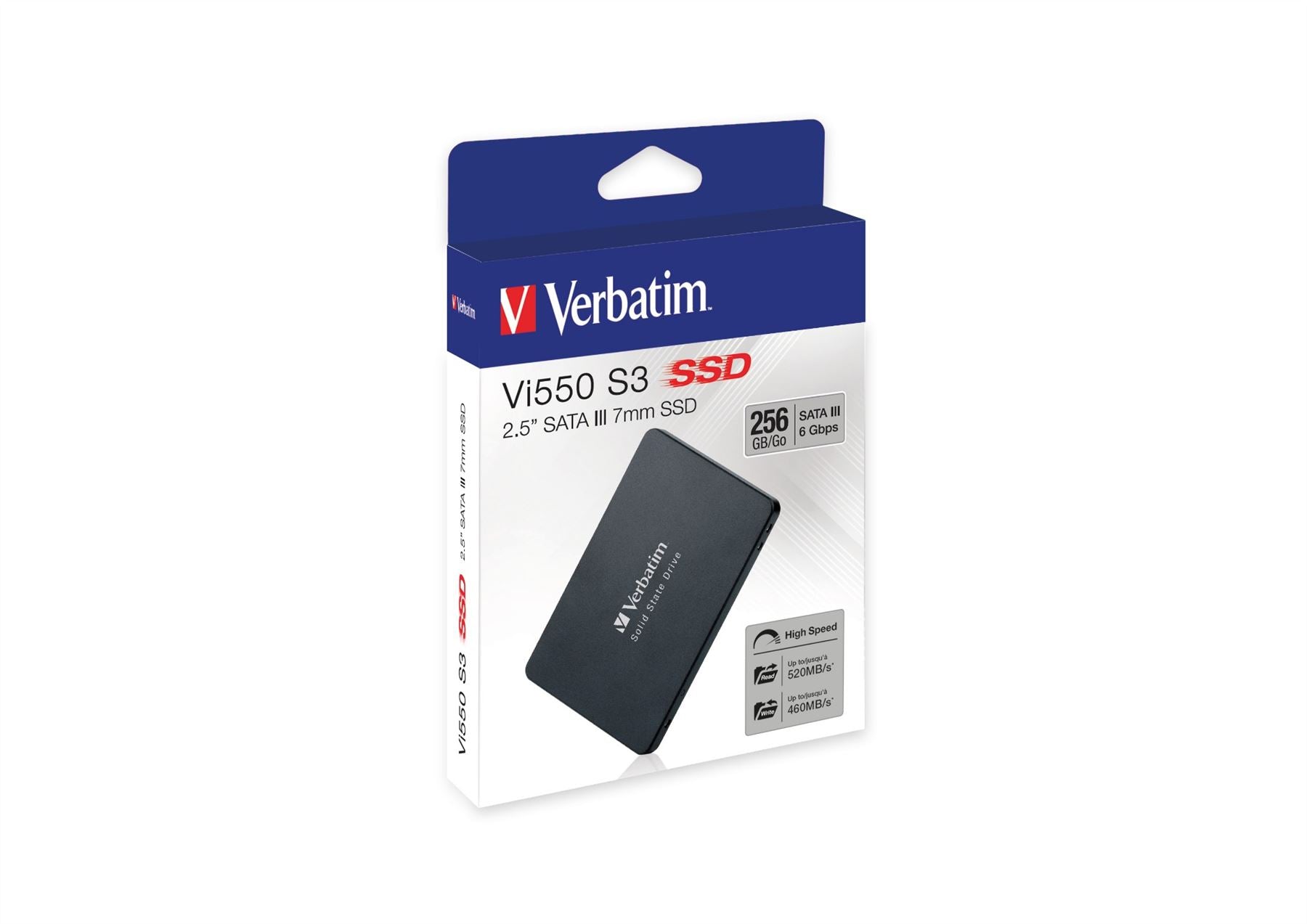

Verbatim 2.5'' SATA III 7mm solid state drives can revitalise the performance of your system. Using the latest 3D NAND technology they offer the perfect way to upgrade from either hard drive or an older SSD. The Vi550 has a superior controller for increased reliability, larger capacities and faster read/write speeds.
Expand the lifetime of your laptop or PC
Breathe new life into an older system by replacing a tired hard drive or a legacy 2D NAND SSD with a Vi550 S3 SSD. The Vi550 offers read speeds of up to 560MB/s, up to 20 times faster than a standard hard drive. With an MTBF (mean time before failure) rating of 2 million hours and TBW rating of up to 480TB (1TB capacity), the Vi550 is a high spec SSD that can be relied upon. Recommended for professional installation.
| Features | |
|---|---|
| SSD usage tag | Consumer |
| TBW rating | 150 |
| Mean time between failures (MTBF) | 2000000 h |
| S.M.A.R.T. support | Yes |
| Controller type | Phison PS3111 |
| Sequential write speed (ATTO) | 460 MB/s |
| Sequential read speed (ATTO) | 520 MB/s |
| Random write (4KB) | 85901 IOPS |
| Random read (4KB) | 64784 IOPS |
| Write speed | 460 MB/s |
| Read speed | 520 MB/s |
| Data transfer rate | 6 Gbit/s |
| Component for | PC/Laptop |
| Interface | Serial ATA III |
| SSD capacity | 256 GB |
| SSD form factor | 2.5" |
| Power | |
|---|---|
| Power consumption (idle) | 0.315 W |
| Power consumption (write) | 0.133 W |
| Power consumption (read) | 0.131 W |
| Operational conditions | |
|---|---|
| Operating shock | 1500 G |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Technical details | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 45 g |
| Height | 7 mm |
| Depth | 69.9 mm |
| Width | 100.5 mm |
| Packaging data | |
|---|---|
| Package type | Blister |
| Package weight | 62 g |
| Package height | 159 mm |
| Package depth | 24 mm |
| Package width | 109 mm |
| Quick start guide | Yes |
| Logistics data | |
|---|---|
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case gross weight | 163 g |
| Master (outer) case height | 58 mm |
| Master (outer) case length | 115 mm |
| Harmonized System (HS) code | 84717070 |
| Master (outer) case width | 168 mm |
| Products per pallet | 1560 pc(s) |
| Layers per pallet | 6 pc(s) |
| Master (outer) cases per pallet | 780 pc(s) |

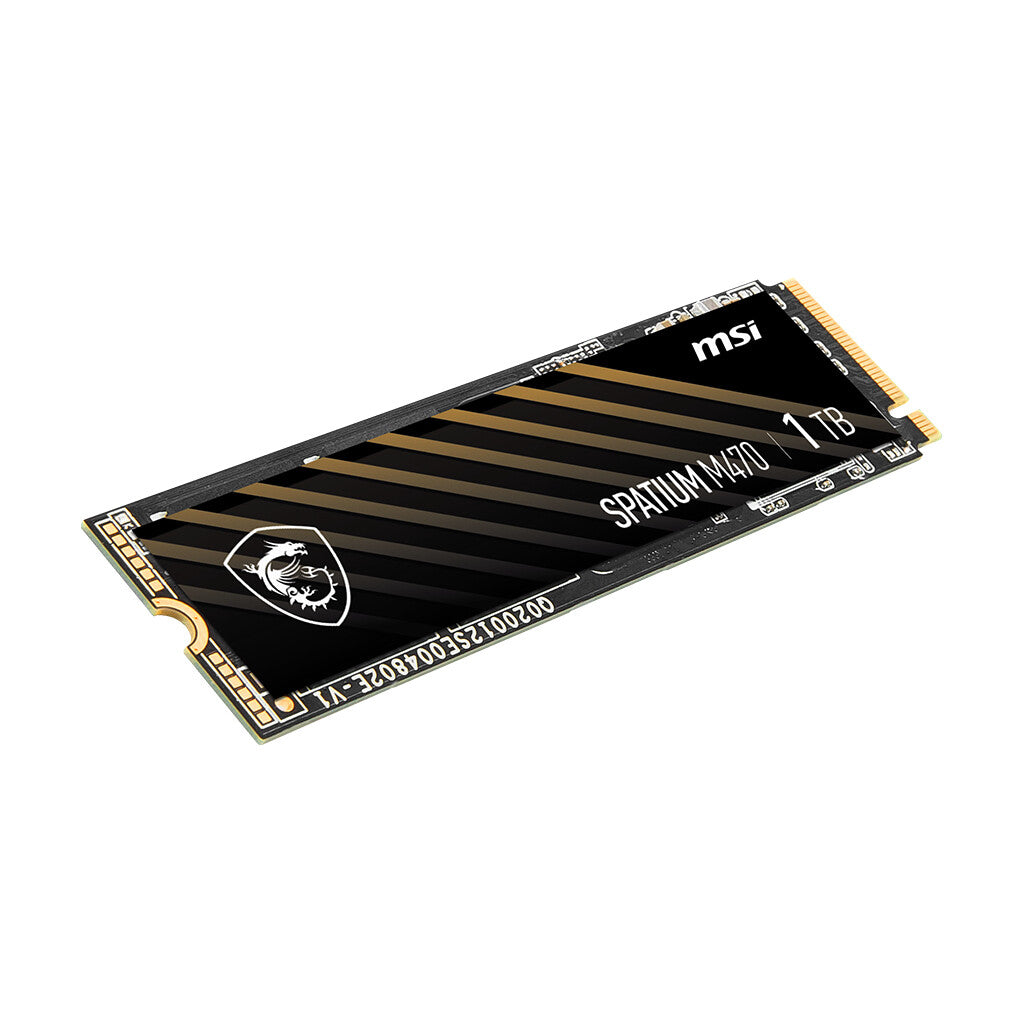

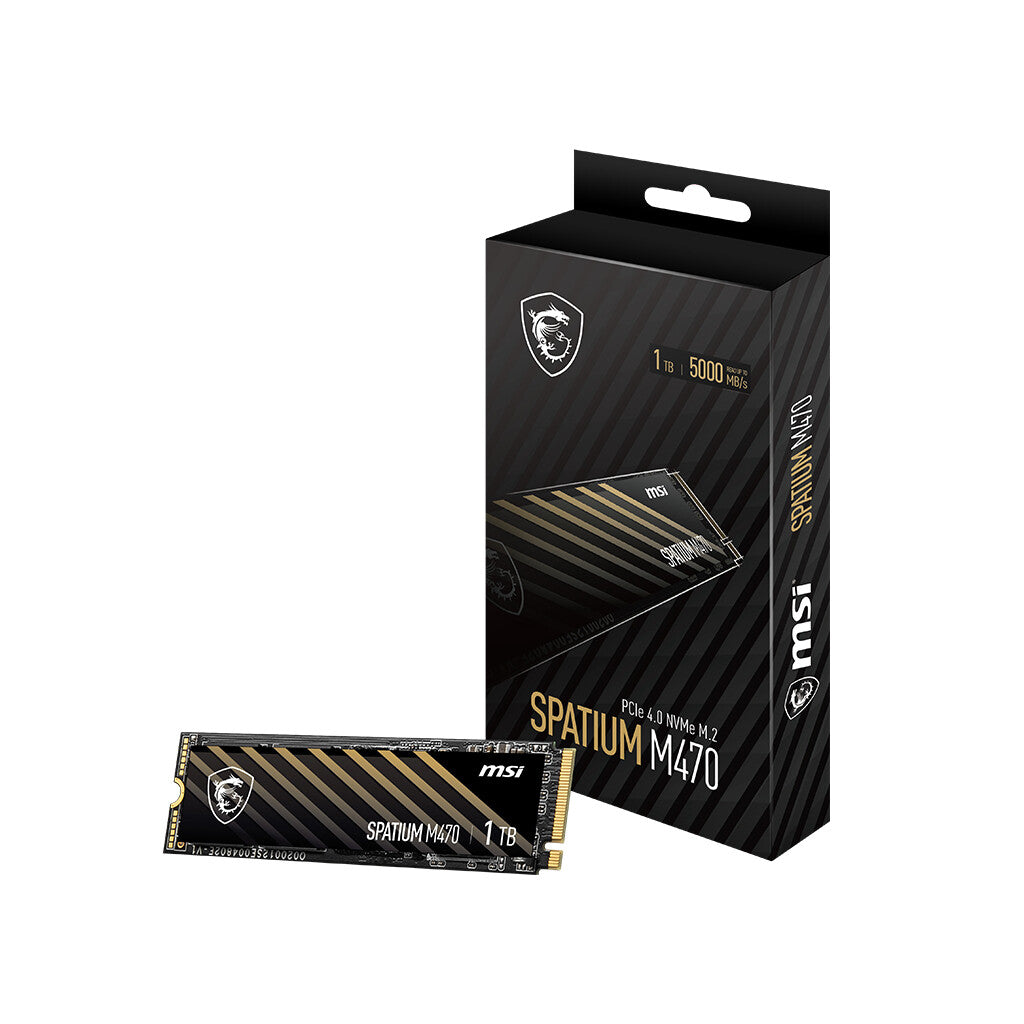

CHARGING AHEAD WITH SPEED
From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.
A NEED FOR SPEED!
Optimized for the PCIe Gen4 interface, SPATIUM M470 SSD reaches read/write speeds up to 5000/4400 MB/s, allowing for rapid data transfer and shortened game load times.
SMALL SIZE, MORE STORAGE
The latest 3D NAND flash technology brings dense storage in a compact design and allows SPATIUM storage capacities up to 2TB.
DON'T STOP GAMING
Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage.
| Features | |
|---|---|
| TBW rating | 1600 |
| Mean time between failures (MTBF) | 1700000 h |
| External DDR cache quantity | 1000 MB |
| External DDR cache | Yes |
| End-to-End Data Protection | Yes |
| TRIM support | Yes |
| Sequential write speed (ATTO) | 4400 MB/s |
| Sequential read speed (ATTO) | 5000 MB/s |
| Random write (4KB) | 6.3 IOPS |
| Random read (4KB) | 600000 IOPS |
| Hardware encryption | Yes |
| NVMe version | 1.3 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Power | |
|---|---|
| Power consumption (idle) | 0.2 W |
| Brand-specific features | |
|---|---|
| Intel® Smart Response Technology | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |

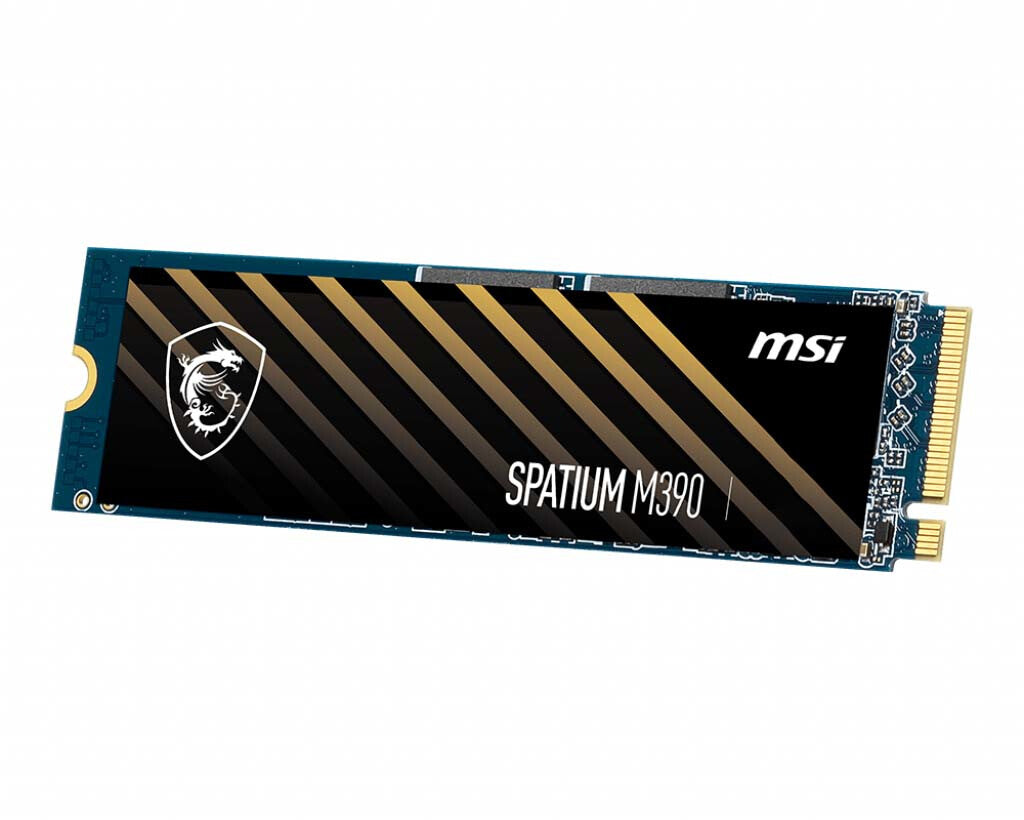

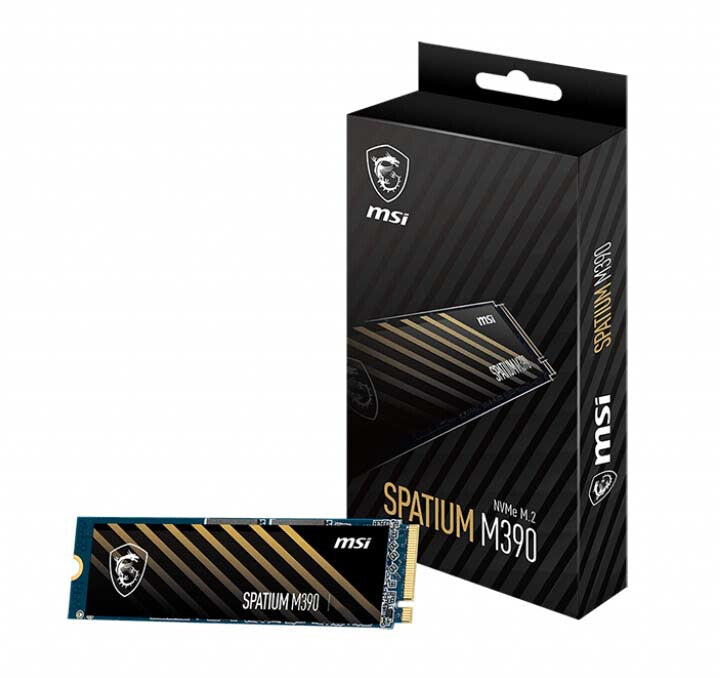

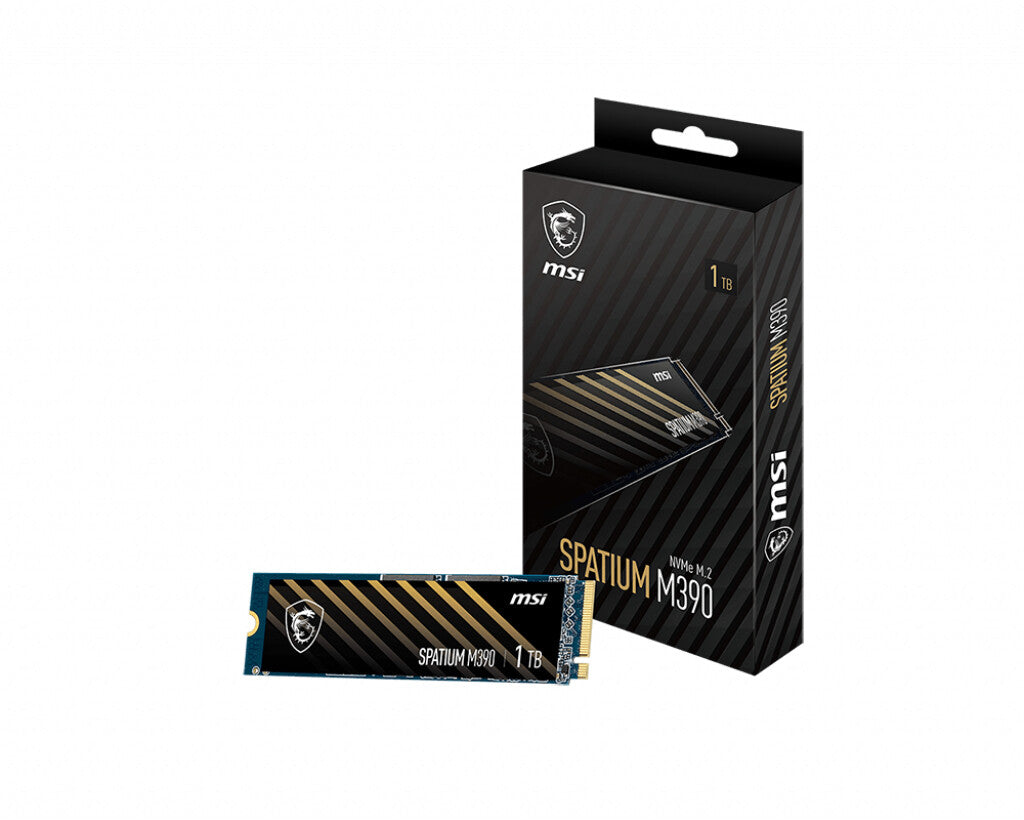

M390 - CHARGING AHEAD WITH SPEED
From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.
A NEED FOR SPEED!
Optimized for the PCIe Gen3 interface, SPATIUM M390 SSD reaches read/write speeds up to 3300/3000 MB/s, allowing for rapid data transfer and shortened game load times.
SMALL SIZE, MORE STORAGE
The latest 3D NAND flash technology brings dense storage in a compact design and allows SPATIUM storage capacities up to 1TB.
DON'T STOP GAMING
Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage.
TAKE CARE OF YOUR DATA
Migrate your data, monitor drive health and performance metrics in real-time with MSI Center. Prevent loss of data using the provided Actiphy software solution which includes backup & restore functionality.
5-YEAR WARRANTY
MSI stands by the quality and reliability of the SPATIUM M390 with a 5-Year comprehensive warranty. If you need assistance or are not satisfied with your product, MSI support is available to help and assist.
| Features | |
|---|---|
| TBW rating | 400 |
| Mean time between failures (MTBF) | 1500000 h |
| Sequential write speed (ATTO) | 3000 MB/s |
| Sequential read speed (ATTO) | 3300 MB/s |
| Random write (4KB) | 550 IOPS |
| Random read (4KB) | 420 IOPS |
| Component for | PC |
| NVMe version | 1.4 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Interface | PCI Express |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Height | 2.15 mm |
| Depth | 80 mm |
| Width | 22 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
Game-changing Speeds, Unmatched Performance, Unmatched Speed
The VP4300 Lite offers lightning-fast speed and an unrivaled gaming experience with read speeds of up to 7,400MB/s.
Latest NVMe 2.0 Support
The VP4300 Lite fully supports NVMe 2.0, ensuring compatibility and performance across all systems.
Cutting-Edge Cooling
Our special edition ultra-thin graphene cooling heatspreader provides optimal cooling to run smoothly through intense gaming sessions.
PS5 Compatibility
With compatibility between PC and PS5, the VP4300 Lite offers strong performance built for both systems. When in use with the PS5, the VP4300 Lite offer robust sequential read speeds of up to 6,100MB/s.
Massive 4TB Storage Space
With the VP4300 Lite offering capacities of up of 4TB, gamers will have plenty of space for all their games, files, and media whenever they need it.
Maximum Protection, Long-Lasting Performance, Guaranteed
Built with best-in-class materials, the VP4300 Lite also comes with a five-year warranty to ensure guaranteed protection and long-lasting performance.
| Features | |
|---|---|
| Compatible products | PlayStation 5 |
| Certification | CE/FCC/UKCA/BSMI/RoHS |
| TBW rating | 2000 |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| PCI Express interface data lanes | x4 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Sequential write speed (CDM) | 6000 MB/s |
| Sequential read speed (CDM) | 7400 MB/s |
| Write speed | 6000 MB/s |
| Read speed | 7400 MB/s |
| Hardware encryption | No |
| Component for | PC/Game console |
| NVMe version | 2.0 |
| NVMe | Yes |
| Interface | PCI Express 4.0 |
| SSD capacity | 4 TB |
| SSD form factor | M.2 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 9 g |
| Height | 3.8 mm |
| Depth | 80 mm |
| Width | 22 mm |
| Packaging data | |
|---|---|
| Package weight | 20 g |
| Package height | 6.6 mm |
| Package depth | 132 mm |
| Package width | 100 mm |

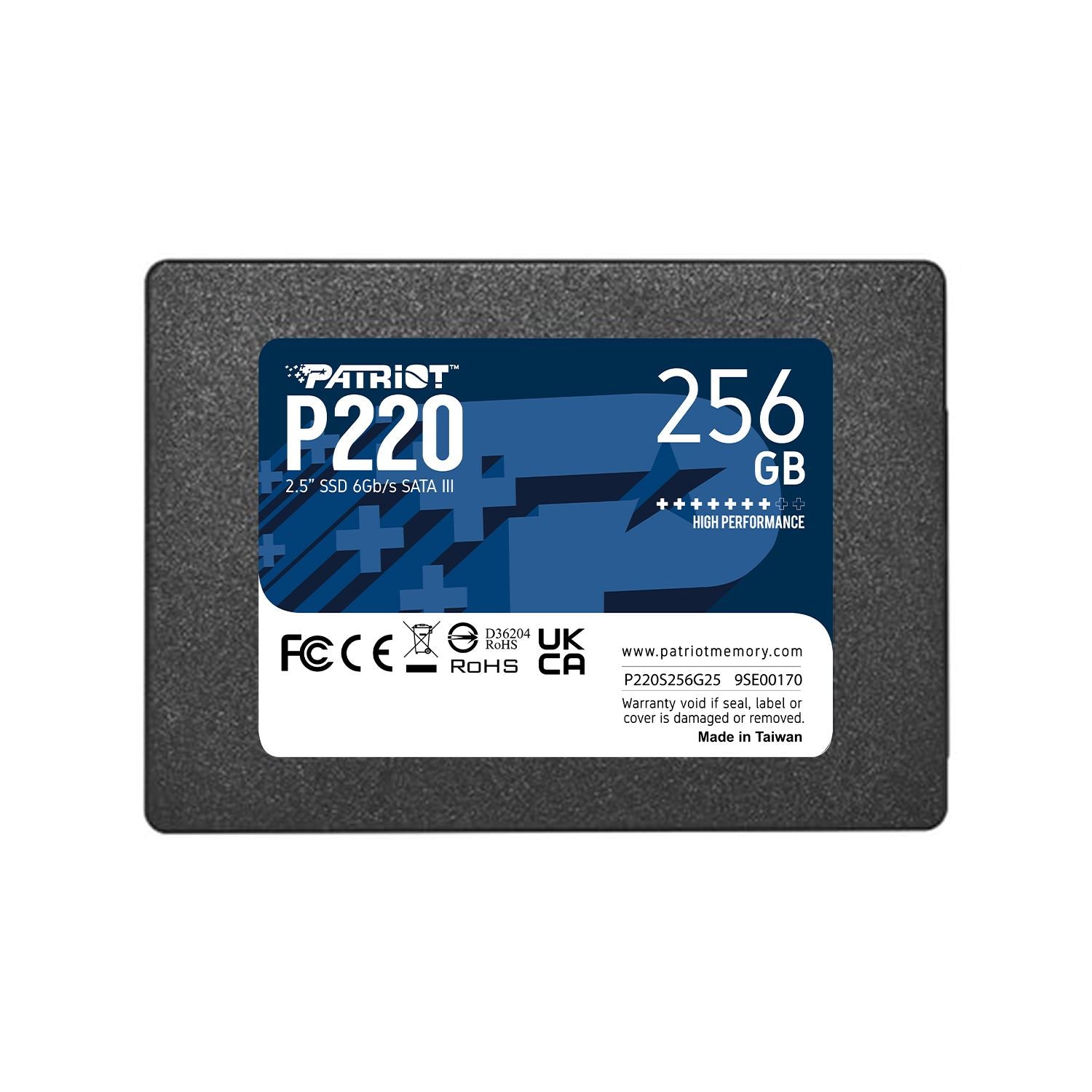

Patriot is proud to present its next generation 2.5” SATA III SSD: The P220. Designed with the latest SATA 3 controller, the P220 is a premier storage solution designed for top system performance. With read and write speeds of up to 550 and 500 MB/s, the P220 gives you the performance you need to get the job done.
As a 7mm high 2.5” form factor SSD, the P220 is a compact storage drive that provides stronger overall performance and productivity. The P220 is perfect for fast upgrades, storing large files and providing efficiency in your workspace for a great price.
Backed by Patriot’s 3-year warranty and customer service, Patriot’s P220 SSD stands as one of the most reliable and strong price-to-performance SSDs on the market today.
| Features | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Sequential write speed (CDM) | 500 MB/s |
| Sequential read speed (CDM) | 550 MB/s |
| Random write (4KB) | 50000 IOPS |
| Random read (4KB) | 50000 IOPS |
| Component for | PC/Laptop |
| Interface | Serial ATA III |
| SSD capacity | 1 TB |
| SSD form factor | 2.5" |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Technical details | |
|---|---|
| Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 46 g |
| Height | 7 mm |
| Depth | 100 mm |
| Width | 69.9 mm |
| Packaging data | |
|---|---|
| Package type | Hanging box |
| Package weight | 50 g |
| Package height | 178 mm |
| Package depth | 80 mm |
| Package width | 133 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 120 pc(s) |
| Master (outer) case net weight | 6 kg |
| Master (outer) case height | 195 mm |
| Master (outer) case length | 394 mm |
| Master (outer) case width | 324 mm |
Patriot is proud to present its next generation 2.5” SATA III SSD: The P220. Designed with the latest SATA 3 controller, the P220 is a premier storage solution designed for top system performance. With read and write speeds of up to 550 and 500 MB/s, the P220 gives you the performance you need to get the job done.
As a 7mm high 2.5” form factor SSD, the P220 is a compact storage drive that provides stronger overall performance and productivity. The P220 is perfect for fast upgrades, storing large files and providing efficiency in your workspace for a great price.
Backed by Patriot’s 3-year warranty and customer service, Patriot’s P220 SSD stands as one of the most reliable and strong price-to-performance SSDs on the market today.
| Features | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Sequential write speed (CDM) | 500 MB/s |
| Sequential read speed (CDM) | 550 MB/s |
| Random write (4KB) | 50000 IOPS |
| Random read (4KB) | 40000 IOPS |
| Component for | PC/Laptop |
| Interface | Serial ATA III |
| SSD capacity | 512 GB |
| SSD form factor | 2.5" |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Technical details | |
|---|---|
| Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 46 g |
| Height | 7 mm |
| Depth | 100 mm |
| Width | 69.9 mm |
| Packaging data | |
|---|---|
| Package type | Hanging box |
| Package weight | 50 g |
| Package height | 178 mm |
| Package depth | 80 mm |
| Package width | 133 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 120 pc(s) |
| Master (outer) case net weight | 6 kg |
| Master (outer) case height | 195 mm |
| Master (outer) case length | 394 mm |
| Master (outer) case width | 324 mm |
Extraordinary Speed
The LEGEND 970 adopts the latest generation PCIe Gen5 x4 transmission interface and complies with the NVMe 2.0 standard to deliver amazing read and write capabilities. The LEGEND 970 also supports the latest Intel and AMD platforms. Whether in dynamic or static output, it always provides full performance.
Unreal Performance
Complete every task in moments. The LEGEND 970 has a sequential read/write speed of 10,000/10,000MB per second, double the speed of PCIe Gen4 SSDs and 6 times faster than Gen3 SSDs, and is fully backward compatible with PCIe 4.0 and 3.0 platforms.
Experts of Patented Heat Dissipation
When high efficiency is required, leave it to the professionals! The LEGEND 970 adopts dual-layer extruded aluminum fins¹ to create a dense air duct to divert hot and cold air. When heat is conducted upward, a built-in micro fan is used to remove thermal energy. This unique "active heat dissipation" design delivers significantly cooler temperatures than a fanless heatsink by 10%².
1The heatsink of this product is pre-installed. Please consider installation space before adopting this product and confirm whether your motherboard is supplied with an M.2 heatsink (refer to manufacturer board manual). If so, please remove it first and then install this product with its supplied heatsink.
2This product comes with a fan attached to the SATA cable, which requires an additional power supply connection to activate the active cooling effect.
3Heat dissipation data is based on test conditions of an internal laboratory and actual figures may vary due to personal hardware, software, and test environments.
Surface Crystallization Improve Heat Dissipation
The LEGEND 970's aluminum alloy fins are treated with surface crystallization, which utilizes its physical properties to increase the overall air contact area and maximize the effectiveness of its air cooling system.
QuiKTIPS : Never Experience Throttling Again
High-speed PCIe 5.0 transmission requires powerful heat dissipation. If heat is not dissipated quickly, data read/writes speeds will be adversely affected and the drive itself crashing is a possibility. The LEGEND 970's active heat dissipation mechanism withstands high temperature test and can maintain stable performance even during long bouts of high speed operation.
*Heat dissipation data is based on test conditions of an internal laboratory and actual figures may vary due to personal hardware, software, and test environments.
QuiKTIPS : Active Cooling Analysis
How does active cooling work? Active cooling works by using a tightly adhered heat dissipation pad and a metal heat dissipator to transfer heat from the SSD. The double-layered aluminum fins help facilitate the heat transfer process. Additionally, a built-in fan draws cold air from openings on the nameplate and directs it towards the aluminum fins. The hot and cold air meet, and the rotation of the fan quickly expels the heat from both sides of the aluminum fins. This design provides superior heat dissipation compared to fanless heatsinks.
High Quality Memory Components
Strict selection of 232-layer 3D flash memory gives the LEGEND 970 a capacity of up to 2000GB and it utilizes a variety of data protection and correction technologies to increase total bytes written (TBW) and durability to meet various high-load requirements.
Superior Technology
LEGEND 970 leverages the advantages of a SLC cache algorithm and DRAM Cache Buffer while featuring 4K random read/write IOPS up to 1,400K/1,400K, further improving the efficiency of multi-file processing. The LEGEND 970 also adopts a LDPC (Low Density Parity Check Code) error correction mechanism and AES 256-bit high-level encryption technology to ensure the accuracy of data transmission and the security of files.
SSD Toolbox value-added software for real-time status monitoring
SSD Toolbox ensures users utilize the latest Firmware version for the best performance and employs Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) to understand the health and remaining lifespan of SSDs, as well as the current operating temperature and storage capacity, so that users can track of SSD status at any time.
| Features | |
|---|---|
| TBW rating | 1400 |
| Mean time between failures (MTBF) | 1600000 h |
| Sequential write speed (ATTO) | 10000 MB/s |
| Random write (4KB) | 1400 IOPS |
| Random read (4KB) | 1400 IOPS |
| Component for | PC/Laptop |
| NVMe version | 2.0 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Interface | PCI Express 5.0 |
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Operational conditions | |
|---|---|
| Operating shock | 1500 G |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 57.1 g |
| Height | 24.2 mm |
| Depth | 17.9 mm |
| Width | 80.6 mm |
ULTRA COMPACT FORM FACTOR
Add speedy high-capacity SSD storage to your handheld gaming PC and small form factor devices.
HIGH-SPEED PCIe GEN4 x4 NVMe 1.4 M.2 INTERFACE
The MP600 MINI provides impressive storage space and performance for PCIe Gen4-compatible systems.
WIDE COMPATIBILITY
Easily upgrade your handheld gaming device, tablet, or other thin and light devices.
HIGH-DENSITY 3D QLC NAND TECHNOLOGY
Provides the ideal mix of capacity, performance, and value.
| Features | |
|---|---|
| M.2 SSD size | 2230 (22 x 30 mm) |
| Write speed | 3800 MB/s |
| Read speed | 5000 MB/s |
| Hardware encryption | No |
| Component for | Universal |
| NVMe version | 1.4 |
| NVMe | Yes |
| Memory type | QLC 3D NAND |
| Interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Operational conditions | |
|---|---|
| Operating shock | 1500 G |
| Storage relative humidity (H-H) | 0 - 93% |
| Maximum operating temperature | 65 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 65 °C |
| Weight & dimensions | |
|---|---|
| Weight | 25 g |
| Depth | 22 mm |
| Width | 30 mm |
The P310 m.2 SSD provides great improvements to start-up, loading, and transfer times over traditional hard disk drives. The P310’s advanced firmware offers SmartECC technology, thermal throttling, and end-to-end data path protection to ensure data integrity, durability, and reliability for everyday tasks. Elevate your computer’s performance with the P310 SSD to experience quick application loading times for a better overall flawless productivity while transferring various applications without lag.
| Features | |
|---|---|
| TBW rating | 120 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| End-to-End Data Protection | Yes |
| PCI Express interface data lanes | x4 |
| Sequential write speed (CDM) | 1000 MB/s |
| Sequential read speed (CDM) | 1700 MB/s |
| Sequential write speed (ATTO) | 1000 MB/s |
| Sequential read speed (ATTO) | 1700 MB/s |
| Random write (4KB) | 250000 IOPS |
| Random read (4KB) | 280000 IOPS |
| Write speed | 1000 MB/s |
| Read speed | 1700 MB/s |
| Hardware encryption | No |
| Component for | PC/Laptop |
| NVMe version | 1.3 |
| NVMe | Yes |
| Interface | PCI Express 3.0 |
| SSD capacity | 240 GB |
| SSD form factor | M.2 |
| Power | |
|---|---|
| Power consumption (idle) | 0.38 W |
| Operational conditions | |
|---|---|
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Technical details | |
|---|---|
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 9 g |
| Height | 3.8 mm |
| Depth | 80 mm |
| Width | 22 mm |
| Packaging data | |
|---|---|
| Package type | Hanging box |
| Package weight | 20 g |
| Package height | 99.6 mm |
| Package depth | 6.6 mm |
| Package width | 130.8 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
BURST ELITE 2.5" SSD SATA III
Patriot’s Burst Elite is an extension of the Burst, the 2.5" SATA III Solid State Drive, which is supported by the latest SATA controller capable of utilizing both TLC and QLCNAND. The latest addition to the Burst family is the perfect way to enhance computer performance to eliminate bottlenecks. A SATA III 6Gb/s Interface that is backwards compatible with SATA II 3GB/s, this SSD provides greater performance over traditional HDDs.
At only 7mm high in a 2.5” form factor, the Burst Elite is perfect for any PC or laptop upgrade. Patriot’s Burst Elite SSD comes in higher capacities for every user, while continuing to price competitively to offer one of the best price-per-performance ratios on the market. Burst Elite will deliver as one of the most reliable choices in SSDs in the market.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 2000000 h |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Sequential write speed (ATTO) | 320 MB/s |
| Sequential read speed (ATTO) | 450 MB/s |
| Random write (4KB) | 40000 IOPS |
| Random read (4KB) | 40000 IOPS |
| Write speed | 320 MB/s |
| Read speed | 450 MB/s |
| Data transfer rate | 6 Gbit/s |
| Target workload | Mixed Use (MU) |
| Component for | PC/Laptop |
| NVMe | No |
| Interface | Serial ATA III |
| SSD capacity | 120 GB |
| SSD form factor | 2.5" |
| Power | |
|---|---|
| Operating voltage | 5 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 46 g |
| Height | 7 mm |
| Depth | 100 mm |
| Width | 69 mm |
| Packaging data | |
|---|---|
| Package type | Hanging box |
| Package weight | 53 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
Game-changing Speeds, Unmatched Performance, Unmatched Speed
The VP4300 Lite offers lightning-fast speed and an unrivaled gaming experience with read speeds of up to 7,400MB/s.
Latest NVMe 2.0 Support
The VP4300 Lite fully supports NVMe 2.0, ensuring compatibility and performance across all systems.
Cutting-Edge Cooling
Our special edition ultra-thin graphene cooling heatspreader provides optimal cooling to run smoothly through intense gaming sessions.
PS5 Compatibility
With compatibility between PC and PS5, the VP4300 Lite offers strong performance built for both systems. When in use with the PS5, the VP4300 Lite offer robust sequential read speeds of up to 6,100MB/s.
Massive 4TB Storage Space
With the VP4300 Lite offering capacities of up of 4TB, gamers will have plenty of space for all their games, files, and media whenever they need it.
Maximum Protection, Long-Lasting Performance, Guaranteed
Built with best-in-class materials, the VP4300 Lite also comes with a five-year warranty to ensure guaranteed protection and long-lasting performance.
| Features | |
|---|---|
| Compatible products | PlayStation 5 |
| Certification | CE/FCC/UKCA/BSMI/RoHS |
| TBW rating | 800 |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| PCI Express interface data lanes | x4 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Sequential write speed (CDM) | 6400 MB/s |
| Sequential read speed (CDM) | 7400 MB/s |
| Write speed | 6400 MB/s |
| Read speed | 7400 MB/s |
| Hardware encryption | No |
| Component for | PC/Game console |
| NVMe version | 2.0 |
| NVMe | Yes |
| Interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 9 g |
| Height | 3.8 mm |
| Depth | 80 mm |
| Width | 22 mm |
| Packaging data | |
|---|---|
| Package type | Hanging box |
| Package weight | 20 g |
| Package height | 6.6 mm |
| Package depth | 132 mm |
| Package width | 100 mm |
| Other features | |
|---|---|
| Cooling type | Heatsink |
The PNY CS2230 M.2 NVMe SSD is an excellent choice for an NVMe upgrade from a SATA based solid state drive (SSD) in an existing NVMe enabled PC or MAC desktop or laptop computer. The CS2230 drive is designed to be a SATA SSD replacement to help realize faster boot times, quicker application launches, and better overall system performance. Do more in less time with NVMe; boot up, power down, and load applications up to 6 times faster than with SATA based SSD’s. With no moving parts, the PNY CS2230 M.2 NVMe SSD is highly durable, less likely to fail, and supports a 5-Year Limited Warranty or TBW.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 1000000 h |
| End-to-End Data Protection | Yes |
| ECC | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| PCI Express interface data lanes | x4 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Write speed | 2600 MB/s |
| Read speed | 3300 MB/s |
| Hardware encryption | No |
| Component for | PC/Laptop |
| NVMe version | 1.4 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Interface | PCI Express 3.0 |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Operational conditions | |
|---|---|
| Maximum operating temperature | 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 6.6 g |
| Height | 4 mm |
| Depth | 22 mm |
| Width | 80 mm |
| Packaging data | |
|---|---|
| Package type | Hanging box |
Supporting the next-generation Serial ATA interface and built around a powerful controller, Transcend's SATA III 6Gb/s mSATA SSD 370S delivers blazing fast performance and long-term reliability. The compact mSATA form factor makes it perfect for use in space-restricted portable devices such as Ultrabooks, tablet PCs, and slim servers.
| Features | |
|---|---|
| Certification | CE/FCC/BSMI |
| TBW rating | 360 |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| ECC | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Random write (4KB) | 50000 IOPS |
| Random read (4KB) | 70000 IOPS |
| Write speed | 200 MB/s |
| Read speed | 530 MB/s |
| Data transfer rate | 6 Gbit/s |
| Hardware encryption | Yes |
| Component for | Laptop |
| Memory type | MLC |
| Interface | Serial ATA III |
| SSD capacity | 128 GB |
| SSD form factor | mSATA |
| Power | |
|---|---|
| Operating voltage | 3.3 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 8 g |
| Height | 50.8 mm |
| Depth | 4.85 mm |
| Width | 29.9 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |

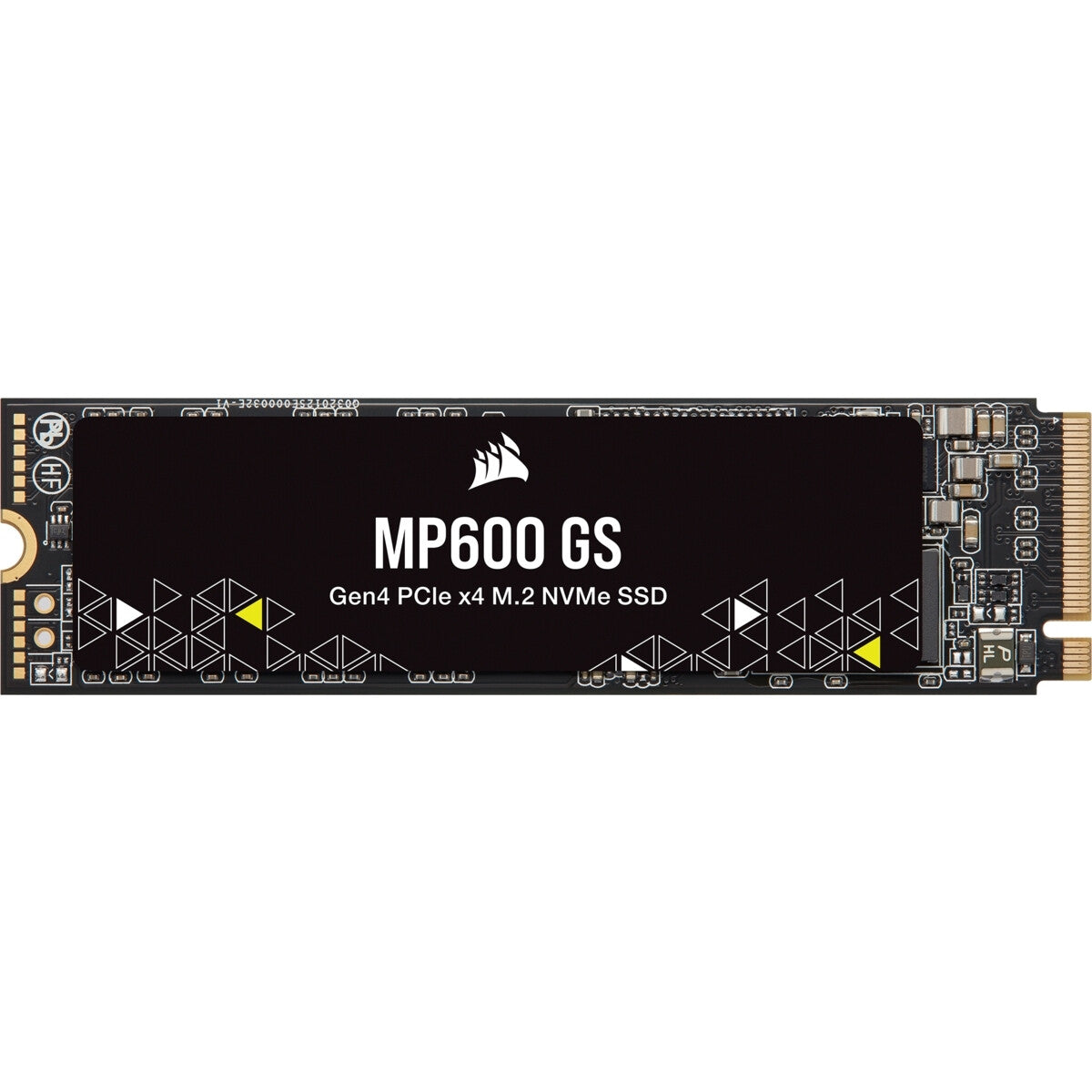

EXTREME GEN4 STORAGE PERFORMANCE
A PCIe Gen4 x4 controller delivers phenomenal read, write, and response times that leave standard M.2 SSDs in the dust.
YOUR PC MADE FASTER
Load games, boot Windows, open and transfer files, all faster than ever.
HIGH-SPEED GEN4 PCIe x4 NVME 1.4 M.2 INTERFACE
Leveraging PCIe Gen4 NVMe 1.4 technology for maximum bandwidth, the MP600 GS delivers incredible storage performance.
HIGH-DENSITY 3D TLC NAND
Provides the ideal mix of performance and endurance to ensure that your drive will last and perform well through many years of use.
COMPACT M.2 2280 FORM-FACTOR
Fits directly onto most motherboards, making a great upgrade for laptops and notebooks with PCIe Gen4-capable CPUs
| Features | |
|---|---|
| TBW rating | 1200 |
| Mean time between failures (MTBF) | 1500000 h |
| PCI Express interface data lanes | x4 |
| Sequential write speed (CDM) | 4500 MB/s |
| Sequential read speed (CDM) | 4800 MB/s |
| Random write (4KB) | 530000 IOPS |
| Random read (4KB) | 1000000 IOPS |
| Write speed | 4500 MB/s |
| Read speed | 4800 MB/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | PC/Laptop |
| NVMe version | 1.4 |
| NVMe | Yes |
| Memory type | 3D TLC NAND |
| Interface | PCI Express 4.0 |
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Power | |
|---|---|
| Power consumption (average) | 5.3 W |
| Operating voltage | 3.3 V |
| Operational conditions | |
|---|---|
| Vibration resistance | 20 G |
| Operating shock | 1500 G |
| Maximum operating temperature | 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 34 g |
