Superior technology and cooling

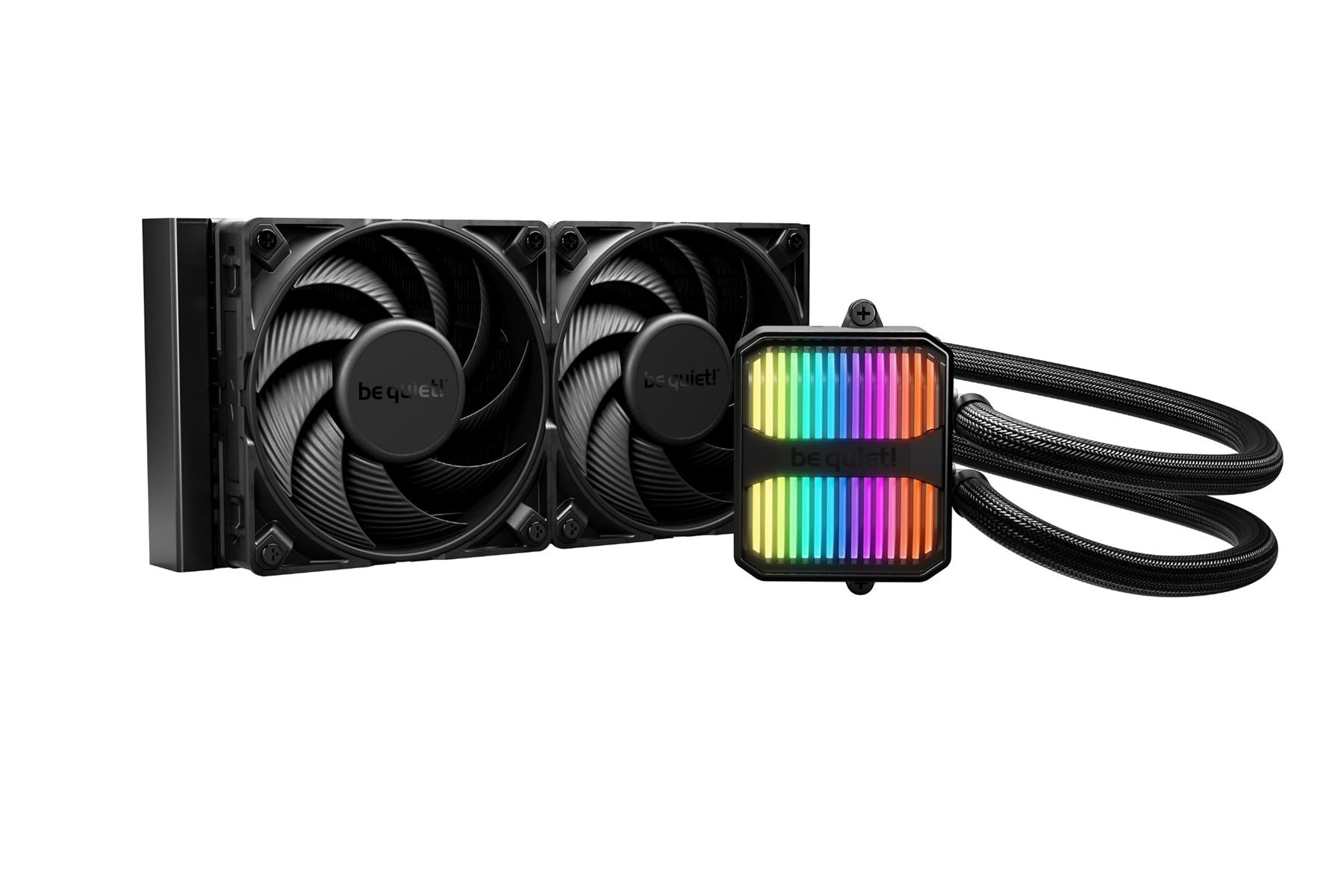

Silent Loop 3 240mm is the virtually inaudible and extremely high performing All-in-One water cooling unit with state-of-the-art technology. Silent Loop 3 is the epitome of a German engineered piece of hardware that embodies what be quiet! is associated with.
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Noise level (low speed) | 18.7 dB |
| Noise level (high speed) | 36.9 dB |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 76.7 cfm |
| Maximum air pressure | 3.96 mmH2O |
| Airflow | 130.3 m³/h |
| Number of fans | 2 fan(s) |
| Quantity per pack | 1 pc(s) |
| Pump connector | 4-pin |
| Pump motor speed (min) | 1700 RPM |
| Pump motor speed (max) | 3500 RPM |
| Pump motor speed | 3500 RPM |
| Fan speed (max) | 2500 RPM |
| Fan's mean time to failure (MTTF) | 300000 h |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 2 fan(s) |
| Illumination colour | Multi |
| Product colour | Black |
| Cable length | 0.5 m |
| Illumination LED | Yes |
| Radiator material | Aluminum |
| Base plate material | Copper |
| LED connector type | 3-pin |
| Technical details | |
| Noise level (low speed) | 18.7 dB |
| Noise level (high speed) | 36.9 dB |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 76.7 cfm |
| Maximum air pressure | 3.96 mmH2O |
| Airflow | 130.3 m³/h |
| Number of fans | 2 fan(s) |
| Cable length | 0.5 m |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Sustainability certificates | Triman |
| Warranty period | 3 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Pump connector | 4-pin |
| Power | |
| LED voltage | 5 V |
| Fan power consumption | 3.6 W |
| Fan voltage | 12 V |
| Fan current | 0.3 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package depth | 321 mm |
| Package width | 240 mm |
| Package height | 140 mm |
| Width | 120 mm |
| Package weight | 2.4 kg |
| Depth | 52 mm |
| Height | 277 mm |
| Weight | 1.38 kg |
| Cable length | 0.5 m |
| Radiator width | 12 cm |
| Radiator depth | 27.7 cm |
| Radiator height | 2.7 cm |
| Tube length | 40 cm |
| Waterblock width | 8 cm |
| Waterblock depth | 5.6 cm |
| Waterblock height | 9.35 cm |
| Packaging data | |
| Package depth | 321 mm |
| Package width | 240 mm |
| Package height | 140 mm |
| Package weight | 2.4 kg |
| Package type | Box |
| Indication | |
| Illumination colour | Multi |
| Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| Thermal grease | Yes |
| Manual | Yes |
| CPU bracket(s) | Yes |
| Other features | |
| Pump connector | 4-pin |
| Thermal grease | Yes |
| LED voltage | 5 V |
| Logistics data | |
| Shipping (inner) case width | 28.6 cm |
| Shipping (inner) case length | 65.8 cm |
| Shipping (inner) case height | 50.8 cm |
| Shipping (inner) case gross weight | 20.5 kg |
| Products per shipping (inner) case | 8 pc(s) |
