Display | |
---|---|
Display brightness | 255 cd/m² |
Display diagonal (metric) | 68.6 cm |
Viewable size, vertical | 33.6 cm |
Viewable size, horizontal | 59.8 cm |
Horizontal scan range | 30 - 83 kHz |
Pixel pitch | 0.311 x 0.311 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Contrast ratio (typical) | 1000:1 |
Aspect ratio | 16:9 |
Screen shape | Flat |
Response time | 5 ms |
Display brightness (typical) | 360 cd/m² |
Display brightness (peak) | 400 cd/m² |
Number of simultaneous touchpoints | 10 |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Panel type | IPS |
HD type | Full HD |
Touchscreen | Yes |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 68.6 cm (27") |
Performance | |
---|---|
Linux operating systems supported | Yes |
Windows operating systems supported | Yes |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
RMS rated power | 1 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Certification | CE, TÜV-Bauart, ErP, CU |
Glass thickness | 2.2 mm |
Product colour | Black |
Market positioning | Business |
Ports & interfaces | |
---|---|
HDCP | Yes |
Audio output | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB Touch port | Yes |
USB Type-A downstream ports quantity | 3 |
Number of upstream ports | 1 |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Network | |
---|---|
Ethernet LAN | No |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
LED indicators | Yes |
Plug and Play | Yes |
Number of OSD languages | 10 |
On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
Tilt angle range | 5 - 90° |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Wall mountable | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
AC input frequency | 50 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 1.5 W |
Power consumption (typical) | 30 W |
Energy efficiency class (SDR) | E |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | AC, HDMI, USB |
Weight & dimensions | |
---|---|
Weight (with stand) | 6.7 kg |
Height (with stand) | 403 mm |
Depth (with stand) | 239.5 mm |
Width (with stand) | 614 mm |
Sustainability | |
---|---|
European Product Registry for Energy Labelling (EPREL) code | 1824494 |
General | |
---|---|
Product Family | ProLite |
Logistics data | |
---|---|
Harmonized System (HS) code | 85285210 |
Other features | |
---|---|
Full HD | Yes |
Designed for business, this LED-backlit monitor with 150mm height adjustability and screen rotation allows you to set the perfect position of the screen ensuring ergonomic posture and optimal viewing comfort. The 5ms response time and high contrast make the B1980D ideal for a wide range of business applications. sRGB and gamma correction functions permit even the finest nuances of colour to be set accurately.
Display | |
---|---|
NTSC coverage (typical) | 72% |
sRGB coverage (typical) | 99% |
Display diagonal (metric) | 48 cm |
Viewable size, vertical | 30.1 cm |
Viewable size, horizontal | 37.6 cm |
Horizontal scan range | 24 - 80 kHz |
Pixel pitch | 0.294 x 0.294 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 160° |
Viewing angle, horizontal | 170° |
Maximum refresh rate | 60 Hz |
Contrast ratio (dynamic) | 12000000:1 |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Response time | 5 ms |
Display brightness (typical) | 250 cd/m² |
Panel type | TN |
HD type | SXGA |
Touchscreen | No |
Display technology | LCD |
Native aspect ratio | 5:4 |
Display resolution | 1280 x 1024 pixels |
Display diagonal | 48.3 cm (19") |
Performance | |
---|---|
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
Built-in camera | No |
Built-in speaker(s) | No |
Design | |
---|---|
Product colour | White |
Market positioning | Business |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone out | No |
HDMI | No |
DVI port | Yes |
VGA (D-Sub) ports quantity | 1 |
Built-in USB hub | No |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Number of OSD languages | 9 |
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian |
On Screen Display (OSD) | Yes |
Tilt angle range | -5 - 23° |
Swivel angle range | -45 - 45° |
Swivelling | Yes |
Pivot angle | 0 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Power supply type | Internal |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 16 W |
Energy efficiency class (SDR) | E |
Packaging content | |
---|---|
Cables included | DVI |
Stand included | Yes |
Weight & dimensions | |
---|---|
Weight (with stand) | 4.9 kg |
Height (with stand) | 547 mm |
Depth (with stand) | 209.5 mm |
Width (with stand) | 411 mm |
Packaging data | |
---|---|
Package weight | 6 kg |
Package height | 416 mm |
Package depth | 162 mm |
Package width | 490 mm |
Sustainability | |
---|---|
European Product Registry for Energy Labelling (EPREL) code | 1335920 |
General | |
---|---|
Product Family | ProLite |

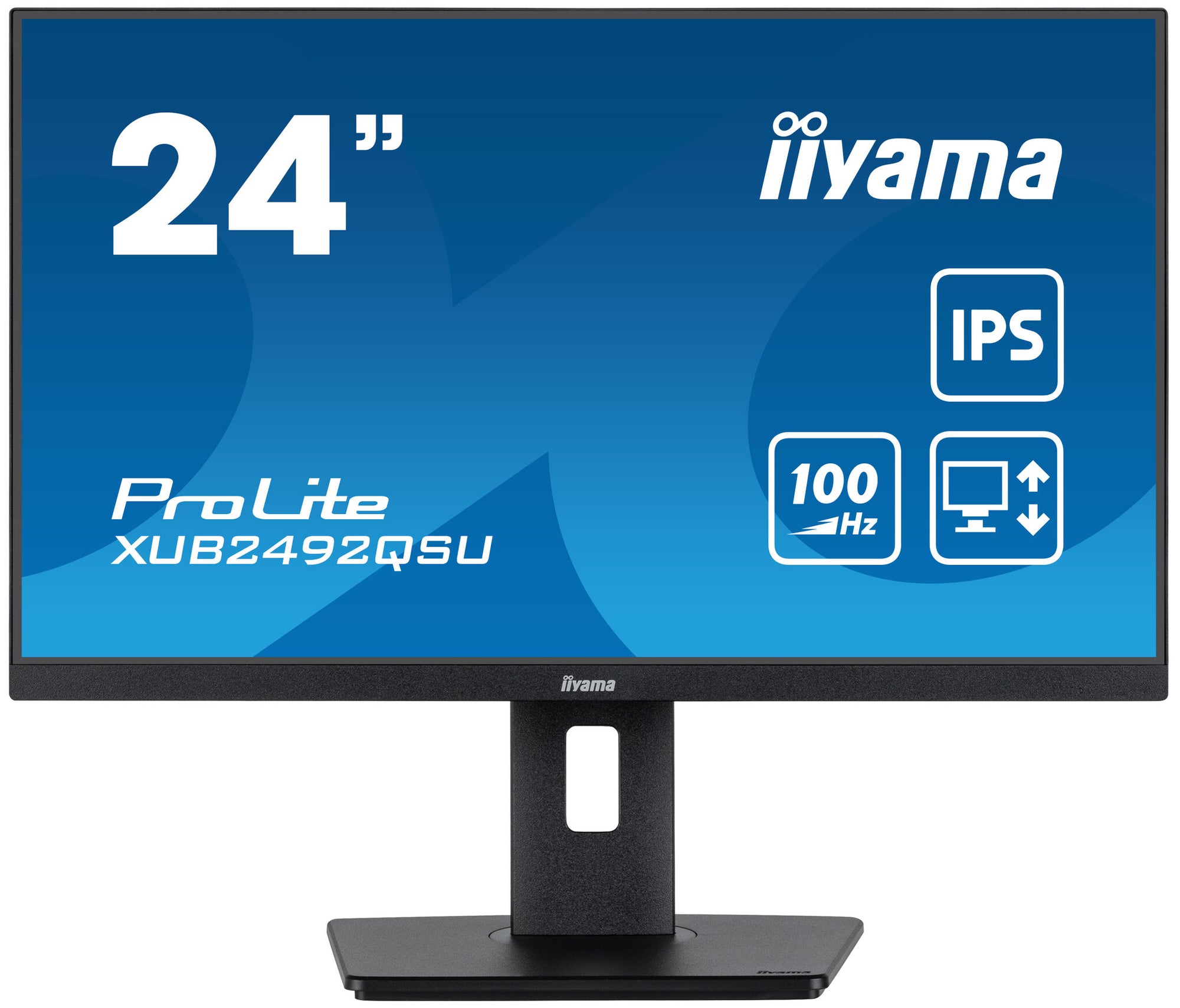

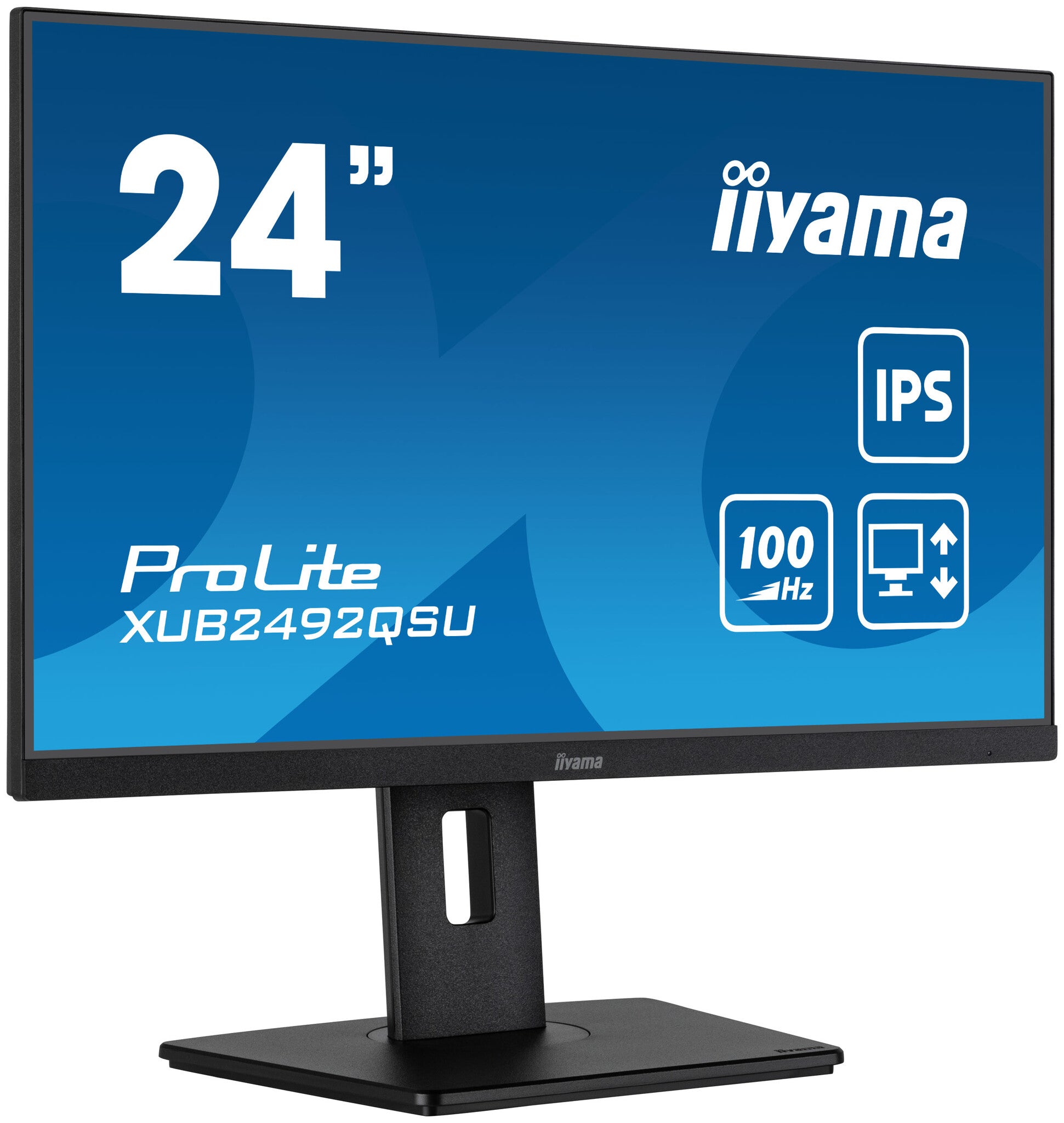

Stylish edge-to-edge design makes the ProLite XUB2492QSU offering WQHD (2560x1440) resolution is perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. The 100Hz refresh rate together with FreeSync function provides an instant, tangible improvement in image smoothness. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, USB 3.2 hub, headphone socket, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue and an ergonomic 150mm height adjustable stand for optimal user comfort, make this 24’’ monitor a great choice for both multi-monitor configuration and office applications.
FLICKER-FREE + BLUE LIGHT
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.
HAS (150MM) + PIVOT
With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.
WQHD
With true WQHD 2560 x 1440p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen, i.e. over 76% more in comparison to a 1920 x 1080 monitor.
Display | |
---|---|
NTSC coverage (typical) | 72% |
sRGB coverage (typical) | 99% |
Display diagonal (metric) | 60.5 cm |
Viewable size, vertical | 29.6 cm |
Viewable size, horizontal | 52.7 cm |
Horizontal scan range | 30 - 155 kHz |
Pixel pitch | 0.206 x 0.206 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 100 Hz |
Contrast ratio (dynamic) | 80000000:1 |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Display surface | Matt |
Response time | 1 ms |
Display brightness (typical) | 300 cd/m² |
Panel type | IPS |
HD type | Wide Quad HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 2560 x 1440 pixels |
Display diagonal | 60.5 cm (23.8") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
RMS rated power | 4 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Feet colour | Black |
Frameless design | Yes |
Product colour | Black |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone out | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB Type-C downstream ports quantity | 1 |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Tilt angle range | 5 - 23° |
Swivel angle range | 45 - 90° |
Pivot angle | 0 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Cable management | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | Internal |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 25 W |
Energy consumption (SDR) per 1000 hours | 20 kWh |
Energy efficiency class (SDR) | F |
Packaging content | |
---|---|
Manual | Yes |
Cables included | AC, HDMI, USB |
Stand included | Yes |
Weight & dimensions | |
---|---|
Weight (with stand) | 5.9 kg |
Height (with stand) | 209.5 mm |
Depth (with stand) | 358 mm |
Width (with stand) | 540 mm |
Packaging data | |
---|---|
Package weight | 3.4 kg |
Package height | 120 mm |
Package depth | 386 mm |
Package width | 564 mm |
General | |
---|---|
Product Family | ProLite |
Display | |
---|---|
NTSC coverage (typical) | 72% |
sRGB coverage (typical) | 96% |
DDC/CI | Yes |
Viewable size, vertical | 29.6 cm |
Viewable size, horizontal | 52.7 cm |
Horizontal scan range | 30 - 115 kHz |
Pixel pitch | 0.275 x 0.275 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 60 Hz |
Contrast ratio (dynamic) | 8000000:1 |
Contrast ratio (typical) | 1000:1 |
Supported graphics resolutions | 1920 x 1080 (HD 1080) |
Screen shape | Flat |
Display surface | Matt |
Response time | 4 ms |
Display brightness (typical) | 250 cd/m² |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 60.5 cm (23.8") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
Component video sync | Separate sync |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
RMS rated power | 4 W |
Number of speakers | 2 |
Built-in camera | Yes |
Built-in speaker(s) | Yes |
Design | |
---|---|
Certification | CE, TÜV-Bauart, EAC, VCCI-B, PSE |
Feet colour | Black |
Product colour | Black |
Market positioning | Home |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone outputs | 1 |
Headphone out | Yes |
Audio input | No |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB Type-A downstream ports quantity | 3 |
USB upstream port type | USB Type-A |
USB hub version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Number of OSD languages | 9 |
On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
On Screen Display (OSD) | Yes |
Tilt angle range | 5 - 22° |
Swivel angle range | -45 - 45° |
Swivelling | Yes |
Pivot angle | 0 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Input current | 1.5 A |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 14 W |
Energy efficiency class (SDR) | G |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 5 - 85% |
Operating relative humidity (H-H) | 10 - 80% |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 5 - 35 °C |
Packaging content | |
---|---|
Cables included | AC, HDMI, USB |
Stand included | Yes |
Weight & dimensions | |
---|---|
Height (without stand) | 323 mm |
Depth (without stand) | 45.5 mm |
Width (without stand) | 539.5 mm |
Weight (with stand) | 5 kg |
Height (with stand) | 365.5 mm |
Depth (with stand) | 209.5 mm |
Width (with stand) | 539.5 mm |
Packaging data | |
---|---|
Quantity per pack | 1 pc(s) |
Package type | Box |
Package weight | 6.6 kg |
Package height | 159 mm |
Package depth | 410 mm |
Package width | 610 mm |
Sustainability | |
---|---|
European Product Registry for Energy Labelling (EPREL) code | 352216 |
Sustainability certificates | ENERGY STAR |
General | |
---|---|
Product Family | ProLite |
Logistics data | |
---|---|
Harmonized System (HS) code | 85285210 |

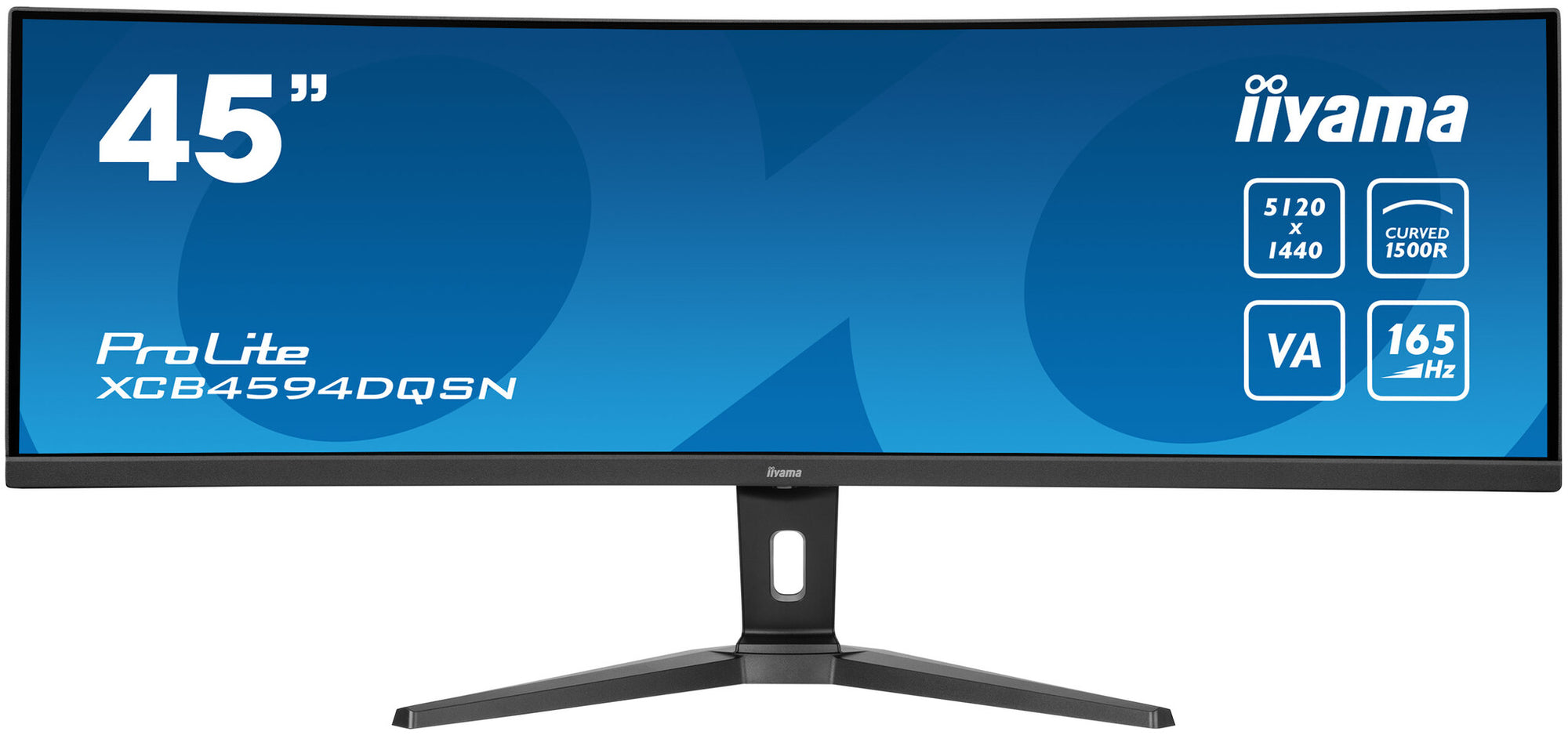

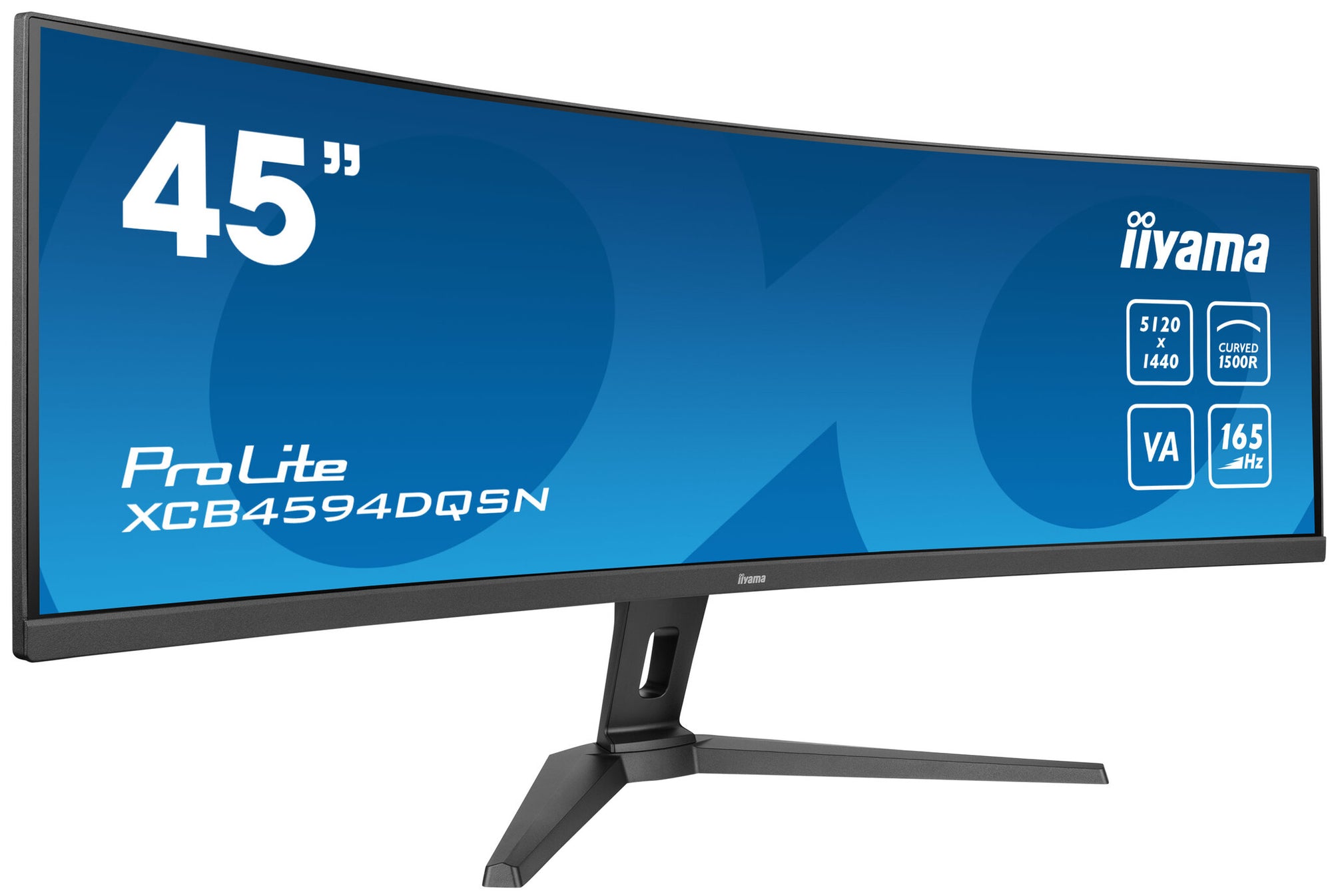

45’’ Dual QHD VA panel with KVM switch, USB-C dock and RJ45 (LAN) and height adjustable stand
The XCB4594DQSN features a 1500R curved VA panel with a 165Hz refresh rate, 0.8ms MPRT, and a 5120x1140 (DQHD) resolution for superb image quality. The KVM switch allows you to connect multiple computers that can be operated over one console (monitor, keyboard, mouse). The USB-C dock simplifies setup with one cable for laptop signal transmission, power, and charging. Connecting to the Internet via LAN automatically links your notebook to the network. The VA panel ensures expansive viewing angles and vivid colours, and the 1500R curvature minimizes eye strain for a lifelike and fully immersive gaming experience. The dual QHD resolution provides sharp visuals, and the height-adjustable stand adds a comfortable and highly ergonomic experience.
DQHD
Ultra-wide 32:9 monitors with a DQHD 5120x1440 resolution, also called dual QHD, deliver razor-sharp images. They make it possible to divide the workspace into multiple windows and simultaneously open all the documents you need.
CURVED DESIGN 1500R
The 1500R curvature of the screen reduces the strain on your eyes while providing a realistic viewing experience. It allows a comprehensive and more natural viewing angle than you’ll have with flat monitors lined up side by side. The result is a more immersive experience which boosts productivity and focus whether it be for work, gaming, entertainment, editing or more.
USB-C DOCK
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
KVM SWITCH
Having a monitor with a KVM switch allows you to share the devices connected via USB to your monitor with two different PCs. Just change the signal input in the OSD menu of the monitor and your keyboard, mouse and webcam will switch from your work laptop to your gaming PC.
VA
VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
Display | |
---|---|
High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
High Dynamic Range (HDR) supported | Yes |
Display diagonal (metric) | 113 cm |
Digital horizontal frequency | 30 - 260 kHz |
Viewable size, vertical | 108.8 cm |
Viewable size, horizontal | 30.6 cm |
Pixel pitch | 0.212 x 0.212 mm |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 165 Hz |
Contrast ratio (dynamic) | 80000000:1 |
Contrast ratio (typical) | 3000:1 |
Screen curvature rating | 1500R |
Screen shape | Curved |
Display surface | Matt |
Response time | 0.8 ms |
Display brightness (typical) | 450 cd/m² |
Backlight type | LED |
Panel type | VA |
HD type | Dual QHD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 32:9 |
Display resolution | 5120 x 1440 pixels |
Display diagonal | 114.3 cm (45") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
ConnectShare (USB) | Yes |
Brand specific technologies | Black Equalizer, Eye Saver |
AMD FreeSync | Yes |
Multimedia | |
---|---|
RMS rated power | 6 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Feet colour | Black |
Detachable stand | Yes |
Product colour | Black |
Market positioning | Gaming |
Ports & interfaces | |
---|---|
DC-in jack | Yes |
HDCP | Yes |
KVM switch ports quantity | 1 |
Built-in KVM switch | Yes |
Headphone outputs | 1 |
Headphone out | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 2 |
HDMI | Yes |
USB Power Delivery up to | 90 W |
USB Power Delivery | Yes |
USB Type-C downstream ports quantity | 1 |
USB Type-A downstream ports quantity | 3 |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Network | |
---|---|
Ethernet LAN | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Number of OSD languages | 9 |
On Screen Display (OSD) languages | Czech, German, English, French, Hungarian, Italian, Japanese, Polish, Russian |
On Screen Display (OSD) | Yes |
Tilt angle range | 3 - 20° |
Height adjustment | 13 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Wall mountable | Yes |
Panel mounting interface | 200 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | External |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 37 W |
Energy consumption (HDR) per 1000 hours | 67 kWh |
Energy consumption (SDR) per 1000 hours | 37 kWh |
Energy efficiency class (HDR) | G |
Energy efficiency class (SDR) | F |
Operational conditions | |
---|---|
Operating temperature (T-T) | 5 - 35 °C |
Packaging content | |
---|---|
Manual | Yes |
Quick start guide | Yes |
Power adapter included | Yes |
Cables included | DisplayPort, HDMI, Power, USB |
Stand included | Yes |
Weight & dimensions | |
---|---|
Weight (with stand) | 11.2 kg |
Height (with stand) | 409 mm |
Depth (with stand) | 275 mm |
Width (with stand) | 1090 mm |
Packaging data | |
---|---|
Package weight | 16.4 kg |
Package height | 470 mm |
Package depth | 315 mm |
Package width | 1260 mm |
Sustainability | |
---|---|
European Product Registry for Energy Labelling (EPREL) code | 1774068 |
Sustainability certificates | CE, ErP, PSE, REACH, RoHS, TUV, UKCA, VCCI, WEEE |
Sustainability compliance | Yes |
General | |
---|---|
Product Family | G-MASTER |
Other features | |
---|---|
Volume control | Buttons |

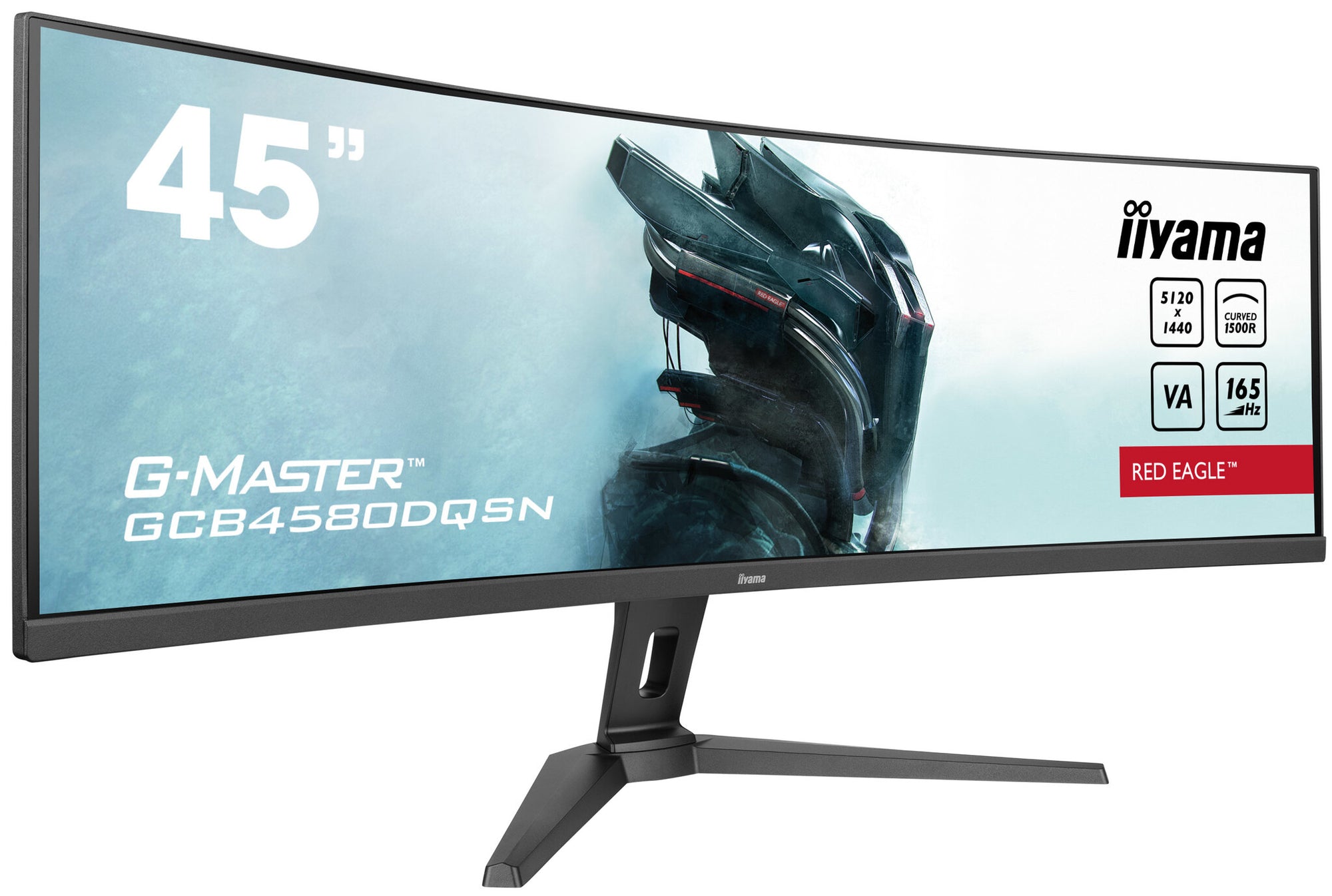

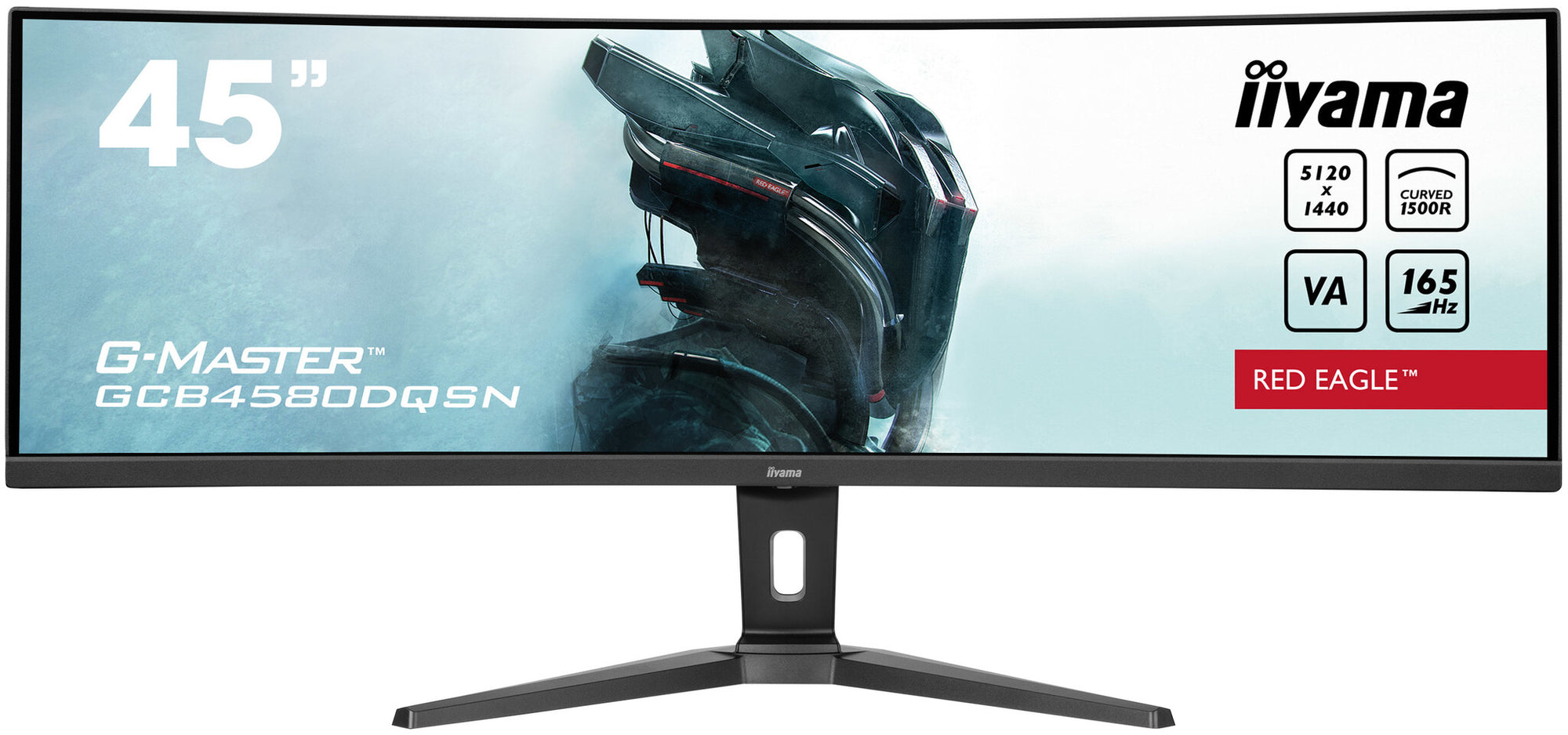

G-MASTER GCB4580DQSN-B1
Immerse yourself in the game with the curved 45’’ Dual QHD Red Eagle Gaming Display
Unleash a panoramic visual experience and immerse yourself into your gaming world with this ultra-wide DQHD 5120 x 1440 resolution 32:9 display. With 1500R curved VA panel with a 165Hz refresh rate featuring 0.8ms MPRT, delivering a high framerate and smooth yet sharp rendered images with beautiful colour, that brings your games to life.
DQHD
Ultra-wide 32:9 monitors boasting DQHD 5120 x 1440 resolution, also recognized as Dual QHD, guarantee razor-sharp images that bring your games to life. These monitors empower you to organize your gaming setup for an unparalleled gaming experience. You won't miss a single detail!
165HZ & 0.8MS MPRT
With 165Hz refresh rate and 0.8ms MPRT response time the force is with you! Make split second decisions and be sure the image on the screen is always sharp and smooth.
CURVED DESIGN 1500R
The 1500R curvature of the screen guarantees a realistic and comfortable viewing experience allowing you to really immerse yourself in the game.
VA PANEL TECHNOLOGY
Guaranteeing excellent contrast ratio making all the nuances between the light and dark colours clearly visible.
BLACK TUNER
The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.
Display | |
---|---|
High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
High Dynamic Range (HDR) supported | Yes |
Display diagonal (metric) | 113 cm |
Digital horizontal frequency | 30 - 260 kHz |
Viewable size, vertical | 108.8 cm |
Viewable size, horizontal | 30.6 cm |
Pixel pitch | 0.212 x 0.212 mm |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 165 Hz |
Contrast ratio (dynamic) | 80000000:1 |
Contrast ratio (typical) | 3000:1 |
Screen curvature rating | 1500R |
Screen shape | Curved |
Display surface | Matt |
Response time | 0.8 ms |
Display brightness (typical) | 450 cd/m² |
Backlight type | LED |
Panel type | VA |
HD type | Dual QHD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 32:9 |
Display resolution | 5120 x 1440 pixels |
Display diagonal | 114.3 cm (45") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
ConnectShare (USB) | Yes |
Brand specific technologies | Black Equalizer, Eye Saver |
AMD FreeSync | Yes |
Multimedia | |
---|---|
RMS rated power | 6 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Feet colour | Black |
Detachable stand | Yes |
Product colour | Black |
Market positioning | Gaming |
Ports & interfaces | |
---|---|
HDCP | Yes |
Built-in KVM switch | Yes |
Headphone outputs | 1 |
Headphone out | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 2 |
HDMI | Yes |
USB Power Delivery up to | 90 W |
USB Power Delivery | Yes |
USB Type-C downstream ports quantity | 1 |
USB Type-A downstream ports quantity | 3 |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Network | |
---|---|
Ethernet LAN | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Number of OSD languages | 9 |
On Screen Display (OSD) languages | Czech, German, English, French, Hungarian, Italian, Japanese, Polish, Russian |
On Screen Display (OSD) | Yes |
Tilt angle range | 3 - 20° |
Height adjustment | 13 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Wall mountable | No |
Panel mounting interface | 100 x 100,200 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | External |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 37 W |
Energy consumption (HDR) per 1000 hours | 67 kWh |
Energy consumption (SDR) per 1000 hours | 37 kWh |
Energy efficiency class (HDR) | G |
Energy efficiency class (SDR) | F |
Operational conditions | |
---|---|
Operating temperature (T-T) | 5 - 35 °C |
Packaging content | |
---|---|
Manual | Yes |
Quick start guide | Yes |
Power adapter included | Yes |
Cables included | DisplayPort, HDMI, Power, USB |
Stand included | Yes |
Weight & dimensions | |
---|---|
Weight (with stand) | 11.2 kg |
Height (with stand) | 409 mm |
Depth (with stand) | 275 mm |
Width (with stand) | 1090 mm |
Sustainability | |
---|---|
European Product Registry for Energy Labelling (EPREL) code | 1774067 |
Sustainability certificates | CE, ErP, PSE, REACH, RoHS, TUV, UKCA, VCCI, WEEE |
Sustainability compliance | Yes |
General | |
---|---|
Product Family | G-MASTER |
Other features | |
---|---|
Volume control | Buttons |

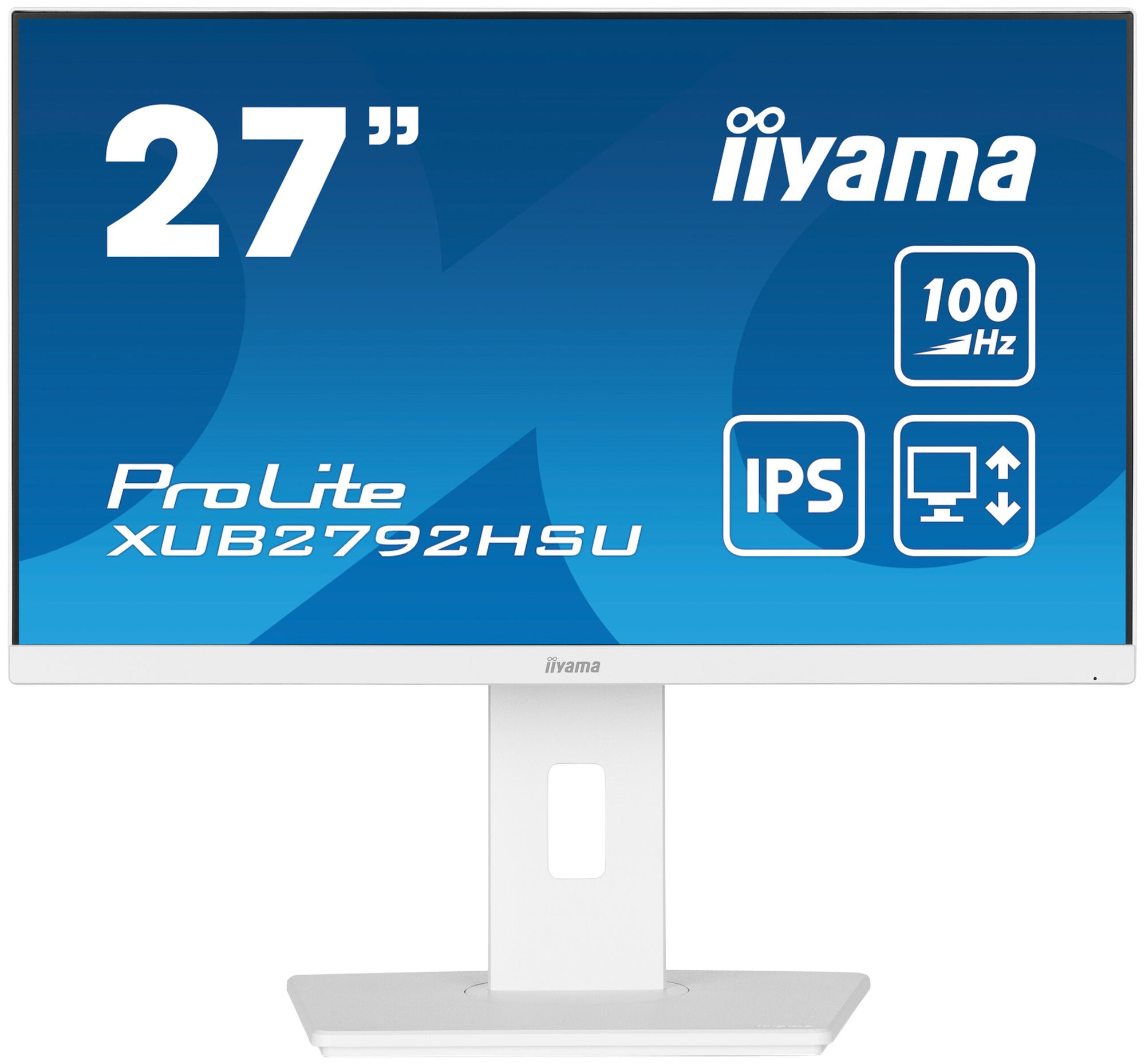

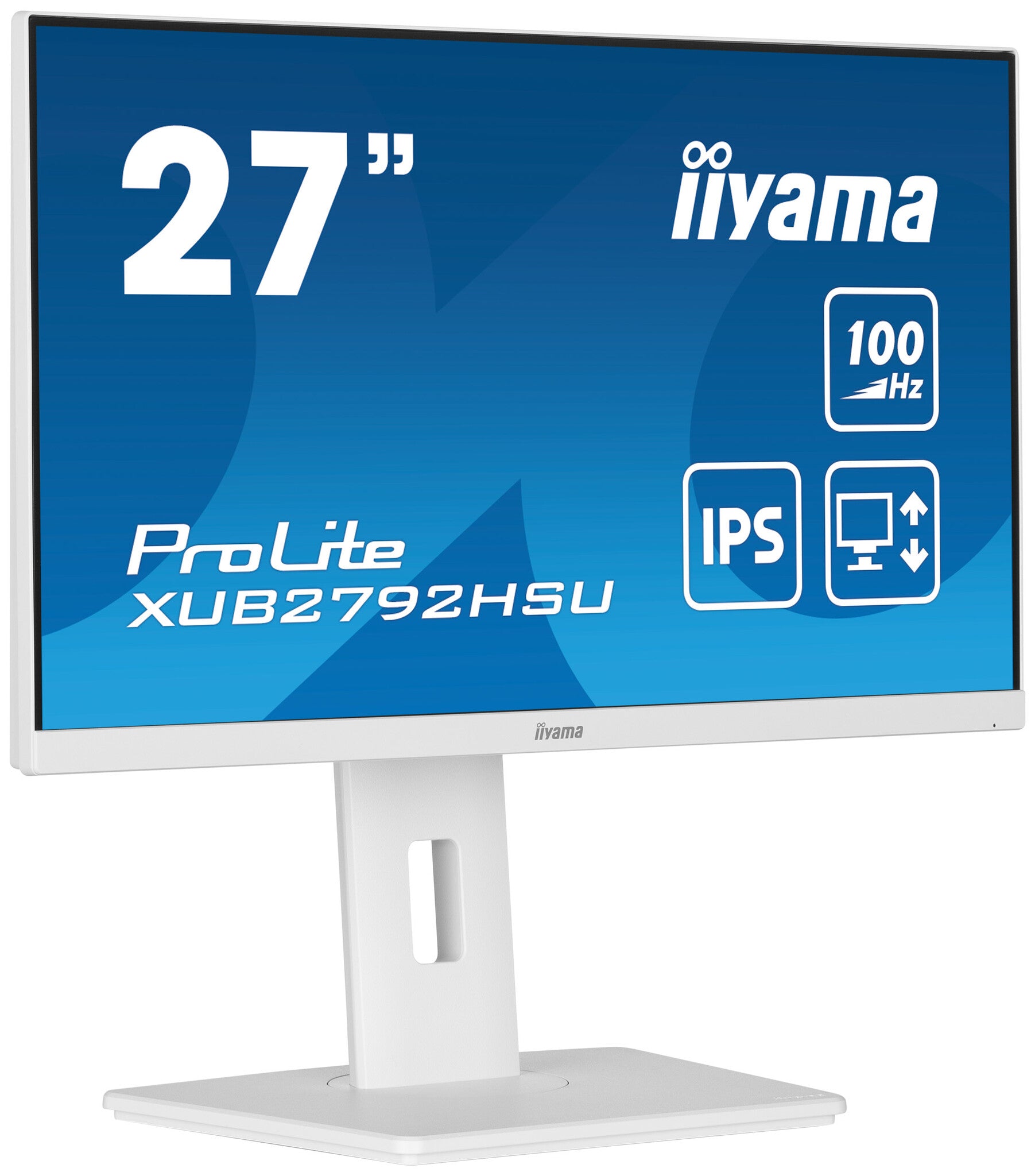

27” IPS technology panel with height adjustable stand and 100Hz refresh rate
Stylish edge-to-edge design makes the ProLite XUB2792HSU perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. The 100Hz refresh rate together with FreeSync function provides an instant, tangible improvement in image smoothness. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, 2 ports USB 3.2, headphone socket, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue and an ergonomic 150mm height adjustable stand for optimal user comfort, make this 27’’ monitor a great choice for both multi-monitor configuration and office applications.
Display | |
---|---|
Second display effective viewing area | 597.9 x 336.3 mm |
NTSC coverage (typical) | 72% |
sRGB coverage (typical) | 99% |
Display diagonal (metric) | 68.6 cm |
Viewable size, vertical | 33.6 cm |
Viewable size, horizontal | 59.8 cm |
Horizontal scan range | 31 - 115 kHz |
Pixel pitch | 0.311 x 0.311 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 100 Hz |
Contrast ratio (dynamic) | 8000000:1 |
Contrast ratio (typical) | 1300:1 |
Supported graphics resolutions | 1920 x 1080 (HD 1080) |
Screen shape | Flat |
Display surface | Matt |
Response time | 0.4 ms |
Display brightness (typical) | 250 cd/m² |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 68.6 cm (27") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
AMD FreeSync | Yes |
Multimedia | |
---|---|
RMS rated power | 2 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Certification | TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
Feet colour | White |
Product colour | White |
Market positioning | Gaming |
Ports & interfaces | |
---|---|
AC (power) in | Yes |
HDCP | Yes |
Headphone outputs | 1 |
Headphone out | Yes |
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB Type-A downstream ports quantity | 4 |
USB upstream port type | USB Type-A |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Number of OSD languages | 10 |
On Screen Display (OSD) languages | Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
On Screen Display (OSD) | Yes |
Tilt angle range | 5 - 22° |
Swivel angle range | -45 - 45° |
Swivelling | Yes |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot | Yes |
Cable management | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 17 W |
Energy consumption (SDR) per 1000 hours | 17 kWh |
Energy efficiency class (SDR) | E |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | AC, HDMI, USB |
Weight & dimensions | |
---|---|
Height (without stand) | 394 mm |
Depth (without stand) | 209.5 mm |
Width (without stand) | 612.5 mm |
Weight (with stand) | 5.7 kg |
Height (with stand) | 544 mm |
Depth (with stand) | 209.5 mm |
Width (with stand) | 612.5 mm |
Packaging data | |
---|---|
Package type | Box |
Package height | 455 mm |
Package depth | 168 mm |
Package width | 690 mm |
Sustainability | |
---|---|
Sustainability certificates | CE, EAC, ErP, PSE, REACH, RoHS, TCO, TÜV mark, UKCA, VCCI, WEEE |
General | |
---|---|
Product Family | ProLite |

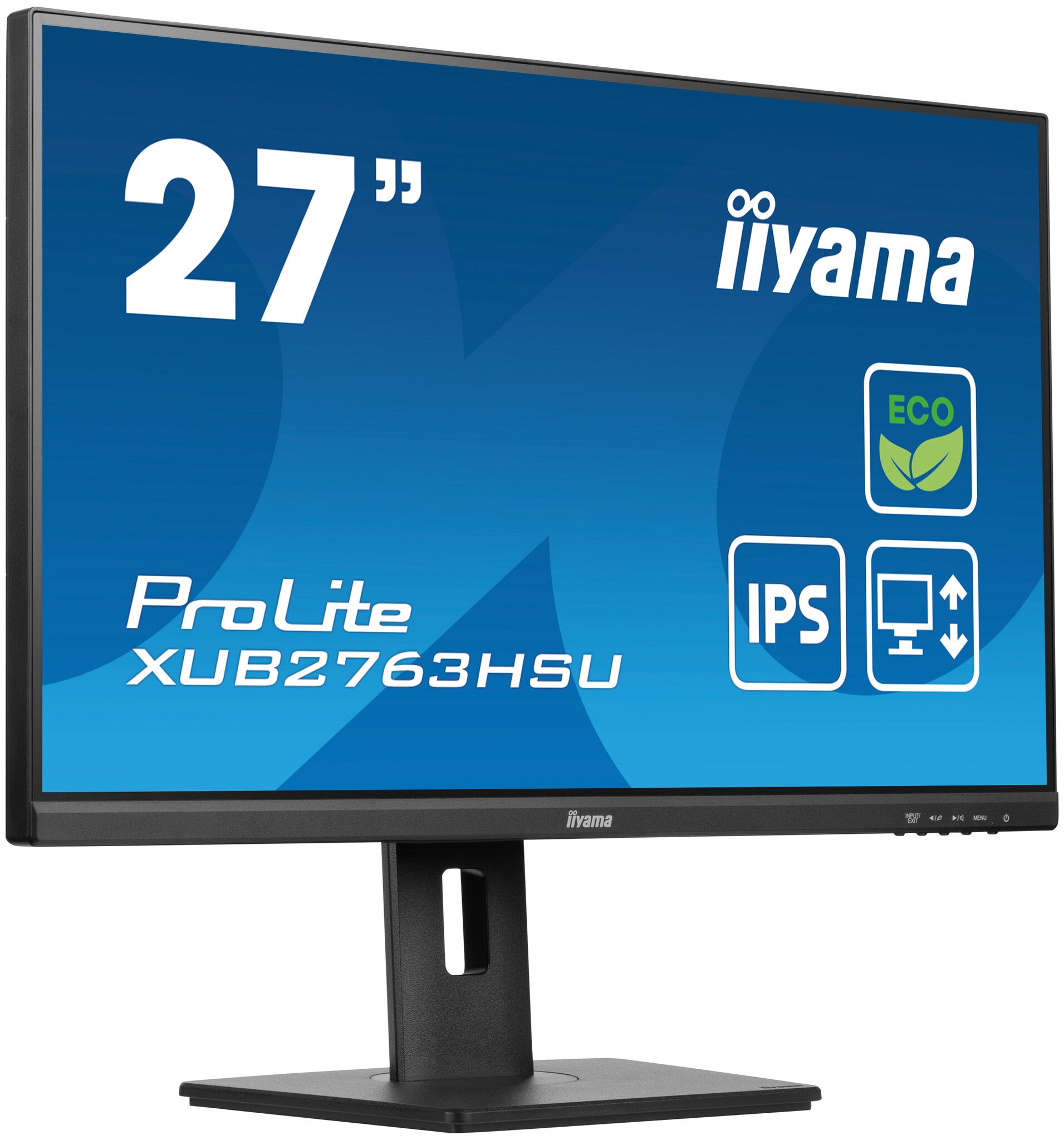

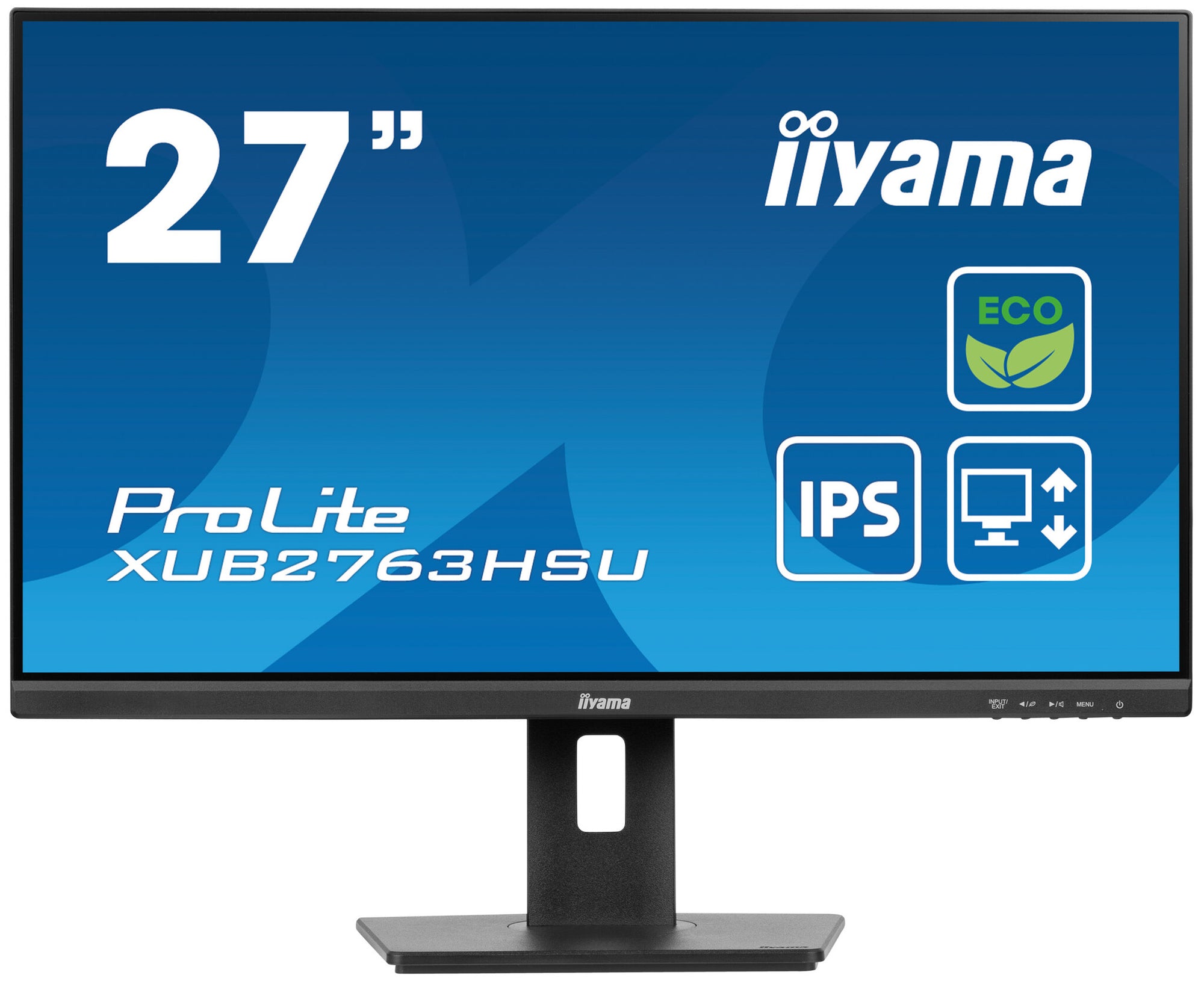

The XUB2763HSU-B1 is the product choice for the environmentally aware, a choice that helps drive progress towards a more sustainable future. To achieve this, we use zero plastic to pack this product and the product housing itself is made of 85% post-consumer recycled materials. The monitor is also TCO Certified and meets EPEAT® Silver criteria. To take care of your eye health, it complies with the Eye Safe and Eye Comfort Certifications. Based on IPS panel technology the Full HD XUB2763HSU-B1 assures wide viewing angles and highly accurate colours. And the ergonomic, 150mm height adjustable stand guarantees optimal user comfort.
Thank you
Thank you for making a responsible product choice, that helps drive progress towards a more sustainable future. To achieve this, we use zero plastic to pack this product and the product housing itself is made of 85% post-consumer recycled plastics. 100% of the packing is fully recyclable.
Better Choice - Certified
This product meets 100% of the TCO Certified criteria, the world’s most comprehensive sustainability certification for IT products. It also meets the EPEAT® Silver criteria covering both Environmental and Social Responsibility Assessment set out by EPEAT® - world’s premier ecolabel for electronics. Same as each electronic equipment sold in the EU, it complies with the The Restriction of Hazardous Substances Directive 2002/95/EC (RoHS 1) on the restriction of the use of certain hazardous substances. However, although the directive allows for use of up to 0.1% of mercury, this product is 100% mercury free.
Save electricity, maintain picture performance
Choosing a monitor with B energy class means you effectively save electricity without compromising on performance - the power-efficient feature using the most efficient LED backlight technology in combination with high efficiency colour filter maintains brightness and vivid colours so the picture performance stays unaffected.
Take care of your eyes
Based on optical testing and research led by optometrists and ophthalmologists from across the globe, the Eye Safe Certification, means this product provides always-on blue light protection reducing high-energy blue light yet maintaining colour performance intact. It also meets the requirements of the Eye Comfort Certification confirming the product has reduced blue light and is flicker free to protect eyes and preserve user vision and allow the user to change body position without compromising visual image quality.
IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
HAS 150mm
A Height Adjustable Stand allows you to set the perfect position of the screen ensuring ergonomic posture and optimal viewing comfort which benefits not only your health but also productivity.
USB hub
A built-in USB hub allows you to connect multiple USB devices, like for example a headset, to your monitor.
Display | |
---|---|
Viewable size, vertical | 60.8 cm |
Viewable size, horizontal | 34.5 cm |
Horizontal scan range | 45 - 100 kHz |
Pixel pitch | 0.311 x 0.311 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 100 Hz |
Contrast ratio (dynamic) | 80000000:1 |
Contrast ratio (typical) | 1300:1 |
Screen shape | Flat |
Display surface | Matt |
Response time | 3 ms |
Display brightness (typical) | 250 cd/m² |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 68.6 cm (27") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
AMD FreeSync type | FreeSync |
AMD FreeSync | Yes |
Multimedia | |
---|---|
RMS rated power | 4 W |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Product colour | Black |
Market positioning | Business |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone out | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Tilt angle range | 23 - 5° |
Swivel angle range | 90 - 45° |
Swivelling | Yes |
Pivot angle | 0 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Cable management | Yes |
Wall mountable | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | Internal |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 10.5 W |
Energy efficiency class (HDR) | Not available |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | AC, HDMI, USB |
Weight & dimensions | |
---|---|
Height (without stand) | 387.5 mm |
Depth (without stand) | 209.5 mm |
Width (without stand) | 612 mm |
Weight (with stand) | 5.8 kg |
Height (with stand) | 547.5 mm |
Depth (with stand) | 209.5 mm |
Width (with stand) | 612 mm |
Sustainability | |
---|---|
European Product Registry for Energy Labelling (EPREL) code | 1828494 |
General | |
---|---|
Product Family | ProLite |
Display | |
---|---|
High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
High Dynamic Range (HDR) supported | Yes |
Display diagonal (metric) | 69 cm |
Horizontal scan range | 31 - 352 kHz |
Pixel pitch | 0.233 x 0.233 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 240 Hz |
Contrast ratio (dynamic) | 80000000:1 |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Display surface | Matt |
Response time | 1 ms |
Display brightness (peak) | 400 cd/m² |
Panel type | IPS |
HD type | Wide Quad HD |
Touchscreen | No |
Display technology | LCD |
Native aspect ratio | 16:9 |
Display resolution | 2560 x 1440 pixels |
Display diagonal | 68.6 cm (27") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
AMD FreeSync type | FreeSync Premium |
AMD FreeSync | Yes |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
RMS rated power | 4 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Product colour | Black |
Market positioning | Gaming |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone out | Yes |
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
HDMI version | 2.0 |
HDMI ports quantity | 1 |
HDMI | Yes |
Number of upstream ports | 2 |
USB hub version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt angle range | -5 - 23° |
Pivot angle | 0 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Cable management | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Power supply type | Internal |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.5 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 33 W |
Energy consumption (HDR) per 1000 hours | 47 kWh |
Energy consumption (SDR) per 1000 hours | 26 kWh |
Energy efficiency class (HDR) | G |
Energy efficiency class (SDR) | E |
Packaging content | |
---|---|
Cables included | DisplayPort, HDMI, Power, USB |
Stand included | Yes |
Weight & dimensions | |
---|---|
Weight (with stand) | 5.7 kg |
Height (with stand) | 550 mm |
Depth (with stand) | 252 mm |
Width (with stand) | 614 mm |
Packaging data | |
---|---|
Package weight | 7.7 kg |
Package height | 506 mm |
Package depth | 207 mm |
Package width | 692 mm |

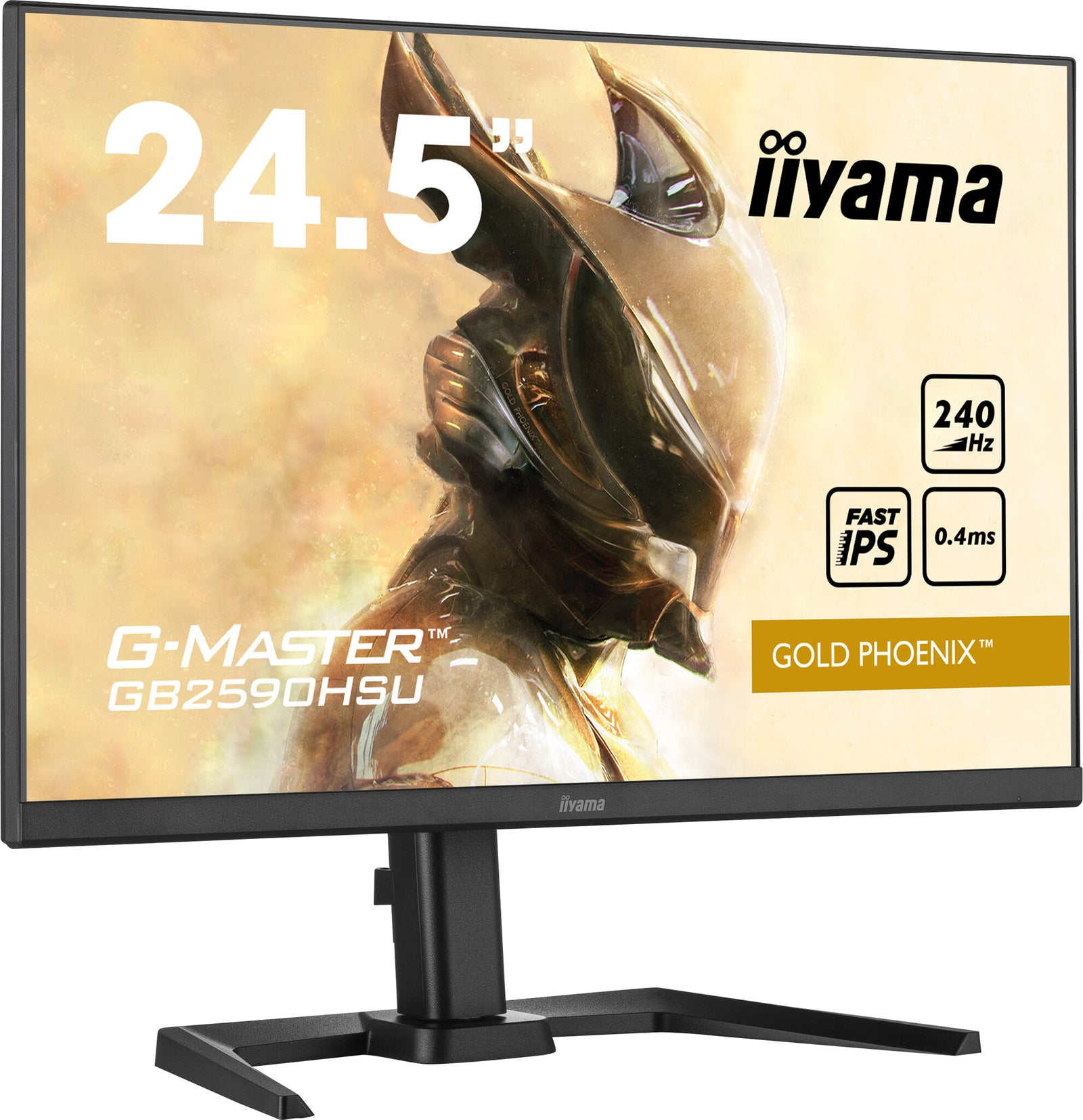

Display | |
---|---|
Colour depth | 8 bit |
High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
High Dynamic Range (HDR) supported | Yes |
Display diagonal (metric) | 62.2 cm |
Viewable size, vertical | 30.3 cm |
Viewable size, horizontal | 54.4 cm |
Horizontal scan range | 31 - 292 kHz |
Pixel pitch | 0.283 x 0.283 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 240 Hz |
Contrast ratio (dynamic) | 80000000:1 |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Response time | 0.4 ms |
Display brightness (peak) | 400 cd/m² |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display technology | LCD |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 62.2 cm (24.5") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
AMD FreeSync type | FreeSync Premium |
AMD FreeSync | Yes |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
RMS rated power | 4 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Product colour | Black |
Market positioning | Gaming |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone out | Yes |
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
HDMI version | 2.0 |
HDMI ports quantity | 1 |
HDMI | Yes |
Number of upstream ports | 2 |
USB hub version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Tilt angle range | -5 - 23° |
Pivot angle | 0 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.5 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 25 W |
Energy consumption (HDR) per 1000 hours | 25 kWh |
Energy consumption (SDR) per 1000 hours | 19 kWh |
Energy efficiency class (HDR) | G |
Energy efficiency class (SDR) | E |
Weight & dimensions | |
---|---|
Weight (with stand) | 4.7 kg |
Height (with stand) | 532.5 mm |
Depth (with stand) | 252 mm |
Width (with stand) | 557.5 mm |
Packaging data | |
---|---|
Package weight | 6.4 kg |
Package height | 411 mm |
Package depth | 162 mm |
Package width | 627 mm |
General | |
---|---|
Product Family | G-MASTER |

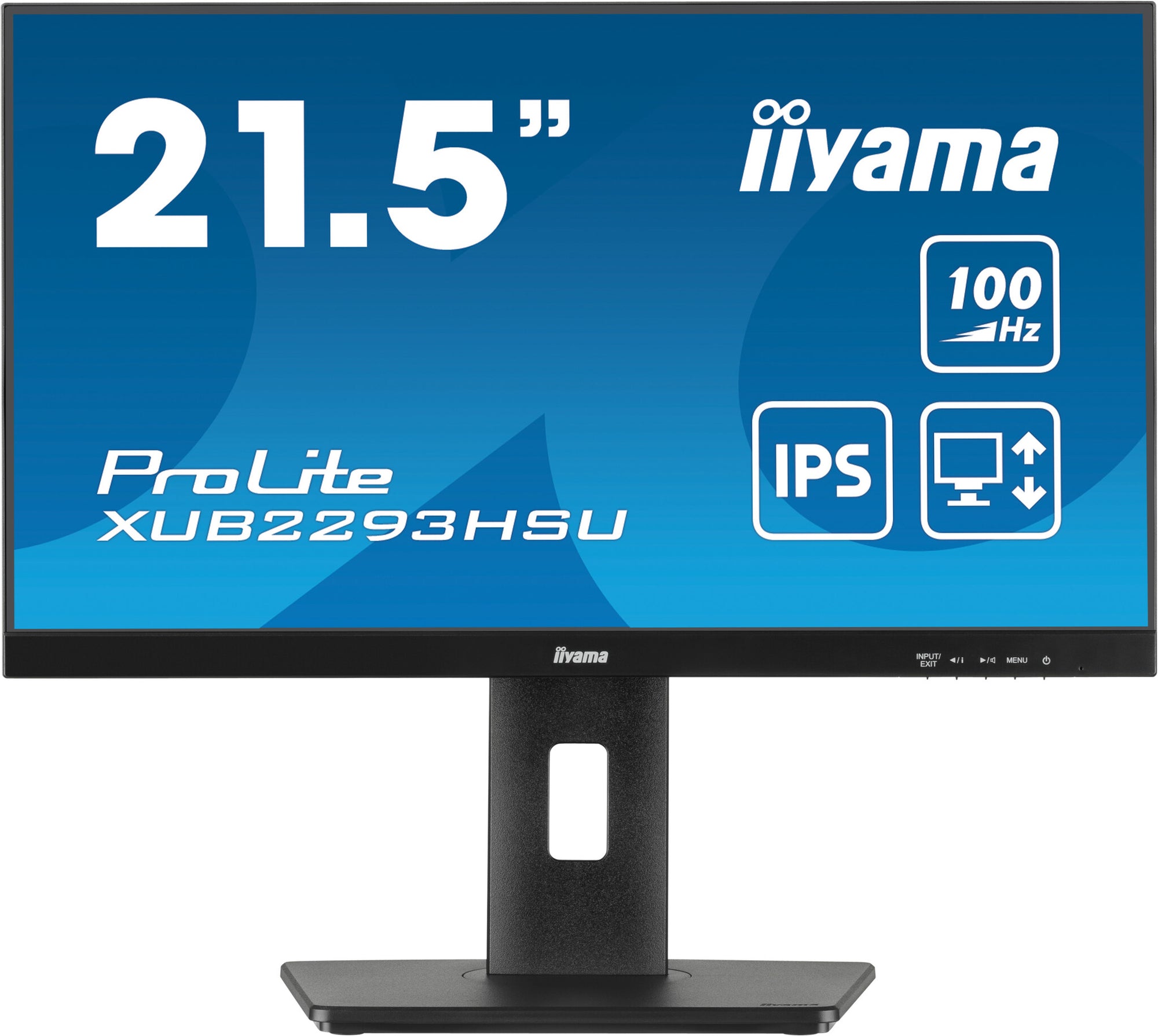

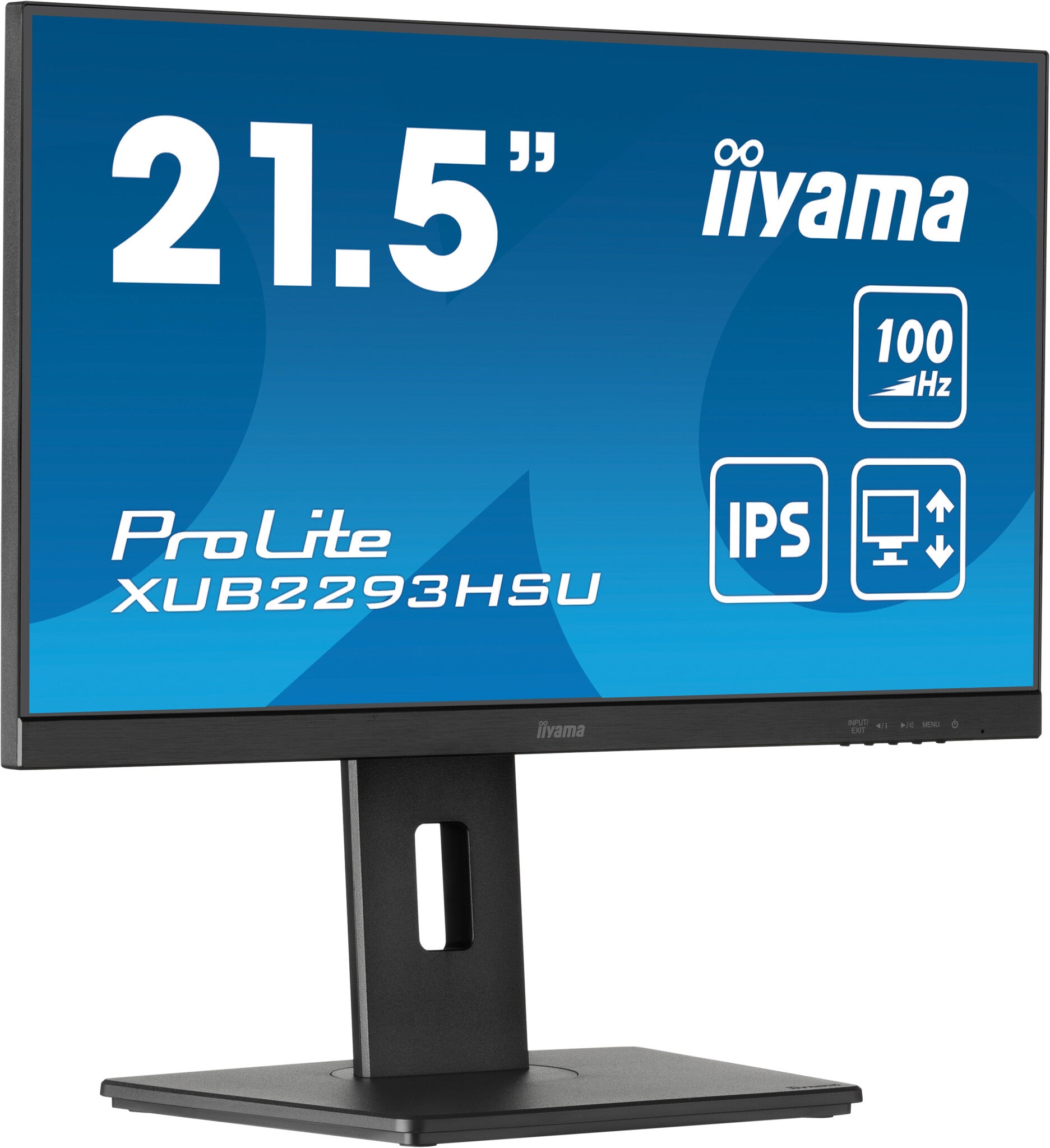

Stylish edge-to-edge design makes the ProLite XUB2293HSU perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, headphone socket, 2 port USB hub, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue and an ergonomic 150mm height adjustable stand for optimal user comfort, this 21.5’’ display is a great choice for both multi-monitor configuration and office applications.
Display | |
---|---|
NTSC coverage (typical) | 72% |
sRGB coverage (typical) | 96% |
Display diagonal (metric) | 55 cm |
Viewable size, vertical | 47.9 cm |
Viewable size, horizontal | 26 cm |
Horizontal scan range | 30 - 110 kHz |
Pixel pitch | 0.249 x 0.249 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 100 Hz |
Contrast ratio (dynamic) | 80000000:1 |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Display surface | Matt |
Response time | 1 ms |
Display brightness (typical) | 250 cd/m² |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 54.6 cm (21.5") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
AMD FreeSync type | FreeSync |
AMD FreeSync | Yes |
Multimedia | |
---|---|
RMS rated power | 4 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Product colour | Black |
Market positioning | Business |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone out | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB hub version | 2.0 |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
On Screen Display (OSD) | Yes |
Tilt angle range | 23 - 5° |
Swivel angle range | 45 - 90° |
Swivelling | Yes |
Pivot angle | 90 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Cable management | Yes |
Wall mountable | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | Internal |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 17 W |
Energy consumption (SDR) per 1000 hours | 15 kWh |
Energy efficiency class (HDR) | Not available |
Energy efficiency class (SDR) | E |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | AC, HDMI, USB |
Weight & dimensions | |
---|---|
Height (without stand) | 328.5 mm |
Depth (without stand) | 209.5 mm |
Width (without stand) | 492 mm |
Weight (with stand) | 3.9 kg |
Height (with stand) | 478.5 mm |
Depth (with stand) | 209.5 mm |
Width (with stand) | 492 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 5.3 kg |
Package height | 395 mm |
Package depth | 126 mm |
Package width | 620 mm |
General | |
---|---|
Product Family | ProLite |
Display | |
---|---|
NTSC coverage (typical) | 72% |
sRGB coverage (typical) | 96% |
Display diagonal (metric) | 61 cm |
Viewable size, vertical | 29.6 cm |
Viewable size, horizontal | 52.7 cm |
Horizontal scan range | 45 - 100 kHz |
Pixel pitch | 0.275 x 0.275 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 100 Hz |
Contrast ratio (dynamic) | 80000000:1 |
Contrast ratio (typical) | 1300:1 |
Screen shape | Flat |
Display surface | Matt |
Response time | 3 ms |
Display brightness (typical) | 250 cd/m² |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 61 cm (24") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
AMD FreeSync type | FreeSync |
AMD FreeSync | Yes |
Multimedia | |
---|---|
RMS rated power | 4 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Product colour | Black |
Market positioning | Business |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone out | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB hub version | 2.0 |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Tilt angle range | 23 - 5° |
Swivel angle range | 90 - 45° |
Swivelling | Yes |
Pivot angle | 90 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Cable management | Yes |
Wall mountable | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | Internal |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 9 W |
Energy consumption (SDR) per 1000 hours | 9 kWh |
Energy efficiency class (HDR) | Not available |
Energy efficiency class (SDR) | B |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | AC, HDMI, USB |
Weight & dimensions | |
---|---|
Height (without stand) | 492 mm |
Depth (without stand) | 209.5 mm |
Width (without stand) | 540 mm |
Weight (with stand) | 4.9 kg |
Height (with stand) | 492 mm |
Depth (with stand) | 209.5 mm |
Width (with stand) | 540 mm |
General | |
---|---|
Product Family | ProLite |

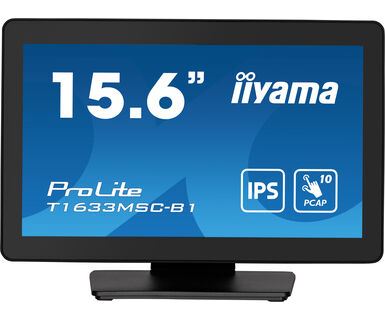

The ProLite T1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for retail applications.
Display | |
---|---|
Viewable size, vertical | 19.4 cm |
Viewable size, horizontal | 34.4 cm |
Horizontal scan range | 30 - 68 kHz |
Pixel pitch | 0.179 x 0.179 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 60 Hz |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Response time | 5 ms |
Display brightness (typical) | 450 cd/m² |
Touchscreen technology | Projected capacitive system |
Panel type | IPS |
HD type | Full HD |
Touchscreen | Yes |
Display technology | LCD |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 39.6 cm (15.6") |
Performance | |
---|---|
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
RMS rated power | 4 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
International Protection (IP) code | IP54 |
Product colour | Black |
Market positioning | Home |
Ports & interfaces | |
---|---|
HDCP | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Number of OSD languages | 12 |
On Screen Display (OSD) languages | Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
On Screen Display (OSD) | Yes |
Tilt angle range | 90 - 5° |
Height adjustment | No |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | External |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.5 W |
Power consumption (standby) | 8 W |
Power consumption (typical) | 12 W |
Energy consumption (SDR) per 1000 hours | 8 kWh |
Energy efficiency class (SDR) | C |
Packaging content | |
---|---|
Quick start guide | Yes |
Power adapter included | Yes |
Cables included | AC, HDMI, USB |
Weight & dimensions | |
---|---|
Weight (with stand) | 3.4 kg |
Height (with stand) | 284 mm |
Depth (with stand) | 200 mm |
Width (with stand) | 389 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 5.3 kg |
Package height | 343 mm |
Package depth | 169 mm |
Package width | 475 mm |
General | |
---|---|
Product Family | ProLite |
23.8” 10pt Optical Bonded PCAP touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing

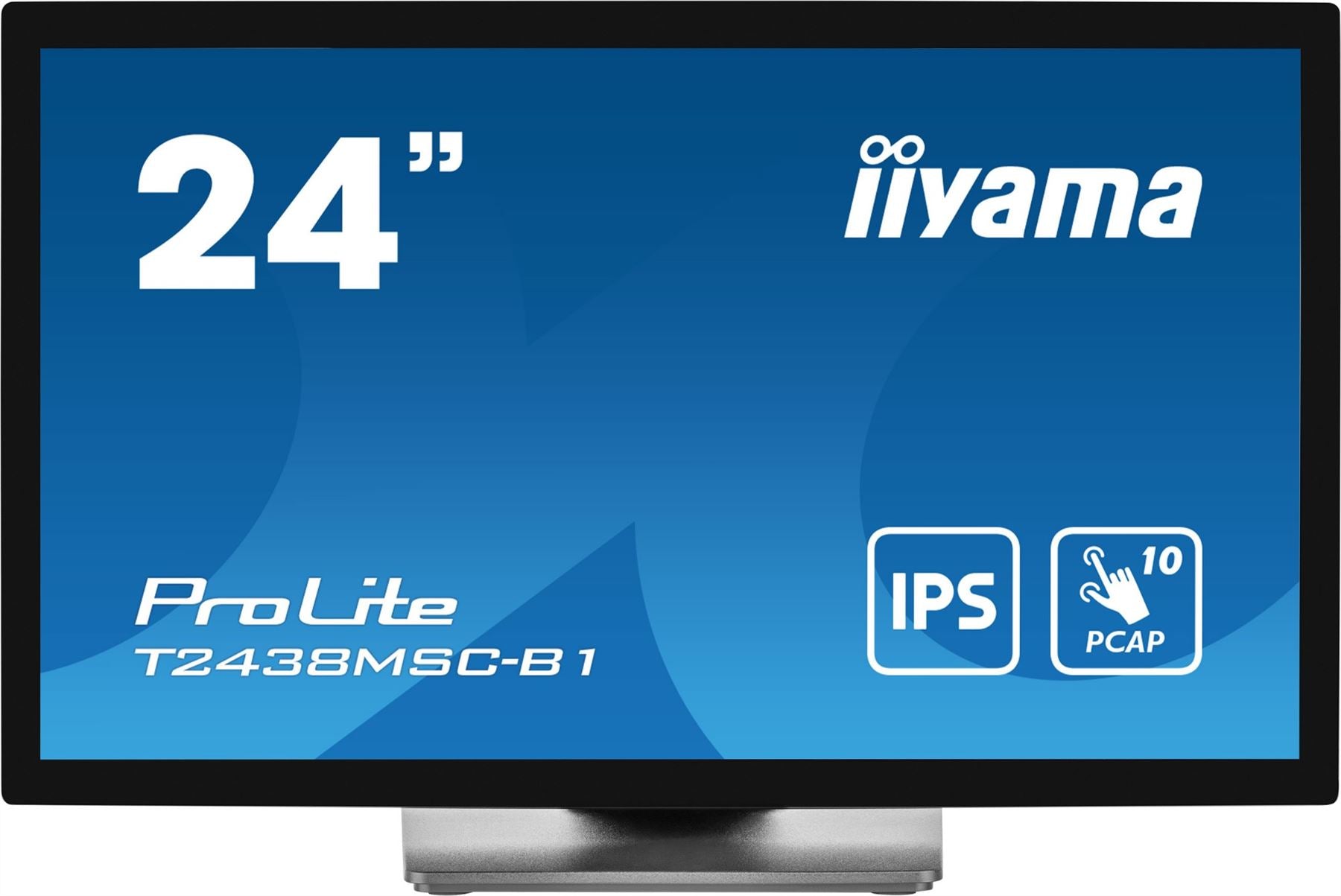

The Full HD (1920x1080) monitor ProLite T2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water.
The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.
OPTICAL BONDED PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
Display | |
---|---|
Surface hardness | 7H |
Display diagonal (metric) | 60.5 cm |
Horizontal scan range | 30 - 83 kHz |
Pixel pitch | 0.275 x 0.275 mm |
Response time (fast) | 5 ms |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Contrast ratio (typical) | 1000:1 |
Aspect ratio | 16:9 |
Screen shape | Flat |
Display brightness (typical) | 525 cd/m² |
Display brightness (peak) | 600 cd/m² |
Number of simultaneous touchpoints | 10 |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Panel type | IPS |
HD type | Full HD |
Touchscreen | Yes |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 60.5 cm (23.8") |
Performance | |
---|---|
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
RMS rated power | 2 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Certification | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
Glass thickness | 3.6 mm |
International Protection (IP) code | IP1X |
Product colour | Black |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone out | No |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB Type-A downstream ports quantity | 2 |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Plug and Play | Yes |
On Screen Display (OSD) languages | German, English, French, Japanese, Polish, Russian |
On Screen Display (OSD) | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 1.5 W |
Power consumption (typical) | 22 W |
Energy efficiency class (HDR) | Not available |
Energy efficiency class (SDR) | E |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | HDMI, Power, USB |
Weight & dimensions | |
---|---|
Bezel width (bottom) | 2.03 cm |
Bezel width (top) | 2.03 cm |
Bezel width (side) | 1.73 cm |
Weight (with stand) | 8.2 kg |
Height (with stand) | 366 mm |
Depth (with stand) | 239.5 mm |
Width (with stand) | 561.5 mm |
Packaging data | |
---|---|
Package weight | 10 kg |
Package height | 430 mm |
Package depth | 155 mm |
Package width | 650 mm |
General | |
---|---|
Product Family | ProLite |

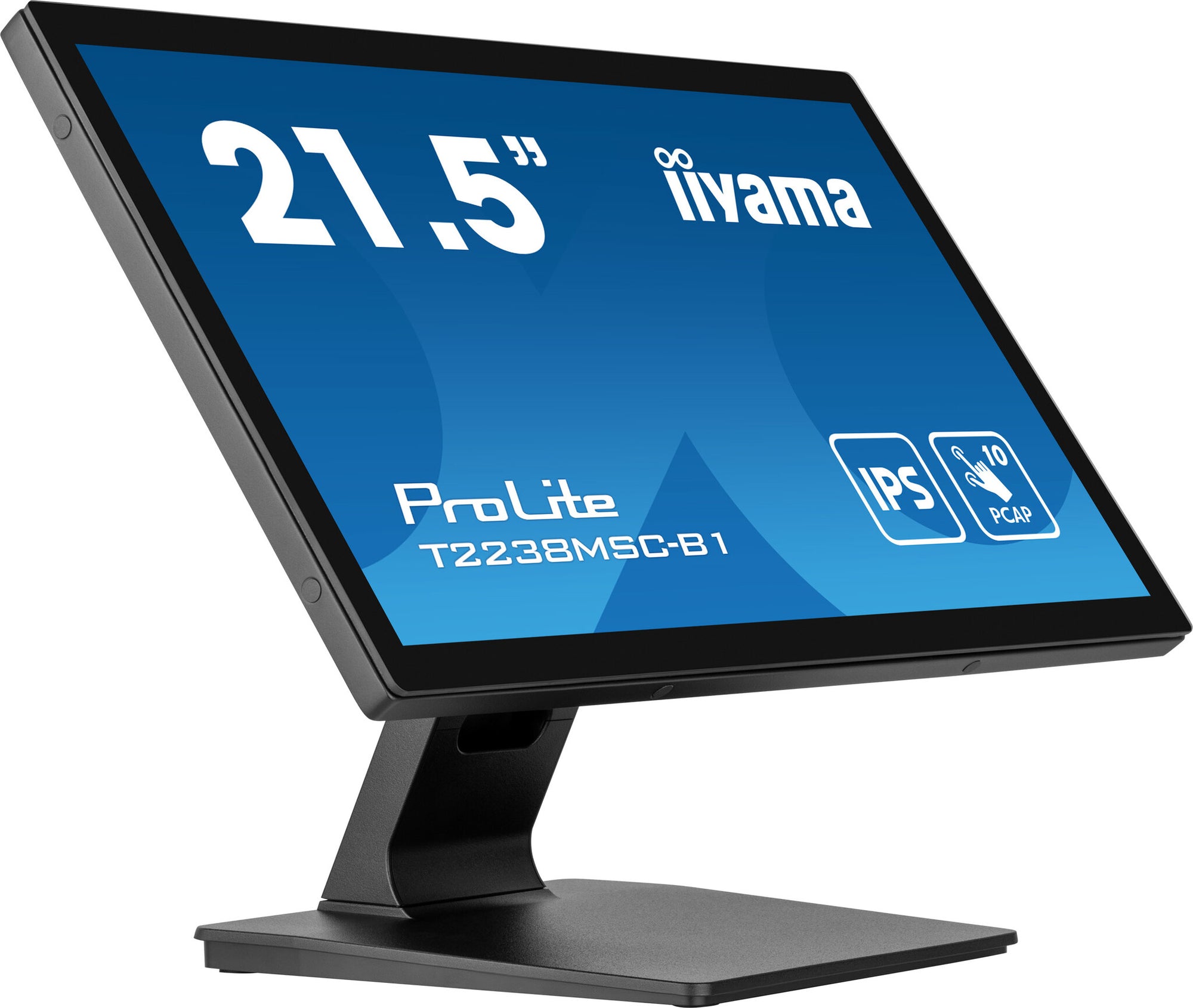

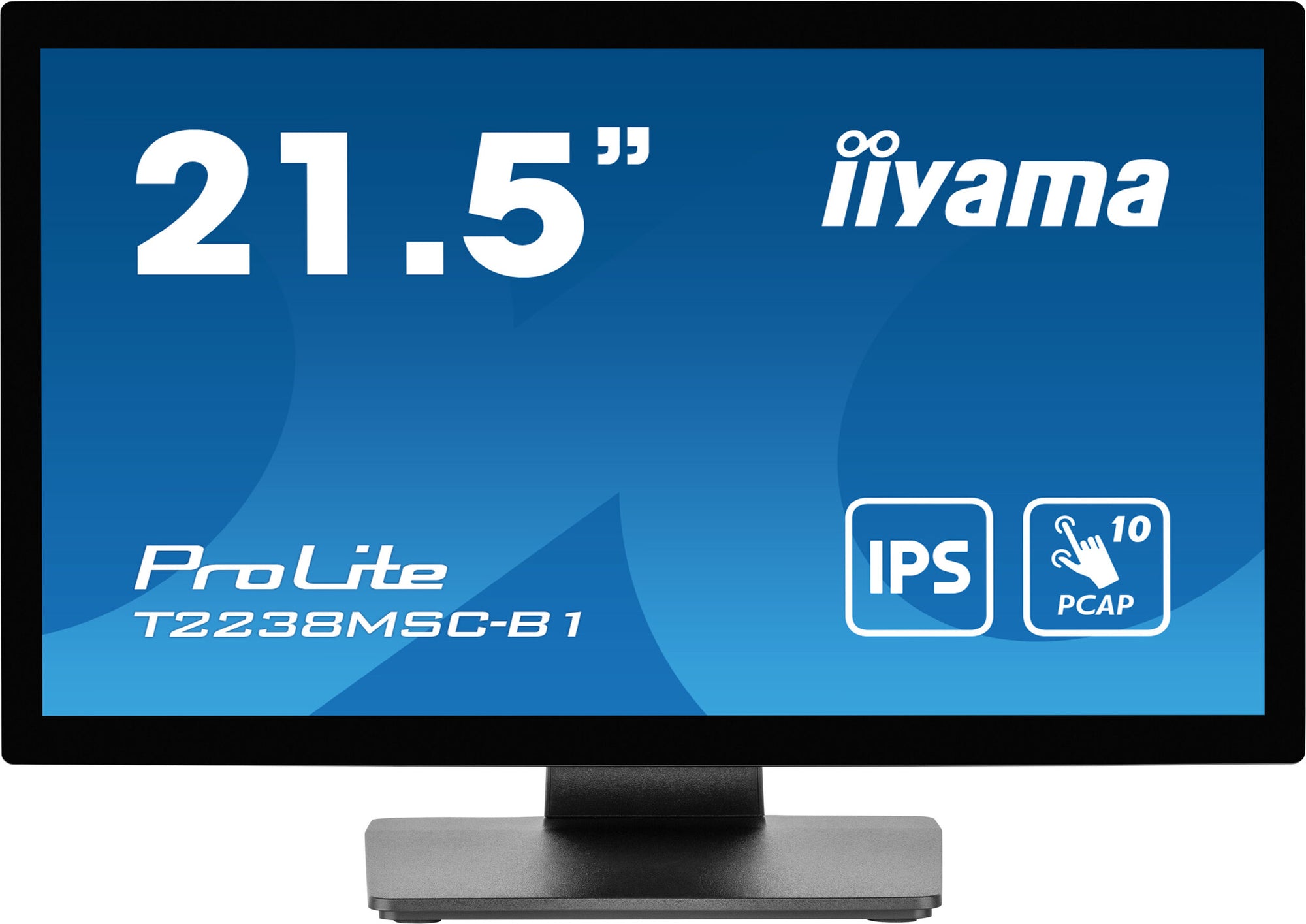

The Full HD (1920x1080) monitor ProLite T2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2238MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.
Display | |
---|---|
Second display effective viewing area | 479 x 260 mm |
Display diagonal (metric) | 54.5 cm |
Horizontal scan range | 30 - 83 kHz |
Pixel pitch | 0.249 x 0.249 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Display surface | Matt |
Response time | 5 ms |
Display brightness (typical) | 525 cd/m² |
Display brightness (peak) | 600 cd/m² |
Number of simultaneous touchpoints | 10 |
Panel type | IPS |
HD type | Full HD |
Touchscreen | Yes |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 54.6 cm (21.5") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Multimedia | |
---|---|
RMS rated power | 1 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Glass thickness | 3.6 mm |
International Protection (IP) code | IP1X |
Protection features | Waterproof |
Housing material | Metal |
Product colour | Black |
Market positioning | Office |
Ports & interfaces | |
---|---|
AC (power) in | Yes |
HDCP | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB Touch port | Yes |
USB Type-A downstream ports quantity | 2 |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
On Screen Display (OSD) languages | German, Dutch, English, French, Japanese, Polish, Russian |
On Screen Display (OSD) | Yes |
Wall mountable | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | Internal |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 1.5 W |
Power consumption (typical) | 17 W |
Energy consumption (SDR) per 1000 hours | 13 kWh |
Energy efficiency class (HDR) | Not available |
Energy efficiency class (SDR) | D |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | AC, HDMI, USB |
Weight & dimensions | |
---|---|
Bezel width (bottom) | 1.98 cm |
Bezel width (top) | 1.98 cm |
Bezel width (side) | 1.7 cm |
Weight (with stand) | 6.8 kg |
Height (with stand) | 353.5 mm |
Depth (with stand) | 239.5 mm |
Width (with stand) | 512.5 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 8.1 kg |
Package height | 430 mm |
Package depth | 150 mm |
Package width | 625 mm |
General | |
---|---|
Product Family | ProLite |
55" Open Frame PCAP interactive large format display with 15pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up use
The 4K UHD (3840x2160) Open Frame TF5539UHSC-B1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF5539UHSC-B1AG can be equipped with optional external mounting brackets (OMK4-2) making it an ideal solution for kiosk integrators and interactive multimedia.
IPS TECHNOLOGY
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
Display | |
---|---|
Display brightness | 500 cd/m² |
Surface hardness | 7H |
Display diagonal (metric) | 139 cm |
Horizontal scan range | 30 - 83 kHz |
Pixel pitch | 0.315 x 0.315 mm |
Display number of colours | 1.073 billion colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 60 Hz |
Contrast ratio (typical) | 1100:1 |
Screen shape | Flat |
Response time | 8 ms |
Number of simultaneous touchpoints | 15 |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Touchscreen type | Multi-user |
Panel type | IPS |
HD type | 4K Ultra HD |
Touchscreen | Yes |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 3840 x 2160 pixels |
Display diagonal | 139.7 cm (55") |
Performance | |
---|---|
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
Built-in microphone | No |
RMS rated power | 16 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Certification | CB, CE, EAC, RoHS, ErP, WEEE, cULus, REACH |
Glass thickness | 4 mm |
International Protection (IP) code | IP54 |
Housing material | Metal |
Product colour | Black |
Ports & interfaces | |
---|---|
RS-232C | Yes |
HDCP | Yes |
Microphone in | Yes |
Audio output | 1 |
Audio input | 1 |
DisplayPort version | 1.2 |
DisplayPorts quantity | 1 |
HDMI version | 1.4/2.0 |
HDMI ports quantity | 2 |
HDMI | Yes |
VGA (D-Sub) ports quantity | 1 |
USB Touch port | Yes |
Ergonomics | |
---|---|
Number of OSD languages | 8 |
On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Polish, Russian |
On Screen Display (OSD) | Yes |
Wall mountable | Yes |
Panel mounting interface | 600 x 400 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100-240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 1.5 W |
Power consumption (typical) | 155 W |
Energy consumption (SDR) per 1000 hours | 151 kWh |
Energy efficiency class (SDR) | G |
Operational conditions | |
---|---|
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Cables included | AC, DisplayPort, HDMI, USB |
Weight & dimensions | |
---|---|
Weight (without stand) | 41 kg |
Height (without stand) | 749.4 mm |
Depth (without stand) | 68 mm |
Width (without stand) | 1271.5 mm |
Packaging data | |
---|---|
Package weight | 46.5 kg |
Package height | 930 mm |
Package depth | 245 mm |
Package width | 1400 mm |
Sustainability | |
---|---|
Sustainability certificates | CE, REACH, RoHS, WEEE |
General | |
---|---|
Product Family | ProLite |
Logistics data | |
---|---|
Harmonized System (HS) code | 85285210 |
Other features | |
---|---|
Ethernet LAN (RJ-45) ports | 1 |
Mean time between failures (MTBF) | 50000 h |
Display viewable area (HxV) | 1209.6 x 680.4 mm |
Placement supported | Horizontal/Vertical |
Stylish edge-to-edge design makes the ProLite XUB2793HS perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, headphone socket, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue and an ergonomic 150mm height adjustable stand for optimal user comfort, make this 27’’ monitor a great choice for both multi-monitor configuration and office applications.
Display | |
---|---|
NTSC coverage (typical) | 72% |
sRGB coverage (typical) | 96% |
Display diagonal (metric) | 69 cm |
Viewable size, vertical | 59.7 cm |
Viewable size, horizontal | 33.6 cm |
Horizontal scan range | 30 - 151 kHz |
Pixel pitch | 0.233 x 0.233 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 100 Hz |
Contrast ratio (dynamic) | 80000000:1 |
Contrast ratio (typical) | 1300:1 |
Screen shape | Flat |
Display surface | Matt |
Response time | 1 ms |
Display brightness (typical) | 250 cd/m² |
Panel type | IPS |
HD type | Quad HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 2560 x 1440 pixels |
Display diagonal | 68.6 cm (27") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
AMD FreeSync type | FreeSync |
AMD FreeSync | Yes |
Multimedia | |
---|---|
RMS rated power | 4 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Product colour | Black |
Market positioning | Business |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone out | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
On Screen Display (OSD) | Yes |
Tilt angle range | 23 - 5° |
Swivel angle range | 45 - 90° |
Swivelling | Yes |
Pivot angle | 90 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Cable management | Yes |
Wall mountable | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | Internal |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 22 W |
Energy consumption (SDR) per 1000 hours | 22 kWh |
Energy efficiency class (HDR) | Not available |
Energy efficiency class (SDR) | E |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | AC, DisplayPort, HDMI, USB |
Weight & dimensions | |
---|---|
Height (without stand) | 400.5 mm |
Depth (without stand) | 209.5 mm |
Width (without stand) | 613.5 mm |
Weight (with stand) | 5.7 kg |
Height (with stand) | 550.5 mm |
Depth (with stand) | 209.5 mm |
Width (with stand) | 613.5 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 7.3 kg |
Package height | 447 mm |
Package depth | 142 mm |
Package width | 691 mm |
General | |
---|---|
Product Family | ProLite |
21.5” IPS technology panel with height adjustable stand and 100Hz refresh rate
Stylish edge-to-edge design makes the ProLite XUB2292HSU perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. The 100Hz refresh rate together with FreeSync function provides an instant, tangible improvement in image smoothness. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, USB 3.2 hub, headphone socket, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue and an ergonomic 150mm height adjustable stand for optimal user comfort, make this monitor a great choice for both multi-monitor configuration and office applications.
Display | |
---|---|
NTSC coverage (typical) | 72% |
sRGB coverage (typical) | 99% |
Display diagonal (metric) | 56.7 cm |
Viewable size, vertical | 26.8 cm |
Viewable size, horizontal | 47.6 cm |
Horizontal scan range | 30 - 115 kHz |
Pixel pitch | 0.248 x 0.248 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 100 Hz |
Contrast ratio (dynamic) | 80000000:1 |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Display surface | Matt |
Response time | 0.4 ms |
Display brightness (typical) | 250 cd/m² |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 54.6 cm (21.5") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
AMD FreeSync type | FreeSync |
AMD FreeSync | Yes |
Multimedia | |
---|---|
Number of speakers | 4 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Product colour | White |
Market positioning | Business |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone out | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
On Screen Display (OSD) | Yes |
Tilt angle range | 22 - 5° |
Swivel angle range | 45 - 90° |
Swivelling | Yes |
Pivot angle | 90 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Cable management | Yes |
Wall mountable | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | Internal |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 14 W |
Energy consumption (SDR) per 1000 hours | 14 kWh |
Energy efficiency class (HDR) | Not available |
Energy efficiency class (SDR) | E |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | AC, HDMI, USB |
Weight & dimensions | |
---|---|
Height (without stand) | 336.5 mm |
Depth (without stand) | 109.5 mm |
Width (without stand) | 489.5 mm |
Weight (with stand) | 4.5 kg |
Height (with stand) | 486.5 mm |
Depth (with stand) | 109.5 mm |
Width (with stand) | 489.5 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 5.9 kg |
Package height | 380 mm |
Package depth | 159 mm |
Package width | 560 mm |
General | |
---|---|
Product Family | ProLite |
17" Projective Capacitive 10pt touch screen with AG-coating
The ProLite T1732MSC-B1SAG 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
Display | |
---|---|
Display diagonal (metric) | 43 cm |
Viewable size, vertical | 33.8 cm |
Viewable size, horizontal | 27.1 cm |
Horizontal scan range | 31 - 80 kHz |
Pixel pitch | 0.264 x 0.264 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 160° |
Viewing angle, horizontal | 170° |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Display surface | Matt |
Response time | 5 ms |
Display brightness (typical) | 250 cd/m² |
Display brightness (peak) | 215 cd/m² |
Number of simultaneous touchpoints | 10 |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Touchscreen type | Tabletop |
Backlight type | LED |
Panel type | TN |
HD type | Full HD |
Touchscreen | Yes |
Display technology | LED |
Native aspect ratio | 5:4 |
Display resolution | 1280 x 1024 pixels |
Display diagonal | 43.2 cm (17") |
Performance | |
---|---|
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
RMS rated power | 2 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Glass thickness | 1.2 mm |
International Protection (IP) code | IP54 |
Feet colour | Black |
Product colour | Black |
Market positioning | Business |
Ports & interfaces | |
---|---|
DC-in jack | Yes |
HDCP | Yes |
Headphone outputs | 1 |
Audio output | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
VGA (D-Sub) ports quantity | 1 |
Built-in USB hub | No |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
On Screen Display (OSD) | Yes |
Tilt angle range | 5 - 90° |
Cable management | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | External |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 1.5 W |
Power consumption (typical) | 20 W |
Energy consumption (SDR) per 1000 hours | 12 kWh |
Energy efficiency class (SDR) | E |
Packaging content | |
---|---|
Manual | Yes |
Quick start guide | Yes |
Power adapter included | Yes |
Cables included | Audio, DisplayPort, HDMI, Power, USB |
Stand included | Yes |
Weight & dimensions | |
---|---|
Weight (with stand) | 4.9 kg |
Height (with stand) | 378 mm |
Depth (with stand) | 240 mm |
Width (with stand) | 387 mm |
Sustainability | |
---|---|
Sustainability certificates | CE, EAC, ErP, REACH, RoHS, UKCA, WEEE, cUL |
Sustainability compliance | Yes |
General | |
---|---|
Product Family | ProLite |
Stylish edge-to-edge design ProLite XUB2792QSU offering WQHD (2560x1440) resolution is perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. The 100Hz refresh rate together with FreeSync function provides an instant, tangible improvement in image smoothness. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, 2 port USB 3.2, headphone socket, HDMI and DisplayPort connections, a blue light reducer function and an ergonomic 150mm height adjustable stand to reduce eye fatigue for optimal user comfort, make this 27’’ monitor a great choice for both home and office applications.
Display | |
---|---|
NTSC coverage (typical) | 72% |
sRGB coverage (typical) | 99% |
Display diagonal (metric) | 69 cm |
Digital horizontal frequency | 30 - 147 kHz |
Viewable size, vertical | 59.7 cm |
Viewable size, horizontal | 33.6 cm |
Pixel pitch | 0.233 x 0.233 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 100 Hz |
Contrast ratio (dynamic) | 80000000:1 |
Contrast ratio (typical) | 1300:1 |
Screen shape | Flat |
Display surface | Matt |
Response time | 0.4 ms |
Display brightness (typical) | 250 cd/m² |
Panel type | IPS |
HD type | Wide Quad HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 2560 x 1440 pixels |
Display diagonal | 68.6 cm (27") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
AMD FreeSync type | FreeSync |
AMD FreeSync | Yes |
Multimedia | |
---|---|
RMS rated power | 4 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Product colour | White |
Market positioning | Business |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone out | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
On Screen Display (OSD) languages | Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
On Screen Display (OSD) | Yes |
Tilt angle range | 22 - 5° |
Swivel angle range | 45 - 90° |
Swivelling | Yes |
Pivot angle | 90 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Cable management | Yes |
Wall mountable | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | Internal |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 25 W |
Energy consumption (SDR) per 1000 hours | 22 kWh |
Energy efficiency class (HDR) | Not available |
Energy efficiency class (SDR) | F |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | AC, DisplayPort, HDMI, USB |
Weight & dimensions | |
---|---|
Height (without stand) | 394 mm |
Depth (without stand) | 209.5 mm |
Width (without stand) | 613.5 mm |
Weight (with stand) | 6.1 kg |
Height (with stand) | 544.5 mm |
Depth (with stand) | 209.5 mm |
Width (with stand) | 613.5 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 7.9 kg |
Package height | 455 mm |
Package depth | 168 mm |
Package width | 690 mm |
General | |
---|---|
Product Family | ProLite |
19’’ 10pt touch monitor featuring IPS panel technology
The ProLite T1932MSC-B1S 19" 10tp touchscreen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The IPS panel guarantees high performance with accurate and consistent colour reproduction, and wide viewing angles. Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. In addition, the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
Display | |
---|---|
DDC/CI | Yes |
Display diagonal (metric) | 48 cm |
Viewable size, vertical | 37.4 cm |
Viewable size, horizontal | 30 cm |
Horizontal scan range | 31 - 80 kHz |
Pixel pitch | 0.2928 x 0.2928 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Display surface | Matt |
Response time | 14 ms |
Display brightness (typical) | 250 cd/m² |
Display brightness (peak) | 215 cd/m² |
Number of simultaneous touchpoints | 10 |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Touchscreen type | Tabletop |
Backlight type | LED |
Panel type | IPS |
HD type | Full HD |
Touchscreen | Yes |
Display technology | LED |
Native aspect ratio | 5:4 |
Display resolution | 1280 x 1024 pixels |
Display diagonal | 48.3 cm (19") |
Performance | |
---|---|
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
RMS rated power | 2 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
International Protection (IP) code | IP54 |
Feet colour | Black |
Product colour | Black |
Market positioning | Business |
Ports & interfaces | |
---|---|
DC-in jack | Yes |
HDCP | Yes |
Headphone outputs | 1 |
Audio output | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
VGA (D-Sub) ports quantity | 1 |
USB Touch port | Yes |
Built-in USB hub | No |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
On Screen Display (OSD) | Yes |
Tilt angle range | 5 - 90° |
Cable management | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | External |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 1.5 W |
Power consumption (typical) | 20 W |
Energy consumption (SDR) per 1000 hours | 12 kWh |
Energy efficiency class (SDR) | E |
Packaging content | |
---|---|
Manual | Yes |
Quick start guide | Yes |
Power adapter included | Yes |
Cables included | Audio, DisplayPort, HDMI, Power, USB |
Stand included | Yes |
Weight & dimensions | |
---|---|
Weight (with stand) | 5.4 kg |
Height (with stand) | 413.5 mm |
Depth (with stand) | 239.5 mm |
Width (with stand) | 432 mm |
Sustainability | |
---|---|
Sustainability certificates | CE, EAC, ErP, REACH, RoHS, UKCA, WEEE, cUL |
Sustainability compliance | Yes |
General | |
---|---|
Product Family | ProLite |
23.8” PCAP 10pt touchscreen monitor featuring IPS panel technology, Edge-to-Edge glass design and anti fingerprint coating
With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2452MSC-W1 delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The ProLite T2452MSC-W1 is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
Display | |
---|---|
Surface hardness | 7H |
Display diagonal (metric) | 60.5 cm |
Viewable size, vertical | 29.6 cm |
Viewable size, horizontal | 52.7 cm |
Horizontal scan range | 30 - 83 kHz |
Pixel pitch | 0.274 x 0.274 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 60 Hz |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Response time | 14 ms |
Display brightness (typical) | 400 cd/m² |
Number of simultaneous touchpoints | 10 |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Touchscreen type | Multi-user |
Panel type | IPS |
HD type | Full HD |
Touchscreen | Yes |
Display technology | LCD |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 60.5 cm (23.8") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
RMS rated power | 2 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Product colour | White |
Ports & interfaces | |
---|---|
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB Type-A downstream ports quantity | 2 |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Tilt angle range | -25 - 90° |
Height adjustment | No |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Power supply type | Internal |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 1.5 W |
Power consumption (typical) | 18 W |
Energy consumption (SDR) per 1000 hours | 15 kWh |
Energy efficiency class (SDR) | E |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | HDMI, Power, USB |
Weight & dimensions | |
---|---|
Weight (with stand) | 5.6 kg |
Height (with stand) | 385 mm |
Depth (with stand) | 253.5 mm |
Width (with stand) | 567 mm |
General | |
---|---|
Product Family | ProLite |
PROLITE T1732MSC-B1S
17" Projective Capacitive 10pt touchscreen
The T1732MSC-B1S 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
Display | |
---|---|
Display brightness | 250 cd/m² |
Display diagonal (metric) | 43 cm |
Horizontal scan range | 31 - 80 kHz |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 160° |
Viewing angle, horizontal | 170° |
Contrast ratio (typical) | 1000:1 |
Aspect ratio | 5:4 |
Screen shape | Flat |
Display brightness (typical) | 250 cd/m² |
Number of simultaneous touchpoints | 10 |
Touchscreen technology | Projected capacitive system |
Touchscreen type | Table |
Panel type | TN |
Touchscreen | Yes |
Display technology | LED |
Native aspect ratio | 5:4 |
Display resolution | 1280 x 1024 pixels |
Display diagonal | 43.2 cm (17") |
Performance | |
---|---|
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
RMS rated power | 1 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA |
International Protection (IP) code | IP54 |
Product colour | Black |
Market positioning | Business |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone out | No |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
DVI port | No |
Built-in USB hub | No |
Network | |
---|---|
Ethernet LAN | No |
Wi-Fi | No |
Ergonomics | |
---|---|
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
Height adjustment | No |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 1.5 W |
Power consumption (typical) | 20 W |
Energy efficiency class (HDR) | Not available |
Energy efficiency class (SDR) | E |
Weight & dimensions | |
---|---|
Weight (with stand) | 4.9 kg |
Height (with stand) | 378 mm |
Depth (with stand) | 240 mm |
Width (with stand) | 387 mm |
General | |
---|---|
Product Family | ProLite |
Other features | |
---|---|
Placement supported | Indoor |
Built-in processor | No |
Active display area (W x H) | 338 x 270.5 mm |
Multi-touch | Yes |
Stylish edge-to-edge design makes the ProLite XU2793QSU perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. The 100Hz refresh rate together with AdaptiveSync function provides an instant, tangible improvement in image smoothness. The XU2793QSU offers WQHD (2560 x 1440) resolution meaning the screen can accommodate almost 77% more information than a Full HD display. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, 2 port USB, headphone socket, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue for optimal user comfort, make this 27’’ monitor a great choice for both multi-monitor configuration and office applications.
Blue light reducer
As we all know looking at a monitor screen for several hours per day, especially form a closer distance, causes eye fatigue. This effect is much stronger with computer screens than with TV equipment. One of the factors responsible for this phenomenon is the blue light emitted by the screen. Therefore reducing the amount of blue light ultimately allows our eyes to feel less tired while working long hours with a computer screen. We achieved it by adjusting the monitor's brightness and color temperature through a new feature called “Blue light reduction” easily accessible through the monitor’s OSD menu.
Display | |
---|---|
Display diagonal (metric) | 68.5 cm |
Viewable size, vertical | 59.7 cm |
Viewable size, horizontal | 33.6 cm |
Horizontal scan range | 30 - 151 kHz |
Pixel pitch | 0.233 x 0.233 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 100 Hz |
Contrast ratio (dynamic) | 80000000:1 |
Contrast ratio (typical) | 1300:1 |
Screen shape | Flat |
Display surface | Matt |
Response time | 1 ms |
Display brightness (typical) | 250 cd/m² |
Panel type | IPS |
HD type | Wide Quad HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 2560 x 1440 pixels |
Display diagonal | 68.6 cm (27") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
Multimedia | |
---|---|
Adaptive Sound Control (ASC) | Yes |
RMS rated power | 4 W |
Built-in camera | Yes |
Built-in speaker(s) | No |
Design | |
---|---|
Product colour | Black |
Market positioning | Business |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone out | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Tilt angle range | 22 - 4° |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Cable management | Yes |
Wall mountable | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Power supply type | Internal |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 22 W |
Energy consumption (SDR) per 1000 hours | 22 kWh |
Energy efficiency class (HDR) | Not available |
Energy efficiency class (SDR) | E |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | AC, DisplayPort, HDMI, USB |
Weight & dimensions | |
---|---|
Weight (with stand) | 4.2 kg |
Height (with stand) | 435 mm |
Depth (with stand) | 189 mm |
Width (with stand) | 613.5 mm |
Packaging data | |
---|---|
Package weight | 5.7 kg |
Package height | 465 mm |
Package depth | 125 mm |
Package width | 688 mm |
General | |
---|---|
Product Family | ProLite |
