ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.
| Performance | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Fan's mean time to failure (MTTF) | 500000 h |
| Fan static pressure | 4.35 mmH2O |
| Fan speed (min) | 200 RPM |
| Fan speed (max) | 3300 RPM |
| Quantity per pack | 1 pc(s) |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 4.35 mmH2O |
| Airflow | 137.69 m³/h |
| Maximum airflow | 81.04 cfm |
| Noise level | 0.6 sone |
| Rotational speed (max) | 3300 RPM |
| Rotational speed (min) | 200 RPM |
| Compatible processor series | Not supported |
| Supported processor sockets | Not supported |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of fan blades | 5 |
| Product colour | Black |
| Power | |
|---|---|
| Maximum current | 0.29 A |
| Fan voltage | 12 V |
| Fan current | 0.29 A |
| Starting voltage | 3.9 V |
| Voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Package weight | 214 g |
| Package height | 30 mm |
| Package depth | 125 mm |
| Package width | 127 mm |
| Cable length | 0.4 m |
| Weight | 184 g |
| Height | 25 mm |
| Depth | 120 mm |
| Width | 120 mm |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Package type | Box |
Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
| Performance | |
|---|---|
| Bearing type | Dual ball bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.2 mmH2O |
| Airflow | 95.65 m³/h |
| Maximum airflow | 56.3 cfm |
| Noise level | 0.3 sone |
| Noise level (high speed) | 24.5 dB |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 200 RPM |
| Compatible processor series | Not supported |
| Supported processor sockets | Not supported |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin + 4-pin |
| Number of fan blades | 5 |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.08 A |
| Starting voltage | 3.9 V |
| Voltage | 12 V |
| Power consumption (typical) | 0.96 W |
| Weight & dimensions | |
|---|---|
| Package weight | 176 g |
| Package height | 27 mm |
| Package depth | 123 mm |
| Package width | 123 mm |
| Cable length | 0.4 m |
| Weight | 145 g |
| Height | 25 mm |
| Depth | 120 mm |
| Width | 120 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Package type | Box |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
ELITE LCD XT SERIES
LIQUID CPU COOLERS
THE NEW LOOK OF COOL
PREMIUM ALL-IN-ONE LCD CPU COOLER
Combines powerful, low-noise cooling with a personalized LCD display to accent your system’s aesthetics and track its real-time performance at a glance.
YOUR OWN PERSONALIZED LCD DASHBOARD
Upload your own animated GIFs and images or choose from numerous pre-installed screens and lighting profiles for groundbreaking system lighting and customization options.
BRILLIANT IPS LCD DISPLAY
Showcase your favorite animated GIF, funniest meme, your team's logo, or anything you like on a custom 2.1" IPS LCD screen with 480x480 resolution and ultra-bright 600cd/m² backlight.
HIGH-PERFORMANCE PUMP HEAD WITH RGB LED RING
Don't sacrifice performance to thermal throttling. A powerful, low-noise pump head ensures you can squeeze every last MHz out of compatible CPUs.
UPGRADE EVERYTHING
Each ELITE LCD XT Cooler comes with an iCUE COMMANDER CORE that can control lighting and fan speeds of not only the included fans, but up to a total of six.
OUR BEST PERFORMING RGB FANS
CORSAIR AF RGB ELITE PWM fans with AirGuide technology deliver massive low-noise airflow along a high-surface area 240, 360, or 420mm radiator for extreme CPU cooling performance.
EXTREME PERFORMANCE THERMAL PASTE
All ELITE LCD XT AIOs include pre-applied CORSAIR XTM70 Extreme Performance thermal paste for maximum heat transfer from your high-end processor to the cooler cold plate.
For reliably high cooling performance, every step in the heat transfer and dissipation chain matters.
ZERO RPM MODE
Dictate your exact fan speeds with PWM control, plus support for 0 RPM PWM signals that allow fans to stop entirely at low temperatures, eliminating fan noise completely.
EXTENDED TUBING AND EASY INSTALLATION
Extended tubing length of 400mm (H100i) / 450mm (H150i, H170i) and modular, tool-free mounting brackets make for easy installation on the latest Intel® and AMD® motherboard sockets, including LGA 115X, 1200, 1700, 2011, and 2066, plus AMD Socket AM4, AM5, and sTRX4/sTR4.
NITE YOUR SETUP
CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
| Performance | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Maximum air pressure | 2.68 mmH2O |
| Minimum air pressure | 0.17 mmH2O |
| Maximum airflow | 65.57 cfm |
| Minimum airflow (imperial) | 13.8 cfm |
| Rotational speed (max) | 2100 RPM |
| Rotational speed (min) | 550 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5, Socket sTR4, Socket sTRX4 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Display size (HxV) | 480 x 480 mm |
| Display type | IPS |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 3 fan(s) |
| Radiator material | Aluminum |
| Product colour | White |
| Weight & dimensions | |
|---|---|
| Fan thickness | 2.5 cm |
| Weight | 1.1 kg |
| VRM fan diameter | 12 cm |
| Tube length | 45 cm |
| Packaging content | |
|---|---|
| Thermal pad included | Yes |
| Screws included | Yes |
| Mounting kit | Yes |
| Package type | Box |
KEEP YOUR SYSTEM COOL
The ideal cooling fans for your PC with optimal airflow at low to medium speeds.
With up to 65.57 CFM of airflow at peak 2,100 RPM, AF RGB ELITE Series fans deliver the perfect balance between low noise, strong static pressure, and high airflow without compromising performance.
ULTRA QUIET OPERATION
A fluid dynamic bearing utilizes lubricant to reduce friction, resulting in exceptional durability and minimal noise. When your computer is idling, you can rely on Zero RPM mode to turn off the fans and completely eliminate fan noise.
BRILLIANT RGB LED LIGHTING
Eight individually addressable RGB LEDs provide a brilliant backdrop in your PC build.
CORSAIR AIRGUIDE TECHNOLOGY
Utilizes anti-vortex vanes to channel concentrated airflow and improve cooling, whether used as intake, exhaust, or mounted to a liquid cooling radiator or heatsink.
| Performance | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Fan 2 rotational speed (max) | 2100 RPM |
| Fan 2 rotational speed (min) | 550 RPM |
| Maximum air pressure | 2.68 mmH2O |
| Minimum air pressure | 0.17 mmH2O |
| Maximum airflow | 65.57 cfm |
| Noise level (high speed) | 34.1 dB |
| Noise level (low speed) | 5 dB |
| Rotational speed (max) | 2100 RPM |
| Rotational speed (min) | 550 RPM |
| Compatible processor series | Not supported |
| Supported processor sockets | Not supported |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Maximum current | 0.38 A |
| Weight & dimensions | |
|---|---|
| Weight | 240 g |
| Height | 25 mm |
| Depth | 120 mm |
| Width | 120 mm |
MF120 Halo²
Improved air flow with stunning dual loop ARGB lighting. Redesigned hybrid frame maintains stability without sacrificing fan operational real estate.
Enlarged Fan Blades
Increased fan blades to deliver better air flow and cooling performance.
ARGB Auto Detection
Intuitive LED detection automatically provides default ARGB spectrum lighting or full ARGB Gen 2 customization via 3-pin header connection.
Black Aluminum Top Cover
Clean modern design featuring matching aluminum top cover with signature logo
Wide Range Compatibility
Compact 154mm height designed for wide chassis compatibility without sacrificing performance
Jet-Black Heat Pipes
4 heat pipes with black finish provide exceptional cooling and aesthetics
Upgraded Installation Brackets
Redesigned brackets simplify installation on the latest available platforms
Extra Metal Clips Included
Comes with a second set of metal clips for installing an additional fan and further improving performance.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 160000 h |
| Bearing type | Rifle bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.89 mmH2O |
| Maximum airflow | 51.88 cfm |
| Noise level (high speed) | 27 dB |
| Rotational speed (max) | 2050 RPM |
| Rotational speed (min) | 650 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Type | Air cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of heat pipes | 4 |
| Fins material | Aluminium |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.28 A |
| Safety current | 0.54 Ah |
| Rated voltage | 12 V |
| Power consumption (typical) | 3.36 W |
| Weight & dimensions | |
|---|---|
| Package weight | 840 g |
| Package height | 188 mm |
| Package depth | 138 mm |
| Package width | 110 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 690 g |
| Height | 154 mm |
| Depth | 124 mm |
| Width | 73 mm |
| General | |
|---|---|
| Product Family | Hyper |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case height | 215 mm |
| Master (outer) case length | 575 mm |
| Master (outer) case width | 290 mm |
Legendary silence, epic performance and features
For the highest performance, optimized fan blades, especially for heat sinks designed radiator corners and a speed switch with 3 selectable speed options, Silent Wings Pro 4 120mm PWM is the most progressive, performant, and versatile fan by be quiet!
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 300000 h |
| Quantity per pack | 1 pc(s) |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 5.31 mmH2O |
| Airflow | 142.5 m³/h |
| Maximum airflow | 83.9 cfm |
| Noise level (high speed) | 36.9 dB |
| Rotational speed (max) | 3000 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Certification | CE / ROHS / RU / UKCA / TÜV / WEEE |
| Fan connector | 4-pin |
| Product colour | Black |
| Power | |
|---|---|
| Maximum current | 0.33 A |
| Rated current | 0.3 A |
| Rated voltage | 12 V |
| Voltage | 7 - 13.2 V |
| Power consumption (typical) | 3.6 W |
| Weight & dimensions | |
|---|---|
| Package weight | 400 g |
| Package height | 31 mm |
| Package depth | 192 mm |
| Package width | 141 mm |
| Cable length | 0.5 m |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 227 g |
| Height | 25 mm |
| Depth | 120 mm |
| Width | 120 mm |
| Packaging content | |
|---|---|
| Number of clips | 4 |
| Screws included | Yes |
| Other features | |
|---|---|
| Country of origin | Germany |
| Logistics data | |
|---|---|
| Shipping (inner) case gross weight | 17.2 kg |
| Shipping (inner) case height | 37.5 cm |
| Shipping (inner) case length | 43.2 cm |
| Shipping (inner) case width | 38.7 cm |
| Products per shipping (inner) case | 40 pc(s) |
| Harmonized System (HS) code | 84733080 |
Outstanding price-performance ratio
The Pure Wings 2 120mm high-speed fan brings exceptional be quiet! cooling to entry level computing. The extremely high air pressure makes it a perfect choice for powerful water- and air-cooled systems.
Pure Wings 2 high-speed fans offer outstanding reliability and solid cooling for a great price-performance ratio.
| Performance | |
|---|---|
| Bearing type | Rifle bearing |
| Maximum air pressure | 2.23 mmH2O |
| Airflow | 111.3 m³/h |
| Maximum airflow | 65.51 cfm |
| Noise level (high speed) | 35.9 dB |
| Rotational speed (max) | 2000 RPM |
| Compatible processor series | Not supported |
| Supported processor sockets | Not supported |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Certification | CE, TÜV, UL |
| Fan connector | 3-pin |
| Number of fan blades | 9 |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.2 A |
| Safety current | 0.3 Ah |
| Rated voltage | 12 V |
| Voltage | 5 - 12 V |
| Power supply | 3.6 W |
| Weight & dimensions | |
|---|---|
| Package weight | 158 g |
| Package height | 28 mm |
| Package depth | 155 mm |
| Package width | 120 mm |
| Cable length | 0.46 m |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 130 g |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case gross weight | 10.2 kg |
| Master (outer) case height | 290 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case width | 320 mm |
| Harmonized System (HS) code | 84733080 |
CORSAIR RX120 RGB PWM fans deliver cooling performance by pushing high airflow through obstructions with high static pressure and CORSAIR AirGuide technology.
WHAT IS iCUE LINK?
BUILD BETTER. BUILD SMARTER.
THE EASY WAY TO BUILD A PC
Reduce cable clutter with a network of smart, interconnected components.
LINK YOUR COMPONENTS
The iCUE LINK ecosystem uses a single connector for all iCUE LINK devices.
UNITE YOUR SETUP
Each component connects directly to the next, creating a chain of devices.
PERFORMANCE WHERE IT MATTERS
PEAK COOLING POWER
Push airflow through cases and radiators like never before at low, medium, and high speeds. RX Series fans deliver high airflow and static pressure, while keeping noise as low as possible.
AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RX fans were engineered to excel at both.
BLADE SHAPE
Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency
FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit.
CORSAIR AIRGUIDE
Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.
EVERY SOURCE OF NOISE ADDRESSED
CORSAIR MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
DESIGNED FOR REAL LIFE PERFORMANCE
RIGOROUSLY TESTED AND PERFECTED
Months of material and design optimization, along with meticulous testing, led to the RX Series’ unbeatable performance in delivering high static pressure and efficient airflow. These tests ensure that the fan performs exceptionally across a wide range of speeds.
Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.
REMOVING AGE-OLD ANNOYANCES
QUIKTURN SCREW REVOLUTION
Take CORSAIR's QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.
HARNESS THE POWER OF ICUE LINK
Unleash the full potential of your fans using CORSAIR iCUE software, from fine-tuned fan speeds to pre-set fan curves.
| Performance | |
|---|---|
| Fan static pressure | 4.33 mmH2O |
| Quantity per pack | 3 pc(s) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum airflow | 73.5 cfm |
| Minimum airflow (imperial) | 10.4 cfm |
| Noise level (high speed) | 36 dB |
| Noise level (low speed) | 10 dB |
| Rotational speed (max) | 2100 RPM |
| Rotational speed (min) | 400 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Fan current | 0.66 A |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 69 g |
| Technical details | |
|---|---|
| Warranty period | 5 year(s) |
| Packaging content | |
|---|---|
| Number of screws | 20 |
| Screws included | Yes |
| Package type | Box |
QUIET. COOL. REFINED.
Experience unparalleled cooling performance and quiet operation. Powered by an performance three-phase motor and Noctua IndustrialPPC fans, the ProArt LC 420 expertly integrates premium tech into an elegantly understated design. An illuminated meter on the pump cover also provides live system stats in the signature minimalist ProArt manner for real-time information at a glance. And its subtle and graceful aesthetics add a touch of refinement to your setup. Cool, quiet, and classy—the perfect trifecta for any and all content creators
Illuminated Meter
An innovative illuminated meter to display real-time PC build information, such as system load, temperatures, and fan speeds, allowing for a quick glance to understand the system's status.
| Performance | |
|---|---|
| Fan static pressure | 4.18 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Airflow | 182.5 m³/h |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 800 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Fan diameter | 14 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Water block material | Copper |
| Number of fans | 3 fan(s) |
| Radiator material | Aluminum |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Package weight | 2.12 kg |
| Package height | 157 mm |
| Package depth | 204 mm |
| Package width | 462 mm |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Weight | 1.43 kg |
| Waterblock height | 4.9 cm |
| Waterblock depth | 7.8 cm |
| Waterblock width | 7.8 cm |
| Tube length | 45 cm |
| Radiator height | 3 cm |
| Radiator depth | 14 cm |
| Radiator width | 45.6 cm |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Cables included | Fan |
| Other features | |
|---|---|
| Noise level | 31.5 dB |
The P14 fan features completely redesigned fan blades and is optimised for high static pressure.
Thus, the P14 is especially effective when used on heatsinks and with higher air resistance.
| Performance | |
|---|---|
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Airflow | 123.76 m³/h |
| Maximum airflow | 72.8 cfm |
| Noise level | 0.3 sone |
| Rotational speed (max) | 1700 RPM |
| Compatible processor series | Not supported |
| Supported processor sockets | Not supported |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 3-pin |
| Number of fans | 5 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.15 A |
| Starting voltage | 2.1 V |
| Voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Package height | 145 mm |
| Package depth | 146 mm |
| Package width | 139 mm |
| Cable length | 0.4 m |
| Weight | 191 g |
| Height | 27 mm |
| Depth | 140 mm |
| Width | 140 mm |
| Packaging content | |
|---|---|
| Number of screws | 20 |
| Screws included | Yes |
| Package type | Box |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |

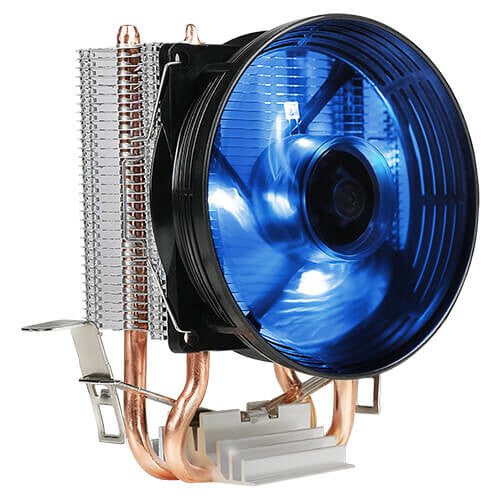

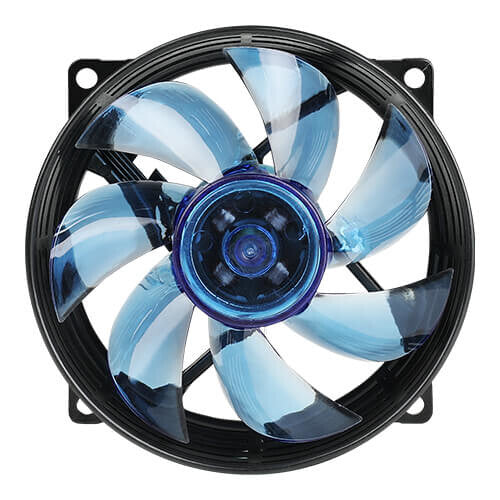

Blue LED design
The performance improvement brought by the large fan is needless to say, and the blue LED design makes the fan much more stand out.
Large heat
dissipation fin
Set with a 80 x 76 mm heat dissipation area.
| Performance | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Maximum air pressure | 0.8 mmH2O |
| Maximum airflow | 33.4 cfm |
| Noise level (high speed) | 35 dB |
| Rotational speed (max) | 1800 RPM |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5 |
| Supported processor sockets | LGA 1200 (Socket H5), LGA 1700, LGA 775 (Socket T) |
| Fan diameter | 9.5 cm |
| Type | Fan |
| Suitable location | Processor |
| Design | |
|---|---|
| Illumination colour | Blue |
| Illumination LED | Yes |
| Number of fan blades | 7 |
| Radiator material | Aluminum |
| Material | Plastic |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.2 A |
| Rated voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Fan weight | 202 g |
| Fan dimensions (W x D x H) | 95 x 95 x 25 mm |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
iCUE LINK H100i RGB 240mm ALL-IN-ONE CPU COOLER
BUILD BETTER. BUILD SMARTER.
Redefine the way you build a DIY PC with a groundbreaking single-cable technology that automatically detects and configures your PC fans, CPU coolers, and other internal components.
THE EASY WAY TO BUILD A PC
Reduce cable clutter with a network of smart, interconnected components.
LINK YOUR COMPONENTS
The iCUE LINK ecosystem uses a single connector for all iCUE LINK devices.
UNITE YOUR SETUP
Each component connects directly to the next, creating a chain of devices.
LIGHT YEARS AHEAD
EFFICIENT AND QUIET CPU COOLING
High-performance pump head and split-flow copper cold plate
EFFICIENT AND QUIET CPU COOLING
High-performance pump head and split-flow copper cold plate
EFFORTLESS INSTALLATION
Single cable connects to included hub with automatic installation
UNPARALLELED LIGHTING
QX RGB fans with 34 LEDs per fan and exclusive Time Warp lighting mode
NEXT-GEN AIO CPU COOLING
Boost your processor's performance with a split-flow copper cold plate with pre-applied CORSAIR XTM70 thermal paste. QX140 RGB fans ramp up to 2,000 RPM, complete with stunning lighting and next to no wiring for a flawless look.
KEEP NOISE DOWN
Enjoy ultra-quiet performance under any conditions with auto-adjusting pump speeds, precisely controlled by iCUE software.
Temperature sensor located in each QX RGB fan.
YOUR SETUP AT YOUR COMMAND
Adjust fan and pump speeds, control and synchronize RGB lighting, and monitor CPU and coolant temperatures in iCUE.
iCUE LINK SYSTEM HUB INCLUDED
Included CORSAIR iCUE LINK System Hub - connect up to 14 iCUE LINK devices (seven per port) in any order.
ZERO RPM MODE
PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads.
EXTREME PERFORMANCE THERMAL PASTE
All iCUE LINK RGB AIOs include pre-applied CORSAIR XTM70 Extreme Performance thermal paste for maximum heat transfer from your high-end processor to the cooler cold plate.
For reliably high cooling performance, every step in the heat transfer and dissipation chain matters.
LOOK YOUR BEST
Stand out with the perfect blend of performance
and aesthetics.
Don't just build a PC, create a masterpiece.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
UNITE YOUR SETUP
CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.
| Performance | |
|---|---|
| Fan 2 rotational speed (max) | 2400 RPM |
| Fan 2 rotational speed (min) | 480 RPM |
| Fan diameter 2 | 12 cm |
| Maximum air pressure | 3.8 mmH2O |
| Minimum air pressure | 0.17 mmH2O |
| Maximum airflow | 63.1 cfm |
| Minimum airflow (imperial) | 16.44 cfm |
| Rotational speed (max) | 2400 RPM |
| Rotational speed (min) | 480 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Fan diameter | 12 cm |
| Type | Liquid cooling kit |
| Suitable location | Processor |
| Design | |
|---|---|
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 2 fan(s) |
| Base plate material | Copper |
| Radiator material | Aluminum |
| Material | Aluminium, Copper, Plastic, Rubber |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Waterblock height | 5.6 cm |
| Waterblock depth | 5.6 cm |
| Waterblock width | 5.6 cm |
| Tube length | 40 cm |
| Radiator height | 2.7 cm |
| Radiator depth | 12 cm |
| Radiator width | 27.7 cm |
| Packaging content | |
|---|---|
| CPU socket spacer(s) | Yes |
| CPU bracket(s) | Yes |
| Thermal pad included | Yes |
| Screws included | Yes |
| Mounting kit | Yes |
| Package type | Box |
ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.
| Performance | |
|---|---|
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.4 mmH2O |
| Airflow | 123.69 m³/h |
| Maximum airflow | 72.8 cfm |
| Noise level | 0.3 sone |
| Rotational speed (max) | 1700 RPM |
| Rotational speed (min) | 200 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Product colour | Transparent, White |
| Power | |
|---|---|
| Rated current | 0.12 A |
| Starting voltage | 6 V |
| Voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Package weight | 230 g |
| Package height | 143 mm |
| Package depth | 29 mm |
| Package width | 143 mm |
| Cable length | 0.4 m |
| Weight | 194 g |
| Height | 27 mm |
| Depth | 140 mm |
| Width | 140 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of screws | 4 |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
| Performance | |
|---|---|
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.2 mmH2O |
| Airflow | 95.65 m³/h |
| Maximum airflow | 56.3 cfm |
| Noise level | 0.3 sone |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 200 RPM |
| Compatible processor series | Not supported |
| Supported processor sockets | Not supported |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin + 4-pin |
| Number of fan blades | 5 |
| Number of fans | 1 fan(s) |
| Product colour | White |
| Power | |
|---|---|
| Rated current | 0.08 A |
| Starting voltage | 3.9 V |
| Voltage | 12 V |
| Power consumption (typical) | 0.96 W |
| Weight & dimensions | |
|---|---|
| Package weight | 176 g |
| Package height | 27 mm |
| Package depth | 123 mm |
| Package width | 123 mm |
| Cable length | 0.4 m |
| Weight | 145 g |
| Height | 25 mm |
| Depth | 120 mm |
| Width | 120 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Package type | Box |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
TUF Gaming LC 120 ARGB all-in-one liquid CPU cooler with Aura Sync and TUF 120 mm ARGB radiator fan
TUF Gaming LC ARGB is a series of durable liquid CPU coolers that deliver the performance and features needed to bring out the best in mid-sized gaming builds. Adding style to power, each cooler includes Aura Sync-enabled ARGB elements illuminating the radiator fan and the pump cover’s TUF Gaming logo.
SPEC OVERVIEW
Illuminated TUF Gaming Logo
Showcase your unique build with personalized ARGB effects.
Pump
Powerful motor coil with high-volume impeller delivers industry leading durability and performance.
Gasket
A sealed design ensures the cooler is immune to leaks.
Cold Plate
A large cold plate covers the entire CPU package to ensure optimal thermal contact.
Retention Kit
A place-and-twist retention mechanism makes installation a snap.
NEXT-LEVEL CUSTOMIZATION
Emanate your style
TUF Gaming LC ARGB series coolers add a vibrant burst of color and sleek style to the heart of your build. The radiator fan and TUF Gaming logo on the pump housing glow with Aura ARGB lighting, and their colors and effects can be customized to match your system, so you can create a unified look that's totally your own.
Note: Before purchasing TUF Gaming LC ARGB AIO cooler products, please ensure your motherboard has 3-pin ARGB header(s) to connect the pump ARGB lighting and bundled ARGB fan(s).
COOL TO THE CORE
Optimized Fan Design
The radiator fan is specifically tuned to deliver optimum performance with TUF Gaming LC series radiators, generating 67 CFM / 3.0 mm H2O for superior cooling efficiency.
Fan blade groove design
The radiator fan blades are enhanced with a precision-engineered groove on the blade tip that improves airflow for reduced fan noise.
PWM-controlled pump and fan
PWM control enables both the pump and radiator fan to spin at slower speeds when the CPU is idling or under light load, helping to keep noise levels to a minimum.
IP5X-certified dust resistance
The radiator fan in TUF Gaming LC series is certified under the International Protection Marking (IP code) as IP5X dust resistant for improved reliability and a longer lifespan. This stringent certification process ensures TUF Gaming LC coolers provide optimal fan performance, even under severe conditions.
COMPATIBILITY
Comprehensive compatibility
TUF Gaming LC ARGB series is compatible with a wide range of Intel® and AMD motherboard platforms, giving you the flexibility to pair it with your choice of processor. It also comes fitted with 38 cm of tubing to make mounting and routing easier.
TUF GAMING ALLIANCE
Build with Confidence
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands created to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance is continuing to grow ever stronger.
| Performance | |
|---|---|
| Fan static pressure | 3 mmH2O |
| Fan speed (min) | 800 RPM |
| Fan speed (max) | 2000 RPM |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 29 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 3 mmH2O |
| Airflow | 113.8 m³/h |
| Maximum airflow | 67 cfm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, Socket AM4 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Water block material | Copper |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 1 fan(s) |
| Radiator material | Aluminum |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Waterblock height | 4.5 cm |
| Waterblock depth | 8 cm |
| Waterblock width | 8 cm |
| Tube length | 38 cm |
| Radiator height | 2.7 cm |
| Radiator depth | 12.2 cm |
| Radiator width | 15 cm |
CORSAIR RX140 PWM fans push through obstructions using high static pressure and PWM controlled speeds, built with premium Liquid Crystal Polymer and CORSAIR AirGuide technology.
WHAT IS iCUE LINK?
BUILD BETTER. BUILD SMARTER.
THE EASY WAY TO BUILD A PC
Reduce cable clutter with a network of smart, interconnected components.
LINK YOUR COMPONENTS
The iCUE LINK ecosystem uses a single connector for all iCUE LINK devices.
UNITE YOUR SETUP
Each component connects directly to the next, creating a chain of devices.
PERFORMANCE WHERE IT MATTERS
PEAK COOLING POWER
Push airflow through cases and radiators like never before at low, medium, and high speeds. RX Series fans deliver high airflow and static pressure, while keeping noise as low as possible.
AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RX fans were engineered to excel at both.
BLADE SHAPE
Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency.
FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit.
CORSAIR AIRGUIDE
Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and
heat dissipation.
RIGID MATERIAL MEANS CONSISTENT PERFORMANCE
GLASS FIBER REINFORCED LCP
Constructed from glass fiber-reinforced liquid crystal polymer, RX Series fan blades offer the ultimate in radiator fan blade rigidity. The premium material prevents fan blade bending or buckling under varying degrees of static pressure, ensuring that optimal radiator flow is available at any fan speed.
EVERY SOURCE OF NOISE ADDRESSED
CORSAIR MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
DESIGNED FOR REAL LIFE PERFORMANCE
RIGOROUSLY TESTED AND PERFECTED
Months of material and design optimization, along with meticulous testing, led to the RX Series’ unbeatable performance in delivering high static pressure and efficient airflow. These tests ensure that the fan performs exceptionally across a wide range of speeds.
Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.
REMOVING AGE-OLD ANNOYANCES
QUIKTURN SCREW REVOLUTION
Take CORSAIR's QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.
HARNESS THE POWER OF ICUE LINK
Unleash the full potential of your fans using CORSAIR iCUE software, from fine-tuned fan speeds to pre-set fan curves.
| Performance | |
|---|---|
| Fan static pressure | 3.379 mmH2O |
| Quantity per pack | 1 pc(s) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum airflow | 95.7 cfm |
| Minimum airflow (imperial) | 18.1 cfm |
| Noise level (high speed) | 36 dB |
| Noise level (low speed) | 10 dB |
| Rotational speed (max) | 1700 RPM |
| Rotational speed (min) | 300 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Fan current | 0.62 A |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Weight | 28 g |
| Technical details | |
|---|---|
| Warranty period | 5 year(s) |
| Packaging content | |
|---|---|
| Package type | Box |
92MM PWM FAN WITH RGB LIGHTING
Wide speed range PWM fan that comes with RGB LED lighting
RGB LED CONTROLLER
The wired RGB LED controller allows for customizable colors and effects with just the touch of a button
DIRECT CONTACT TECHNOLOGY
4 heat pipes with Exclusive Direct Contact Technology providing effective and excellent heat dissipation
PRECISE AIR FLOW
Precise stacked fin array decreases airflow resistance which allows for cooler air flow into the heatsink
XTRAFLO PWM FAN
Comes with RGB LEDs and wide speed range can be fine-tuned for maximum cooling performance or silent operation
EASY INSTALLATION
Tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.
| Performance | |
|---|---|
| Maximum air pressure | 1.79 mmH2O |
| Maximum airflow | 34.1 cfm |
| Noise level (high speed) | 29 dB |
| Noise level (low speed) | 6 dB |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 600 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Fan diameter | 9.2 cm |
| Type | Cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of heat pipes | 4 |
| Fins material | Aluminium |
| Product colour | Black, Silver |
| Power | |
|---|---|
| Maximum current | 0.4 A |
| Rated current | 0.24 A |
| Power consumption (typical) | 2.28 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 92 x 92 x 25 mm |
| Weight | 540 g |
| Height | 136 mm |
| Depth | 102 mm |
| Width | 83.4 mm |
| General | |
|---|---|
| Product Family | Hyper |
| Other features | |
|---|---|
| Mean time to failure (MTTF) | 40000 h |
| Country of origin | China |
| Heatsink dimensions (W x D x H) | 63.5 x 90 x 136 mm |
| Fan rated voltage | 12 V |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Suspended Spiral
Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient Cooling Pump
High Performance Cooling
Performance data tested with Vortex 360 on AMD Ryzen 5600x
EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.
Superior Fin Density
Massive 13 fins dissipate heat rapidly.
Antec Fusion PWM ARGB Fan
The Vortex 360 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.
Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
| Performance | |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Pump motor speed | 2800 RPM |
| Fan speed (min) | 600 RPM |
| Fan speed (max) | 2000 RPM |
| Pump connector | 3-pin |
| Pump noise level | 28 dB |
| Fan noise level (max) | 31.24 dB |
| Maximum airflow | 57.93 cfm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4 |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| LED connector type | 3-pin |
| Illumination LED | Yes |
| Number of fans | 3 fan(s) |
| Radiator material | Aluminum |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Pump current | 250 mA |
| Fan voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Pump height | 4.85 cm |
| Pump width | 6.7 cm |
| Radiator height | 2.7 cm |
| Radiator depth | 12 cm |
| Radiator width | 39.7 cm |
The Pure Wings 2 120mm PWM fans bring famous be quiet! silent cooling to entry level computing, yet are also appropriate for gaming and multimedia systems.
Combining outstanding reliability, quiet operation, and a great price-for-performance ratio, Pure Wings 2 120mm PWM is unique in its class. They are the ultimate reason to put well-known be quiet! silent cooling in your PC.
VERY QUIET OPERATION
Achieves a great price-for-performance ratio
The Pure Wings 2 120mm PWM fan operates at only 20.2dB(A) even at maximum speed. The perfect choice for silent home and office PCs as well as gaming and multimedia systems.
SILENCE-OPTIMIZED FAN BLADES
For even better cooling
Thanks to its surface-optimized fan blades the airflow is enhanced, noise-generating turbulences are minimized and the air pressure is increased. This feature is the key to effective cooling.
VARIABLE FAN SPEED FUNCTION
Varies the fan speed and noise level of the fan
Pulse Width Modulation (PWM) allows compatible 4-pin controllers - including those built into many motherboards - to intelligently vary the speed and thus the noise level of the fan. With PWM your system can ramp up the cooling when it’s needed, or operate in maximum quiet mode when it’s not. This feature especially recommends the fan for heat sinks and radiators.
RIFLE BEARING TECHNOLOGY
Gives the fan a very long lifespan
The Pure Wings 2 120mm PWM is the hallmark of outstanding reliability. This is achieved by its high-quality rifle bearing technology, which assures a very long lifespan of up to 80,000 hours.
| Performance | |
|---|---|
| Maximum air pressure | 1.25 mmH2O |
| Airflow | 87 m³/h |
| Maximum airflow | 51.4 cfm |
| Noise level (high speed) | 20.2 dB |
| Rotational speed (max) | 1500 RPM |
| Compatible processor series | Not supported |
| Supported processor sockets | Not supported |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Product colour | Black |
| Power | |
|---|---|
| Voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Package height | 155 mm |
| Package depth | 28 mm |
| Package width | 120 mm |
| Cable length | 0.46 m |
| Weight | 140 g |
| Height | 25 mm |
| Depth | 120 mm |
| Width | 120 mm |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Products per pallet | 1 pc(s) |
| Harmonized System (HS) code | 84733080 |
ELITE LCD XT SERIES
LIQUID CPU COOLERS
THE NEW LOOK OF COOL
PREMIUM ALL-IN-ONE LCD CPU COOLER
Combines powerful, low-noise cooling with a personalized LCD display to accent your system’s aesthetics and track its real-time performance at a glance.
YOUR OWN PERSONALIZED LCD DASHBOARD
Upload your own animated GIFs and images or choose from numerous pre-installed screens and lighting profiles for groundbreaking system lighting and customization options.
BRILLIANT IPS LCD DISPLAY
Showcase your favorite animated GIF, funniest meme, your team's logo, or anything you like on a custom 2.1" IPS LCD screen with 480x480 resolution and ultra-bright 600cd/m² backlight.
HIGH-PERFORMANCE PUMP HEAD WITH RGB LED RING
Don't sacrifice performance to thermal throttling. A powerful, low-noise pump head ensures you can squeeze every last MHz out of compatible CPUs.
UPGRADE EVERYTHING
Each ELITE LCD XT Cooler comes with an iCUE COMMANDER CORE that can control lighting and fan speeds of not only the included fans, but up to a total of six.
OUR BEST PERFORMING RGB FANS
CORSAIR AF RGB ELITE PWM fans with AirGuide technology deliver massive low-noise airflow along a high-surface area 240, 360, or 420mm radiator for extreme CPU cooling performance.
EXTREME PERFORMANCE THERMAL PASTE
All ELITE LCD XT AIOs include pre-applied CORSAIR XTM70 Extreme Performance thermal paste for maximum heat transfer from your high-end processor to the cooler cold plate.
For reliably high cooling performance, every step in the heat transfer and dissipation chain matters.
ZERO RPM MODE
Dictate your exact fan speeds with PWM control, plus support for 0 RPM PWM signals that allow fans to stop entirely at low temperatures, eliminating fan noise completely.
EXTENDED TUBING AND EASY INSTALLATION
Extended tubing length of 400mm (H100i) / 450mm (H150i, H170i) and modular, tool-free mounting brackets make for easy installation on the latest Intel® and AMD® motherboard sockets, including LGA 115X, 1200, 1700, 2011, and 2066, plus AMD Socket AM4, AM5, and sTRX4/sTR4.
AVAILABLE IN THREE RADIATOR SIZES AND PERFORMANCE LEVELS
UNITE YOUR SETUP
CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
| Performance | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Maximum air pressure | 2.68 mmH2O |
| Minimum air pressure | 0.17 mmH2O |
| Maximum airflow | 65.57 cfm |
| Minimum airflow (imperial) | 13.8 cfm |
| Rotational speed (max) | 2100 RPM |
| Rotational speed (min) | 550 RPM |
| Compatible processor series | AMD A, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1700, LGA 2011 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5, Socket sTR4, Socket sTRX4 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Display size (HxV) | 480 x 480 mm |
| Display type | IPS |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 3 fan(s) |
| Radiator material | Aluminum |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Fan thickness | 2.5 cm |
| Weight | 2.61 kg |
| VRM fan diameter | 12 cm |
| Tube length | 45 cm |
| Radiator width | 36 cm |
| Packaging content | |
|---|---|
| Thermal pad included | Yes |
| Screws included | Yes |
| Mounting kit | Yes |
| Package type | Box |
Next Generation Of SickleFlow Fans
SickleFlow 120 ARGB, a new series of the CoolerMaster Fan family, provides a specific air cooling solution ideal for CPU coolers and chassis in-take fans. Optimized blade design with updated curve that improves air flow and air pressure. Enhanced frame structure, reducing turbulent flow and noise and increasing overall work efficiency. Sealed and secured fan bearing, preventing dust and lubricating oil leakage while increasing the fan’s operation stability and life span.
Updated Lighting Design
Featuring eclipse-mode lighting and enhanced lighting effects.
Enhanced Fan Frame
Enhanced frame structure, reducing turbulent flow and noise and increasing overall work efficiency.
New Bearing Sealant
Improve dustproof properties as well as prevent sleeve lubricant from leaking.
New Blade Design
Optimized blade design with updated curve that improves air flow and air pressure.
Secure Connection
Includes Addressable RGB connector clips to ensure a secure connection
| Performance | |
|---|---|
| Bearing type | Rifle bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.5 mmH2O |
| Maximum airflow | 62 cfm |
| Noise level (high speed) | 27 dB |
| Noise level (low speed) | 8 dB |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 650 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Blue, Green, Red |
| Illumination LED | Yes |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.15 A |
| Safety current | 0.37 Ah |
| Rated voltage | 12 V |
| Power consumption (typical) | 1.8 W |
| Weight & dimensions | |
|---|---|
| Package weight | 236 g |
| Package height | 228 mm |
| Package depth | 143 mm |
| Package width | 32 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 156 g |
| Other features | |
|---|---|
| Mean time to failure (MTTF) | 160000 h |
| Country of origin | China |
| Logistics data | |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case height | 173 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case width | 375 mm |
| Harmonized System (HS) code | 84733080 |
Fractal Design Silent Series R3 fans offer excellent value for money, with good performance and assured reliability.
All Fractal Design Silent Series R3 fans are equipped with long-life rifle bearings and an easy-to-hide, sleek black cable.
Available in a large variety of sizes, ranging from compact 40mm fans to full-size 140mm fans, the Silent Series R3 delivers suitable options for replacing loud or damaged fans in both computers and many other electronic devices.
Where performance meets value.
- Featuring rifle bearings, providing improved life expectancy and lower noise compared to a standard sleeve bearing
- Black stealth ribbon cable, making it easy to hide the cable contributing to a clean build
- Improved, more balanced, sturdy fan design delivering precision at a good price point
- Low fan speeds, optimized for quiet operation
- Featuring Fractal Design’s signature black and white color scheme
- Offering sizes from 40mm up to 140mm for all your build needs
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 40000 h |
| Maximum air pressure | 0.99 mmH2O |
| Maximum airflow | 20.2 cfm |
| Noise level (high speed) | 18.1 dB |
| Rotational speed (max) | 1600 RPM |
| Fan diameter | 8 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 3-pin |
| Product colour | Black, White |
| Power | |
|---|---|
| Maximum current | 0.06 A |
| Voltage | 12 V |
| Power supply | 0.5 W |
| Weight & dimensions | |
|---|---|
| Package height | 26 mm |
| Package depth | 94 mm |
| Package width | 121 mm |
| Cable length | 0.35 m |
| Weight | 150 g |
| Height | 25 mm |
| Depth | 80 mm |
| Width | 80 mm |
| Technical details | |
|---|---|
| Bearing technology | Rifle |
| Other features | |
|---|---|
| Country of origin | Sweden |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
PWM and 3-pin versions are available in 120mm and 140mm sizes, each with single and 3-pack offerings to make your build shine brilliantly in any situation.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Maximum air pressure | 1.07 mmH2O |
| Airflow | 107.6 m³/h |
| Maximum airflow | 63.33 cfm |
| Noise level (high speed) | 19.4 dB |
| Rotational speed (max) | 1000 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 3-pin |
| Illumination colour | Multi |
| Number of LEDs | 6 |
| Illumination LED | Yes |
| Product colour | Black, White |
| Power | |
|---|---|
| Rated current | 0.3 A |
| LED voltage | 5 V |
| Starting voltage | 7 V |
| Voltage | 12 V |
| Power supply | 1.2 W |
| Weight & dimensions | |
|---|---|
| Package weight | 246 g |
| Package height | 30 mm |
| Package depth | 142 mm |
| Package width | 202 mm |
| Cable length | 0.5 m |
| Weight | 198 g |
| Height | 140 mm |
| Depth | 25 mm |
| Width | 140 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
