PlayStation VR

ARCTIC P14 PWM PST A-RGB - Computer Case Fan in White - 140mm

140 mm, 0 - 1900 RPM, A-RGB, PWM, FDB, 68.9 CFM, 117.06 m3/h, 12 V DC, 4-pin + 4-pin, 210 g, White

ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.

Performance
Operating temperature (T-T)	0 - 40 °C
Fan static pressure	2 mmH2O
Quantity per pack	1 pc(s)
Bearing type	Fluid Dynamic Bearing (FDB)
Pulse-width modulation (PWM) support	Yes
Airflow	117.06 m³/h
Maximum airflow	68.9 cfm
Noise level	0.3 sone
Rotational speed (max)	1900 RPM
Compatible processor series	Not supported
Supported processor sockets	Not supported
Fan diameter	14 cm
Type	Fan
Suitable location	Computer case

Design
Fan connector	4-pin + 4-pin
Number of LEDs	12
Illumination LED	Yes
Number of fan blades	5
Product colour	White

Power
Fan voltage	12 V
Fan current	0.17 A
LED voltage	12 V
Starting voltage	5 V
Voltage	12 V

Weight & dimensions
Package weight	297 g
Package height	34 mm
Package depth	167 mm
Package width	167 mm
Cable length	0.48 m
Weight	210 g
Height	27 mm
Depth	140 mm
Width	140 mm

Packaging content
Number of screws	4
Screws included	Yes
Mounting kit	Yes
Package type	Box

ARCTIC P14 PWM PST A-RGB/RGB 0dB

i

ARCTIC P14 PWM PST A-RGB 0dB - Computer Case Fan - 140mm

140 mm, 0 - 1900 RPM, A-RGB, PWM, FDB, 68.9 CFM, 117.06 m3/h, 12 V DC, 4-pin + 4-pin, 225 g

ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.

Performance
Operating temperature (T-T)	0 - 40 °C
Fan static pressure	2 mmH2O
Quantity per pack	1 pc(s)
Bearing type	Fluid Dynamic Bearing (FDB)
Pulse-width modulation (PWM) support	Yes
Airflow	117.06 m³/h
Maximum airflow	68.9 cfm
Noise level	0.3 sone
Rotational speed (max)	1900 RPM
Compatible processor series	Not supported
Supported processor sockets	Not supported
Fan diameter	14 cm
Type	Fan
Suitable location	Computer case

Design
Fan connector	4-pin + 4-pin
Number of LEDs	12
Illumination LED	Yes
Product colour	Black

Power
Fan voltage	12 V
Fan current	0.17 A
LED voltage	12 V
Starting voltage	5 V
Voltage	12 V

Weight & dimensions
Package weight	297 g
Package height	34 mm
Package depth	167 mm
Package width	167 mm
Cable length	0.48 m
Weight	210 g
Height	27 mm
Depth	140 mm
Width	140 mm

Packaging content
Screws included	Yes
Mounting kit	Yes
Package type	Box

Logistics data
Harmonized System (HS) code	84733080

ARCTIC P14 PWM PST A-RGB/RGB 0dB

i

ARCTIC P14 PWM PST CO - Computer Case Fan in Black - 140mm

140 mm, 200 - 1700 RPM, PWM, 72.8 CFM, 123.76 m3/h, 12 V DC, 4-pin + 4-pin, 194 g

Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.

Performance
Bearing type	Fluid Dynamic Bearing (FDB)
Pulse-width modulation (PWM) support	Yes
Maximum air pressure	2.4 mmH2O
Airflow	123.76 m³/h
Maximum airflow	72.8 cfm
Noise level	0.3 sone
Noise level (high speed)	24.5 dB
Rotational speed (max)	1700 RPM
Rotational speed (min)	200 RPM
Compatible processor series	Not supported
Supported processor sockets	Not supported
Fan diameter	14 cm
Type	Fan
Suitable location	Computer case

Design
Fan connector	4-pin + 4-pin
Number of fan blades	5
Number of fans	1 fan(s)
Product colour	Black

Power
Rated current	0.12 A
Starting voltage	3.9 V
Voltage	12 V
Power consumption (typical)	1.44 W

Weight & dimensions
Package weight	234 g
Package height	29 mm
Package depth	143 mm
Package width	143 mm
Cable length	0.4 m
Weight	194 g
Height	27 mm
Depth	140 mm
Width	140 mm

Packaging content
Number of screws	4
Screws included	Yes
Package type	Box

Other features
Country of origin	China

Logistics data
Harmonized System (HS) code	84733080

i

ARCTIC P14 Slim - PWM PST PC Case Fan in Black - 140mm

IN STOCK

150 - 1800 rpm, 52 CFM/88.35 m³/h, 1.55 mm H₂O, 0.3 Sone, PWM PST, 12 V DC, 109 g

ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.

Performance
Operating temperature (T-T)	0 - 40 °C
Quantity per pack	1 pc(s)
Bearing type	Fluid Dynamic Bearing (FDB)
Pulse-width modulation (PWM) support	Yes
Maximum air pressure	1.55 mmH2O
Airflow	88.35 m³/h
Maximum airflow	52 cfm
Noise level	0.3 sone
Rotational speed (max)	1800 RPM
Rotational speed (min)	150 RPM
Fan diameter	14 cm
Type	Fan
Suitable location	Computer case

Design
Fan connector	4-pin + 4-pin
Product colour	Black

Power
Fan current	0.19 A
Starting voltage	4 V
Voltage	12 V

Weight & dimensions
Package height	17 mm
Package depth	156 mm
Package width	143 mm
Cable length	0.48 m
Fan weight	109 g
Fan dimensions (W x D x H)	140 x 140 x 16 mm
Weight	109 g

Packaging content
Number of screws	4
Screws included	Yes

Other features
Country of origin	China

Logistics data
Harmonized System (HS) code	84733080

i

ARCTIC P8 - Computer Case Fan in Black - 80mm

80 x 25 mm, 3000 RPM, 23.4 CFM, 39.76 m³/h, 0.3 Sone, 12V DC, 81 g

Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well!

As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.

Performance
Bearing type	Fluid Dynamic Bearing (FDB)
Maximum air pressure	1.9 mmH2O
Airflow	39.76 m³/h
Maximum airflow	23.4 cfm
Noise level	0.3 sone
Rotational speed (max)	3000 RPM
Compatible processor series	Not supported
Supported processor sockets	Not supported
Fan diameter	8 cm
Type	Fan
Suitable location	Computer case

Design
Fan connector	3-pin
Number of fan blades	5
Number of fans	1 fan(s)
Product colour	Black

Power
Rated current	0.14 A
Voltage	12 V

Weight & dimensions
Package weight	99 g
Package height	82.5 mm
Package depth	26 mm
Package width	82.5 mm
Cable length	0.4 m
Weight	81 g
Height	80 mm
Depth	25 mm
Width	80 mm

Packaging content
Number of screws	4
Screws included	Yes
Package type	Box

Other features
Country of origin	China
Mounting hole pattern (W x D)	71.5 x 71.5 mm

Logistics data
Harmonized System (HS) code	84733080

i

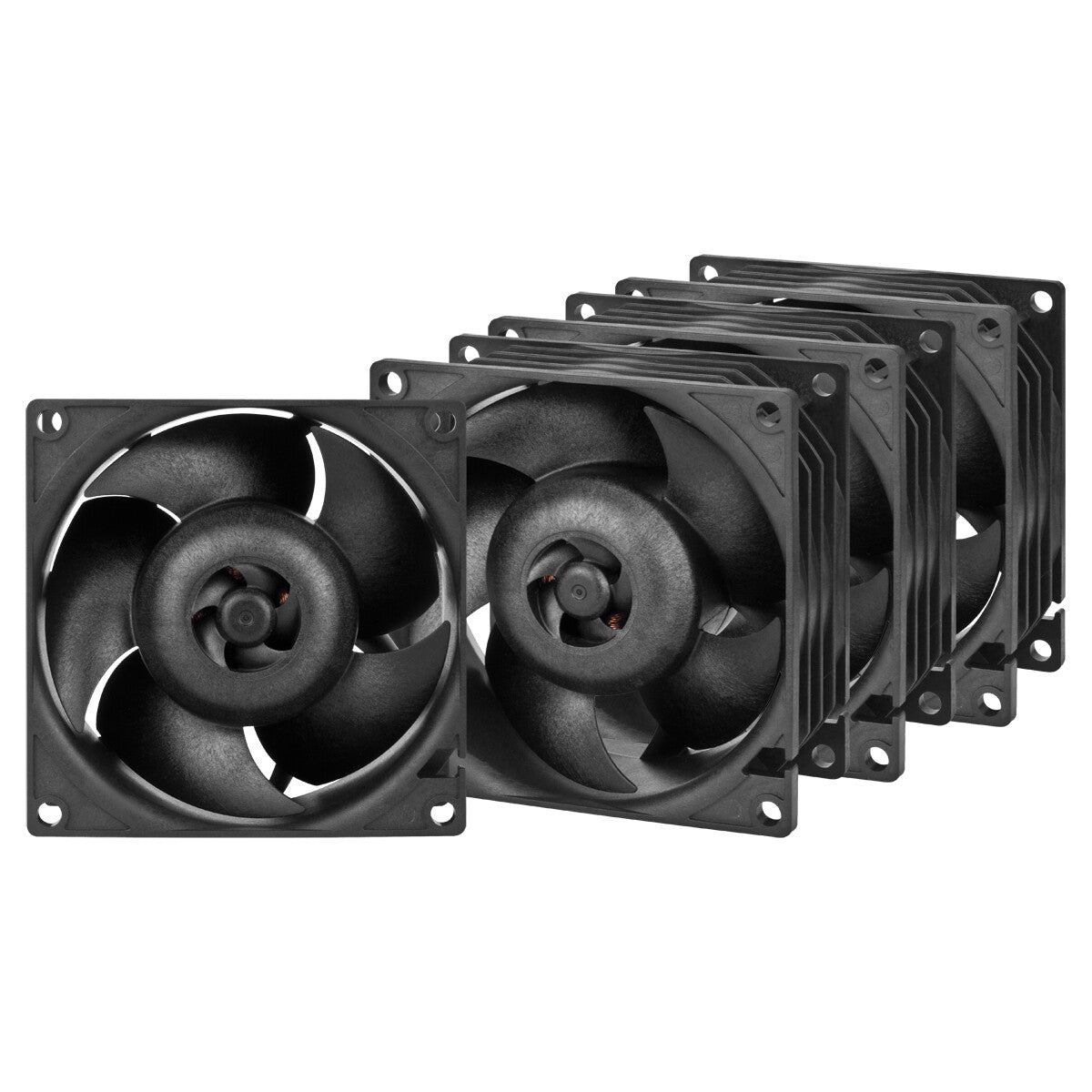

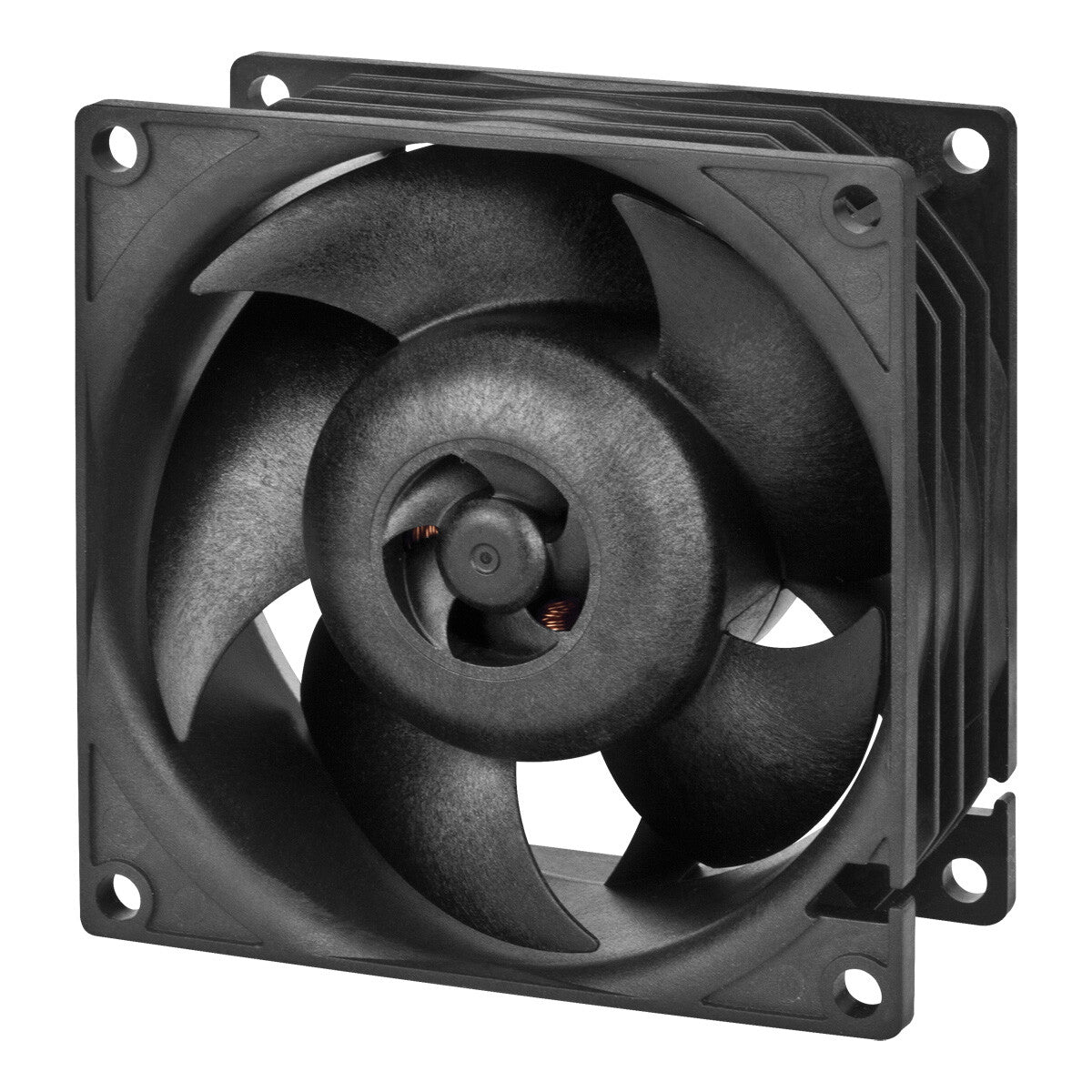

ARCTIC P8 Max - Computer Case Fan in Black - 80mm

Performance
Operating temperature (T-T)	0 - 40 °C
Fan's mean time to failure (MTTF)	500000 h
Fan static pressure	5.3 mmH2O
Fan speed (min)	500 RPM
Fan speed (max)	5000 RPM
Quantity per pack	1 pc(s)
Fan bearing technology	Double ball bearing
Pulse-width modulation (PWM) support	Yes
Airflow	67.96 m³/h
Maximum airflow	40 cfm
Noise level	0.6 sone
Fan diameter	8 cm
Type	Fan
Suitable location	Computer case

Design
Rack capacity	2U
Fan connector	4-pin
Number of fan blades	5
Number of fans	1 fan(s)
Product colour	Black

Power
Fan voltage	12 V
Fan current	0.19 A
Starting voltage	3.2 V

Weight & dimensions
Package weight	89 g
Package height	26 mm
Package depth	82.5 mm
Package width	82.5 mm
Cable length	0.4 m
Fan weight	84 g
Fan dimensions (W x D x H)	80 x 80 x 25 mm

Packaging content
Screws included	Yes
Mounting kit	Yes

i

ARCTIC P8 PWM PST - Air Processor Cooler in Black - 80mm

80 x 25 mm, 200 - 3000 RPM, 23.4 CFM, 40.3 m³/h, 0.3 Sone, 12V DC, 81 g

Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well!

As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.

Performance
Bearing type	Fluid Dynamic Bearing (FDB)
Pulse-width modulation (PWM) support	Yes
Maximum air pressure	1.9 mmH2O
Airflow	40.3 m³/h
Maximum airflow	23.4 cfm
Noise level	0.3 sone
Rotational speed (max)	3000 RPM
Rotational speed (min)	200 RPM
Compatible processor series	Not supported
Supported processor sockets	Not supported
Fan diameter	8 cm
Type	Fan
Suitable location	Computer case

Design
Fan connector	4-pin
Number of fan blades	5
Number of fans	1 fan(s)
Product colour	Black

Power
Voltage	12 V

Weight & dimensions
Package weight	99 g
Package height	82.5 mm
Package depth	26 mm
Package width	82.5 mm
Cable length	0.4 m
Weight	81 g
Height	80 mm
Depth	25 mm
Width	80 mm

Packaging content
Manual	Yes
Number of screws	4
Screws included	Yes
Package type	Box

Other features
Country of origin	China
Mounting hole pattern (W x D)	71.5 x 71.5 mm

i

ARCTIC P8 PWM PST CO - Pressure-optimised Computer Case Fan - 80mm

80 x 25 mm, 200 - 3000 RPM, 23.4 CFM, 40.3 m³/h, 0.3 Sone, 12V DC, 78.5 g

Optimised for Static Pressure
During the development of the new P8 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST CO is particularly suitable for use on heatsinks and radiators.

For Continuous Operation
The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.

Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan.The new ARCTIC motor has a four times longer service life through its low coil temperature.Consequently, we have extended the warranty to 10 years.

200 to 3000 RPM regulated via PWM
With a wide range of regulation and the PWM Sharing Technology (PST), the P8 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

Two Way Installation
Push warm air out of the case or pull cool air into your case

Performance
Bearing type	Fluid Dynamic Bearing (FDB)
Pulse-width modulation (PWM) support	Yes
Maximum air pressure	1.9 mmH2O
Airflow	40.3 m³/h
Maximum airflow	23.4 cfm
Noise level	0.3 sone
Rotational speed (max)	3000 RPM
Rotational speed (min)	200 RPM
Compatible processor series	Not supported
Supported processor sockets	Not supported
Fan diameter	8 cm
Type	Fan
Suitable location	Computer case

Design
Fan connector	4-pin
Number of fan blades	5
Number of fans	1 fan(s)
Product colour	Black

Power
Rated current	0.09 A
Voltage	12 V

Weight & dimensions
Package weight	97 g
Package height	82.5 mm
Package depth	26 mm
Package width	82.5 mm
Weight	78.5 g
Height	80 mm
Depth	25 mm
Width	80 mm

Packaging content
Manual	Yes
Number of screws	4
Screws included	Yes
Package type	Box

Other features
Country of origin	China
Mounting hole pattern (W x D)	71.5 x 71.5 mm

i

ARCTIC P8 Slim PWM PST - Computer Case Fan - 80mm

As experts in cooling, ARCTIC has the coolest solutions for every PC problem. We offer a comprehensive range of CPU coolers, case fans, thermal interfaces, and accessories, all with an excellent price-performance ratio. Year after year, ARCTIC products set new standards in noise minimization and performance.

Performance
Suitable location	Computer case
Fan connector	4-pin + 4-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Operating temperature (T-T)	0 - 40 °C
Fan diameter	8 cm
Maximum airflow	22.5 cfm
Airflow	38.23 m³/h
Quantity per pack	1 pc(s)
Fan static pressure	2.35 mmH2O
Fan speed (min)	300 RPM
Fan speed (max)	3000 RPM
Design
Fan connector	4-pin + 4-pin
Product colour	Black
Cable length	0.48 m
Technical details
Type	Fan
Fan diameter	8 cm
Maximum airflow	22.5 cfm
Airflow	38.23 m³/h
Cable length	0.48 m
Fan connector	4-pin + 4-pin
Ports & interfaces
Fan connector	4-pin + 4-pin
Power
Starting voltage	6.9 V
Fan voltage	12 V
Fan current	0.095 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	80 x 80 x 15 mm
Package depth	89 mm
Package width	83 mm
Package height	17 mm
Fan weight	45 g
Package weight	67 g
Cable length	0.48 m
Packaging data
Package depth	89 mm
Package width	83 mm
Package height	17 mm
Package weight	67 g
Package type	Hanging box
Packaging content
Package type	Hanging box

i

ARCTIC S12038-4K - Computer Case Fan in Black - 120 mm

Workstation & Server Cooling
Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	600 RPM
Rotational speed (max)	4000 RPM
Bearing type	Dual ball bearing
Type	Fan
Operating temperature (T-T)	-10 - 70 °C
Fan diameter	12 cm
Maximum airflow	106 cfm
Maximum air pressure	11.45 mmH2O
Airflow	180 m³/h
Quantity per pack	1 pc(s)
Design
Fan connector	4-pin
Product colour	Black
Cable length	0.3 m
Technical details
Type	Fan
Fan diameter	12 cm
Maximum airflow	106 cfm
Maximum air pressure	11.45 mmH2O
Airflow	180 m³/h
Cable length	0.3 m
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Rated voltage	12 V
Starting voltage	3.1 V
Rated current	0.33 A
Maximum current	0.6 A
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Colour
Product colour	Black
Weight & dimensions
Package depth	125 mm
Package width	125 mm
Package height	43 mm
Width	120 mm
Package weight	362 g
Depth	120 mm
Height	38 mm
Weight	320 g
Cable length	0.3 m
Packaging data
Package depth	125 mm
Package width	125 mm
Package height	43 mm
Package weight	362 g
Packaging content
Screws included	Yes
Number of screws	4

i

ARCTIC S12038-8K - Computer Case Fan in Black - 120 mm

Workstation & Server Cooling
Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	800 RPM
Rotational speed (max)	8000 RPM
Bearing type	Dual ball bearing
Type	Fan
Operating temperature (T-T)	-10 - 70 °C
Fan diameter	12 cm
Maximum airflow	220 cfm
Maximum air pressure	37 mmH2O
Airflow	370 m³/h
Quantity per pack	1 pc(s)
Design
Fan connector	4-pin
Product colour	Black
Cable length	0.3 m
Technical details
Type	Fan
Fan diameter	12 cm
Maximum airflow	220 cfm
Maximum air pressure	37 mmH2O
Airflow	370 m³/h
Cable length	0.3 m
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Rated voltage	12 V
Starting voltage	6.5 V
Rated current	2.2 A
Maximum current	3.2 A
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Colour
Product colour	Black
Weight & dimensions
Package depth	125 mm
Package width	125 mm
Package height	43 mm
Width	120 mm
Package weight	367 g
Depth	120 mm
Height	38 mm
Weight	328 g
Cable length	0.3 m
Packaging data
Package depth	125 mm
Package width	125 mm
Package height	43 mm
Package weight	367 g
Packaging content
Screws included	Yes
Number of screws	4

i

ARCTIC S8038-7K - Computer Case Fan in Black - 80mm (Pack of 4)

80 mm, 500-7000 RPM PWM, DBB, 70 cfm, 118.93 m³/h, 25 mmH2O, 12 VDC, 0.5 A, 4 pcs

ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.

Designed for Continuous Operation
The impeller of the S8038-7K is held in place by two ball bearings, making it not only particularly durable but also less sensitive to external influences such as heat and dust.

Full Control with a Wide Speed Range
The S8038-7K has a wide speed range that can be regulated via PWM and voltage, allowing it to be tuned to the specific system requirement. With a wide speed range from 500 rpm to 7000 rpm, it provides an ideal balance between cooling performance and noise, ensuring optimal performance in various scenarios.

High Airflow and Static Pressure
Heat sinks and radiators benefit from fans with high static pressure. The S8038-7K has a static pressure of 25 mm/H2O, which enables it to push air, even through narrow cooling fins. At the same time, it achieves a maximum airflow of 118.93 m³/h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.

Flexible Connection Options
With its standard 4-pin fan connector, the S8038-7K can also be connected to 2-pin or 3-pin sockets, and then be controlled by voltage. The 30 cm cable allows a lot of flexibility in positioning.

Active Cooling for Extended Motor Lifespan
The lifespan of fans is mostly determined by the lifespan of the motor, which is significantly dependent on the motor temperature, especially in long-term operation. The motor of the S8038-7K is actively cooled by an additional impeller in the fan hub. By maintaining lower motor temperatures, its lifespan is extended by up to 50 %. This advance not only leads to improved operating efficiency, but also to significant cost savings in the long run.

Wide Range of Applications
The S8038-7K fits into 2U server cases and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation. In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliable and robust, it guarantees performance in various hardware environments and ensures efficient cooling and minimal downtime.

Performance
Operating temperature (T-T)	-10 - 70 °C
Fan static pressure	25 mmH2O
Fan speed (min)	500 RPM
Fan speed (max)	7000 RPM
Quantity per pack	4 pc(s)
Bearing type	Dual ball bearing
Pulse-width modulation (PWM) support	Yes
Airflow	118.93 m³/h
Maximum airflow	70 cfm
Fan diameter	8 cm
Type	Fan
Suitable location	Processor

Design
Rack capacity	2U
Fan connector	4-pin
Number of fan blades	5
Number of fans	4 fan(s)
Product colour	Black

Power
Fan voltage	12 V
Fan current	0.5 A
Starting voltage	3.6 V

Weight & dimensions
Package weight	707 g
Package height	78 mm
Package depth	185 mm
Package width	104 mm
Cable length	0.3 m
Fan weight	146 g
Fan dimensions (W x D x H)	80 x 80 x 38 mm

Packaging content
Number of screws	16
Screws included	Yes

i

ARCTIC X1-3D - Desk Mount Gas Spring Monitor Arm

Desk Mount Gas Spring Monitor Arm, max. 43", max. 10 kg, max. 100 x 100 VESA, 3500 g

Mounting
Desk thickness (max)	5.5 cm
Desk thickness (min)	2 cm
Number of displays supported	1
Maximum VESA mount	100 x 100 mm
Minimum VESA mount	75 x 75 mm
Suitable for TV	Yes
Mounting	Clamp
Mounting type	Desk
Maximum screen size	109.2 cm (43")
Maximum weight capacity	10 kg

Ergonomics
Rotating	Yes
Tilt adjustment	Yes
Angle of rotation	360°
Swivel angle	180°
Tilt angle range	-15 - 15°
Height adjustment type	Gas spring
Height adjustment	Yes

Design
Easy to install	Yes
Housing material	Aluminium, Steel
Product colour	Black

Technical details
Motorized	No

Weight & dimensions
Package type	Box
Package weight	3.92 kg
Package height	124 mm
Package depth	445 mm
Package width	228 mm
Weight	3.5 kg

Packaging data
Quantity per pack	1 pc(s)

Logistics data
Harmonized System (HS) code	85299097

ARCTIC X1-3D Monitor Mount - Freedom of Movement for Screens

i

ARCTIC Z1 (Gen 3) - Desk Mount Monitor Arm with USB Hub

max. 49", VESA 75 / 100, max 15 kg, T +/- 15°, S 180°, R 360°, USB 2.0, 5 V DC , Max. 500 mA , 2.7 kg

The ARCTIC Z1 is designed to help improve your workflow as well as your health. Its space-saving construction frees up desk space. Included cable management reduces clutter, while the 4-port USB hub allows for convenient connectivity. Easily adjustable height plus turn, tilt and
swivel functions allow you to effortlessly achieve an ergonomically correct viewing angle in seconds. Enjoy the new display flexibility and longcomfortable hours in front of your screen.
This mount can hold up to 15 kg (33 lbs), including ultrawide monitors up to 49”, so whether you need it for work or for play, the Z1 is a great addition to your setup.

Mounting
Desk thickness (max)	6 cm
Desk thickness (min)	2 cm
Number of displays supported	1
Maximum VESA mount	100 x 100 mm
Minimum VESA mount	75 x 75 mm
Mounting type	Desk
Maximum screen size	96.5 cm (38")
Maximum weight capacity	15 kg

Ergonomics
Cable management	Yes
Angle of rotation	360°
Swivel angle	180°
Tilt angle range	-15 - 15°
Height adjustment	Yes

Design
Housing material	Aluminium, Steel
Product colour	Black

Power
Output voltage	5 V
Output current	0.5 A

Technical details
Compatible operating systems	Windows 10, 8,1, 7, Vista, XPmacOSLinux
Height adjustment	38 cm
Cord length	2 m

Ports & interfaces
USB 2.0 ports quantity	4
USB port	Yes

Weight & dimensions
Package type	Box
Package weight	2.43 kg
Package height	134 mm
Package depth	93 mm
Package width	426 mm
Weight	2.7 kg

Packaging content
Grommet plate included	Yes
Number of spacers included	4
Number of screws	19
Screws included	Yes
Number of cable clips	1

Logistics data
Harmonized System (HS) code	85299097

i

ARCTIC Z1 Basic - Desk Mount Monitor Arm

Z1 Basic, 13"-32", 8 kg max, VESA 75/100

Z1 Basic
- Easy Installation
- Ergonomic Seating Position
- Cable Management Frees Your Desk

More Flexibility
Turn your monitor horizontal in any direction in an easy and convenient way.

Adjustment without Removing the Monitor
With the Z1 Basic mounting head, tighten or loosen the swivel per your need in just a few seconds. No need to take the monitor down.

Quick and Easy Installation
The monitor arm can be mounted on most surfaces with the sturdy and adjustable clamp which fits the edge of your desk in various thicknesses.

Ergonomic Seating Position
Pay attention to your health, also in the office. So the Z1 Basic your ergonomic seating position through ideal alignment according to your individual eye level.

Mounting
Desk thickness (max)	6 cm
Number of displays supported	1
Panel mounting interface	75 x 75,75 x 100,100 x 100,100 x 75
Maximum VESA mount	100 x 100 mm
Minimum VESA mount	75 x 75 mm
Mounting	Clamp
Mounting type	Desk
Maximum screen size	81.3 cm (32")
Minimum screen size	33 cm (13")
Maximum weight capacity	8 kg

Ergonomics
Cable management	Yes
Angle of rotation	360°
Swivel angle	180°
Tilt angle range	-15 - 15°

Design
Housing material	Steel
Product colour	Black

Weight & dimensions
Package type	Box
Package weight	2.44 kg
Package height	140 mm
Package depth	81 mm
Package width	430 mm
Weight	2.1 kg
Height	410 mm

Packaging content
Screws included	Yes
Clamp included	Yes
Wrench type	Hexagonal wrench
Wrench included	Yes

Logistics data
Harmonized System (HS) code	85299097

i

ARCTIC Z1 Pro (Gen 3) - Desk Mount Monitor Arm with USB 3.0 Hub

The ARCTIC Z1 Pro is designed to help improve your workflow as well as your health. Its space-saving construction frees up desk space. Included cable management reduces clutter, while the 4-port USB hub allows for convenient connectivity. Easily adjustable height plus turn, tilt and swivel functions allow you to effortlessly achieve an ergonomically correct viewing angle in seconds. Enjoy the new display flexibility and longcomfortable hours in front of your screen.
This mount can hold up to 15 kg (33 lbs), including ultrawide monitors up to 49", so whether you need it for work or for play, the Z1 Pro is a great addition to your setup.

i

ARCTIC Z2 (Gen 3) - Dual Monitor Arm with USB Hub

IN STOCK

2x max. 34", VESA 75 / 100, max 15 kg, T +/- 15°, S 180°, R 360°, USB 2.0, 5 V DC , Max. 500 mA , 3.4 kg

The ARCTIC Z2 is designed to help improve your workflow as well as your health. Its space-saving construction frees up desk space. Included cable management reduces clutter, while the 4-port USB hub allows for convenient connectivity. Easily adjustable height plus turn, tilt and swivel functions allow you to effortlessly achieve an ergonomically correct viewing angle in seconds. Enjoy the new display flexibility and longcomfortable hours in front of your screen.
Each mount can hold up to 15 kg (33 lbs), including ultrawide monitors up to 29", so whether you need it for work or for play, the Z2 is a great addition to your setup.

Mounting
Desk thickness (max)	6 cm
Desk thickness (min)	2 cm
Number of displays supported	2
Maximum VESA mount	100 x 100 mm
Minimum VESA mount	75 x 75 mm
Mounting type	Desk
Maximum screen size	86.4 cm (34")
Maximum weight capacity	15 kg

Ergonomics
Cable management	Yes
Angle of rotation	360°
Swivel angle	180°
Tilt angle range	-15 - 15°
Height adjustment	Yes

Design
Housing material	Aluminium, Steel
Product colour	Black

Power
Output voltage	5 V
Output current	0.5 A

Ports & interfaces
USB 2.0 ports quantity	4
USB port	Yes

Technical details
Compatible operating systems	Windows 10, 8,1, 7, Vista, XPmacOSLinux
Height adjustment	38 cm
Cord length	2 m

Weight & dimensions
Package type	Box
Package weight	3.99 kg
Package height	307 mm
Package depth	78 mm
Package width	426 mm
Weight	3.4 kg

Packaging content
Grommet plate included	Yes
Number of spacers included	4
Number of screws	35
Screws included	Yes
Number of cable clips	1

Logistics data
Harmonized System (HS) code	85299097

i

ARCTIC Z2 Basic

IN STOCK

13"-27', 16 kg max, VESA 75/100, 360°

Z2 Basic
- Easy Installation
- Ergonomic Seating Position
- Cable Management Frees Your Desk

Work Efficiently
Increase your efficiency with the Z2 Basic dual monitor arm: It is often helpful to work with multiple screens at the same time to keep important applications parallel in view. The Z2 Basic extends your view and thereby simplifies not only your work, but it also allows you to work more efficiently.

More Flexibility
Turn your monitor horizontal in any direction in an easy and convenient way.

Adjustment without Removing the Monitor
With the Z2 Basic mounting head, tighten or loosen the swivel per your need in just a few seconds. No need to take the monitor down.

Quick and Easy Installation
The monitor arm can be mounted on most surfaces with the sturdy and adjustable clamp which fits the edge of your desk in various thicknesses.

Ergonomic Seating Position
Pay attention to your health, also in the office. So the Z2 Basic your ergonomic seating position through ideal alignment according to your individual eye level.

Mounting
Desk thickness (max)	6 cm
Number of displays supported	2
Panel mounting interface	75 x 75,75 x 100,100 x 100
Maximum VESA mount	100 x 100 mm
Minimum VESA mount	75 x 75 mm
Mounting	Clamp
Mounting type	Desk
Maximum screen size	68.6 cm (27")
Minimum screen size	33 cm (13")
Maximum weight capacity	16 kg

Ergonomics
Cable management	Yes
Angle of rotation	360°
Swivel angle	180°
Tilt angle range	-15 - 15°

Design
Housing material	Steel
Product colour	Black

Weight & dimensions
Package type	Box
Package weight	3.55 kg
Package height	217 mm
Package depth	82 mm
Package width	430 mm
Weight	3 kg
Height	410 mm

Packaging content
Screws included	Yes
Clamp included	Yes
Wrench type	Hexagonal wrench
Wrench included	Yes

Logistics data
Harmonized System (HS) code	85299097

i

ARCTIC Z2 Pro (Gen 3) - Dual Monitor Arm with USB 3.0 Hub

IN STOCK

2x max. 34", VESA 75 / 100, max 15 kg, T +/- 15°, S 180°, R 360°, USB 3.0, 4 kg

The ARCTIC Z2 Pro is designed to help improve your workflow as well as your health. Its space-saving construction frees up desk space. Included cable management reduces clutter, while the 4-port USB hub allows for convenient connectivity. Easily adjustable height plus turn, tilt and swivel functions allow you to effortlessly achieve an ergonomically correct viewing angle in seconds. Enjoy the new display flexibility and longcomfortable hours in front of your screen.
Each mount can hold up to 15 kg (33 lbs), including ultrawide monitors up to 29", so whether you need it for work or for play, the Z2 Pro is a great addition to your setup.

Mounting
Desk thickness (max)	6 cm
Desk thickness (min)	2 cm
Number of displays supported	2
Maximum VESA mount	100 x 100 mm
Minimum VESA mount	75 x 75 mm
Mounting type	Desk
Maximum screen size	86.4 cm (34")
Maximum weight capacity	15 kg

Ergonomics
Cable management	Yes
Angle of rotation	360°
Swivel angle	180°
Tilt angle range	-15 - 15°
Height adjustment	Yes

Design
Housing material	Aluminium, Steel
Product colour	Black

Power
Output voltage	5 V
Output current	0.9 A

Technical details
I/O ports	Micro USB
Compatible operating systems	Windows 10, 8,1, 7, Vista, XPmacOSLinux
Height adjustment	38 cm
Cord length	2 m

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	4
USB port	Yes

Weight & dimensions
Package type	Box
Package weight	4.9 kg
Package height	237 mm
Package depth	144 mm
Package width	426 mm
Weight	4 kg

Packaging content
Grommet plate included	Yes
Number of spacers included	10
Number of screws	36
Screws included	Yes
Number of cable clips	1

Logistics data
Harmonized System (HS) code	85299097

i

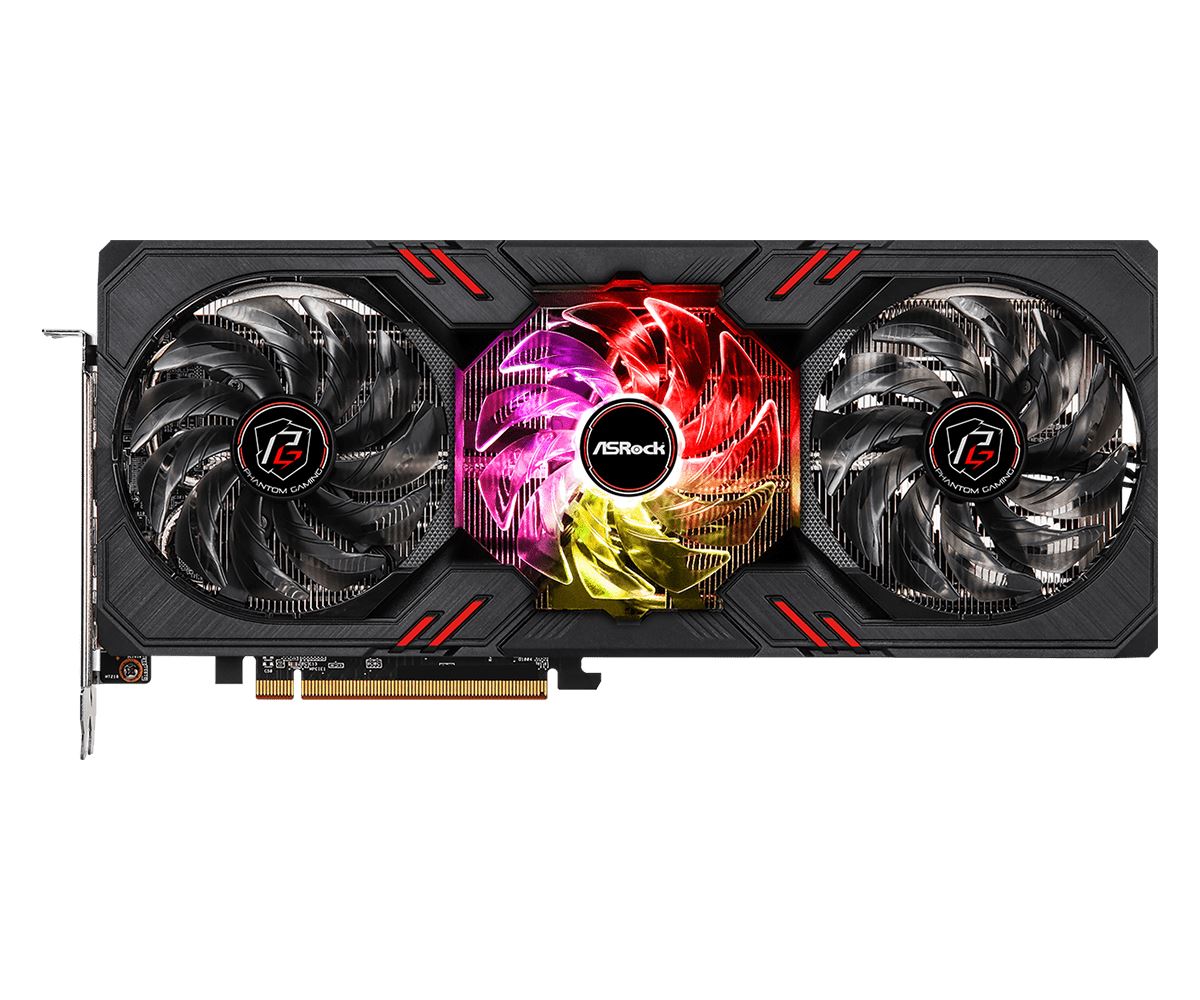

Asrock 90-GA4BZZ-00UANF graphics card AMD Radeon RX 7600 8 GB GDDR6

AMD Radeon™ RX 7600, PCI® Express 4.0 x8, 12 Ultimate, 8GB GDDR6, 18 Gbps, 128-bit, 600W

Phantom Gaming 3X Cooling System
For Cool and Silent.
Crafted for the best balance between the thermal efficiency and silence by all the details.

Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

ASRock Tweak 2.0
Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.

8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
VGA PCIE4.0

AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.

Experience unprecedented performance, visuals, and efficiency for gaming and streaming in 1080p with the AMD Radeon™ RX 7600 graphics card, powered by RDNA™ 3 architecture. Immerse yourself in breathtaking visuals with the pinpoint color accuracy of AMD Radiance Display™ Engine and boost frame rates with AMD FidelityFX™ Super Resolution and Radeon™ Super Resolution upscaling technologies.1,2 To unlock even more performance, combine AMD Radeon™ RX 7000 Series graphics card with a compatible AMD Ryzen™ processor to activate AMD smart technologies.

BREAKTHROUGH PERFORMANCE
AMD Radeon™ RX 7600 graphics card set a new level of performance for gamers and streamers. Featuring unified AMD RDNA™ 3 compute units, and blazing fast clock speeds, to enable advanced high refresh rate gaming performance at 1080p.

BREATHTAKING VISUALS
Discover new levels of fidelity and ultra-fast gameplay with High-Performance Rendering, a combination of compute-based AMD FideltyFX™ features and upscaling technologies, to deliver world-class visuals with remarkable performance. Further immerse yourself with the AMD Radiance Display™ Engine and DisplayPort™ 2.14 to experience up to 68 billion colors for video playback at up to 8K. Deliver enhanced visual quality to your audience when streaming and recording using the improved encoders, together with integrated AI and content adaptive machine learning technology to enable better looking and crisper visuals when streaming.

BETTER TOGETHER
Combine an AMD Radeon™ RX 7600 graphics card and AMD Ryzen™ processors to activate AMD smart technologies3. You can unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon™ RX 7000 Series graphics card with the AMD Software: Adrenalin Edition™ application, featuring bulletproof drivers, for the best PC gaming experiences.

UPSIZE PERFORMANCE.
MAXIMIZE FIDELITY
AMD FidelityFX™ Super Resolution technology1 takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games.
AMD Radeon™ Super Resolution (RSR)2 leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.

Processor
Parallel processing technology support	Not supported
Maximum displays per videocard	4
Processor boost clock speed	2725 MHz
Processor frequency	2320 MHz
Maximum resolution	7680 x 4320 pixels
Graphics processor	Radeon RX 7600
Graphics processor family	AMD

Memory
Data transfer rate	18 Gbit/s
Memory bus	128 bit
Graphics card memory type	GDDR6
Discrete graphics card memory	8 GB

Ports & interfaces
DisplayPort version	2.1
HDMI version	2.1
DisplayPorts quantity	3
HDMI ports quantity	1
Interface type	PCI Express x8 4.0

Performance
Dual Link DVI	No
HDCP	Yes
DirectX version	12 Ultimate
TV tuner integrated	No

Design
Product colour	Black
Illumination	Yes
Number of slots	2.4
Number of fans	3 fan(s)
Cooling type	Active

Power
Minimum system power supply	600 W

Weight & dimensions
Depth	305 mm
Height	131 mm
Width	48 mm
Weight	894 g

Packaging data
Package type	Box
User guide	Yes

i

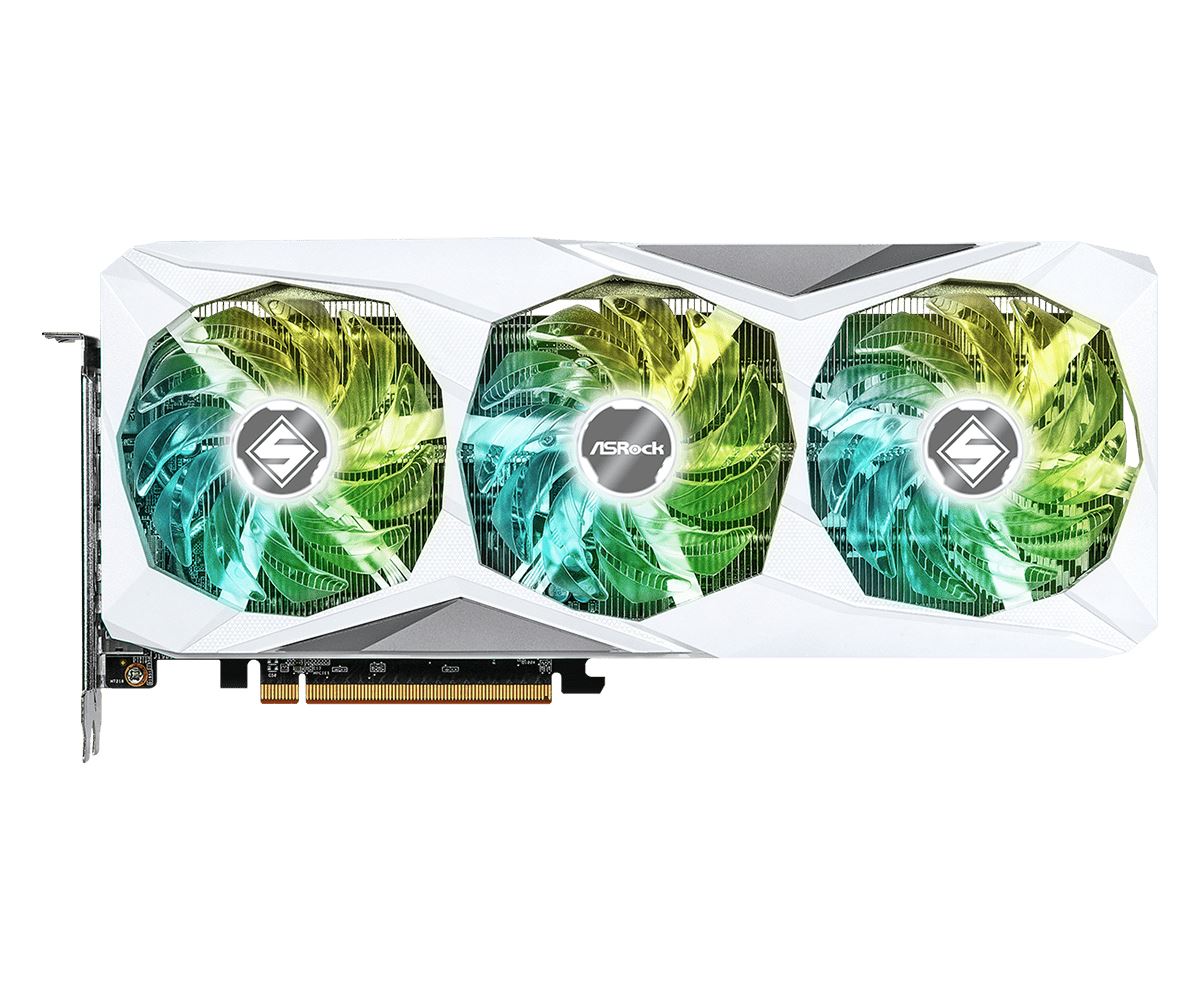

Asrock 90-GA4DZZ-00UANF graphics card AMD Radeon RX 7600 8 GB GDDR6

AMD Radeon™ RX 7600 8GB GDDR6, Up to 2725 MHz / 18 Gbps, 2320 MHz / 18 Gbps, 128-Bit Memory Bus

Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.

AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.

Experience unprecedented performance, visuals, and efficiency for gaming and streaming in 1080p with the AMD Radeon™ RX 7600 graphics card, powered by RDNA™ 3 architecture. Immerse yourself in breathtaking visuals with the pinpoint color accuracy of AMD Radiance Display™ Engine and boost frame rates with AMD FidelityFX™ Super Resolution and Radeon™ Super Resolution upscaling technologies.1,2 To unlock even more performance, combine AMD Radeon™ RX 7000 Series graphics card with a compatible AMD Ryzen™ processor to activate AMD smart technologies.3

BREAKTHROUGH PERFORMANCE
AMD Radeon™ RX 7600 graphics card set a new level of performance for gamers and streamers. Featuring unified AMD RDNA™ 3 compute units, and blazing fast clock speeds, to enable advanced high refresh rate gaming performance at 1080p.

BREATHTAKING VISUALS
Discover new levels of fidelity and ultra-fast gameplay with High-Performance Rendering, a combination of compute-based AMD FideltyFX™ features and upscaling technologies, to deliver world-class visuals with remarkable performance. Further immerse yourself with the AMD Radiance Display™ Engine and DisplayPort™ 2.14 to experience up to 68 billion colors for video playback at up to 8K. Deliver enhanced visual quality to your audience when streaming and recording using the improved encoders, together with integrated AI and content adaptive machine learning technology to enable better looking and crisper visuals when streaming.

BETTER TOGETHER
Combine an AMD Radeon™ RX 7600 graphics card and AMD Ryzen™ processors to activate AMD smart technologies3. You can unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon™ RX 7000 Series graphics card with the AMD Software: Adrenalin Edition™ application, featuring bulletproof drivers, for the best PC gaming experiences.

UPSIZE PERFORMANCE.
MAXIMIZE FIDELITY
AMD FidelityFX™ Super Resolution technology1 takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games.
AMD Radeon™ Super Resolution (RSR)2 leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.

Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Processor
Parallel processing technology support	Not supported
Maximum displays per videocard	4
Processor boost clock speed	2725 MHz
Processor frequency	2320 MHz
Maximum resolution	7680 x 4320 pixels
Graphics processor	Radeon RX 7600
Graphics processor family	AMD

Memory
Data transfer rate	18 Gbit/s
Memory bus	128 bit
Graphics card memory type	GDDR6
Discrete graphics card memory	8 GB

Ports & interfaces
DisplayPort version	2.1
HDMI version	2.1
DisplayPorts quantity	3
HDMI ports quantity	1
Interface type	PCI Express x8 4.0

Performance
Dual Link DVI	No
HDCP	Yes
DirectX version	12 Ultimate
TV tuner integrated	No

Design
Product colour	White
Illumination	Yes
Number of slots	2.25
Number of fans	3 fan(s)
Cooling type	Active

Power
Minimum system power supply	600 W

Weight & dimensions
Depth	303 mm
Height	131 mm
Width	45 mm
Weight	834 g

Packaging data
Package type	Box
User guide	Yes

i

Asrock A520M mini ITX motherboard - AMD A520 Socket AM4

IN STOCK

AMD A520, 2 x DDR4 DIMM Slots, 128Mb AMI UEFI Legal BIOS, Gigabit LAN, 7.1 CH HD Audio, Intel® 802.11ac WiFi + BT 4.2, DisplayPort, HDMI, 4 x SATA3, 1 x Ultra M.2, USB 2.0 / 3.2 Gen1, PS/2

A520 MOTHERBOARD FOR EVERYONE
All Essentials You Need For Computing
8 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.

Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

Dual USB 3.2 Gen1 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates.

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Processor
Processor socket	Socket AM4
Processor manufacturer	AMD

Memory
Unbuffered memory	Yes
Maximum internal memory	64 GB
Supported memory clock speeds	2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600 MHz
Non-ECC	Yes
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM

Storage controllers
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA III, Ultra M.2

Graphics
DirectX version	12.0
HDCP	Yes
Maximum resolution	4096 x 2160 pixels
Graphics card	Radeon Vega
Graphics card family	AMD

Internal I/O
RGB LED pin header	Yes
12V power connector	Yes
Number of chassis fan connectors	1
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Front panel audio connector	Yes
Number of SATA III connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 connectors	1

Rear panel I/O ports
WiFi-AP antenna jack	1
Microphone in	Yes
Headphone outputs	1
DisplayPort version	1.4
DisplayPorts quantity	1
HDMI version	2.1
HDMI ports quantity	1
PS/2 ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 ports quantity	2

Network
Bluetooth version	4.2
Bluetooth	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Wake-on-LAN ready	Yes
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes

Features
Certification	FCC, CEErP/EuP ready
Windows operating systems supported	Windows 10 x64
PC health monitoring	CPU, Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard chipset	AMD A520
Motherboard chipset family	AMD
Motherboard form factor	mini ITX
Component for	PC

Expansion slots
Number of M.2 (M) slots	1
PCI Express x16 (Gen 3.x) slots	1

BIOS
System Management BIOS (SMBIOS) version	2.3
ACPI version	5.1
BIOS memory size	128 Mbit
BIOS type	UEFI AMI

Logistics data
Harmonized System (HS) code	84733020

Weight & dimensions
Depth	170 mm
Width	170 mm

Packaging content
Bundled software	ASRock Motherboard Utility (A-Tuning)ASRock Polychrome SYNCASRock XFast LAN
Drivers included	Yes
Cables included	SATA

Technical details
Sustainability compliance	Yes
Sustainability certificates	CE, ErP

ASRock A520 Motherboard Series --- DURABLE THINKING

i

Asrock A520M Phantom Gaming 4 micro ATX motherboard - AMD A520 Socket AM4

micro-ATX, AMD AM4 Socket, 4 x DDR4 DIMM, AMI UEFI, 4 x SATA3

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

Dual M.2 For SSD
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s. The other one supports PCIe Gen3 x2 & SATA3 M.2 modules.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Processor
Compatible processor series	AMD Ryzen™ 3, AMD Ryzen™ 5
Processor socket	Socket AM4
Processor manufacturer	AMD

Memory
Unbuffered memory	Yes
Maximum internal memory	128 GB
Supported memory clock speeds	2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4733 MHz
Non-ECC	Yes
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM

Storage controllers
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA
Supported storage drive types	HDD & SSD

Graphics
DirectX version	12.0
HDCP	Yes
Graphics card	Radeon Vega
Graphics card family	AMD
On-board graphics card	Yes
Maximum graphics card memory	16000 MB

Internal I/O
Number of SATA connectors	4
Number of SATA III connectors	4

Rear panel I/O ports
Microphone in	Yes
DisplayPort version	1.4
DisplayPorts quantity	1
HDMI ports quantity	1
PS/2 ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 2.0 ports quantity	2

Network
Ethernet LAN	Yes

Features
Certification	FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
Windows operating systems supported	Windows 10
Audio output channels	7.1 channels
Motherboard chipset	AMD A520
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
Component for	PC

Expansion slots
PCI Express x16 (Gen 3.x) slots	2
PCI Express x1 (Gen 3.x) slots	1

BIOS
System Management BIOS (SMBIOS) version	2.3
ACPI version	5.1
BIOS memory size	256 Mbit
BIOS type	UEFI AMI

Logistics data
Harmonized System (HS) code	84733020

Weight & dimensions
Depth	244 mm
Width	244 mm

ASRock A520 Motherboard Series --- DURABLE THINKING

i

Asrock A520M Phantom Gaming 4 micro ATX motherboard - AMD A520 Socket AM4

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

Dual M.2 For SSD
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s. The other one supports PCIe Gen3 x2 & SATA3 M.2 modules.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
On-board graphics card	Yes
Motherboard form factor	micro ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
Certification	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen™ 3, AMD Ryzen™ 5
Processor socket	Socket AM4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4733 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA
Graphics
Maximum graphics card memory	16000 MB
On-board graphics card	Yes
HDCP	Yes
Graphics card family	AMD
Graphics card	Radeon Vega
DirectX version	12.0
Internal I/O
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA
Number of SATA connectors	4
Number of SATA III connectors	4
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DisplayPort version	1.4
USB 2.0 ports quantity	2
PS/2 ports quantity	1
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Features
Windows operating systems supported	Windows 10
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
Certification	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Harmonized System (HS) code	84733020
Expansion slots
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.1
System Management BIOS (SMBIOS) version	2.3
Video
Maximum graphics card memory	16000 MB
HDCP	Yes
Graphics card family	AMD
Graphics card	Radeon Vega
DirectX version	12.0
Certificates
Certification	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Software
Windows operating systems supported	Windows 10
Logistics data
Harmonized System (HS) code	84733020
Weight & dimensions
Width	244 mm
Depth	244 mm

i

Currency

Currency

Products

Currency

Currency

Products

Search
