Mighty features & comfort that help you achieve more with ease.

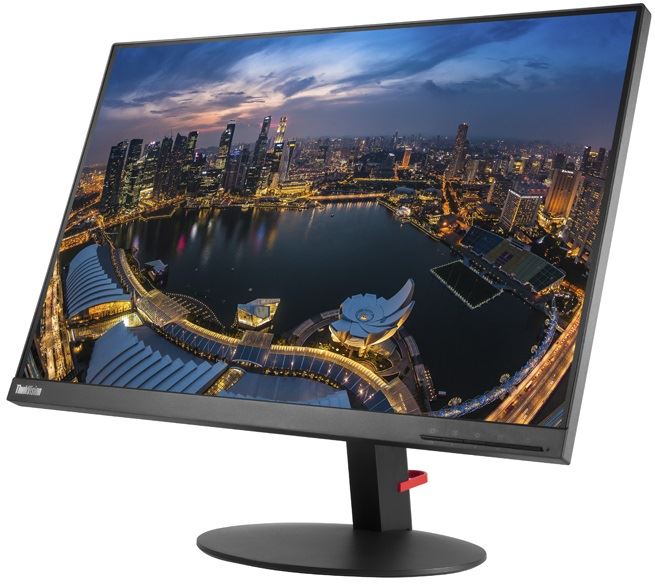

The ThinkVision T23i-30 Monitor brings incredible display performance, comfort, convenience, and functionality to your workstation. With a large 23-inch FHD screen this monitor packs an incredible view without taking up excessive desk space. Its In-Plane Switching technology with 72% NTSC color lets you view content with accurate colors and grayscale performance, even from off-center angles, easing multi-person viewing during collaborations. An aesthetic, minimal 3-sided NearEdgeless bezel design delivers functionally too, providing you with a nearly seamless multi-screen experience that helps you view more and do more. Adjust the ThinkVision T23i-30 Monitor to your preference for all-day viewing comfort with the ergonomic stand that not only lets you lift, tilt, and swivel but also pivots the monitor between landscape and portrait views. The Natural Low Blue Light technology keeps your eyes safe, ensuring that eye strain doesn’t ever stop you in your tracks, despite long working hours. The extensive connectivity hub unleashes more possibilities by letting you connect to a limitless range of accessories and devices with its VGA, DP 1.2, HDMI 1.4, and Audio Out ports. The monitor is designed to keep you and the environment in mind. That is why it’s made to meet the latest TCO 9.0 regulations, and comes encased in recyclable packaging. The ThinkVision T23i-30 Monitor is an innovation devised to assist you in making a wave of success without taking too much space.
| Display | |
|---|---|
| Colour gamut | 72% |
| RGB colour space | NTSC |
| Colour depth | 8 bit |
| Viewable size, vertical | 28.6 cm |
| Viewable size, horizontal | 50.9 cm |
| Pixel density | 96 ppi |
| Pixel pitch | 0.265 x 0.265 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 58.4 cm (23") |
| Performance | |
|---|---|
| Compatible operating systems | Windows 10, Windows 11 |
| Low Blue Light technology | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | ENERGY STAR® Certified, TCO 9.0, TCO Edge 2.0, EPEAT™ Gold, RoHSEyesafe® Display, TÜV Low Blue Light (Hardware solution), TÜV Rheinland® Low Blue Light, TÜV Rheinland® Flicker Free, TÜV Rheinland® Eye Comfort |
| Feet colour | Black |
| Detachable stand | Yes |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of upstream ports | 1 |
| USB upstream port type | USB Type-B |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 23.5° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15.5 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Cable management | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | Internal |
| AC input voltage | 90 - 264 V |
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 48 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 15 W |
| Packaging content | |
|---|---|
| Power cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 1.73 cm |
| Bezel width (top) | 2 mm |
| Bezel width (side) | 2 mm |
| Weight (without stand) | 3.2 kg |
| Height (without stand) | 313.1 mm |
| Depth (without stand) | 46.4 mm |
| Width (without stand) | 522 mm |
| Weight (with stand) | 5.2 kg |
| Height (with stand) | 493.8 mm |
| Depth (with stand) | 199.7 mm |
| Width (with stand) | 522 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 7.3 kg |
| Package height | 421 mm |
| Package depth | 150 mm |
| Package width | 592 mm |
| General | |
|---|---|
| Product Family | ThinkVision |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Performance | |
| Built-in speaker(s) | Yes |
| Built-in microphone | No |
| Built-in camera | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Display | |
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Pixel density | 95 ppi |
| Colour gamut | 99% |
| sRGB coverage (typical) | 99% |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Backlight type | W-LED |
| Display resolution | 1920 x 1080 pixels |
| Response time | 4 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1500:1 |
| Response time (fast) | 6 ms |
| Touchscreen | No |
| LED backlight | Yes |
| Anti-glare screen | Yes |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Built-in microphone | No |
| Built-in camera | Yes |
| Design | |
| Certification | ENERGY STAR Certified, TCO 10.0, TCO Edge 2.1, EPEAT Gold, RoHS, EU Energy Efficiency Level (Level-C), Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Flicker Free, TÜV Low Blue Light, TÜV Rheinland Eye Comfort (5 Stars) |
| Product colour | Black |
| Colour name | Raven Black |
| Camera | |
| Built-in camera | Yes |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| DisplayPort out quantity | 0 |
| Technical details | |
| Height (without stand) | 314.8 mm |
| Depth (without stand) | 45.3 mm |
| Width (without stand) | 539.8 mm |
| HDMI | Yes |
| Built-in microphone | No |
| Product colour | Black |
| Power supply type | Internal |
| Weight (with stand) | 5.1 kg |
| Touchscreen | No |
| Ergonomics | |
| VESA mounting | Yes |
| Power | |
| Power supply type | Internal |
| Power consumption (max) | 66 W |
| Power consumption (typical) | 12 W |
| Weight & dimensions | |
| Height (without stand) | 314.8 mm |
| Depth (without stand) | 45.3 mm |
| Width (without stand) | 539.8 mm |
| Width (with stand) | 539.8 mm |
| Height (with stand) | 505.8 mm |
| Bezel width (side) | 2 mm |
| Weight (with stand) | 5.1 kg |
| Weight (without stand) | 3 kg |
| Package weight | 7.3 kg |
| Packaging data | |
| Package weight | 7.3 kg |
| Other features | |
| Certification | ENERGY STAR Certified, TCO 10.0, TCO Edge 2.1, EPEAT Gold, RoHS, EU Energy Efficiency Level (Level-C), Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Flicker Free, TÜV Low Blue Light, TÜV Rheinland Eye Comfort (5 Stars) |
| Height (without stand) | 314.8 mm |
| Depth (without stand) | 45.3 mm |
| Width (without stand) | 539.8 mm |
| Power consumption (max) | 66 W |
| HDMI | Yes |
| Power supply type | Internal |
| Touchscreen | No |
| Certificates | |
| Certification | ENERGY STAR Certified, TCO 10.0, TCO Edge 2.1, EPEAT Gold, RoHS, EU Energy Efficiency Level (Level-C), Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Flicker Free, TÜV Low Blue Light, TÜV Rheinland Eye Comfort (5 Stars) |
Helps save power at work

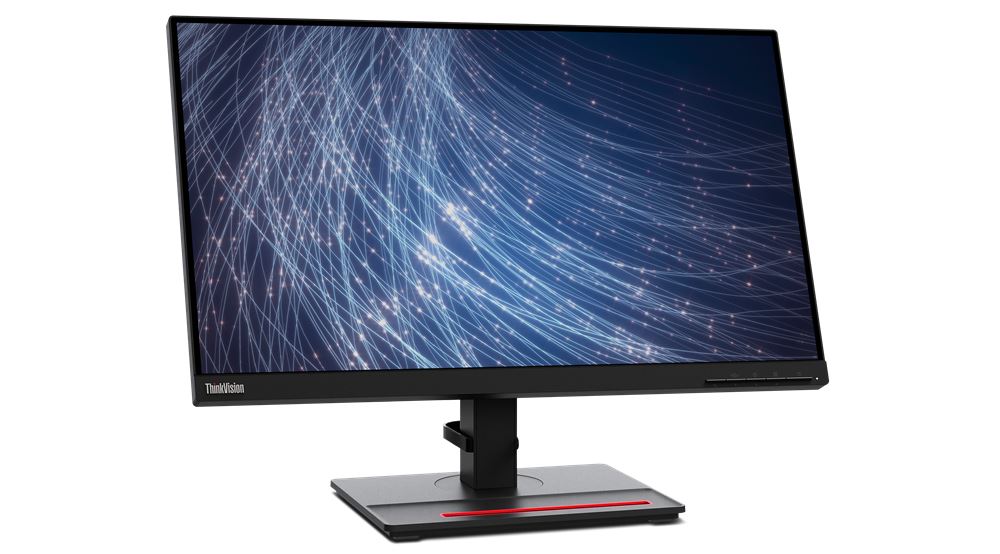

Match your screen to your workflow with the ThinkVision T24-40 Monitor's 48 Hz - 120 Hz variable refresh rate, optimized for seamless visuals while saving energy.
Combines clear images andcomprehensive connectivity
Enjoy clear, distortion-free visuals with the ThinkVision T24-40 Monitor's 23.8-inch In-Plane Switching panel technology which delivers premium, vibrant colors from any viewing angle. Get more connected and compatible with a wide range of devices on T24-40's USB hubs, unlocking greater productivity for your workflows.
Boosts efficiency with Fleet Management
Manage and control your monitor assets with Lenovo Display Fleet Manager (LDFM). This innovative software solution empowers IT managers with robust tools for streamlined asset management, efficient firmware upgrades, and centralized settings control.
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Performance | |
| Built-in speaker(s) | No |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Windows operating systems supported | Windows 10, Windows 11 |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Display | |
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Pixel density | 95 ppi |
| Colour gamut | 99% |
| Maximum refresh rate | 120 Hz |
| sRGB coverage (typical) | 99% |
| HD type | Full HD |
| Display technology | LCD |
| Contrast ratio (dynamic) | 3000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Backlight type | W-LED |
| Display resolution | 1920 x 1080 pixels |
| Response time | 6 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1500:1 |
| Response time (fast) | 4 ms |
| Touchscreen | No |
| Panel type | IPS |
| Colour depth | 8 bit |
| LED backlight | Yes |
| Colour gamut standard | Rec. 709 |
| Anti-glare screen | Yes |
| Multimedia | |
| Built-in speaker(s) | No |
| Built-in microphone | No |
| Built-in camera | No |
| Power | |
| Power cable length | 1.8 m |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 66 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 12 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | C |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 12 kWh |
| Design | |
| Feet colour | Black |
| Certification | ENERGY STAR Certified, TCO 10.0, TCO Edge 2.1, EPEAT Gold, RoHS, EU Energy Efficiency Level (Level-C) Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Flicker Free, TÜV Low Blue Light, TÜV Rheinland Eye Comfort (5 Stars) |
| Product colour | Black |
| Colour name | Raven Black |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 3 |
| USB Type-C downstream ports quantity | 1 |
| Headphone out | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 15 W |
| Number of USB Type-B upstream ports quantity | 1 |
| DisplayPort out quantity | 0 |
| Technical details | |
| Height (without stand) | 314.8 mm |
| Depth (without stand) | 45.3 mm |
| Width (without stand) | 539.8 mm |
| Feet colour | Black |
| Cable lock slot | Yes |
| HDMI | Yes |
| Built-in microphone | No |
| Product colour | Black |
| Power supply type | Internal |
| Weight (with stand) | 5.1 kg |
| Touchscreen | No |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt angle range | -5 - 23° |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15.5 cm |
| Weight & dimensions | |
| Height (without stand) | 314.8 mm |
| Depth (without stand) | 45.3 mm |
| Width (without stand) | 539.8 mm |
| Width (with stand) | 539.8 mm |
| Depth (with stand) | 190 mm |
| Bezel width (side) | 2 mm |
| Bezel width (top) | 2 mm |
| Bezel width (bottom) | 1.05 cm |
| Weight (with stand) | 5.1 kg |
| Weight (without stand) | 3 kg |
| Package width | 734 mm |
| Package depth | 112 mm |
| Package height | 422 mm |
| Package weight | 7.3 kg |
| Packaging data | |
| Package width | 734 mm |
| Package depth | 112 mm |
| Package height | 422 mm |
| Package weight | 7.3 kg |
| Stand included | Yes |
| Power cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, USB Type-A to USB Type-B |
| DisplayPort cable length | 1.8 m |
| Packaging content | |
| Stand included | Yes |
| Power cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, USB Type-A to USB Type-B |
| DisplayPort cable length | 1.8 m |
| Other features | |
| Certification | ENERGY STAR Certified, TCO 10.0, TCO Edge 2.1, EPEAT Gold, RoHS, EU Energy Efficiency Level (Level-C) Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Flicker Free, TÜV Low Blue Light, TÜV Rheinland Eye Comfort (5 Stars) |
| Height (without stand) | 314.8 mm |
| Depth (without stand) | 45.3 mm |
| Width (without stand) | 539.8 mm |
| Power consumption (max) | 66 W |
| Quick start guide | Yes |
| HDMI | Yes |
| USB Power Delivery up to | 15 W |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Power cable length | 1.8 m |
| Touchscreen | No |
| USB Power Delivery (USB PD) | Yes |
| Certificates | |
| Certification | ENERGY STAR Certified, TCO 10.0, TCO Edge 2.1, EPEAT Gold, RoHS, EU Energy Efficiency Level (Level-C) Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Flicker Free, TÜV Low Blue Light, TÜV Rheinland Eye Comfort (5 Stars) |
The ThinkVision T24D monitor has a black glossy appearance with a full-function ergonomic stand. It offers a crystal clear borderless IPS display with 1920x1200 resolution and sRGB 100% colour gamut, providing vivid, accurate images from a wide viewing angle. With built-in power and the rich connectivity of VGA, HDMI and DP, T24d meets diverse connection demands. T24d also has 4 USB 3.0 ports, including 1 with BC1.2, which offers quick charging for your USB devices. Its full-function stand lifts, tilts, pivots and swivels for ease of use. ThinkVision T24d is also TUV Eye Comfort-certified, ensuring your health is protected when using this monitor.
The ThinkVision T24d continues Lenovo's energy saving and environmental protection ideas. It has green features, including white LED backlights, and is Energy-Star 7.0, EPEAT Gold, CEL tier 2 and RoHS compliant. 24.0-inch WLED Native resolution of 1920 x 1200 sRGB 100% Lift, Tilt, Pivot and Swivel stand for viewing comfort Optional sound bar support Support ThinkCentre TINY Power consumption (typical/max): 22W/64W TUV Eye comfort certification Direct access button for automatic image setup and brightness allows quick and easy monitor setup Compliance with ENERGY STAR 7.0 requirements Compliance with RoHS requirements Kensington Lock slot for security Certified for Microsoft Windows 7/Windows 10 Meets 100 mm VESA standard for mounting
High-Quality Display
Lenovo ThinkVision monitors are known for their high-quality display panels. Whether you're working on graphic design, editing photos, or watching videos, ThinkVision monitors deliver vibrant colors, sharp details, and wide viewing angles. The accurate color reproduction and precise image quality ensure an immersive visual experience, enhancing your productivity and enjoyment.
Ergonomic Design
Another user-friendly aspect of ThinkVision monitors is their ergonomic design. These monitors are carefully engineered to provide maximum comfort and convenience during prolonged usage. The ergonomic design of ThinkVision monitors promotes good posture and reduces the risk of discomfort or fatigue, making them ideal for long hours of work or entertainment.
Reliable Performance and Durability
Lenovo is renowned for its commitment to quality and reliability, and the ThinkVision series is no exception. These monitors are built to last, with robust construction and high-quality materials. They undergo rigorous testing to ensure they meet Lenovo's strict standards, providing users with a reliable and long-lasting display solution.
Lenovo Premier Support
Whether you’re running a business or just looking for a personal device to work from anywhere, when you upgrade to Lenovo Premier Support you’ll get access to:- Comprehensive hardware and OEM software support - Single point of contact with advanced engineers- Technical account managers for proactive relationship & escalation management - Priority service delivery & repair parts
| Display | |
|---|---|
| 3D | No |
| Colour gamut | 99% |
| Viewable size diagonal | 61 cm |
| Viewable size, vertical | 32.4 cm |
| Viewable size, horizontal | 51.8 cm |
| Pixel density | 94 ppi |
| Pixel pitch | 0.27 x 0.27 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:10 |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1366 x 768, 1440 x 900 (WXGA+), 1440 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Screen shape | Flat |
| Response time | 7 ms |
| Display brightness (typical) | 300 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | WUXGA |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:10 |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 61 cm (24") |
| Performance | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64 |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | ISO 9241-307, FCC Class B, TCO Displays 7.0, TCO Certified Edge 2.0, WEEE, RoHS, EPEAT Gold |
| Feet colour | Black |
| Product colour | Black |
| Market positioning | Business |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| Number of upstream ports | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 30° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 11 cm |
| Height adjustment | Yes |
| Cable lock slot | No |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 22 W |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Width (without stand) | 533.2 mm |
| Weight (with stand) | 5.63 kg |
| Height (with stand) | 497.4 mm |
| Depth (with stand) | 260.4 mm |
| Width (with stand) | 533.2 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Thin Client | |
|---|---|
| Thin client installed | No |
| Other features | |
|---|---|
| TV tuner integrated | No |
| Rotating | Yes |
| On/off switch | Yes |
| Display | LED |
Lenovo ThinkVision T24d. Display diagonal: 61 cm (24) Display resolution: 1920 x 1200 pixels HD type: WUXGA Display technology: LED. Display: LED. Response time: 7 ms Native aspect ratio: 16:10 Viewing angle horizontal: 178° Viewing angle vertical: 178°. Built-in USB hub USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting Height adjustment. Product colour: Black
Everyday tasks are a breeze with the efficiency of the ThinkVision T24H-20 monitor. A well-designed QHD 2560 x 1440 resolution screen, multiple ports, and wide color gamut make it one of the most sought after 23.8-inch commercials displays available. Boost your productivity with a dual or multi-monitor setup taking advantage of the 3-side NearEdgeless bezels that offer a seamless, virtually borderless experience. It has a specially engineered panel to reduce glare, an ergonomic stand for improved customization, and a VESA mount for wall hanging. Maximize your desk space with the USB Type-C one-cable solution that comes integrated with Smart Power for better connectivity and power efficiency.
| Display | |
|---|---|
| Colour gamut standard | sRGB |
| sRGB coverage (typical) | 99% |
| Colour depth | 8 bit |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Pixel density | 123 ppi |
| Pixel pitch | 0.2058 x 0.2058 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 2560 x 1440 |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 300 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Quad HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 2560 x 1440 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | CCC, TCO 8.0, TCO Edge 2.0 |
| Feet colour | Black |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | No |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| USB Power Delivery up to | 75 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Type-A downstream ports quantity | 4 |
| Number of upstream ports | 1 |
| USB upstream port type | USB Type-C |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 35° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 23 W |
| Packaging content | |
|---|---|
| Cables included | AC, USB Type-C to USB Type-C |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.41 cm |
| Bezel width (top) | 2 mm |
| Bezel width (side) | 2 mm |
| Weight (without stand) | 3.85 kg |
| Height (without stand) | 325.7 mm |
| Depth (without stand) | 44.6 mm |
| Width (without stand) | 539.8 mm |
| Weight (with stand) | 6.18 kg |
| Height (with stand) | 420 mm |
| Depth (with stand) | 205 mm |
| Width (with stand) | 539.8 mm |
| Packaging data | |
|---|---|
| Package weight | 8.1 kg |
| Package height | 620 mm |
| Package depth | 149 mm |
| Package width | 423 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
Everyday tasks are a breeze with the efficiency of the ThinkVision T24h-20 monitor. A well-designed QHD 2560 x 1440 resolution screen, multiple ports, and wide colour gamut make it one of the most sought after 23.8-inch commercials displays available. Boost your productivity with a dual or multi-monitor setup taking advantage of the 3-side Near Edgeless bezels that offer a seamless, virtually borderless experience. It has a specially engineered panel to reduce glare, an ergonomic stand for improved customization, and a VESA mount for wall hanging. Maximize your desk space with the USB Type-C one-cable solution that comes integrated with Smart Power for better connectivity and power efficiency.
Impressive Display From Any Angle
The FHD In-Plane Switching panel does not distort content when viewed from any angle, up to 178⁰ on either side, allowing everyone to work more accurately with greater details. The ThinkVision T24i-2L’s ultra-thin NearEdgeless bezels maximize screen real estate and enable a seamless multi-monitor setup for easy multitasking and navigation of large documents.
Flexible Connectivity Options
Connect your accessories directly to the monitor through its four USB 3.2 Gen1 downstream ports. Power, video, and data peripherals, along with multiple options for display like VGA, DP1.2, and HDMI 1.4 ensure you experience seamless collaboration. Plug external speakers in through the Audio port for enhanced sound during meetings.
Comfortable Work Environment
The ThinkVision T24i-2L’s minimized square base, phone holder, and flexible cable management system help you stay organized. Pivot, tilt, swivel, and lift your monitor for a comfortable setup all day long. Installing the monitor on a wall or separate mounting arms is easy with VESA mount compatibility. TÜV Rheinland Eye Comfort and Eyesafe certification, awarded by Natural Low Blue Light technology, signify that you can stay focused all day with reduced eye strain, while ensuring color accuracy and eliminating yellow distortion.
| Display | |
|---|---|
| Colour gamut standard | NTSC |
| NTSC coverage (typical) | 72% |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Pixel density | 93 ppi |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Performance | |
|---|---|
| Compatibility | ThinkCentre M Series Tiny |
| Low Blue Light technology | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | CCC, TÜV Rheinland Eye Comfort, Eyesafe Display |
| Feet colour | Black |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Market positioning | Business |
| Ports & interfaces | |
|---|---|
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| Number of upstream ports | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 35° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (max) | 55 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 16 W |
| Packaging content | |
|---|---|
| DisplayPort cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, USB Type-A to USB Type-B |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.22 cm |
| Bezel width (top) | 2 mm |
| Bezel width (side) | 2 mm |
| Weight (without stand) | 3.65 kg |
| Height (without stand) | 326.5 mm |
| Depth (without stand) | 44.1 mm |
| Width (without stand) | 539.8 mm |
| Weight (with stand) | 5.9 kg |
| Height (with stand) | 559.3 mm |
| Depth (with stand) | 205 mm |
| Width (with stand) | 539.8 mm |
| Packaging data | |
|---|---|
| Package weight | 8.4 kg |
| Package height | 160 mm |
| Package depth | 422 mm |
| Package width | 618 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |

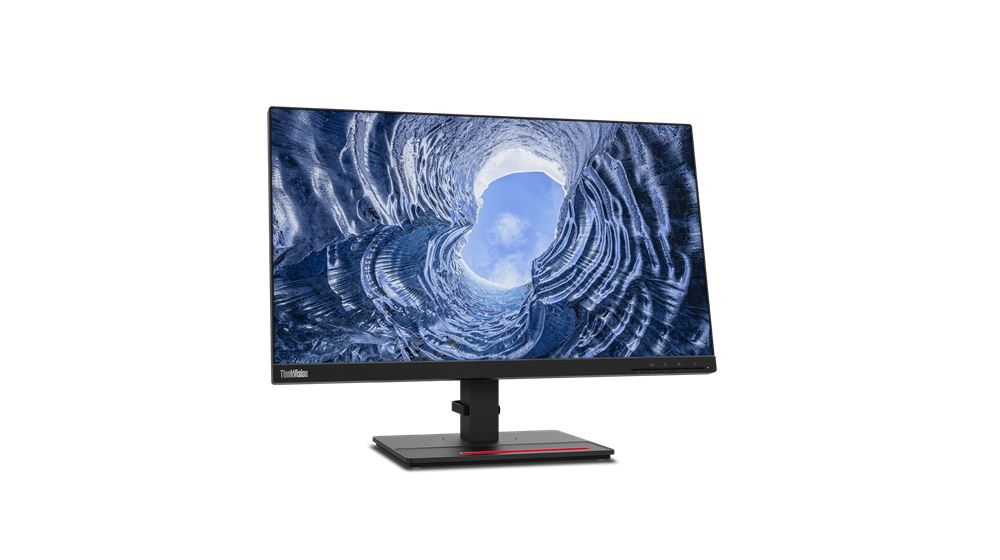

Power through your day with the ThinkVision T24i-2L. Its FHD In-Plane Switching panel and NearEdgeless bezels make it well suited for multi-monitor setups, helping you enhance efficiency. This TÜV Rheinland Eye Comfort and Eyesafe-certified monitor with Natural Low Blue Light technology is ideal for professionals as it reduces harmful blue light and minimises eye fatigue and strain.
High-Quality Display
Lenovo ThinkVision monitors are known for their high-quality display panels. Whether you're working on graphic design, editing photos, or watching videos, ThinkVision monitors deliver vibrant colors, sharp details, and wide viewing angles. The accurate color reproduction and precise image quality ensure an immersive visual experience, enhancing your productivity and enjoyment.
Ergonomic Design
Another user-friendly aspect of ThinkVision monitors is their ergonomic design. These monitors are carefully engineered to provide maximum comfort and convenience during prolonged usage. The ergonomic design of ThinkVision monitors promotes good posture and reduces the risk of discomfort or fatigue, making them ideal for long hours of work or entertainment.
Reliable Performance and Durability
Lenovo is renowned for its commitment to quality and reliability, and the ThinkVision series is no exception. These monitors are built to last, with robust construction and high-quality materials. They undergo rigorous testing to ensure they meet Lenovo's strict standards, providing users with a reliable and long-lasting display solution.
Lenovo Premier Support
Whether you’re running a business or just looking for a personal device to work from anywhere, when you upgrade to Lenovo Premier Support you’ll get access to:- Comprehensive hardware and OEM software support - Single point of contact with advanced engineers- Technical account managers for proactive relationship & escalation management - Priority service delivery & repair parts
| Display | |
|---|---|
| Colour gamut standard | NTSC |
| NTSC coverage (typical) | 72% |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Pixel density | 93 ppi |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Performance | |
|---|---|
| Compatibility | ThinkCentre M Series Tiny |
| Low Blue Light technology | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | CCC, TÜV Rheinland Eye Comfort, Eyesafe Display |
| Feet colour | Black |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Market positioning | Business |
| Ports & interfaces | |
|---|---|
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| Number of upstream ports | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 35° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (max) | 55 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 16 W |
| Packaging content | |
|---|---|
| DisplayPort cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, USB Type-A to USB Type-B |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.22 cm |
| Bezel width (top) | 2 mm |
| Bezel width (side) | 2 mm |
| Weight (without stand) | 3.65 kg |
| Height (without stand) | 326.5 mm |
| Depth (without stand) | 44.1 mm |
| Width (without stand) | 539.8 mm |
| Weight (with stand) | 5.9 kg |
| Height (with stand) | 559.3 mm |
| Depth (with stand) | 205 mm |
| Width (with stand) | 539.8 mm |
| Packaging data | |
|---|---|
| Package weight | 8.4 kg |
| Package height | 160 mm |
| Package depth | 422 mm |
| Package width | 618 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |

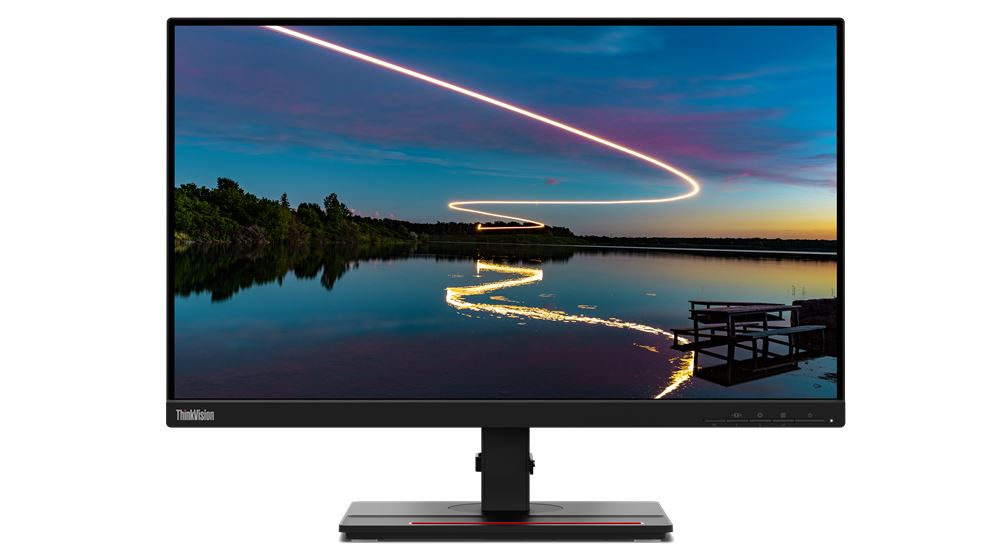

Power through your day with the ThinkVision T24i-2L. Its FHD In-Plane Switching panel and Near Edgeless bezels make it well suited for multi-monitor setups, helping you enhance efficiency. This TÜV Rheinland Eye Comfort and Eyesafe-certified monitor with Natural Low Blue Light technology is ideal for professionals as it reduces harmful blue light and minimises eye fatigue and strain.
Locked and loaded with a whole lot of innovation, the ThinkVision T24i-30 Monitor is powered to help you seize every day. This ample 23.8-inch FHD IPS screen with a wide colour gamut of 99% sRGB makes its vibrancy and colour accuracy a delight to look at even from wide angles. You can adjust the monitor for a more convenient and enjoyable viewing experience with the ergonomic stand’s tilt, lift, swivel and pivot functions. Or simply VESA mount it to save more desk space. With 90% screen real estate, it’s built with a 3-side NearEdgeless bezel design, so your view has fewer distractions and more of what needs to be seen.
Integrated Natural Low Blue Light technology reduces toxic blue light while delivering high-fidelity colours. In addition, the ThinkVision T24i-30 Monitor’s TÜV Rheinland Eye Comfort certification, lets you do more by protecting your eyes from fatigue even during long hours at work. Take functionality to a whole new level by connecting an endless list of devices compatible with the connectivity hub, including VGA, DP 1.2, HDMI 1.4, and four USB 3.0 ports. Connect your external sound systems conveniently with the Audio Out port. You can also view more data and multitask more efficiently with multi-monitor support. This monitor packs a world of features without impacting the environment by following the latest TCO 9.0 regulations. The ThinkVision T24i-30 Monitor is a powerhouse built to make working a pleasure.
Envision the brilliance

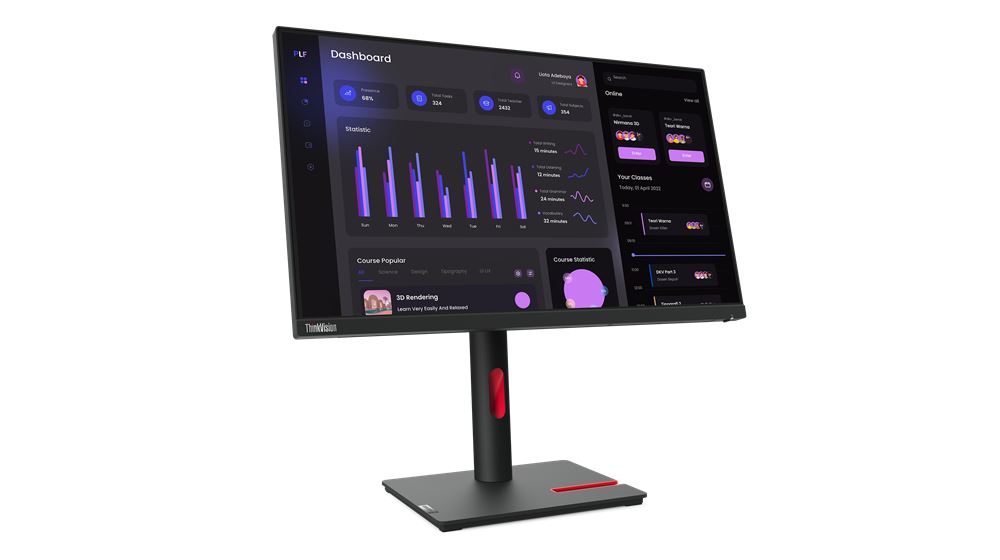

It’s easy to admire the ThinkVision T24i-30 Monitor’s vivid and dynamic picture quality from any angle with its FHD IPS display. The 99% sRGB color gamut brings to life brilliant color accuracy, especially important when dealing with visual tasks. With the ergonomic stand, you can lift, tilt, swivel, and pivot the monitor conveniently for a comfortable viewing experience, that’s convenient especially while collaborating. Its lift range, at 155 mm, is comfortable for most users. At its lowest position, the ThinkVision T24i-30 Monitor is designed to enhance your comfort every minute of the day.
Extensive connectivity
Widen your horizons by plugging an extensive range of devices and accessories into the ThinkVision T24i-30 Monitor, with a comprehensive range of ports, including VGA, DP 1.2, and HDMI 1.4. Customize your audio experience for shared meetings and content by plugging your external audio systems with the Audio Out port. Need to import or export large files? No problem. The four USB 3.0 ports allow you to transfer data at a super speed of 5 Gbps so that nothing slows you down. The ThinkVision T24i-30 Monitor lets you do more by expanding your view vertically or horizontally by connecting additional screens with multi-monitor support.
Environment-friendly. User-friendly.
Navigate and customize the ThinkVision T24i-30 Monitor’s settings to your preferred settings with the easy-to-use joystick placed behind the screen. The monitor features Natural Low Blue Light technology reducing harmful blue light without compromising high color fidelity. TÜV Rheinland Eye Comfort certification keeps your vision refreshed and fatigue-free even after hours of work. This monitor brings you the best features with minimal impact on the environment throughout its lifecycle. It’s made in compliance with the latest TCO 9.0 regulations and made with 90% recyclable materials and is fully packaged using paper pulp, to protect the planet.
| Display | |
|---|---|
| sRGB coverage (typical) | 99% |
| Colour gamut | 99% |
| RGB colour space | sRGB |
| Colour depth | 6 bit |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Pixel density | 93 ppi |
| Pixel pitch | 0.275 x 0.275 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Performance | |
|---|---|
| Compatible operating systems | Windows 10, Windows 11 |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Multimedia | |
|---|---|
| Built-in microphone | No |
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | Energy Star Certified, TCO 9.0, TCO Edge 2.0, EPEAT Gold, RoHSEyesafe Display, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Low Blue Light, TÜV Rheinland Flicker Free |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| Number of upstream ports | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 23.5° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15.5 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Cable management | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | Internal |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (max) | 51 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 14 W |
| Packaging content | |
|---|---|
| Power cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-B |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 1.71 cm |
| Bezel width (top) | 2 mm |
| Bezel width (side) | 2 mm |
| Weight (without stand) | 3.4 kg |
| Height (without stand) | 321.4 mm |
| Depth (without stand) | 49 mm |
| Width (without stand) | 539.8 mm |
| Weight (with stand) | 5.4 kg |
| Height (with stand) | 504.8 mm |
| Depth (with stand) | 199.7 mm |
| Width (with stand) | 539.8 mm |
| Packaging data | |
|---|---|
| Package weight | 7.8 kg |
| Package height | 152 mm |
| Package depth | 422 mm |
| Package width | 592 mm |
| General | |
|---|---|
| Product Family | ThinkVision |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Performance | |
| Built-in speaker(s) | No |
| Built-in microphone | No |
| Built-in camera | No |
| Compatible operating systems | Windows 10, Windows 11 |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Display | |
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Pixel density | 93 ppi |
| Colour gamut | 99% |
| Maximum refresh rate | 60 Hz |
| sRGB coverage (typical) | 99% |
| HD type | Full HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 3000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.275 x 0.275 mm |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Backlight type | W-LED |
| Display resolution | 1920 x 1080 pixels |
| Response time | 6 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1000:1 |
| Response time (fast) | 4 ms |
| Touchscreen | No |
| Panel type | IPS |
| Colour depth | 6 bit |
| RGB colour space | sRGB |
| Anti-glare screen | Yes |
| Multimedia | |
| Built-in speaker(s) | No |
| Built-in microphone | No |
| Built-in camera | No |
| Power | |
| Power cable length | 1.8 m |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 51 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 14 W |
| Power consumption (off) | 0.3 W |
| Design | |
| Certification | Energy Star Certified, TCO 9.0, TCO Edge 2.0, EPEAT Gold, RoHS Eyesafe Display, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Low Blue Light, TÜV Rheinland Flicker Free |
| Product colour | Black |
| Colour name | Raven Black |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio output | Yes |
| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Technical details | |
| Height (without stand) | 32.1 cm |
| Depth (without stand) | 4.9 cm |
| Width (without stand) | 54 cm |
| Cable lock slot | Yes |
| HDMI | Yes |
| Built-in microphone | No |
| Product colour | Black |
| Compatible operating systems | Windows 10, Windows 11 |
| Power supply type | Internal |
| Weight (with stand) | 5.4 kg |
| Touchscreen | No |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt angle range | -5 - 23.5° |
| Height adjustment | 15.5 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Packaging content | |
| Stand included | Yes |
| Power cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-B |
| HDMI cable length | 1.8 m |
| Weight & dimensions | |
| Height (without stand) | 32.1 cm |
| Depth (without stand) | 4.9 cm |
| Width (without stand) | 54 cm |
| Width (with stand) | 539.8 mm |
| Depth (with stand) | 199.7 mm |
| Height (with stand) | 504.8 mm |
| Bezel width (side) | 2 mm |
| Bezel width (top) | 2 mm |
| Bezel width (bottom) | 1.71 cm |
| Weight (with stand) | 5.4 kg |
| Weight (without stand) | 3.4 kg |
| Package width | 592 mm |
| Package depth | 422 mm |
| Package height | 152 mm |
| Package weight | 7.8 kg |
| Packaging data | |
| Package width | 592 mm |
| Package depth | 422 mm |
| Package height | 152 mm |
| Package weight | 7.8 kg |
| Stand included | Yes |
| Power cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-B |
| HDMI cable length | 1.8 m |
| Other features | |
| Compatible operating systems | Windows 10, Windows 11 |
| Height (without stand) | 32.1 cm |
| Depth (without stand) | 4.9 cm |
| Width (without stand) | 54 cm |
| Power consumption (max) | 51 W |
| Quick start guide | Yes |
| HDMI | Yes |
| Power supply type | Internal |
| Power cable length | 1.8 m |
| Touchscreen | No |
| Certificates | |
| Certification | Energy Star Certified, TCO 9.0, TCO Edge 2.0, EPEAT Gold, RoHS Eyesafe Display, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Low Blue Light, TÜV Rheinland Flicker Free |
Lenovo ThinkVision T24i-30. Display diagonal: 60.5 cm (23.8) Display resolution: 1920 x 1080 pixels HD type: Full HD Display technology: LED Response time: 6 ms Native aspect ratio: 16:9 Viewing angle horizontal: 178° Viewing angle vertical: 178°. Built-in USB hub USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting Height adjustment. Product colour: Black
A monitor that's more than just another screen, ThinkVision T24 m-20 renders easy connectivity and manageability to businesses. Enjoy the generous screen space of 23.8 inches on this FHD In-Plane Switching panel. With 3-side NearEdgeless bezels and daisy-chaining capability via the DP-out port, enjoy an unrestricted view and multitasking in a multi-monitor setup. It is equipped with USB Type-C technology that provides rapid transfer speeds via a one-cable solution. For secure and reliable connectivity and remote management, an Ethernet port lets users work uninterrupted. Ergonomic features with a clutter-free, space-saving design can't go unnoticed on the T24 m, which makes for a comfortable work experience wherever the users are. The monitor also actively works to safeguard your eyes with TÜV Rheinland Eye Comfort, TÜV Low Blue Light (Hardware Solution) and Natural Low Blue Light technology with Eyesafe certification that reduce flicker and harmful high-energy blue light that could otherwise cause eye fatigue. With sustainable packaging using pulp cushion, the T24 m monitor remains environmentally friendly throughout its life cycle. With ThinkColour software, you can instantly and effortlessly adjust the fine controls of the monitor.
| Display | |
|---|---|
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Colour gamut | 72% |
| Maximum refresh rate | 60 Hz |
| HD type | Full HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 3000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Backlight type | W-LED |
| Display resolution | 1920 x 1080 pixels |
| Response time | 6 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1000:1 |
| Response time (fast) | 4 ms |
| Touchscreen | No |
| Panel type | IPS |
| Colour depth | 8 bit |
| Colour gamut standard | NTSC |
| Anti-glare screen | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Performance | |
| Low Blue Light technology | Yes |
| Design | |
| Certification | ENERGY STAR CCC TCO 8.0 EPEAT Gold TÜV |
| Product colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| USB Type-A downstream ports quantity | 4 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Audio output | Yes |
| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Number of USB Type-C upstream ports quantity | 1 |
| Ethernet LAN | Yes |
| Technical details | |
| Height (without stand) | 325.9 mm |
| Depth (without stand) | 44.4 mm |
| Width (without stand) | 539.8 mm |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black |
| Weight (with stand) | 6.1 kg |
| Touchscreen | No |
| Network | |
| Ethernet LAN | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt angle range | -5 - 35° |
| Pivot | Yes |
| On Screen Display (OSD) | Yes |
| Pivot angle | -90 - 90° |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Power | |
| AC input voltage | 90 - 264 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 140 W |
| Power consumption (typical) | 22 W |
| Power consumption (off) | 0.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | D |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 642408 |
| Weight & dimensions | |
| Height (without stand) | 325.9 mm |
| Depth (without stand) | 44.4 mm |
| Width (without stand) | 539.8 mm |
| Width (with stand) | 539.8 mm |
| Depth (with stand) | 204.9 mm |
| Height (with stand) | 417.1 mm |
| Bezel width (side) | 2 mm |
| Bezel width (top) | 2 mm |
| Bezel width (bottom) | 2.2 cm |
| Weight (with stand) | 6.1 kg |
| Weight (without stand) | 3.6 kg |
| Package width | 604 mm |
| Package depth | 480 mm |
| Package height | 161 mm |
| Package weight | 8.9 kg |
| Packaging data | |
| Package width | 604 mm |
| Package depth | 480 mm |
| Package height | 161 mm |
| Package weight | 8.9 kg |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 642408 |
| Other features | |
| Certification | ENERGY STAR CCC TCO 8.0 EPEAT Gold TÜV |
| Height (without stand) | 325.9 mm |
| Depth (without stand) | 44.4 mm |
| Width (without stand) | 539.8 mm |
| Power consumption (max) | 140 W |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN | Yes |
| Touchscreen | No |
| USB Power Delivery (USB PD) | Yes |
| Certificates | |
| Certification | ENERGY STAR CCC TCO 8.0 EPEAT Gold TÜV |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
Dazzling display performance. Incredible functionality.

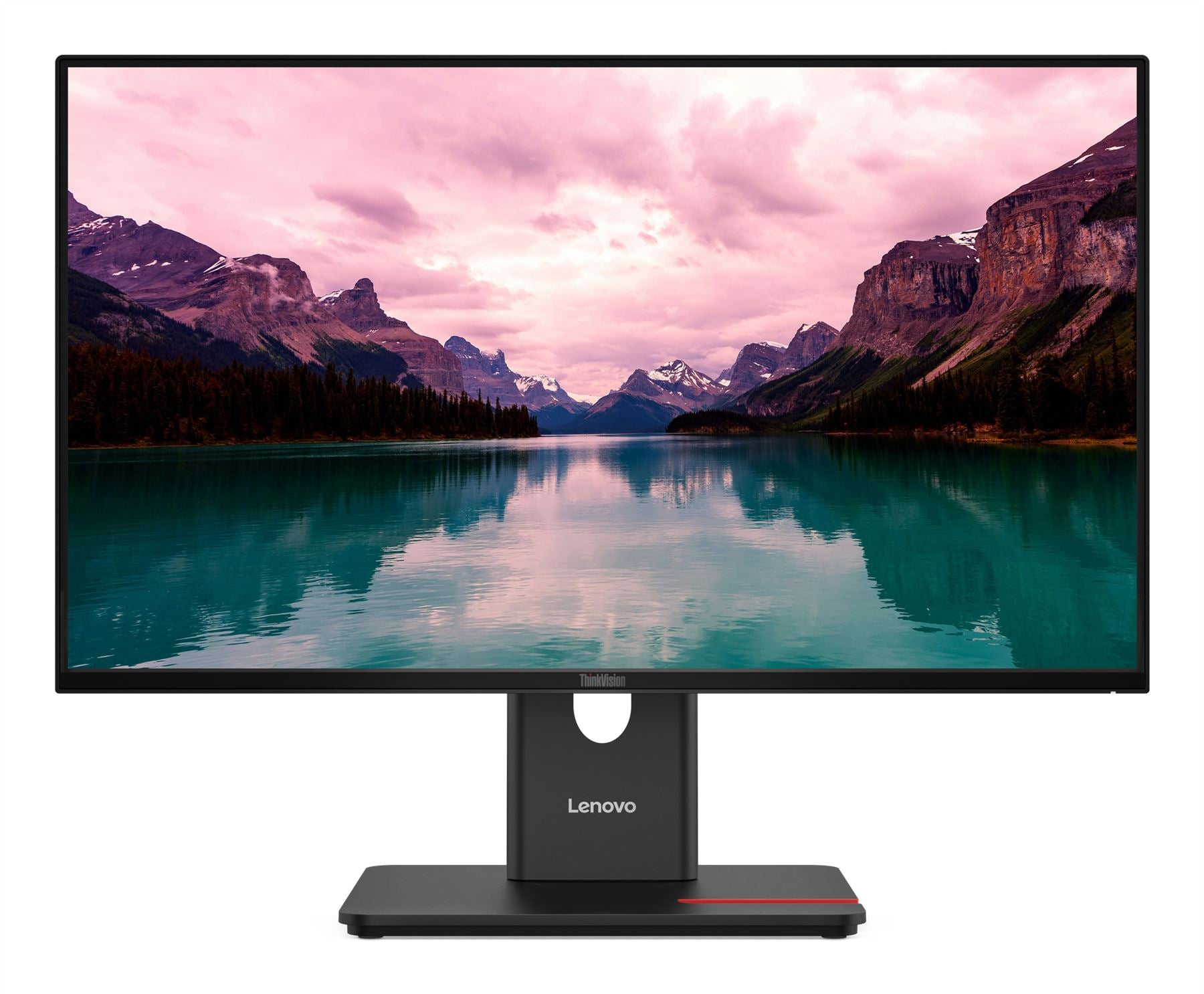

ThinkVision T24m-29 Monitor
Powerful display performance that supercharges your work.
The ThinkVision T24m-29 is a monitor that works harder, to bring easy connectivity and
effortless management to your business. Sit back and take in the wide 23.8-inch screen,
made more expansive with 3-side NearEdgless bezels and an FHD In-Plane Switching panel. Daisy-chain the monitor via a DP-Out port, for an uninterrupted viewing plane and get set to multitask with a multi-monitor assembly. Equipped with USB Type-C technology, the ThinkVisionT24m-29 Monitor offers a one-cable solution for super-fast transfer speeds. An ethernet port enables remote management for safe, dependable connectivity that supports seamless workflow. Nifty ergonomics, a space-efficient clutter-free design and integrated 2 x 1W speakers add efficiency, ease, and comfort. Natural Low Blue Light technology eliminates sepia-toned images to protect your vision so you can dedicate more time to your tasks without straining your eyes. What’s more, you’ll be pleased to know that the ThinkVision T24m-29 Monitor is designed to be environmentally friendly throughout its lifetime as it comes with sustainable pulp-cushion packaging
Made for multitasking
ThinkVision T24m-29 Monitor boasts superior visual clarity and remarkable color consistency through a 1920 x 1080 FHD resolution display. Get ready for a distortion-free wide-viewing angle of up to 178° with an In-Plane Switching panel. Daisy-chain multiple devices and let the monitor’s 3-side NearEdgeless bezels give you an expansive, seamless multitasking experience. Let the monitor’s Smart Power2 allow for effortless plug-and-play functionality, as it dynamically detects and optimizes power distribution when multiple devices like monitors, laptops, or other USB-powered
peripherals are connected.
Convenient, comfortable, and compatible
The ThinkVision T24m-29 Monitor features a wobble-free stand with a wider lift range and tilt angle for ergonomic ease and working comfort. A compact square base fitted with a thoughtful phone holder offers enhanced convenience and frees
up space on your desk. Integrated 2 x 1W speakers and clever cable management cut the clutter for a sleek look. Sit back and enjoy the convenience of an intuitive user interface provided by Lenovo exclusive software ThinkColour, which offers access to
advanced display settings through an effortless and efficient user interface.
Connectivity your business can bank on
Let your business get way head, faster. Make the best of high-speed data transfers with the ThinkVision T24m-29 Monitor’s full-function USB Type-C port that affords single-cable connectivity for data, video, audio, and power transfer. The ethernet port (RJ45) lets you enjoy safer, quicker remote management capabilities with PXE, WOL, and Mac
Address Pass Through (MAPT) support. Free up much-needed desk space with USB Type-C¹ with DP-Out. The ThinkVision T24m-29 Monitor also offers multiple connectivity options with USB Type-C, HDMI, and DisplayPort that enable unfettered ease.
Dazzling display performance. Incredible functionality.
ThinkVision T24m-29 Monitor
Powerful display performance that supercharges your work.
The ThinkVision T24m-29 is a monitor that works harder, to bring easy connectivity and
effortless management to your business. Sit back and take in the wide 23.8-inch screen,
made more expansive with 3-side NearEdgless bezels and an FHD In-Plane Switching panel.
Daisy-chain the monitor via a DP-Out port, for an uninterrupted viewing plane and get set to
multitask with a multi-monitor assembly. Equipped with USB Type-C¹ technology, the ThinkVision
T24m-29 Monitor offers a one-cable solution for super-fast transfer speeds. An ethernet port
enables remote management for safe, dependable connectivity that supports seamless workflow.
Nifty ergonomics, a space-efficient clutter-free design and integrated 2 x 1W speakers add
efficiency, ease, and comfort. Natural Low Blue Light technology eliminates sepia-toned images
to protect your vision so you can dedicate more time to your tasks without straining your eyes.
What’s more, you’ll be pleased to know that the ThinkVision T24m-29 Monitor is designed
to be environmentally friendly throughout its lifetime as it comes with sustainable
pulp-cushion packaging
Made for multitasking
ThinkVision T24m-29 Monitor boasts superior visual clarity and
remarkable color consistency through a 1920 x 1080 FHD resolution
display. Get ready for a distortion-free wide-viewing angle of
up to 178° with an In-Plane Switching panel. Daisy-chain multiple
devices and let the monitor’s 3-side NearEdgeless bezels give you
an expansive, seamless multitasking experience. Let the monitor’s
Smart Power2 allow for effortless plug-and-play functionality, as
it dynamically detects and optimizes power distribution when
multiple devices like monitors, laptops, or other USB-powered
peripherals are connected.
Convenient, comfortable, and compatible
The ThinkVision T24m-29 Monitor features a wobble-free
stand with a wider lift range and tilt angle for ergonomic ease
and working comfort. A compact square base fitted with a
thoughtful phone holder offers enhanced convenience and frees
up space on your desk. Integrated 2 x 1W speakers and clever
cable management cut the clutter for a sleek look. Sit back and
enjoy the convenience of an intuitive user interface provided by
Lenovo exclusive software ThinkColour³, which offers access to
advanced display settings through an effortless and efficient
user interface.
Connectivity your business can bank on
Let your business get way head, faster. Make the best
of high-speed data transfers with the ThinkVision
T24m-29 Monitor’s full-function USB Type-C¹ port that affords
single-cable connectivity for data, video, audio, and power
transfer. The ethernet port (RJ45) lets you enjoy safer, quicker
remote management capabilities with PXE, WOL, and Mac
Address Pass Through (MAPT) support. Free up much-needed
desk space with USB Type-C¹ with DP-Out. The ThinkVision
T24m-29 Monitor also offers multiple connectivity options with
USB Type-C¹, HDMI, and DisplayPort that enable unfettered ease.
| Display | |
|---|---|
| Display diagonal (metric) | 58.42 cm |
| Pixel density | 93 ppi |
| Pixel pitch | 0.275 x 0.275 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 4 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LCD |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Performance | |
|---|---|
| Compatible operating systems | Windows 10, Windows 11 |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | TÜV |
| Colour name | Raven Black |
| Product colour | Black |
| Market positioning | Business |
| Ports & interfaces | |
|---|---|
| Headphone out | No |
| Audio output | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 2 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| USB Type-A downstream ports quantity | 4 |
| Number of USB Type-C upstream ports quantity | 1 |
| Number of upstream ports | 1 |
| USB upstream port type | USB Type-C |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Network | |
|---|---|
| Bluetooth | No |
| Wi-Fi | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Plug and Play | Yes |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 35° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | Internal |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 90 - 264 V |
| Power consumption (off) | 0.3 W |
| Power consumption (max) | 140 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 22 W |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, USB Type-C to USB Type-C |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 3.6 kg |
| Height (without stand) | 325.9 mm |
| Depth (without stand) | 44.4 mm |
| Width (without stand) | 539.8 mm |
| Weight (with stand) | 6.1 kg |
| Height (with stand) | 567.1 mm |
| Depth (with stand) | 204.9 mm |
| Width (with stand) | 539.8 mm |
| Packaging data | |
|---|---|
| Package weight | 8.9 kg |
| Package height | 161 mm |
| Package depth | 480 mm |
| Package width | 604 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold, RoHS, TCO |
| General | |
|---|---|
| Product Family | ThinkVision |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Megapixel (approx.) | 5 MP |
| Built-in microphone | Yes |
| Built-in camera | Yes |
| AMD FreeSync | No |
| Compatible operating systems | Windows 10, Windows 11 |
| NVIDIA G-SYNC | No |
| Compatibility | ENERGY STAR® Certified, TCO 9.0, TCO Edge 2.0, EPEAT™ Gold, RoHS Eyesafe® Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland® Flicker Free, TÜV Rheinland® Eye Comfort |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Display | |
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Pixel density | 93 ppi |
| Colour gamut | 99% |
| Maximum refresh rate | 75 Hz |
| HD type | Full HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 3000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.274 x 0.274 mm |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Backlight type | W-LED |
| Display resolution | 1920 x 1080 pixels |
| Response time | 6 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1000:1 |
| Response time (fast) | 4 ms |
| Touchscreen | No |
| Panel type | IPS |
| Colour depth | 8 bit |
| RGB colour space | sRGB |
| Anti-glare screen | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Megapixel (approx.) | 5 MP |
| Built-in microphone | Yes |
| Built-in camera | Yes |
| Power | |
| Power cable length | 1.8 m |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 160 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 24.5 W |
| Power consumption (off) | 0.5 W |
| Design | |
| Feet colour | Black |
| Product colour | Black |
| Front bezel colour | Black |
| Detachable stand | Yes |
| Colour name | Raven Black |
| Camera | |
| Megapixel (approx.) | 5 MP |
| Built-in camera | Yes |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 4 |
| Headphone out | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDMI | Yes |
| AC (power) in | Yes |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 90 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Number of USB Type-C upstream ports quantity | 1 |
| Ethernet LAN | Yes |
| Technical details | |
| Height (without stand) | 36.3 cm |
| Depth (without stand) | 5.39 cm |
| Width (without stand) | 54 cm |
| Feet colour | Black |
| Cable lock slot | Yes |
| HDMI | Yes |
| Built-in microphone | Yes |
| Product colour | Black |
| Front bezel colour | Black |
| Compatible operating systems | Windows 10, Windows 11 |
| Power supply type | Internal |
| Weight (with stand) | 6.5 kg |
| Touchscreen | No |
| Network | |
| Ethernet LAN | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt angle range | -5 - 23.5° |
| Height adjustment | 15.5 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Packaging content | |
| Stand included | Yes |
| Power cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, USB Type-C |
| Weight & dimensions | |
| Height (without stand) | 36.3 cm |
| Depth (without stand) | 5.39 cm |
| Width (without stand) | 54 cm |
| Width (with stand) | 539.8 mm |
| Depth (with stand) | 199.7 mm |
| Height (with stand) | 542.8 mm |
| Bezel width (side) | 6.4 mm |
| Bezel width (top) | 6.4 mm |
| Bezel width (bottom) | 4.29 cm |
| Weight (with stand) | 6.5 kg |
| Weight (without stand) | 4.5 kg |
| Package width | 590 mm |
| Package depth | 178 mm |
| Package height | 422 mm |
| Package weight | 8.6 kg |
| Packaging data | |
| Package width | 590 mm |
| Package depth | 178 mm |
| Package height | 422 mm |
| Package weight | 8.6 kg |
| Package type | Box |
| Stand included | Yes |
| Power cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, USB Type-C |
| System requirements | |
| Compatibility | ENERGY STAR® Certified, TCO 9.0, TCO Edge 2.0, EPEAT™ Gold, RoHS Eyesafe® Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland® Flicker Free, TÜV Rheinland® Eye Comfort |
| Other features | |
| Compatible operating systems | Windows 10, Windows 11 |
| Height (without stand) | 36.3 cm |
| Depth (without stand) | 5.39 cm |
| Width (without stand) | 54 cm |
| Power consumption (max) | 160 W |
| Quick start guide | Yes |
| HDMI | Yes |
| Compatibility | ENERGY STAR® Certified, TCO 9.0, TCO Edge 2.0, EPEAT™ Gold, RoHS Eyesafe® Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland® Flicker Free, TÜV Rheinland® Eye Comfort |
| USB Power Delivery up to | 90 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Power supply type | Internal |
| Power cable length | 1.8 m |
| Ethernet LAN | Yes |
| Touchscreen | No |
| USB Power Delivery | Yes |
| Package type | Box |
| Front bezel colour | Black |
| Display | |
|---|---|
| Colour gamut | 99% |
| RGB colour space | sRGB |
| Colour depth | 8 bit |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Pixel density | 93 ppi |
| Pixel pitch | 0.274 x 0.274 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 75 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Performance | |
|---|---|
| Compatibility | ENERGY STAR® Certified, TCO 9.0, TCO Edge 2.0, EPEAT™ Gold, RoHSEyesafe® Display 2.0, TÜV Low Blue Light (Hardware solution), TÜVRheinland® Flicker Free, TÜV Rheinland® Eye Comfort |
| Compatible operating systems | Windows 10, Windows 11 |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in microphone | Yes |
| Megapixel (approx.) | 5 MP |
| RMS rated power | 10 W |
| Number of speakers | 2 |
| Built-in camera | Yes |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Feet colour | Black |
| Detachable stand | Yes |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| Audio output | Yes |
| Audio input | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| USB Power Delivery up to | 90 W |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Type-A downstream ports quantity | 4 |
| Number of USB Type-C upstream ports quantity | 1 |
| Number of upstream ports | 1 |
| USB upstream port type | USB Type-C |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 23.5° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15.5 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Cable management | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | Internal |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 160 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 24.5 W |
| Packaging content | |
|---|---|
| Power cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, USB Type-C |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 4.29 cm |
| Bezel width (top) | 6.4 mm |
| Bezel width (side) | 6.4 mm |
| Weight (without stand) | 4.5 kg |
| Height (without stand) | 363.3 mm |
| Depth (without stand) | 53.9 mm |
| Width (without stand) | 539.8 mm |
| Weight (with stand) | 6.5 kg |
| Height (with stand) | 542.8 mm |
| Depth (with stand) | 199.7 mm |
| Width (with stand) | 539.8 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 8.6 kg |
| Package height | 422 mm |
| Package depth | 178 mm |
| Package width | 590 mm |
| General | |
|---|---|
| Product Family | ThinkVision |
Business opportunities are at your fingertips if you’re able to take advantage of touch. ThinkVision T24T-20 puts success in both your hands thanks to its 23.8-inch, touch-screen, In-Plane Switching panel display that recognizes input from 10 points at once. That lets you control different areas of the screen simultaneously. And with up to 2,880 touch sensors, you can draw and edit images with precision and work with apps that use variable touch. Its 1920 x 1080 resolution, anti-glare, 3-side NearEdgeless screen that can operate even without a stand makes it ideal for transforming public-facing scenarios and home working moments into literal touch points.
With multiple options for connectivity, this docking monitor lets you connect to desktops, laptops, ThinkCentre Nano. It’s made possible by the USB Type-C port that provides a true 1-cable solution, removing additional cables and complex setups, to enable touch. That single cable transfers both data and video signals and can even power your connected devices up to 90W through Lenovo Smart Power management without extra power cables clogging up your workspace. Add to that, HDMI, DP and USB Type-A and Audio Out connectivity and T24T-20 is ready to plug and play with all the tools you need.
The power of touch
Now nothing gets between you and your productivity. Get hands-on with your business through ThinkVision T24t-20’s 10-point touch screen that has 2,880 touch sensors to register your every input. Its 23.8-inch, 1920 x 1080 resolution, touch-screen, In-Plane Switching panel display delivers vivid images in a color space of 99% sRGB at 300 cd/m2 from a viewing angle of 178°. That’s whether it’s mounted high to greet users at eye-level or stationed horizontal and low on a desk for sharing presentations or location information. While its 3-side NearEdgeless, anti-glare display maximizes screen real estate, removes bulky edges that would limit comfortable touch input, and presents a clear picture that’s free from distraction. So, it’s equally ideal in libraries, check-ins, hotel check-outs, museums, doctors’ waiting rooms and shopping mall info-points. In fact, casinos and classrooms and everything in between. Use it for machining assemblies or simply update your prospective client on your ideas and let their fingers take a tour through your design drawings.
1-cable convenience
A monitor designed to be touched, it also loves to play well with other equipment. At the heart of its great connectivity is a USB Type-C port that gives you 1-cable convenience to cleanly enable touch functions, without extra, messy wires, as well as transfer data and video signals to connected laptops, desktops and selected compatible Android and Chrome devices. And thanks to Lenovo Smart Power technology, the same cable can dynamically charge those connected devices with up to 90W of power. In short, it frees you from extra power cables cluttering workstations and retail display spaces. Using the same USB Type-C cable, touch the screen and you’ll control the PC connected to it. ThinkVision T24t-20 is designed for compatibility with its built-in HDMI, DP and USB Type-A and Audio Out ports giving you an ideal all-round monitor for kiosks, check-in desks and even education environments.
Sit flat. Stand tall. Mount on the wall.
Get up to the task of getting right down to business. T24t-20’s supreme flexibility in usage scenarios springs from how many ways you can install it. Mount on its ergonomic stand, whose extended tilt range can bring it right down to desk level, on a VESA 100 mm x 100 mm wall-mounted arm or just by itself, relatively horizontal, to give you exactly the performance you need whether you’re sharing with colleagues, letting people check themselves in at airports or controlling industrial manufacturing equipment.
Adjust in just an instant
Matching the convenience of its multi-touch interface, T24t-20 also comes packed with the exclusive ThinkColour Software4 that makes adjusting the screen’s settings effortless, efficient and fast. A clean on-screen display gives you control over every aspect of its performance to optimize users’ experience in practically any environment, in an instant. Forget button pushing, just swipe, tap and move on. While the touch functionality cares for your experience, its engineering cares for your efficiency and impact. T24t-20 is Energystar 8-certified, to help you move toward your corporate and social responsibility. While TÜV Rheinland Eye Comfort, TÜV Low Blue Light (Hardware Solution) and Eyesafe certified and Natural Low Blue Light technology reduce harmful blue light wavelengths so that you can work for extended periods without the worry of eye fatigue. All without distorting the color output.
High-Quality Display
Lenovo ThinkVision monitors are known for their high-quality display panels. Whether you're working on graphic design, editing photos, or watching videos, ThinkVision monitors deliver vibrant colors, sharp details, and wide viewing angles. The accurate color reproduction and precise image quality ensure an immersive visual experience, enhancing your productivity and enjoyment.
Ergonomic Design
Another user-friendly aspect of ThinkVision monitors is their ergonomic design. These monitors are carefully engineered to provide maximum comfort and convenience during prolonged usage. The ergonomic design of ThinkVision monitors promotes good posture and reduces the risk of discomfort or fatigue, making them ideal for long hours of work or entertainment.
Reliable Performance and Durability
Lenovo is renowned for its commitment to quality and reliability, and the ThinkVision series is no exception. These monitors are built to last, with robust construction and high-quality materials. They undergo rigorous testing to ensure they meet Lenovo's strict standards, providing users with a reliable and long-lasting display solution.
Lenovo Premier Support
Whether you’re running a business or just looking for a personal device to work from anywhere, when you upgrade to Lenovo Premier Support you’ll get access to:- Comprehensive hardware and OEM software support - Single point of contact with advanced engineers- Technical account managers for proactive relationship & escalation management - Priority service delivery & repair parts
| Display | |
|---|---|
| sRGB coverage (typical) | 99% |
| RGB colour space | sRGB |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Pixel density | 93 ppi |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 6 ms |
| Display brightness (typical) | 300 cd/m² |
| Number of simultaneous touchpoints | 10 |
| Touchscreen type | Capacitive |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Multimedia | |
|---|---|
| Built-in microphone | No |
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | ENERGY STARCCCTCO 8.0TCO Edge 2.0EPEAT GoldRoHSTÜV |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| USB Power Delivery up to | 90 W |
| USB Type-A downstream ports quantity | 4 |
| Number of USB Type-C upstream ports quantity | 1 |
| Number of upstream ports | 1 |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 70° |
| Height adjustment | 9 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 150 W |
| Power consumption (typical) | 25 W |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.22 cm |
| Bezel width (top) | 2 mm |
| Bezel width (side) | 2 mm |
| Weight (without stand) | 3.79 kg |
| Height (without stand) | 326.5 mm |
| Depth (without stand) | 44.1 mm |
| Width (without stand) | 539.8 mm |
| Weight (with stand) | 5.85 kg |
| Height (with stand) | 340.5 mm |
| Depth (with stand) | 244.1 mm |
| Width (with stand) | 539.8 mm |
| Packaging data | |
|---|---|
| Package weight | 8.31 kg |
| Package height | 421 mm |
| Package depth | 172 mm |
| Package width | 622 mm |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Other features | |
|---|---|
| Multi-touch | Yes |
Built to empower the next-generation workforce, the ThinkVision T24v-20 redefines workplace collaboration with its smart, innovative features. This 23.8-inch monitor has an IR camera, which along with Windows Hello and enterprise-grade security, ensures instant and secure login. The camera is equipped with a physical shutter that works as added protection to user privacy. Dual microphones and speakers offer an enhanced VoIP meeting experience.
Smarter and Personalized Security
Safety, security, and speed are the need of the hour and the IR camera, in conjunction with Windows Hello facial recognition, gives you exactly that. No need to remember passwords, or save credentials—just log in using your face. Additionally, the ThinkShutter allows you to cover your camera and the auto-alarm feature notifies you if the camera or microphone is in use, offering uncompromised privacy.
Effective Collaboration
Virtual meetings will now be a breeze. The T24v’s superior screen format, picture quality, and user functionality ensure that your video calls have top-notch clarity, crystal clear sound, and uninterrupted connectivity—thanks to the 2MP Full-HD camera, dual array microphones, and stereo speakers. A viewing angle of 178° makes it easy to collaborate as multiple users can view on-screen content from anywhere in the room.
Intuitive User Experience
Make your meetings more comfortable and productive. An angle-adjustable camera and an ergonomic stand allow you to adjust the monitor to match your working style. Smart face-tracking technology automatically adjusts your face in the center of the screen, optimizing the display for a perfect VoIP meeting. With an ergonomic design and dedicated control keys, the T24v makes for a smart choice for any business.
| Display | |
|---|---|
| Colour gamut | 72% |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Multimedia | |
|---|---|
| Built-in microphone | Yes |
| RMS rated power | 6 W |
| Number of speakers | 2 |
| Built-in camera | Yes |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Feet colour | Black |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| Number of upstream ports | 1 |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 35° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Annual energy consumption | 35.68 kWh |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 13 W |
| Packaging content | |
|---|---|
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.2 cm |
| Bezel width (top) | 1.8 mm |
| Bezel width (side) | 1.8 mm |
| Height (without stand) | 344.3 mm |
| Depth (without stand) | 48.4 mm |
| Width (without stand) | 539.8 mm |
| Weight (with stand) | 5.94 kg |
| Height (with stand) | 584 mm |
| Depth (with stand) | 205 mm |
| Width (with stand) | 539.8 mm |
| Packaging data | |
|---|---|
| Package weight | 7.86 kg |
| Package height | 187 mm |
| Package depth | 418 mm |
| Package width | 644 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Other features | |
|---|---|
| Energy efficiency class (old) | A+ |
Built to empower the next-generation workforce, the ThinkVision T24V-20 redefines workplace collaboration with its smart, innovative features. This 23.8-inch monitor has an IR camera, which along with Windows Hello and enterprise-grade security, ensures instant and secure login. The camera is equipped with a physical shutter that works as added protection to user privacy. Dual microphones and speakers offer an enhanced VoIP meeting experience.
| Display | |
|---|---|
| Colour gamut | 72% |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Multimedia | |
|---|---|
| Built-in microphone | Yes |
| RMS rated power | 6 W |
| Number of speakers | 2 |
| Built-in camera | Yes |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Feet colour | Black |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| Number of upstream ports | 1 |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 35° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Annual energy consumption | 35.68 kWh |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 13 W |
| Packaging content | |
|---|---|
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.2 cm |
| Bezel width (top) | 1.8 mm |
| Bezel width (side) | 1.8 mm |
| Height (without stand) | 344.3 mm |
| Depth (without stand) | 48.4 mm |
| Width (without stand) | 539.8 mm |
| Weight (with stand) | 5.94 kg |
| Height (with stand) | 584 mm |
| Depth (with stand) | 205 mm |
| Width (with stand) | 539.8 mm |
| Packaging data | |
|---|---|
| Package weight | 7.86 kg |
| Package height | 187 mm |
| Package depth | 418 mm |
| Package width | 644 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Other features | |
|---|---|
| Energy efficiency class (old) | A+ |
Built to empower the next-generation workforce, the ThinkVision T24V-20 redefines workplace collaboration with its smart, innovative features. This 23.8-inch monitor has an IR camera, which along with Windows Hello and enterprise-grade security, ensures instant and secure login. The camera is equipped with a physical shutter that works as added protection to user privacy. Dual microphones and speakers offer an enhanced VoIP meeting experience.
| Display | |
|---|---|
| Colour gamut | 72% |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Multimedia | |
|---|---|
| Built-in microphone | Yes |
| RMS rated power | 6 W |
| Number of speakers | 2 |
| Built-in camera | Yes |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Feet colour | Black |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| Number of upstream ports | 1 |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 35° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Annual energy consumption | 35.68 kWh |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 13 W |
| Packaging content | |
|---|---|
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.2 cm |
| Bezel width (top) | 1.8 mm |
| Bezel width (side) | 1.8 mm |
| Height (without stand) | 344.3 mm |
| Depth (without stand) | 48.4 mm |
| Width (without stand) | 539.8 mm |
| Weight (with stand) | 5.94 kg |
| Height (with stand) | 584 mm |
| Depth (with stand) | 205 mm |
| Width (with stand) | 539.8 mm |
| Packaging data | |
|---|---|
| Package weight | 7.86 kg |
| Package height | 187 mm |
| Package depth | 418 mm |
| Package width | 644 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Other features | |
|---|---|
| Energy efficiency class (old) | A+ |
The ThinkVision T24V-30 Monitor is the perfect companion for work - especially when you need to collaborate with your teams remotely! Its 23.8-inch borderless screen size ensures that you have a monitor that’s compact but still gives you enough screen real estate to view two windows side by side. You’ll always get a clear view of the screen, irrespective of where you’re sitting, with the In-Plane Switching panel that affords wider viewing angles with no distortion. Work documents and video content always look clear and crisp, thanks to the FHD resolution. Two noise-cancellation microphones, coupled with two 3W speakers ensure that all your video conferences and meetings run without any hiccups!
Connecting your computer to your ThinkVision T24V-30 Monitor will never be a problem, thanks to a variety of input options – 1 x VGA, 1 x HDMI 1.4, and 1 x DP 1.2. Getting to your work has never been as seamless, with the Windows Hello Facial Recognition feature made available by the IR+RGB camera, while the 2MP, 1920 x 1080 resolution camera ensures that you always look crystal-clear to all your colleagues.
Prepped for productivity
The ThinkVision T24V-30 Monitor’s 23.8-inch screen gives you a compact display to work with while the borderless design not only gives the monitor a contemporary look but also increases the overall screen real estate. The In-Plane Switching panel allows for clarity no matter the angle you are viewing it from.
Tech that’s tailored for remote work
Remote official video meetings have never been as simple and clear, with the in-built microphones, speakers, and 1080p front camera on the ThinkVision T24V-30 Monitor. Attaching peripherals to boost productivity is easier than ever, using side-mounted USB-A ports. Getting to work needs no waiting, as the ultra-fast login supported by Windows Hello Facial Recognition gets you going in a flash.
Ergonomics that boost productivity
Getting your setup just right goes a long way in boosting productivity, and that’s exactly what you can do with the lift, tilt, pivot, and swivel functions that allow you to adjust the ThinkVision T24V-30 Monitor to suit your comfort. Additionally, the monitor’s Natural Low Blue Light technology protects your eyes from harmful blue light without any color distortion.
| Display | |
|---|---|
| Colour gamut | 99% |
| RGB colour space | sRGB |
| Colour depth | 8 bit |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Pixel density | 93 ppi |
| Pixel pitch | 0.274 x 0.274 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 75 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Performance | |
|---|---|
| Compatible operating systems | Windows 10, Windows 11 |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in microphone | Yes |
| Megapixel (approx.) | 2 MP |
| RMS rated power | 6 W |
| Number of speakers | 2 |
| Built-in camera | Yes |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | ENERGY STAR® Certified, TCO 9.0, TCO Edge 2.0, EPEAT™ Gold, RoHSEyesafe® Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland® Flicker Free, TÜV Rheinland® Eye Comfort |
| Feet colour | Black |
| Detachable stand | Yes |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| Audio output | Yes |
| Audio input | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of upstream ports | 1 |
| USB upstream port type | USB Type-B |
| USB hub version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 23.5° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15.5 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Cable management | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | Internal |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 60 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 18 W |
| Energy efficiency class (HDR) | Not available |
| Packaging content | |
|---|---|
| Power cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB Type-A to USB Type-B |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 4.14 cm |
| Bezel width (top) | 2.1 mm |
| Bezel width (side) | 2.1 mm |
| Weight (without stand) | 3.9 kg |
| Height (without stand) | 363.3 mm |
| Depth (without stand) | 53.9 mm |
| Width (without stand) | 539.8 mm |
| Weight (with stand) | 6 kg |
| Height (with stand) | 542.8 mm |
| Depth (with stand) | 199.7 mm |
| Width (with stand) | 539.8 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 8.5 kg |
| Package height | 422 mm |
| Package depth | 178 mm |
| Package width | 590 mm |
| General | |
|---|---|
| Product Family | ThinkVision |
| Display | |
|---|---|
| Colour gamut | 99% |
| RGB colour space | sRGB |
| Colour depth | 8 bit |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Pixel density | 93 ppi |
| Pixel pitch | 0.274 x 0.274 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 75 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Performance | |
|---|---|
| Compatible operating systems | Windows 10, Windows 11 |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in microphone | Yes |
| Megapixel (approx.) | 2 MP |
| RMS rated power | 6 W |
| Number of speakers | 2 |
| Built-in camera | Yes |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | ENERGY STAR® Certified, TCO 9.0, TCO Edge 2.0, EPEAT™ Gold, RoHSEyesafe® Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland® Flicker Free, TÜV Rheinland® Eye Comfort |
| Feet colour | Black |
| Detachable stand | Yes |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| Audio output | Yes |
| Audio input | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of upstream ports | 1 |
| USB upstream port type | USB Type-B |
| USB hub version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 23.5° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15.5 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Cable management | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | Internal |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 60 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 18 W |
| Packaging content | |
|---|---|
| Power cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB Type-A to USB Type-B |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 4.14 cm |
| Bezel width (top) | 2.1 mm |
| Bezel width (side) | 2.1 mm |
| Weight (without stand) | 3.9 kg |
| Height (without stand) | 363.3 mm |
| Depth (without stand) | 53.9 mm |
| Width (without stand) | 539.8 mm |
| Weight (with stand) | 6 kg |
| Height (with stand) | 542.8 mm |
| Depth (with stand) | 199.7 mm |
| Width (with stand) | 539.8 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 8.5 kg |
| Package height | 422 mm |
| Package depth | 178 mm |
| Package width | 590 mm |
| General | |
|---|---|
| Product Family | ThinkVision |
