Your partner in health & productivity
- 15.6" laptop with numeric pad, ideal for finance, accounting, & data-entry
- Powered by up to Intel vPro® with 12th Gen Intel® Core™ performance
- Enhanced videocalls with optional FHD camera, Dolby Audio™, & Dolby Voice® with AI-based noise suppression
- Remarkable Intel® & NVIDIA® graphics options
- Up to WiFi 6E & optional 4G WWAN to stay connected
- Microsoft Secured-core PC enabled
Business-class performance
The ThinkPad L15 Gen 3 laptop inspires productivity. Powered by Intel vPro® with 12th Gen Intel® Core™ U or P Series processors, this 15.6" device. Plus, with a choice of larger batteries, you’ll enjoy all-day power on this high-performing work-from-anywhere partner.
Digital wellness
Health and productivity go hand-in-hand with the addition of Glance by Mirametrix® software. This functionality supports wellness for both posture and eye health. You’ll get posture alerts, as well as reminders to look away for 20 seconds to allow your eyes time to refocus, thereby alleviating fatigue.
| Design | |
|---|---|
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Form factor | Clamshell |
| Colour name | Thunder Black |
| Product colour | Black |
| Product type | Laptop |
| Display | |
|---|---|
| Display brightness | 250 cd/m² |
| Anti-glare screen | Yes |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Processor | |
|---|---|
| Configurable TDP-down | 12 W |
| Motherboard chipset | Intel SoC |
| Processor cache | 12 MB |
| Processor cores | 10 |
| Processor boost frequency | 4.4 GHz |
| Processor frequency | 1.3 GHz |
| Processor model | i5-1235U |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory clock speed | 3200 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 256 GB |
| Storage media | SSD |
| Total storage capacity | 256 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Dolby Audio |
| Audio chip | Realtek ALC3287 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Installed |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard language | English |
| Keyboard layout | QWERTY |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Recovery operating system | Windows 10 Pro |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Battery | |
|---|---|
| Battery capacity | 57 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter power | 65 W |
| Security | |
|---|---|
| Password protection type | Power on, Supervisor, SSD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP, TCO |
| Weight & dimensions | |
|---|---|
| Height | 19.9 mm |
| Depth | 237 mm |
| Width | 360.2 mm |
| Weight | 1.76 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
Your partner in health & productivity
- 15.6" laptop with numeric pad, ideal for finance, accounting, & data-entry
- Powered by up to Intel vPro® with 12th Gen Intel® Core™ performance
- Enhanced videocalls with optional FHD camera, Dolby Audio™, & Dolby Voice® with AI-based noise suppression
- Remarkable Intel® & NVIDIA® graphics options
- Up to WiFi 6E & optional 4G WWAN to stay connected
- Microsoft Secured-core PC enabled
Business-class performance
The ThinkPad L15 Gen 3 laptop inspires productivity. Powered by Intel vPro® with 12th Gen Intel® Core™ U or P Series processors, this 15.6" device. Plus, with a choice of larger batteries, you’ll enjoy all-day power on this high-performing work-from-anywhere partner.
Security that works for you
When it comes to security, the ThinkPad L15 Gen 3 laptop delivers. A power button that’s activated by a fingerprint reader boots up the system and logs you in fast. ThinkShield hardware and software components with integrated discrete Trusted Platform Module (dTPM), the added security of Windows 11, Microsoft Secured-core PC enablement, and up to the Intel vPro® platform deliver protection from every angle.
Stay online, wherever & whenever
Like a smartphone, the ThinkPad L15 Gen 3 laptop offers optional 4G LTE WWAN* connectivity, as well as speedy WiFi 6E** coverage. It also features Dolby Voice® AI-based noise suppression, and when combined with the optional FHD camera, videoconferencing will seem like you’re all in the same room.
Digital wellness
Health and productivity go hand-in-hand with the addition of Glance by Mirametrix® software. This functionality supports wellness for both posture and eye health. You’ll get posture alerts, as well as reminders to look away for 20 seconds to allow your eyes time to refocus, thereby alleviating fatigue.
Takes reliability to the next level
We use the US Department of Defense's MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more.
| Design | |
|---|---|
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Form factor | Clamshell |
| Colour name | Thunder Black |
| Product colour | Black |
| Product type | Laptop |
| Display | |
|---|---|
| Display brightness | 250 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Processor | |
|---|---|
| Configurable TDP-down | 12 W |
| Motherboard chipset | Intel SoC |
| Processor cache | 12 MB |
| Processor cores | 10 |
| Processor boost frequency | 4.7 GHz |
| Processor frequency | 1.7 GHz |
| Processor model | i7-1255U |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory clock speed | 3200 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Dolby Audio |
| Audio chip | Realtek ALC3287 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Installed |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Spill-resistant keyboard | Yes |
| Keyboard backlit | No |
| Numeric keypad | Yes |
| Keyboard language | English |
| Keyboard layout | QWERTY |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Recovery operating system | Windows 10 Pro |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Battery | |
|---|---|
| Battery capacity | 57 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter power | 65 W |
| Security | |
|---|---|
| Password protection type | Power on, Supervisor, SSD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Windows Hello | Yes |
| Fingerprint reader | Yes |
| Smart card reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP, TCO |
| Weight & dimensions | |
|---|---|
| Height | 19.9 mm |
| Depth | 237 mm |
| Width | 360.2 mm |
| Weight | 1.76 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
Works harder so you can work smarter
From 10th Gen Intel® processing to AMD Radeon™ graphics, the 15.6” ThinkPad L15 laptop delivers powerful performance. Blazing-fast WiFi 6 gets you online quickly—and the optional LTE-A WWAN card keeps you connected if WiFi is out of range. Plus, time-saving one-touch calling adds convenience to your workday.
Long battery life keeps you unplugged
With up to all-day battery life on the ThinkPad L15 laptop, you’ll never be tethered to your desk. Plus, rapid charging technology delivers 0-80% battery charge in just an hour. So forget worrying about electrical outlets and go wherever the job takes you.
Great for off-the-clock too
The ThinkPad L15 laptop offers 15.6" HD and FHD screens, with the option of a touchscreen display. Combined with Dolby Audio™ to enhance sound, you’ll enjoy streaming movies on this device, as well as listening to your favourite music.
Reliability to the max
ThinkPad L15 laptops are tested against 12 military-grade requirements and more than 200 quality checks to ensure they run in extreme conditions. From the Arctic wilderness to desert dust storms, from zero-gravity to spills and drops, you can trust these laptops to handle whatever life throws your way.
We’ve got your back—and your front
The integrated suite of ThinkShield security solutions works to ensure your system remains protected. The discrete Trusted Platform Module [dTPM] encrypts your data, while the optional fingerprint reader ensures a fast, secure login. What’s more, a flick of the ThinkShutter privacy cover keeps your camera off and your business private.
Returns minutes to your workday
With just the touch of a button, the ThinkPad L15 laptop lets you easily answer, make, and disconnect from conference calls by using the F9-F11 function keys. Enjoy one-touch calling and simplify your tasks.
Faster connections keep you up & running
The ThinkPad L15 laptop keeps you connected no matter where you go. Speedy WiFi 6 lets you jump on crowded public platforms fast, so you can enjoy faster access to your server and uninterrupted video streaming.
| Processor | Intel Core i5-10210U Quad Core (1.6 GHz base frequency, up to 4.2 GHz base with Intel Turbo Boost) |
| Screen | 15.6" (1920x1080 Full HD Resolution) |
| Screen Resolution | 1920 x 1080 |
| Operating System | Microsoft Windows 10 Professional 64bit |
| RAM | 8GB |
| Solid State Drive | 256GB SSD |
| Hard Drive | Not Included |
| Graphics | Integrated Intel UHD Graphics |
| Graphics Type | Intel |
| Bluetooth | Bluetooth 5.1 |
| Wireless LAN | Wi-Fi 6 (802.11ax) |
| Integrated Webcam | Integrated HD Webcam with Microphone + IR Camera |
| Speakers | Integrated Speakers |
| USB Ports | 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 1 Type-C, 1x USB 3.2 Gen 2 Type-C |
| Card Reader | Micro SD Card Reader |
| HDMI Port | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| Backlit Keyboard | Backlit Keyboard |
| Warranty | Lenovo 12 Months Collect & Return Warranty |
| Finger Print Reader | Finger Print Reader |
| Keyboard Type | Laptop Keyboard |
| Colour | Black |

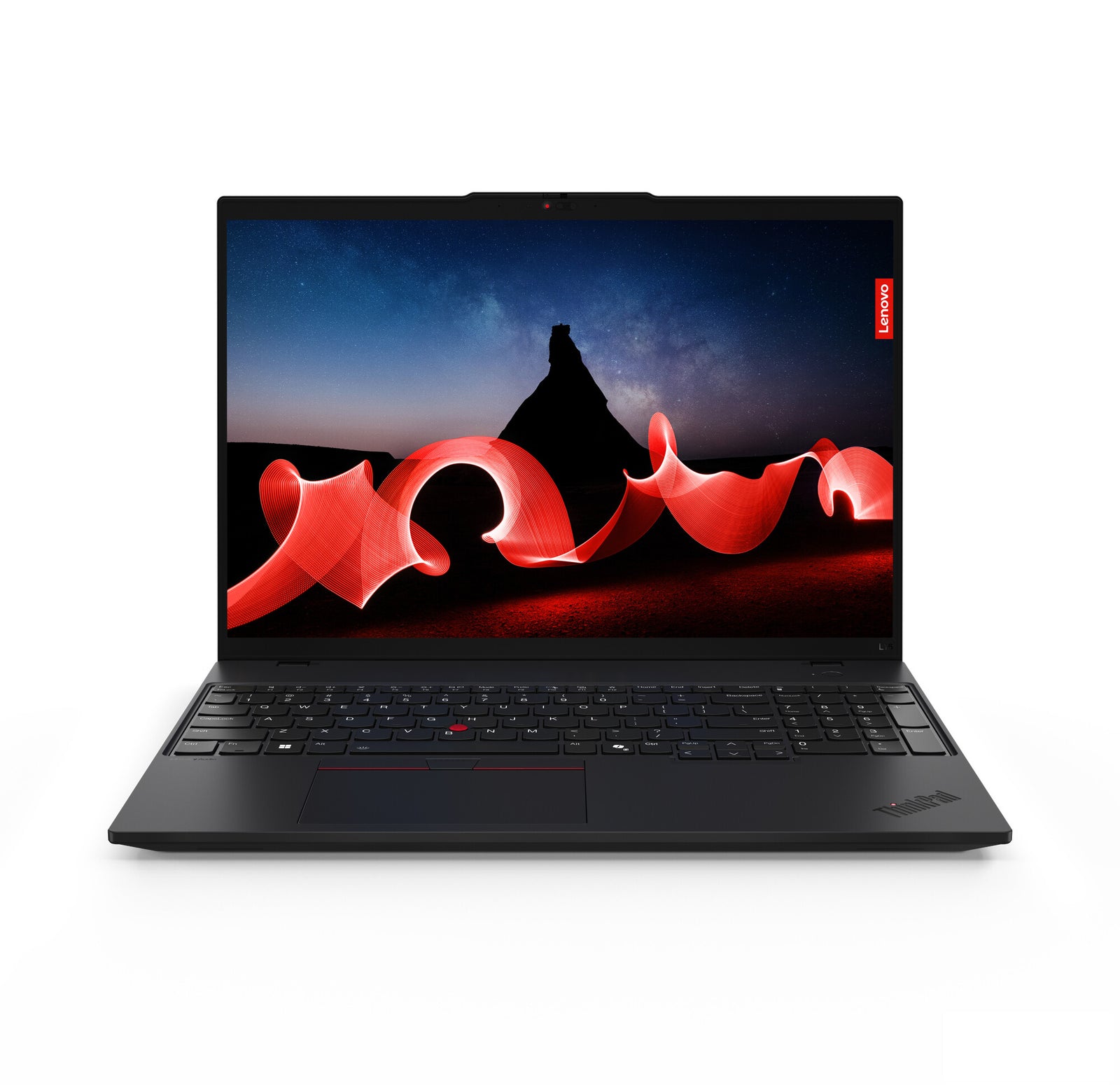

Boost Productivity for Any Business
- 16" laptop powered by Intel® Core™ Ultra with up to Intel vPro®
- Improved keyboard accessibility, audio-video quick settings, & numeric keypad
- AI-assisted productivity, maximized connectivity options with up to WiFi 7 & 4G
- Increased reliance on recycled materials for various components
Focused on Performance & Productivity
Powered by Intel® Core™ Ultra processors, the first generation of the 16" ThinkPad L16 laptop taps into AI-assisted productivity like never before. Enjoy optimized performance with workloads pushed to dedicated AI engines, which means you can conveniently multitask — even when unplugged— moving from app to app, without worrying about depleting the battery. Bump up performance even more when you choose Intel vPro®, which delivers multilayer security, reliable stability, and complete management for IT.
Increased Use of Recycled Materials
Even with all its productivity-enhancing features, this ThinkPad was designed with recycling in mind. We used recycled post-consumer content (PCC) in various components, including 90% in the speaker enclosure, 90% in the battery compartment, and 90% in the power adapter. Keycaps use 70-80% PCC recycled plastic, while the keyboard frame relies on 60% PCC. The bottom cover uses 50% PCC and the display uses 50%. Plus, the packaging is 100% plastic-free and Forest Stewardship Council® (FSC) certified.
Power Collaborations on Dazzling Display
Dive into smart digital collaboration with our vibrant display options. Revel in the vast screen real estate, offering an immersive meeting platform. Prioritizing your eye health, we have even dialed down blue light emissions. Your collaborations are not just online, they are on-point and larger-than-life as you look picture-perfect in every video call. Plus, the conversations are crystal clear with suppressed background noise, thanks to Dolby Voice® and bigger speakers boosting the audio experience with Dolby Audio™.
You Spoke. We Listened.
We’ve redesigned the legendary ThinkPad keyboard, making it even better! Tactile markings on significant keys and an LED Braille dome to indicate the power port make it easier for visually impaired people to correctly identify. We swapped the locations of the Ctrl and Fn keys. And the TrackPad is now 115mm / 4.53". Our iconic red TrackPoint still lets you navigate — double tap to open the customizable quick settings menu to optimize audio-video settings (TPQM). We’ve also improved air intake and venting, resulting in a thermal design that increases performance.
Enterprise-Grade Security
Access the ThinkPad L16 laptop securely with the fingerprint reader or zero-touch facial recognition using the optional infrared camera. The added protection of ThinkShield, our suite of hardware and software components, also includes discrete Trusted Platform Module (dTPM), Microsoft Secured-core PC enablement (on select models), and a self-healing BIOS. Choose the Intel vPro® platform with multilayer security like integrated Intel® Hardware Shield to steer clear of cyberattacks and ransomware. With ThinkPad, you can trust that we’ve got you covered.
Engineered to Endure With Easy Upgrades
The ThinkPad L16 laptop makes it easy to replace and repair your system with convenient customer replaceable units (CRUs), even if you have no tech expertise! In fact, for its ease of maintenance and remarkable do-it-yourself serviceability, this laptop boasts an industry-leading 9/10 on the iFixit Repairability Score. So, whether your goal is to upgrade components down the road or extend the lifecycle of your device with a simple repair, you can trust our support services to keep your system — and by default, your business — up and running.
| Design | |
|---|---|
| Housing material | Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS) |
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Laptop |
| Display | |
|---|---|
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Display brightness | 300 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WUXGA |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Processor base power | 15 W |
| Maximum turbo power | 57 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor cores | 12 |
| Performance cores | 2 |
| Efficient cores | 8 |
| Processor threads | 14 |
| Performance-core Max Turbo Frequency | 4.3 GHz |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Processor boost frequency | 4.3 GHz |
| Performance-core base frequency | 1.3 GHz |
| Efficient-core base frequency | 0.8 GHz |
| Processor model | 125U |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Low Power Efficient-core Max Turbo Frequency | 2.1 GHz |
| Low Power Efficient-cores | 2 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor family | Intel Core Ultra 5 |
| Processor manufacturer | Intel |
| Neural processor unit (NPU) | |
|---|---|
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| AI datatype support on NPU | FP16, FP32, Int8 |
| Windows Studio effects support | Yes |
| Sparsity support | Yes |
| Maximum frequency NPU | 1.4 GHz |
| Neural processor unit (NPU) | Intel AI Boost |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel Graphics |
| On-board graphics card family | Intel Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Dolby Audio |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Upgradable |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Keyboard | |
|---|---|
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard language | UK English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Fast charging | Yes |
| Battery capacity | 57 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 65 W |
| Security | |
|---|---|
| Password protection type | BIOS, Power on, Supervisor |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Windows Hello | Yes |
| Fingerprint reader | Yes |
| Smart card reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Maximum shipping altitude | 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Certification | ErP Lot 6ErP Lot 26MIL-STD-810H |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP, TCO |
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Height | 20.8 mm |
| Depth | 253.4 mm |
| Width | 357.2 mm |
| Weight | 1.77 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | L |
Boost Productivity for Any Business
- 16" laptop powered by Intel® Core™ Ultra with up to Intel vPro®
- Improved keyboard accessibility, audio-video quick settings, & numeric keypad
- AI-assisted productivity, maximized connectivity options with up to WiFi 7 & 4G
- Increased reliance on recycled materials for various components
Focused on Performance & Productivity
Powered by Intel® Core™ Ultra processors, the first generation of the 16" ThinkPad L16 laptop taps into AI-assisted productivity like never before. Enjoy optimized performance with workloads pushed to dedicated AI engines, which means you can conveniently multitask — even when unplugged— moving from app to app, without worrying about depleting the battery. Bump up performance even more when you choose Intel vPro®, which delivers multilayer security, reliable stability, and complete management for IT.
Increased Use of Recycled Materials
Even with all its productivity-enhancing features, this ThinkPad was designed with recycling in mind. We used recycled post-consumer content (PCC) in various components, including 90% in the speaker enclosure, 90% in the battery compartment, and 90% in the power adapter. Keycaps use 70-80% PCC recycled plastic, while the keyboard frame relies on 60% PCC. The bottom cover uses 50% PCC and the display uses 50%. Plus, the packaging is 100% plastic-free and Forest Stewardship Council® (FSC) certified.
Power Collaborations on Dazzling Display
Dive into smart digital collaboration with our vibrant display options. Revel in the vast screen real estate, offering an immersive meeting platform. Prioritizing your eye health, we have even dialed down blue light emissions. Your collaborations are not just online, they are on-point and larger-than-life as you look picture-perfect in every video call. Plus, the conversations are crystal clear with suppressed background noise, thanks to Dolby Voice® and bigger speakers boosting the audio experience with Dolby Audio™.
You Spoke. We Listened.
We’ve redesigned the legendary ThinkPad keyboard, making it even better! Tactile markings on significant keys and an LED Braille dome to indicate the power port make it easier for visually impaired people to correctly identify. We swapped the locations of the Ctrl and Fn keys. And the TrackPad is now 115mm / 4.53". Our iconic red TrackPoint still lets you navigate — double tap to open the customizable quick settings menu to optimize audio-video settings (TPQM). We’ve also improved air intake and venting, resulting in a thermal design that increases performance.
Enterprise-Grade Security
Access the ThinkPad L16 laptop securely with the fingerprint reader or zero-touch facial recognition using the optional infrared camera. The added protection of ThinkShield, our suite of hardware and software components, also includes discrete Trusted Platform Module (dTPM), Microsoft Secured-core PC enablement (on select models), and a self-healing BIOS. Choose the Intel vPro® platform with multilayer security like integrated Intel® Hardware Shield to steer clear of cyberattacks and ransomware. With ThinkPad, you can trust that we’ve got you covered.
Engineered to Endure With Easy Upgrades
The ThinkPad L16 laptop makes it easy to replace and repair your system with convenient customer replaceable units (CRUs), even if you have no tech expertise! In fact, for its ease of maintenance and remarkable do-it-yourself serviceability, this laptop boasts an industry-leading 9/10 on the iFixit Repairability Score. So, whether your goal is to upgrade components down the road or extend the lifecycle of your device with a simple repair, you can trust our support services to keep your system — and by default, your business — up and running.
| Design | |
|---|---|
| Housing material | Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS) |
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Laptop |
| Display | |
|---|---|
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Display brightness | 300 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WUXGA |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Processor base power | 15 W |
| Maximum turbo power | 57 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor cores | 12 |
| Performance cores | 2 |
| Efficient cores | 8 |
| Processor threads | 14 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Processor boost frequency | 4.8 GHz |
| Performance-core base frequency | 1.7 GHz |
| Efficient-core base frequency | 1.2 GHz |
| Processor model | 155U |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Low Power Efficient-core Max Turbo Frequency | 2.1 GHz |
| Low Power Efficient-cores | 2 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor family | Intel Core Ultra 7 |
| Processor manufacturer | Intel |
| Neural processor unit (NPU) | |
|---|---|
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| AI datatype support on NPU | FP16, FP32, Int8 |
| Windows Studio effects support | Yes |
| Sparsity support | Yes |
| Maximum frequency NPU | 1.4 GHz |
| Neural processor unit (NPU) | Intel AI Boost |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel Graphics |
| On-board graphics card family | Intel Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Dolby Audio |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Upgradable |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Keyboard | |
|---|---|
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard language | UK English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Fast charging | Yes |
| Battery capacity | 57 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 65 W |
| Security | |
|---|---|
| Password protection type | BIOS, Power on, Supervisor |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Windows Hello | Yes |
| Fingerprint reader | Yes |
| Smart card reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Maximum shipping altitude | 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Certification | ErP Lot 6ErP Lot 26MIL-STD-810H |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP, TCO |
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Height | 20.8 mm |
| Depth | 253.4 mm |
| Width | 357.2 mm |
| Weight | 1.77 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | L |
The Power You Need in an Advanced AI-Ready System
- 16ʺ mobile workstation for AI-assisted workflows & professional-level graphics
- Enterprise-grade security, manageability & reliability with up to Intel vPro®
- True mobility, sleek design, & advanced Flex Cooling System for long-term reliability
- High-capacity LPCAMM2 memory to run multiple applications simultaneously
- Seamless collaborations through boosted connectivity & network capacity
Looks Good — Performs Even Better
Elevate your work-anywhere experience with the 16″ ThinkPad P1 Gen 7 — a revolution in mobile workstations with its premium power and sleek, visually stunning design. Perfectly balancing form and function, this system redefines portable performance and ensures readiness to excel in remote work scenarios.
Streamline Your IT Operations
With up to Intel vPro® technology, this mobile workstation delivers the multilayer security, management, and stability that IT pros love. Safeguard assets from emerging cyber threats, get faster insights on your business, and optimize remote operations.
Follow Your Pursuits Anywhere
When you’re on the go, you need a battery powerful enough to support time in the field without electrical outlets. The P1 Gen 7 boasts a massive battery that’s also replaceable, should you ever need to upgrade. Plus, it supports rapid-charging technology, so when you need a charge, simply plug in for 60 minutes and get 80% capacity.
When Every Pixel Counts
When premium displays really matter, the P1 Gen 7 laptop has you covered. All of your choices include wide-angle views, low blue light to prevent eye strain, and X-Rite factory colour calibration to ensure colour accuracy when you’re creating. You can also choose a touchscreen model with millions of pixels for premium visuals.
Optimal Software Performance
Software and apps run flawlessly on the P1 Gen 7 workstation, which boasts a long list of independent software vendor (ISV) certifications. Whether you work in Adobe®, AutoCAD®, Maya® or something else, you can trust that we’ve eliminated compatibility issues and potential crashes, so you’ll enjoy great project-output quality without hiccups.
Smooth & Efficient
Go ahead — push your device to perform. The ThinkPad P1 Gen 7 mobile workstation offers advanced thermals, including liquid metal cooling on select models, and an innovative Flex Cooling System, a fan-based cooling mechanism. Plus a dual-outlet exhaust system optimizes airflow and keeps your system running efficiently.
Huge Memory Reserve & Performance Capacity
Compile code faster and streamline app development on the ThinkPad P1 Gen 7 workstation. An industry first, this laptop features customer-replaceable LPCAMM2 memory to align with your evolving needs. It boasts lower latency, better bandwidth, and faster speeds to run multiple applications simultaneously, reducing load times for heavy-duty programs.
Steadfast Security
Biometrics provide extra protection on the P1 Gen 7 workstation, from the fingerprint reader to facial recognition software. ThinkShield, our comprehensive suite of security solutions, boasts discrete Trusted Platform Module (dTPM) to encrypt critical data. Plus Intel® Threat Detection Technology helps prevent ransomware, cryptojacking, and more.
ThinkPad Reliability
Even with its efficiency and recycled materials, you can count on the P1 Gen 7 for durability. With MIL-STD-810H certification, it meets or exceeds 12 standards, 26 procedures, and 200+ quality checks ensure that these devices run in extreme conditions.
| Design | |
|---|---|
| Housing material | Aluminium |
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 16 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Processor threads | 22 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Processor boost frequency | 4.8 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor model | 155H |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-cores | 2 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor family | Intel Core Ultra 7 |
| Processor manufacturer | Intel |
| Neural processor unit (NPU) | |
|---|---|
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| AI datatype support on NPU | FP16, FP32, Int8 |
| Windows Studio effects support | Yes |
| Sparsity support | Yes |
| Maximum frequency NPU | 1.4 GHz |
| Neural processor unit (NPU) | Intel AI Boost |
| Memory | |
|---|---|
| Maximum internal memory | 64 GB |
| Memory clock speed | 7467 MHz |
| Internal memory type | LPDDR5x-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card family | Intel Arc Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio chip | Realtek ALC3306 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Network | |
|---|---|
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.4 |
| Bluetooth | Yes |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Keyboard | |
|---|---|
| Keyboard backlit | Yes |
| Keyboard language | English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Bundled software | Intel Connectivity Performance Suite |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Battery capacity | 90 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 170 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Windows Hello | Yes |
| Fingerprint reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Maximum shipping altitude | 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Weight & dimensions | |
|---|---|
| Height | 17.1 mm |
| Depth | 241.2 mm |
| Width | 354.4 mm |
| Weight | 1.82 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | P |
The Power You Need in an Advanced AI-Ready System
- 16ʺ mobile workstation for AI-assisted workflows & professional-level graphics
- Enterprise-grade security, manageability & reliability with up to Intel vPro®
- True mobility, sleek design, & advanced Flex Cooling System for long-term reliability
- High-capacity LPCAMM2 memory to run multiple applications simultaneously
- Seamless collaborations through boosted connectivity & network capacity
Looks Good — Performs Even Better
Elevate your work-anywhere experience with the 16″ ThinkPad P1 Gen 7 — a revolution in mobile workstations with its premium power and sleek, visually stunning design. Perfectly balancing form and function, this system redefines portable performance and ensures readiness to excel in remote work scenarios.
Streamline Your IT Operations
With up to Intel vPro® technology, this mobile workstation delivers the multilayer security, management, and stability that IT pros love. Safeguard assets from emerging cyber threats, get faster insights on your business, and optimize remote operations.
Follow Your Pursuits Anywhere
When you’re on the go, you need a battery powerful enough to support time in the field without electrical outlets. The P1 Gen 7 boasts a massive battery that’s also replaceable, should you ever need to upgrade. Plus, it supports rapid-charging technology, so when you need a charge, simply plug in for 60 minutes and get 80% capacity.
When Every Pixel Counts
When premium displays really matter, the P1 Gen 7 laptop has you covered. All of your choices include wide-angle views, low blue light to prevent eye strain, and X-Rite factory colour calibration to ensure colour accuracy when you’re creating. You can also choose a touchscreen model with millions of pixels for premium visuals.
Optimal Software Performance
Software and apps run flawlessly on the P1 Gen 7 workstation, which boasts a long list of independent software vendor (ISV)* certifications. Whether you work in Adobe®, AutoCAD®, Maya® or something else, you can trust that we’ve eliminated compatibility issues and potential crashes, so you’ll enjoy great project-output quality without hiccups.
Smooth & Efficient
Go ahead — push your device to perform. The ThinkPad P1 Gen 7 mobile workstation offers advanced thermals, including liquid metal cooling on select models, and an innovative Flex Cooling System, a fan-based cooling mechanism. Plus a dual-outlet exhaust system optimizes airflow and keeps your system running efficiently.
Huge Memory Reserve & Performance Capacity
Compile code faster and streamline app development on the ThinkPad P1 Gen 7 workstation. An industry first, this laptop features customer-replaceable LPCAMM2 memory to align with your evolving needs. It boasts lower latency, better bandwidth, and faster speeds to run multiple applications simultaneously, reducing load times for heavy-duty programs.
Steadfast Security
Biometrics provide extra protection on the P1 Gen 7 workstation, from the fingerprint reader to facial recognition software. ThinkShield, our comprehensive suite of security solutions, boasts discrete Trusted Platform Module (dTPM) to encrypt critical data. Plus Intel® Threat Detection Technology helps prevent ransomware, cryptojacking, and more.
ThinkPad Reliability
Even with its efficiency and recycled materials, you can count on the P1 Gen 7 for durability. With MIL-STD-810H certification, it meets or exceeds 12 standards, 26 procedures, and 200+ quality checks ensure that these devices run in extreme conditions.
| Design | |
|---|---|
| Housing material | Aluminium |
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 16 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Processor threads | 22 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Processor boost frequency | 4.8 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor model | 155H |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-cores | 2 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor family | Intel Core Ultra 7 |
| Processor manufacturer | Intel |
| Neural processor unit (NPU) | |
|---|---|
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| AI datatype support on NPU | FP16, FP32, Int8 |
| Windows Studio effects support | Yes |
| Sparsity support | Yes |
| Maximum frequency NPU | 1.4 GHz |
| Neural processor unit (NPU) | Intel AI Boost |
| Memory | |
|---|---|
| Maximum internal memory | 64 GB |
| Memory clock speed | 7467 MHz |
| Internal memory type | LPDDR5x-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card family | Intel Arc Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio chip | Realtek ALC3306 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Network | |
|---|---|
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.4 |
| Bluetooth | Yes |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Keyboard | |
|---|---|
| Keyboard backlit | Yes |
| Keyboard language | English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Bundled software | Intel Connectivity Performance Suite |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Battery capacity | 90 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 170 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Windows Hello | Yes |
| Fingerprint reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Maximum shipping altitude | 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Weight & dimensions | |
|---|---|
| Height | 17.1 mm |
| Depth | 241.2 mm |
| Width | 354.4 mm |
| Weight | 1.82 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | P |
The Power You Need in an Advanced AI-Ready System
- 16ʺ mobile workstation for AI-assisted workflows & professional-level graphics
- Enterprise-grade security, manageability & reliability with up to Intel vPro®
- True mobility, sleek design, & advanced Flex Cooling System for long-term reliability
- High-capacity LPCAMM2 memory to run multiple applications simultaneously
- Seamless collaborations through boosted connectivity & network capacity
Looks Good — Performs Even Better
Elevate your work-anywhere experience with the 16″ ThinkPad P1 Gen 7 — a revolution in mobile workstations with its premium power and sleek, visually stunning design. Perfectly balancing form and function, this system redefines portable performance and ensures readiness to excel in remote work scenarios.
Streamline Your IT Operations
With up to Intel vPro® technology, this mobile workstation delivers the multilayer security, management, and stability that IT pros love. Safeguard assets from emerging cyber threats, get faster insights on your business, and optimize remote operations.
Follow Your Pursuits Anywhere
When you’re on the go, you need a battery powerful enough to support time in the field without electrical outlets. The P1 Gen 7 boasts a massive battery that’s also replaceable, should you ever need to upgrade. Plus, it supports rapid-charging technology, so when you need a charge, simply plug in for 60 minutes and get 80% capacity.
When Every Pixel Counts
When premium displays really matter, the P1 Gen 7 laptop has you covered. All of your choices include wide-angle views, low blue light to prevent eye strain, and X-Rite factory colour calibration to ensure colour accuracy when you’re creating. You can also choose a touchscreen model with millions of pixels for premium visuals.
Optimal Software Performance
Software and apps run flawlessly on the P1 Gen 7 workstation, which boasts a long list of independent software vendor (ISV) certifications. Whether you work in Adobe®, AutoCAD®, Maya® or something else, you can trust that we’ve eliminated compatibility issues and potential crashes, so you’ll enjoy great project-output quality without hiccups.
Smooth & Efficient
Go ahead — push your device to perform. The ThinkPad P1 Gen 7 mobile workstation offers advanced thermals, including liquid metal cooling on select models, and an innovative Flex Cooling System, a fan-based cooling mechanism. Plus a dual-outlet exhaust system optimizes airflow and keeps your system running efficiently.
Huge Memory Reserve & Performance Capacity
Compile code faster and streamline app development on the ThinkPad P1 Gen 7 workstation. An industry first, this laptop features customer-replaceable LPCAMM2 memory to align with your evolving needs. It boasts lower latency, better bandwidth, and faster speeds to run multiple applications simultaneously, reducing load times for heavy-duty programs.
Steadfast Security
Biometrics provide extra protection on the P1 Gen 7 workstation, from the fingerprint reader to facial recognition software. ThinkShield, our comprehensive suite of security solutions, boasts discrete Trusted Platform Module (dTPM) to encrypt critical data. Plus Intel® Threat Detection Technology helps prevent ransomware, cryptojacking, and more.
ThinkPad Reliability
Even with its efficiency and recycled materials, you can count on the P1 Gen 7 for durability. With MIL-STD-810H certification, it meets or exceeds 12 standards, 26 procedures, and 200+ quality checks ensure that these devices run in extreme conditions.
| Design | |
|---|---|
| Housing material | Aluminium |
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 16 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Processor threads | 22 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Processor boost frequency | 5 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor model | 165H |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-cores | 2 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor family | Intel Core Ultra 7 |
| Processor manufacturer | Intel |
| Neural processor unit (NPU) | |
|---|---|
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| AI datatype support on NPU | FP16, FP32, Int8 |
| Windows Studio effects support | Yes |
| Sparsity support | Yes |
| Maximum frequency NPU | 1.4 GHz |
| Neural processor unit (NPU) | Intel AI Boost |
| Memory | |
|---|---|
| Maximum internal memory | 64 GB |
| Memory clock speed | 7467 MHz |
| Internal memory type | LPDDR5x-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card family | Intel Arc Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA GeForce RTX 4070 |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio chip | Realtek ALC3306 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Network | |
|---|---|
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.4 |
| Bluetooth | Yes |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Keyboard | |
|---|---|
| Keyboard backlit | Yes |
| Keyboard language | English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Bundled software | Intel Connectivity Performance Suite |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Battery capacity | 90 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 170 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Windows Hello | Yes |
| Fingerprint reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Maximum shipping altitude | 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Weight & dimensions | |
|---|---|
| Height | 17.1 mm |
| Depth | 241.2 mm |
| Width | 354.4 mm |
| Weight | 1.82 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | P |
Amazing power, stunning visuals
Powerful ISV-certified 16" mobile workstation
Intel vPro with 13th Gen Intel Core processors
Display options include factory-colour calibrated OLED touchscreen
Enhanced liquid-metal cooling design to boost performance
Hi-res webcam with privacy shutter & human presence detection
MIL-SPEC reliable & ThinkShield secure
The power you need, the machine you want
- 16″ powerhouse with low blue light & X-Rite Factory Display Calibration for colour accuracy
- Up to Intel vPro® with 12th Generation Intel® Core™ H Series processors
- Choice of NVIDIA® RTX™ or NVIDIA® GeForce RTX™ graphics
- Carbon-Fiber Weave or Black chassis options
- DDR5 memory & tons of SSD storage for speedy system performance
Premium power
The sleek design of the ThinkPad P1 Gen 5 mobile workstation hints at what’s inside: a powerful system that offers the professional performance of the latest Intel vPro® platform with Core™ H Series processors and graphics support up to NVIDIA® RTX™ A5500 GPU. Combine this with ISV certification by industry leading software vendors and your applications will blaze through heavy workloads.See the complete list of ISV certifications.
Visually stunning
Powerful, mobile, and visually stunning, the P1 Gen 5 mobile workstation is the perfect combination of form and function. A liquid metal thermal design improves cooling performance, while the Carbon-Fiber Weave looks stunning. This device is designed to be taken out into the world.
Content creator’s dream come true
Boasting a 16″ panel, narrow bezel, and a 16:10 aspect ratio for increased screen real estate, the ThinkPad P1 Gen 5 is designed with the modern user in mind. With its low blue light displays, Dolby Vision®, and X-Rite Factory Colour Calibration for crisp, clear images, this device is easy on the eyes.
Keeps your data & privacy safe
The ThinkPad P1 Gen 5 laptop starts with our ThinkShield security suite, preloaded to protect your device and your data. From discrete Trusted Platform Module (dTPM) to encrypt your data, to a fingerprint reader with biometrics for a simple touch log in, and a self-healing BIOS that can restore earlier system settings when needed, we’ve got you covered.
Built to withstand the worst
We use the US Department of Defense's MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more.
| Design | |
|---|---|
| Housing material | Aluminium, Carbon Fibre Reinforced Polymer (CFRP), Glass Fibre Reinforced Polymer (GFRP) |
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor boost frequency | 4.7 GHz |
| Processor model | i7-12700H |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | No |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 4 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Audio chip | Realtek ALC3306 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Not installed |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Recovery operating system | Windows 10 Pro |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Battery | |
|---|---|
| Battery capacity | 90 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter power | 170 W |
| Security | |
|---|---|
| Password protection type | BIOS, Power on, Supervisor, SSD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Certification | EPEAT GoldENERGY STAR 8.0RoHS compliant |
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height | 17.7 mm |
| Depth | 253.8 mm |
| Width | 359.5 mm |
| Weight | 1.81 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | P |
The power you need, the machine you want
- 16″ powerhouse with low blue light & X-Rite Factory Display Calibration for colour accuracy
- Up to Intel vPro® with 12th Generation Intel® Core™ H Series processors
- Choice of NVIDIA® RTX™ or NVIDIA® GeForce RTX™ graphics
- Carbon-Fiber Weave or Black chassis options
- DDR5 memory & tons of SSD storage for speedy system performance
Premium power
The sleek design of the ThinkPad P1 Gen 5 mobile workstation hints at what’s inside: a powerful system that offers the professional performance of the latest Intel vPro® platform with Core™ H Series processors and graphics support up to NVIDIA® RTX™ A5500 GPU. Combine this with ISV certification by industry leading software vendors and your applications will blaze through heavy workloads.See the complete list of ISV certifications.
Visually stunning
Powerful, mobile, and visually stunning, the P1 Gen 5 mobile workstation is the perfect combination of form and function. A liquid metal thermal design improves cooling performance, while the Carbon-Fiber Weave looks stunning. This device is designed to be taken out into the world.
Content creator’s dream come true
Boasting a 16″ panel, narrow bezel, and a 16:10 aspect ratio for increased screen real estate, the ThinkPad P1 Gen 5 is designed with the modern user in mind. With its low blue light displays, Dolby Vision®, and X-Rite Factory Colour Calibration for crisp, clear images, this device is easy on the eyes.
Keeps your data—& privacy—safe
The ThinkPad P1 Gen 5 laptop starts with our ThinkShield security suite, preloaded to protect your device and your data. From discrete Trusted Platform Module (dTPM) to encrypt your data, to a fingerprint reader with biometrics for a simple touch log in, and a self-healing BIOS that can restore earlier system settings when needed, we’ve got you covered.
Built to withstand the worst
We use the US Department of Defense's MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more.
| Design | |
|---|---|
| Housing material | Aluminium, Carbon Fibre Reinforced Polymer (CFRP), Glass Fibre Reinforced Plastic (GFRP) |
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor boost frequency | 4.8 GHz |
| Processor model | i7-12800H |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | No |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 4 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Audio chip | Realtek ALC3306 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Not installed |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Recovery operating system | Windows 10 Pro |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Battery | |
|---|---|
| Battery capacity | 90 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter power | 170 W |
| Security | |
|---|---|
| Password protection type | BIOS, Power on, Supervisor, SSD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Certification | EPEAT GoldENERGY STAR 8.0RoHS compliant |
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height | 17.7 mm |
| Depth | 253.8 mm |
| Width | 359.5 mm |
| Weight | 1.81 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | P |
The power you need, the machine you want
- 16″ powerhouse with low blue light & X-Rite Factory Display Calibration for colour accuracy
- Up to Intel vPro® with 12th Generation Intel® Core™ H Series processors
- Choice of NVIDIA® RTX™ or NVIDIA® GeForce RTX™ graphics
- Carbon-Fiber Weave or Black chassis options
- DDR5 memory & tons of SSD storage for speedy system performance
Premium power
The sleek design of the ThinkPad P1 Gen 5 mobile workstation hints at what’s inside: a powerful system that offers the professional performance of the latest Intel vPro® platform with Core™ H Series processors and graphics support up to NVIDIA® RTX™ A5500 GPU. Combine this with ISV certification by industry leading software vendors and your applications will blaze through heavy workloads.See the complete list of ISV certifications.
Visually stunning
Powerful, mobile, and visually stunning, the P1 Gen 5 mobile workstation is the perfect combination of form and function. A liquid metal thermal design improves cooling performance, while the Carbon-Fiber Weave looks stunning. This device is designed to be taken out into the world.
Content creator’s dream come true
Boasting a 16″ panel, narrow bezel, and a 16:10 aspect ratio for increased screen real estate, the ThinkPad P1 Gen 5 is designed with the modern user in mind. With its low blue light displays, Dolby Vision®, and X-Rite Factory Colour Calibration for crisp, clear images, this device is easy on the eyes.
Keeps your data—& privacy—safe
The ThinkPad P1 Gen 5 laptop starts with our ThinkShield security suite, preloaded to protect your device and your data. From discrete Trusted Platform Module (dTPM) to encrypt your data, to a fingerprint reader with biometrics for a simple touch log in, and a self-healing BIOS that can restore earlier system settings when needed, we’ve got you covered.
Built to withstand the worst
We use the US Department of Defense's MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more.
| Design | |
|---|---|
| Housing material | Aluminium, Carbon Fibre Reinforced Polymer (CFRP), Glass Fibre Reinforced Plastic (GFRP) |
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor boost frequency | 4.8 GHz |
| Processor model | i7-12800H |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | No |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX A2000 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Audio chip | Realtek ALC3306 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Not installed |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Recovery operating system | Windows 10 Pro |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Battery | |
|---|---|
| Battery capacity | 90 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter power | 170 W |
| Security | |
|---|---|
| Password protection type | BIOS, Power on, Supervisor, SSD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Certification | EPEAT GoldENERGY STAR 8.0RoHS compliant |
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height | 17.7 mm |
| Depth | 253.8 mm |
| Width | 359.5 mm |
| Weight | 1.81 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | P |
The power you need, the machine you want
- 16″ powerhouse with low blue light & X-Rite Factory Display Calibration for colour accuracy
- Up to Intel vPro® with 12th Generation Intel® Core™ H Series processors
- Choice of NVIDIA® RTX™ or NVIDIA® GeForce RTX™ graphics
- Carbon-Fiber Weave or Black chassis options
- DDR5 memory & tons of SSD storage for speedy system performance
Premium power
The sleek design of the ThinkPad P1 Gen 5 mobile workstation hints at what’s inside: a powerful system that offers the professional performance of the latest Intel vPro® platform with Core™ H Series processors and graphics support up to NVIDIA® RTX™ A5500 GPU. Combine this with ISV certification by industry leading software vendors and your applications will blaze through heavy workloads.See the complete list of ISV certifications.
Visually stunning
Powerful, mobile, and visually stunning, the P1 Gen 5 mobile workstation is the perfect combination of form and function. A liquid metal thermal design improves cooling performance, while the Carbon-Fiber Weave looks stunning. This device is designed to be taken out into the world.
Content creator’s dream come true
Boasting a 16″ panel, narrow bezel, and a 16:10 aspect ratio for increased screen real estate, the ThinkPad P1 Gen 5 is designed with the modern user in mind. With its low blue light displays, Dolby Vision®, and X-Rite Factory Colour Calibration for crisp, clear images, this device is easy on the eyes.
Keeps your data—& privacy—safe
The ThinkPad P1 Gen 5 laptop starts with our ThinkShield security suite, preloaded to protect your device and your data. From discrete Trusted Platform Module (dTPM) to encrypt your data, to a fingerprint reader with biometrics for a simple touch log in, and a self-healing BIOS that can restore earlier system settings when needed, we’ve got you covered.
Built to withstand the worst
We use the US Department of Defense's MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more.
| Design | |
|---|---|
| Housing material | Aluminium, Carbon Fibre Reinforced Polymer (CFRP), Glass Fibre Reinforced Plastic (GFRP) |
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor boost frequency | 4.8 GHz |
| Processor model | i7-12800H |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | No |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA GeForce RTX 3070 Ti |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Audio chip | Realtek ALC3306 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Not installed |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Recovery operating system | Windows 10 Pro |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Battery | |
|---|---|
| Battery capacity | 90 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter power | 230 W |
| Security | |
|---|---|
| Password protection type | BIOS, Power on, Supervisor, SSD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Certification | EPEAT GoldENERGY STAR 8.0RoHS compliant |
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height | 17.7 mm |
| Depth | 253.8 mm |
| Width | 359.5 mm |
| Weight | 1.81 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | P |
The power you need, the machine you want
- 16″ powerhouse with low blue light & X-Rite Factory Display Calibration for colour accuracy
- Up to Intel vPro® with 12th Generation Intel® Core™ H Series processors
- Choice of NVIDIA® RTX™ or NVIDIA® GeForce RTX™ graphics
- Carbon-Fiber Weave or Black chassis options
- DDR5 memory & tons of SSD storage for speedy system performance
Premium power
The sleek design of the ThinkPad P1 Gen 5 mobile workstation hints at what’s inside: a powerful system that offers the professional performance of the latest Intel vPro® platform with Core™ H Series processors and graphics support up to NVIDIA® RTX™ A5500 GPU. Combine this with ISV certification by industry leading software vendors and your applications will blaze through heavy workloads.See the complete list of ISV certifications.
Visually stunning
Powerful, mobile, and visually stunning, the P1 Gen 5 mobile workstation is the perfect combination of form and function. A liquid metal thermal design improves cooling performance, while the Carbon-Fiber Weave looks stunning. This device is designed to be taken out into the world.
Content creator’s dream come true
Boasting a 16″ panel, narrow bezel, and a 16:10 aspect ratio for increased screen real estate, the ThinkPad P1 Gen 5 is designed with the modern user in mind. With its low blue light displays, Dolby Vision®, and X-Rite Factory Colour Calibration for crisp, clear images, this device is easy on the eyes.
Keeps your data—& privacy—safe
The ThinkPad P1 Gen 5 laptop starts with our ThinkShield security suite, preloaded to protect your device and your data. From discrete Trusted Platform Module (dTPM) to encrypt your data, to a fingerprint reader with biometrics for a simple touch log in, and a self-healing BIOS that can restore earlier system settings when needed, we’ve got you covered.
Built to withstand the worst
We use the US Department of Defense's MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more.
| Design | |
|---|---|
| Housing material | Aluminium, Carbon Fibre Reinforced Polymer (CFRP), Glass Fibre Reinforced Plastic (GFRP) |
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor boost frequency | 4.8 GHz |
| Processor model | i7-12800H |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | No |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 12 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX A3000 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Audio chip | Realtek ALC3306 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera | Yes |
| Network | |
|---|---|
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Recovery operating system | Windows 10 Pro |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Battery | |
|---|---|
| Battery capacity | 90 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter power | 230 W |
| Security | |
|---|---|
| Password protection type | BIOS, Power on, Supervisor, SSD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Certification | EPEAT GoldENERGY STAR 8.0RoHS compliant |
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height | 17.7 mm |
| Depth | 253.8 mm |
| Width | 359.5 mm |
| Weight | 1.81 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | P |
The power you need, the machine you want
- 16″ powerhouse with low blue light & X-Rite Factory Display Calibration for colour accuracy
- Up to Intel vPro® with 12th Generation Intel® Core™ H Series processors
- Choice of NVIDIA® RTX™ or NVIDIA® GeForce RTX™ graphics
- Carbon-Fiber Weave or Black chassis options
- DDR5 memory & tons of SSD storage for speedy system performance
Premium power
The sleek design of the ThinkPad P1 Gen 5 mobile workstation hints at what’s inside: a powerful system that offers the professional performance of the latest Intel vPro® platform with Core™ H Series processors and graphics support up to NVIDIA® RTX™ A5500 GPU. Combine this with ISV certification by industry leading software vendors and your applications will blaze through heavy workloads.See the complete list of ISV certifications.
Visually stunning
Powerful, mobile, and visually stunning, the P1 Gen 5 mobile workstation is the perfect combination of form and function. A liquid metal thermal design improves cooling performance, while the Carbon-Fiber Weave looks stunning. This device is designed to be taken out into the world.
Content creator’s dream come true
Boasting a 16″ panel, narrow bezel, and a 16:10 aspect ratio for increased screen real estate, the ThinkPad P1 Gen 5 is designed with the modern user in mind. With its low blue light displays, Dolby Vision®, and X-Rite Factory Colour Calibration for crisp, clear images, this device is easy on the eyes.
Keeps your data—& privacy—safe
The ThinkPad P1 Gen 5 laptop starts with our ThinkShield security suite, preloaded to protect your device and your data. From discrete Trusted Platform Module (dTPM) to encrypt your data, to a fingerprint reader with biometrics for a simple touch log in, and a self-healing BIOS that can restore earlier system settings when needed, we’ve got you covered.
Built to withstand the worst
We use the US Department of Defense's MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more.
| Design | |
|---|---|
| Housing material | Aluminium, Carbon Fibre Reinforced Polymer (CFRP), Glass Fibre Reinforced Plastic (GFRP) |
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor boost frequency | 4.8 GHz |
| Processor model | i7-12800H |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | No |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX A4500 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Audio chip | Realtek ALC3306 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Not installed |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Recovery operating system | Windows 10 Pro |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Battery | |
|---|---|
| Battery capacity | 90 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter power | 230 W |
| Security | |
|---|---|
| Password protection type | BIOS, Power on, Supervisor, SSD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Certification | EPEAT GoldENERGY STAR 8.0RoHS compliant |
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height | 17.7 mm |
| Depth | 253.8 mm |
| Width | 359.5 mm |
| Weight | 1.81 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | P |
The power you need, the machine you want
- 16″ powerhouse with low blue light & X-Rite Factory Display Calibration for colour accuracy
- Up to Intel vPro® with 12th Generation Intel® Core™ H Series processors
- Choice of NVIDIA® RTX™ or NVIDIA® GeForce RTX™ graphics
- Carbon-Fiber Weave or Black chassis options
- DDR5 memory & tons of SSD storage for speedy system performance
Premium power
The sleek design of the ThinkPad P1 Gen 5 mobile workstation hints at what’s inside: a powerful system that offers the professional performance of the latest Intel vPro® platform with Core™ H Series processors and graphics support up to NVIDIA® RTX™ A5500 GPU. Combine this with ISV certification by industry leading software vendors and your applications will blaze through heavy workloads.See the complete list of ISV certifications.
Visually stunning
Powerful, mobile, and visually stunning, the P1 Gen 5 mobile workstation is the perfect combination of form and function. A liquid metal thermal design improves cooling performance, while the Carbon-Fiber Weave looks stunning. This device is designed to be taken out into the world.
Content creator’s dream come true
Boasting a 16″ panel, narrow bezel, and a 16:10 aspect ratio for increased screen real estate, the ThinkPad P1 Gen 5 is designed with the modern user in mind. With its low blue light displays, Dolby Vision®, and X-Rite Factory Colour Calibration for crisp, clear images, this device is easy on the eyes.
Keeps your data—& privacy—safe
The ThinkPad P1 Gen 5 laptop starts with our ThinkShield security suite, preloaded to protect your device and your data. From discrete Trusted Platform Module (dTPM) to encrypt your data, to a fingerprint reader with biometrics for a simple touch log in, and a self-healing BIOS that can restore earlier system settings when needed, we’ve got you covered.
Built to withstand the worst
We use the US Department of Defense's MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more.
| Design | |
|---|---|
| Housing material | Aluminium, Carbon Fibre Reinforced Polymer (CFRP), Glass Fibre Reinforced Plastic (GFRP) |
| Form factor | Clamshell |
| Colour name | 37-degree twill CF Weave |
| Product colour | Black |
| Product type | Mobile workstation |
| Display | |
|---|---|
| High Dynamic Range (HDR) technology | DisplayHDR 400, Dolby Vision |
| Colour gamut | 100% |
| Display brightness | 600 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WQUXGA |
| Touchscreen | No |
| Display resolution | 3840 x 2400 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor boost frequency | 5 GHz |
| Processor model | i9-12900H |
| Processor generation | 12th gen Intel® Core™ i9 |
| Processor family | Intel® Core™ i9 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | No |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA GeForce RTX 3080 Ti |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Audio chip | Realtek ALC3306 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Not installed |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Recovery operating system | Windows 10 Pro |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Battery | |
|---|---|
| Battery capacity | 90 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter power | 230 W |
| Security | |
|---|---|
| Password protection type | BIOS, Power on, Supervisor, SSD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Certification | EPEAT GoldENERGY STAR 8.0RoHS compliant |
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height | 17.7 mm |
| Depth | 253.8 mm |
| Width | 359.5 mm |
| Weight | 1.81 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | P |
Amazing power, stunning visuals
- Powerful ISV-certified 16" mobile workstation
- Intel vPro with 13th Gen Intel Core processors
- Display options include factory-colour calibrated OLED touchscreen
- Enhanced liquid-metal cooling design to boost performance
- Hi-res webcam with privacy shutter & human presence detection
- MIL-SPEC reliable & ThinkShield secure
Amazing power, stunning visuals
Powerful ISV-certified 16" mobile workstation
Intel vPro with 13th Gen Intel Core processors
Display options include factory-colour calibrated OLED touchscreen
Enhanced liquid-metal cooling design to boost performance
Hi-res webcam with privacy shutter & human presence detection
MIL-SPEC reliable & ThinkShield secure
Amazing power, stunning visuals
Powerful ISV-certified 16" mobile workstation
Intel vPro with 13th Gen Intel Core processors
Optional professional NVIDIA discrete graphics
Display options include factory-colour calibrated OLED touchscreen
Enhanced liquid-metal cooling design to boost performance
Hi-res webcam with privacy shutter & human presence detection
MIL-SPEC reliable & ThinkShield secure
Unparalleled Power in a Mobile Device
With best-in-class performance, the ThinkPad P1 Gen 7 mobile workstation is our most powerful ThinkPad yet! It boasts Intel® Core™ Ultra processors for advanced computing capabilities and multitasking — it’ll handle whatever demanding workloads come your way.
AI-Assisted Productivity
Equipped with dedicated AI engines on the neural processing unit (NPU) and the optional discrete graphics processing unit (GPU), this mobile workstation is ideal for complex AI workloads, ultra-realistic visuals, and data-intensive tasks.
Pro-Level Graphics with AI Tensor Cores
Welcome to a new era of AI-performance, speed, and precision in mobile workstations. Slice through complex rendering, high-end 3D visualizations, and animations to transform workflow efficiencies with the optional NVIDIA® RTX™ Ada Generation GPUs.
Streamline Your IT Operations
With up to Intel vPro® technology, this mobile workstation delivers the multilayer security, management, and stability that IT pros love. Safeguard assets from emerging cyber threats, get faster insights on your business, and optimize remote operations.
No Waiting Required
For a super responsive experience, this system is certified as an Intel® Evo™ Edition. Blaze through your activities with instant wake, extended battery life, rapid charging, and exceptional speed as you accomplish your most complex tasks.
Smooth Digital Collaboration
Enjoy boosted wireless network capacity with WiFi 7. Enhanced speeds, better bandwidth, lower latency, and increased network capacity mean no delayed data transmission or disrupted video conferencing. Stay connected, even on crowded public platforms.
Dual-Band Magic, Zero Downtime
Step into the future of robust digital communication. Attend crucial meetings online effortlessly — switch between two bands, use both simultaneously, or leverage any through WiFi 7’s multi-link operation (MLO) without disconnections or buffering.
Instant Connections & Data Syncing
Take flexibility a notch higher and sync data from your mobile device using the preloaded Intel® Unison™ application (requires Windows 11 OS). Transfer files, manage notifications, even send texts instantly — all from your PC.
Energy Efficient
Energy efficiency makes sense. In the short-term, it can lower monthly costs and in the long term, it helps sustain resources in demand. The P1 Gen 7 mobile workstation includes several certifications, including ENERGY STAR® 8.0 and TCO 9.
Relies on Recycled Components
This ThinkPad uses recycled magnesium — 90% and 75% in the keyboard frame and top cover respectively. The bottom cover uses 55% recycled aluminium, while the AC adapter uses 30% post-consumer content (PCC) recycled plastic. Plus, packaging is plastic-free!
ThinkPad Reliability
Even with its efficiency and recycled materials, you can count on the P1 Gen 7 for durability. With MIL-STD-810H certification, it meets or exceeds 12 standards, 26 procedures, and 200+ quality checks ensure that these devices run in extreme conditions.
| Design | |
|---|---|
| Colour name | Black |
| Product type | Mobile workstation |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Product colour | Black |
| Display | |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Display brightness | 400 cd/m² |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 40.6 cm (16") |
| Anti-glare screen | Yes |
| Maximum refresh rate | 60 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| Processor | |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor model | 155H |
| Processor boost frequency | 4.8 GHz |
| Processor cores | 16 |
| Processor threads | 22 |
| Motherboard chipset | Intel SoC |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Efficient-core base frequency | 0.9 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-cores | 2 |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Maximum frequency NPU | 1.4 GHz |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI datatype support on NPU | FP16, FP32, Int8 |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory clock speed | 7500 MHz |
| Maximum internal memory | 64 GB |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Total storage capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 6 GB |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card | Yes |
| On-board graphics card model | Intel Arc Graphics |
| Discrete graphics card model | NVIDIA RTX 1000 Ada |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board GPU manufacturer | Intel |
| Audio | |
| Audio chip | Realtek ALC3306 |
| Number of microphones | 2 |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera resolution (numeric) | 5 MP |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Infrared (IR) camera | Yes |
| Windows Hello | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Near Field Communication (NFC) | No |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WWAN | Not installed |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Sleep-and-Charge | Yes |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Performance | |
| Motherboard chipset | Intel SoC |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Keyboard language | English |
| Software | |
| Operating system architecture | 64-bit |
| Bundled software | Intel Connectivity Performance Suite |
| Operating system installed | Windows 11 Pro |
| Technical details | |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Product colour | Black |
| Discrete graphics card memory | 6 GB |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 90 Wh |
| Power | |
| AC adapter power | 170 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| Security | |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Fingerprint reader | Yes |
| Cable lock slot | Yes |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Weight & dimensions | |
| Width | 354.4 mm |
| Depth | 241.2 mm |
| Height | 17.1 mm |
| Weight | 1.82 kg |
| Packaging data | |
| AC adapter included | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| On-board graphics card | Yes |
| AC adapter included | Yes |
| Anti-glare screen | Yes |
Form meets function.
The Lenovo ThinkPad P1 Gen 6 (16″ Intel) is the perfect combination of form and function. Designed to be admired, its sleekness barely hints at what’s inside. A powerful system with the seamless performance of up to Intel vPro® with 13th Gen Intel® Core™ processors and optional professional NVIDIA® discrete graphics.
Makes light work of heavy workloads
Certified by independent software vendors (ISVs), the Lenovo ThinkPad P1 Gen 6 (16″ Intel) has been tested and proven to deliver efficient and seamless use of key applications. With this mobile workstation, you can rest easy knowing that it meet the demands of your business and your industry, wherever you need to work from.
See the complete list of ISV certifications
Visually captivating
With a large 16:10 aspect ratio screen, ideal for multitasking and larger workflows without sacrificing quality, the ThinkPad P1 Gen 6 (16″ Intel) gives you more bang for your buck. A content creator’s dream, this mobile workstation comes with a number of antiglare and TUV low-blue light display options, including an OLED touchscreen and factory colour calibration for crisper, clearer images.
A webcam that’s got your front & back
The ThinkPad P1 Gen 6 (16″ Intel) boasts a hybrid FHD & infrared webcam as standard, so every videoconference is picture perfect. In addition, the webcam shutter and human presence detection helps to safeguard your privacy. You can also log in quickly and securely with just a smile via Windows Hello. And to further enhance your online meetings, there’s the option of a hybrid 5MP + infrared webcam.
The power to be free
For those who need to work from anywhere and need a workhorse that can plough through heavy computational workloads with ease, the ThinkPad P1 Gen 6 (16″ Intel) is ideal. As well as a myriad of ultra-fast memory and high performance storage, it boasts great WiFi connectivity and a large rapid-charging battery. The result? True on-the-go performance and power for anyone from designers to architects and VR/AR users to data scientists.
Productivity meets durability
The ThinkPad P1 Gen 6 (16″ Intel) mobile workstation is designed to meet your exacting needs. Its backlit, spill-resistant keyboard promotes faster, smoother typing. Its liquid metal design and vapor chamber offers advanced cooling to boost performance. It’s also MIL-SPEC certified and has passed more than 200 stringent Lenovo quality assessments, ensuring its reliability under pressure.
Security you can count on
The ThinkShield suite of hardware and software solutions is perfect for the ThinkPad P1 Gen 6 (16″ Intel) mobile workstation, providing both device and key information security. Features include the discrete Trusted Platform Module (dTPM) to encrypt your data and a biometric fingerprint reader for easy one-touch login. It also has the safety net of a self-healing BIOS to restore earlier system settings, if required.
Designed with the planet in mind
Engineered to reflect our commitment to the planet, the ThinkPad P1 Gen 6 (16″ Intel) mobile workstation includes recycled plastic, metal, and other materials. What's more, the packaging it comes in contains no plastic and 90% of it is sustainably made, including biobased and sustainably forested content.
Specifications may vary depending upon region / model.
| Design | |
|---|---|
| Housing material | Aluminium, Carbon Fibre Reinforced Polymer (CFRP), Glass Fibre Reinforced Polymer (GFRP) |
| Form factor | Clamshell |
| Colour name | Black, Paint |
| Product colour | Black |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 1200:1 |
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Processor base power | 45 W |
| Maximum turbo power | 115 W |
| Configurable TDP-down | 35 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Processor boost frequency | 5.2 GHz |
| Processor model | i7-13800H |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Non-ECC | Yes |
| Memory channels | Dual-channel |
| Maximum internal memory | 96 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 12 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA GeForce RTX 4080 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Audio chip | Realtek ALC3306 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Not installed |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Battery | |
|---|---|
| Fast charging | Yes |
| Battery capacity | 90 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 230 W |
| Security | |
|---|---|
| Password protection type | Power on, Supervisor, SSD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Windows Hello | Yes |
| Fingerprint reader | Yes |
| Smart card reader | No |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Maximum shipping altitude | 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Certification | MIL-STD-810HISVTÜV |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS, TCO, ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height | 17.5 mm |
| Depth | 253.8 mm |
| Width | 359.5 mm |
| Weight | 1.86 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | P |
Lead From Anywhere: Ultra Performance That Moves With You
- Our thinnest & lightest mobile workstation with hi-res 14″ display options
- AI-assisted productivity & enhanced work efficiency for anywhere business
- Independent software vendor (ISV) certifications like Adobe®, Altair®, & AVID®
- Meets the multifaceted needs of educators, students, & entry-level professionals
Portable Powerhouse to Push Your Limits
Boasting robust processing capabilities, the 14″ Lenovo ThinkPad P14s Gen 5 mobile workstation is driven by AMD Ryzen™ PRO processors. Pro-grade AMD Radeon™ graphics deliver seamless rendering of high-quality image and video files. Plus, tackle heavy-duty computing tasks with dedicated AI engines that allow for extended productivity all day long.
Accomplish More From Anywhere
The P14s Gen 5 is built for improved efficiency and portability. It ensures reliable connectivity with advanced WiFi and optional WWAN technology to stay online on the go. And, enjoy robust ports and swift memory for seamless multitasking. Ideal for power users and entry-level professionals, it achieves peak performance without breaking the bank.
Boundless Brilliance in Every Visual
Savor visual excellence on the P14s Gen 5 AMD workstation with up to a 2.8K OLED display and touchscreen options. Slim bezels maximize viewing area for an immersive experience. But the best part? Choose displays with TÜV Eyesafe® low blue light-certification to prevent eye strain and 3M optical solutions to optimize brightness and power usage.
Get Ready for Anything With Extended Comfort
Our lightweight mobile workstation comes with an improved keyboard design for easy access and a customizable Trackpoint Quick Menu. Its dual-fan system and well-placed rear vents facilitate superior cooling. And the Communication Bar atop boasts a 5MP camera and high-fidelity mics for crisp audio-visual quality — perfect for online collaboration.
Empowering Workflows With Certified Excellence
The powerful P14s Gen 5 AMD mobile workstation features independent software vendor (ISV)-certified apps (ANSYS®, AVID®, etc.) that guarantee reliable and consistent performance for heavy workloads. It’s certified ENERGY STAR® 8.0 to reduce costs. Plus, it’s partially comprised of recycled plastics and metals and comes in plastic-free packaging.
Protected Data, Proven Resilience
The P14s workstation delivers enduring data-device protection with advanced ThinkShield security features. The discrete Trusted Platform Module (dTPM) uses encryption, while the biometric fingerprint reader enables secure login. Moreover, it’s rigorously tested to meet MIL-STD-810H standards to withstand extreme conditions and enhance durability.
| Design | |
|---|---|
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Mobile workstation |
| Display | |
|---|---|
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Display brightness | 400 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WUXGA |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 35.6 cm (14") |
| Processor | |
|---|---|
| Processor base power | 28 W |
| Motherboard chipset | AMD SoC |
| Processor cache type | L3 |
| Processor cache | 16 MB |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5.1 GHz |
| Processor frequency | 3.3 GHz |
| Processor model | 8840HS |
| Processor family | AMD Ryzen™ 7 PRO |
| Processor manufacturer | AMD |
| Neural processor unit (NPU) | |
|---|---|
| NPU performance up to | 16 TOPs |
| Total processor performance up to | 38 TOPs |
| Neural processor unit (NPU) | AMD Ryzen AI |
| Memory | |
|---|---|
| Maximum internal memory | 96 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| On-board graphics card model | AMD Radeon 780M |
| On-board graphics card family | AMD Radeon |
| On-board GPU manufacturer | AMD |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio chip | Realtek ALC3287 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Network | |
|---|---|
| WWAN | Not installed |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Battery capacity | 52.5 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 65 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Windows Hello | Yes |
| Fingerprint reader | Yes |
| Smart card reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Maximum shipping altitude | 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Weight & dimensions | |
|---|---|
| Height | 17.7 mm |
| Depth | 223.7 mm |
| Width | 315.9 mm |
| Weight | 1.31 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | P |
Lead From Anywhere: Ultra Performance That Moves With You
- Our thinnest & lightest mobile workstation with hi-res 14″ display options
- AI-assisted productivity & enhanced work efficiency for anywhere business
- Independent software vendor (ISV) certifications like Adobe®, Altair®, & AVID®
- Meets the multifaceted needs of educators, students, & entry-level professionals
Portable Powerhouse to Push Your Limits
Boasting robust processing capabilities, the 14″ Lenovo ThinkPad P14s Gen 5 mobile workstation is driven by AMD Ryzen™ PRO processors. Pro-grade AMD Radeon™ graphics deliver seamless rendering of high-quality image and video files. Plus, tackle heavy-duty computing tasks with dedicated AI engines that allow for extended productivity all day long.
Accomplish More From Anywhere
The P14s Gen 5 is built for improved efficiency and portability. It ensures reliable connectivity with advanced WiFi and optional WWAN technology to stay online on the go. And, enjoy robust ports and swift memory for seamless multitasking. Ideal for power users and entry-level professionals, it achieves peak performance without breaking the bank.
Boundless Brilliance in Every Visual
Savor visual excellence on the P14s Gen 5 AMD workstation with up to a 2.8K OLED display and touchscreen options. Slim bezels maximize viewing area for an immersive experience. But the best part? Choose displays with TÜV Eyesafe® low blue light-certification to prevent eye strain and 3M optical solutions to optimize brightness and power usage.
Get Ready for Anything With Extended Comfort
Our lightweight mobile workstation comes with an improved keyboard design for easy access and a customizable Trackpoint Quick Menu. Its dual-fan system and well-placed rear vents facilitate superior cooling. And the Communication Bar atop boasts a 5MP camera and high-fidelity mics for crisp audio-visual quality — perfect for online collaboration.
Empowering Workflows With Certified Excellence
The powerful P14s Gen 5 AMD mobile workstation features independent software vendor (ISV)-certified apps (ANSYS®, AVID®, etc.) that guarantee reliable and consistent performance for heavy workloads. It’s certified ENERGY STAR® 8.0 to reduce costs. Plus, it’s partially comprised of recycled plastics and metals and comes in plastic-free packaging.
Protected Data, Proven Resilience
The P14s workstation delivers enduring data-device protection with advanced ThinkShield security features. The discrete Trusted Platform Module (dTPM) uses encryption, while the biometric fingerprint reader enables secure login. Moreover, it’s rigorously tested to meet MIL-STD-810H standards to withstand extreme conditions and enhance durability.
| Design | |
|---|---|
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Mobile workstation |
| Display | |
|---|---|
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Display brightness | 400 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WUXGA |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 35.6 cm (14") |
| Processor | |
|---|---|
| Processor base power | 28 W |
| Motherboard chipset | AMD SoC |
| Processor cache type | L3 |
| Processor cache | 16 MB |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5.1 GHz |
| Processor frequency | 3.3 GHz |
| Processor model | 8840HS |
| Processor family | AMD Ryzen™ 7 PRO |
| Processor manufacturer | AMD |
| Neural processor unit (NPU) | |
|---|---|
| NPU performance up to | 16 TOPs |
| Total processor performance up to | 38 TOPs |
| Neural processor unit (NPU) | AMD Ryzen AI |
| Memory | |
|---|---|
| Maximum internal memory | 96 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| On-board graphics card model | AMD Radeon 780M |
| On-board graphics card family | AMD Radeon |
| On-board GPU manufacturer | AMD |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio chip | Realtek ALC3287 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Network | |
|---|---|
| WWAN | Not installed |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Battery capacity | 52.5 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 65 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Windows Hello | Yes |
| Fingerprint reader | Yes |
| Smart card reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Maximum shipping altitude | 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Weight & dimensions | |
|---|---|
| Height | 17.7 mm |
| Depth | 223.7 mm |
| Width | 315.9 mm |
| Weight | 1.31 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | P |
