| Processor | |
|---|---|
| Maximum digital resolution | 4096 x 2160 pixels |
| Processor boost clock speed | 1468 MHz |
| Processor frequency | 1227 MHz |
| CUDA cores | 384 |
| CUDA | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Graphics processor | GeForce GT 1030 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 48 GB/s |
| Memory bus | 64 bit |
| Graphics card memory type | GDDR5 |
| Discrete graphics card memory | 2 GB |
| Ports & interfaces | |
|---|---|
| HDMI version | 2.0b |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 3.0 |
| Performance | |
|---|---|
| Full HD | Yes |
| NVIDIA Ansel | Yes |
| NVIDIA GameStream | Yes |
| NVIDIA G-SYNC | Yes |
| HDCP | Yes |
| OpenGL version | 4.5 |
| DirectX version | 12.0 |
| Design | |
|---|---|
| Number of slots | 2 |
| Cooling type | Passive |
| Power | |
|---|---|
| Minimum system power supply | 300 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Technical details | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Depth | 167 mm |
| Height | 55 mm |
| Packaging data | |
|---|---|
| Drivers included | Yes |

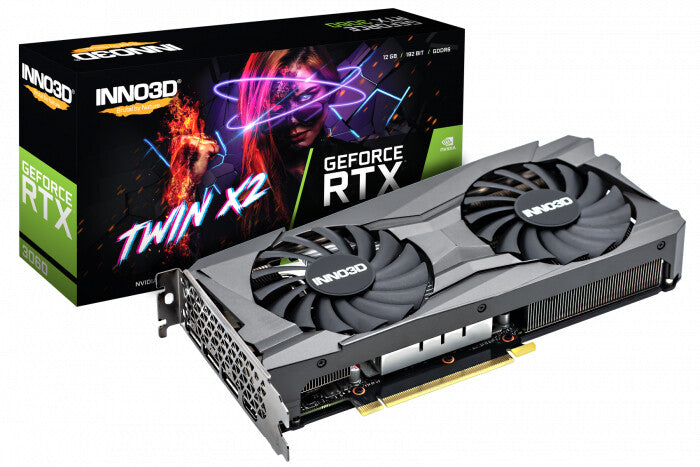

The new NVIDIA GeForce RTX 30 Series GPUs, the 2nd generation of RTX, features new RT Cores, Tensor Cores and streaming multiprocessors, bringing stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications. Powered by the NVIDIA Ampere architecture, which delivers increases of up to 1.9X performance-per-watt over the previous generation, the RTX 30 Series effortlessly powers graphics experiences at all resolutions, even up to 8K at the top end. The GeForce RTX 3090, 3080, 3070, 3060 represents the greatest GPU generational leap in the history of NVIDIA.

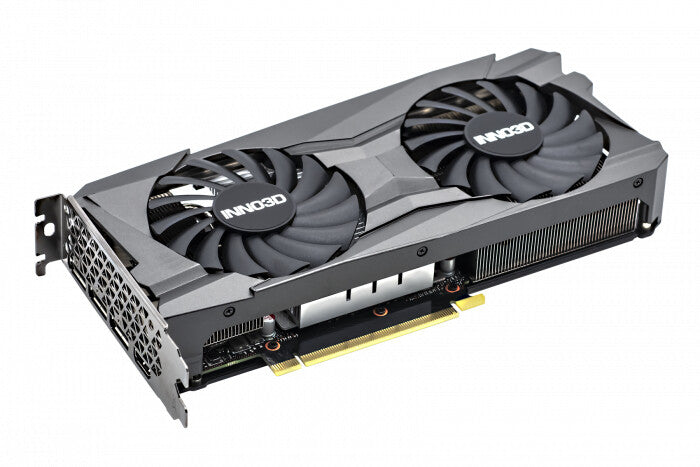

| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| FireStream | No |
| Processor boost clock speed | 1777 MHz |
| Processor frequency | 1320 MHz |
| CUDA cores | 3584 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3060 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 360 GB/s |
| Data transfer rate | 15 Gbit/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Fan diameter | 9 cm |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Power consumption (max) | 170 W |
| Minimum system power supply | 550 W |
| System requirements | |
|---|---|
| Other operating systems supported | FreeBSD |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Weight & dimensions | |
|---|---|
| Depth | 240 mm |
| Height | 120 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| User guide | Yes |

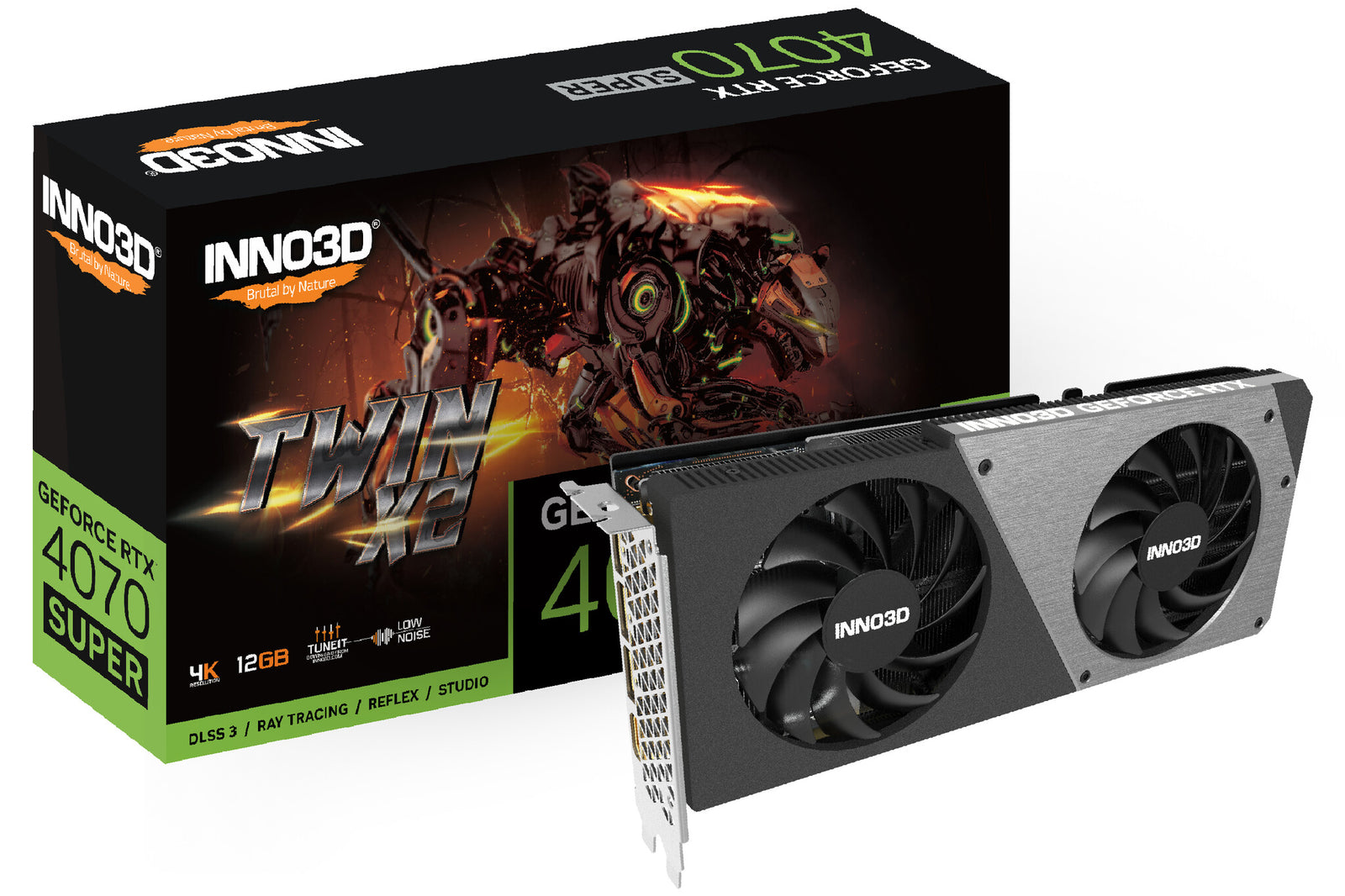

Supercharge your PC with the NVIDIA® GeForce RTX®4070 SUPER, built with the ultra efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing and AI-accelerated performance with DLSS 3, new ways to create, and much more. Get SUPER.
| Processor | |
|---|---|
| Processor boost clock speed | 2475 MHz |
| Processor frequency | 1980 MHz |
| CUDA cores | 7168 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 504 GB/s |
| Data transfer rate | 21 Gbit/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Fan diameter | 8.8 cm |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 220 W |
| Supplementary power connectors | 2x 8-pin |
| Minimum system power supply | 650 W |
| System requirements | |
|---|---|
| Other operating systems supported | FreeBSD |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
|---|---|
| Depth | 250 mm |
| Height | 118 mm |
| Width | 42 mm |
| Packaging data | |
|---|---|
| Package height | 73 mm |
| Package depth | 328 mm |
| Package width | 182 mm |

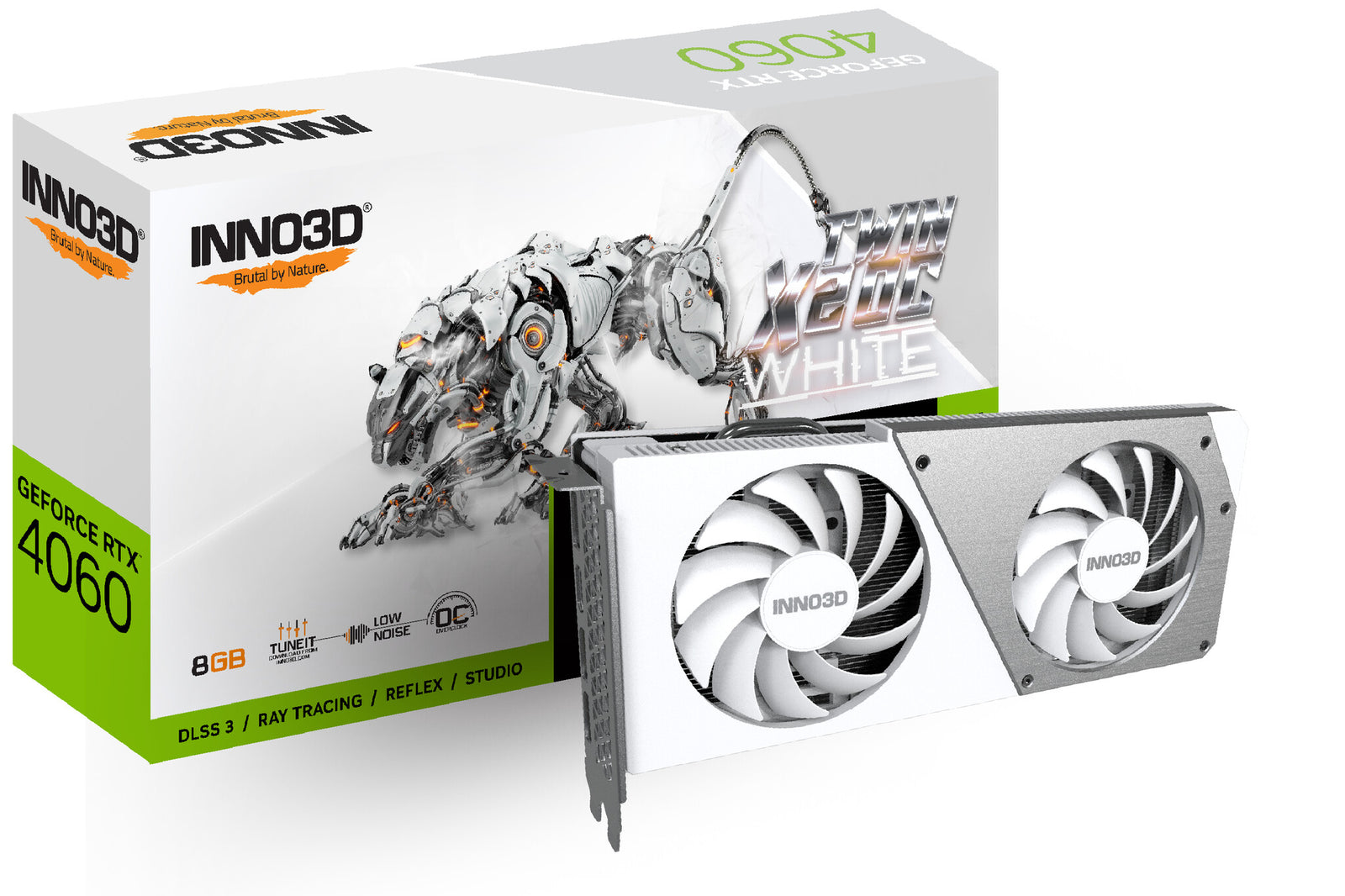

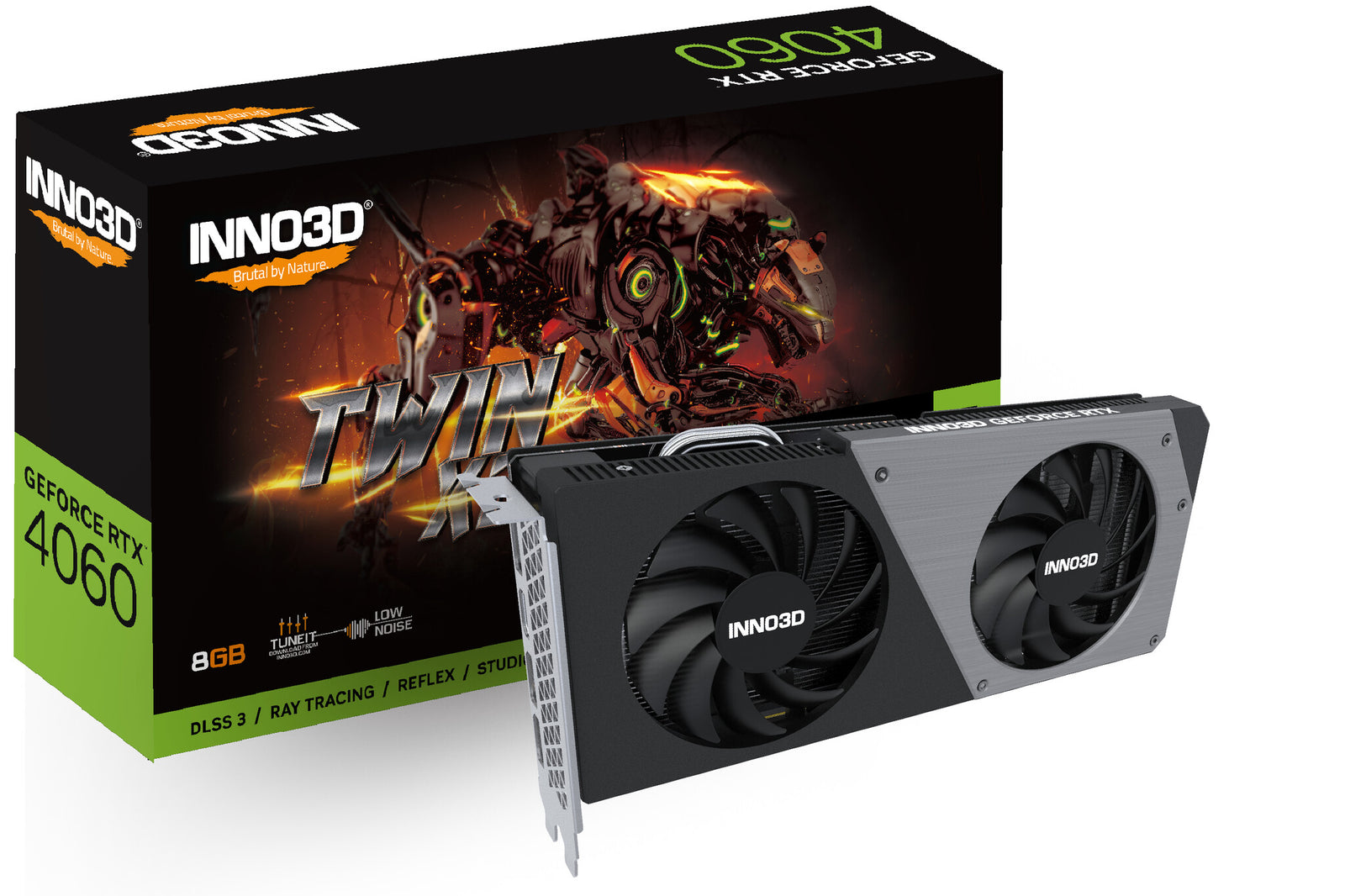

| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2460 MHz |
| Processor frequency | 1830 MHz |
| CUDA cores | 3072 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 272 GB/s |
| Data transfer rate | 17 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| System requirements | |
|---|---|
| Other operating systems supported | Linux |
| Linux operating systems supported | FreeBSD 11 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Weight & dimensions | |
|---|---|
| Depth | 250 mm |
| Height | 118 mm |
| Width | 42 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Manual | Yes |

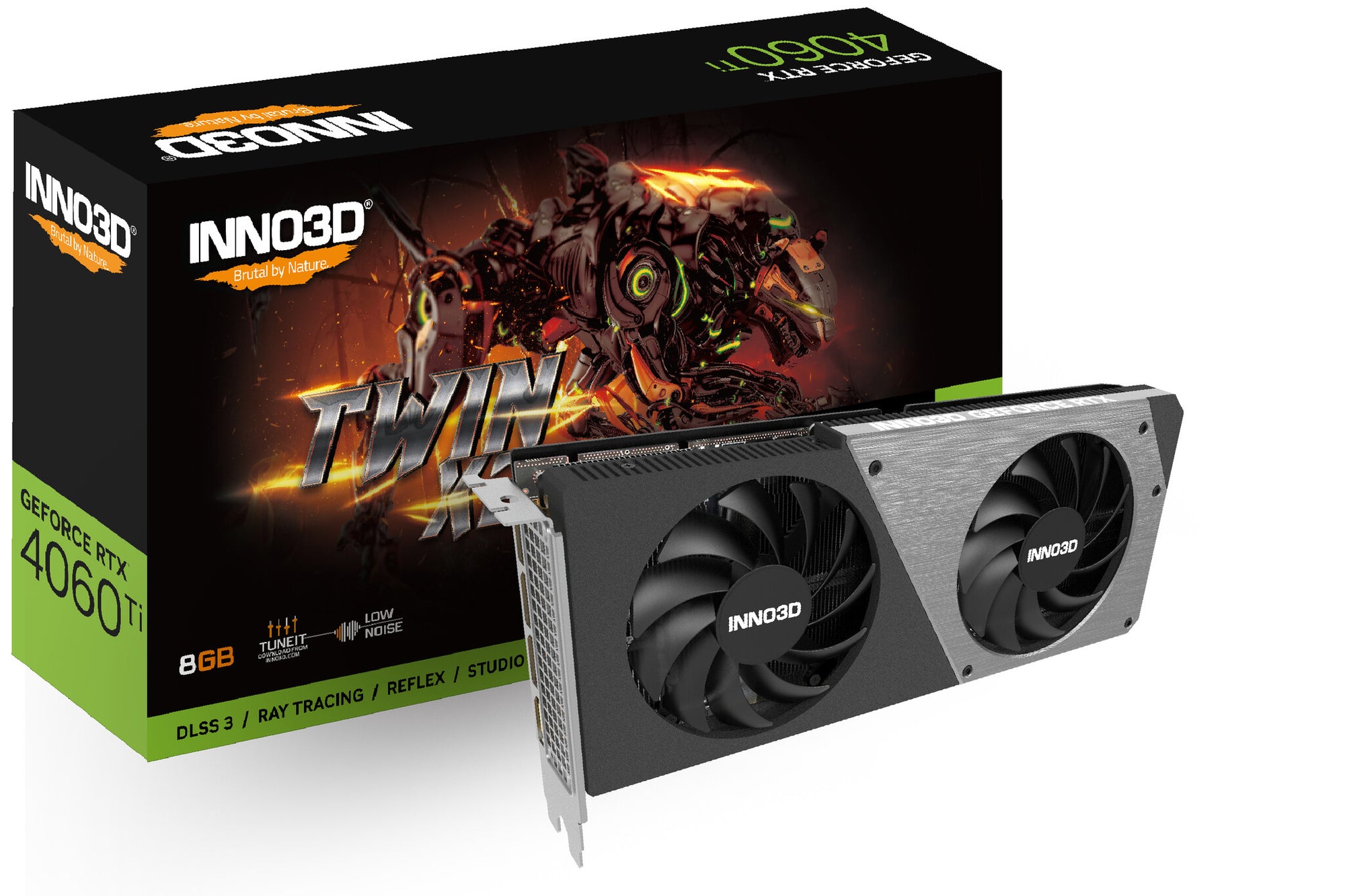

| Processor | |
|---|---|
| Maximum displays per videocard | 3 |
| Processor boost clock speed | 2535 MHz |
| Processor frequency | 2310 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 288 GB/s |
| Data transfer rate | 18 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA GameStream | Yes |
| NVIDIA G-SYNC | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | No |
| Number of slots | 1 |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Weight & dimensions | |
|---|---|
| Depth | 250 mm |
| Height | 118 mm |
| Width | 42 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Processor | |
|---|---|
| Processor frequency (OC mode) | 1920 MHz |
| Processor boost clock speed | 2505 MHz |
| CUDA cores | 5888 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 504 GB/s |
| Data transfer rate | 21 Gbit/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| NVIDIA GameWorks VR | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| Design | |
|---|---|
| Product colour | Grey |
| Number of slots | 2 |
| Fan diameter | 8.8 cm |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 600 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
|---|---|
| Depth | 250 mm |
| Height | 118 mm |
| Width | 42 mm |
| Processor | |
|---|---|
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 288 GB/s |
| Data transfer rate | 16 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
|---|---|
| Depth | 250 mm |
| Height | 118 mm |
| Width | 42 mm |
| Packaging data | |
|---|---|
| User guide | Yes |

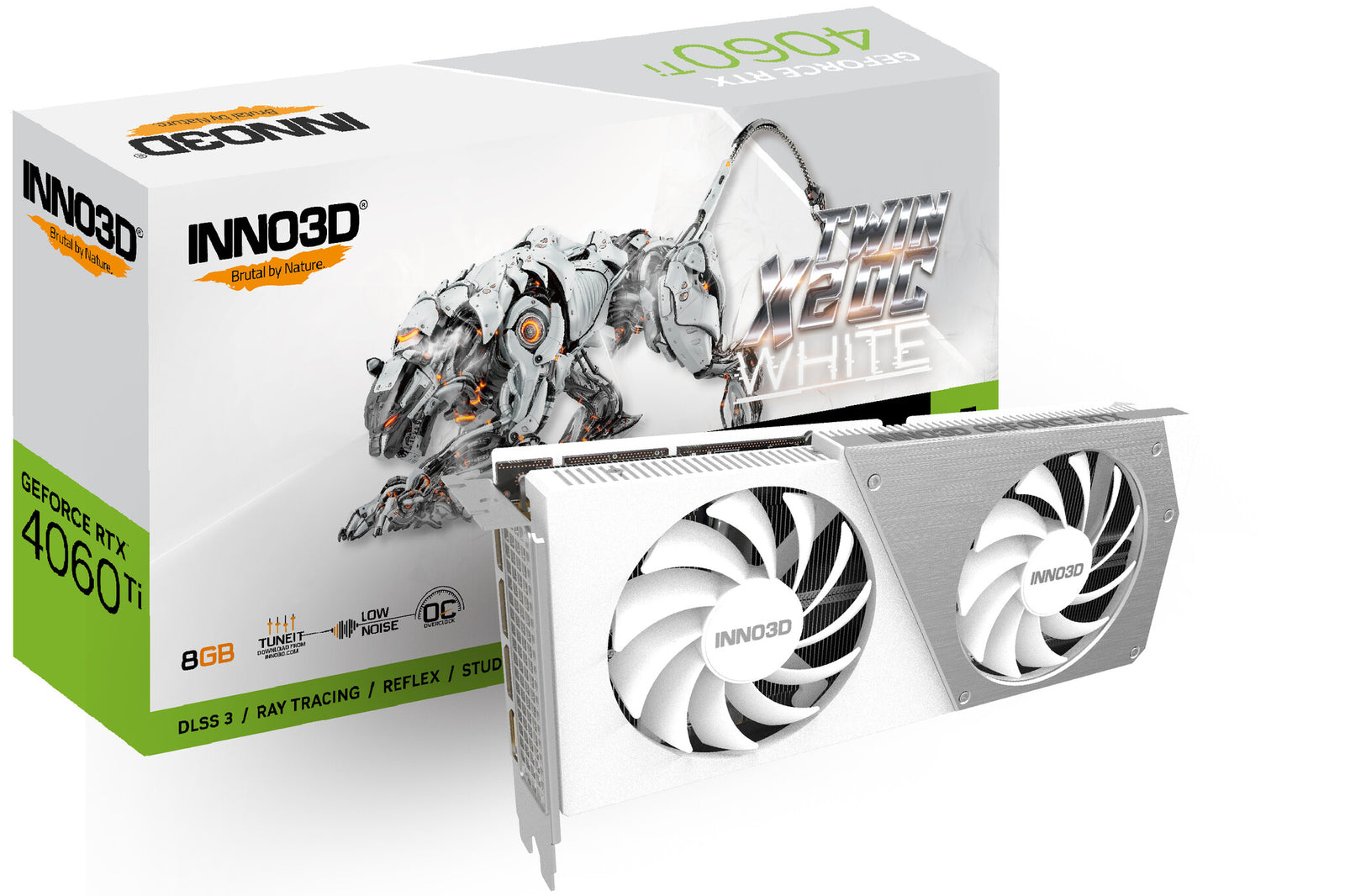

| Processor | |
|---|---|
| Processor boost clock speed | 2595 MHz |
| Processor frequency | 2310 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 288 GB/s |
| Data transfer rate | 18 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| Design | |
|---|---|
| Product colour | Grey, White |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
|---|---|
| Depth | 250 mm |
| Height | 118 mm |
| Width | 42 mm |
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Processor boost clock speed (OC mode) | 1792 MHz |
| Processor frequency | 1552 MHz |
| CUDA cores | 2560 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3050 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 224 GB/s |
| Data transfer rate | 14 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Illumination colour | White |
| Number of slots | 2 |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 6-pin |
| Minimum system power supply | 450 W |
| System requirements | |
|---|---|
| Other operating systems supported | FreeBSD |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Weight & dimensions | |
|---|---|
| Depth | 222 mm |
| Height | 120 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Processor | |
|---|---|
| Processor boost clock speed | 2490 MHz |
| Processor frequency | 1830 MHz |
| CUDA cores | 3072 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 272 GB/s |
| Data transfer rate | 17 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| Design | |
|---|---|
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
|---|---|
| Depth | 250 mm |
| Height | 118 mm |
| Width | 42 mm |
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Processor boost clock speed | 1635 MHz |
| Processor frequency | 1485 MHz |
| CUDA cores | 896 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce GTX 1650 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 192 GB/s |
| Data transfer rate | 12 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 4 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 3.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.2 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 300 W |
| System requirements | |
|---|---|
| Other operating systems supported | FreeBSD |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 |
| Weight & dimensions | |
|---|---|
| Height | 113 mm |
| Length | 220 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Processor | |
|---|---|
| Processor boost clock speed | 2490 MHz |
| Processor frequency | 1830 MHz |
| CUDA cores | 3072 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 272 GB/s |
| Data transfer rate | 17 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| Design | |
|---|---|
| Product colour | Grey, White |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Minimum system power supply | 550 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11 Enterprise |
| Weight & dimensions | |
|---|---|
| Depth | 250 mm |
| Height | 118 mm |
| Width | 42 mm |
| Processor | |
|---|---|
| Processor boost clock speed | 2565 MHz |
| Processor frequency | 2310 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 288 GB/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| Design | |
|---|---|
| Number of fans | 2 fan(s) |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Weight & dimensions | |
|---|---|
| Depth | 250 mm |
| Height | 118 mm |
| Weight | 42 g |
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Processor boost clock speed | 2565 MHz |
| Processor frequency | 2310 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 288 GB/s |
| Data transfer rate | 18 Gbit/s |
| Number of pipelines | 3 |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Fan diameter | 8.8 cm |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| System requirements | |
|---|---|
| Other operating systems supported | FreeBSD |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Weight & dimensions | |
|---|---|
| Depth | 297 mm |
| Height | 118 mm |
| Width | 42 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Features | |
|---|---|
| Built-in battery | No |
| Protection features | Scratch resistant |
| Card pocket | No |
| Desktop stand | No |
| Surface coloration | Monochromatic |
| Compatibility | P30 Pro |
| Brand compatibility | Huawei |
| Product colour | Transparent |
| Case type | Cover |
| Maximum screen size | 16.4 cm (6.47") |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
Evolution at work.
Revolutionize how you work, with the webcam that makes you look good and feel good.
Crystal clear 4K.
Whether you're calling from an office or live streaming from your home, you'll always look your best in stunning Ultra HD 4K resolution.
1/2" sensor.
Link’s best-in-class sensor puts it head and shoulders above many other webcams with similar resolutions.
Perfect in any light.
Even in dark rooms, Link's 1/2" sensor captures life-like detail and excellent dynamic range.
Standout HDR.
Link's HDR mode perfectly balances the highlights and shadows in your image, ensuring your background isn’t blown out by a nearby window.
True Focus.
No more blurry shots. Link uses Phase Detection Auto Focus (PDAF) and auto exposure technology to focus way faster than other webcams.
Always stay in shot.
With a 3-axis gimbal design and a powerful AI tracking algorithm, Link's lens rotates to follow your every movement. With automatic zooming and framing, you'll always be center stage.
Engage your audience.
With innovative AI technology and versatile modes, Link helps you communicate better than ever.
DeskView Mode
Simply mount Link to your computer screen, toggle on DeskView mode and let it automatically adjust to show your tabletop. Perfect for presenting during a video call.
Whiteboard Mode
Improve your online classes and work presentations. AI algorithms enhance your presentations, focusing and squaring off your whiteboard to give your audience a much clearer view.
Overhead Mode
Capture the perfect bird's-eye view. Mount Link on a stand to record squared-off, perfectly level footage, whether you're unboxing a product, playing piano or sketching a floor plan.
Portrait Mode
Level up your live streaming and social media. Unlike many other webcams, Link shoots in totally uncropped 9:16 by rotating its 3-axis gimbal head, ensuring better image quality for mobile phone viewing.
Control in the moment.
Manage your calls with simple hand gestures. No clicks necessary.
Built-in privacy protection.
Within 10 seconds of inactivity, Link's 3-axis gimbal lens will automatically point downwards to protect your privacy.
| Performance | |
|---|---|
| Plug and Play | Yes |
| Operating voltage | 5 V |
| Operating current | 1 A |
| Power consumption (typical) | 5 W |
| Power consumption (max) | 5 W |
| Noise reduction | Yes |
| Automatic light correction | Yes |
| Adjustable field of view | Yes |
| Privacy camera | Yes |
| Camera shutter speed | 1/8000-1/30s |
| Focus adjustment | Auto |
| Motion sensor | Yes |
| Focusing distance range | 1000 mm |
| Face tracking | Yes |
| Digital zoom | 4x |
| Zoom capability | Yes |
| Auto focus | Yes |
| Video formats supported | H.264, ISO, M-JPEG |
| Supported video modes | 720p, 1080p |
| Maximum frame rate | 60 fps |
| Camera HD type | Full HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Megapixel (approx.) | 1080 MP |
| Design | |
|---|---|
| Tripod thread | 1/4" |
| Tripod mounting supported | Yes |
| Rotating | Yes |
| Built-in flash | No |
| Mounting type | Clip |
| Product colour | Black, Green |
| Interface | USB |
| Built-in speaker(s) | Yes |
| Noise-canceling | Yes |
| Built-in microphone | Yes |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows 8 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight (with stand) | 106 g |
| Weight | 106 g |
| Height | 63 mm |
| Depth | 35 mm |
| Width | 45 mm |
| Packaging data | |
|---|---|
| Quantity | 1 |
| Packaging content | |
|---|---|
| Manual | Yes |
| Tripod included | No |
| User guide | Yes |
| Cables included | USB Type C |
| System requirements | |
|---|---|
| Minimum storage drive space | 1 GB |
| Minimum RAM | 8000 MB |
| Technical details | |
|---|---|
| Warranty period | 1 year(s) |
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Intel® Rapid Start Technology
Intel® Rapid Start Technology allows quick system resumes from the hibernate state.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
Intel® Smart Response Technology
Intel® Smart Response Technology combines the fast performance of a small solid state drive with the large capacity of a hard disk drive.
High Endurance Technology (HET)
High Endurance Technology (HET) in SSD's combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.
Intel® Remote Secure Erase
Intel® Remote Secure Erase provides IT administrators a secure method for remotely wiping an Intel SSD from a familiar management console when retiring or repurposing a system. This allows for immediate re-use while saving administrative time and costs.
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G182471 |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| SSD ARK ID | 204107 |
| Use conditions | PC/Client/Tablet |
| TBW rating | 185 |
| Mean time between failures (MTBF) | 1600000 h |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| SSD temperature monitoring | No |
| Enhanced Power Loss Data Protection technology | No |
| End-to-End Data Protection | Yes |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | PC/Laptop |
| NVMe | Yes |
| Memory type | 3D4 QLC |
| Interface | PCI Express 3.0 |
| SSD capacity | 512 GB |
| SSD form factor | M.2 |
| Power | |
|---|---|
| Power consumption (idle) | 0.025 W |
| Brand-specific features | |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel High Endurance Technology (HET) | No |
| Intel® Rapid Start Technology | Yes |
| Intel® Remote Secure Erase | No |
| Operational conditions | |
|---|---|
| Operating vibration | 2.17 G |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Height | 22 mm |
| Width | 80 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
| Other features | |
|---|---|
| Launch date | Q1'21 |
| Power consumption (active) | 0.08 W |
| SSD endurance rating | 185 |
| SSD shock | Oper/ing;1000G,0.5ms--NonOper/ion;1500G,0.5ms |
| Sequential reading | 3000 MB/s |
| Sequential writing speed | 1600 MB/s |
| Status | Launched |
| Random write (8GB span) | 315000 IOPS |
| Random read (8GB span) | 110000 IOPS |
| Internal memory type | PCIe 3.0 x4, NVMe |
| Processor family | Intel SSD 6 |

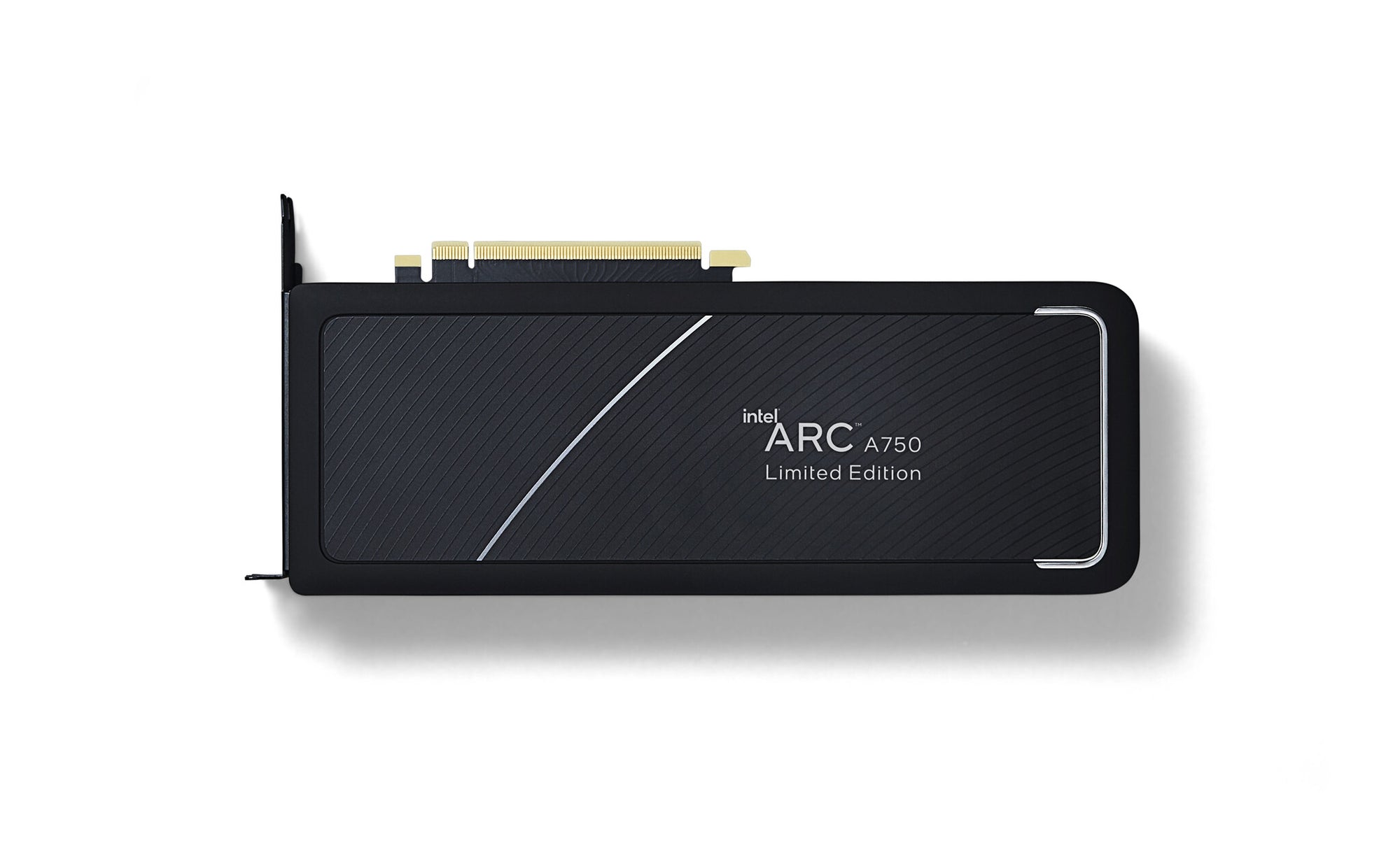

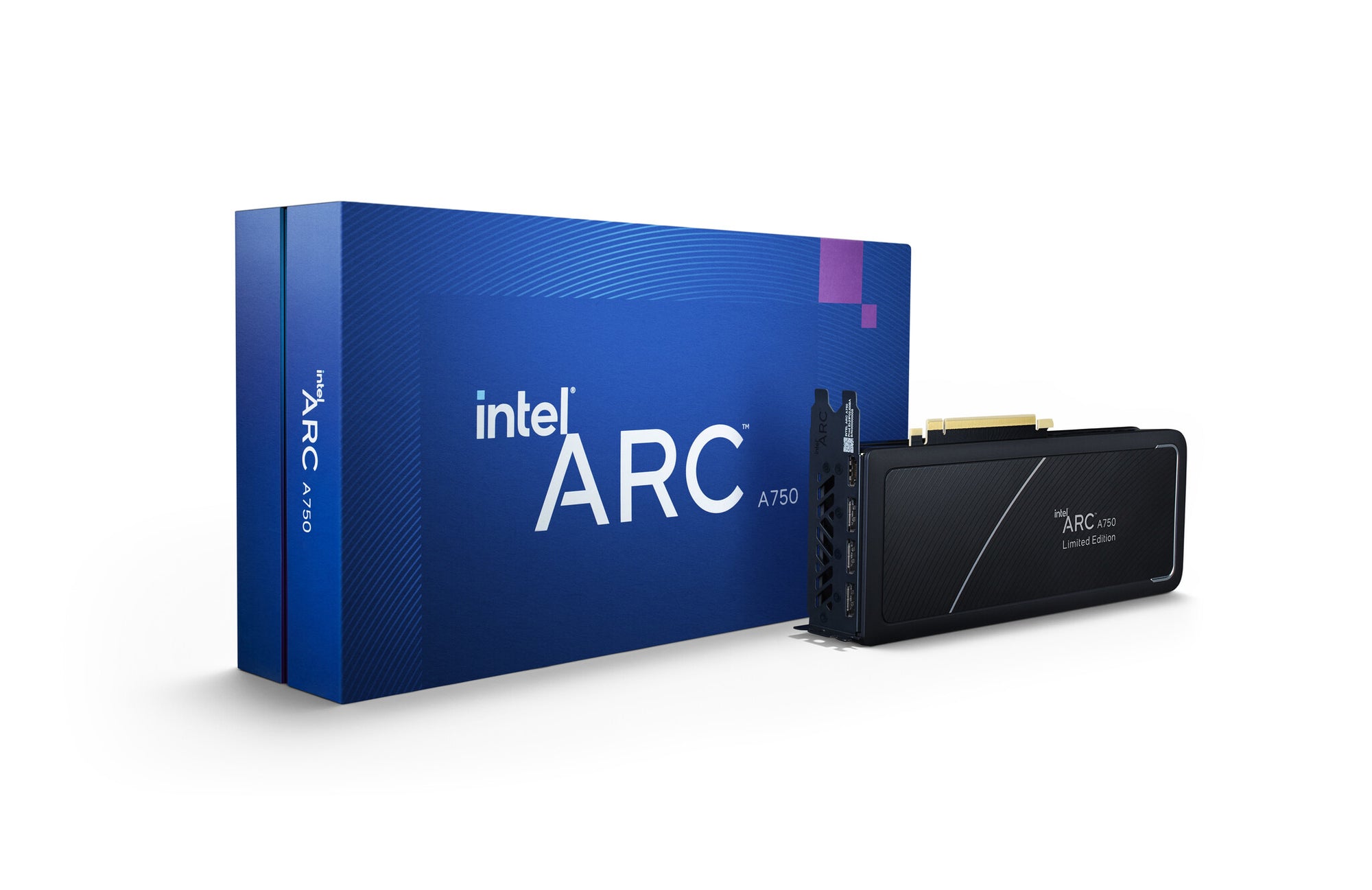

Intel Xᵉ HPG Microarchitecture
Xe HPG microarchitecture is engineered from the ground-up to deliver high performance, efficiency, and scalability for gamers and creators.
- New Xe-cores with built-in XMX AI capabilities.
- Advanced 3D acceleration hardware.
- Ray Tracing Units.
Xᵉ Super Sampling: AI-Enhanced Upscaling
Intel Xe Super Sampling technology (XeSS) takes your gaming experience to the next level with AI-enhanced upscaling enabling more performance with high image fidelity. XeSS is optimized for Intel®Arc™ graphics products with the ability to take advantage of XMX AI hardware acceleration.
DirectX* 12 Ultimate
Take gaming to a new level of realism with support for the latest graphics technologies including ray tracing, variable rate shading, mesh shading, and sampler feedback - the fundamentals for next-gen gaming.
Intel Arc Graphics for Creators
Unleash your imagination and captivate audiences with rich digital content creation using a hyper advanced media engine, augmented by AI and accelerated by Intel® Deep Link technology. Create compelling content, powered by the first graphics card with support for all current leading media formats, and keep yourself up to date with the most advanced AV1 video encode capabilities.
Seamless Streaming
Bring your best for your viewers and take your livestreams to the next level with virtual streaming technologies built into Intel Arc Control enabling flexibility and creative control. Transform your space to a streaming studio in an instant with Virtual Background, Auto Frame, and broadcasting options accessible from an intuitive easy to use software interface.
Intel® Deep Link
Harness the power of Intel® Core, Intel® Iris®, and Intel® Arc together to unleash new levels of performance and efficiency across a variety of gaming and creating workloads.
Intel Arc Solutions
Intel Arc graphics solutions comprised of hardware, software, and services were built to enable supercharged gaming, powerful creating, and seamless streaming experiences.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor frequency | 2050 MHz |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Arc A750 |
| Graphics processor family | Intel |
| Memory | |
|---|---|
| Memory bandwidth (max) | 512 GB/s |
| Data transfer rate | 16 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 2.0 |
| HDMI version | 2.0b/2.1 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 2 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| Xe-cores | 28 |
| Dual Link DVI | No |
| OpenCL version | 3.0 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 225 W |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8473301180 |
| Export Control Classification Number (ECCN) | EAR99 |
Intel® Smart Response Technology
Intel® Smart Response Technology combines the fast performance of a small solid state drive with the large capacity of a hard disk drive.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Intel® Rapid Start Technology
Intel® Rapid Start Technology allows quick system resumes from the hibernate state.
| Features | |
|---|---|
| Temperature monitoring and logging | No |
| Commodity Classification Automated Tracking System (CCATS) | G158436 |
| Export Control Classification Number (ECCN) | 5A992C |
| SSD ARK ID | 149407 |
| Market segment | Mobile |
| TBW rating | 200 |
| Mean time between failures (MTBF) | 1600000 h |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| SSD temperature monitoring | No |
| Enhanced Power Loss Data Protection technology | No |
| End-to-End Data Protection | Yes |
| PCI Express interface data lanes | x4 |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| NVMe | Yes |
| Memory type | 3D2 QLC |
| Interface | PCI Express 3.0 |
| SSD capacity | 1.02 TB |
| SSD form factor | M.2 |
| Power | |
|---|---|
| Power consumption (idle) | 0.04 W |
| Power consumption (write) | 0.1 W |
| Power consumption (read) | 0.1 W |
| Brand-specific features | |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel High Endurance Technology (HET) | No |
| Intel® Rapid Start Technology | Yes |
| Intel® Remote Secure Erase | No |
| Operational conditions | |
|---|---|
| Operating / non-operating shock | 1000 G |
| Non-operating shock | 1000 G |
| Operating shock | 1000 G |
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| General | |
|---|---|
| Product Family | Consumer |
| Product Series | 660p |
| Weight & dimensions | |
|---|---|
| Weight | 10 g |
| Depth | 80 mm |
| Width | 22 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
| Other features | |
|---|---|
| Product codename | Neptune Harbor |
| Product series | Intel® SSD 660p Series |
| Launch date | Q3'18 |
| SSD power consumption (idle) | 0.040W |
| Power consumption (active) | 0.1 W |
| SSD endurance rating | 200 TBW |
| SSD shock | 1000 G |
| Sequential reading | 1800 MB/s |
| Sequential writing speed | 1800 MB/s |
| Status | Launched |
| Random write (8GB span) | 220000 IOPS |
| Random read (8GB span) | 150000 IOPS |
| Internal memory type | PCIe 3.0 x4, NVMe |
| Processor family | Intel SSD 660p |
