Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the Adjust R1 controller to switch between colors, brightness, and motion effects with the push of button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Quantity per pack | 1 pc(s) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.78 mmH2O |
| Minimum air pressure | 0.36 mmH2O |
| Airflow | 145.62 m³/h |
| Maximum airflow | 85.71 cfm |
| Minimum airflow (imperial) | 20.68 cfm |
| Noise level (high speed) | 32.7 dB |
| Noise level (low speed) | 14.8 dB |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Number of LEDs | 6 |
| Illumination LED | Yes |
| Number of fan blades | 7 |
| Product colour | Black, White |
| Power | |
|---|---|
| Rated current | 0.18 A |
| LED voltage | 5 V |
| Starting voltage | 7 V |
| Voltage | 12 V |
| Power supply | 2.16 W |
| Weight & dimensions | |
|---|---|
| Package weight | 212 g |
| Package height | 30 mm |
| Package depth | 122 mm |
| Package width | 182 mm |
| Cable length | 0.5 m |
| Weight | 169 g |
| Height | 120 mm |
| Depth | 25 mm |
| Width | 120 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the Adjust R1 controller to switch between colors, brightness, and motion effects with the push of button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Quantity per pack | 1 pc(s) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.78 mmH2O |
| Minimum air pressure | 0.36 mmH2O |
| Airflow | 145.62 m³/h |
| Maximum airflow | 85.71 cfm |
| Minimum airflow (imperial) | 20.68 cfm |
| Noise level (high speed) | 32.7 dB |
| Noise level (low speed) | 14.8 dB |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Number of LEDs | 6 |
| Illumination LED | Yes |
| Number of fan blades | 7 |
| Product colour | Black, White |
| Power | |
|---|---|
| Rated current | 0.18 A |
| LED voltage | 5 V |
| Starting voltage | 7 V |
| Voltage | 12 V |
| Power supply | 2.16 W |
| Weight & dimensions | |
|---|---|
| Package weight | 592 g |
| Package height | 30 mm |
| Package depth | 122 mm |
| Package width | 182 mm |
| Cable length | 0.5 m |
| Weight | 169 g |
| Height | 120 mm |
| Depth | 25 mm |
| Width | 120 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
PWM and 3-pin versions are available in 120mm and 140mm sizes, each with single and 3-pack offerings to make your build shine brilliantly in any situation.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Maximum air pressure | 1.07 mmH2O |
| Airflow | 107.6 m³/h |
| Maximum airflow | 63.33 cfm |
| Noise level (high speed) | 19.4 dB |
| Rotational speed (max) | 1000 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 3-pin |
| Illumination colour | Multi |
| Number of LEDs | 6 |
| Illumination LED | Yes |
| Product colour | Black, White |
| Power | |
|---|---|
| Rated current | 0.3 A |
| LED voltage | 5 V |
| Starting voltage | 7 V |
| Voltage | 12 V |
| Power supply | 1.2 W |
| Weight & dimensions | |
|---|---|
| Package weight | 246 g |
| Package height | 30 mm |
| Package depth | 142 mm |
| Package width | 202 mm |
| Cable length | 0.5 m |
| Weight | 198 g |
| Height | 140 mm |
| Depth | 25 mm |
| Width | 140 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
PWM and 3-pin versions are available in 120mm and 140mm sizes, each with single and 3-pack offerings to make your build shine brilliantly in any situation.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Quantity per pack | 1 pc(s) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.38 mmH2O |
| Airflow | 176.44 m³/h |
| Maximum airflow | 103.85 cfm |
| Minimum airflow (imperial) | 31.67 cfm |
| Noise level (high speed) | 34.1 dB |
| Noise level (low speed) | 15.1 dB |
| Rotational speed (max) | 1700 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Number of LEDs | 6 |
| Illumination LED | Yes |
| Number of fan blades | 7 |
| Product colour | Black, White |
| Power | |
|---|---|
| Rated current | 0.3 A |
| LED voltage | 5 V |
| Starting voltage | 7 V |
| Voltage | 12 V |
| Power supply | 2.16 W |
| Weight & dimensions | |
|---|---|
| Package weight | 692 g |
| Package height | 30 mm |
| Package depth | 142 mm |
| Package width | 202 mm |
| Cable length | 0.5 m |
| Weight | 200 g |
| Height | 140 mm |
| Depth | 25 mm |
| Width | 140 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
PWM precision
- PWM control with a wide 300-1200 RPM speed range ideal for radiators
- Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
- Aerodynamic stator struts with embedded wiring reduce noise and turbulence
Manually Controllable
- Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
- Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern
- Black sleeved power cables offer an extra touch of style
Maximum compatibility
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
High-grade LLS bearing
Long-Life Sleeve bearing with 90,000-hour MTTF delivers long-lasting dependability
Smooth operation
Integrated synthetic rubber corners nullify fan vibrations
Chained connections
Chain RGB cables to simplify wiring and run multiple fans or additional RGB devices from a single connector
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 90000 h |
| Quantity per pack | 1 pc(s) |
| Bearing type | Sleeve bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.5 mmH2O |
| Minimum air pressure | 0.44 mmH2O |
| Airflow | 249.56 m³/h |
| Maximum airflow | 146.8 cfm |
| Minimum airflow (imperial) | 43.1 cfm |
| Noise level (high speed) | 37.4 dB |
| Noise level (low speed) | 14.9 dB |
| Rotational speed (max) | 1200 RPM |
| Rotational speed (min) | 300 RPM |
| Fan diameter | 18 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Number of LEDs | 12 |
| Illumination LED | Yes |
| Number of fan blades | 7 |
| Number of fans | 1 fan(s) |
| Product colour | White |
| Power | |
|---|---|
| LED power consumption (fan) | 3 W |
| Fan voltage | 12 V |
| Fan current | 0.35 A |
| LED voltage | 5 V |
| Fan power consumption | 4.2 W |
| Starting voltage | 6 V |
| Weight & dimensions | |
|---|---|
| Package weight | 570 g |
| Cable length | 1 m |
| Fan weight | 521 g |
| Fan dimensions (W x D x H) | 180 x 180 x 38 mm |
| Packaging content | |
|---|---|
| Number of screws | 12 |
| Screws included | Yes |

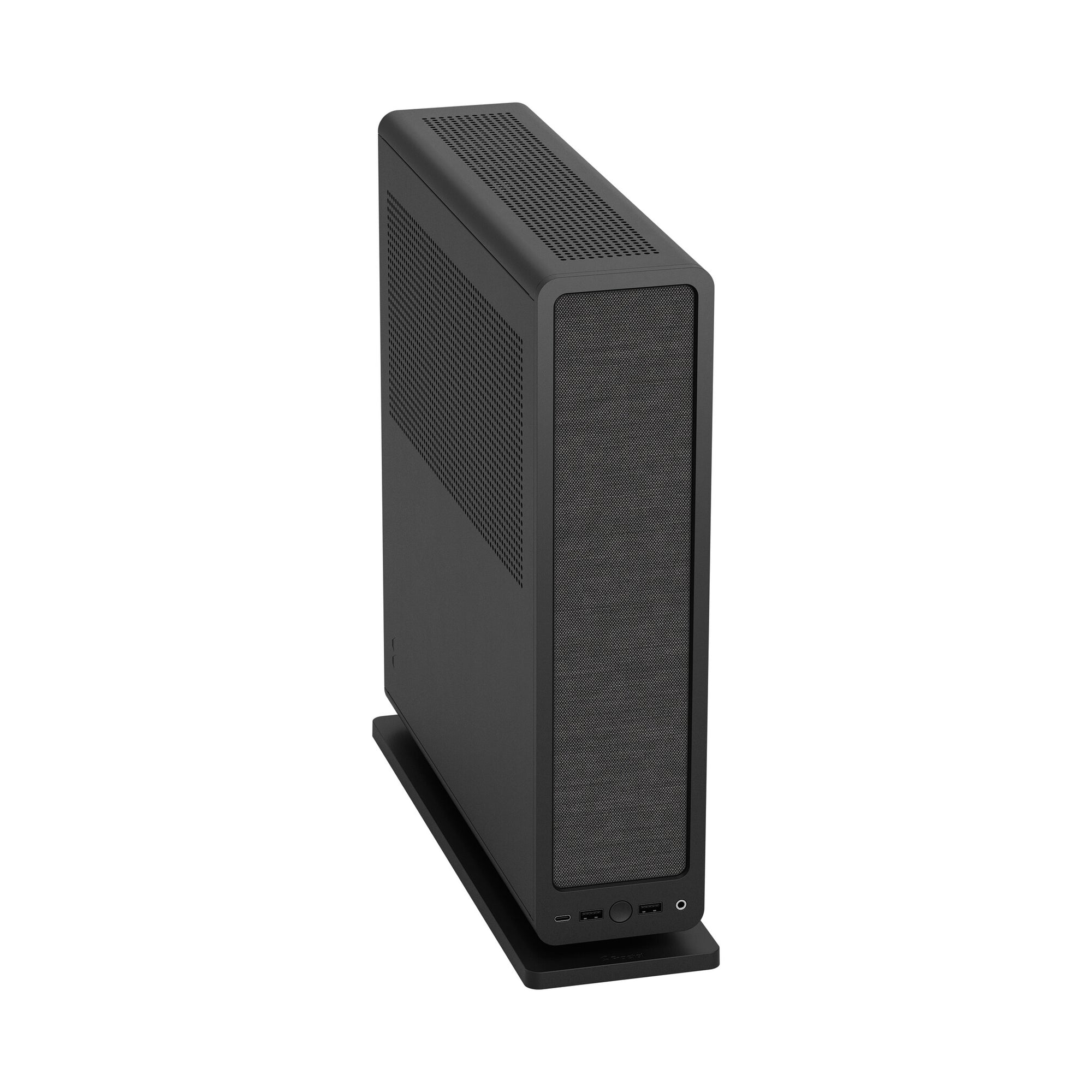

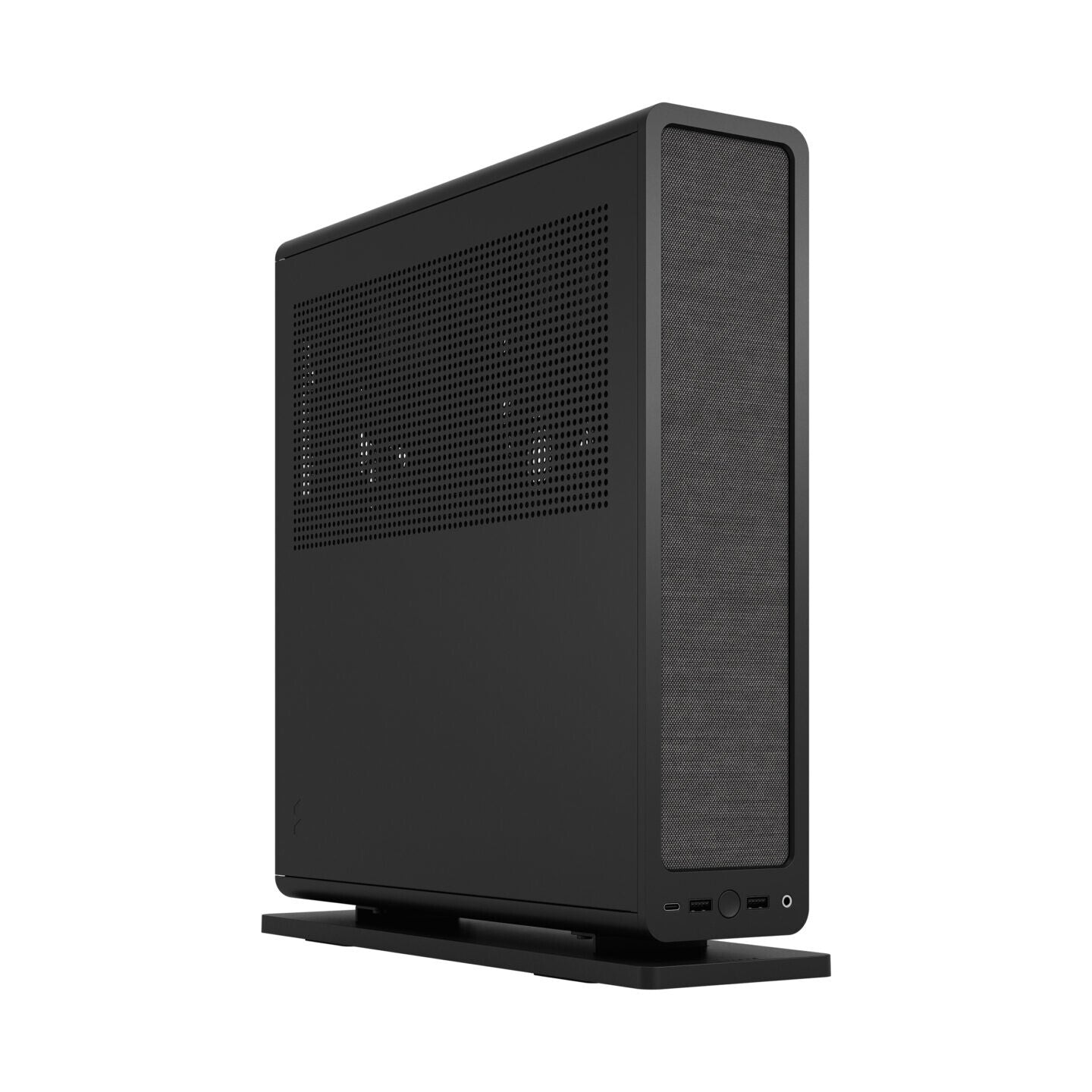

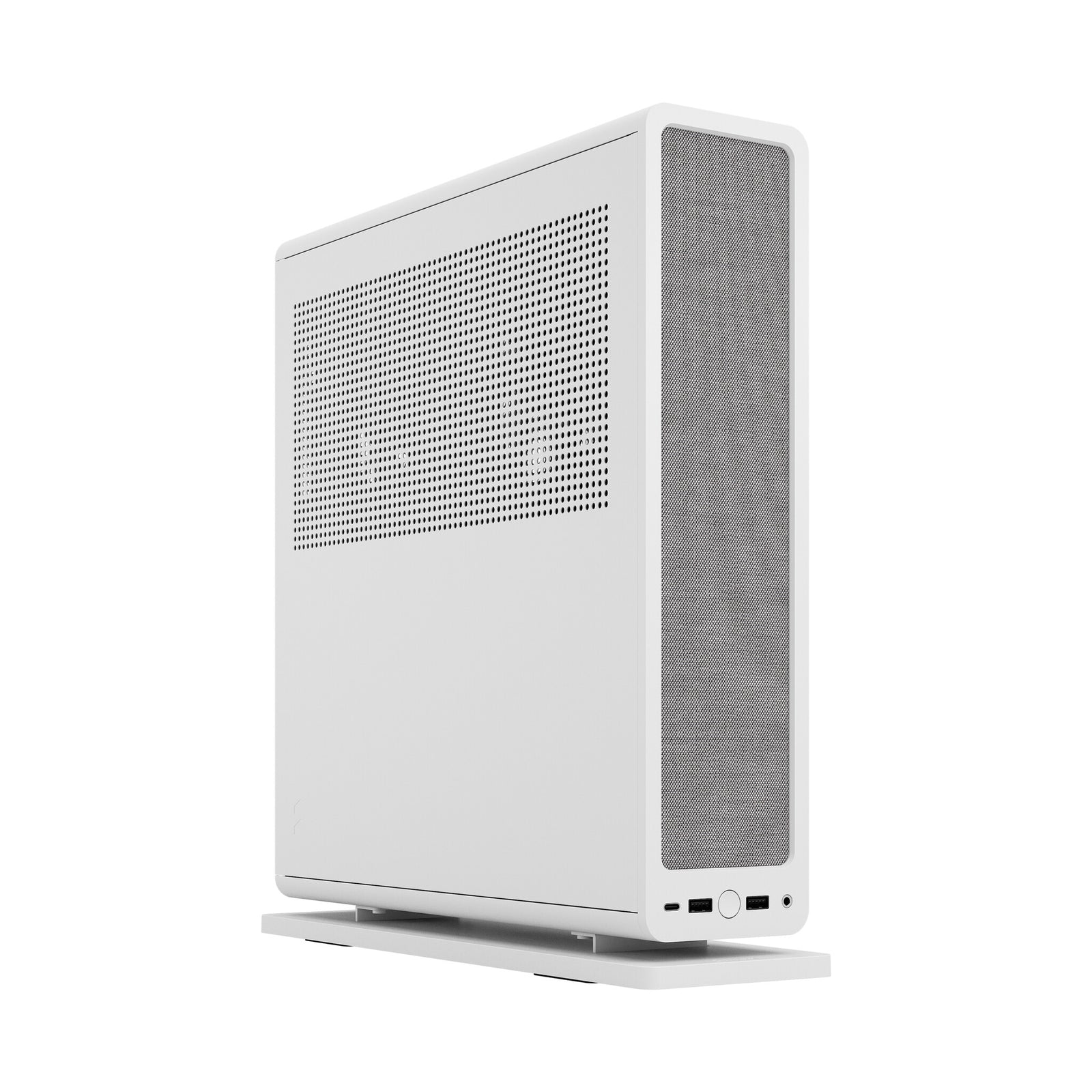

An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.
Find your balance
Maximized capability with a minimized footprint
Inch-perfect efficiency
- Meticulously engineered to maximize its capability while minimizing its footprint
- Small form factor case with a volume of 12.6 liters
- Supports GPUs up to a length of 335 mm
Horizontal or vertical
- Multiple feet configurations allow for both horizontal and vertical orientation
- Elevate any gaming desk, workspace or entertainment area
Unrivalled access
Remove any panel to gain easy access to every side of your build
All-around ventilation
- Ventilated on all sides to maximize its cooling potential
- Comes with 2x 140 mm PWM Aspect fans pre-installed
- Supports 2x 120/140 mm and 3x 80 mm fans
Well-balanced design
- Stylish fabric front with CNC machined aluminum frame
- Features a Power LED bar in front
Type-C interface
Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack
Smart configurations
- Comes with our own PCIe 4.0 or PCIe 3.0 riser card pre-installed
- Four 2.5” drive mounts included
| Design | |
|---|---|
| Maximum graphics card length | 33.5 cm |
| Maximum CPU cooler height | 7 cm |
| On/off button | Yes |
| RGB control button | Yes |
| Cable management | Yes |
| Number of expansion slots | 3 |
| Number of 2.5" bays | 4 |
| Supported motherboard form factors | Mini-ITX |
| Product colour | White |
| Material | Steel |
| Type | PC |
| Form factor | Small Form Factor (SFF) |
| Power supply | |
|---|---|
| Supported power supply form factors | SFX, SFX-L |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Side radiator sizes supported | 120,280 mm |
| Top fans diameters supported | 80 mm |
| Number of top fans supported (max) | 3 |
| Side fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 2 |
| Side fans installed | 2x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5" |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 4.3 kg |
| Height | 395 mm |
| Depth | 374 mm |
| Width | 110 mm |
| Packaging data | |
|---|---|
| Package weight | 5.5 kg |
| Package height | 431 mm |
| Package depth | 426 mm |
| Package width | 167 mm |
An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.
Find your balance
Maximized capability with a minimized footprint
Inch-perfect efficiency
- Meticulously engineered to maximize its capability while minimizing its footprint
- Small form factor case with a volume of 12.6 liters
- Supports GPUs up to a length of 335 mm
Horizontal or vertical
- Multiple feet configurations allow for both horizontal and vertical orientation
- Elevate any gaming desk, workspace or entertainment area
Unrivalled access
Remove any panel to gain easy access to every side of your build
All-around ventilation
- Ventilated on all sides to maximize its cooling potential
- Comes with 2x 140 mm PWM Aspect fans pre-installed
- Supports 2x 120/140 mm and 3x 80 mm fans
Well-balanced design
- Stylish fabric front with CNC machined aluminum frame
- Features a Power LED bar in front
Type-C interface
Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack
Smart configurations
- Comes with our own PCIe 4.0 or PCIe 3.0 riser card pre-installed
- Four 2.5” drive mounts included
| Design | |
|---|---|
| Maximum graphics card length | 33.5 cm |
| Maximum CPU cooler height | 7 cm |
| LED indicators | Power |
| On/off button | Yes |
| Cable management | Yes |
| Number of expansion slots | 3 |
| Number of 2.5" bays | 4 |
| Supported motherboard form factors | Mini-ITX |
| Product colour | Black |
| Material | Steel |
| Type | PC |
| Form factor | Small Form Factor (SFF) |
| Power supply | |
|---|---|
| Supported power supply form factors | SFX, SFX-L |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Side radiator sizes supported | 120,280 mm |
| Top fans diameters supported | 80 mm |
| Number of top fans supported (max) | 3 |
| Side fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 2 |
| Side fans installed | 2x 140 mm |
| Storage | |
|---|---|
| SSD form factor | 2.5" |
| Supported HDD sizes | 2.5" |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 4.3 kg |
| Height | 395 mm |
| Depth | 374 mm |
| Width | 110 mm |
| Packaging data | |
|---|---|
| Package weight | 5.5 kg |
| Package height | 431 mm |
| Package depth | 426 mm |
| Package width | 167 mm |
Fractal Design Silent Series R3 fans offer excellent value for money, with good performance and assured reliability.
All Fractal Design Silent Series R3 fans are equipped with long-life rifle bearings and an easy-to-hide, sleek black cable.
Available in a large variety of sizes, ranging from compact 40mm fans to full-size 140mm fans, the Silent Series R3 delivers suitable options for replacing loud or damaged fans in both computers and many other electronic devices.
- Featuring rifle bearings, providing improved life expectancy and lower noise compared to a standard sleeve bearing
- Black stealth ribbon cable, making it easy to hide the cable contributing to a clean build
- Improved, more balanced, sturdy fan design delivering precision at a good price point
- Low fan speeds, optimized for quiet operation
- Featuring Fractal Design’s signature black and white color scheme
- Offering sizes from 40mm up to 140mm for all your build needs
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 40000 h |
| Maximum air pressure | 1.41 mmH2O |
| Maximum airflow | 6.8 cfm |
| Noise level (high speed) | 19 dB |
| Rotational speed (max) | 3500 RPM |
| Fan diameter | 5 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 3-pin |
| Product colour | Black, White |
| Power | |
|---|---|
| Maximum current | 0.05 A |
| Voltage | 12 V |
| Power supply | 0.4 W |
| Weight & dimensions | |
|---|---|
| Package height | 26 mm |
| Package depth | 94 mm |
| Package width | 121 mm |
| Cable length | 0.35 m |
| Weight | 100 g |
| Height | 10 mm |
| Depth | 50 mm |
| Width | 50 mm |
| Technical details | |
|---|---|
| Bearing technology | Rifle |
| Other features | |
|---|---|
| Country of origin | Sweden |
| Mounting hole pattern (W x D) | 40 x 40 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Fractal Design Silent Series R3 fans offer excellent value for money, with good performance and assured reliability.
All Fractal Design Silent Series R3 fans are equipped with long-life rifle bearings and an easy-to-hide, sleek black cable.
Available in a large variety of sizes, ranging from compact 40mm fans to full-size 140mm fans, the Silent Series R3 delivers suitable options for replacing loud or damaged fans in both computers and many other electronic devices.
Where performance meets value.
- Featuring rifle bearings, providing improved life expectancy and lower noise compared to a standard sleeve bearing
- Black stealth ribbon cable, making it easy to hide the cable contributing to a clean build
- Improved, more balanced, sturdy fan design delivering precision at a good price point
- Low fan speeds, optimized for quiet operation
- Featuring Fractal Design’s signature black and white color scheme
- Offering sizes from 40mm up to 140mm for all your build needs
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 40000 h |
| Maximum air pressure | 0.78 mmH2O |
| Maximum airflow | 46.5 cfm |
| Noise level (high speed) | 20.5 dB |
| Rotational speed (max) | 1200 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 3-pin |
| Product colour | Black, White |
| Power | |
|---|---|
| Maximum current | 0.12 A |
| Voltage | 12 V |
| Power supply | 1 W |
| Weight & dimensions | |
|---|---|
| Package height | 26 mm |
| Package depth | 122 mm |
| Package width | 142 mm |
| Cable length | 0.35 m |
| Weight | 200 g |
| Height | 25 mm |
| Depth | 120 mm |
| Width | 120 mm |
| Technical details | |
|---|---|
| Bearing technology | Rifle |
| Other features | |
|---|---|
| Country of origin | Sweden |
| Mounting hole pattern (W x D) | 105 x 105 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Fractal Design Silent Series R3 fans offer excellent value for money, with good performance and assured reliability.
All Fractal Design Silent Series R3 fans are equipped with long-life rifle bearings and an easy-to-hide, sleek black cable.
Available in a large variety of sizes, ranging from compact 40mm fans to full-size 140mm fans, the Silent Series R3 delivers suitable options for replacing loud or damaged fans in both computers and many other electronic devices.
- Featuring rifle bearings, providing improved life expectancy and lower noise compared to a standard sleeve bearing
- Black stealth ribbon cable, making it easy to hide the cable contributing to a clean build
- Improved, more balanced, sturdy fan design delivering precision at a good price point
- Low fan speeds, optimized for quiet operation
- Featuring Fractal Design’s signature black and white color scheme
- Offering sizes from 40mm up to 140mm for all your build needs
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 40000 h |
| Maximum air pressure | 0.87 mmH2O |
| Maximum airflow | 56.1 cfm |
| Noise level (high speed) | 21.6 dB |
| Rotational speed (max) | 1000 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 3-pin |
| Product colour | Black, White |
| Power | |
|---|---|
| Maximum current | 0.2 A |
| Voltage | 12 V |
| Power supply | 1.6 W |
| Weight & dimensions | |
|---|---|
| Package height | 26 mm |
| Package depth | 142 mm |
| Package width | 167 mm |
| Cable length | 0.35 m |
| Weight | 250 g |
| Height | 25 mm |
| Depth | 140 mm |
| Width | 140 mm |
| Technical details | |
|---|---|
| Bearing technology | Rifle |
| Other features | |
|---|---|
| Country of origin | Sweden |
| Mounting hole pattern (W x D) | 125 x 125 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Fractal Design Silent Series R3 fans offer excellent value for money, with good performance and assured reliability.
All Fractal Design Silent Series R3 fans are equipped with long-life rifle bearings and an easy-to-hide, sleek black cable.
Available in a large variety of sizes, ranging from compact 40mm fans to full-size 140mm fans, the Silent Series R3 delivers suitable options for replacing loud or damaged fans in both computers and many other electronic devices.
Where performance meets value.
- Featuring rifle bearings, providing improved life expectancy and lower noise compared to a standard sleeve bearing
- Black stealth ribbon cable, making it easy to hide the cable contributing to a clean build
- Improved, more balanced, sturdy fan design delivering precision at a good price point
- Low fan speeds, optimized for quiet operation
- Featuring Fractal Design’s signature black and white color scheme
- Offering sizes from 40mm up to 140mm for all your build needs
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 40000 h |
| Maximum air pressure | 0.99 mmH2O |
| Maximum airflow | 20.2 cfm |
| Noise level (high speed) | 18.1 dB |
| Rotational speed (max) | 1600 RPM |
| Fan diameter | 8 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 3-pin |
| Product colour | Black, White |
| Power | |
|---|---|
| Maximum current | 0.06 A |
| Voltage | 12 V |
| Power supply | 0.5 W |
| Weight & dimensions | |
|---|---|
| Package height | 26 mm |
| Package depth | 94 mm |
| Package width | 121 mm |
| Cable length | 0.35 m |
| Weight | 150 g |
| Height | 25 mm |
| Depth | 80 mm |
| Width | 80 mm |
| Technical details | |
|---|---|
| Bearing technology | Rifle |
| Other features | |
|---|---|
| Country of origin | Sweden |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Fractal Design Silent Series R3 fans offer excellent value for money, with good performance and assured reliability.
All Fractal Design Silent Series R3 fans are equipped with long-life rifle bearings and an easy-to-hide, sleek black cable.
Available in a large variety of sizes, ranging from compact 40mm fans to full-size 140mm fans, the Silent Series R3 delivers suitable options for replacing loud or damaged fans in both computers and many other electronic devices.
- Featuring rifle bearings, providing improved life expectancy and lower noise compared to a standard sleeve bearing
- Black stealth ribbon cable, making it easy to hide the cable contributing to a clean build
- Improved, more balanced, sturdy fan design delivering precision at a good price point
- Low fan speeds, optimized for quiet operation
- Featuring Fractal Design’s signature black and white color scheme
- Offering sizes from 40mm up to 140mm for all your build needs
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 40000 h |
| Maximum air pressure | 0.79 mmH2O |
| Maximum airflow | 24.4 cfm |
| Noise level (high speed) | 18.3 dB |
| Rotational speed (max) | 1500 RPM |
| Fan diameter | 9.2 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 3-pin |
| Product colour | Black, White |
| Power | |
|---|---|
| Maximum current | 0.07 A |
| Voltage | 12 V |
| Power supply | 0.6 W |
| Weight & dimensions | |
|---|---|
| Package height | 26 mm |
| Package depth | 94 mm |
| Package width | 121 mm |
| Cable length | 0.35 m |
| Weight | 150 g |
| Height | 25 mm |
| Depth | 92 mm |
| Width | 92 mm |
| Technical details | |
|---|---|
| Bearing technology | Rifle |
| Other features | |
|---|---|
| Country of origin | Sweden |
| Mounting hole pattern (W x D) | 82.5 x 82.5 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |

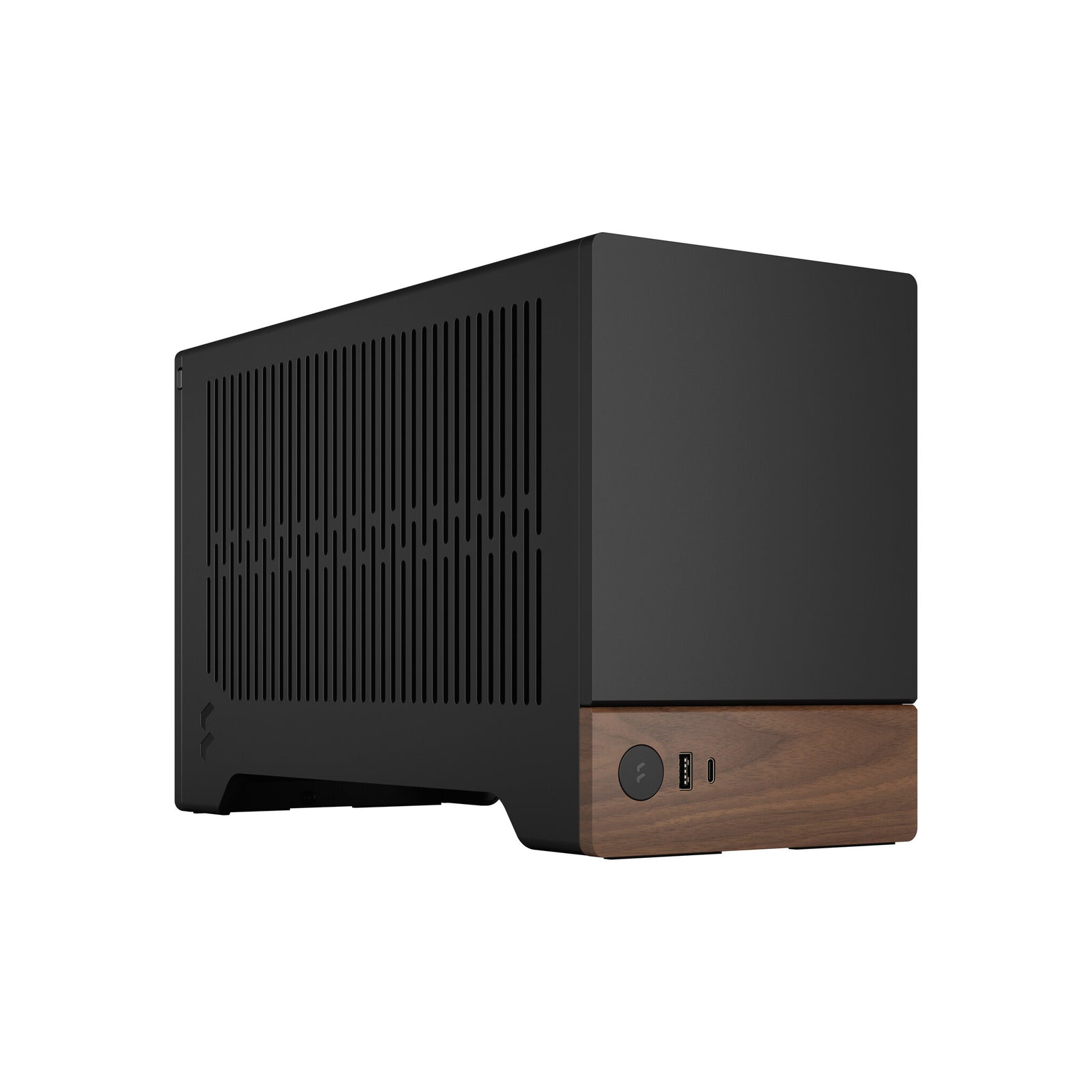

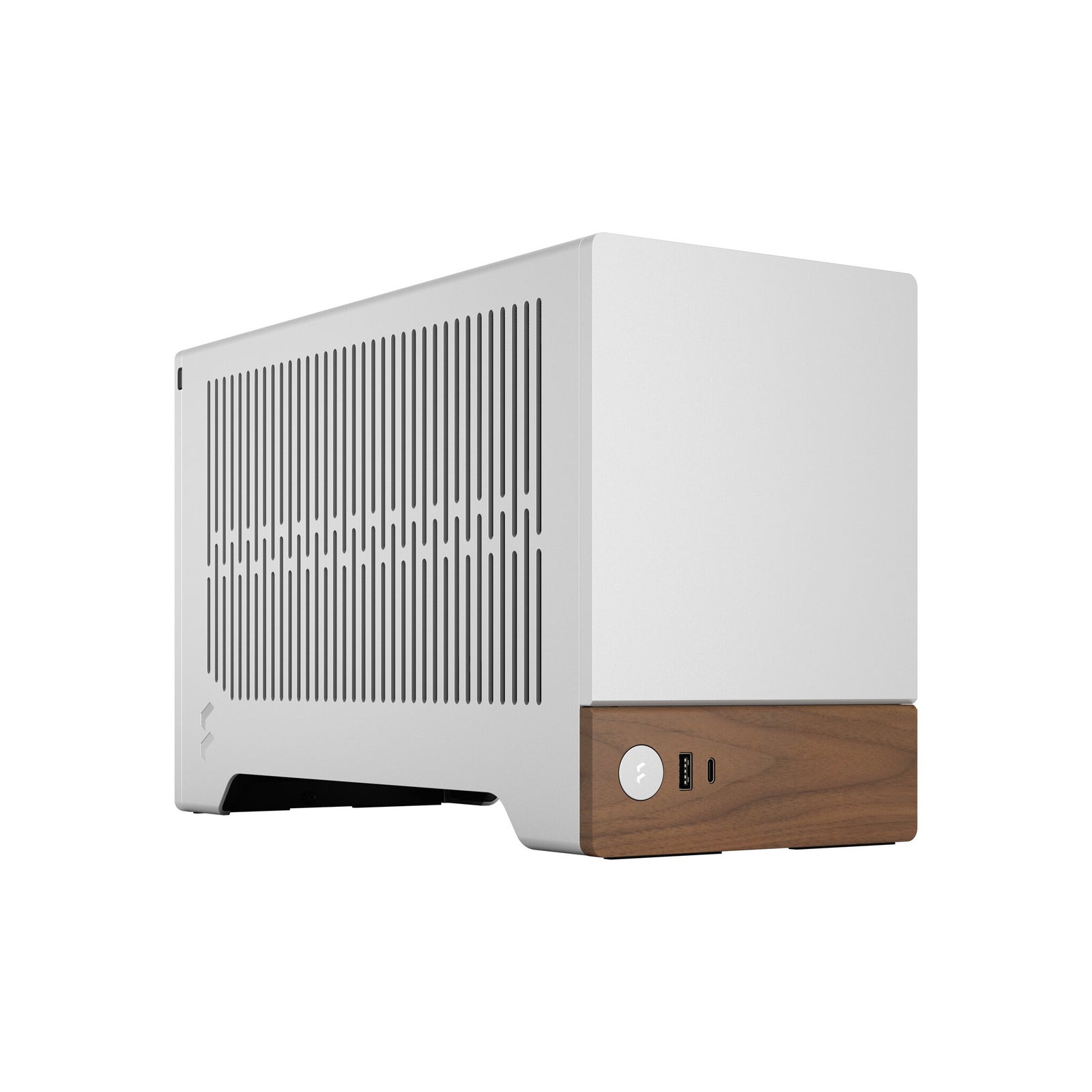

Terra is a PC case designed and engineered to reshape the small form factor gaming experience. Inspired by the homes of modern gamers, Terra incorporates boutique design features such as thick panels cut from anodized aluminum, CNC-milled details and FSC-certified solid walnut. Inside, it includes a PCIe 4.0 riser cable and features a stepless slidable central wall for build flexibility, providing space for a powerful GPU up to 322 mm in length.
Crafted to elevate
Designed and engineered to enhance small form factor gaming
Elegantly crafted
- Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
- Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front
- Make the most of natural airflow through the ventilated top, side and bottom panels
Engineered for SFF gaming
- Experience powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case
- Get a head start on your build with the included PCIe 4.0 riser cable
- Store up to two SSDs in the dedicated 2.5” drive mounts
Easily accessible
Slide open the top with an integrated tab and lift open the fully removable side panels for easy access to your components
Choose your accent
The Terra is available in your choice of three distinct anodized aluminum versions to perfectly complement and elevate your gaming space
Adjustable motherboard plate
Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, movable central wall
Slide to strike the best ratio for your build, adapting the space for CPU cooling on one side and graphics card width on the other

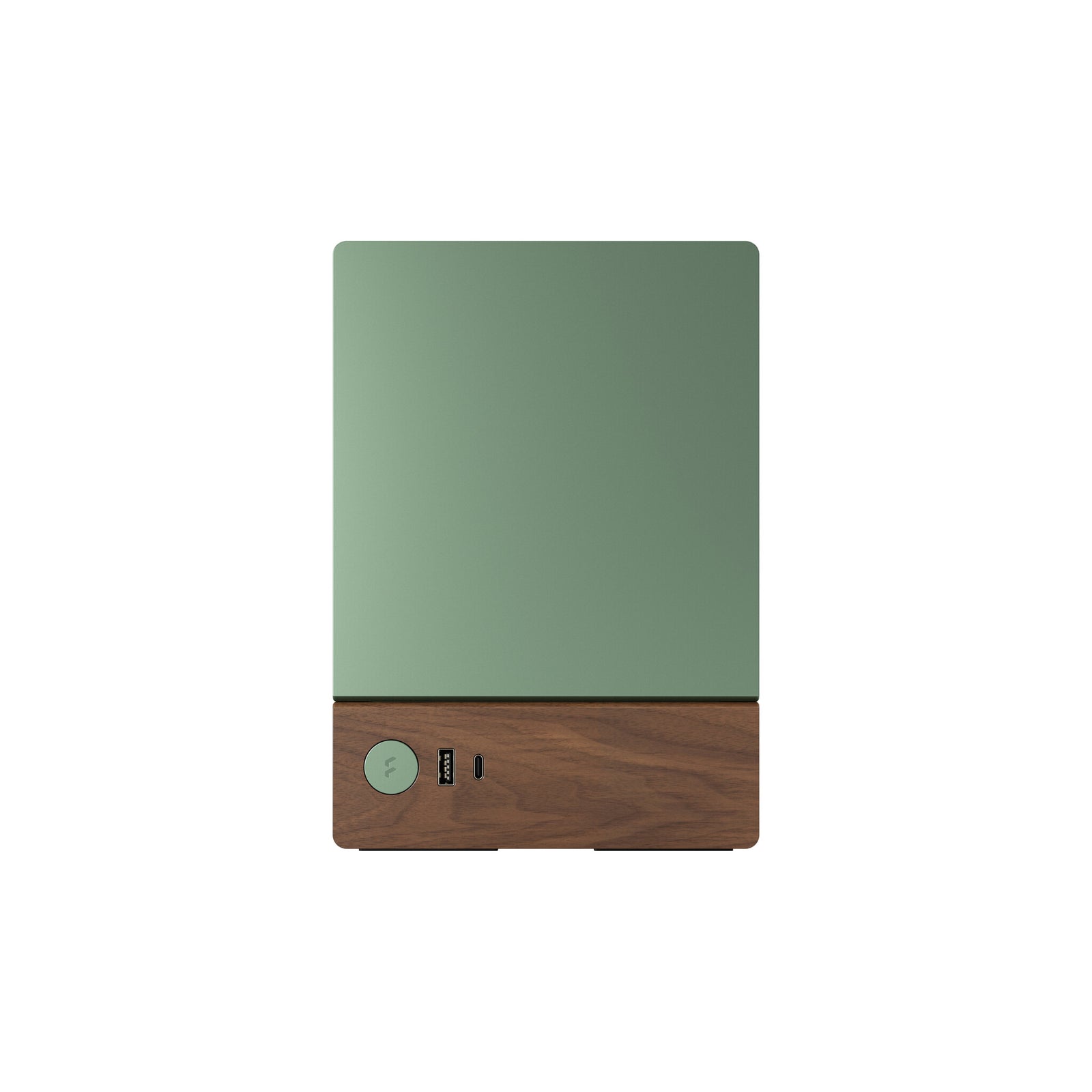

Front-facing I/O

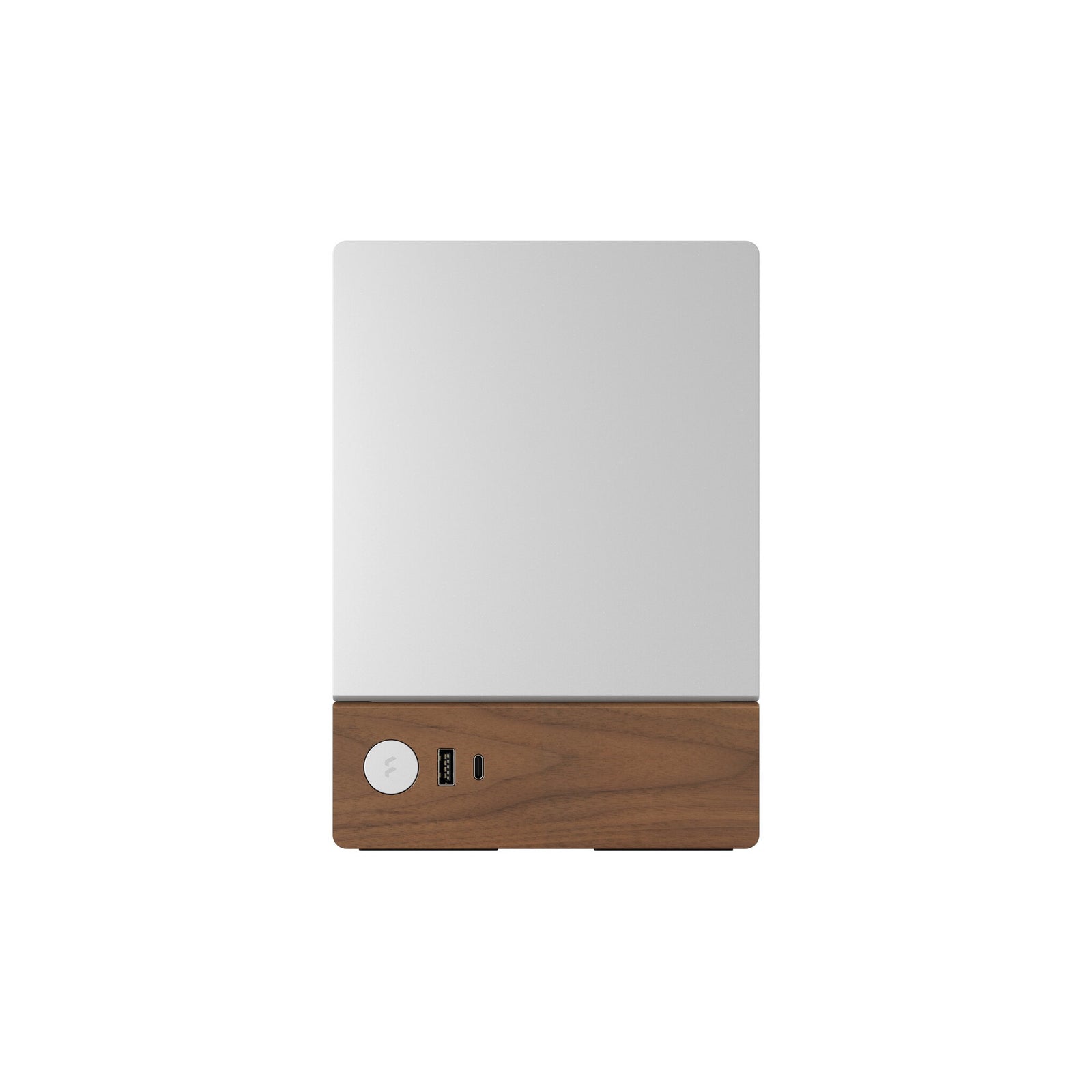

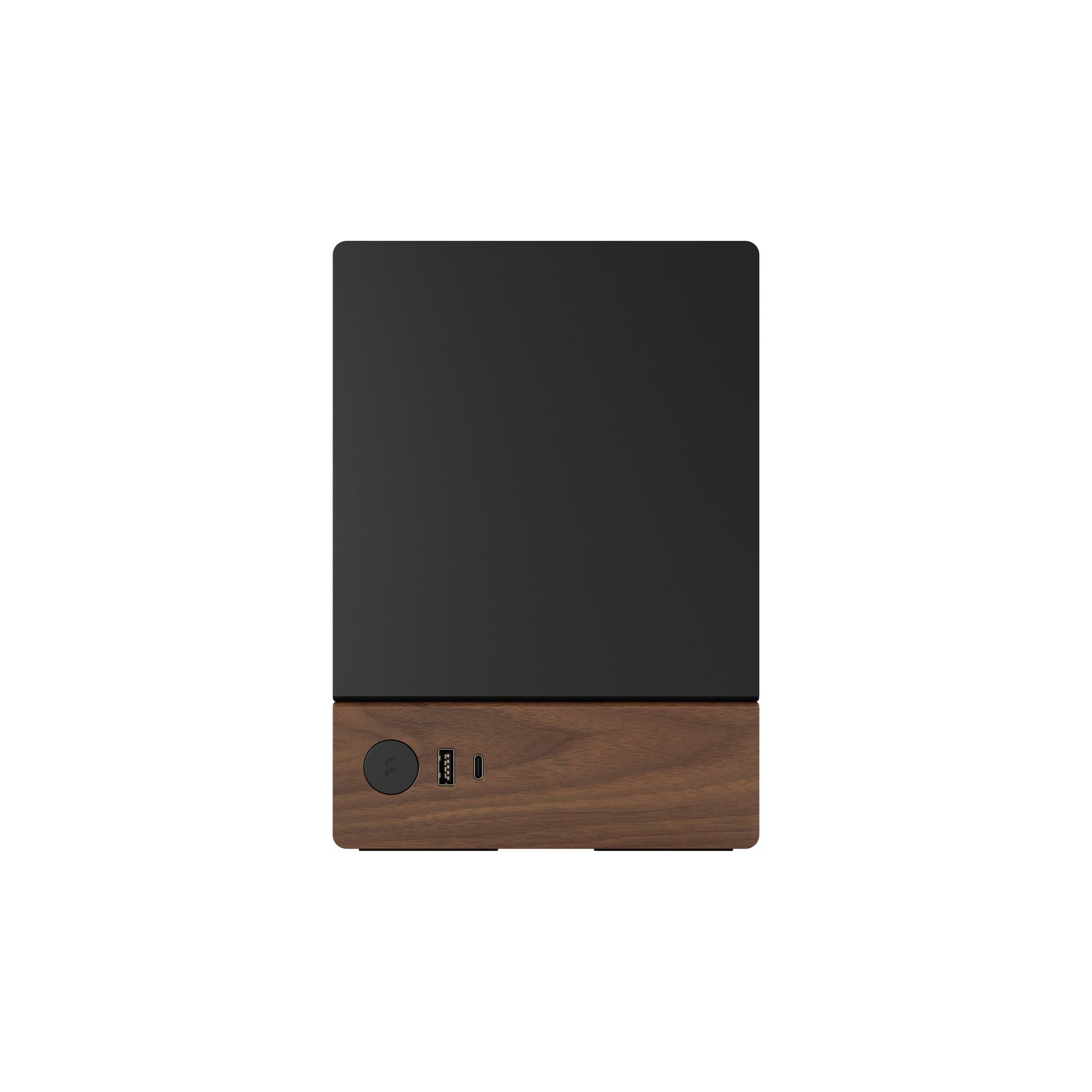

The solid walnut front panel features an aluminum power button and two USB ports for connecting devices, including one USB Type-C 20Gbps
Natural material
Enjoy a naturally unique finish, with an individual front panel cut from solid walnut.
Highly transportable
Features the ability to lock the top and side panels for safer transportation of your build
| Design | |
|---|---|
| Maximum PSU length | 13 cm |
| Maximum graphics card length | 32.2 cm |
| Maximum CPU cooler height | 7.7 cm |
| On/off button | Yes |
| Number of expansion slots | 3 |
| Number of 2.5" bays | 2 |
| Supported motherboard form factors | Mini-ITX |
| Product colour | Graphite |
| Material | Aluminium, Walnut |
| Type | PC |
| Form factor | Small Form Factor (SFF) |
| Power supply | |
|---|---|
| Supported power supply form factors | SFX, SFX-L |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| USB Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Cooling | |
|---|---|
| Side radiator sizes supported | 120 mm |
| Bottom fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Storage | |
|---|---|
| SSD form factor | 2.5" |
| Supported HDD sizes | 2.5" |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 3.1 kg |
| Height | 218 mm |
| Depth | 343 mm |
| Width | 153 mm |
| Packaging data | |
|---|---|
| Package weight | 4 kg |
| Package height | 292 mm |
| Package depth | 394 mm |
| Package width | 215 mm |
Terra is a PC case designed and engineered to reshape the small form factor gaming experience. Inspired by the homes of modern gamers, Terra incorporates boutique design features such as thick panels cut from anodized aluminum, CNC-milled details and FSC-certified solid walnut. Inside, it includes a PCIe 4.0 riser cable and features a stepless slidable central wall for build flexibility, providing space for a powerful GPU up to 322 mm in length.
Crafted to elevate
Designed and engineered to enhance small form factor gaming
Elegantly crafted
- Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
- Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front
- Make the most of natural airflow through the ventilated top, side and bottom panels
Engineered for SFF gaming
- Experience powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case
- Get a head start on your build with the included PCIe 4.0 riser cable
- Store up to two SSDs in the dedicated 2.5” drive mounts
Easily accessible
Slide open the top with an integrated tab and lift open the fully removable side panels for easy access to your components
Choose your accent
The Terra is available in your choice of three distinct anodized aluminum versions to perfectly complement and elevate your gaming space
Adjustable motherboard plate
Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, movable central wall
Slide to strike the best ratio for your build, adapting the space for CPU cooling on one side and graphics card width on the other
Front-facing I/O
The solid walnut front panel features an aluminum power button and two USB ports for connecting devices, including one USB Type-C 20Gbps
Natural material
Enjoy a naturally unique finish, with an individual front panel cut from solid walnut.
Highly transportable
Features the ability to lock the top and side panels for safer transportation of your build
| Design | |
|---|---|
| Maximum PSU length | 13 cm |
| Maximum graphics card length | 32.2 cm |
| Maximum CPU cooler height | 7.7 cm |
| On/off button | Yes |
| Number of expansion slots | 3 |
| Number of 2.5" bays | 2 |
| Supported motherboard form factors | Mini-ITX |
| Product colour | Green |
| Material | Aluminium, Walnut |
| Type | PC |
| Form factor | Small Form Factor (SFF) |
| Power supply | |
|---|---|
| Supported power supply form factors | SFX, SFX-L |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| USB Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Cooling | |
|---|---|
| Side radiator sizes supported | 120 mm |
| Bottom fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Storage | |
|---|---|
| SSD form factor | 2.5" |
| Supported HDD sizes | 2.5" |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 3.1 kg |
| Height | 218 mm |
| Depth | 343 mm |
| Width | 153 mm |
| Packaging data | |
|---|---|
| Package weight | 4 kg |
| Package height | 292 mm |
| Package depth | 394 mm |
| Package width | 215 mm |
Terra is a PC case designed and engineered to reshape the small form factor gaming experience. Inspired by the homes of modern gamers, Terra incorporates boutique design features such as thick panels cut from anodized aluminum, CNC-milled details and FSC-certified solid walnut. Inside, it includes a PCIe 4.0 riser cable and features a stepless slidable central wall for build flexibility, providing space for a powerful GPU up to 322 mm in length.
Crafted to elevate
Designed and engineered to enhance small form factor gaming
Elegantly crafted
- Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
- Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front
- Make the most of natural airflow through the ventilated top, side and bottom panels
Engineered for SFF gaming
- Experience powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case
- Get a head start on your build with the included PCIe 4.0 riser cable
- Store up to two SSDs in the dedicated 2.5” drive mounts
Easily accessible
Slide open the top with an integrated tab and lift open the fully removable side panels for easy access to your components
Choose your accent
The Terra is available in your choice of three distinct anodized aluminum versions to perfectly complement and elevate your gaming space
Adjustable motherboard plate
Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, movable central wall
Slide to strike the best ratio for your build, adapting the space for CPU cooling on one side and graphics card width on the other
Front-facing I/O
The solid walnut front panel features an aluminum power button and two USB ports for connecting devices, including one USB Type-C 20Gbps
Natural material
Enjoy a naturally unique finish, with an individual front panel cut from solid walnut.
Highly transportable
Features the ability to lock the top and side panels for safer transportation of your build
| Design | |
|---|---|
| Maximum PSU length | 13 cm |
| Maximum graphics card length | 32.2 cm |
| Maximum CPU cooler height | 7.7 cm |
| On/off button | Yes |
| Number of expansion slots | 3 |
| Number of 2.5" bays | 2 |
| Supported motherboard form factors | Mini-ITX |
| Product colour | Silver |
| Material | Aluminium, Walnut |
| Type | PC |
| Form factor | Small Form Factor (SFF) |
| Power supply | |
|---|---|
| Supported power supply form factors | SFX, SFX-L |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| USB Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Cooling | |
|---|---|
| Side radiator sizes supported | 120 mm |
| Bottom fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Storage | |
|---|---|
| SSD form factor | 2.5" |
| Supported HDD sizes | 2.5" |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 3.1 kg |
| Height | 218 mm |
| Depth | 343 mm |
| Width | 153 mm |
| Packaging data | |
|---|---|
| Package weight | 4 kg |
| Package height | 292 mm |
| Package depth | 394 mm |
| Package width | 215 mm |

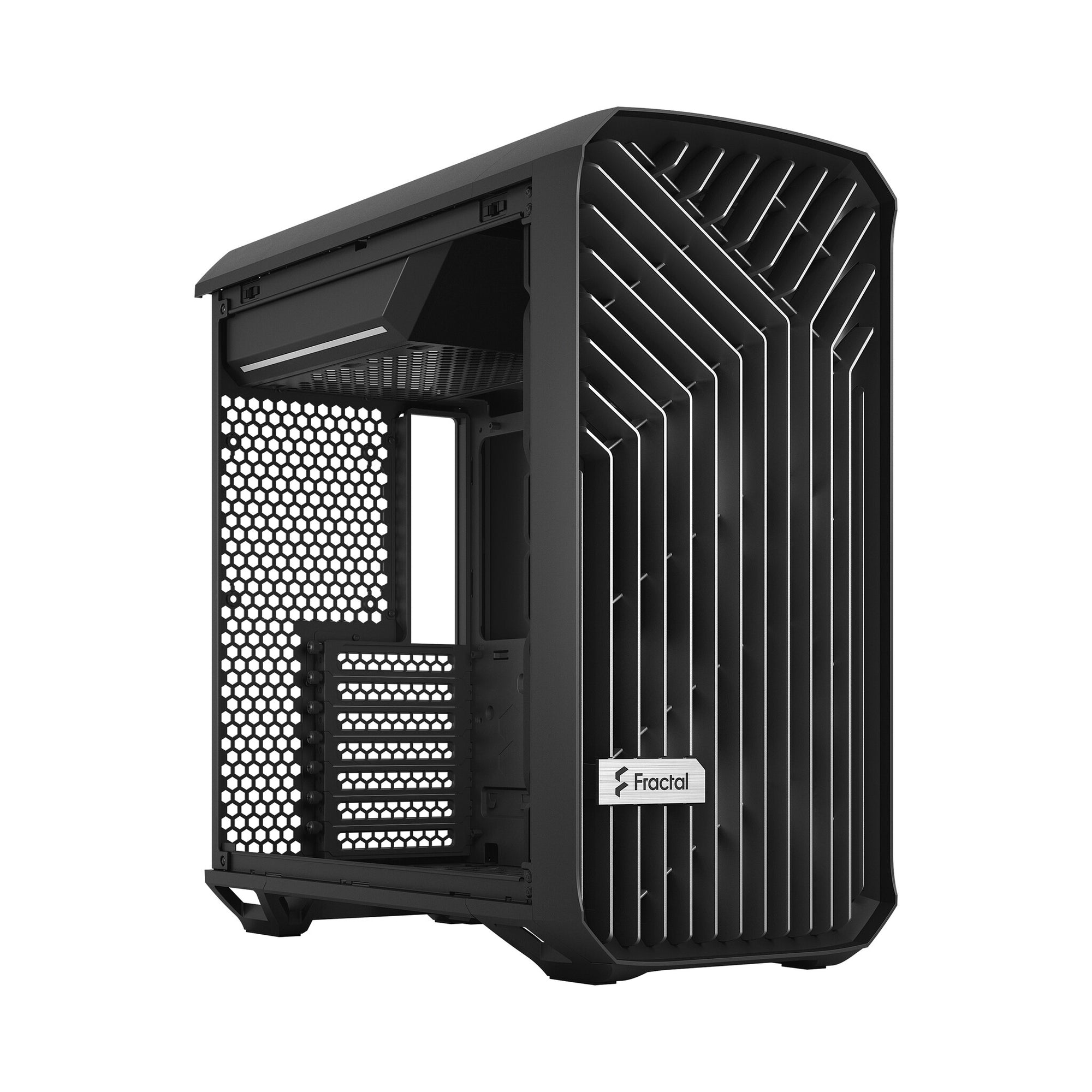

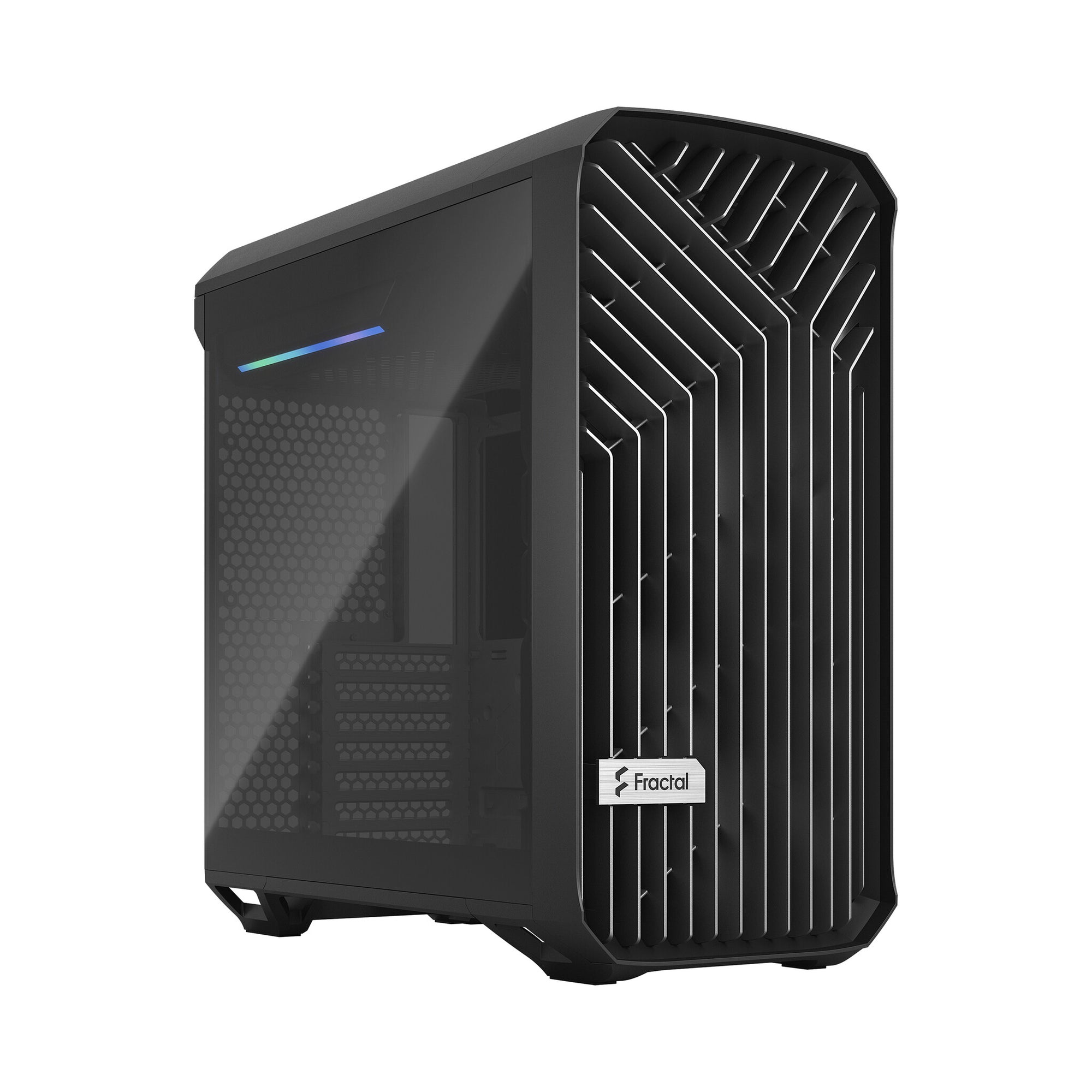

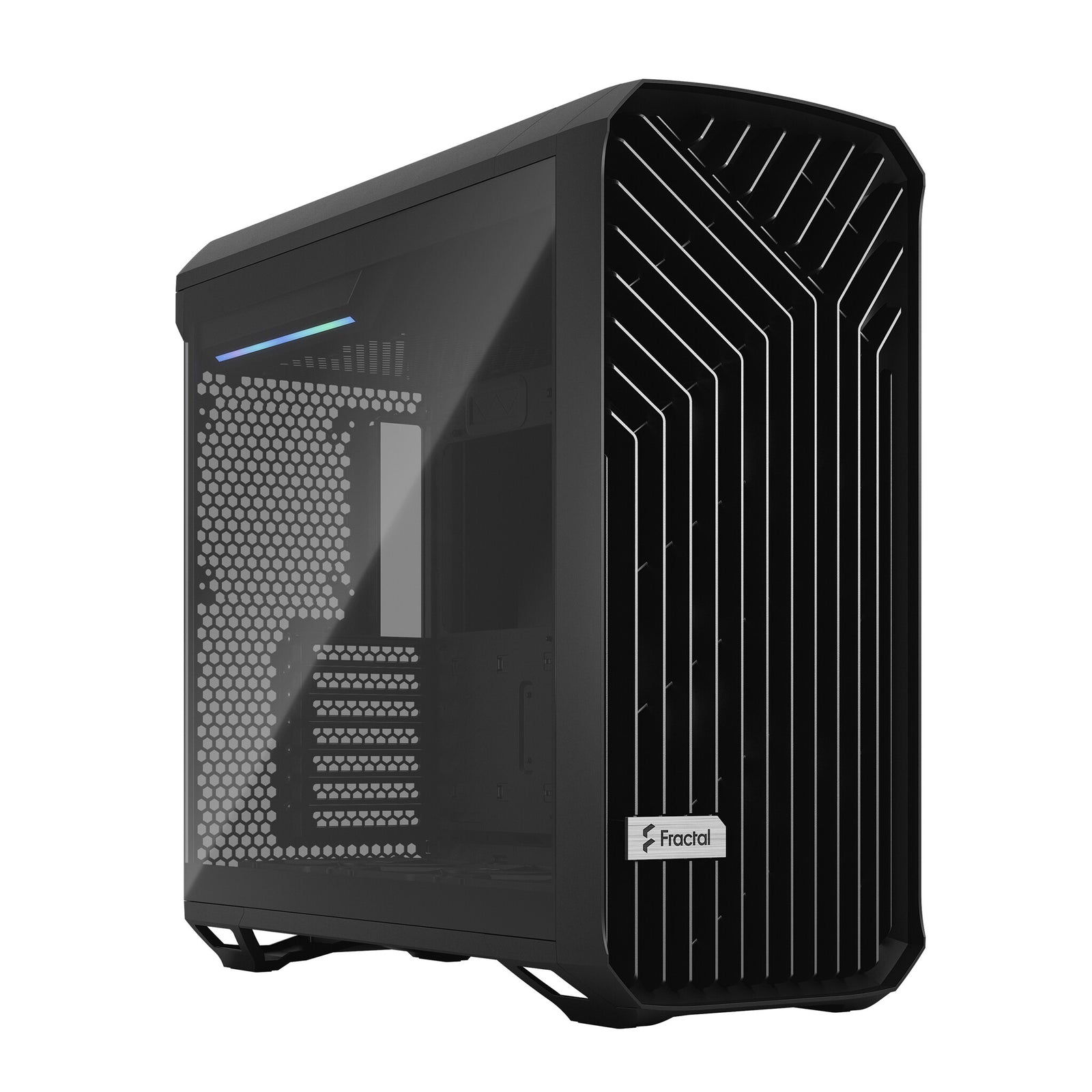

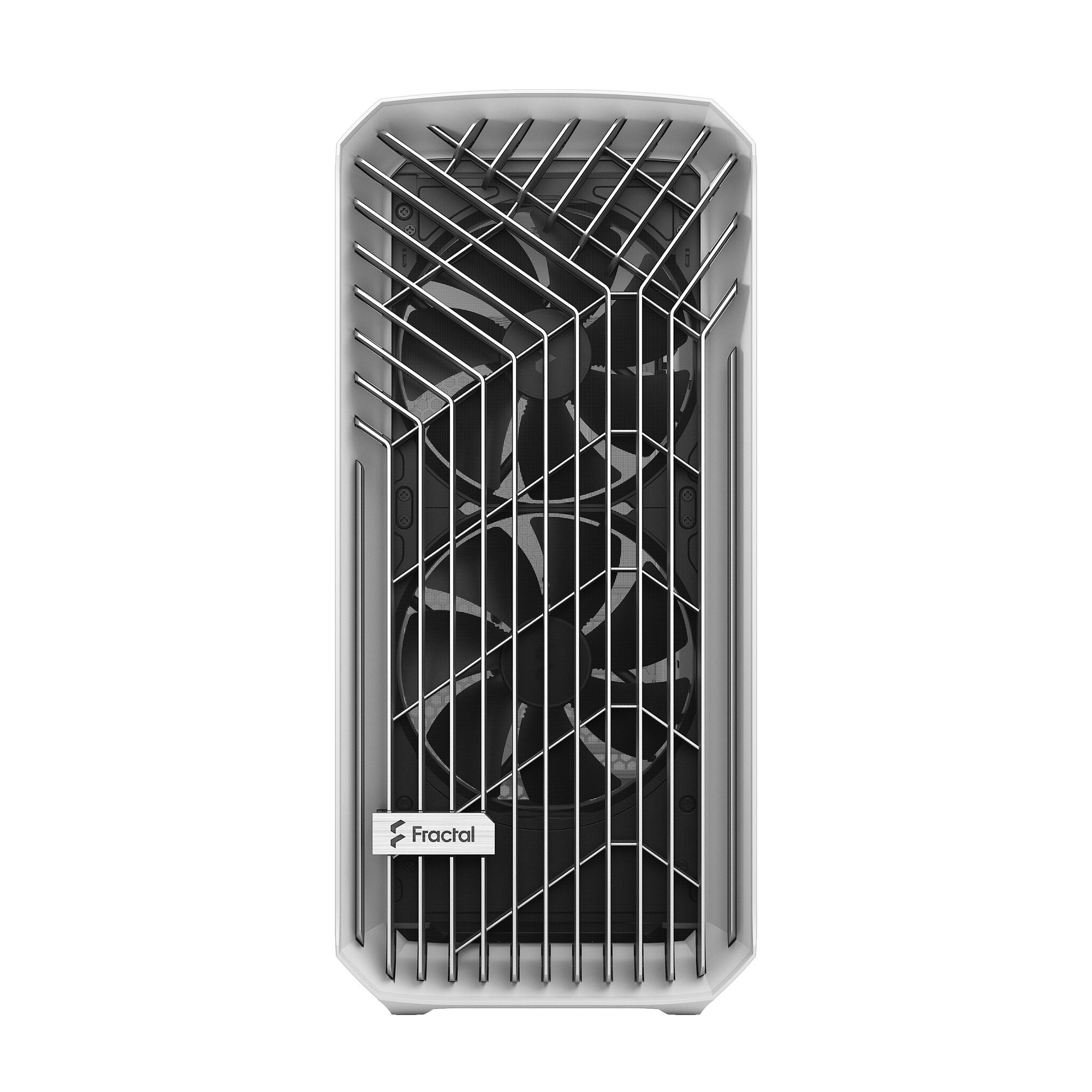

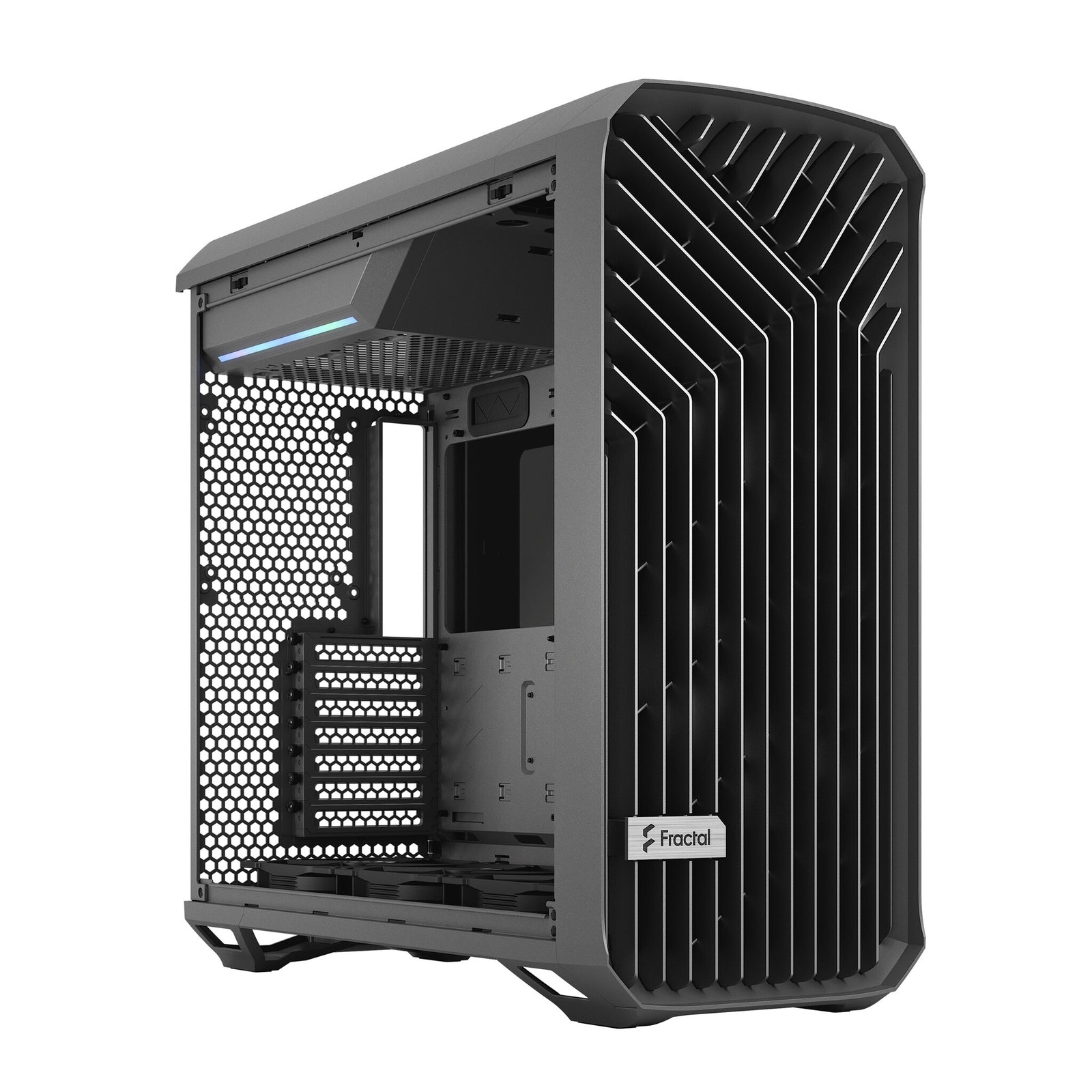

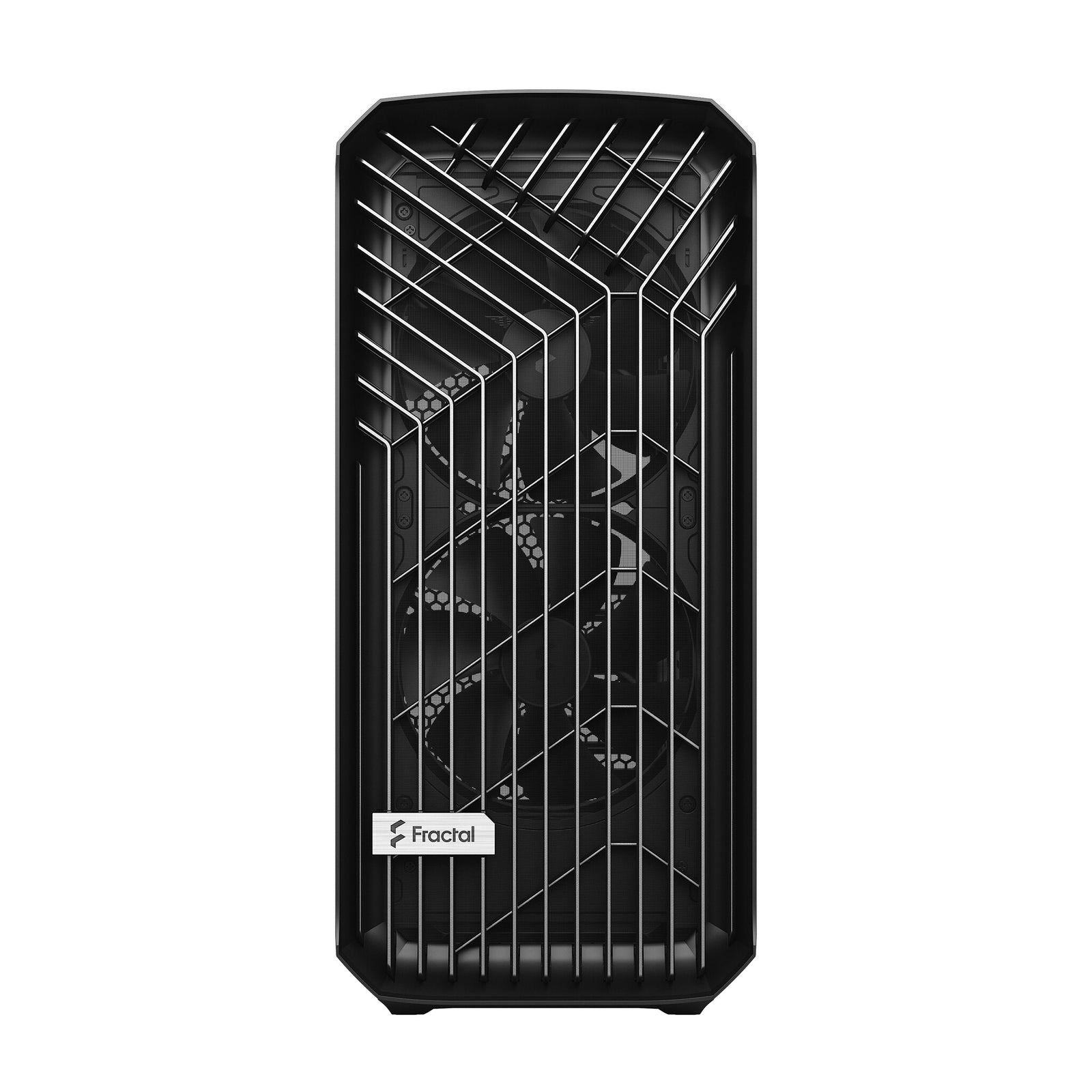

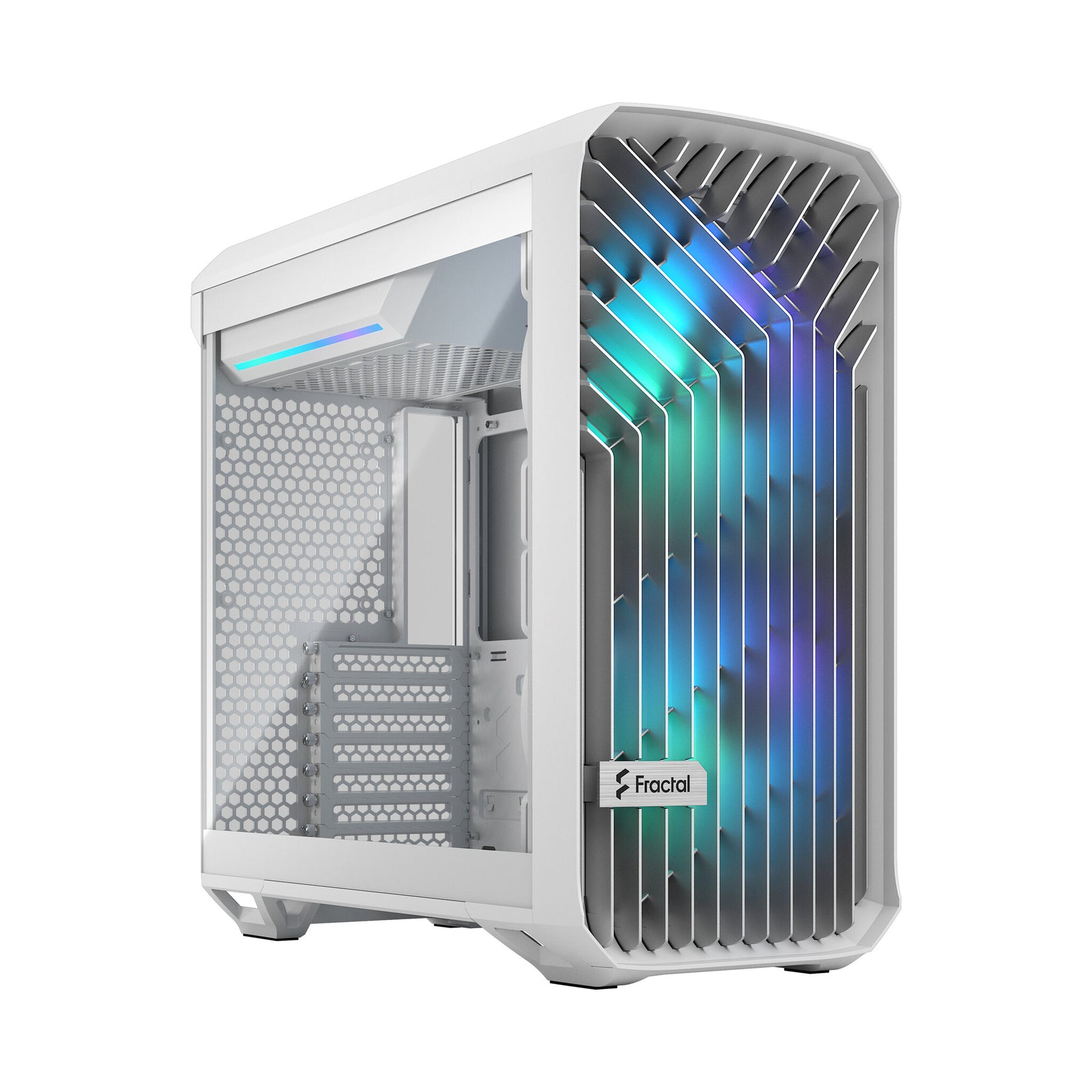

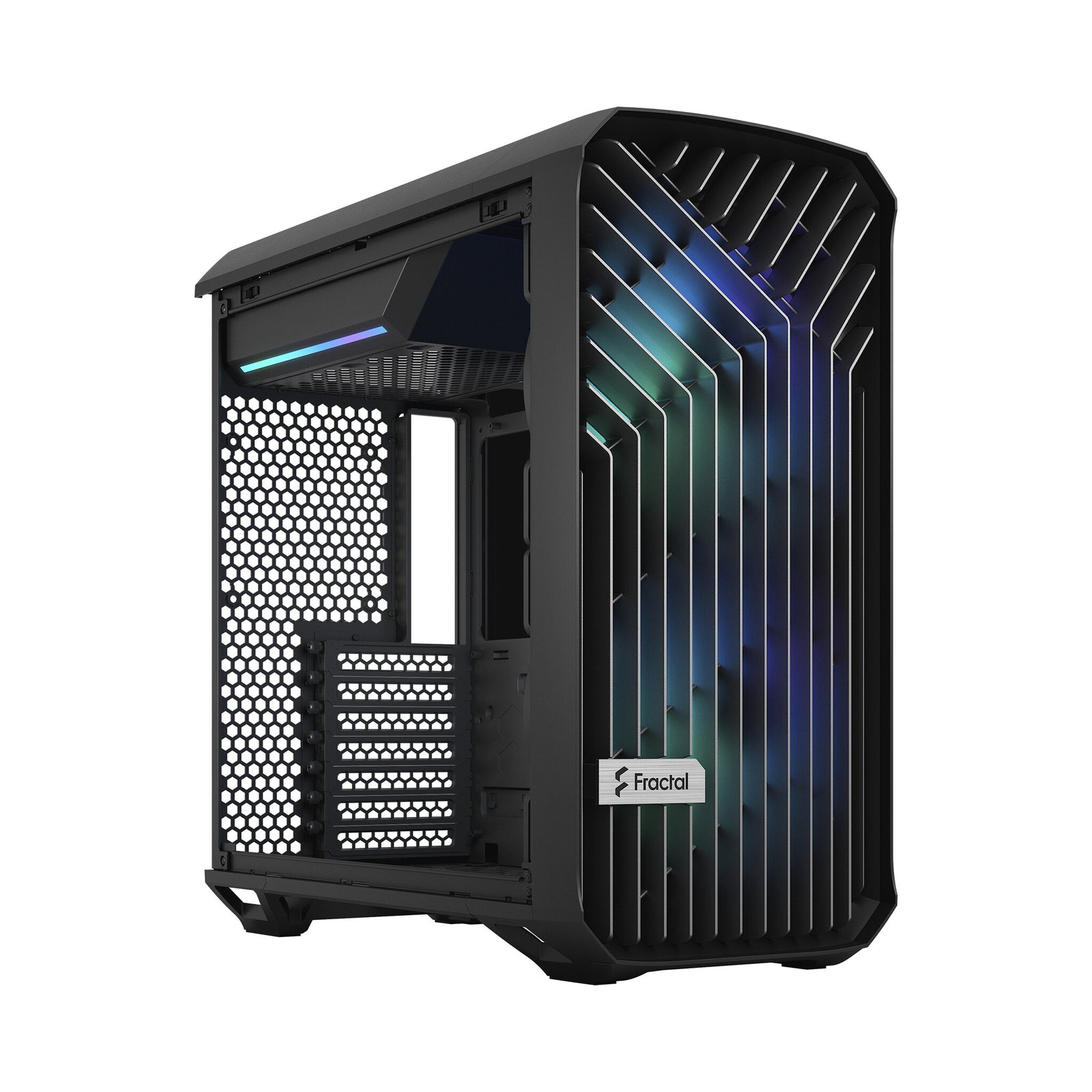

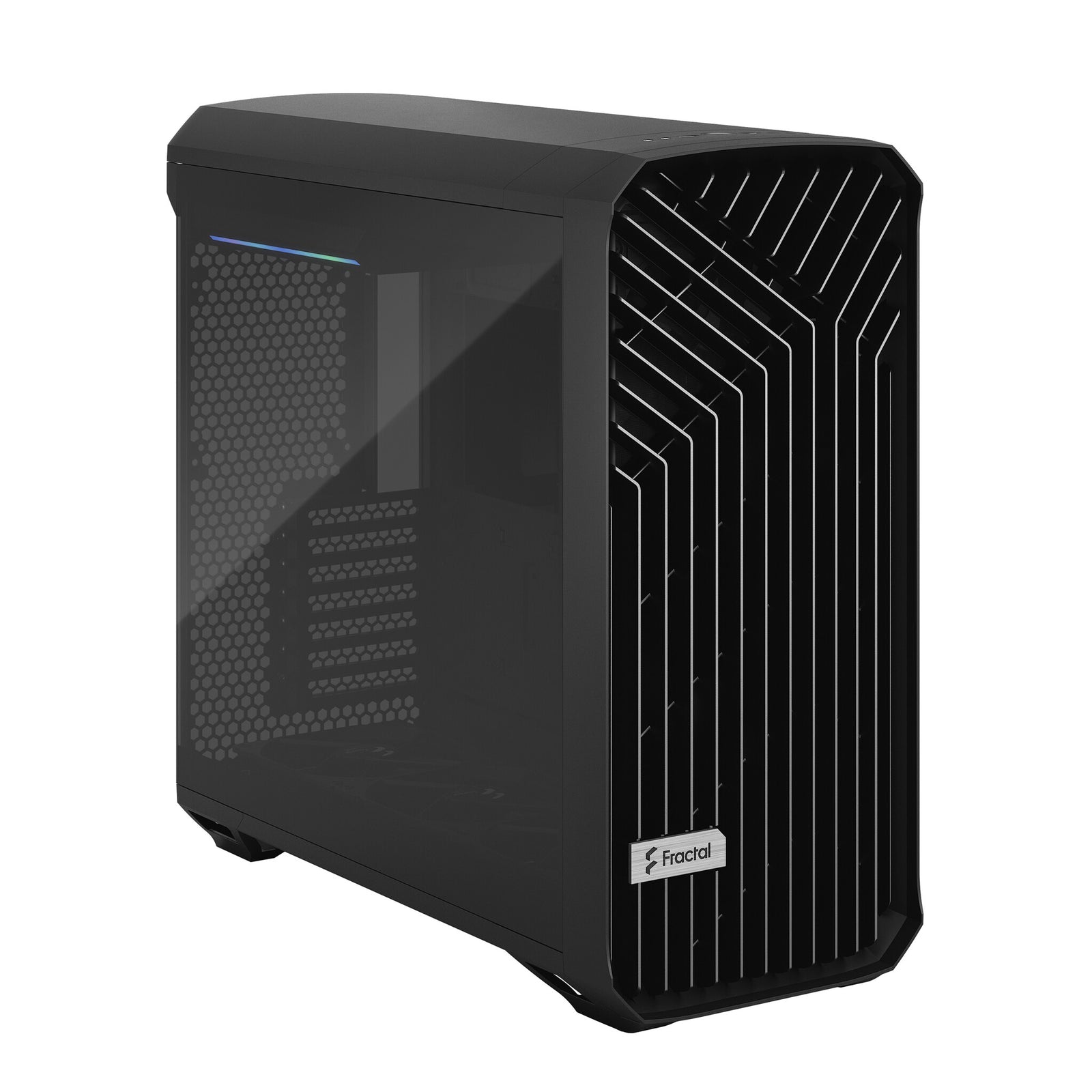

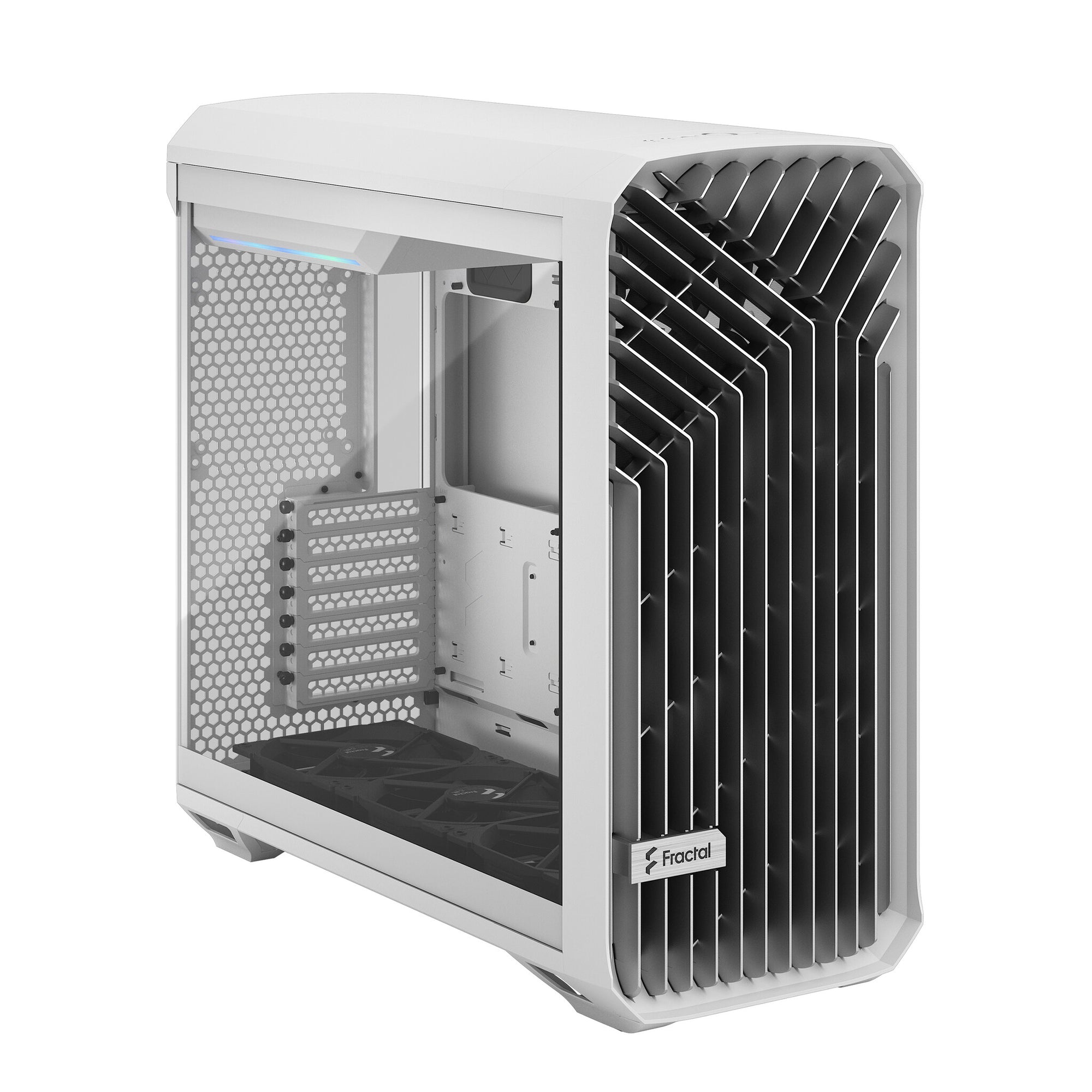

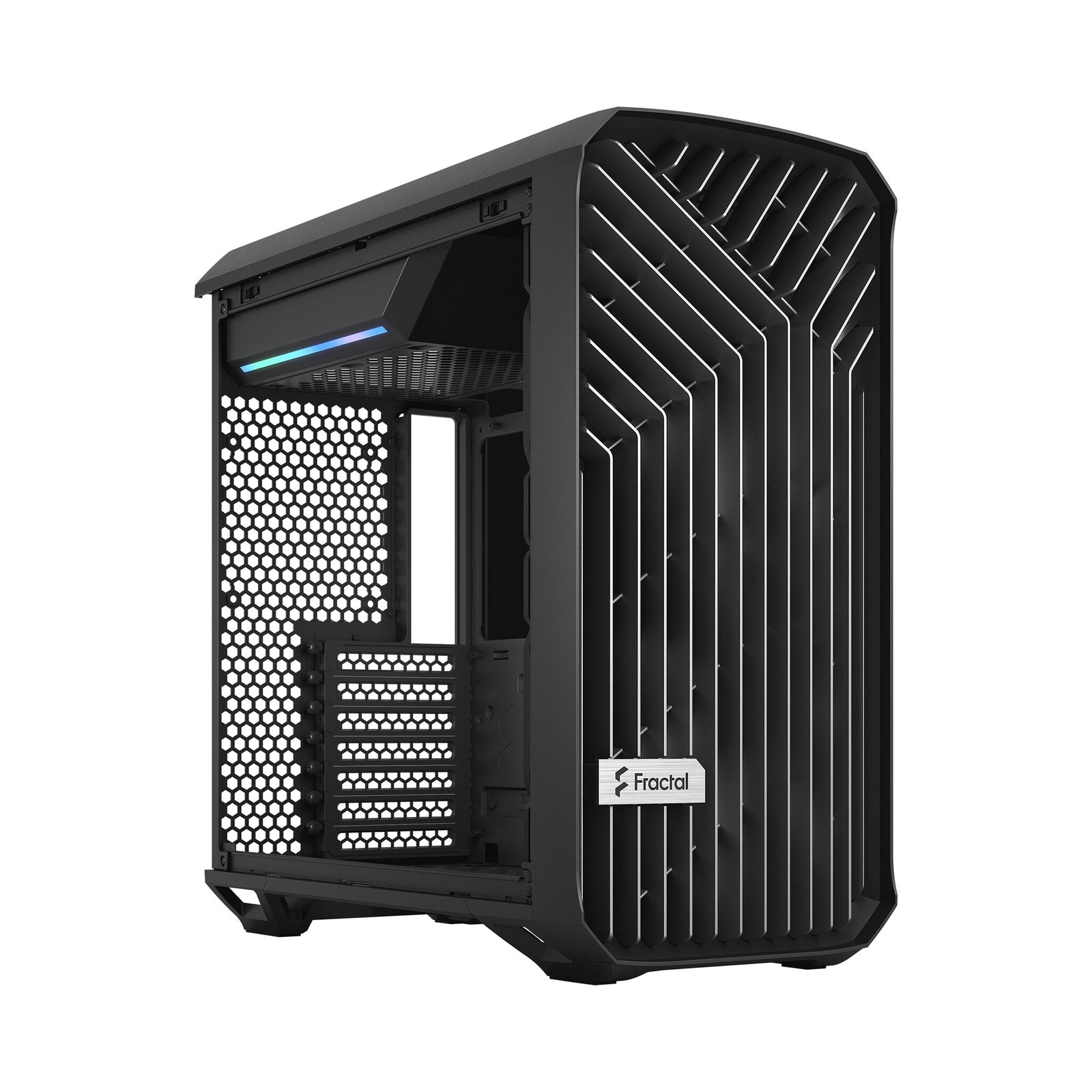

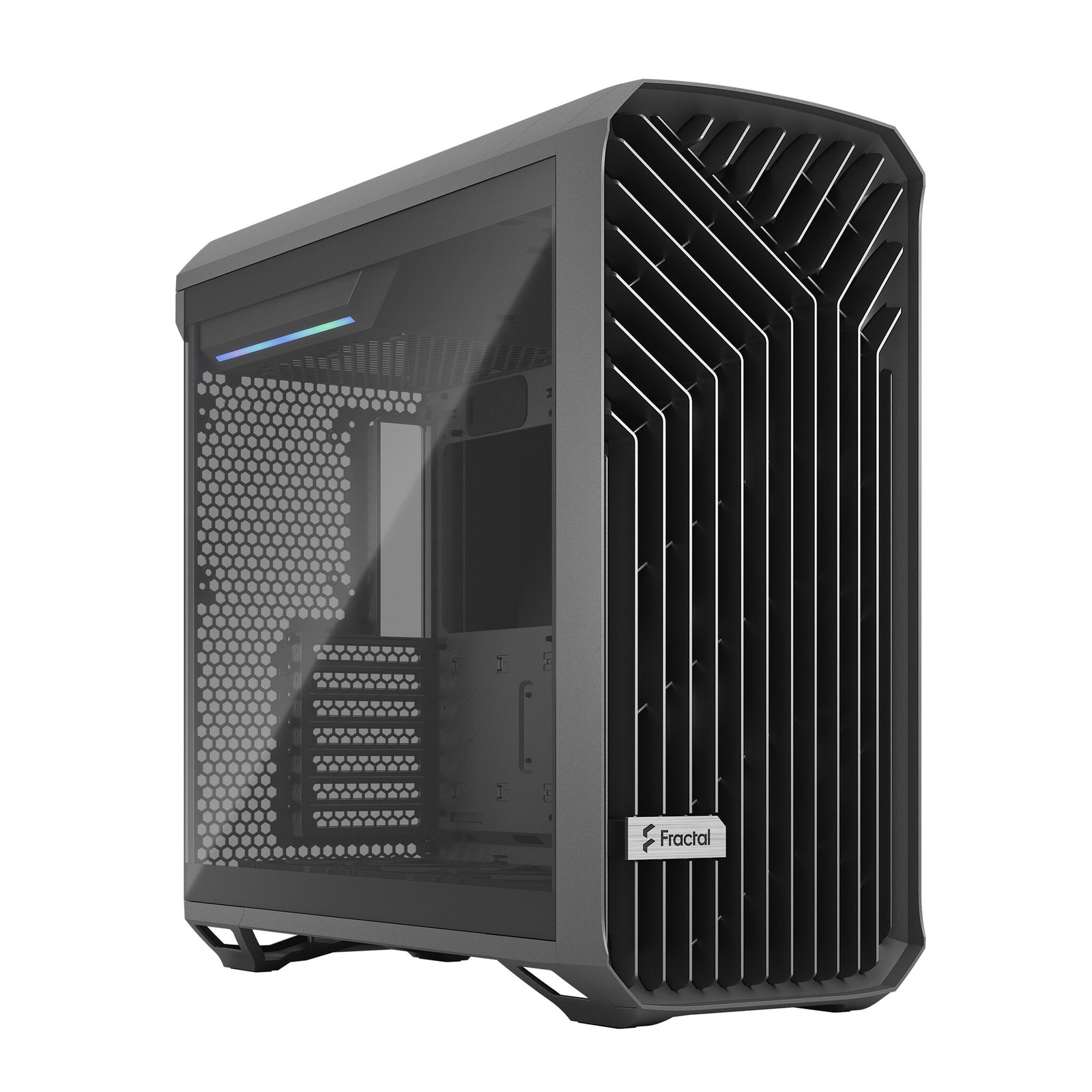

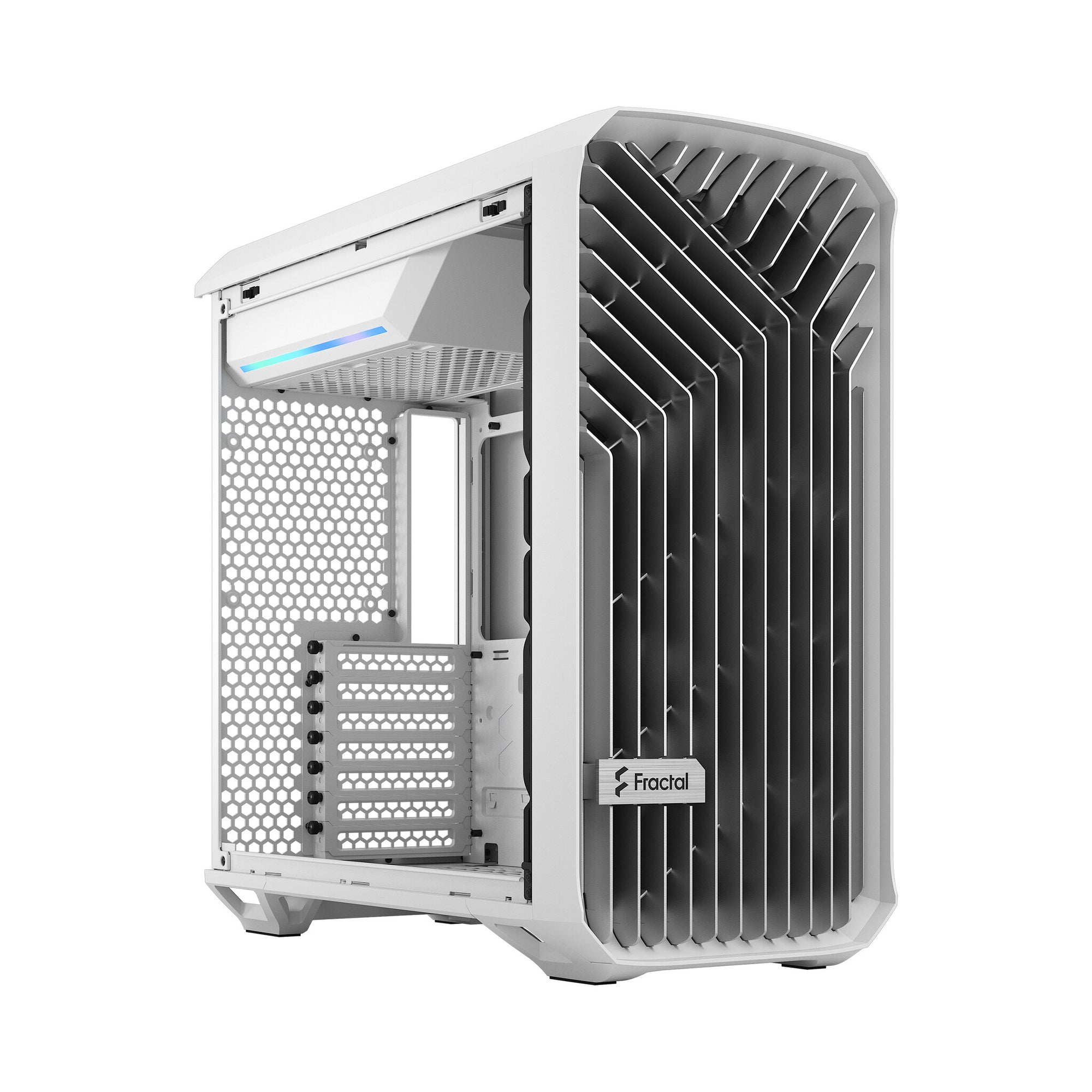

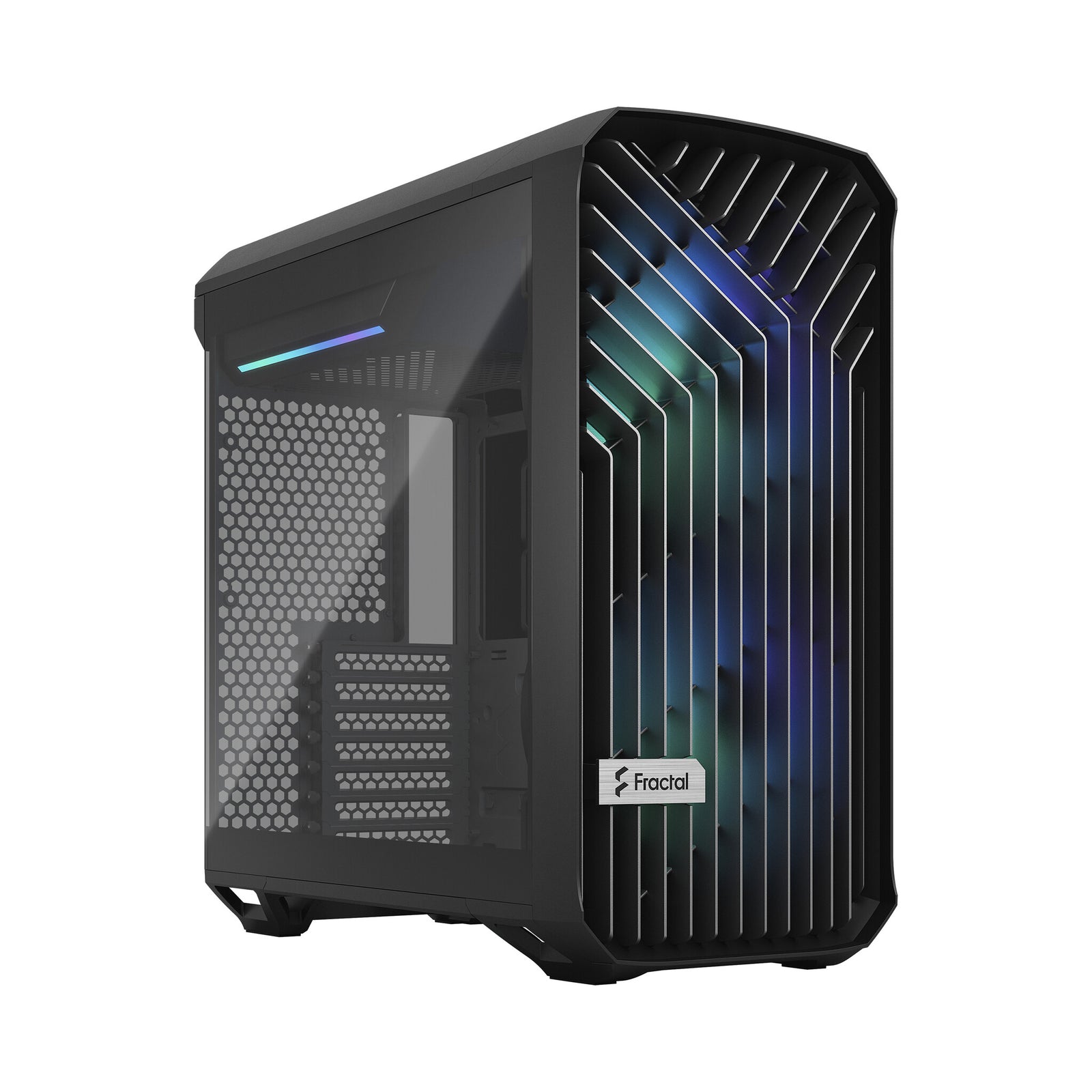

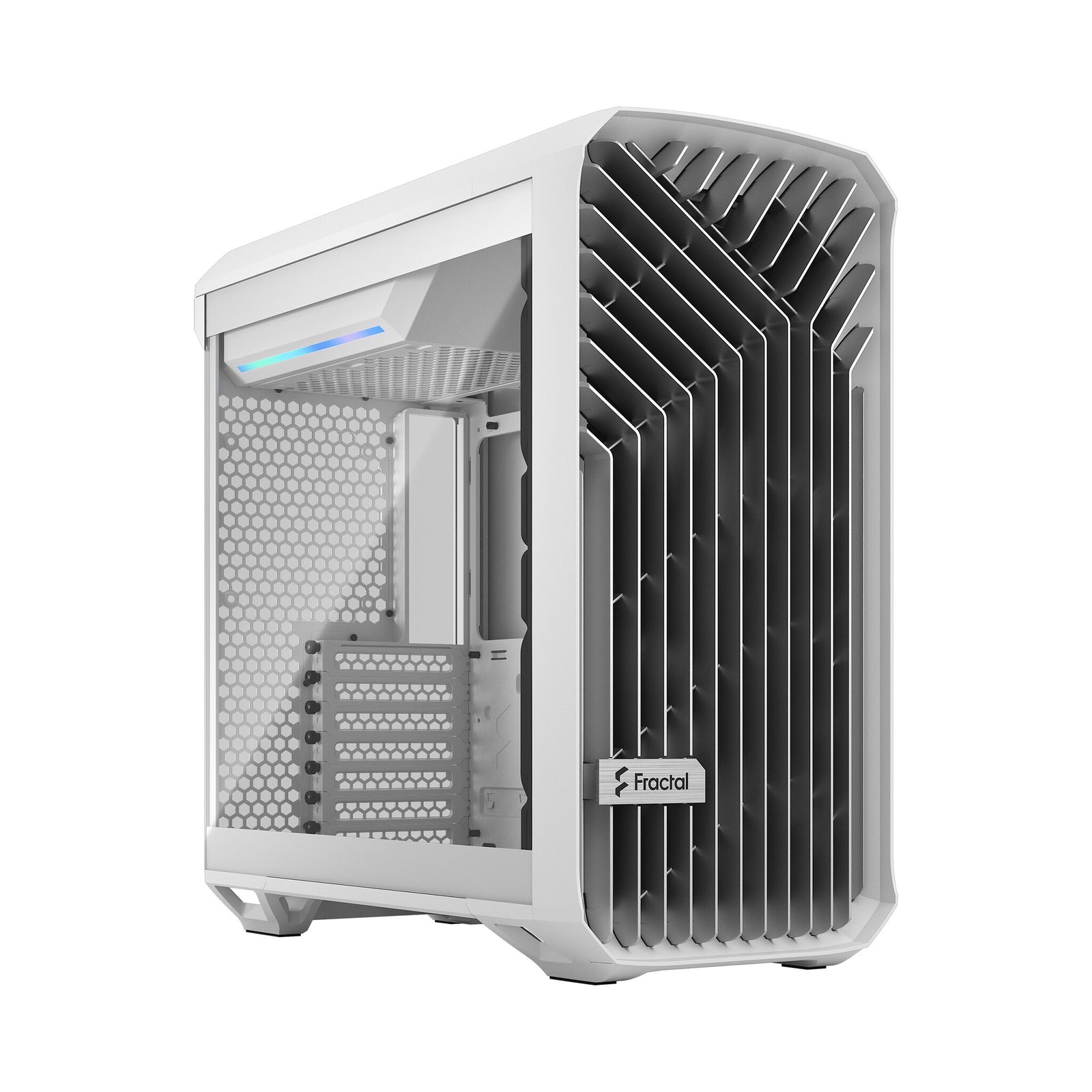

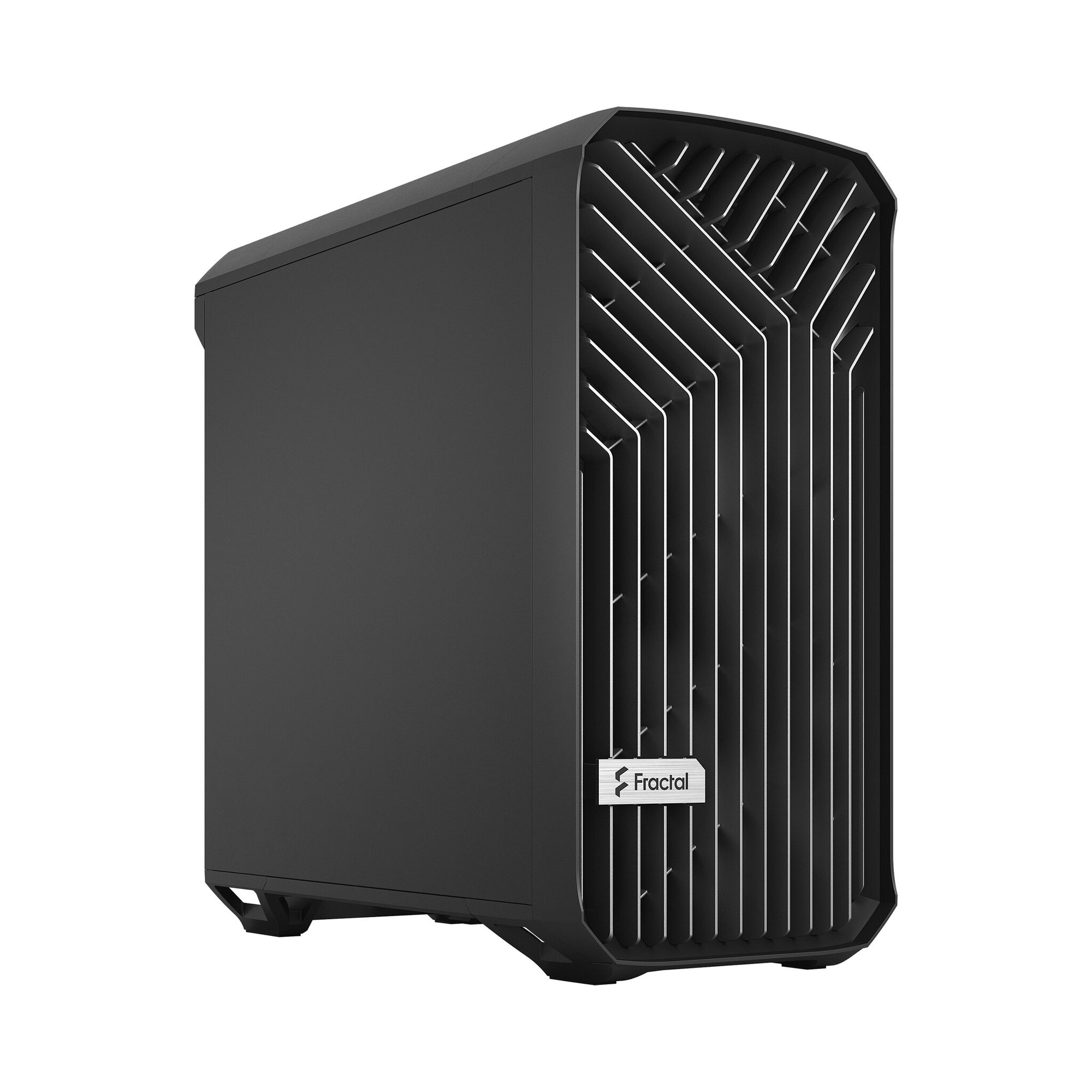

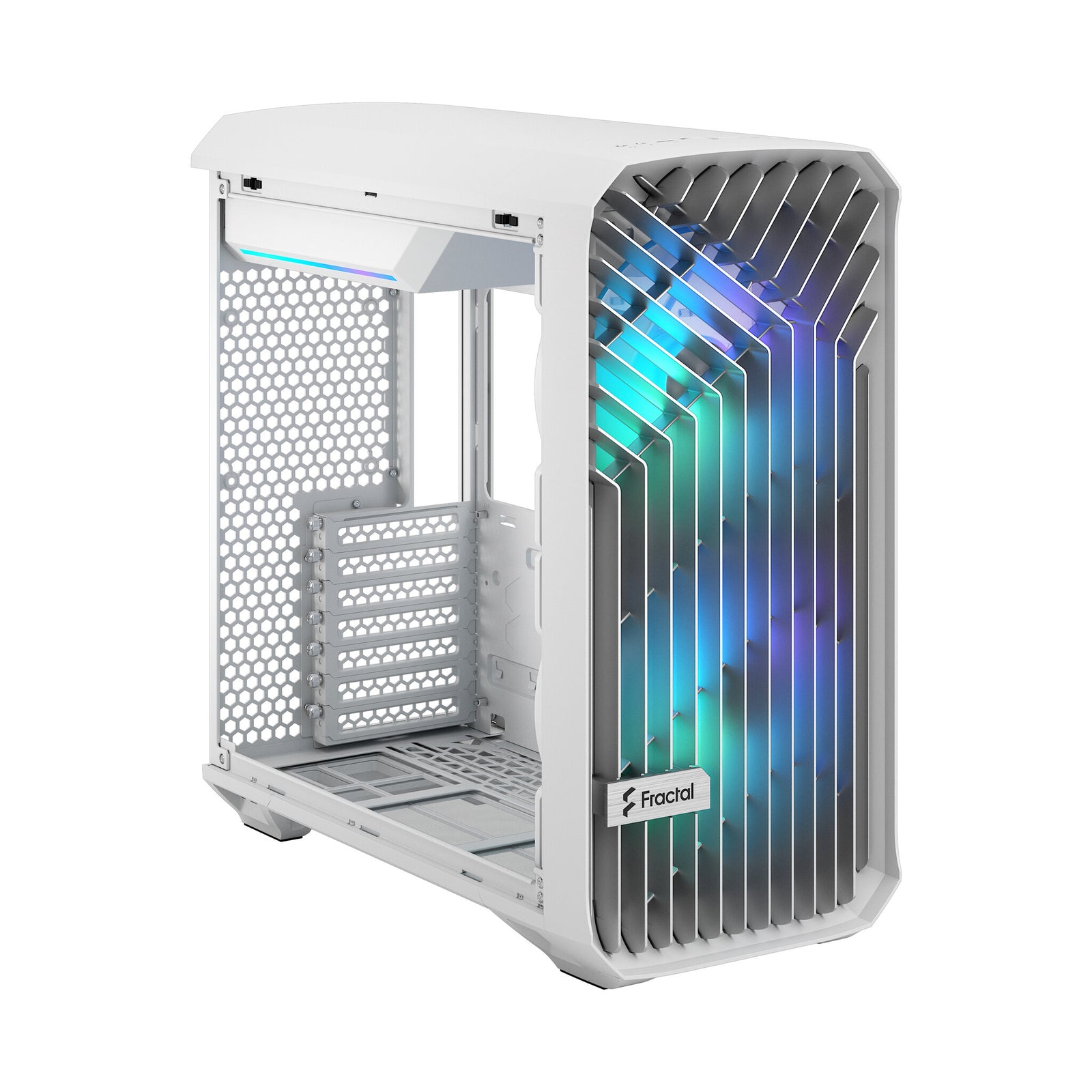

Built to maximize cooling potential straight out of the box, the Torrent comes with a brand-new component layout and two custom-made 180 x 38 mm Dynamic PWM / Prisma RGB fans. The Torrent is a perfect fit for anyone serious about high-end cooling – with or without a custom water loop.
Top-tier airflow
- Designed for exceptional performance at controlled sound levels with included fan hub
- The 38 mm thick blades leverage power, size, and thickness for massive air-moving capacity
- Streamlined through and through for component breathing room and superlative airflow
Let your system breathe
- New layout with expansive base intakes and extra-large bottom fan support offers exceptional GPU cooling
- Optional front and bottom nylon filters included, allowing the user to prioritize between dust filtering or even higher airflow
- Streamlined open interior provides plenty of breathing room for components and maximizes performance potential for both air and water cooling
Next level GPU cooling
Expansive base intakes and extra-large bottom fan support
Streamlined inside and out
- Front fan brackets allow for unblocked airflow to the larger fans while catering to standard radiator and fan sizes
- Both front and bottom panel can support extra-thick radiators and push-pull fan configurations up to 420 mm
- Seven bridgeless expansion slots allow for extensive customization
Quick start, clean finish
- Comes with external cable straps for tidying up behind your computer
- New, pre-installed Nexus 9P Slim PWM fan hub
- Removable top bezel and cable guides with cable straps make for easy installation and cable management
- Two sturdy steel drive trays with vibration-damping rubber grommets for smooth, quiet and reliable operation
- Four dedicated SSD brackets included
Included GPU support bracket
Helps your GPU stay level (user assembled, instructions included)
Transparently easy
- Seamless tempered glass panels (on TG models) with bolt-free top-latching mechanisms for easy handling
- Integrated support for a water-cooling reservoir on the motherboard tray
| Design | |
|---|---|
| Maximum PSU length | 23 cm |
| Maximum graphics card length | 46.1 cm |
| Maximum CPU cooler height | 18.8 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Internal |
| Illumination colour | Multi |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX, SSI CEB |
| Product colour | Black |
| Material | Tempered glass |
| Type | PC |
| Form factor | Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120,140 mm |
| Bottom radiator sizes supported | 360,420 mm |
| Front radiator sizes supported | 360,420 mm |
| Bottom fans diameters supported | 120,140,180 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans installed | 3x 140 mm |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140,180 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 180 mm |
| Storage | |
|---|---|
| SSD form factor | 2.5" |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 11.1 kg |
| Height | 530 mm |
| Depth | 544 mm |
| Width | 242 mm |
| Packaging data | |
|---|---|
| Package weight | 13.7 kg |
| Package height | 674 mm |
| Package depth | 640 mm |
| Package width | 343 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Built to maximize cooling potential straight out of the box, the Torrent comes with a brand-new component layout and two custom-made 180 x 38 mm Dynamic PWM / Prisma RGB fans. The Torrent is a perfect fit for anyone serious about high-end cooling – with or without a custom water loop.
Top-tier airflow
- Designed for exceptional performance at controlled sound levels with included fan hub
- The 38 mm thick blades leverage power, size, and thickness for massive air-moving capacity
- Streamlined through and through for component breathing room and superlative airflow
Let your system breathe
- New layout with expansive base intakes and extra-large bottom fan support offers exceptional GPU cooling
- Optional front and bottom nylon filters included, allowing the user to prioritize between dust filtering or even higher airflow
- Streamlined open interior provides plenty of breathing room for components and maximizes performance potential for both air and water cooling
Next level GPU cooling
Expansive base intakes and extra-large bottom fan support
Streamlined inside and out
- Front fan brackets allow for unblocked airflow to the larger fans while catering to standard radiator and fan sizes
- Both front and bottom panel can support extra-thick radiators and push-pull fan configurations up to 420 mm
- Seven bridgeless expansion slots allow for extensive customization
Quick start, clean finish
- Comes with external cable straps for tidying up behind your computer
- New, pre-installed Nexus 9P Slim PWM fan hub
- Removable top bezel and cable guides with cable straps make for easy installation and cable management
- Two sturdy steel drive trays with vibration-damping rubber grommets for smooth, quiet and reliable operation
- Four dedicated SSD brackets included
Included GPU support bracket
Helps your GPU stay level (user assembled, instructions included)
Transparently easy
- Seamless tempered glass panels (on TG models) with bolt-free top-latching mechanisms for easy handling
- Top mounted aerodynamic PSU shroud with integrated ARGB effects (TG versions only)
- Integrated support for a water-cooling reservoir on the motherboard tray
| Design | |
|---|---|
| Maximum PSU length | 23 cm |
| Maximum graphics card length | 46.1 cm |
| Maximum CPU cooler height | 18.8 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Internal |
| Illumination colour | Multi |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX, SSI CEB |
| Product colour | Black |
| Material | Tempered glass |
| Type | PC |
| Form factor | Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120,140 mm |
| Bottom radiator sizes supported | 360,420 mm |
| Front radiator sizes supported | 360,420 mm |
| Bottom fans diameters supported | 120,140,180 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans installed | 3x 140 mm |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140,180 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 180 mm |
| Storage | |
|---|---|
| SSD form factor | 2.5" |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 11.1 kg |
| Height | 530 mm |
| Depth | 544 mm |
| Width | 242 mm |
| Packaging data | |
|---|---|
| Package weight | 13.7 kg |
| Package height | 674 mm |
| Package depth | 640 mm |
| Package width | 343 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Built to maximize cooling potential straight out of the box, the Torrent comes with a brand-new component layout and two custom-made 180 x 38 mm Dynamic PWM / Prisma RGB fans. The Torrent is a perfect fit for anyone serious about high-end cooling – with or without a custom water loop.
Top-tier airflow
- Designed for exceptional performance at controlled sound levels with included fan hub
- The 38 mm thick blades leverage power, size, and thickness for massive air-moving capacity
- Streamlined through and through for component breathing room and superlative airflow
Let your system breathe
- New layout with expansive base intakes and extra-large bottom fan support offers exceptional GPU cooling
- Optional front and bottom nylon filters included, allowing the user to prioritize between dust filtering or even higher airflow
- Streamlined open interior provides plenty of breathing room for components and maximizes performance potential for both air and water cooling
Next level GPU cooling
Expansive base intakes and extra-large bottom fan support
Streamlined inside and out
- Front fan brackets allow for unblocked airflow to the larger fans while catering to standard radiator and fan sizes
- Both front and bottom panel can support extra-thick radiators and push-pull fan configurations up to 420 mm
- Seven bridgeless expansion slots allow for extensive customization
Quick start, clean finish
- Comes with external cable straps for tidying up behind your computer
- New, pre-installed Nexus 9P Slim PWM fan hub
- Removable top bezel and cable guides with cable straps make for easy installation and cable management
- Two sturdy steel drive trays with vibration-damping rubber grommets for smooth, quiet and reliable operation
- Four dedicated SSD brackets included
Included GPU support bracket
Helps your GPU stay level (user assembled, instructions included)
Transparently easy
- Seamless tempered glass panels (on TG models) with bolt-free top-latching mechanisms for easy handling
- Top mounted aerodynamic PSU shroud with integrated ARGB effects (TG versions only)
- Integrated support for a water-cooling reservoir on the motherboard tray
| Design | |
|---|---|
| Maximum PSU length | 23 cm |
| Maximum graphics card length | 46.1 cm |
| Maximum CPU cooler height | 18.8 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Internal |
| Illumination colour | Multi |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX, SSI CEB |
| Product colour | Grey |
| Material | Tempered glass |
| Type | PC |
| Form factor | Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120,140 mm |
| Bottom radiator sizes supported | 360,420 mm |
| Front radiator sizes supported | 360,420 mm |
| Bottom fans diameters supported | 120,140,180 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans installed | 3x 140 mm |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140,180 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 180 mm |
| Storage | |
|---|---|
| SSD form factor | 2.5" |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 11.1 kg |
| Height | 530 mm |
| Depth | 544 mm |
| Width | 242 mm |
| Packaging data | |
|---|---|
| Package weight | 13.7 kg |
| Package height | 674 mm |
| Package depth | 640 mm |
| Package width | 343 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Built to maximize cooling potential straight out of the box, the Torrent comes with a brand-new component layout and two custom-made 180 x 38 mm Dynamic PWM / Prisma RGB fans. The Torrent is a perfect fit for anyone serious about high-end cooling – with or without a custom water loop.
Top-tier airflow
- Designed for exceptional performance at controlled sound levels with included fan hub
- The 38 mm thick blades leverage power, size, and thickness for massive air-moving capacity
- Streamlined through and through for component breathing room and superlative airflow
Let your system breathe
- New layout with expansive base intakes and extra-large bottom fan support offers exceptional GPU cooling
- Optional front and bottom nylon filters included, allowing the user to prioritize between dust filtering or even higher airflow
- Streamlined open interior provides plenty of breathing room for components and maximizes performance potential for both air and water cooling
Next level GPU cooling
Expansive base intakes and extra-large bottom fan support
Streamlined inside and out
- Front fan brackets allow for unblocked airflow to the larger fans while catering to standard radiator and fan sizes
- Both front and bottom panel can support extra-thick radiators and push-pull fan configurations up to 420 mm
- Seven bridgeless expansion slots allow for extensive customization
Quick start, clean finish
- Comes with external cable straps for tidying up behind your computer
- New, pre-installed Nexus 9P Slim PWM fan hub
- Removable top bezel and cable guides with cable straps make for easy installation and cable management
- Two sturdy steel drive trays with vibration-damping rubber grommets for smooth, quiet and reliable operation
- Four dedicated SSD brackets included
Included GPU support bracket
Helps your GPU stay level (user assembled, instructions included)
Transparently easy
- Seamless tempered glass panels (on TG models) with bolt-free top-latching mechanisms for easy handling
- Top mounted aerodynamic PSU shroud with integrated ARGB effects (TG versions only)
- Integrated support for a water-cooling reservoir on the motherboard tray
| Design | |
|---|---|
| Maximum PSU length | 23 cm |
| Maximum graphics card length | 46.1 cm |
| Maximum CPU cooler height | 18.8 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Internal |
| Illumination colour | Multi |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX, SSI CEB |
| Product colour | White |
| Material | Stainless steel, Tempered glass |
| Type | PC |
| Form factor | Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120,140 mm |
| Bottom radiator sizes supported | 360,420 mm |
| Front radiator sizes supported | 360,420 mm |
| Bottom fans diameters supported | 120,140,180 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans installed | 3x 140 mm |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140,180 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 180 mm |
| Storage | |
|---|---|
| SSD form factor | 2.5" |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 10.8 kg |
| Height | 530 mm |
| Depth | 544 mm |
| Width | 242 mm |
| Packaging data | |
|---|---|
| Package weight | 13.4 kg |
| Package height | 674 mm |
| Package depth | 640 mm |
| Package width | 343 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
The Torrent Compact is built to air cool your compact build as efficiently as possible through an open front grille and two of our 180 x 38 mm Dynamic PWM fans (Prisma for RGB version), making it a perfect fit for air cooling aficionados looking for a compact case.
Streamlined inside and out
- The open interior and top mounted PSU provides plenty of breathing room for components and maximizes performance potential
- Space optimized, yet still capable of handling E-ATX motherboards up to 274 mm wide
- Comes with two Prisma ARGB PWM fans (RGB version) or Dynamic X2 PWM fans
Next level GPU cooling
Layout with unobstructed base intake offers exceptional GPU cooling potential
Our biggest fan
- Our Fractal Design 180 x 38 mm fans leverage power, size and thickness for massive air-moving capacity.
- Front fan brackets allow for unblocked airflow to the larger fans while catering to standard radiator sizes
- Dust filters for front and bottom easily accessible by removing the front
Quick start, clean finish
- Removable top bezel and routing clips with cable ties make for easy installation and cable management
- A sturdy, vibration-damped drive tray supporting a single HDD or dual SSDs with two optional mounting positions
- Three dedicated SSD brackets included
Included GPU support bracket
Helps your GPU stay level (user assembled, instructions included)
Transparently easy
- Seamless tempered glass panels with bolt-free top-latching mechanisms for easy handling
- LED lights (TG versions) and RGB fans (RGB version) are fully controllable through motherboards supporting addressable RGB (5V)
- Top mounted aerodynamic PSU shroud with integrated ARGB effects (ARGB strip only available on TG and RGB versions)
| Design | |
|---|---|
| Maximum PSU length | 21 cm |
| Maximum graphics card length | 33 cm |
| Maximum CPU cooler height | 17.4 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB |
| Product colour | Black |
| Material | Tempered glass |
| Type | PC |
| Form factor | Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120 mm |
| Bottom radiator sizes supported | 240,280 mm |
| Front radiator sizes supported | 280,360 mm |
| Bottom fans diameters supported | 120,140,180 mm |
| Number of bottom fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,180 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 180 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 8 kg |
| Height | 467 mm |
| Depth | 450 mm |
| Width | 222 mm |
| Packaging data | |
|---|---|
| Package weight | 9.7 kg |
| Package height | 574 mm |
| Package depth | 535 mm |
| Package width | 306 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
The Torrent Compact is built to air cool your compact build as efficiently as possible through an open front grille and two of our 180 x 38 mm Dynamic PWM fans (Prisma for RGB version), making it a perfect fit for air cooling aficionados looking for a compact case.
Streamlined inside and out
- The open interior and top mounted PSU provides plenty of breathing room for components and maximizes performance potential
- Space optimized, yet still capable of handling E-ATX motherboards up to 274 mm wide
- Comes with two Prisma ARGB PWM fans (RGB version) or Dynamic X2 PWM fans
Next level GPU cooling
Layout with unobstructed base intake offers exceptional GPU cooling potential
Our biggest fan
- Our Fractal Design 180 x 38 mm fans leverage power, size and thickness for massive air-moving capacity.
- Front fan brackets allow for unblocked airflow to the larger fans while catering to standard radiator sizes
- Dust filters for front and bottom easily accessible by removing the front
Quick start, clean finish
- Removable top bezel and routing clips with cable ties make for easy installation and cable management
- A sturdy, vibration-damped drive tray supporting a single HDD or dual SSDs with two optional mounting positions
- Three dedicated SSD brackets included
Included GPU support bracket
Helps your GPU stay level (user assembled, instructions included)
Transparently easy
- Seamless tempered glass panels with bolt-free top-latching mechanisms for easy handling
- LED lights (TG versions) and RGB fans (RGB version) are fully controllable through motherboards supporting addressable RGB (5V)
- Top mounted aerodynamic PSU shroud with integrated ARGB effects (ARGB strip only available on TG and RGB versions)
| Design | |
|---|---|
| Maximum PSU length | 21 cm |
| Maximum graphics card length | 33 cm |
| Maximum CPU cooler height | 17.4 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Suitable for | Gaming |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB |
| Product colour | Black |
| Material | Steel |
| Type | PC |
| Form factor | Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120 mm |
| Bottom radiator sizes supported | 240,280 mm |
| Front radiator sizes supported | 280,360 mm |
| Bottom fans diameters supported | 120,140,180 mm |
| Number of bottom fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,180 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 180 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 7.4 kg |
| Height | 467 mm |
| Depth | 450 mm |
| Width | 222 mm |
| Packaging data | |
|---|---|
| Package weight | 9.2 kg |
| Package height | 574 mm |
| Package depth | 535 mm |
| Package width | 306 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
The Torrent Compact is built to air cool your compact build as efficiently as possible through an open front grille and two of our 180 x 38 mm Dynamic PWM fans (Prisma for RGB version), making it a perfect fit for air cooling aficionados looking for a compact case.
Streamlined inside and out
- The open interior and top mounted PSU provides plenty of breathing room for components and maximizes performance potential
- Space optimized, yet still capable of handling E-ATX motherboards up to 274 mm wide
- Comes with two Prisma ARGB PWM fans (RGB version) or Dynamic X2 PWM fans
Next level GPU cooling
Layout with unobstructed base intake offers exceptional GPU cooling potential
Our biggest fan
- Our Fractal Design 180 x 38 mm fans leverage power, size and thickness for massive air-moving capacity.
- Front fan brackets allow for unblocked airflow to the larger fans while catering to standard radiator sizes
- Dust filters for front and bottom easily accessible by removing the front
Quick start, clean finish
- Removable top bezel and routing clips with cable ties make for easy installation and cable management
- A sturdy, vibration-damped drive tray supporting a single HDD or dual SSDs with two optional mounting positions
- Three dedicated SSD brackets included
Included GPU support bracket
Helps your GPU stay level (user assembled, instructions included)
Transparently easy
- Seamless tempered glass panels with bolt-free top-latching mechanisms for easy handling
- LED lights (TG versions) and RGB fans (RGB version) are fully controllable through motherboards supporting addressable RGB (5V)
- Top mounted aerodynamic PSU shroud with integrated ARGB effects (ARGB strip only available on TG and RGB versions)
| Design | |
|---|---|
| Maximum PSU length | 21 cm |
| Maximum graphics card length | 33 cm |
| Maximum CPU cooler height | 17.4 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB |
| Product colour | White |
| Material | Steel, Tempered glass |
| Type | PC |
| Form factor | Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120 mm |
| Bottom radiator sizes supported | 240,280 mm |
| Front radiator sizes supported | 280,360 mm |
| Bottom fans diameters supported | 120,140,180 mm |
| Number of bottom fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,180 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 180 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 7.7 kg |
| Height | 467 mm |
| Depth | 450 mm |
| Width | 222 mm |
| Packaging data | |
|---|---|
| Package weight | 9.5 kg |
| Package height | 574 mm |
| Package depth | 535 mm |
| Package width | 306 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
The Torrent Compact is built to air cool your compact build as efficiently as possible through an open front grille and two of our 180 x 38 mm Dynamic PWM fans (Prisma for RGB version), making it a perfect fit for air cooling aficionados looking for a compact case.
Streamlined inside and out
- The open interior and top mounted PSU provides plenty of breathing room for components and maximizes performance potential
- Space optimized, yet still capable of handling E-ATX motherboards up to 274 mm wide
- Comes with two Prisma ARGB PWM fans (RGB version) or Dynamic X2 PWM fans
Next level GPU cooling
Layout with unobstructed base intake offers exceptional GPU cooling potential
Our biggest fan
- Our Fractal Design 180 x 38 mm fans leverage power, size and thickness for massive air-moving capacity.
- Front fan brackets allow for unblocked airflow to the larger fans while catering to standard radiator sizes
- Dust filters for front and bottom easily accessible by removing the front
Quick start, clean finish
- Removable top bezel and routing clips with cable ties make for easy installation and cable management
- A sturdy, vibration-damped drive tray supporting a single HDD or dual SSDs with two optional mounting positions
- Three dedicated SSD brackets included
Included GPU support bracket
Helps your GPU stay level (user assembled, instructions included)
Transparently easy
- Seamless tempered glass panels with bolt-free top-latching mechanisms for easy handling
- LED lights (TG versions) and RGB fans (RGB version) are fully controllable through motherboards supporting addressable RGB (5V)
- Top mounted aerodynamic PSU shroud with integrated ARGB effects (ARGB strip only available on TG and RGB versions)
| Design | |
|---|---|
| Maximum PSU length | 21 cm |
| Maximum graphics card length | 33 cm |
| Maximum CPU cooler height | 17.4 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Case fans |
| Illumination colour | Multi |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB |
| Product colour | Black |
| Material | Tempered glass |
| Type | PC |
| Form factor | Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120 mm |
| Bottom radiator sizes supported | 240,280 mm |
| Front radiator sizes supported | 280,360 mm |
| Bottom fans diameters supported | 120,140,180 mm |
| Number of bottom fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,180 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 180 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 8 kg |
| Height | 467 mm |
| Depth | 450 mm |
| Width | 222 mm |
| Packaging data | |
|---|---|
| Package weight | 9.7 kg |
| Package height | 574 mm |
| Package depth | 535 mm |
| Package width | 306 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
The Torrent Compact is built to air cool your compact build as efficiently as possible through an open front grille and two of our 180 x 38 mm Dynamic PWM fans (Prisma for RGB version), making it a perfect fit for air cooling aficionados looking for a compact case.
Streamlined inside and out
- The open interior and top mounted PSU provides plenty of breathing room for components and maximizes performance potential
- Space optimized, yet still capable of handling E-ATX motherboards up to 274 mm wide
- Comes with two Prisma ARGB PWM fans (RGB version) or Dynamic X2 PWM fans
Next level GPU cooling
Layout with unobstructed base intake offers exceptional GPU cooling potential
Our biggest fan
- Our Fractal Design 180 x 38 mm fans leverage power, size and thickness for massive air-moving capacity
- Front fan brackets allow for unblocked airflow to the larger fans while catering to standard radiator sizes
- Dust filters for front and bottom easily accessible by removing the front
Quick start, clean finish
- Removable top bezel and routing clips with cable ties make for easy installation and cable management
- A sturdy, vibration-damped drive tray supporting a single HDD or dual SSDs with two optional mounting positions
- Three dedicated SSD brackets included
Included GPU support bracket
Helps your GPU stay level (user assembled, instructions included)
Transparently easy
- Seamless tempered glass panels with bolt-free top-latching mechanisms for easy handling
- LED lights (TG versions) and RGB fans (RGB version) are fully controllable through motherboards supporting addressable RGB (5V)
- Top mounted aerodynamic PSU shroud with integrated ARGB effects (ARGB strip only available on TG and RGB versions)
| Design | |
|---|---|
| Maximum PSU length | 21 cm |
| Maximum graphics card length | 33 cm |
| Maximum CPU cooler height | 17.4 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Case fans |
| Illumination colour | Multi |
| Illumination | Yes |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB |
| Product colour | White |
| Material | Steel, Tempered glass |
| Type | PC |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120 mm |
| Bottom radiator sizes supported | 120,140,180,240,280 mm |
| Front radiator sizes supported | 60,120,140,200,240,280,360 mm |
| Bottom fans diameters supported | 120,140,180 mm |
| Number of bottom fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140,180 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 180 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 7.7 kg |
| Height | 467 mm |
| Depth | 450 mm |
| Width | 222 mm |
| Packaging data | |
|---|---|
| Package weight | 9.5 kg |
| Package height | 574 mm |
| Package depth | 535 mm |
| Package width | 306 mm |
