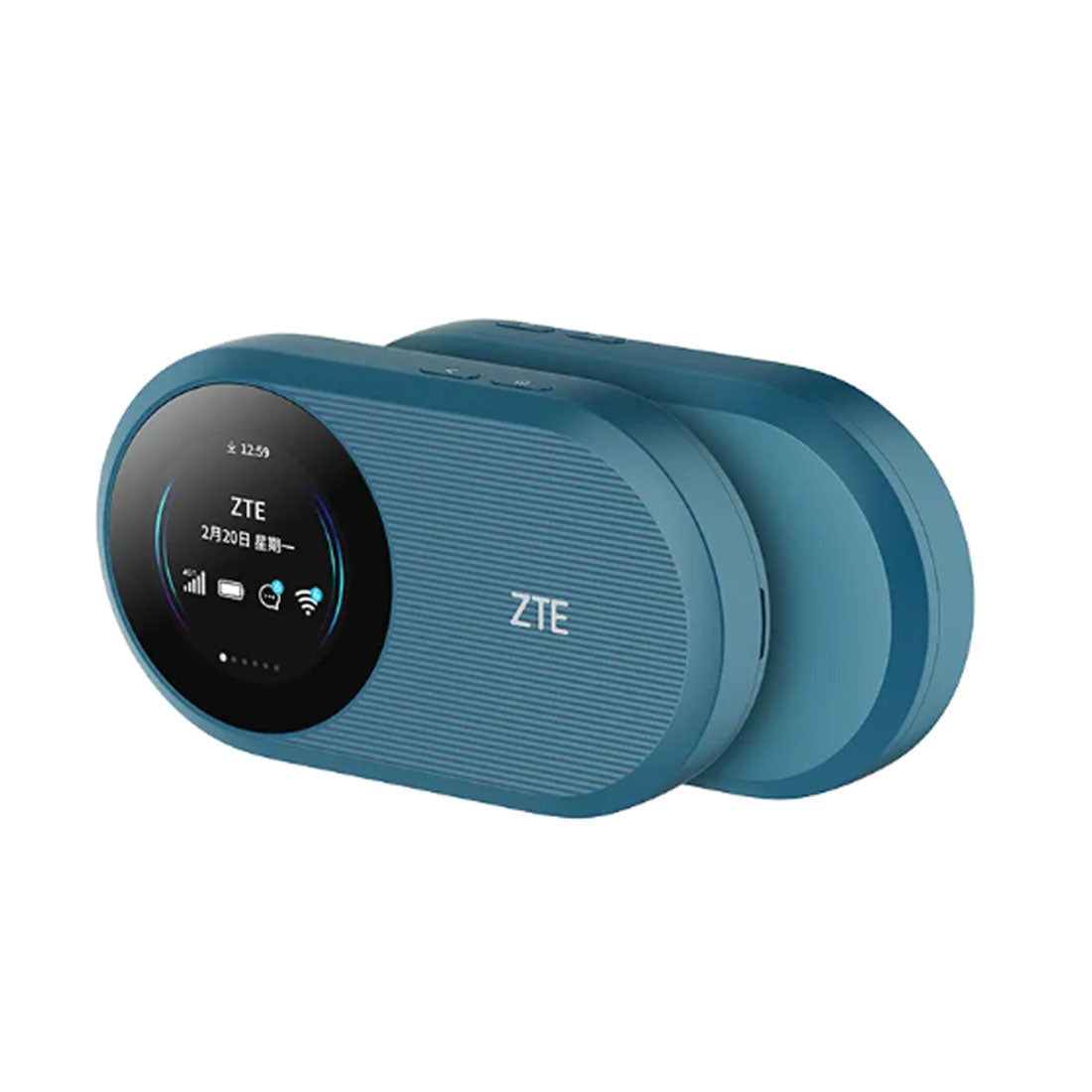

ZTE U10S Pro is a new 4G mobile WiFi hotspot router supporting WiFi 6 and peak download speeds up to 229Mbps. Up to 32 wireless devices can connect with ZTE U10S pro and access the internet.

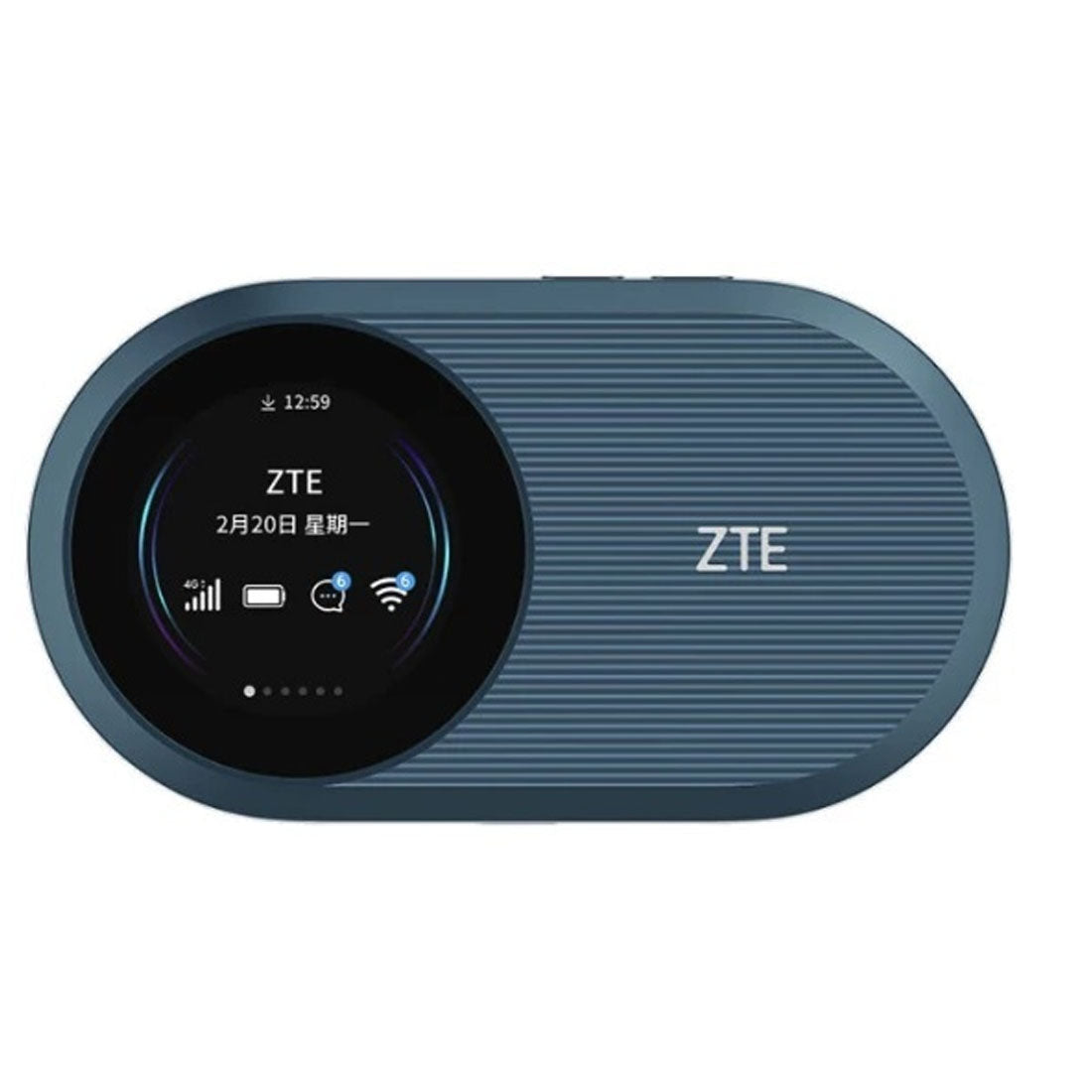

ZTE U10S Pro is equipped with a circular screen that can query and view device operating status, speed, traffic status, connected users, management content and other information with one click. Its battery capacity is 3000mAh and has a detachable design, with a usage time of up to 10 hours in typical scenarios.
Wireless chipset supplier | ZTE | |||
Routing and WiFi chipset supplier | TROLINK | |||
NFC | NO | |||
Wireless chipset model | ZX297520V3E | |||
Wireless processor info | Cortex-A53, cortex-A53 up to 624MHz | |||
Routing and WiFi chipset model | AIC8800DW | |||
Routing and WiFi processor info | ARM Cortex M4 | |||
USIM/SIM slot | Standard 6PIN SIM card interface 3V SIM card and 1.8V SIM card |
|||
Memory(SDRAM/NAND) | Modem: 1Gbits Nand+512Mbits LPDDR2 | |||
BAND | FDD-LTE B1,2,3,5,7,8,20,28 TDD-LTE B38,40,41 UMTS B1,2,5,8 |
|||
Max. transmitter power for WiFi |
2.4GHz:11b 19dBm 11g 17dBm 11n 16dBm 11ax 13dBm |
|||
Working Time | 10h (ZTE Laboratory Test Value) | |||
Standy Time | 320h | |||
WiFi | 802.11b/g/n/ax | Yes | ||
2.4G MIMO:2.4GHz 1*1 |
Yes | |||
WiFi Speed: 2.4GHz:DL287Mbps,UL229Mbps |
Yes | |||
Bandwidth: 2.4G: 20M/40M |
Yes | |||
Access number: up to 32 | Yes | |||
Modulation:BPSK、QPSK、16-QAM、64-QAM、256-QAM、1024-QAM | Yes | |||
Antenna |
4G/3G Gain: 824-960MHz: 1-2.5dBi 1700-2700MHz: 1-5.5dBi |
Yes | ||
WiFi Gain: 2.4GHz-2.5GHz :5-7dbi | Yes | |||
Internal antenna for both all bands and WiFi | Yes | |||
Hardware | Arkwork | Dimensions:108 x 59.8 x 18.9mm | Yes | |
Weight:119g | Yes |
device:64.4g battery:54.3g |
||
Battery:3000mAh, removable | Yes | |||
Maximum power consumption | 4W | Yes | ||
Interface | Usb:1 TypeC usb | Yes | ||
SIM slot: Nano/eSIM Compatibility |
Yes | |||
Power button | Yes | |||
Reset button | Yes | |||
WPS button | Yes | |||
Screen: Type: TFT Size: 1.38 inch Resolution: 240*240 |
Yes | |||
Environment specifications | Operating temperature | -20 to 55° C | Yes | |
Storage temperature | -40 to 70° C | Yes | ||
Humidity | 5% to 95% | Yes | ||
Certification |
CE,WEEE,ROHS,REACH,WiFi ,TR398、ACA |
Yes | ||
Package contents | ||||
Quick Start Guide | Yes | |||
User Manuel | Optional | |||
Warranty card | Optional | |||
DoC | Yes | |||
EAN can be customized | Yes | |||
TAC can be customized | Yes | |||
Software | Device Mode | |||
Wireless mode | Yes | |||
Networking | IPv4/IPv6 dual stack (NDP IPv6) | Yes | ||
DHCP server | Yes | |||
Virtual Private Network (VPN) : | Yes | |||
pass-through(L2TP/PPTP/IPSec/GEE) | Yes | |||
NAT/NAPT | Yes | |||
Sip ALG | Yes | |||
Multiple APNs | Optional | |||
Firewall | Port Forwarding | Yes | ||
Port Filtering | Yes | |||
Port Mapping | Yes | |||
Domain Filtering | Yes | |||
Upnp | Yes | |||
DMZ | Yes | |||
Remote Access/Ping switch | Yes | |||
MAC address filtering | Yes | |||
WiFi | WiFi Switch | Yes | ||
Security mode: WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-PSK,WPA2-PSK、OPEN、WPA3-PSK | Yes | |||
WiFi Broadcast | Yes | |||
WiFi Isolation | Yes | |||
Auto channel selection | Yes | |||
WPS | Yes | |||
GuestSSID support | Yes | |||
WiFi Sleep Mode | Yes | |||
Device Managemnt | Connected device Management | Yes | ||
SMS | Yes | |||
PIN/PUK management | Yes | |||
APN management | Yes | |||
Upgrade: FOTA | Yes | |||
Language: Chinese/English | Yes | |||
Special Feature | Green Mode: user can set the device to save the power | Yes |
