20 TB, SE, SATA, 3.5 Inch, 512MB, 6 GB/s, 101.6 x 26.162 x 147 mm, 690 g
20TB capacity with a reimagined HDD
An innovative storage architecture to help our customers meet their need for exponential data growth.
Reimagining the HDD for Exponential Data Growth
Hyperscale cloud, CSPs, enterprises, smart video surveillance partners, NAS suppliers and more need storage solutions to meet the exponential growth in data creation. When it comes to cost-effective storage of data at scale, hard disk drives (HDDs) continue to play a central role. HDDs deliver the capacity, performance and reliability needed to store vast amounts of data today and well into the future. Investments in HDD technology remain critical to supporting worldwide data growth.
Western Digital has developed flash-enhanced drives with OptiNAND™ technology by vertically integrating our leading NAND flash with our world-class HDDs. Western Digital HDDs have been leaders in areal density with industry first technologies of energy-assisted magnetic recording technology (EAMR), triple-stage actuator (TSA), HelioSeal®, and now OptiNAND technology. Higher areal density means higher capacities to meet storage challenges.
20TB1 HDDs with OptiNAND Technology
OptiNAND integrates an iNAND® Universal Flash Storage (UFS) Embedded Flash Drive (EFD) with traditional spinning disk media, and incorporates innovative changes to the firmware algorithm and system-on-a-chip (SoC). OptiNAND is not a hybrid technology. The drive works smarter, with enhanced firmware algorithms taking advantage of expanded metadata that has been offloaded to the iNAND, enabling more tracks per inch (TPI) with resulting increased areal density.

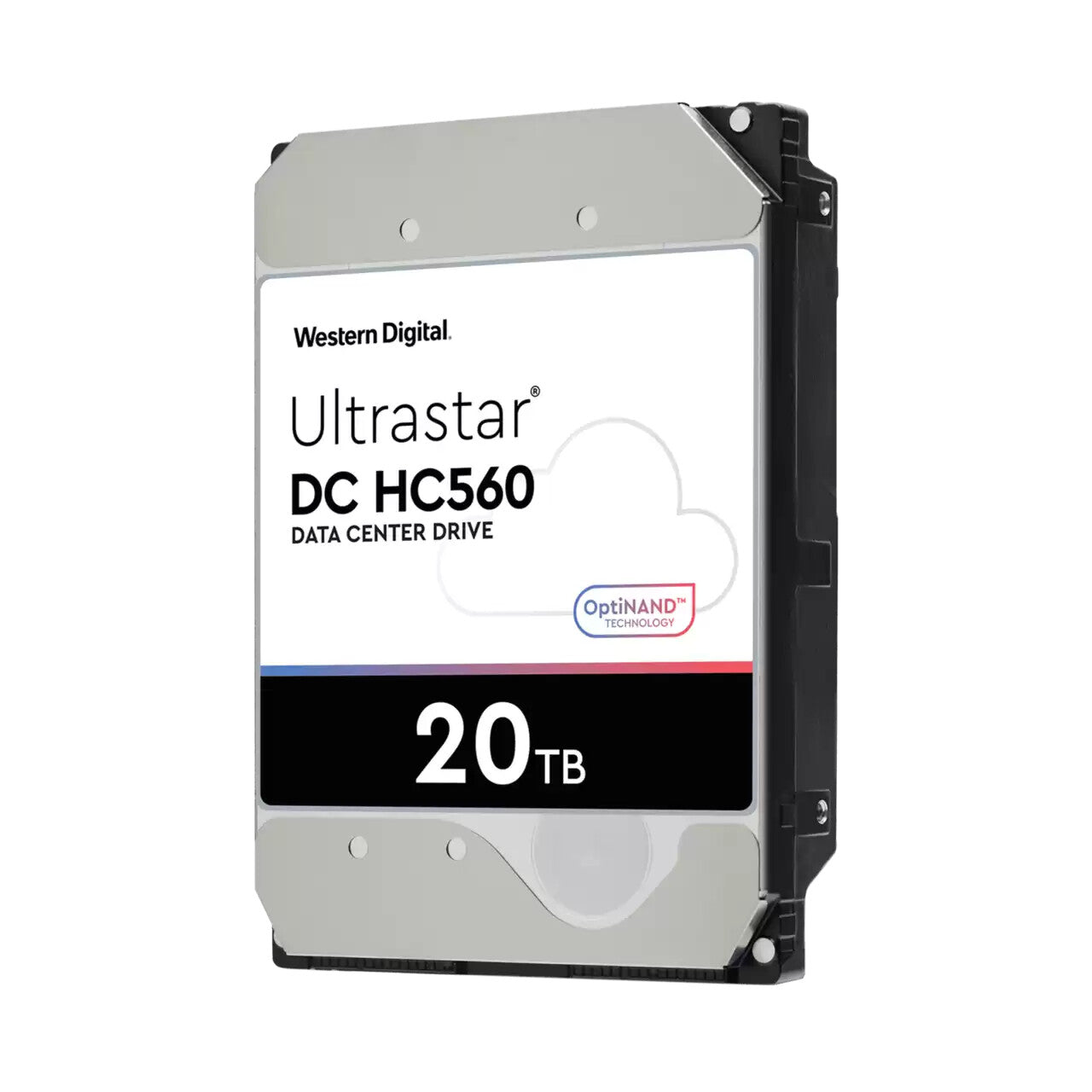

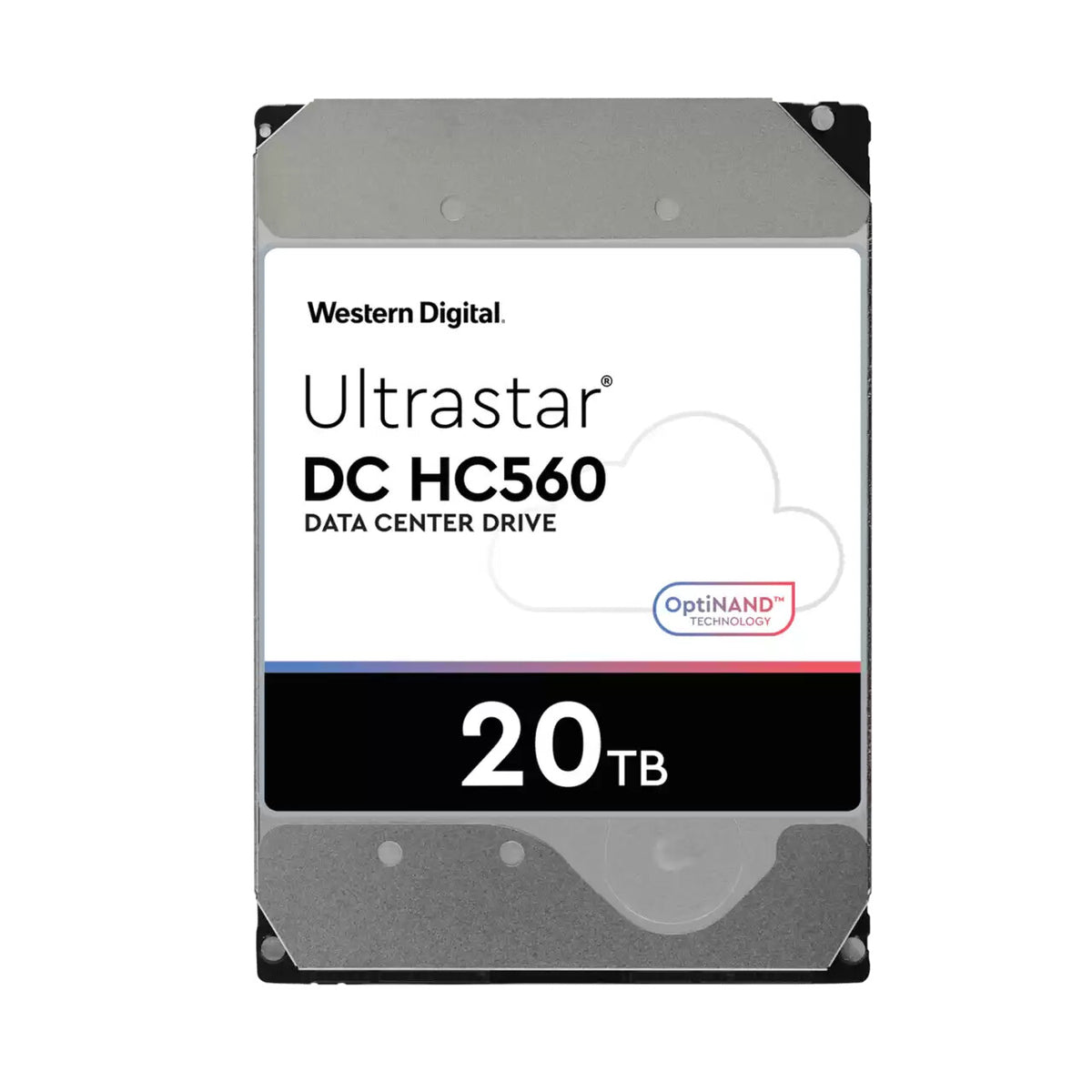

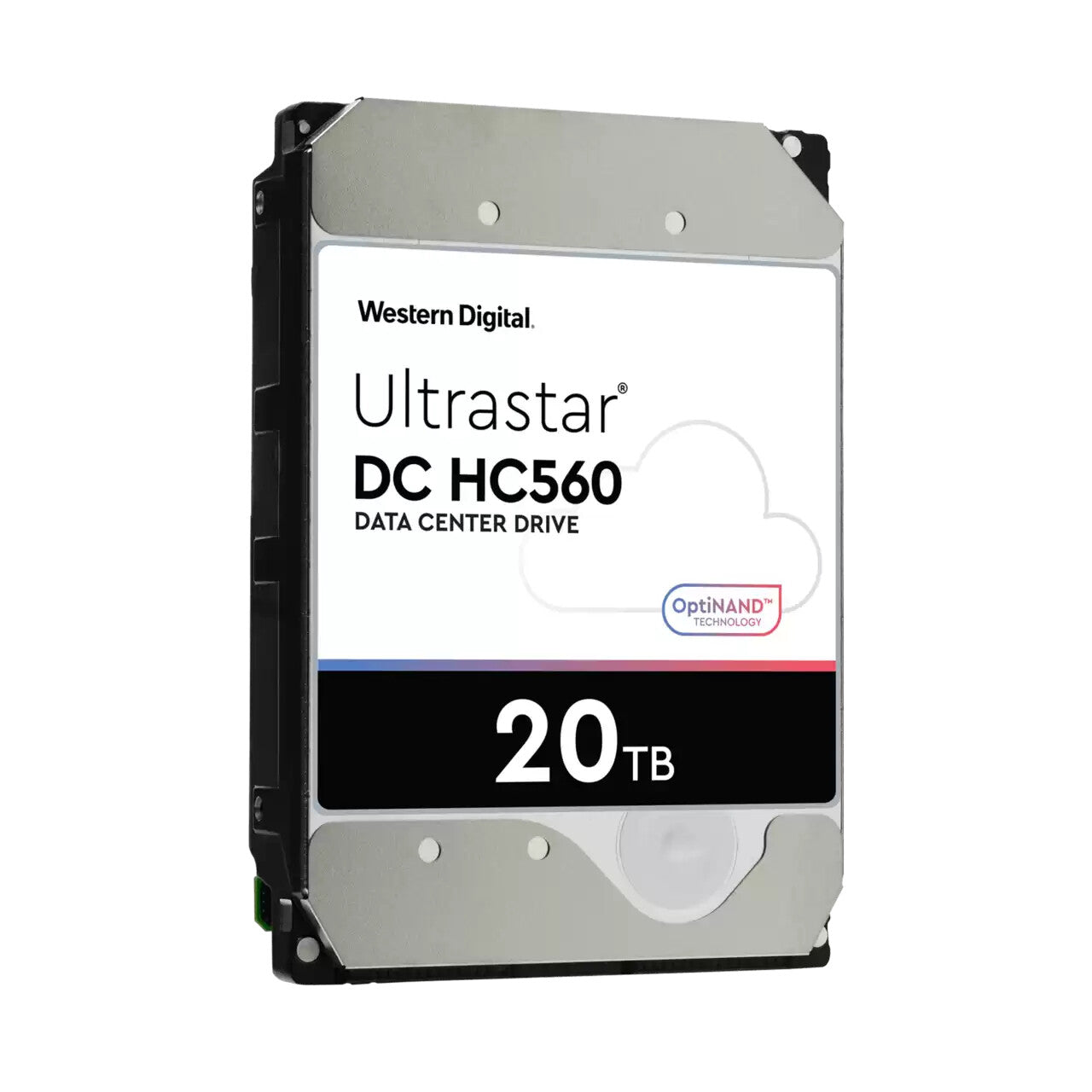

The Ultrastar DC HC560, with the first implementation of OptiNAND technology’s capacity-enabling features, delivers an unbeaten 20TB capacity in a nine-disk platform (2.2TB/platter) with CMR recording format
| Features |
|---|
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Mean time between failures (MTBF) |
2.5 h |
| Workload rate limit |
550 TB/year |
| 24/7 operation |
Yes |
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^15 bits read |
| Average latency |
4.16 ms |
| HDD sustained transfer rate |
257 MiB/s |
| HDD interface transfer rate |
6 Gbit/s |
| Storage drive buffer size |
512 MB |
| Component for |
Server/workstation |
| Type |
HDD |
| Interface |
Serial ATA |
| HDD speed |
7200 RPM |
| HDD capacity |
20 TB |
| HDD size |
3.5" |
| Power |
|---|
| Operating voltage |
5 / 12 V |
| Operational conditions |
|---|
| Non-operating shock |
250 G |
| Operating shock |
50 G |
| Non-operating vibration |
1.04 G |
| Operating vibration |
0.7 G |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
5 - 60 °C |
| General |
|---|
| Product Family |
Ultrastar |
| Weight & dimensions |
|---|
| Weight |
690 g |
| Height |
147 mm |
| Depth |
26.2 mm |
| Width |
101.6 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
84717050 |
