IEEE 802.11b/g/n, 2.4GHz, 300Mbps, 20dBm, 74×67×22 mm
With a travel-sized design, a mini USB port, Wireless N speeds up to 150 Mbps and a high compatibility with 3G modems, TP-LINK’s new Portable 3G/3.75G Wireless N Router,
TL-MR3020 is the ideal device to provide wireless cloud for iPads, iTouches, Android Phones, Kindles and the vast majority of other portable Wi-Fi enabled devices.

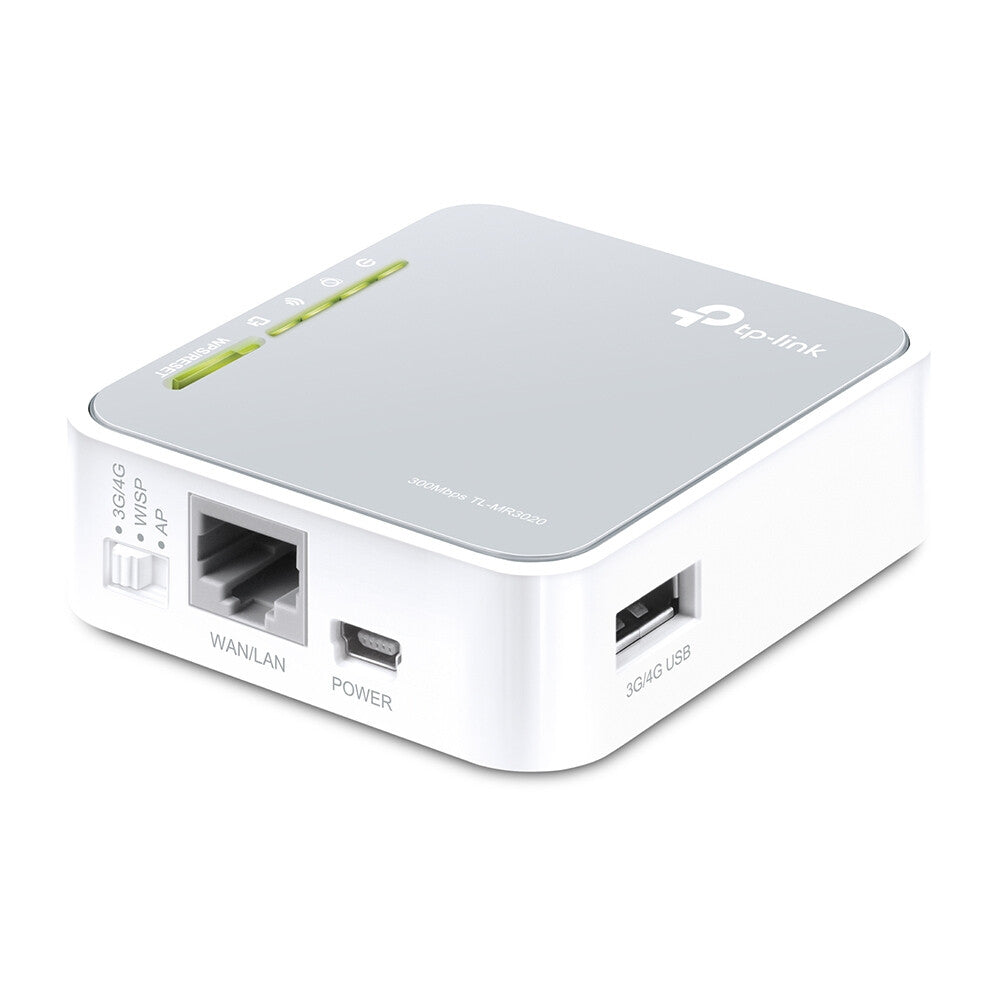

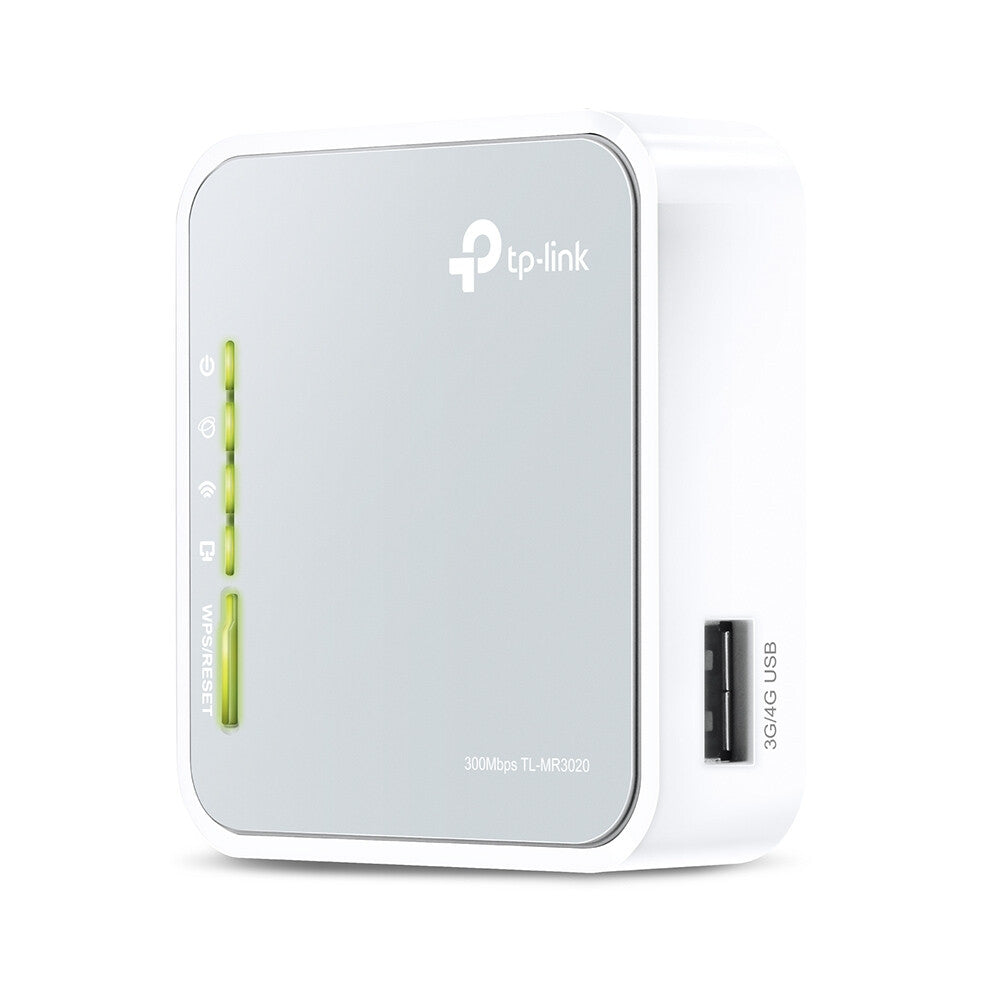

Travel-sized Design
With the travel-sized and compact design, TL-MR3020 is small enough to take on the road and make sure that you can share a 3G internet connection wherever wireless 3G coverage is available.
Travel Router with 3G/4G Function
TL-MR3020 is the ideal travel partner for people on the go. 3G Router Mode enables you to plug in a 3G USB modem and share it wirelessly. Its Travel Router Mode (AP Mode) allows you to conveniently setup an internet connection utilizing a hotel WAN cable. Meanwhile, you can also use the switch on the side of the router to choose between Travel Router Mode, 3G Router Mode and WISP Client Router Mode based on your different requirements.
Power Supply
TL-MR3020 provides you a mini USB port to be connected to your laptop or power adapter for power supply.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
Yes |
| SIM card slot |
No |
| DSL WAN |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| Wi-Fi band |
Single-band (2.4 GHz) |
| Network |
|---|
| Receiver sensitivity |
270M: -70dBm@10% PER130M: -73dBm@10% PER108M: -74dBm@10% PER54M: -75dBm@10% PER11M: -86dBm@8% PER6M: -92dBm@10% PER1M: -95dBm@8% PER |
| Dynamic DNS (DDNS) |
Yes |
| Port forwarding |
Yes |
| Port triggering |
Yes |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Mobile network |
|---|
| 4G standard |
LTE |
| 3G standards |
EVDO, HSPA, HSPA+, UMTS |
| 3G |
Yes |
| Mobile network generation |
4G |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Management features |
|---|
| WPS push button |
Yes |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Web-based management |
Yes |
| Security |
|---|
| DMZ support |
Yes |
| MAC address filtering |
Yes |
| Filtering |
Yes |
| DoS attack prevention |
Yes |
| Parental control |
Yes |
| Guest access |
Yes |
| Firewall security |
DoS, SPI |
| Firewall |
Yes |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
| Protocols |
|---|
| Universal Plug and Play (UPnP) |
Yes |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| Product colour |
Silver, White |
| Product type |
Tabletop router |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
RoHS, Federal Communications Commission (FCC), CE |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
LAN (RJ-45), USB |
| Antenna |
|---|
| Transmit power |
20 dBmW |
| Antenna design |
Internal |
| Power |
|---|
| Output current |
1 A |
| Output voltage |
5 V |
| Power source type |
USB |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 80 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| System requirements |
|---|
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 98SE, Windows NT, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions |
|---|
| Width |
74 mm |
| Depth |
67 mm |
| Height |
22 mm |
| Packaging data |
|---|
| Package weight |
210 g |
| Package height |
81.5 mm |
| Package depth |
109 mm |
| Package width |
110 mm |
| Technical details |
|---|
| Compliance certificates |
RoHS, Federal Communications Commission (FCC), CE |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
