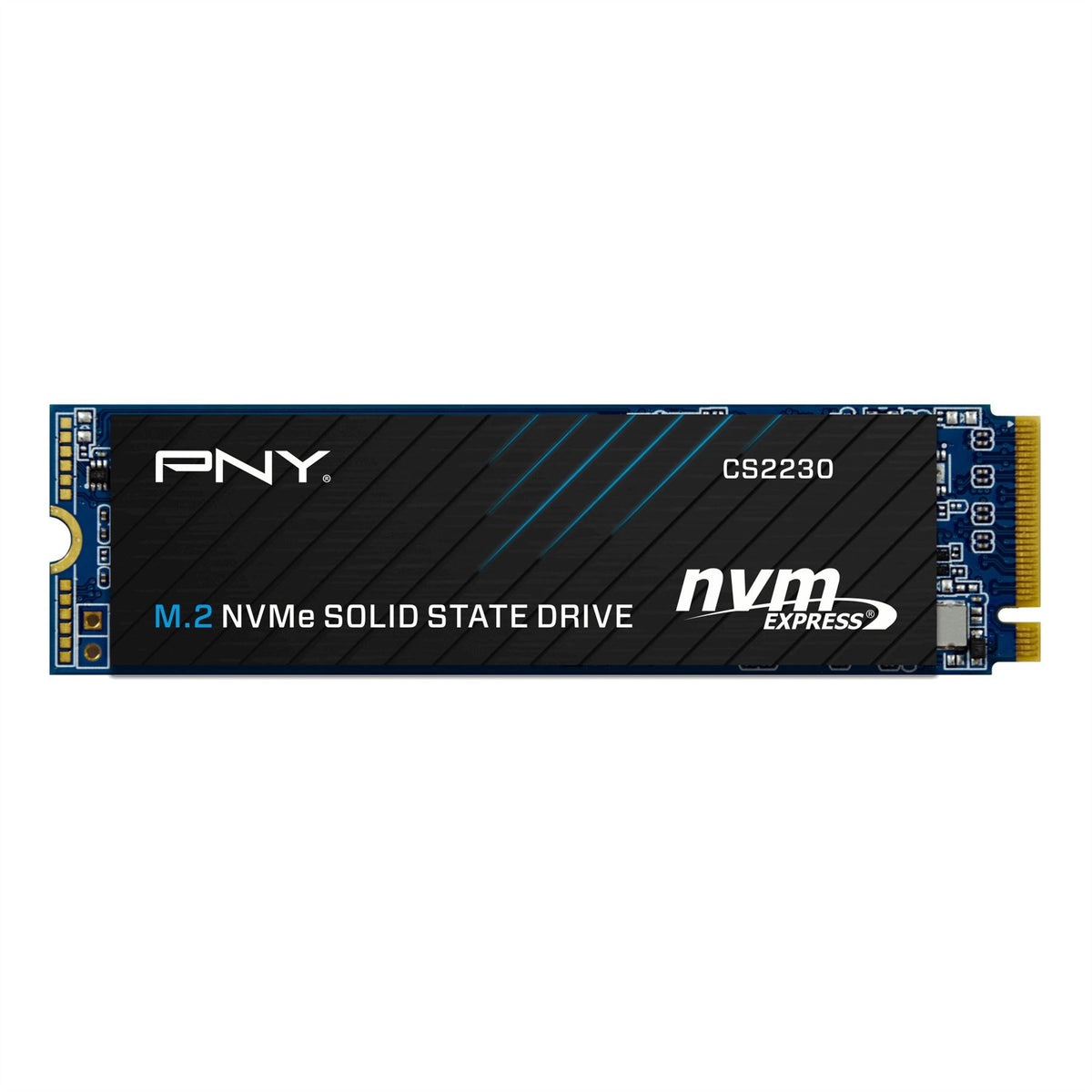

The PNY CS2230 M.2 NVMe SSD is an excellent choice for an NVMe upgrade from a SATA based solid state drive (SSD) in an existing NVMe enabled PC or MAC desktop or laptop computer. The CS2230 drive is designed to be a SATA SSD replacement to help realize faster boot times, quicker application launches, and better overall system performance. Do more in less time with NVMe; boot up, power down, and load applications up to 6 times faster than with SATA based SSD’s. With no moving parts, the PNY CS2230 M.2 NVMe SSD is highly durable, less likely to fail, and supports a 5-Year Limited Warranty or TBW.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 1000000 h |
| End-to-End Data Protection | Yes |
| ECC | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| PCI Express interface data lanes | x4 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Write speed | 2500 MB/s |
| Read speed | 3300 MB/s |
| Hardware encryption | No |
| Component for | PC/Laptop |
| NVMe version | 1.4 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Interface | PCI Express 3.0 |
| SSD capacity | 500 GB |
| SSD form factor | M.2 |
| Operational conditions | |
|---|---|
| Maximum operating temperature | 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 6.6 g |
| Height | 4 mm |
| Depth | 22 mm |
| Width | 80 mm |
| Packaging data | |
|---|---|
| Package type | Hanging box |
