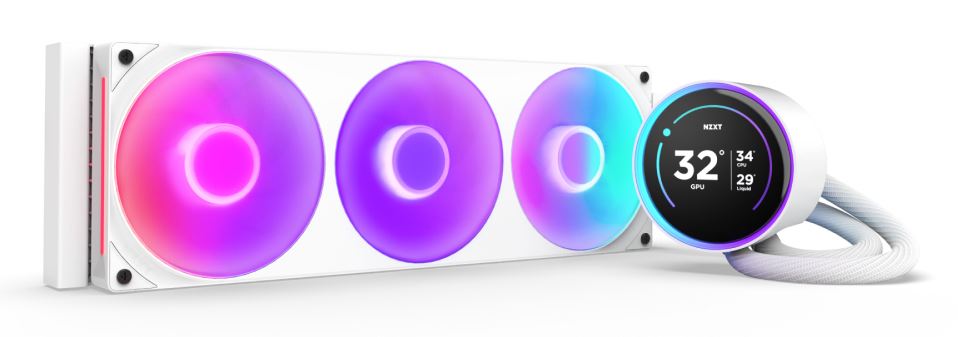

Back and better than ever, the Kraken Elite is powered by the custom-designed NZXT Turbine pump, delivering a remarkable 10%* boost in CPU cooling performance. The stunning 2.72-inch IPS screen with a dynamic RGB ring offers limitless personalization options, making the Kraken Elite an eye-catching focal point for any build.
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 8-pin |
| Pulse-width modulation (PWM) support | Yes |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, AMD Ryzen™ 9 |
| Maximum airflow | 75.12 cfm |
| Maximum air pressure | 3.3 mmH2O |
| Number of fans | 3 fan(s) |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 30 dB |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Pump motor speed (min) | 1200 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 2400 RPM |
| Fan's mean time to failure (MTTF) | 60000 h |
| Design | |
| Fan connector | 8-pin |
| Number of fans | 3 fan(s) |
| Material | Aluminium, Plastic |
| Illumination colour | Multi |
| Product colour | White |
| Cable length | 0.6 m |
| Illumination LED | Yes |
| Number of LEDs | 8 |
| Tube material | Rubber |
| Radiator material | Aluminum |
| Water block material | Copper/Plastic |
| Display type | LCD |
| Display size (HxV) | 69 x 69 mm |
| Technical details | |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, AMD Ryzen™ 9 |
| Maximum airflow | 75.12 cfm |
| Maximum air pressure | 3.3 mmH2O |
| Number of fans | 3 fan(s) |
| Material | Aluminium, Plastic |
| Cable length | 0.6 m |
| Fan connector | 8-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 8-pin |
| Power | |
| Fan power consumption | 9.48 W |
| Pump voltage | 12 V |
| Pump current | 300 mA |
| Fan voltage | 12 V |
| Fan current | 0.79 A |
| Colour | |
| Product colour | White |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 360 x 26 x 120 mm |
| Cable length | 0.6 m |
| Radiator width | 40.1 cm |
| Radiator depth | 2.7 cm |
| Radiator height | 12 cm |
| Tube length | 40 cm |
| Waterblock width | 9.35 cm |
| Waterblock depth | 9.35 cm |
| Waterblock height | 6.5 cm |
| Indication | |
| Illumination colour | Multi |
| Other features | |
| Built-in display | Yes |
| Tube material | Rubber |
