The Kraken Elite delivers chillingly cool performance with a display that makes custom content truly pop. The 640x640 resolution wide-angle LCD display creates a picture that's detailed and vivid regardless of your viewing angle.
INCREASED CUSTOMIZATION
A more powerful microcontroller allows for more immersive customization such as audio visualizers and the ability to relay CAM information with particle density animations.
TWICE AS BRIGHT

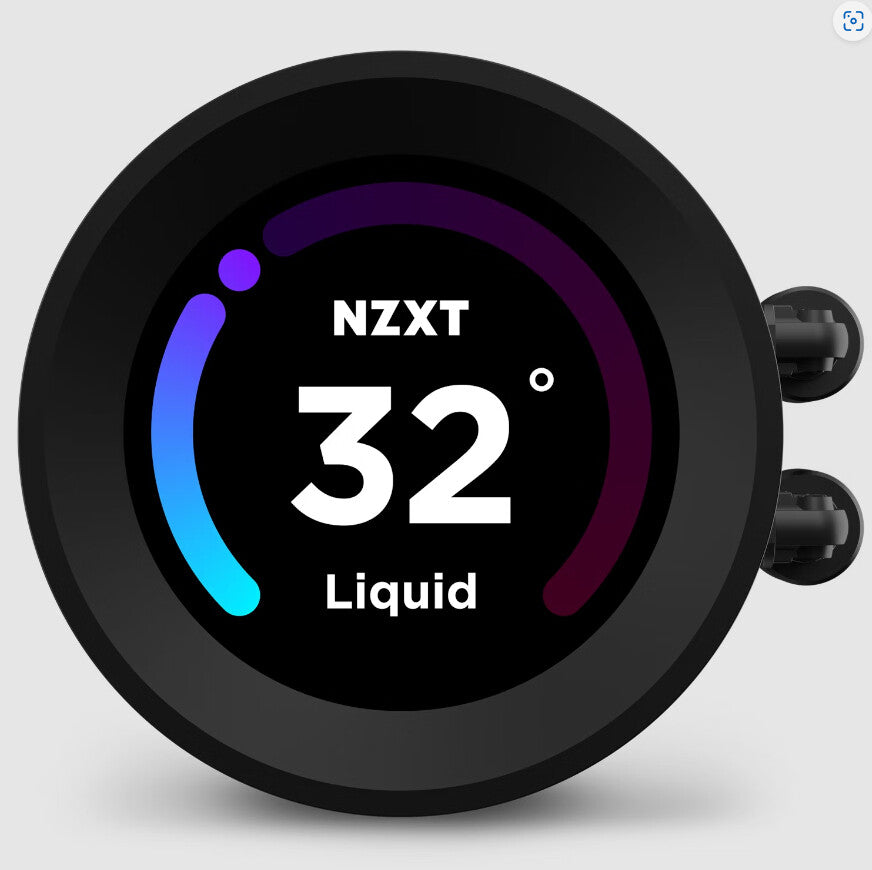

A bright 2.36" wide angle LCD screen supports custom images along with animated GIFs and features a crystal clear 640x640 display resolution, double that of previous generations.
STAY COOL

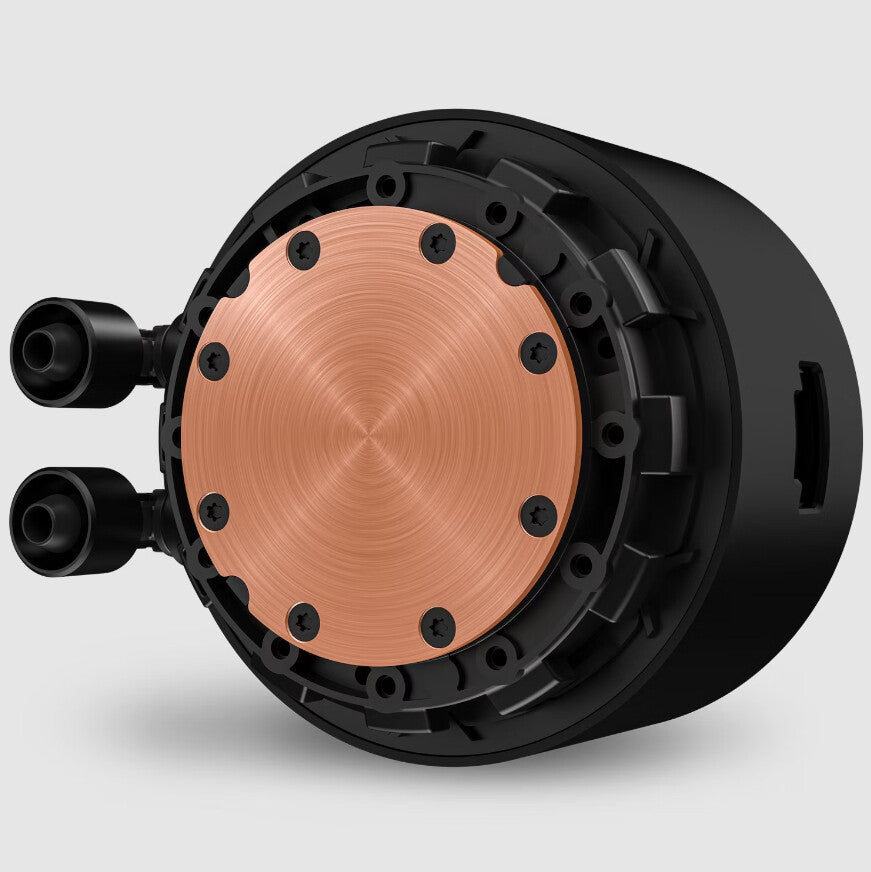

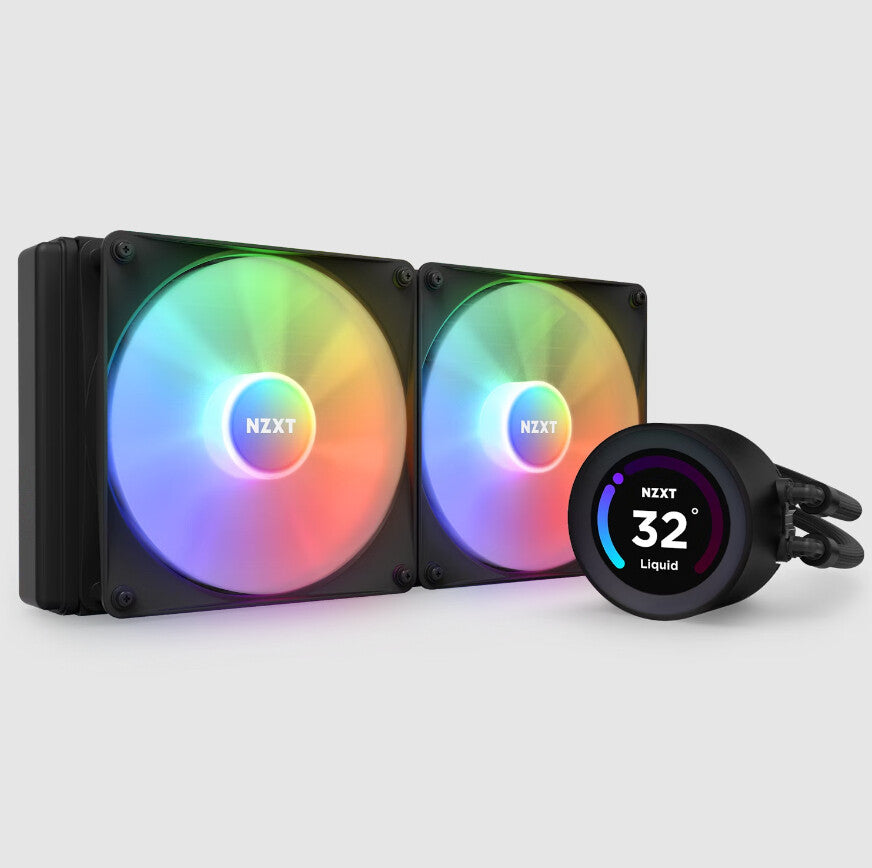

Luminously quiet F Series RGB Core fans give a vibrant feel to your gaming setup with the 8 individually addressable RGB LEDs on each fan. The 7th gen Asetek pump ensures your Kraken Elite cools optimally with 2800 RPM operation.
SIMPLE INSTALL
Setup is made simple with a single breakout cable that takes the guesswork out of the installation process. The liquid tubes are protected with reinforced nylon-braided sleeves for added durability and worry-free handling.
NZXT CAM-READY
Personalize screen content with custom images, GIFs, or performance info with user-friendly NZXT CAM software. You can also control fan and pump speeds and run at 0 RPM mode at low temperatures to eliminate fan noise. Adjust RGB lighting eects for a vibrant look that's all you.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1500 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 34.48 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 3.22 mmH2O |
| Maximum airflow | 90.79 cfm |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket sTR4, Socket sTRX4 |
| Fan diameter | 14 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Display size (HxV) | 60 x 60 mm |
| Display type | TFT-LCD |
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminum |
| Material | Aluminium, Plastic |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Pump current | 300 mA |
| Fan voltage | 12 V |
| Fan current | 0.24 A |
| Fan power consumption | 2.88 W |
| Weight & dimensions | |
|---|---|
| Package weight | 2.42 kg |
| Package height | 209 mm |
| Package depth | 158 mm |
| Package width | 429 mm |
| Fan dimensions (W x D x H) | 140 x 140 x 26 mm |
| Weight | 1.63 kg |
| Waterblock height | 5.95 cm |
| Waterblock depth | 8.19 cm |
| Waterblock width | 8.19 cm |
| Tube length | 40 cm |
| Radiator height | 14.3 cm |
| Radiator depth | 3 cm |
| Radiator width | 31.5 cm |
| Packaging content | |
|---|---|
| Package type | Box |
| Other features | |
|---|---|
| Tube material | Rubber |
