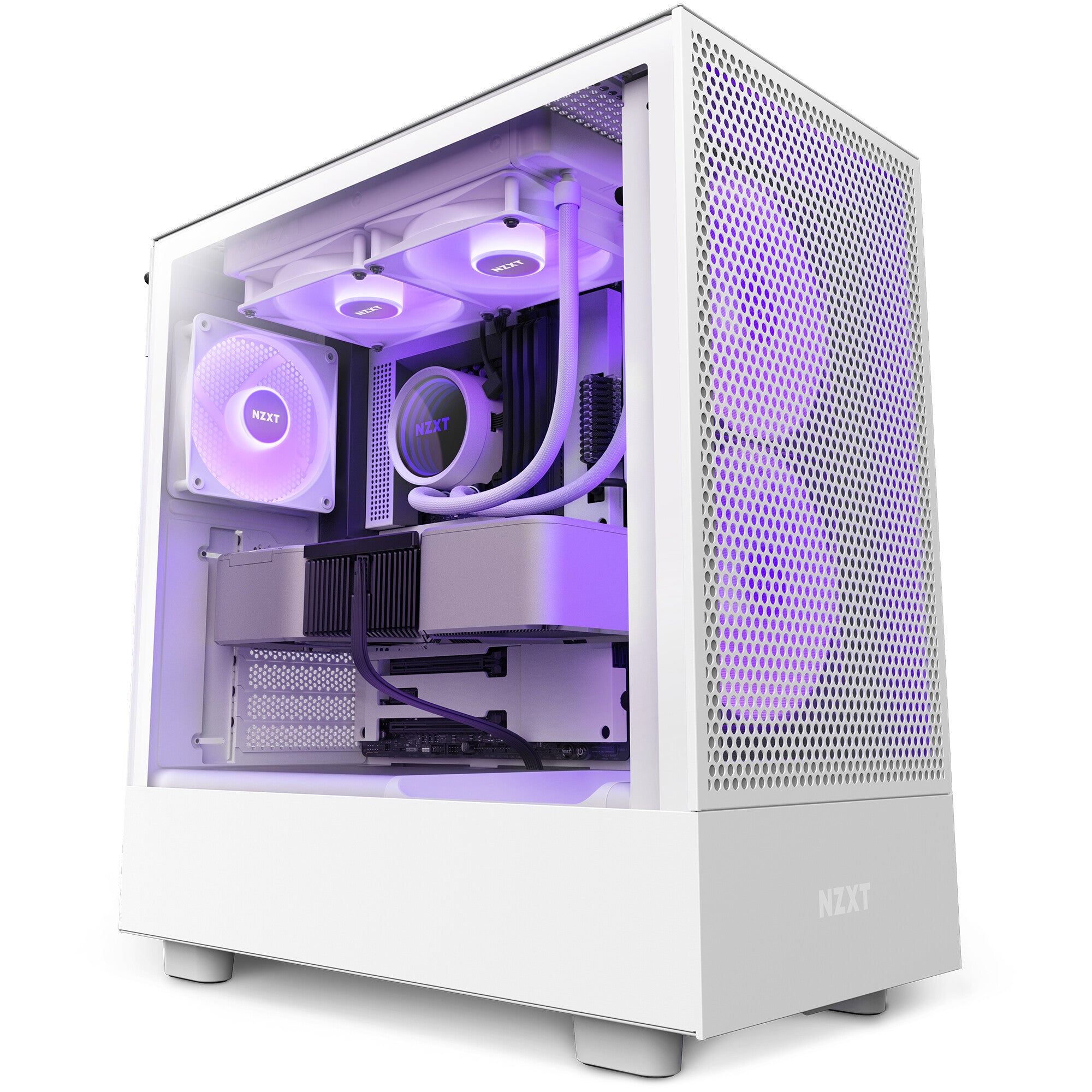

The H5 Flow RGB features two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans so this compact mid-tower stays cooler than cool. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.
| Design | |
|---|---|
| Maximum PSU length | 18.5 cm |
| Maximum graphics card length | 36.5 cm |
| Maximum CPU cooler height | 16.5 cm |
| On/off button | Yes |
| Cable management | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Case fans |
| Illumination colour | Multi |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | White |
| Material | Glass, Steel |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 240 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 280 mm |
| Fan speed | 1080 - 1320 RPM |
| Maximum airflow | 61.74 cfm |
| Fan 2 maximum airflow | 62.18 cfm |
| Maximum air pressure | 2.06 mmH2O |
| Fan 2 maximum air pressure | 1.05 mmH2O |
| Bottom fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans installed | 1x 120 mm |
| Top fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 2 |
| Front fans installed | 2x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 7.36 kg |
| Height | 464 mm |
| Depth | 446 mm |
| Width | 227 mm |
