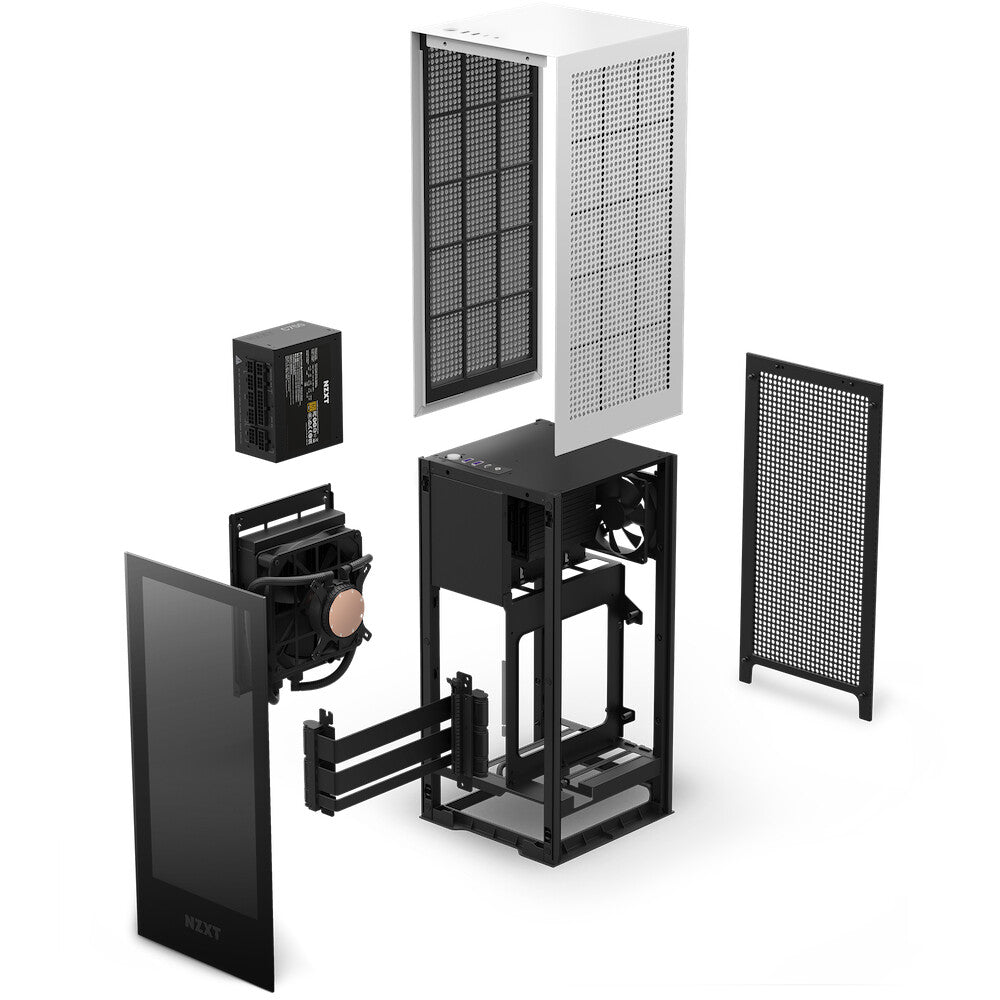

The H1 allows you to get the most out of a small package. Pre-routed cables, a 750W PSU, support for the latest GPUs, and PCIe Gen 4 make the build powerful and simple.

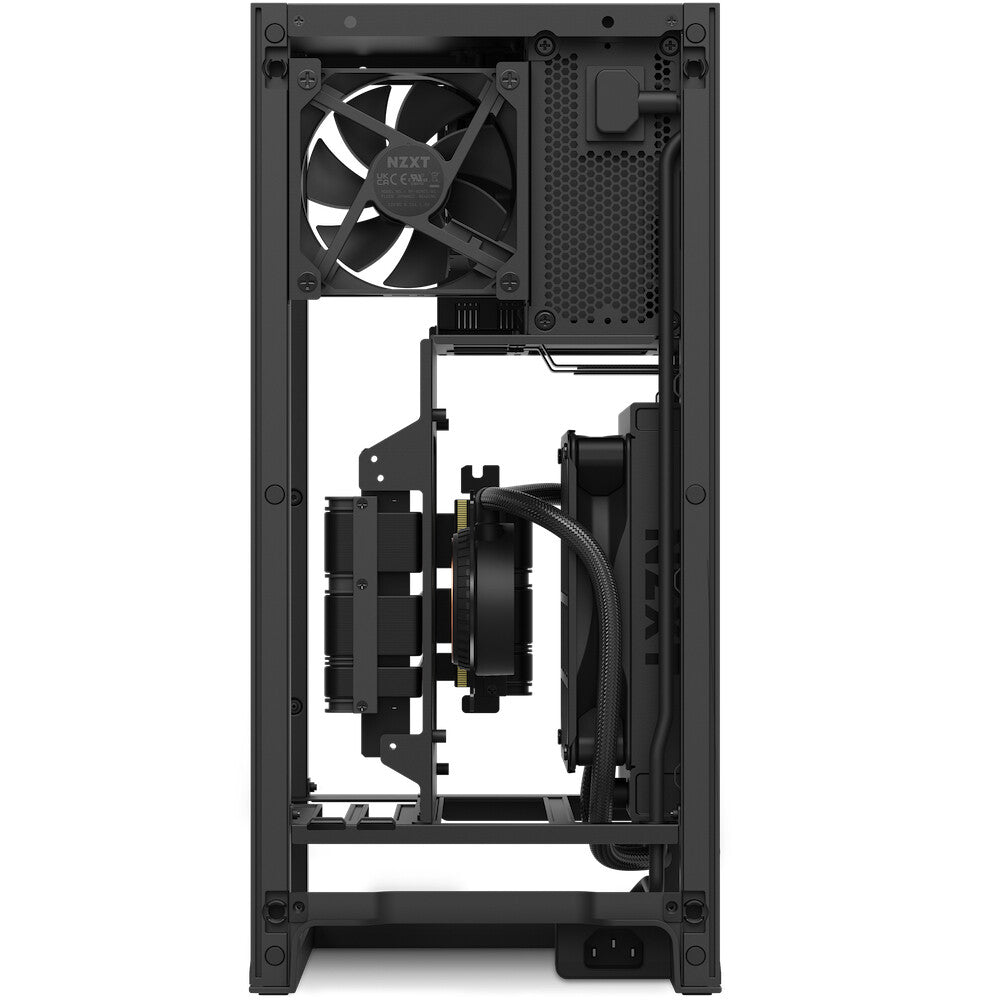

- 140mm AIO liquid cooling;
- NZXT CAM enabled fan controller;
- SFX 750W Gold PSU included;
- Chassis size accommodates latest NVIDIA 30 series & AMD 6000 series graphics cards;
- Pre-routed cables and downward-facing motherboard I/O for a clean, simplified appearance;
- PCIe 4.0 Extender supporting maximum 25Gbps high-speed transmission.
| Design | |
|---|---|
| Heat sink | 139 x 174 x 28mm |
| Heat sink included | Yes |

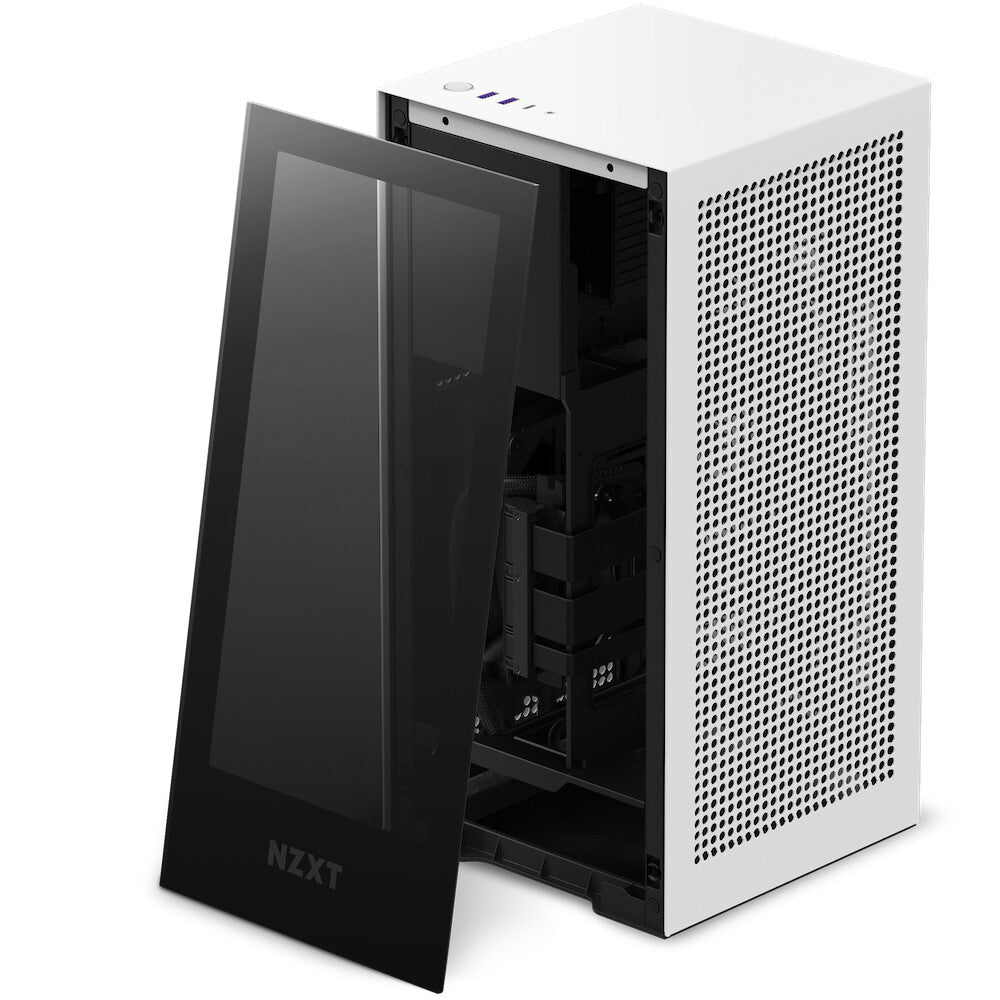

| Tempered glass panel(s) | Yes |
| Side window | Yes |
| Number of expansion slots | 2 |
| Number of 2.5" bays | 2 |
| Supported motherboard form factors | Mini-ITX |
| Product colour | White |
| Material | Steel, Tempered glass |
| Type | PC |
| Form factor | Mini Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | SFX |
| Number of power supply units | 1 |
| Power supply | 750 W |
| Power supply included | Yes |
| Ports & interfaces | |
|---|---|
| Audio input | Yes |

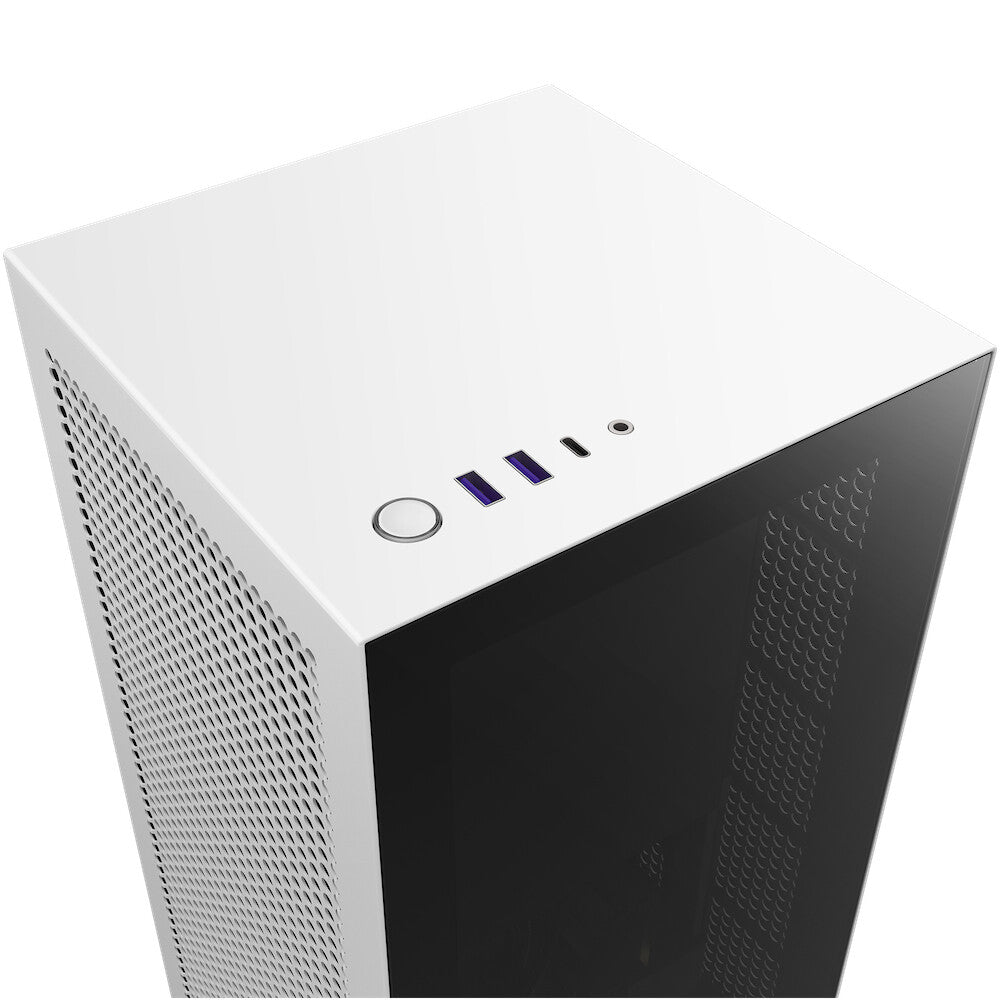

| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Pump motor speed | 4200 RPM |
| Liquid cooling capability | Yes |
| Fan speed | 500 - 1800 RPM |
| Rear fans installed | 1x 92 mm |
| Side fans installed | 1x 140 mm |
| Fan speed control | Yes |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5" |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Packaging content | |
|---|---|
| Manual | Yes |
| Riser cable included | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 7.6 kg |
| Height | 495 mm |
| Depth | 196 mm |
| Width | 196 mm |
| Packaging data | |
|---|---|
| Cables included | PCIe |
