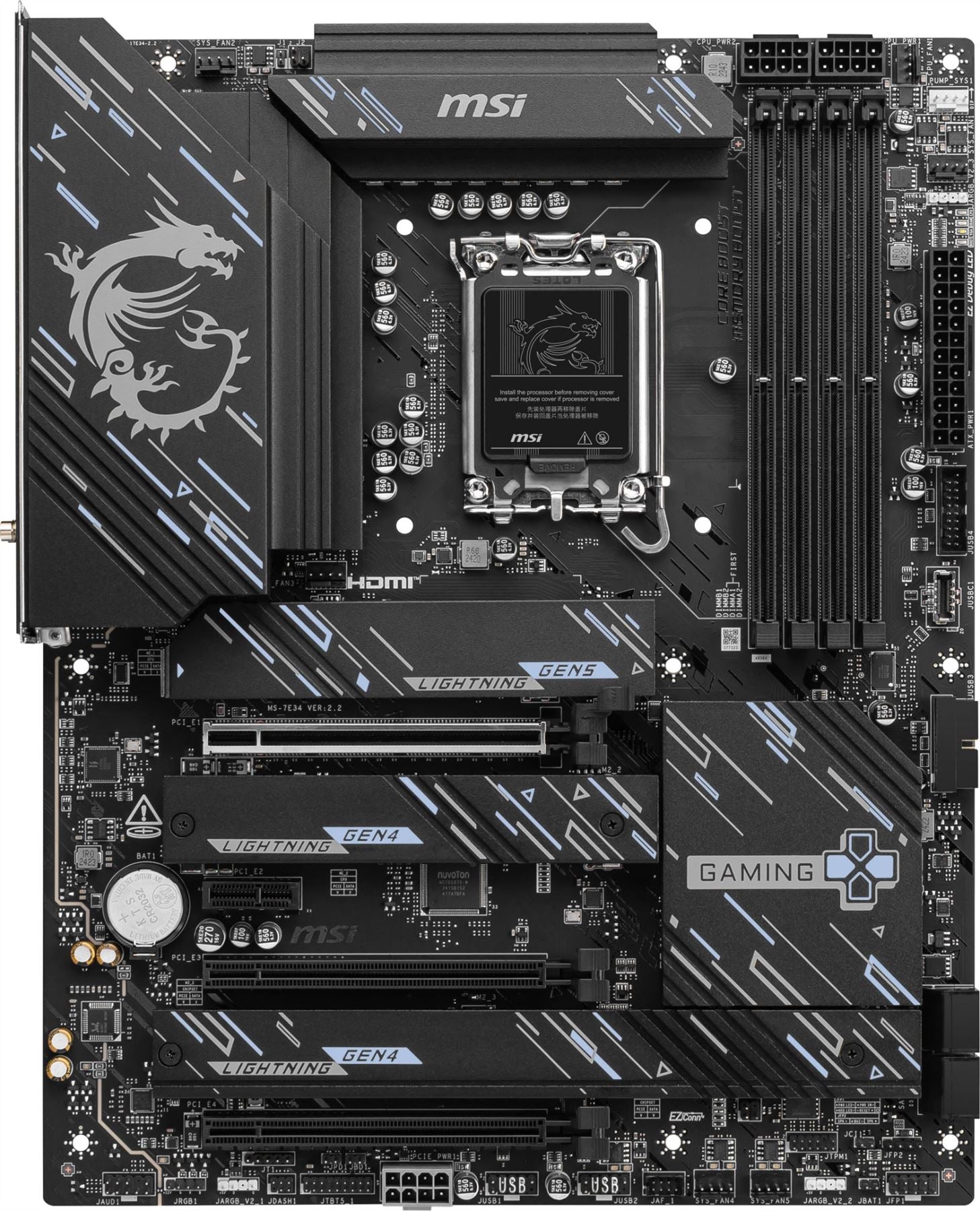

Z890 GAMING PLUS WIFI
Z890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
14+1+1+1 DRPS POWER DESIGN
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+1+1+1 digital power phases. Combining dual power connectors and 55A DrMOS, Z890 GAMING PLUS WIFI is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
| Internal I/O |
| Number of M.2 (M) slots |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Total number of SATA connectors |
4 |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
4 |
| mSATA ports quantity |
0 |
| Number of SATA connectors |
0 |
| Number of SATA III connectors |
4 |
| Number of SATA II connectors |
0 |
| EPS power connector (8-pin) |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Number of EPS power connectors (8-pin) |
1 |
| Technical details |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel Z890 |
| Supported processor sockets |
Intel LGA1851 |
| On-board graphics card |
No |
| HDMI version |
2.1 |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Total number of SATA connectors |
4 |
| Maximum internal memory supported by processor |
256 GB |
| Audio |
| Audio output channels |
7.1 channels |
| Performance |
| Number of HDDs supported |
8 |
| Supported storage drive types |
HDD & SSD |
| Windows operating systems supported |
Windows 11 |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel Z890 |
| RAID levels |
0, 1, 5, 10 |
| Supported processor sockets |
Intel LGA1851 |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Processor |
| Processor manufacturer |
Intel |
| Maximum internal memory supported by processor |
256 GB |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Supported processor sockets |
Intel LGA1851 |
| Processor socket |
LGA 1851 (Socket V1) |
| Memory |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Supported memory types |
DDR5-SDRAM |
| Memory channels |
Dual-channel |
| Supported memory clock speeds |
6400,9200 MHz |
| Maximum internal memory |
256 GB |
| Supported memory clock speed (max) |
9200 MHz |
| ECC сompatibility |
Non-ECC |
| Storage controllers |
| Number of HDDs supported |
8 |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| RAID levels |
0, 1, 5, 10 |
| Number of storage drives supported |
4 |
| RAID support |
Yes |
| Graphics |
| On-board graphics card |
No |
| Rear panel I/O ports |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| DisplayPort version |
1.4 |
| USB 2.0 ports quantity |
4 |
| VGA (D-Sub) ports quantity |
0 |
| Thunderbolt ports quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
1 |
| Network |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Ethernet interface type |
5 Gigabit Ethernet |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN controller model |
Killer Wi-Fi 7 BE1750 |
| Features |
| Windows operating systems supported |
Windows 11 |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel Z890 |
| Supported processor sockets |
Intel LGA1851 |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Audio chip |
Realtek ALC897 |
| Product colour |
Black |
| Expansion slots |
| Number of M.2 (M) slots |
4 |
| PCI Express x1 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x4 (Gen 4.x) slots |
2 |
| Software |
| Windows operating systems supported |
Windows 11 |
| Weight & dimensions |
| Width |
243.8 mm |
| Depth |
304.8 mm |
| Other features |
| mSATA ports quantity |
0 |
| PCI Express x1 (Gen 4.x) slots |
1 |
