Welcome to the future

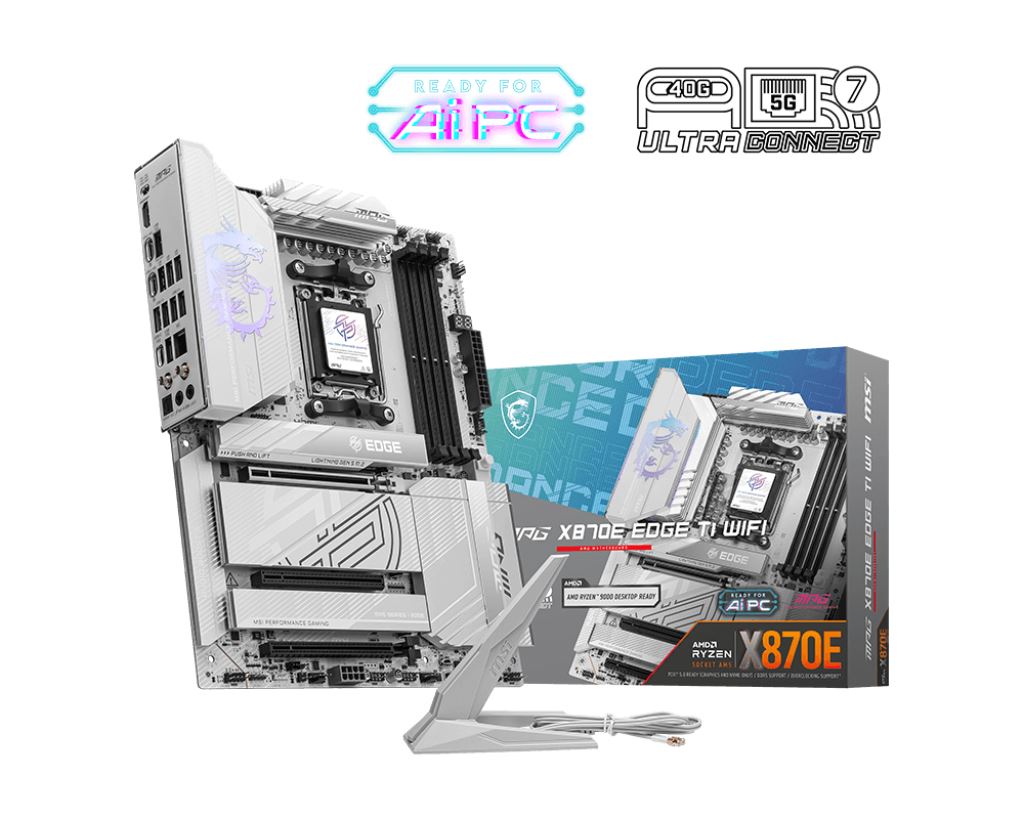

The MPG X870E EDGE TI WIFI pushes futuristic engineering to new heights, clad in a pristine white PCB with towering silver heatsinks that catch the light with a subtle prismatic gleam. A radiant MSI dragon emblem glows atop the largest VRM heatsink, pulsing with colour as the system roars to life. Beneath its bold exterior, a 14+2+1 Duet Rail Power System and dual 8-pin CPU connectors supply unwavering power to Ryzen 9000 series processors, ensuring relentless stability. True Wi‑Fi 7 and 5G LAN propel connectivity to blazing speeds, while PCIe 5.0 support and supplemental PCIe power arm it for the next generation of high-performance hardware.
14+2+1 DRPS POWER DESIGN
Unlock and maintain peak performance with the flagship VRM design featuring 14+2+1 digital power phases. Equipped with dual power connectors and a 60A Smart Power Stage, the X870E EDGE TI WIFI is fully prepared to handle the demands of high-end processors.
Unleash World-Class DDR5 Performance
Experience a significant leap in DDR performance with the latest DDR5 memory. Paired with a dedicated SMT welding process and MSI Memory Boost technology, the X870E EDGE TI WIFI is primed to deliver world-class memory performance.
Quadruple Armoured M.2 Slots
MSI utilises high-speed M.2 slots with PCIe Gen 4 and Gen 5 support, enabling faster load times and efficient data transfers for SSDs.
WiFi 7
The Wi-Fi 7 provides maximum speeds to a whopping 5.8 Gbps! 2.4 times faster than previous Wi-Fi 6/6E standards, Wi-Fi 7 is set to be the wireless standard of the future.
High-Bandwidth, Low Latency LAN
MSI's premium 5G network solution provides incredible transfer speeds for demanding users.
| Internal I/O |
| Number of M.2 (M) slots |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Total number of SATA connectors |
4 |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
4 |
| mSATA ports quantity |
0 |
| Number of SATA connectors |
0 |
| Number of SATA III connectors |
4 |
| Number of SATA II connectors |
0 |
| EPS power connector (8-pin) |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Technical details |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X870E |
| Supported processor sockets |
Socket AM5 |
| PC health monitoring |
CPU, Fan, Temperature, Voltage |
| On-board graphics card |
No |
| HDMI version |
2.1 |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Total number of SATA connectors |
4 |
| Maximum internal memory supported by processor |
256 GB |
| Audio |
| Audio output channels |
7.1 channels |
| Performance |
| Number of HDDs supported |
4 |
| Supported storage drive types |
HDD & SSD |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X870E |
| Supported processor sockets |
Socket AM5 |
| PC health monitoring |
CPU, Fan, Temperature, Voltage |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Processor |
| Processor manufacturer |
AMD |
| Maximum internal memory supported by processor |
256 GB |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets |
Socket AM5 |
| Processor socket |
Socket AM5 |
| Memory |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Supported memory types |
DDR5-SDRAM |
| Memory channels |
Dual-channel |
| Supported memory clock speeds |
4800,5600,8400 MHz |
| Maximum internal memory |
256 GB |
| Supported memory clock speed (max) |
8400 MHz |
| ECC сompatibility |
Non-ECC |
| Storage controllers |
| Number of HDDs supported |
4 |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| Number of storage drives supported |
8 |
| Graphics |
| On-board graphics card |
No |
| Rear panel I/O ports |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| DisplayPort version |
1.4 |
| USB 2.0 ports quantity |
4 |
| VGA (D-Sub) ports quantity |
0 |
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
2 |
| USB4 Gen 2x2 ports quantity |
1 |
| Network |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| LAN controller |
Realtek RTL8126 |
| Ethernet interface type |
5 Gigabit Ethernet |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Features |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X870E |
| Supported processor sockets |
Socket AM5 |
| PC health monitoring |
CPU, Fan, Temperature, Voltage |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Product colour |
White |
| Expansion slots |
| Number of M.2 (M) slots |
4 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| 1st M.2 largest key size |
22110 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 2nd M.2 largest key size |
2280 |
| 2nd M.2 highest PCI Express generation |
5.0 |
| 3rd M.2 largest key size |
2280 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| 4th M.2 largest key size |
2280 |
| 4th M.2 highest PCI Express generation |
4.0 |
| Weight & dimensions |
| Width |
243.8 mm |
| Depth |
304.8 mm |
| Other features |
| mSATA ports quantity |
0 |
