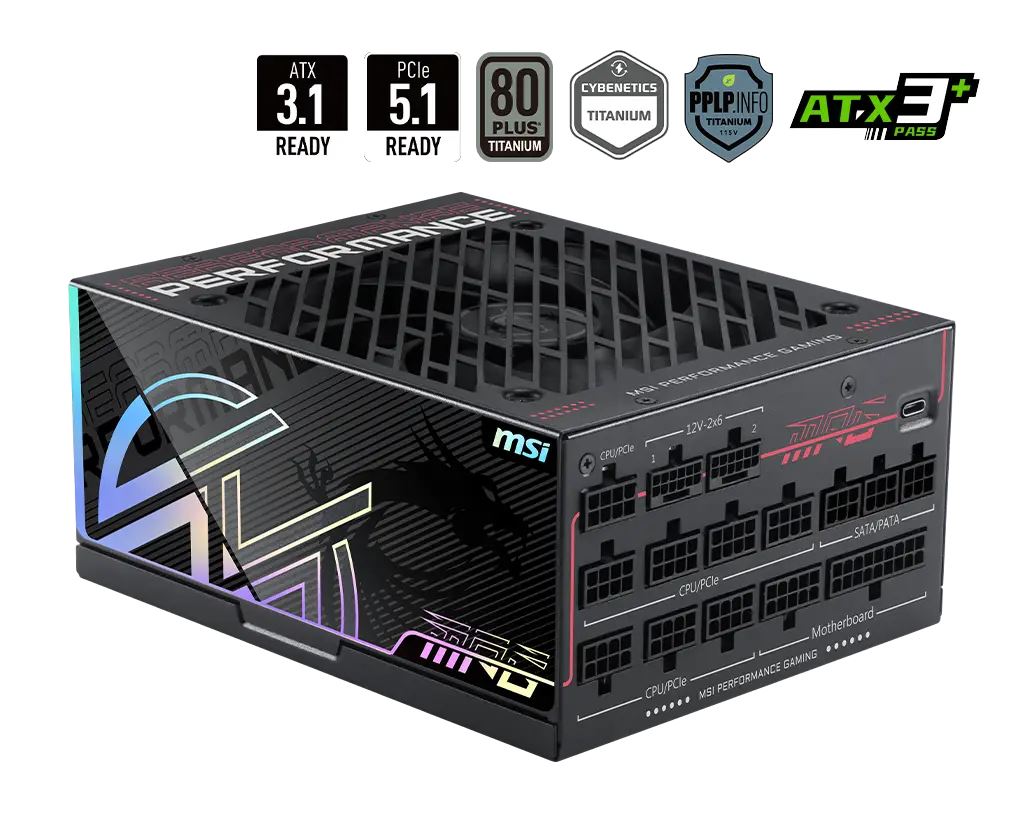

MSI MPG Ai1300TS PCIE5 power supply unit 1300 W 24-pin ATX ATX Black
Regular price
$385.00
Why Shop Clove?
Lower Carbon Footprint
Choosing refurbished saves an estimated 50–70kg of CO2 compared to buying new.
Independently Tested
Every device is tested to 80+ quality checkpoints via PhoneCheck certification.
Repaired by Experts
Our in-house repair team refurbishes every device before it reaches you.
Close the Loop
Done with your old device? Send it back via Clove Recycling and keep it out of landfill.
The Reliable Engine of Your PC Build Support MSI Exclusive GPU Safeguard+, it's the comprehensive and precisely protection, while under of computer using scenario.
SiC MOSFETs Server-grade material, resulting in 10% less waste heat.
ATX 3.1 READY Handle up to 240% total power excursion, 300% GPU power excursion.
TITANIUM Energy efficiency, offering up to 94% efficiency.
2 x 12V-2x6 Comes with 2 x native 12V-2x6 connectors.
STABLE POWER DELIVERY Minimizing the +12V regulation fluctuation into ±1%.
FULL DIGITAL DESIGN The MCU controller can quickly manage dynamic adjustments.
NIGHT SOUND LEVEL Low noise design.
ZERO FAN MODE Fan completely stops under low load, delivering silent operating environment.
FDB FAN BEARING To improve thermal performance and reduce noise, choose a larger, longer-lasting fan.
100% SERVER-GRADE 105°C CAPACITOR High quality Japanese capacitor for the stability and durability.
ALLOY COPPER For safety, offering superior current handling capability for higher current surges.
SAFETY CABLE UL certified cable, robust high current handling capability.
PROTECTION Equipped with multiple protection mechanisms, ensuring your system operates worry-free at all times.
DUAL COLOR 12V-2x6 CONNECTOR Allowing you to quickly confirm connection tightness.
EMBOSSED CABLE More Flexibility and Bendability, easy for the cable management.
CABLE ORGANIZER Pre-installed with cable organizers, streamline the cable management process, resulting in a cleaner pc build.
POWER SUPPLY OVERVIEW Overall real-time current, output wattage, energy efficiency.
REAL-TIME DASHBOARD Monitor the PSU detail message, and exporting selected real-time data.
COOLING WIZARD Zero fan mode switch, and Allows users to customize the fan curve.
MSI Center MSI's exclusive MSI Center software allows you to customize power settings and monitor real-time electrical data through an intuitive graphical interface; please connect the USB Type-C cable to sync your power supply information.
Afterburner MSI Afterburner (version 4.6.7 Beta 2) now supports individual pin current monitoring. This update also allows you to limit GPU power consumption automatically whenever the GPU Safeguard+ protection is triggered.
Cooling
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Titanium
Purpose
PC
ATX version
3.1
Country of origin
China
Design
80 PLUS certification
80 PLUS Titanium
Product colour
Black
Fan diameter
13.5 cm
On/off switch
Yes
Number of fans
1 fan(s)
Illumination
No
Country of origin
China
Cooling type
Active
Power
Total power
1300 W
Maximum input current (@220V)
10 A
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power Factor Correction (PFC) type
Active
Maximum input current (@110V)
15 A
Combined power (+3.3V)
120 W
Combined power (+12V)
1299.96 W
Combined power (+5V)
120 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
22 A
Max output current (+12V)
108.33 A
Max output current (+5V)
22 A
Max output current (+5Vsb)
3 A
Power protection features
Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length
60 cm
Motherboard power connector
24-pin ATX
Number of SATA power connectors
8
Peripheral (Molex) power connectors (4-pin)
4
EPS power connector (8-pin)
Yes
PCI Express power connectors (6-pin)
0
PCI Express power connectors (6+2 pin)
8
PCI Express power connectors (8-pin)
0
Floppy disk drive connector
Yes
ATX Power connector (24-pin)
Yes
Cabling type
Fully-Modular
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (12+4 pin)
0
PCI Express power connectors (12-pin)
0
Weight & dimensions
Width
190 mm
Depth
150 mm
Height
86 mm
Certificates
80 PLUS certification
80 PLUS Titanium
Logistics data
Country of origin
China
