THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE With more cores processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards. SMT PCIE 5.0 SLOT MSI motherboards adopted the advanced SMT(Surface Mount Technology) PCI-E slot to diminish interference and electrical noise, fully supporting higher bandwidth and faster transfer speeds of PCI-E 5.0 signal. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
Internal I/O | |
---|---|
Number of M.2 (M) slots | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
12V power connector | Yes |
Supported storage drive interfaces | M.2, SATA III |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
TPM connector | Yes |
Number of SATA III connectors | 6 |
Front panel audio connector | Yes |
CPU fan connector | Yes |
Chassis intrusion connector | Yes |
ATX Power connector (24-pin) | Yes |
RGB LED pin header | Yes |
Technical details | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z690 |
Parallel processing technology support | Crossfire |
Motherboard form factor | ATX |
Component for | PC |
Audio | |
Audio output channels | 7.1 channels |
Performance | |
Supported storage drive types | HDD & SSD |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z690 |
RAID levels | 0, 1, 5, 10 |
Audio output channels | 7.1 channels |
Motherboard form factor | ATX |
Component for | PC |
Processor | |
Processor manufacturer | Intel |
Compatible processor series | Intel Celeron, Intel Pentium Gold |
Processor socket | LGA 1700 |
Memory | |
Number of memory slots | 4 |
Memory slots type | DIMM |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
Supported memory clock speeds | 2666,2933 MHz |
Maximum internal memory | 128 GB |
Storage controllers | |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
RAID levels | 0, 1, 5, 10 |
Graphics | |
Parallel processing technology support | Crossfire |

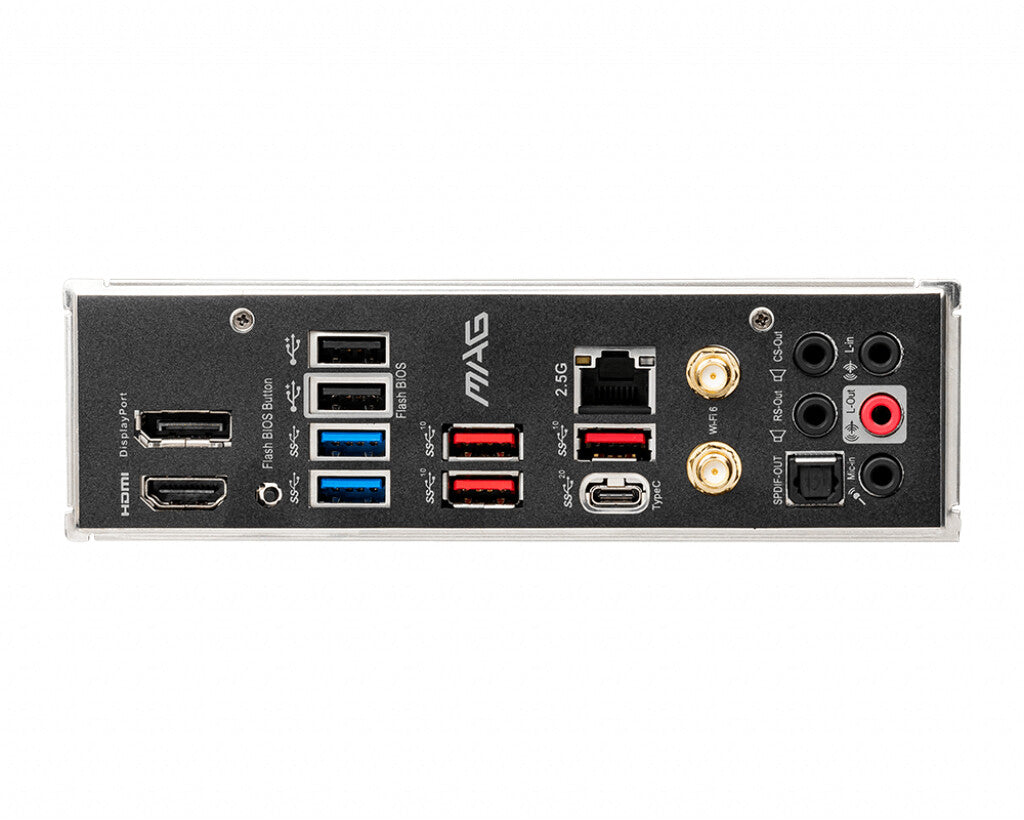

Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
DisplayPort version | 1.4 |
USB 2.0 ports quantity | 2 |
S/PDIF out port | Yes |
Microphone in | Yes |
Headphone outputs | 1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
DisplayPorts quantity | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Network | |
Ethernet LAN | Yes |
Wi-Fi | Yes |
Wi-Fi standards | Wi-Fi 6 (802.11ax) |
Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
Bluetooth | Yes |
Bluetooth version | 5.2 |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Features | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z690 |
Audio output channels | 7.1 channels |
Motherboard form factor | ATX |
Component for | PC |
Audio chip | Realtek ALC4080 |
Harmonized System (HS) code | 84733020 |
Expansion slots | |
Number of M.2 (M) slots | 2 |
PCI Express x16 (Gen 3.x) slots | 1 |
BIOS | |
BIOS type | UEFI |
BIOS memory size | 256 Mbit |
System Management BIOS (SMBIOS) version | 3.4 |
Weight & dimensions | |
Height | 73 mm |
Weight | 1 kg |
Width | 305 mm |
Depth | 244 mm |
Other features | |
Height | 73 mm |
Weight | 1 kg |
