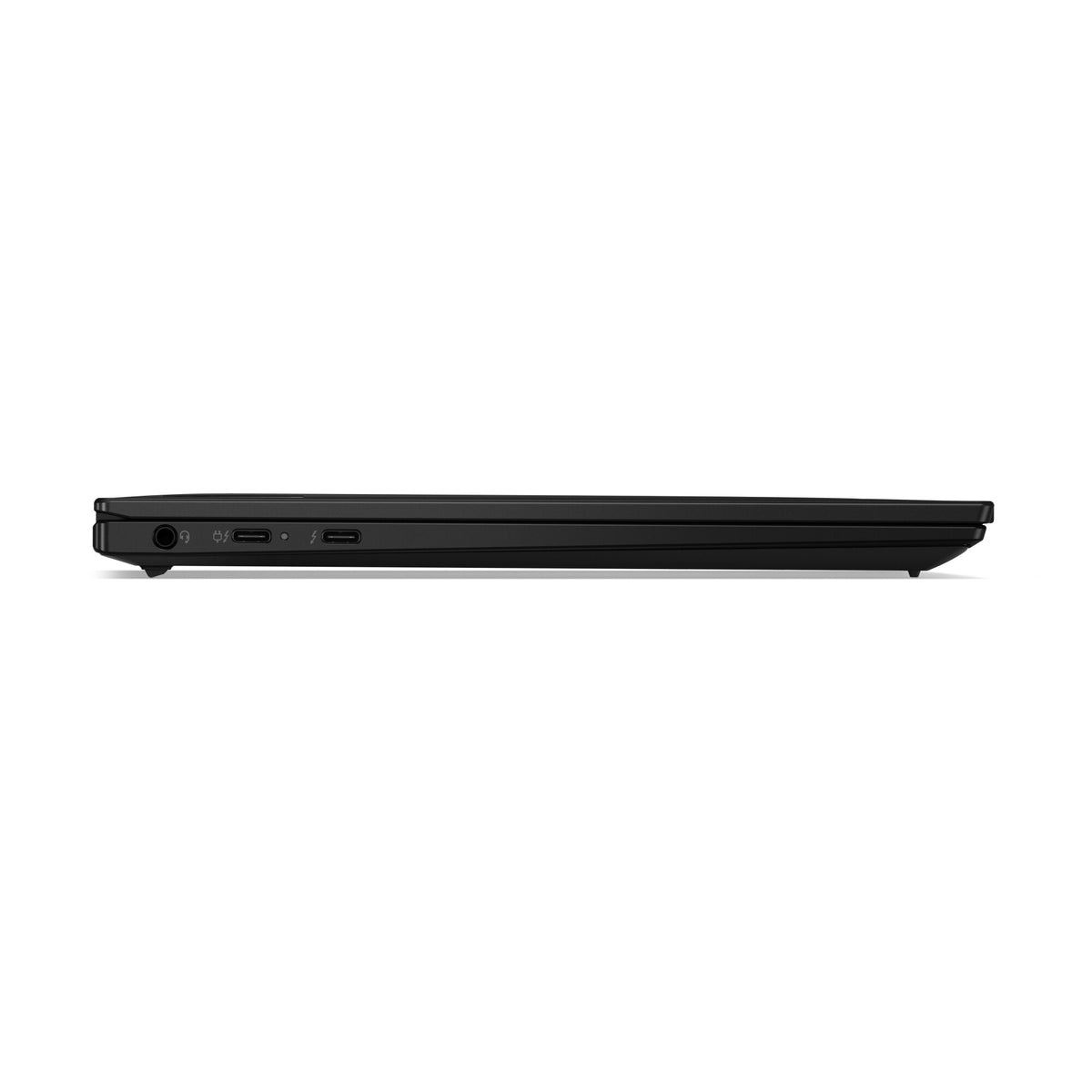

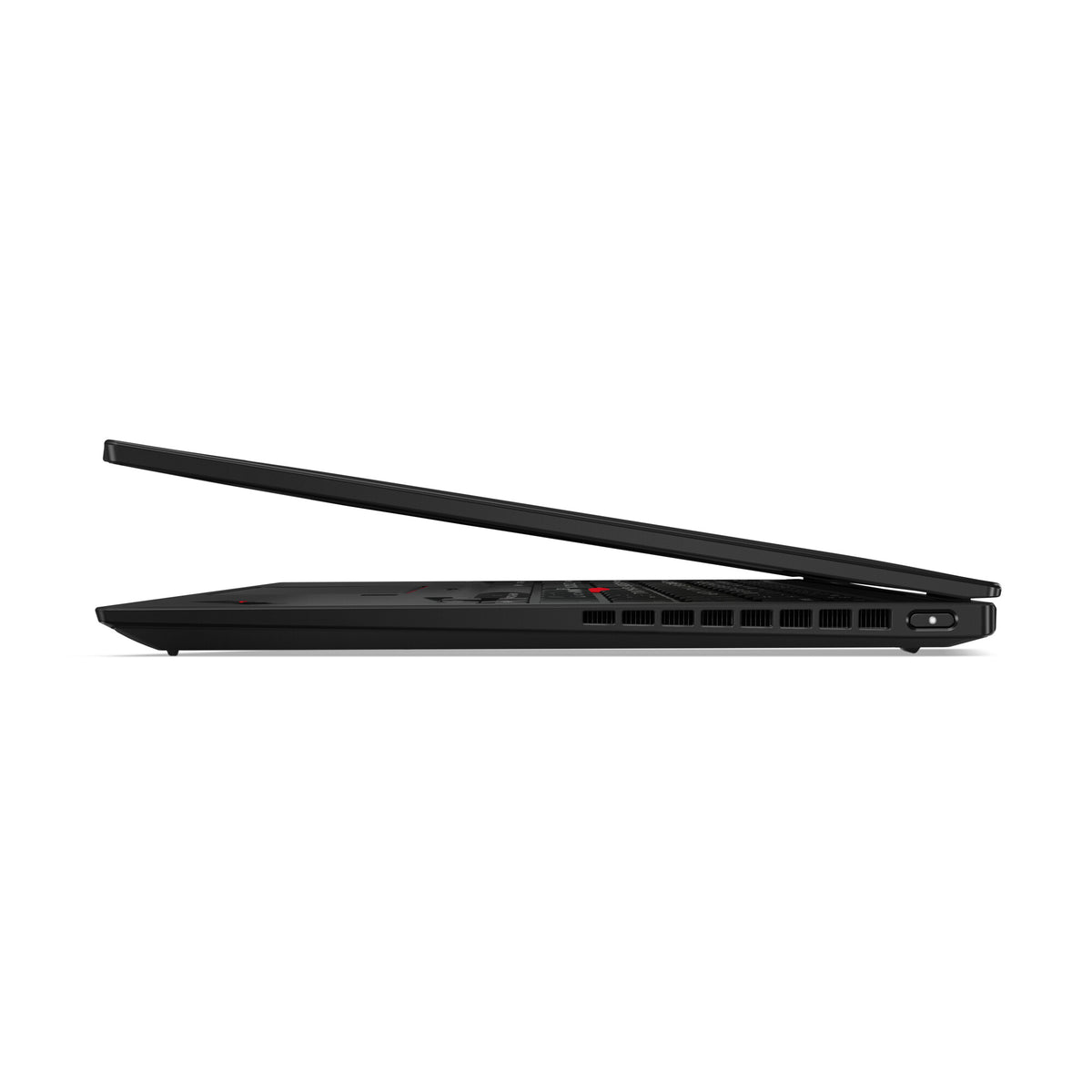

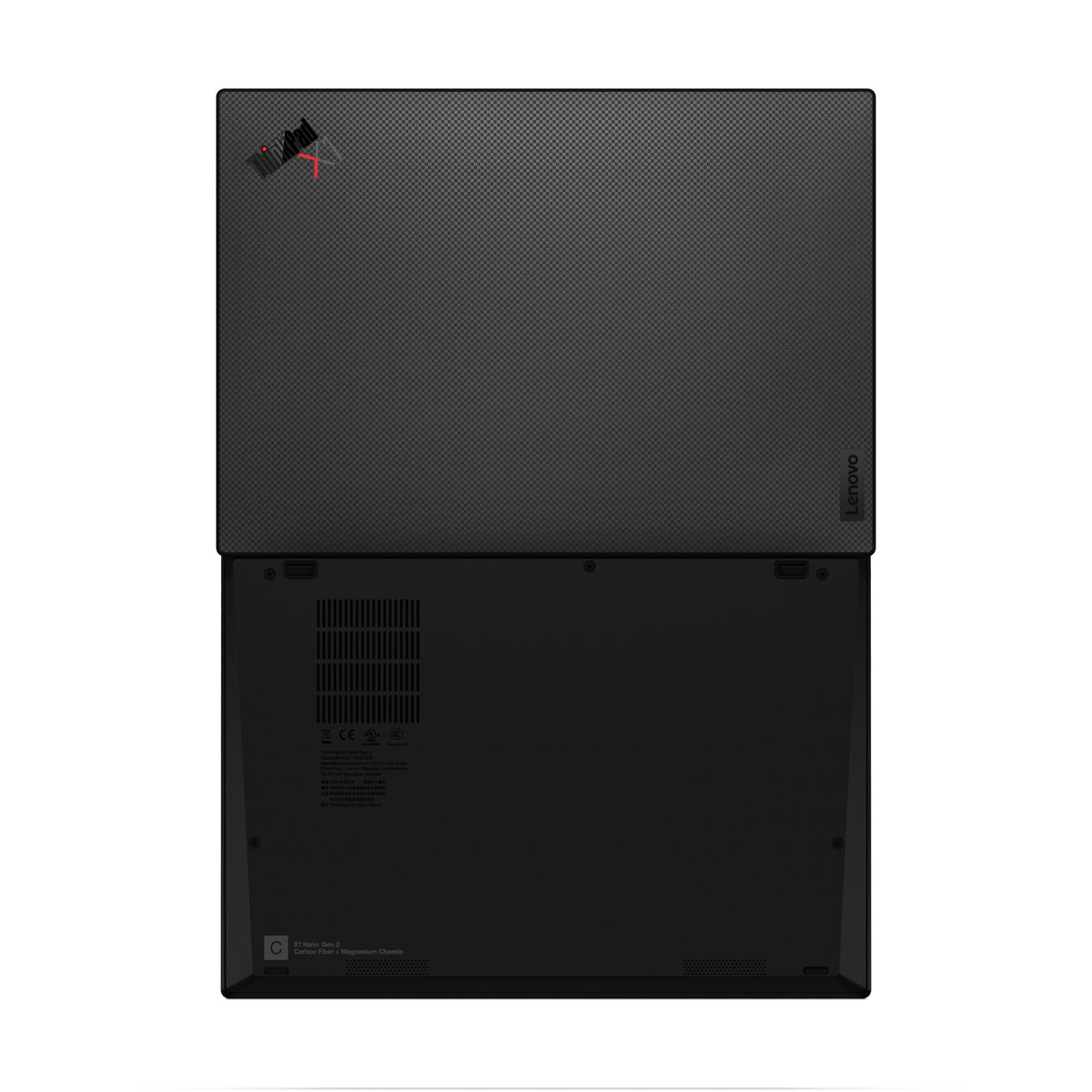

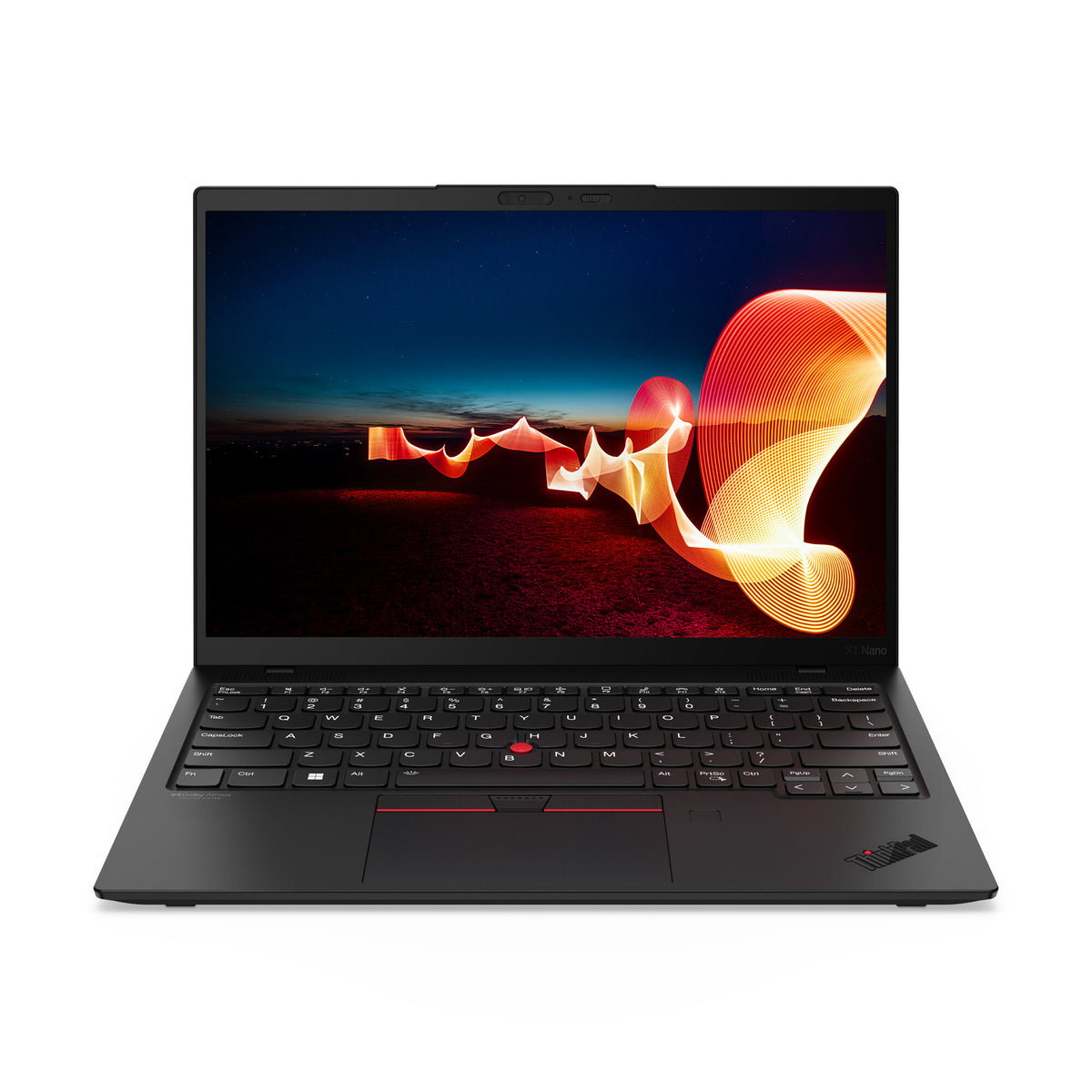

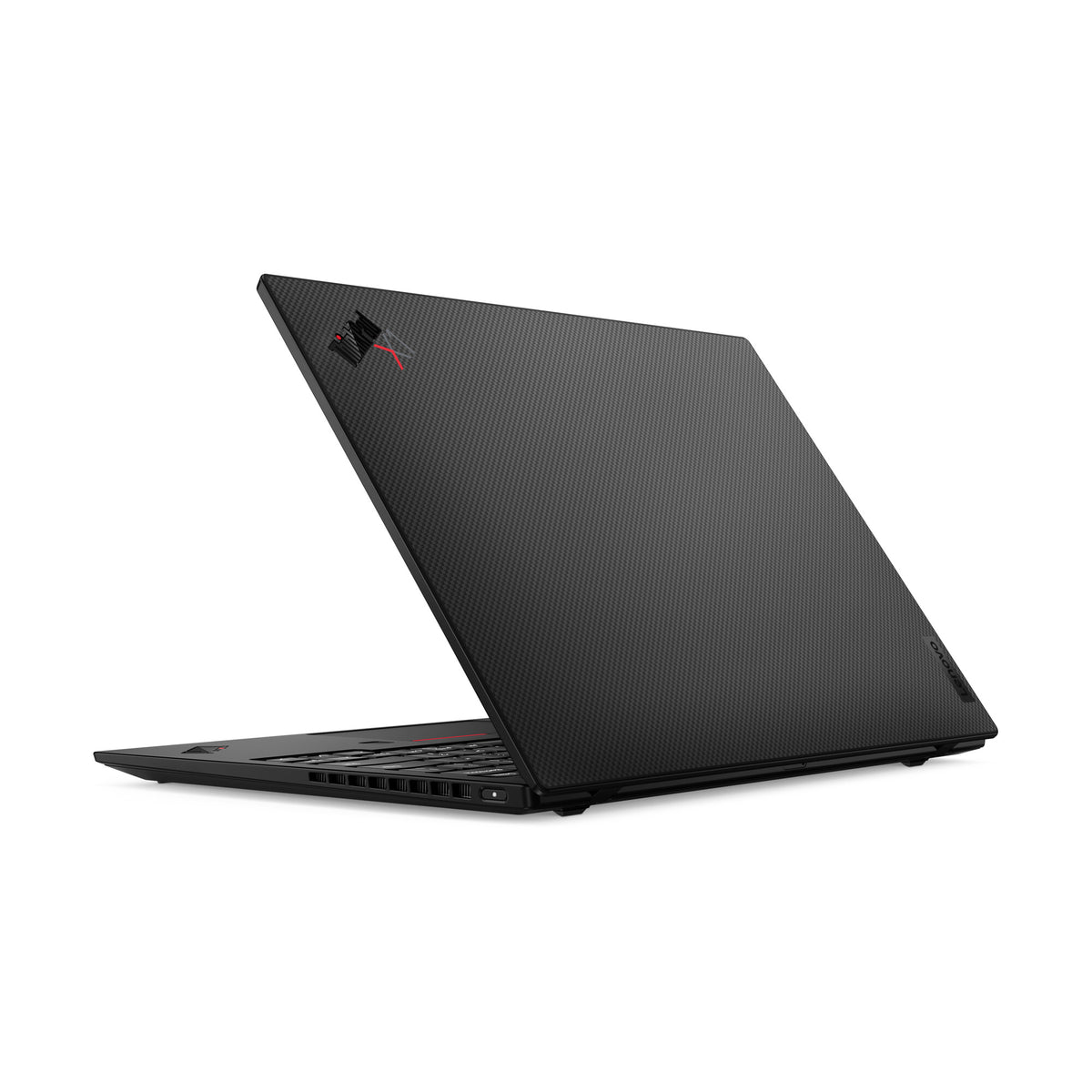

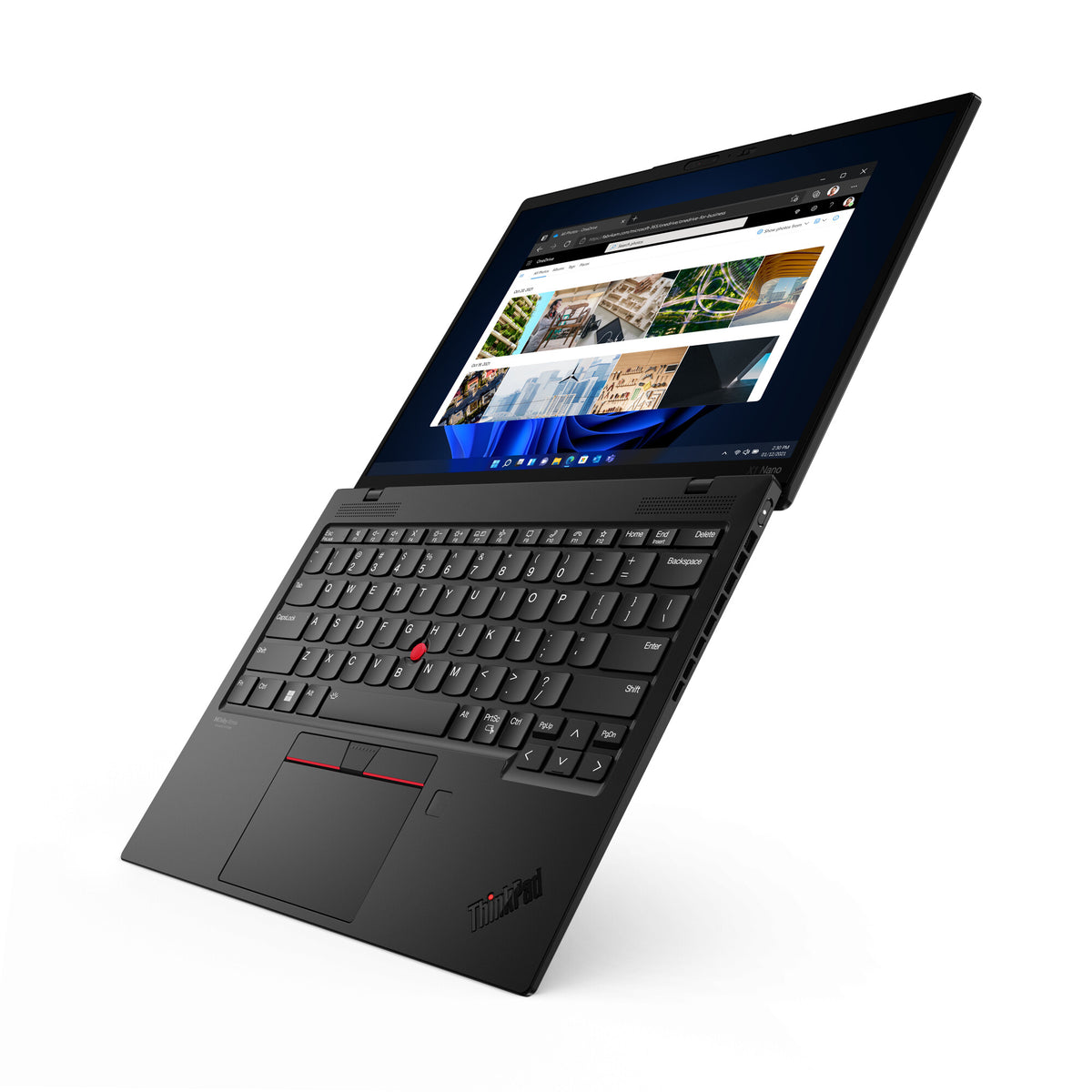

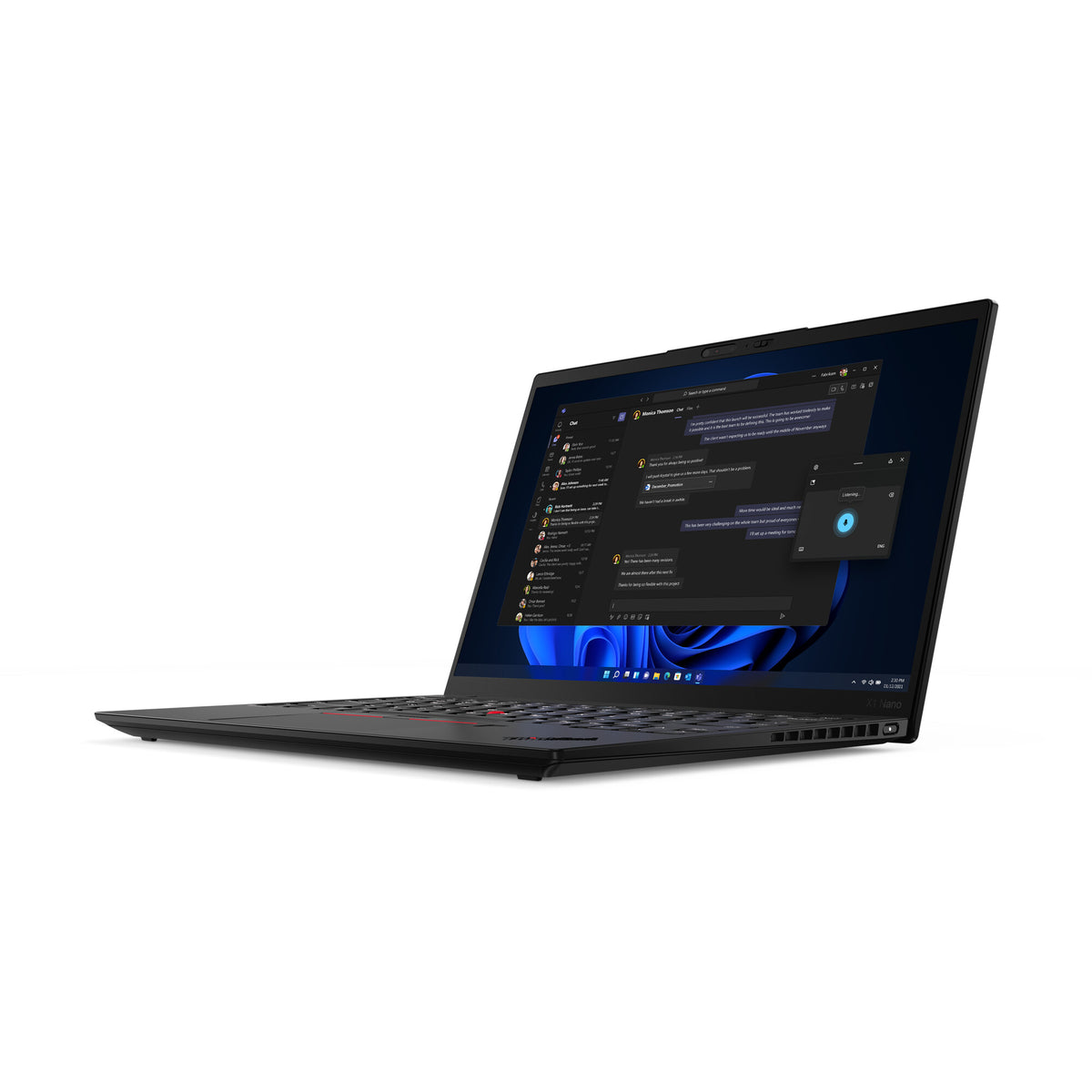

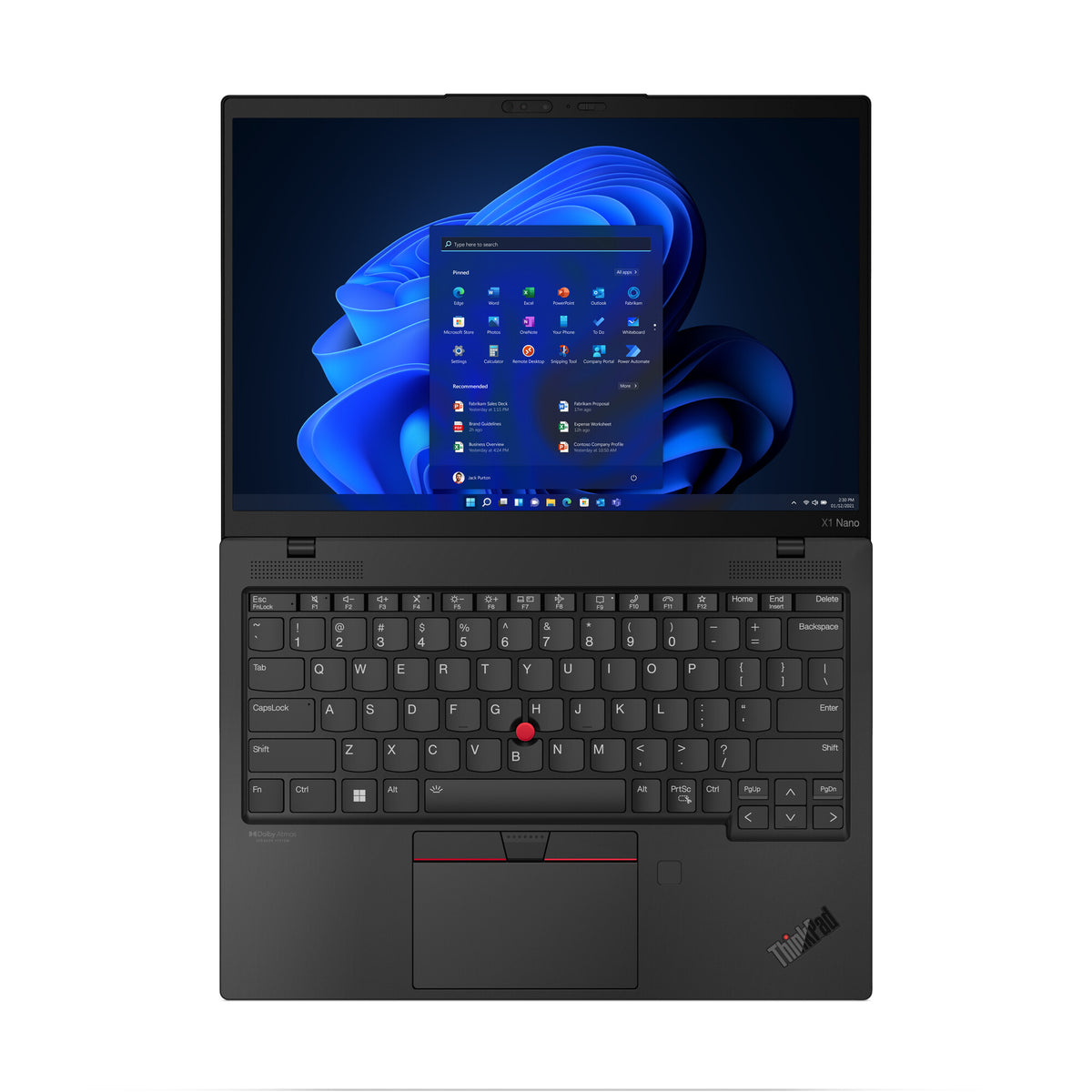

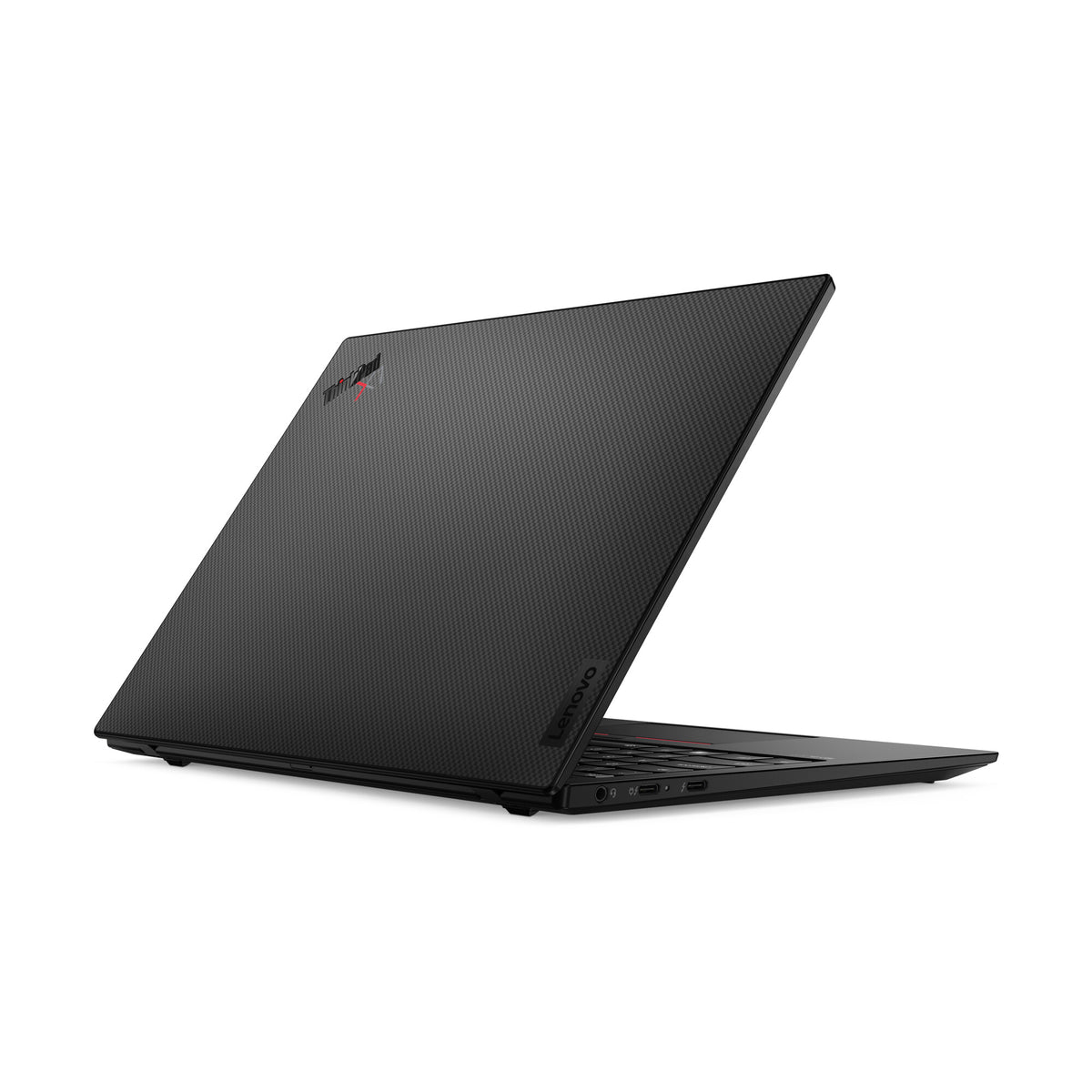

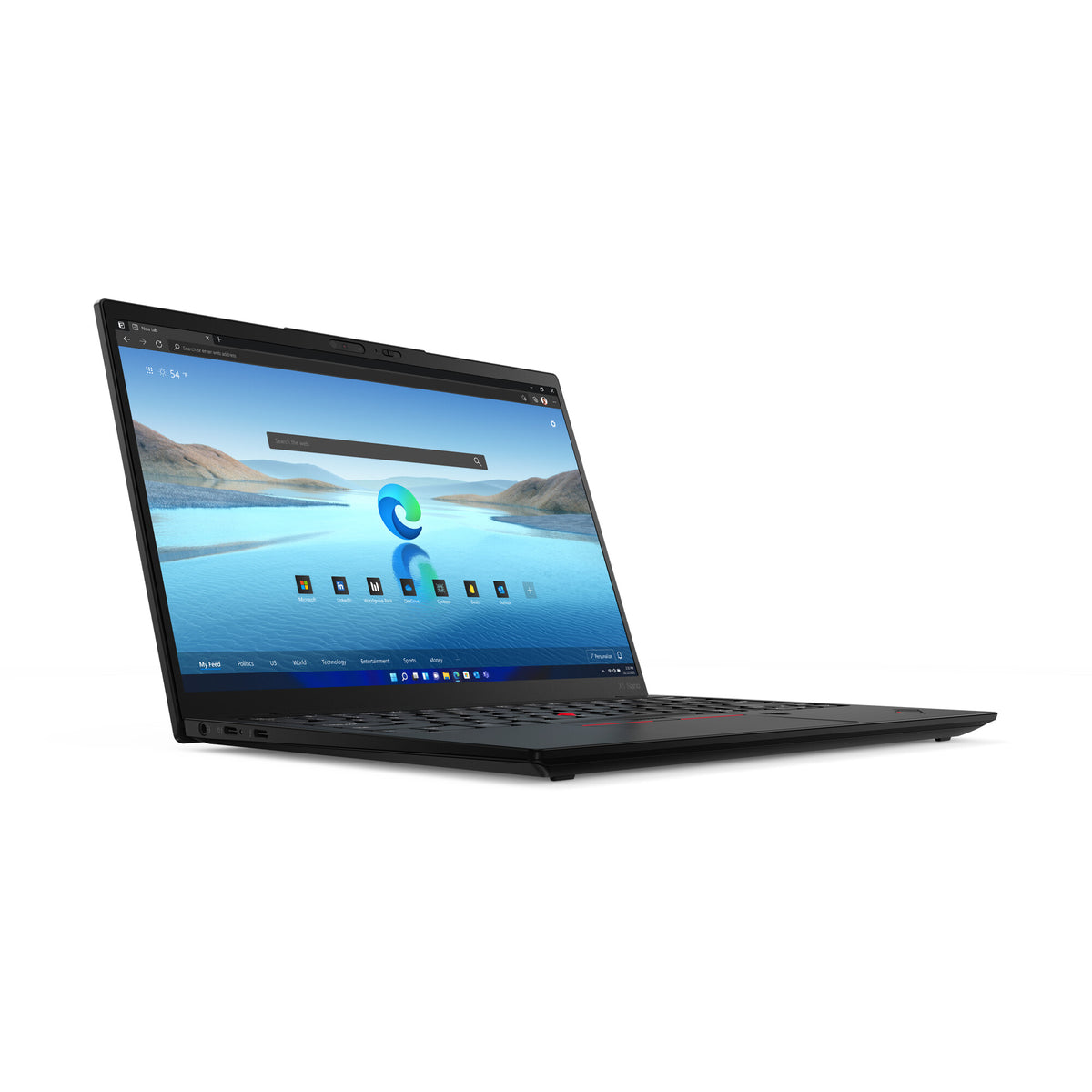

Raising the bar for laptops everywhere Our lightest ever ThinkPad, the ThinkPad X1 Nano Gen 2 weighs from just 970g but packs a punch. With up to 12th Gen Intel Core vPro processors, it has optional 5G connectivity and comes with advanced biometric and AI-based security, plus smart battery-saving features. Just as impressive is the truly stunning viewing and immersive audio experience it gives you.
Design | |
---|---|
Colour name | Black, Paint |
Product type | Notebook |
Housing material | Carbon fibre, Magnesium |
Form factor | Clamshell |
Product colour | Black |
Display | |
HD type | 2K Ultra HD |
Panel type | IPS |
LED backlight | Yes |
Display brightness | 450 cd/m� |
Contrast ratio (typical) | 1000:1 |
Touchscreen | No |
Display resolution | 2160 x 1350 pixels |
Display diagonal | 33 cm (13") |
Anti-glare screen | Yes |
RGB colour space | sRGB |
Colour gamut | 100% |
Native aspect ratio | 16:10 |
Processor | |
Processor generation | 12th gen Intel Core i7 |
Configurable TDP-down | 20 W |
Processor cache | 18 MB |
Processor frequency | 2.1 GHz |
Processor model | i7-1260P |
Processor boost frequency | 4.7 GHz |
Processor cores | 12 |
Motherboard chipset | Intel SoC |
Processor manufacturer | Intel |
Processor family | Intel Core i7 |
Memory | |
Memory form factor | On-board |
Internal memory | 16 GB |
Memory layout (slots x size) | 1 x 16 GB |
Internal memory type | LPDDR5-SDRAM |
Memory clock speed | 5200 MHz |
Maximum internal memory | 16 GB |
Storage | |
SSD form factor | M.2 |
Storage media | SSD |
Optical drive type | No |
Number of SSDs installed | 1 |
SSD capacity | 512 GB |
SSD interface | NVMe, PCI Express 4.0 |
Total storage capacity | 512 GB |
Total SSDs capacity | 512 GB |
NVMe | Yes |
Graphics | |
Discrete graphics card | No |
On-board graphics card family | Intel Iris Xe Graphics |
On-board graphics card | Yes |
On-board graphics card model | Intel Iris Xe Graphics |
Discrete graphics card model | Not available |
Audio | |
Audio chip | Realtek ALC3306 |
Number of microphones | 4 |
Audio system | Dolby Atmos |
Number of built-in speakers | 4 |
Speaker power | 3 W |
Built-in microphone | Yes |
Camera | |
Front camera | Yes |
Privacy camera | Yes |
Privacy type | Privacy shutter |
Front camera HD type | Full HD |
Infrared (IR) camera | Yes |
Optical drive | |
Optical drive type | No |
Network | |
Mobile network connection | No |
Mobile network generation | 5G |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
WLAN controller model | Intel Wi-Fi 6E AX211 |
Near Field Communication (NFC) | No |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Bluetooth | Yes |
Bluetooth version | 5.2 |
WWAN | Installed |
Antenna type | 2x2 |
WLAN controller manufacturer | Intel |
Ports & interfaces | |
USB Type-C DisplayPort Alternate Mode | Yes |
Combo headphone/mic port | Yes |
USB Power Delivery | Yes |
Thunderbolt 4 ports quantity | 2 |
Keyboard | |
Keyboard layout | QWERTY |
Numeric keypad | No |
Keyboard backlit | Yes |
Keyboard language | English |
Software | |
Operating system language | English |
Operating system architecture | 64-bit |
Bundled software | Intel Connectivity Performance Suite |
Operating system installed | Windows 11 Pro |
Technical details | |
Housing material | Carbon fibre, Magnesium |
Form factor | Clamshell |
Product colour | Black |
Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP, RoHS, TCO |
Processor special features | |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel Trusted Execution Technology | Yes |
Intel Flex Memory Access | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Execute Disable Bit | Yes |
Embedded options available | No |
CPU configuration (max) | 1 |
Intel Virtualization Technology (VT-x) | Yes |
Battery | |
Battery technology | Lithium Polymer (LiPo) |
Battery capacity | 49.5 Wh |
Power | |
AC adapter power | 65 W |
AC adapter frequency | 50 - 60 Hz |
AC adapter input voltage | 100 - 240 V |
Security | |
Password protection | Yes |
Cable lock slot type | Kensington |
Trusted Platform Module (TPM) | Yes |
Password protection type | BIOS, Power on, Supervisor |
Fingerprint reader | Yes |
Cable lock slot | Yes |
Smart card reader | No |
Trusted Platform Module (TPM) version | 2.0 |
Operational conditions | |
Operating temperature (T-T) | 5 - 35 �C |
Storage temperature (T-T) | 5 - 43 �C |
Operating relative humidity (H-H) | 8 - 95% |
Storage relative humidity (H-H) | 5 - 95% |
Sustainability | |
Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP, RoHS, TCO |
Weight & dimensions | |
Width | 293.3 mm |
Depth | 208.1 mm |
Height | 14.8 mm |
Weight | 966.5 g |
Logistics data | |
Harmonized System (HS) code | 84713000 |
Other features | |
WLAN controller model | Intel Wi-Fi 6E AX211 |
On-board graphics card | Yes |
Audio system | Dolby Atmos |
Anti-glare screen | Yes |
Harmonized System (HS) code | 84713000 |
