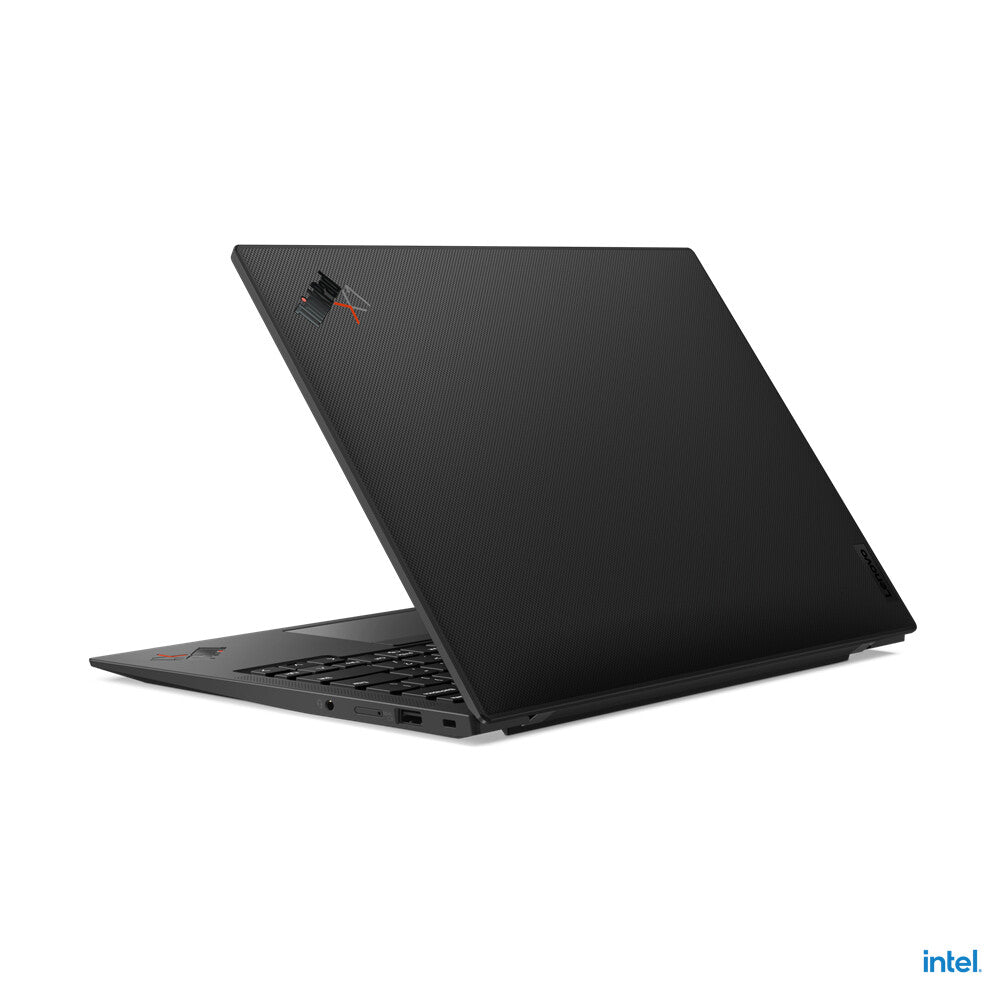

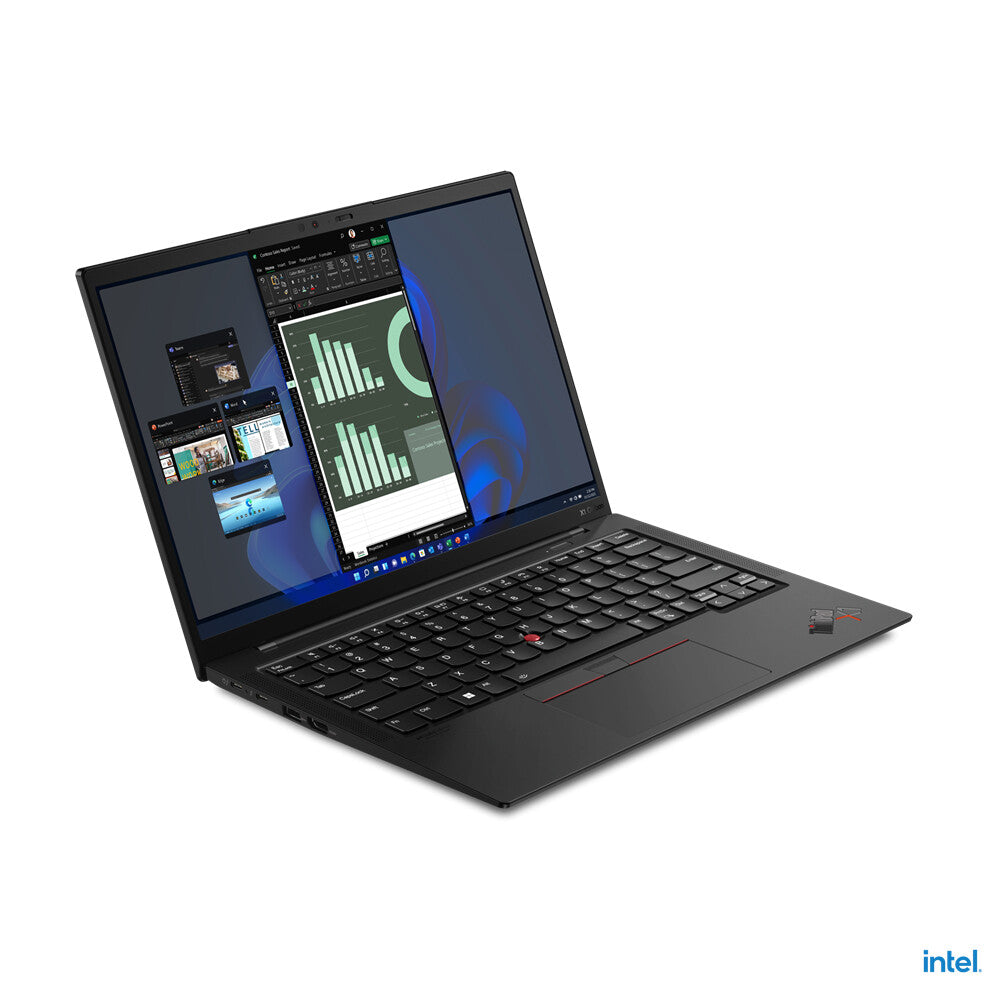

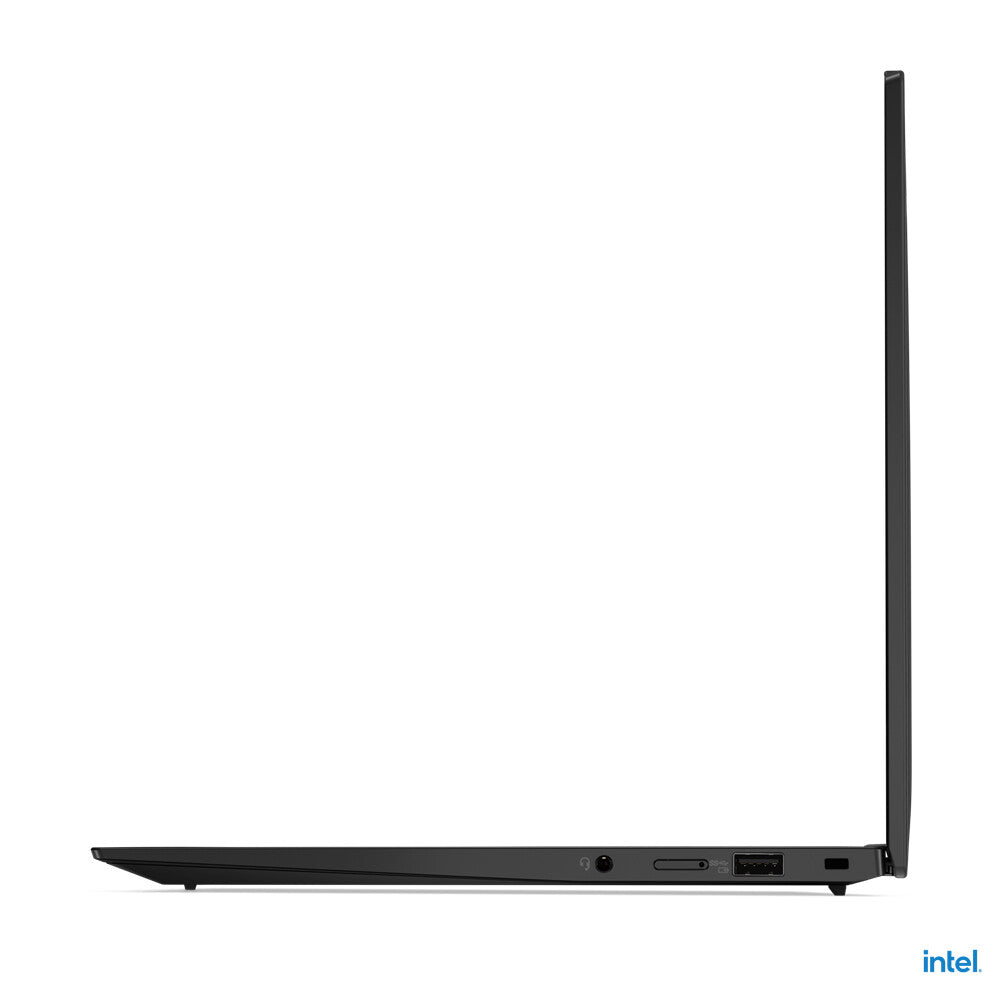

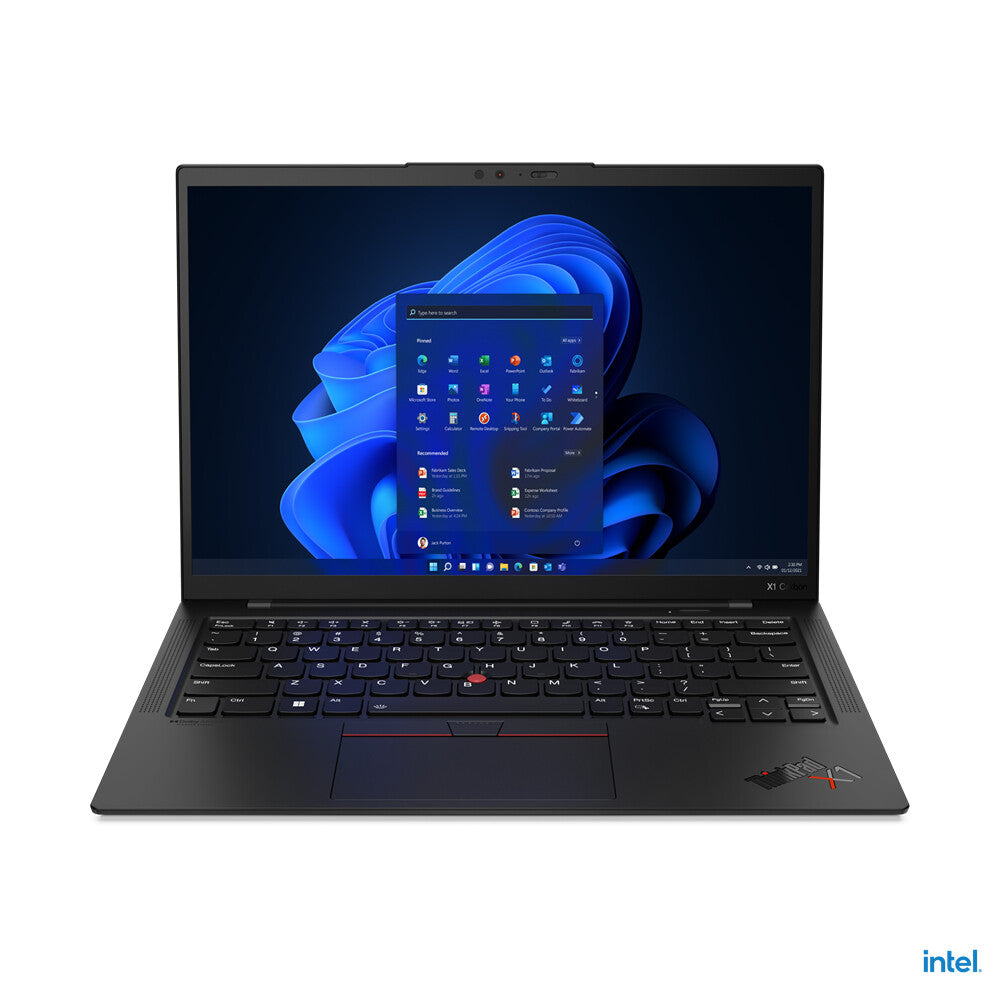

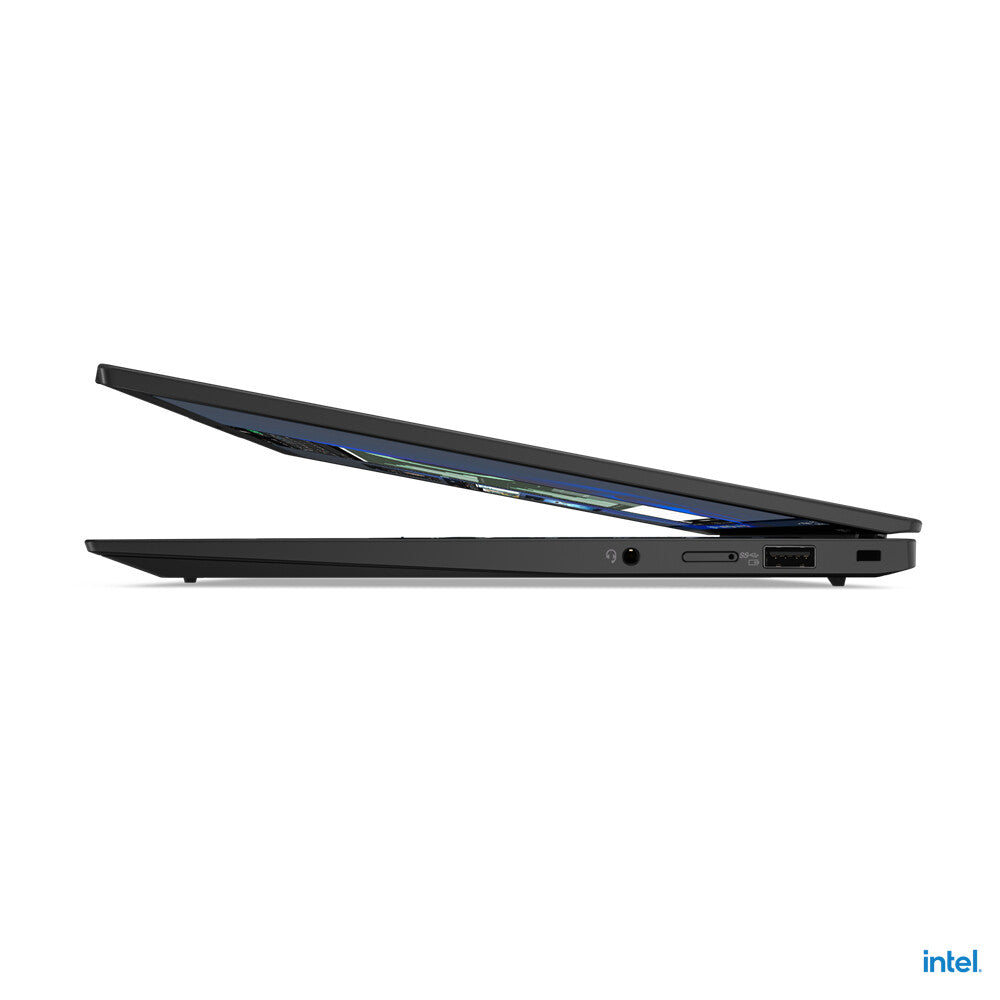

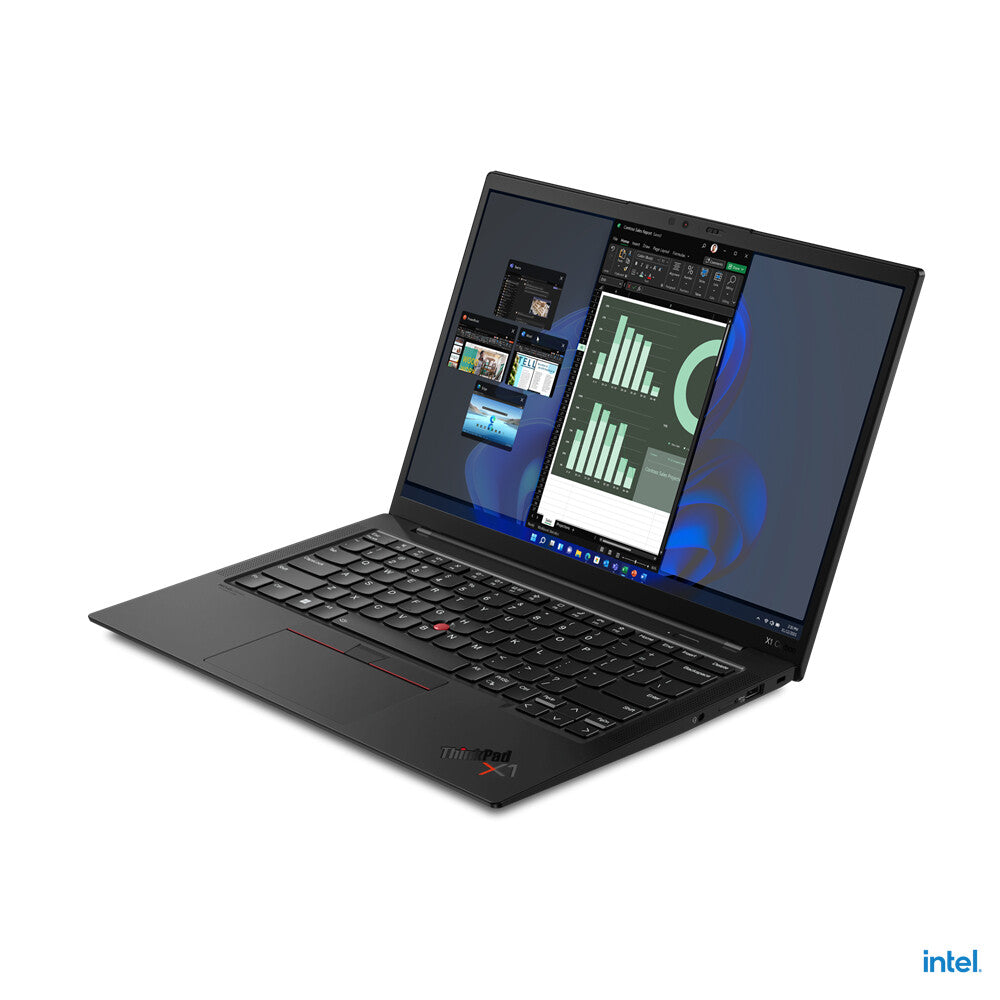

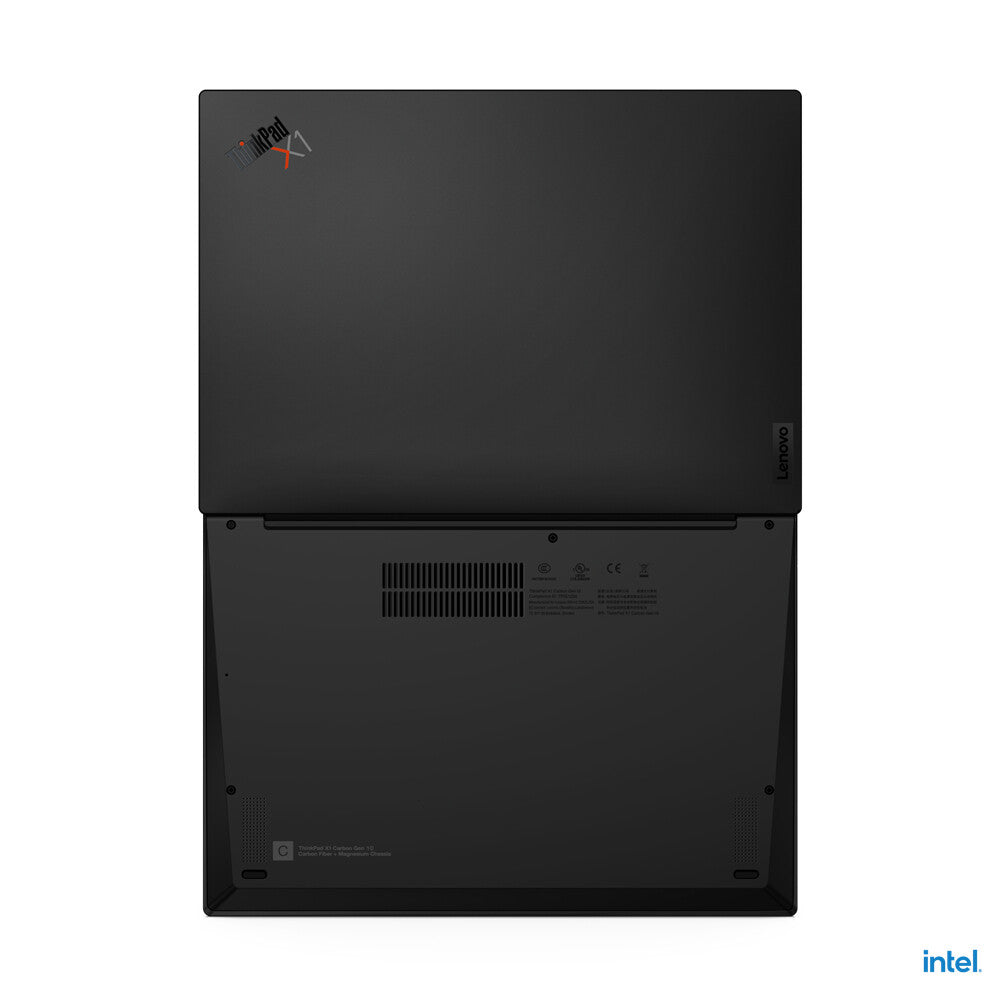

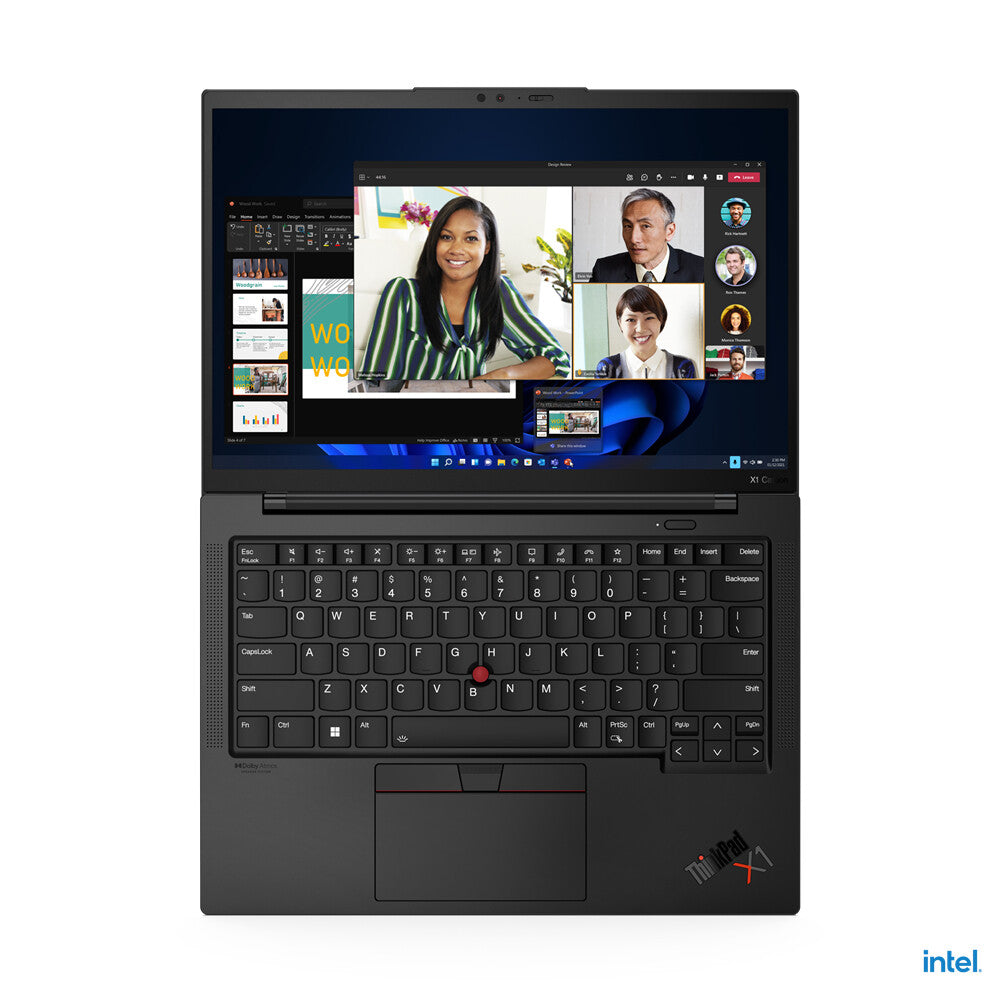

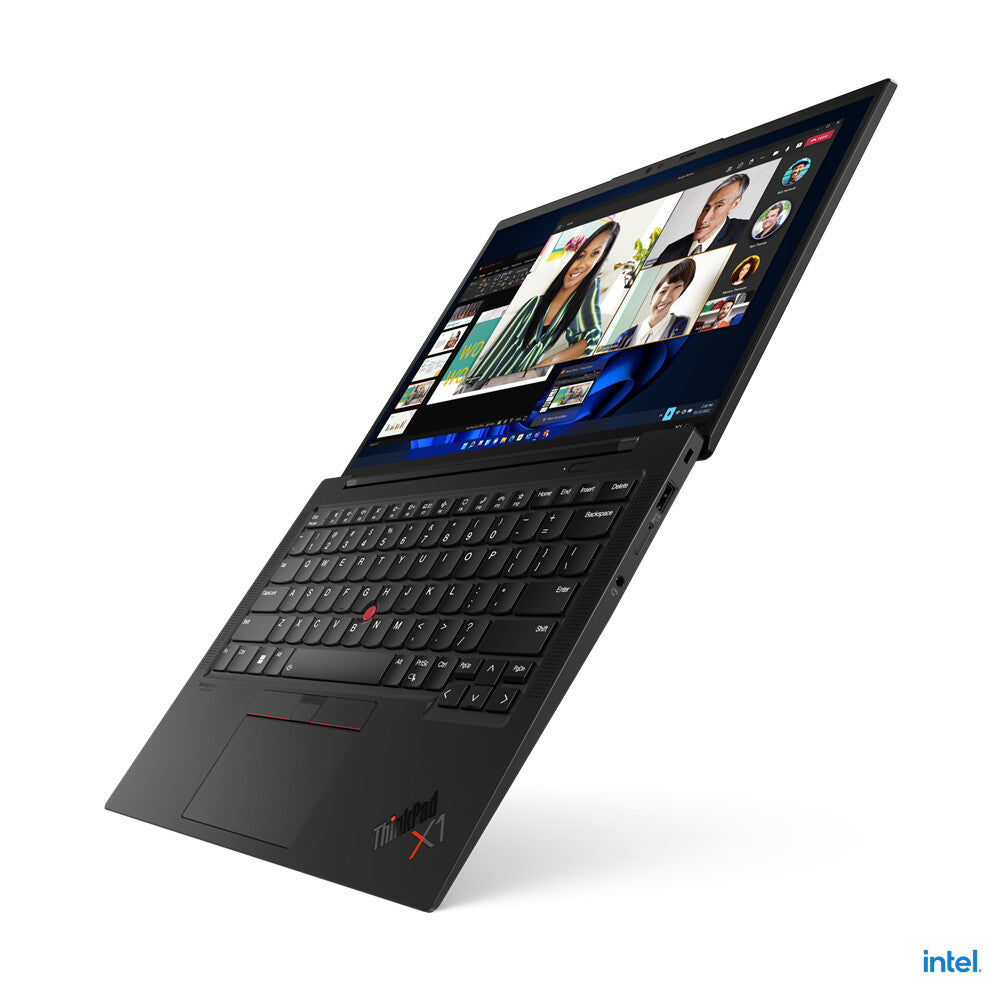

Redesigned with collaboration in mind The 10th generation of our premium ThinkPad X1 Carbon laptop is built on the Intel Evo platform and powered by up to 12th Gen Intel Core vPro processors. It still has the legendary ThinkPad keyboard, only now weve redesigned the keys to create better airflow, in addition to rear exhaust ventilation. Weve also transformed the camera into a Communications Bar to improve videoconferencing.
Design | |
---|---|
Colour name | Black, Weave |
Product type | Notebook |
Housing material | Aluminium, Carbon fibre |
Form factor | Clamshell |
Product colour | Black |
Display | |
HD type | 2.8K |
Panel type | OLED |
LED backlight | Yes |
Display brightness | 400 cd/m� |
Touchscreen | No |
Display resolution | 2880 x 1800 pixels |
Display diagonal | 35.6 cm (14") |
Anti-glare screen | Yes |
Processor | |
Processor generation | 12th gen Intel Core i7 |
Configurable TDP-down | 20 W |
Processor cache | 18 MB |
Processor frequency | 2.1 GHz |
Processor model | i7-1260P |
Processor boost frequency | 4.7 GHz |
Processor cores | 12 |
Motherboard chipset | Intel SoC |
Processor manufacturer | Intel |
Processor family | Intel Core i7 |
Memory | |
Memory form factor | On-board |
Internal memory | 16 GB |
Internal memory type | LPDDR5-SDRAM |
Memory clock speed | 5200 MHz |
Maximum internal memory | 16 GB |
Memory channels | Octa-channel |
Storage | |
SSD form factor | M.2 |
Storage media | SSD |
Optical drive type | No |
Number of SSDs installed | 1 |
SSD capacity | 512 GB |
SSD interface | PCI Express |
Card reader integrated | No |
Total storage capacity | 512 GB |
Total SSDs capacity | 512 GB |
Graphics | |
Discrete graphics card | No |
On-board graphics card | Yes |
On-board graphics card model | Intel Iris Xe Graphics |
Discrete graphics card model | Not available |
Audio | |
Audio chip | Realtek ALC3306 |
Number of microphones | 2 |
Audio system | Dolby Atmos |
Number of built-in speakers | 2 |
Speaker power | 2 W |
Built-in microphone | Yes |
Camera | |
Front camera | Yes |
Privacy camera | Yes |
Privacy type | Privacy shutter |
Infrared (IR) camera | Yes |
Optical drive | |
Optical drive type | No |
Network | |
Mobile network connection | No |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
WLAN controller model | Intel Wi-Fi 6E AX211 |
Near Field Communication (NFC) | Yes |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Ethernet LAN | No |
Bluetooth | Yes |
Bluetooth version | 5.2 |
WWAN | Installed |
Antenna type | 2x2 |
WLAN controller manufacturer | Intel |

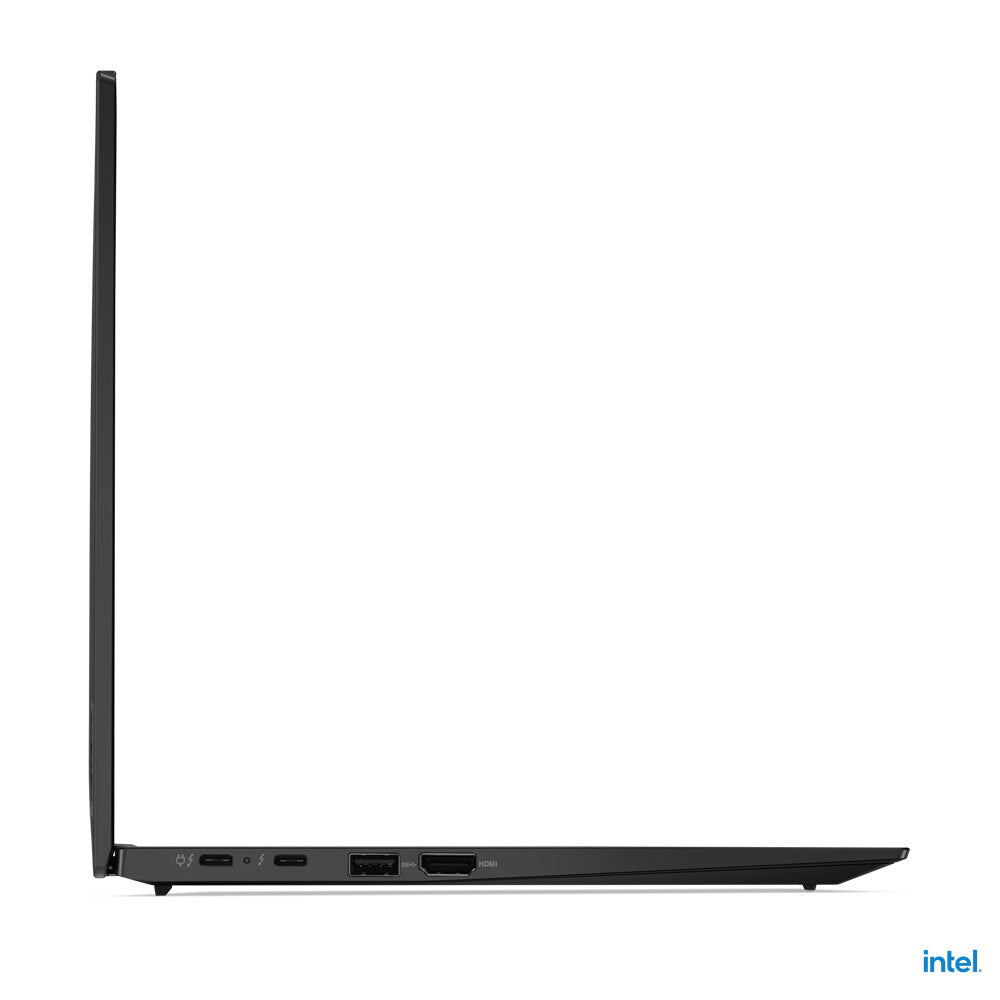

Ports & interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB Type-C DisplayPort Alternate Mode | Yes |
USB Sleep-and-Charge | Yes |
HDMI ports quantity | 1 |
Headphone outputs | 3.5 |
Combo headphone/mic port | Yes |
USB Power Delivery | Yes |
Thunderbolt 4 ports quantity | 2 |
Keyboard | |
Keyboard layout | QWERTY |
Numeric keypad | No |
Keyboard backlit | Yes |
Keyboard language | English |
Software | |
Operating system language | English |
Operating system architecture | 64-bit |
Bundled software | Intel Connectivity Performance Suite |
Operating system installed | Windows 11 Pro |
Windows 11 free upgrade | No |
Technical details | |
Housing material | Aluminium, Carbon fibre |
Form factor | Clamshell |
Product colour | Black |
Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP, RoHS, TCO |
Processor special features | |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel Trusted Execution Technology | Yes |
Intel Flex Memory Access | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Execute Disable Bit | Yes |
Embedded options available | No |
CPU configuration (max) | 1 |
Intel Virtualization Technology (VT-x) | Yes |
Battery | |
Battery capacity | 57 Wh |
Power | |
AC adapter power | 65 W |
Security | |
Cable lock slot type | Kensington |
Trusted Platform Module (TPM) | Yes |
Fingerprint reader | Yes |
Cable lock slot | Yes |
Smart card reader | No |
Trusted Platform Module (TPM) version | 2.0 |
Sustainability | |
Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP, RoHS, TCO |
Weight & dimensions | |
Width | 315.6 mm |
Depth | 222.5 mm |
Height | 15.4 mm |
Weight | 1.12 kg |
Logistics data | |
Harmonized System (HS) code | 84713000 |
Other features | |
WLAN controller model | Intel Wi-Fi 6E AX211 |
On-board graphics card | Yes |
Audio system | Dolby Atmos |
Anti-glare screen | Yes |
Harmonized System (HS) code | 84713000 |
