54.6cm (21.5") Full HD 1920 x 1080 W-LED IPS, 16:9, 250cd/m², 16.78M, 6ms, 178°/178°, 1000:1
Modular convenience

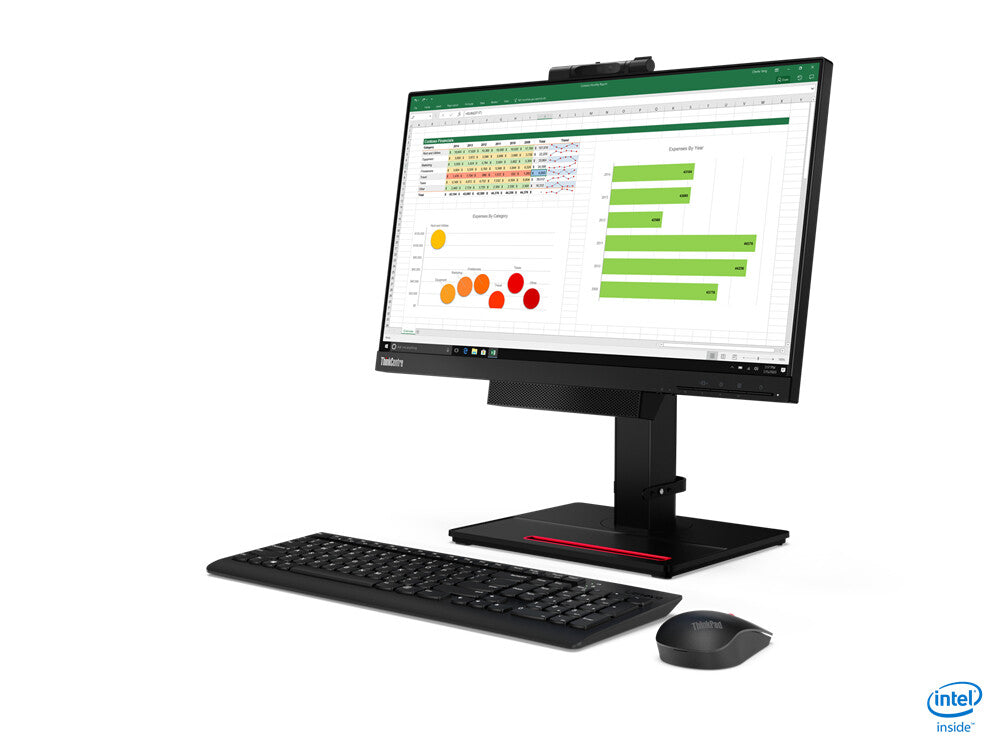

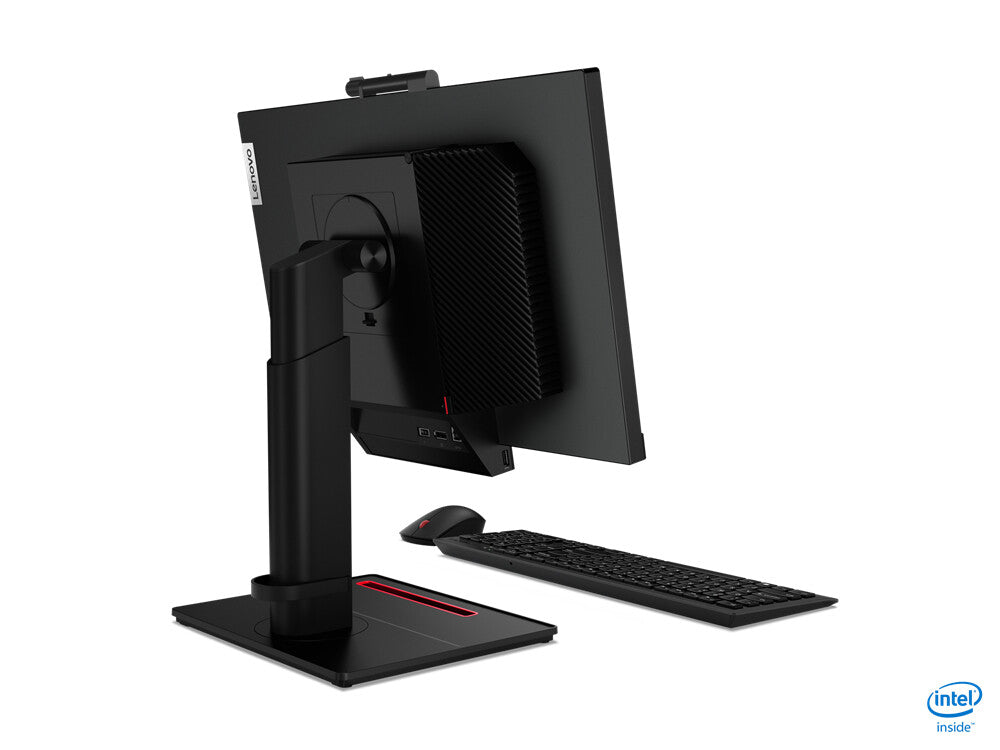

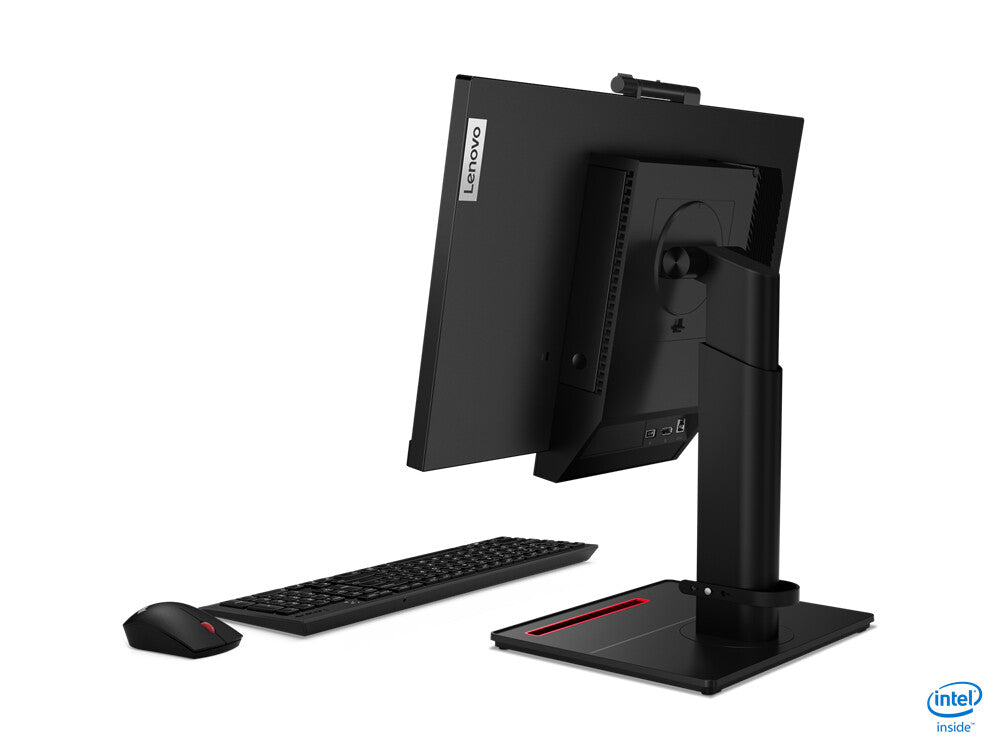

The ThinkCentre TIO22 Gen 4 makes it easy to create your own modular all-in-one (AIO)—simply plug a compatible ThinkCentre Tiny, Nano, or similar PC (not supplied) into the back of monitor. It instantly becomes a self-contained, fully functional AIO. But unlike other AIOs, the monitor and CPU refresh separately, making upgrades efficient and easy. The TIO is compatible with most ThinkCentre Tiny or Nano PCs, so you can have the right all-in-one for your business now.
Purposeful design

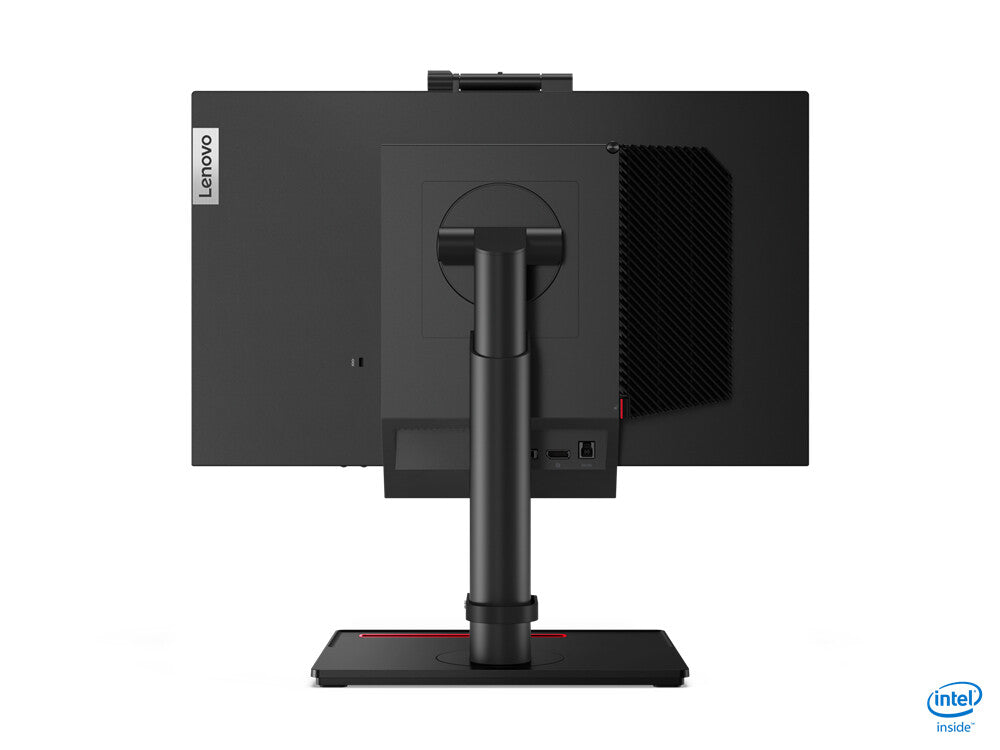

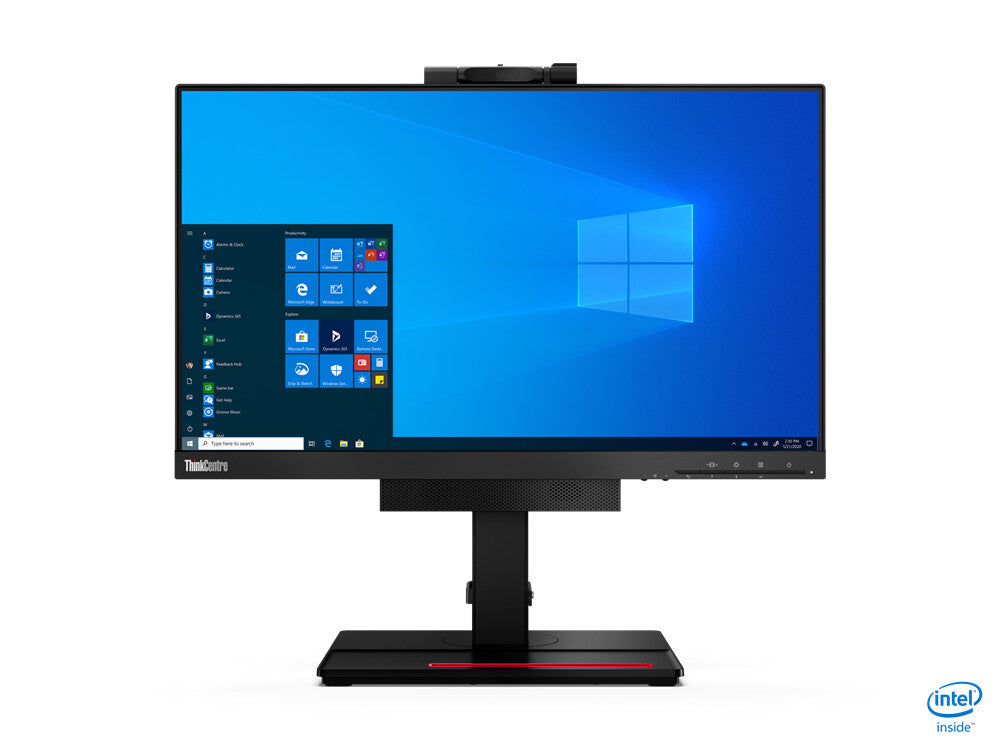

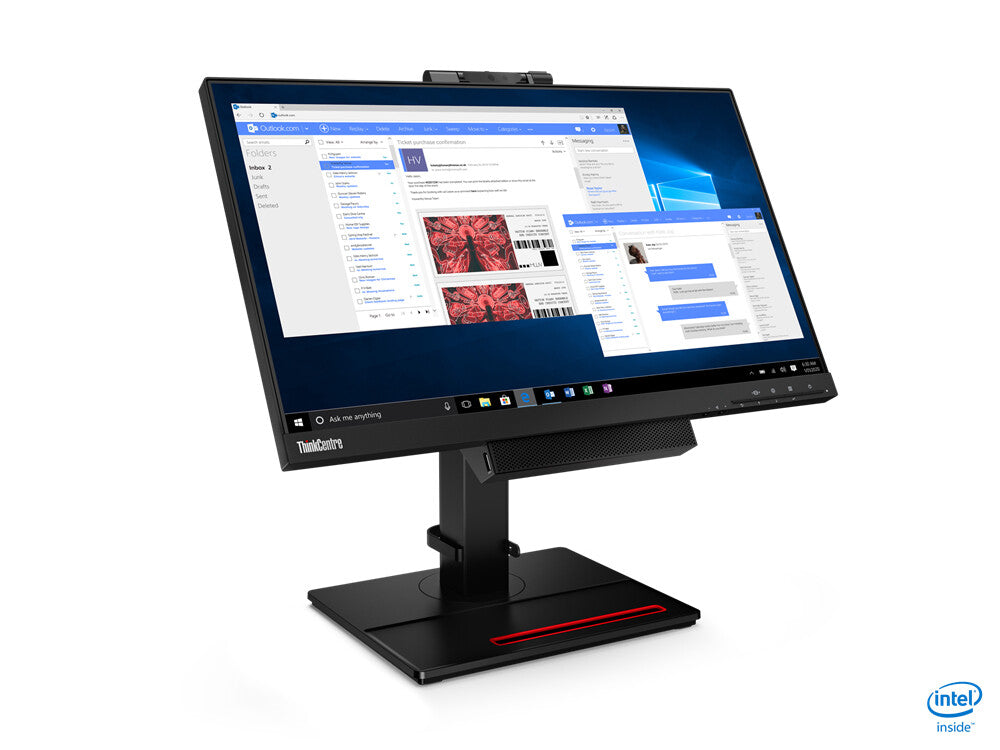

This TIO’s 21.5" FHD display is sleek and borderless and the unit takes up less space than previous generations. Its back cover has been redesigned for optimal heat dissipation and PC performance, and the stand includes a handy storage slot for your smartphone. The display also offers optional 10-point multitouch. It can also be used as a second display for your laptop, via DisplayPort.
Connect and collaborate
Thanks to the two 2W speakers and 720p rotatable camera and microphone, video calls are seamless and crystal-clear. The camera also features ThinkShutter, a privacy cover for when you’re not videoconferencing. Additionally, the TIO22 Gen 4 has plenty of ports, all conveniently situated for you to recharge and connect your other devices.
Ease & comfort of use

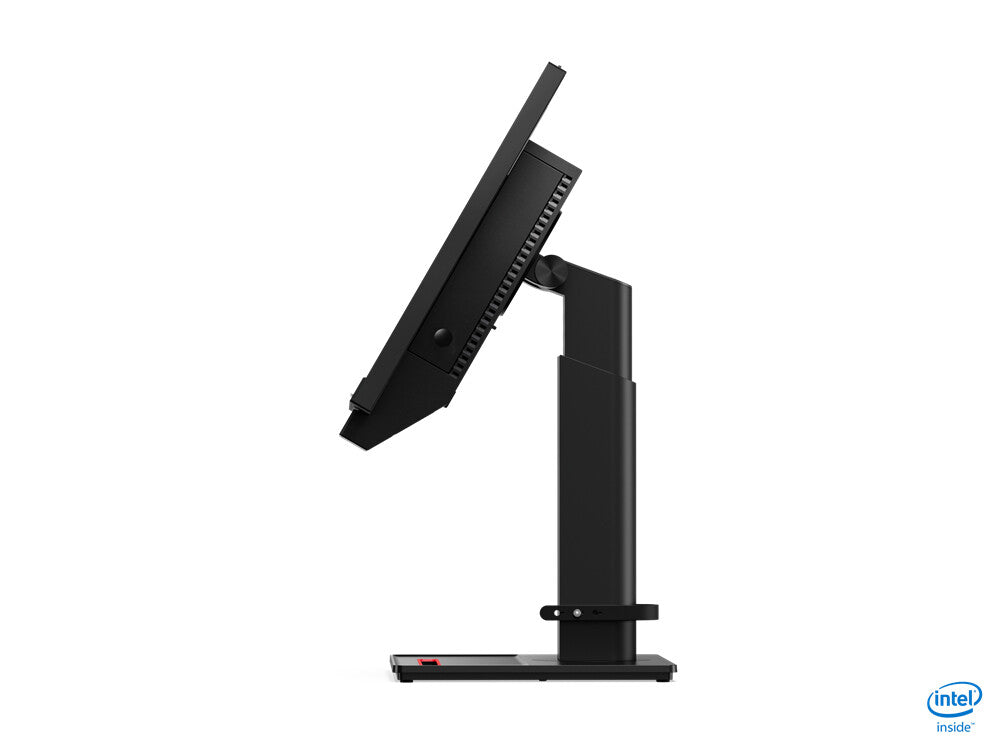

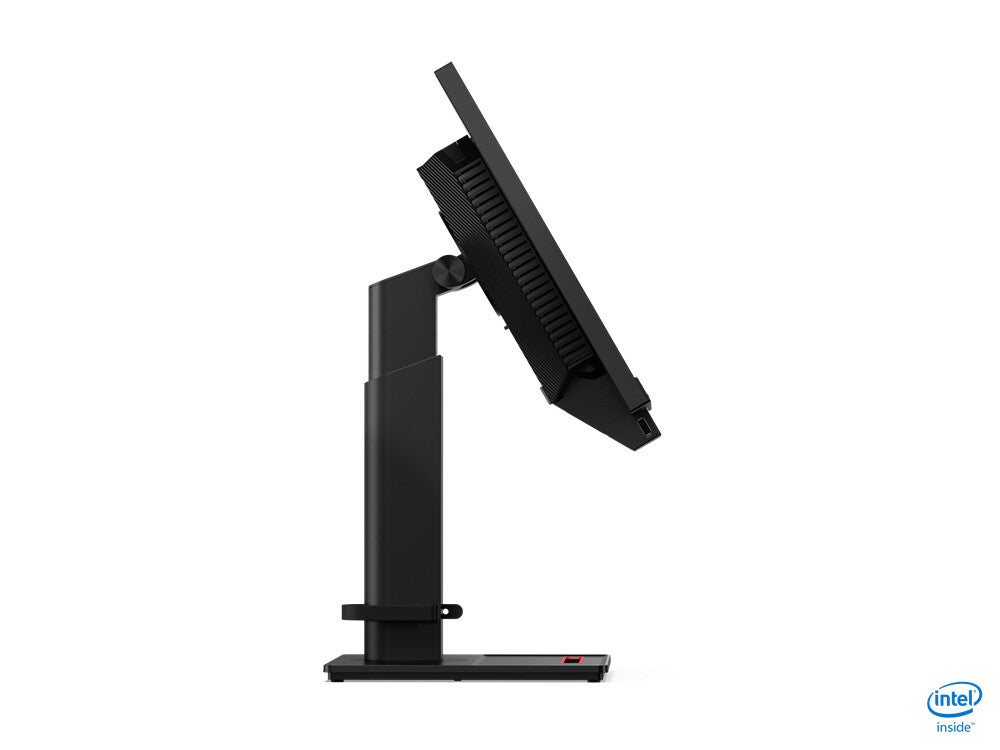

The TIO22 Gen 4 has been independently tested and certified by TÜV Rheinland to be eye-friendly. It also has an antiglare filter to help make your viewing more comfortable. Its redesigned stand has an additional 40mm of vertical lift, allowing for better ergonomics and more range in meeting your eye level. It also swivels 45 degrees in either direction, while the display tilts from -5 to 30 degrees and even rotates up to 90 degrees clockwise.
| Display |
|---|
| NTSC coverage (typical) |
72% |
| RGB colour space |
NTSC |
| Colour depth |
8 bit |
| Viewable size, vertical |
26.8 cm |
| Viewable size, horizontal |
47.6 cm |
| Pixel density |
102.4 ppi |
| Pixel pitch |
0.24795 x 0.24795 mm |
| Response time (fast) |
4 ms |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
1000:1 |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Screen shape |
Flat |
| Response time |
6 ms |
| Display brightness (typical) |
250 cd/m² |
| Backlight type |
W-LED |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
54.6 cm (21.5") |
| Performance |
|---|
| Compatibility |
P340 / P330 / P320 / M90q / M80q / M70q / M75q / 920(x) / M720 / M910(x) / M710 / M715 / M900(x) / M700 / M630e / M625 / M600 Tiny M90n / M75n Nano (with TIO kit) |
| Low Blue Light technology |
Yes |
| Multimedia |
|---|
| Built-in microphone |
Yes |
| RMS rated power |
4 W |
| Number of speakers |
2 |
| Built-in camera |
Yes |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Certification |
TCO 8.0, TCO edge 2.0, UL GREENGUARD, Erp lot5, WEEE, TUV Eye comfort |
| Feet colour |
Black |
| Front bezel colour |
Black |
| Product colour |
Black |
| Ports & interfaces |
|---|
| DisplayPorts quantity |
1 |
| Number of upstream ports |
1 |
| Built-in USB hub |
Yes |
| Ergonomics |
|---|
| Tilt adjustment |
Yes |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
-5 - 30° |
| Swivel angle range |
-45 - 45° |
| Swivelling |
Yes |
| Pivot angle |
-5 - 90° |
| Pivot |
Yes |
| Height adjustment |
15 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| VESA mounting |
Yes |
| Power |
|---|
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
14 W |
| Packaging content |
|---|
| Stand included |
Yes |
| Weight & dimensions |
|---|
| Bezel width (bottom) |
2.21 cm |
| Bezel width (top) |
2 mm |
| Bezel width (side) |
2 mm |
| Weight (without stand) |
3.41 kg |
| Height (without stand) |
339 mm |
| Depth (without stand) |
65.3 mm |
| Width (without stand) |
489.3 mm |
| Weight (with stand) |
6.58 kg |
| Height (with stand) |
418.2 mm |
| Depth (with stand) |
220.4 mm |
| Width (with stand) |
489.3 mm |
| Sustainability |
|---|
| Sustainability certificates |
RoHS, EPEAT Silver, ENERGY STAR |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Other features |
|---|
| Energy efficiency class (old) |
A+ |
| Multi-touch |
No |
