Peak Processing Performance

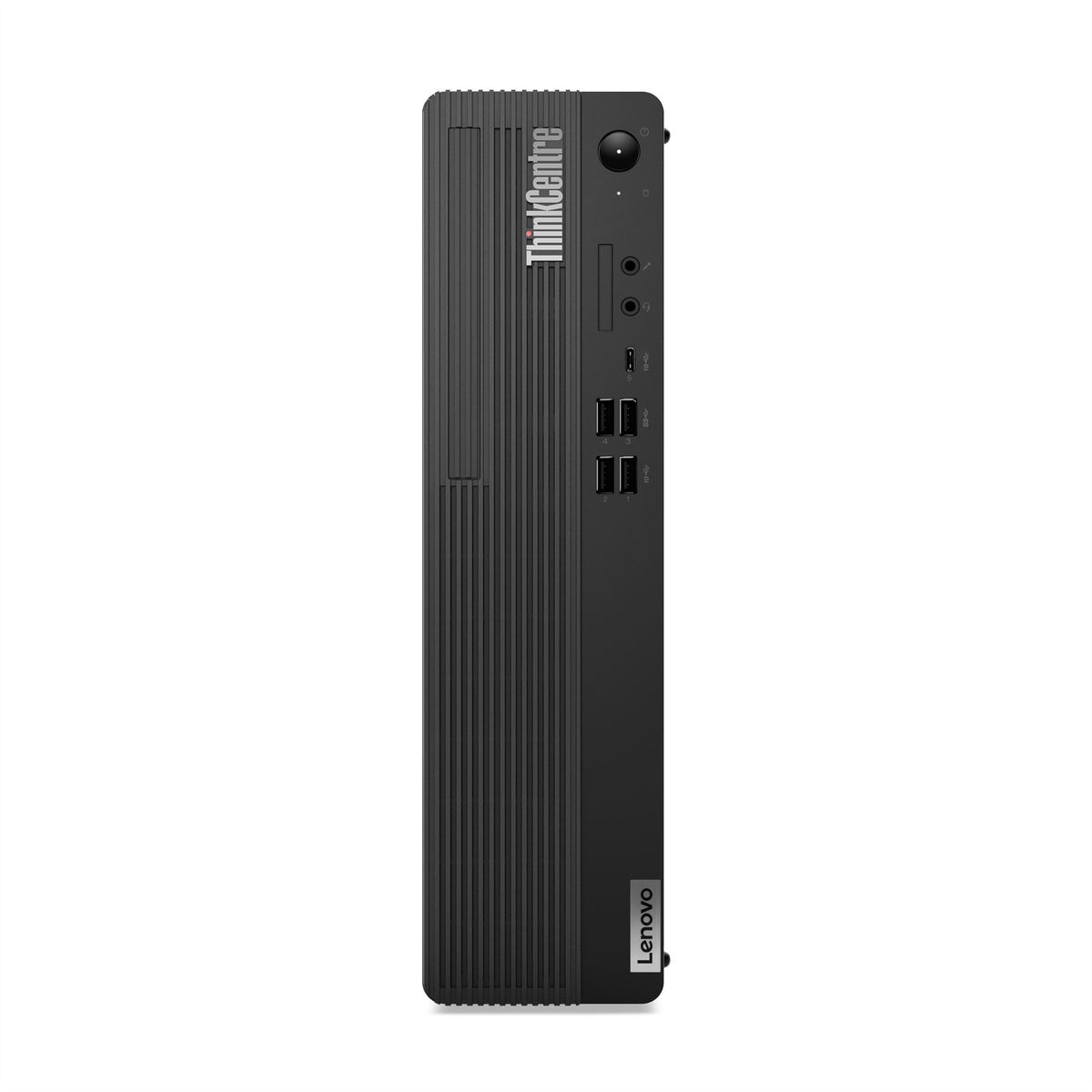

No program is too intricate, and no file is too massive to hinder the Lenovo ThinkCentre M90s Gen 5 (Intel) small form factor (SFF) from operating at the speed of human imagination. With cutting-edge Intel vPro® Enterprise technology and Intel® Core™ processors, this desktop delivers real-world, top-notch performance for business needs.
Confidently Secured
Lenovo ThinkShield offers thorough security, combining hardware and software to protect your data. The discrete Trusted Platform Module (dTPM) chip encrypts passwords and data, while BIOS-based Smart USB Protection prevents unauthorized access through peripherals. Leveraging the Intel vPro® platform, this device enhances data and asset security.
Expandable Flexibility
The Smart Cable offers cutting-edge device collaboration through convenient USB-A and USB-C® connections, accommodating all your peripherals, including laptops and tablets. Seamlessly share device control, data, and screen projection between devices with this intelligent feature, supporting high-speed USB-C® data transfers.
Environmentally Aware
This small form factor PC was crafted with a strong emphasis on recycling. Our commitment to sustainability is evident in the integration of recycled post-consumer content (PCC) into various components. The packaging is thoughtfully designed using a combination of recycled and sustainably sourced materials.
| Processor |
|---|
| Processor generation |
Intel® Core™ i7 (14th gen) |
| Memory bandwidth supported by processor (max) |
89.6 GB/s |
| Processor cache type |
Smart Cache |
| Processor cache |
33 MB |
| Processor model |
i7-14700 |
| Processor manufacturer |
Intel |
| Processor boost frequency |
5.4 GHz |
| Processor socket |
LGA 1700 |
| Processor threads |
28 |
| Processor cores |
20 |
| Processor family |
Intel® Core™ i7 |
| Performance cores |
8 |
| Efficient cores |
12 |
| Performance-core base frequency |
2.1 GHz |
| Efficient-core base frequency |
1.5 GHz |
| Processor base power |
65 W |
| Maximum turbo power |
219 W |
| Efficient-core Max Turbo Frequency |
4.2 GHz |
| Performance-core Max Turbo Frequency |
5.3 GHz |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
No |
| Memory |
|---|
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory |
16 GB |
| Maximum internal memory |
128 GB |
| Memory slots |
4x DIMM |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
4400 MHz |
| Memory channels |
Dual-channel |
| Storage |
|---|
| Storage media |
SSD |
| Optical drive type |
DVD±RW |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Card reader integrated |
Yes |
| Total storage capacity |
512 GB |
| SSD form factor |
M.2 |
| Total SSDs capacity |
512 GB |
| NVMe |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Self-Encrypting Drive (SED) |
Yes |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Intel UHD Graphics 770 |
| Graphics card |
UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Performance |
|---|
| Product type |
PC |
| Trusted Platform Module (TPM) |
Yes |
| Motherboard chipset |
Intel Q670 |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
No |
| Audio chip |
Realtek ALC897Q-CG |
| Number of speakers |
1 |
| Audio system |
High Definition Audio |
| Optical drive |
|---|
| Optical drive type |
DVD±RW |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Intel |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Thunderbolt 3 ports quantity |
0 |
| HDMI version |
2.1 |
| USB 2.0 ports quantity |
0 |
| Microphone in |
Yes |
| Line-out |
Yes |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPorts quantity |
2 |
| Power |
|---|
| Power supply |
310 W |
| Technical details |
|---|
| Cable lock slot type |
Kensington |
| Product type |
PC |
| Trusted Platform Module (TPM) |
Yes |
| Product colour |
Black |
| Chassis type |
SFF |
| Audio system |
High Definition Audio |
| Cable lock slot |
Yes |
| Motherboard chipset |
Intel Q670 |
| Design |
|---|
| Volume |
8.2 L |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Chassis type |
SFF |
| Cable lock slot |
Yes |
| Software |
|---|
| Operating system language |
English |
| Operating system installed |
Windows 11 Pro |
| Display |
|---|
| Display included |
No |
| Processor special features |
|---|
| Intel® Smart Cache |
Yes |
| Audio |
|---|
| Audio chip |
Realtek ALC897Q-CG |
| Number of speakers |
1 |
| Audio system |
High Definition Audio |
| Weight & dimensions |
|---|
| Volume |
8.2 L |
| Width |
92.5 mm |
| Depth |
297.7 mm |
| Height |
339.5 mm |
| Weight |
5.3 kg |
| Packaging content |
|---|
| Mouse included |
Yes |
| Keyboard included |
Yes |
| Mouse connectivity |
Wired |
| Display included |
No |
| Keyboard connectivity |
Wired |
| Certificates |
|---|
| Certification |
TCO,RoHS,ErP,GREENGUARD |
| Keyboard |
|---|
| Keyboard connectivity |
Wired |
| Other features |
|---|
| Number of speakers |
1 |
| Trusted Platform Module (TPM) |
Yes |
| On-board graphics card |
Yes |
| Processor manufacturer |
Intel |
| Graphics card |
UHD Graphics |
| Ethernet interface type |
Gigabit Ethernet |
