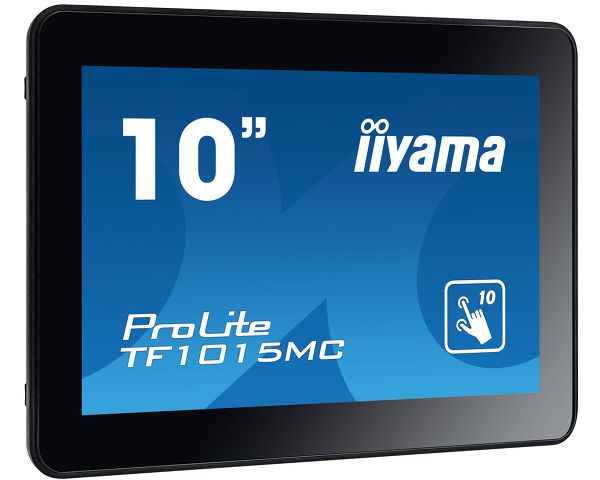

Open Frame PCAP 10 point touch screen equipped with a foam seal finish for seamless integration The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia. Touch technology - Capacitive This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Display | |
---|---|
HDCP | Yes |
Screen shape | Flat |
Native aspect ratio | 16:10 |
HD type | WXGA |
Display technology | LED |
Viewing angle, horizontal | 170° |
Viewing angle, vertical | 170° |
Pixel pitch | 0.1695 x 0.1695 mm |
Horizontal scan range | 31.4 - 49.7 kHz |
Vertical scan range | 60 - 60 Hz |
Aspect ratio | 16:10 |
Viewable size, horizontal | 21.7 cm |
Viewable size, vertical | 13.6 cm |
Display resolution | 1280 x 800 pixels |
Response time | 25 ms |
Display diagonal | 25.6 cm (10.1") |
Contrast ratio (typical) | 1300:1 |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Display diagonal (metric) | 25.7 cm |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Display brightness | 450 cd/m² |
Performance | |
Built-in microphone | No |
Built-in camera | No |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
Management features | |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
Plug and Play | Yes |
Multimedia | |
Built-in microphone | No |
Built-in camera | No |
Design | |
Certification | CB, CE, TÜV, CU, cULus REACH |
Product colour | Black |
International Protection (IP) code | IP65 |
Camera | |
Built-in camera | No |
Ports & interfaces | |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 1 |
HDCP | Yes |
Headphone outputs | 1 |
HDMI | Yes |
Technical details | |
Height (without stand) | 18.4 cm |
Depth (without stand) | 3.95 cm |
Width (without stand) | 26.1 cm |
Placement supported | Horizontal/Vertical |
HDMI | Yes |
Built-in microphone | No |
Product colour | Black |
Power supply type | AC |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Software | |
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
Ergonomics | |
Wall mountable | Yes |
VESA mounting | Yes |
Panel mounting interface | 100 x 100 mm |
LED indicators | Yes |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
Plug and Play | Yes |
Power | |
Power supply type | AC |
Power consumption (standby) | 1.2 W |
Power consumption (typical) | 10 W |
Power consumption (off) | 1.2 W |
Energy efficiency scale | A to G |
AC adapter output voltage | 12 V |
Energy efficiency class (SDR) | E |
Energy consumption (SDR) per 1000 hours | 8 kWh |
Packaging content | |
Quick start guide | Yes |
Cables included | AC, DisplayPort, HDMI, USB |
AC adapter included | Yes |
Weight & dimensions | |
Height (without stand) | 18.4 cm |
Depth (without stand) | 3.95 cm |
Width (without stand) | 26.1 cm |
Weight (without stand) | 1.4 kg |
Indication | |
LED indicators | Yes |
Packaging data | |
AC adapter included | Yes |
Quick start guide | Yes |
Cables included | AC, DisplayPort, HDMI, USB |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Other features | |
Height (without stand) | 18.4 cm |
Depth (without stand) | 3.95 cm |
Width (without stand) | 26.1 cm |
Quick start guide | Yes |
HDMI | Yes |
Energy efficiency scale | A to G |
Power supply type | AC |
AC adapter included | Yes |
Placement supported | Horizontal/Vertical |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Certificates | |
Certification | CB, CE, TÜV, CU, cULus REACH |
