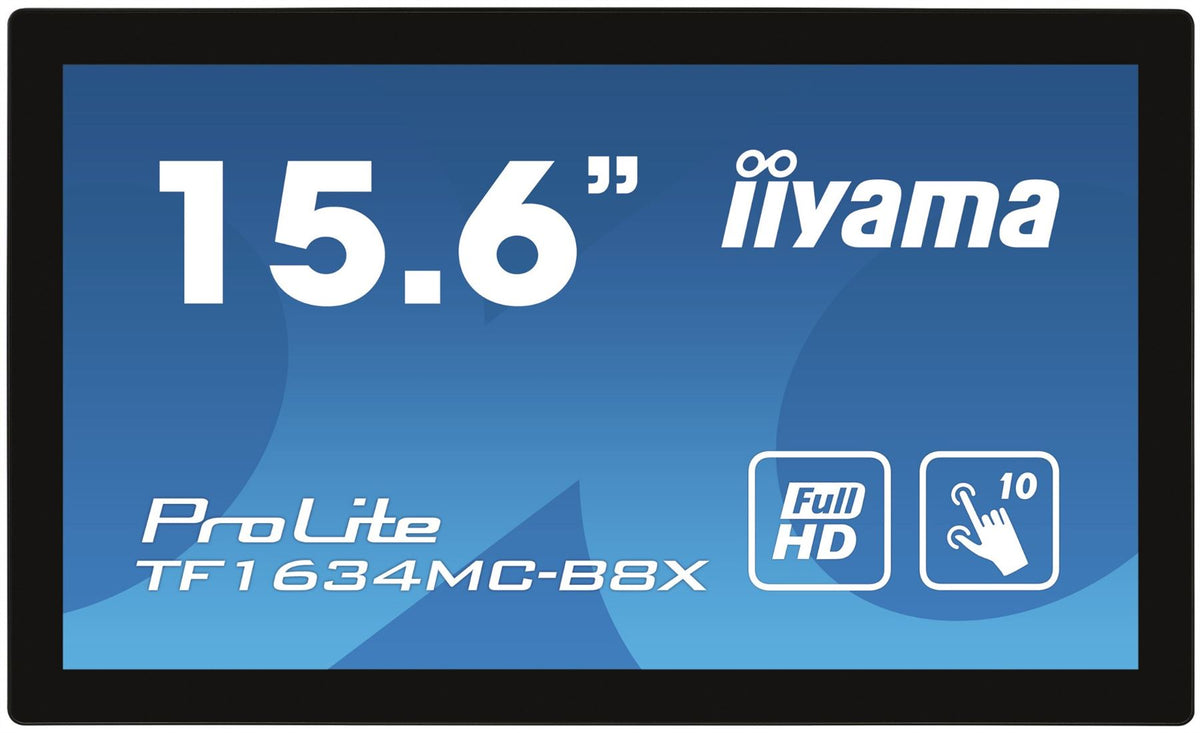

The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations. For ease of integration, the TF1634MC-B8X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail. IPS TECHNOLOGY IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it. TOUCH THROUGH-GLASS This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants. TOUCH TECHNOLOGY - CAPACITIVE This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. FULL HD With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor. IP The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
Display | |
---|---|
HDCP | Yes |
Screen shape | Flat |
Display number of colours | 16.2 million colours |
Native aspect ratio | 16:9 |
HD type | Full HD |
Display technology | LED |
Pixel pitch | 0.179 x 0.179 mm |
Horizontal scan range | 30 - 84 kHz |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 39.6 cm (15.6") |
Contrast ratio (typical) | 700:1 |
Surface hardness | 7H |
Touchscreen type | Multi-user |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Panel type | IPS |
Display diagonal (metric) | 39.5 cm |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Display brightness | 450 cd/m² |
Performance | |
Built-in microphone | No |
Built-in camera | No |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Management features | |
On Screen Display (OSD) | Yes |
Number of OSD languages | 7 |
Multimedia | |
Built-in microphone | No |
Built-in camera | No |
Design | |
Product colour | Black |
International Protection (IP) code | IP65 |
Glass thickness | 2.4 mm |
Camera | |
Built-in camera | No |
Ports & interfaces | |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 1 |
HDCP | Yes |
HDMI | Yes |
USB Touch port | Yes |
Technical details | |
Height (without stand) | 23.1 cm |
Depth (without stand) | 4.6 cm |
Width (without stand) | 38.1 cm |
Placement supported | Horizontal/Vertical |
HDMI | Yes |
Display viewable area (HxV) | 344.2 x 193.5 mm |
Built-in microphone | No |
Product colour | Black |
Sustainability certificates | CE, ErP, REACH, RoHS, WEEE |
Surface hardness | 7H |
Touchscreen type | Multi-user |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Ergonomics | |
Wall mountable | Yes |
VESA mounting | Yes |
Panel mounting interface | 100 x 100 mm |
On Screen Display (OSD) | Yes |
Number of OSD languages | 7 |
Power | |
Power consumption (standby) | 1.5 W |
Power consumption (typical) | 18 W |
Power consumption (off) | 0.3 W |
Energy efficiency class (SDR) | F |
Energy consumption (SDR) per 1000 hours | 12 kWh |
Packaging content | |
Cables included | AC, DisplayPort, HDMI, USB |
Weight & dimensions | |
Height (without stand) | 23.1 cm |
Depth (without stand) | 4.6 cm |
Width (without stand) | 38.1 cm |
Weight (without stand) | 2 kg |
Package width | 455 mm |
Package depth | 290 mm |
Package height | 365 mm |
Package weight | 6.6 kg |
Packaging data | |
Package width | 455 mm |
Package depth | 290 mm |
Package height | 365 mm |
Package weight | 6.6 kg |
Cables included | AC, DisplayPort, HDMI, USB |
Sustainability | |
Sustainability certificates | CE, ErP, REACH, RoHS, WEEE |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Other features | |
Height (without stand) | 23.1 cm |
Depth (without stand) | 4.6 cm |
Width (without stand) | 38.1 cm |
HDMI | Yes |
Surface hardness | 7H |
Placement supported | Horizontal/Vertical |
Display viewable area (HxV) | 344.2 x 193.5 mm |
Touchscreen type | Multi-user |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
