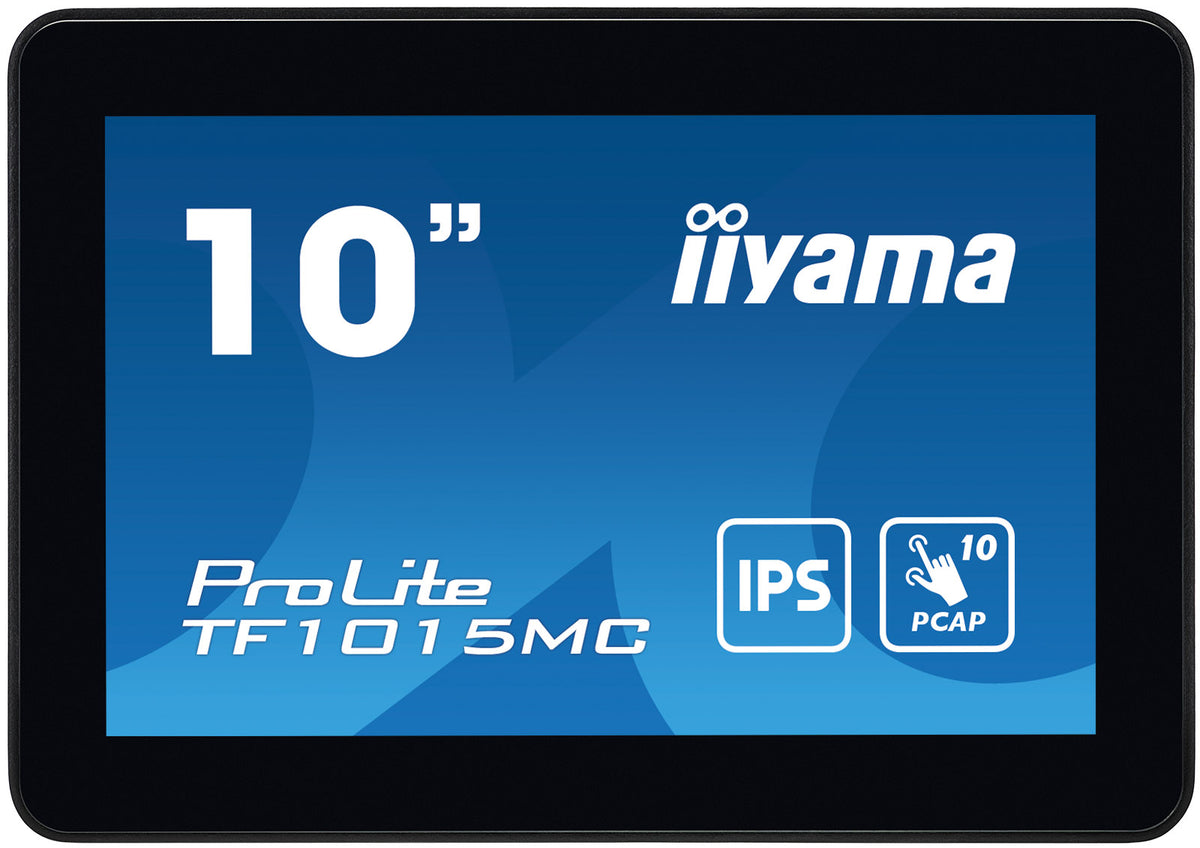

The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets (OMK2-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
| Display |
| Panel type |
IPS |
| Display number of colours |
16.7 million colours |
| Number of simultaneous touchpoints |
10 |
| Touchscreen |
Yes |
| Active display area (W x H) |
216.96 x 135.6 mm |
| Display technology |
LED |
| Display diagonal |
25.6 cm (10.1") |
| Display resolution |
1280 x 800 pixels |
| Display brightness |
500 cd/m² |
| HD type |
HD |
| Response time |
29 ms |
| Contrast ratio (typical) |
800:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.1695 x 0.1695 mm |
| Display diagonal (metric) |
25.7 cm |
| Native aspect ratio |
16:10 |
| Horizontal scan range |
30 - 49.7 kHz |
| Maximum frame rate |
75 fps |
| Touchscreen technology |
Projected capacitive system |
| Surface hardness |
7H |
| Glass thickness |
3.3 mm |
| Ports & interfaces |
| USB port |
Yes |
| DisplayPorts quantity |
1 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| DVI port |
No |
| VGA (D-Sub) input ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB ports quantity |
1 |
| Design |
| Product design |
Interactive flat panel |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Product colour |
Black |
| Panel mounting interface |
100 x 100 mm |
| Certification |
CB, CE, TÜV-Bauart, EAC, cULus |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Wall mountable |
Yes |
| Performance |
| Purpose |
Universal |
| International Protection (IP) code |
IP65 |
| Mean time between failures (MTBF) |
50000 h |
| On Screen Display (OSD) languages |
Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
7 |
| HDCP |
Yes |
| Plug and Play |
Yes |
| Power |
| Power consumption (off) |
0.3 W |
| Power consumption (typical) |
6 W |
| Power consumption (standby) |
1.5 W |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
C |
| Energy efficiency class (HDR) |
Not available |
| Energy consumption (SDR) per 1000 hours |
6 kWh |
| Weight & dimensions |
| Display width |
260.5 mm |
| Display depth |
39.5 mm |
| Display height |
183.5 mm |
| Display weight |
1.4 kg |
| Packaging data |
| Package width |
310 mm |
| Package depth |
370 mm |
| Package height |
160 mm |
| Package weight |
2.7 kg |
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB |
| Packaging content |
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Certificates |
| Certification |
CB, CE, TÜV-Bauart, EAC, cULus |
| Technical details |
| VESA mounting |
Yes |
| Panel type |
IPS |
| Number of simultaneous touchpoints |
10 |
| Audio out (mini jack) |
1 |
| Sustainability |
| European Product Registry for Energy Labelling (EPREL) code |
378636 |
| Features |
| Wall mountable |
Yes |
| Other features |
| Panel type |
IPS |
| Number of simultaneous touchpoints |
10 |
| Mean time between failures (MTBF) |
50000 h |
| Display technology |
LED |
| Quick start guide |
Yes |
| Plug and Play |
Yes |
| Energy efficiency scale |
A to G |
