19", 1280x1024, 5:4, IPS, 250cd/m², 1000:1, 14ms, 178°/178°, 16.7mil, 31-80kHz, projective capacitive, stylus, finger, glove, 1x VGA, 1x HDMI, 1x DisplayPort, 2x 2W Audio, VESA 100x100, 100-240V, 50/60Hz, 20W, 432x239.5x413.5mm, 5.4kg

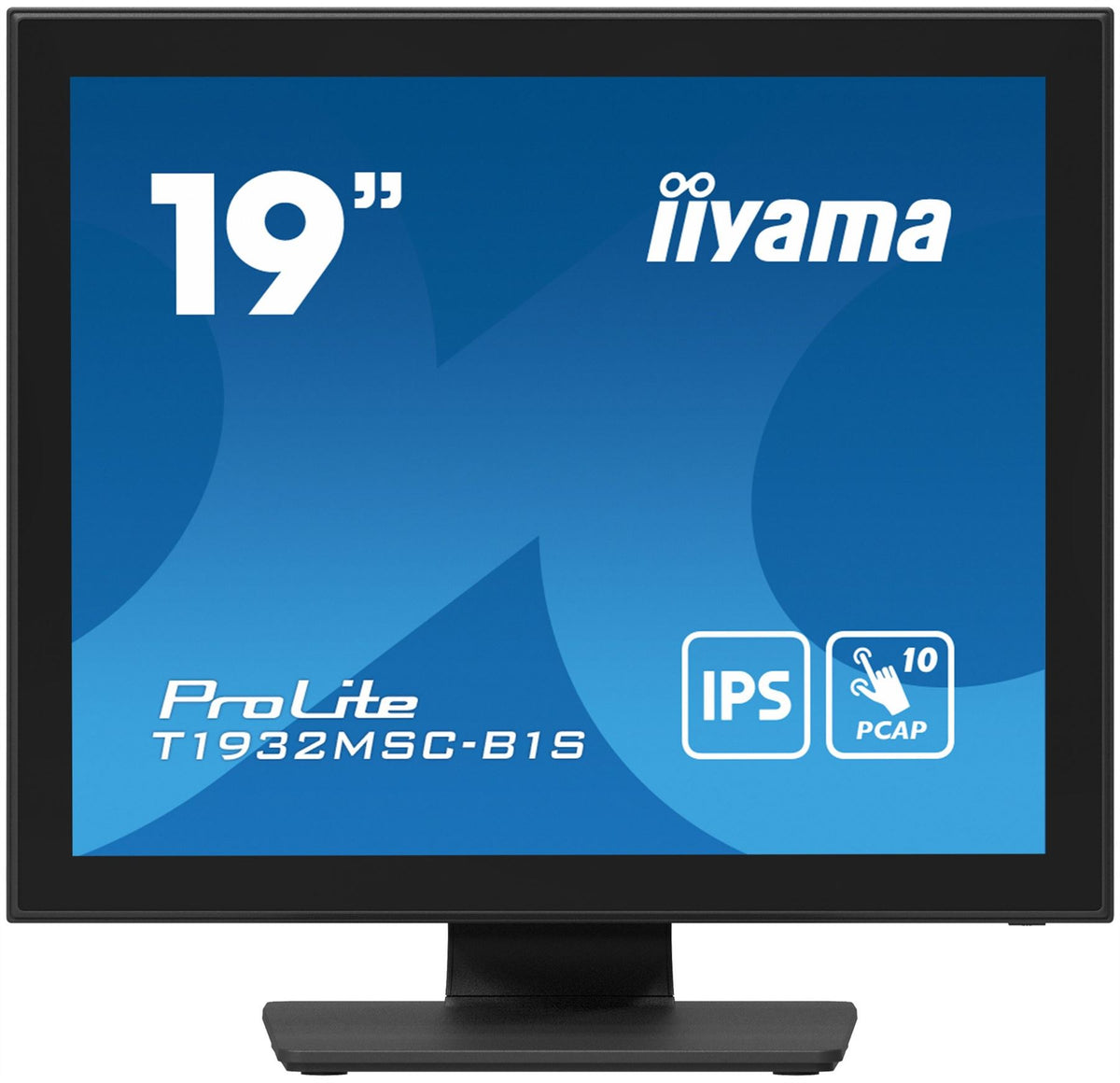

19’’ 10pt touch monitor featuring IPS panel technology
The ProLite T1932MSC-B1S 19" 10tp touchscreen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The IPS panel guarantees high performance with accurate and consistent colour reproduction, and wide viewing angles. Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. In addition, the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
| Display |
|---|
| DDC/CI |
Yes |
| Display diagonal (metric) |
48 cm |
| Viewable size, vertical |
37.4 cm |
| Viewable size, horizontal |
30 cm |
| Horizontal scan range |
31 - 80 kHz |
| Pixel pitch |
0.2928 x 0.2928 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1000:1 |
| Screen shape |
Flat |
| Display surface |
Matt |
| Response time |
14 ms |
| Display brightness (typical) |
250 cd/m² |
| Display brightness (peak) |
215 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen type |
Tabletop |
| Backlight type |
LED |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
5:4 |
| Display resolution |
1280 x 1024 pixels |
| Display diagonal |
48.3 cm (19") |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| RMS rated power |
2 W |
| Number of speakers |
2 |
| Built-in camera |
No |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| International Protection (IP) code |
IP54 |
| Feet colour |
Black |
| Product colour |
Black |
| Market positioning |
Business |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| HDCP |
Yes |
| Headphone outputs |
1 |
| Audio output |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| Built-in USB hub |
No |
| Ergonomics |
|---|
| Tilt adjustment |
Yes |
| Number of OSD languages |
7 |
| On Screen Display (OSD) languages |
Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
5 - 90° |
| Cable management |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| Energy efficiency scale |
A to G |
| Power supply type |
External |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
20 W |
| Energy consumption (SDR) per 1000 hours |
12 kWh |
| Energy efficiency class (SDR) |
E |
| Packaging content |
|---|
| Manual |
Yes |
| Quick start guide |
Yes |
| Power adapter included |
Yes |
| Cables included |
Audio, DisplayPort, HDMI, Power, USB |
| Stand included |
Yes |
| Weight & dimensions |
|---|
| Weight (with stand) |
5.4 kg |
| Height (with stand) |
413.5 mm |
| Depth (with stand) |
239.5 mm |
| Width (with stand) |
432 mm |
| Sustainability |
|---|
| Sustainability certificates |
CE, EAC, ErP, REACH, RoHS, UKCA, WEEE, cUL |
| Sustainability compliance |
Yes |
| General |
|---|
| Product Family |
ProLite |
