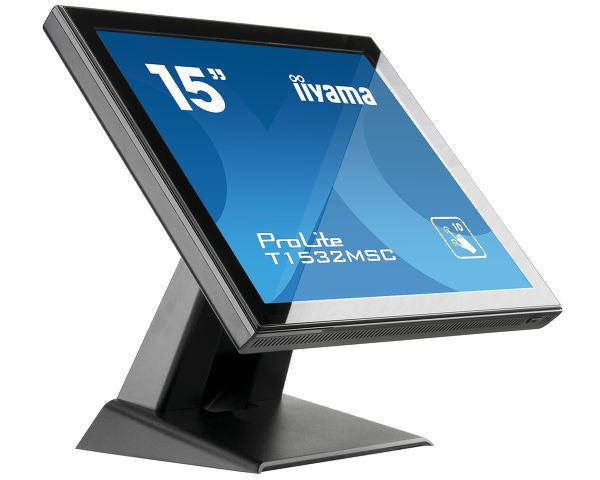

15" Projective Capacitive 10pt touchscreen The ProLite T1532MSC-B5X 15" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours. ip54 The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
Display | |
---|---|
HDCP | Yes |
Screen shape | Flat |
Display number of colours | 16.78 million colours |
Native aspect ratio | 4:3 |
HD type | XGA |
Display technology | LED |
Viewing angle, horizontal | 170° |
Viewing angle, vertical | 160° |
Pixel pitch | 0.297 x 0.297 mm |
Horizontal scan range | 31 - 60 kHz |
Vertical scan range | 56 - 75 Hz |
Aspect ratio | 4:3 |
Viewable size, horizontal | 30.4 cm |
Viewable size, vertical | 22.8 cm |
Display resolution | 1024 x 768 pixels |
Response time | 8 ms |
Display diagonal | 38.1 cm (15") |
Contrast ratio (typical) | 700:1 |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Display diagonal (metric) | 38 cm |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Display brightness | 330 cd/m² |
Audio | |
Built-in speaker(s) | Yes |
RMS rated power | 2 W |
Performance | |
Built-in speaker(s) | Yes |
RMS rated power | 2 W |
Built-in microphone | No |
Built-in camera | No |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
Management features | |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
Plug and Play | Yes |
Multimedia | |
Number of speakers | 2 |
Built-in speaker(s) | Yes |
RMS rated power | 2 W |
Built-in microphone | No |
Built-in camera | No |
Design | |
Certification | CB, CE, TÜV, VCCI, EAC |
Product colour | Black |
International Protection (IP) code | IP54 |
Camera | |
Built-in camera | No |
Ports & interfaces | |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 1 |
HDCP | Yes |
HDMI | Yes |
USB Touch ports quantity | 1 |
USB Touch port | Yes |
Ethernet LAN | No |
Technical details | |
Cable lock slot | Yes |
HDMI | Yes |
Built-in microphone | No |
Product colour | Black |
Power supply type | AC |
Weight (with stand) | 4.5 kg |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Network | |
Ethernet LAN | No |
Software | |
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
Ergonomics | |
Wall mountable | Yes |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
LED indicators | Yes |
Tilt angle range | -5 - 90° |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
Plug and Play | Yes |
Cable lock slot type | Kensington |
Tilt adjustment | Yes |
Power | |
Power supply type | AC |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (standby) | 2 W |
Power consumption (typical) | 16 W |
Energy efficiency scale | A to G |
Energy efficiency class (SDR) | E |
Energy consumption (SDR) per 1000 hours | 10 kWh |
Packaging content | |
Quick start guide | Yes |
Cables included | AC, Audio (3.5mm), DisplayPort, HDMI, USB |
Weight & dimensions | |
Width (with stand) | 351 mm |
Depth (with stand) | 202 mm |
Height (with stand) | 306.5 mm |
Weight (with stand) | 4.5 kg |
Indication | |
LED indicators | Yes |
Packaging data | |
Quick start guide | Yes |
Cables included | AC, Audio (3.5mm), DisplayPort, HDMI, USB |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Other features | |
Quick start guide | Yes |
HDMI | Yes |
Energy efficiency scale | A to G |
Power supply type | AC |
Ethernet LAN | No |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Full HD | No |
Certificates | |
Certification | CB, CE, TÜV, VCCI, EAC |
