Maximized Cores. Astounding Graphics. Unbound Potential

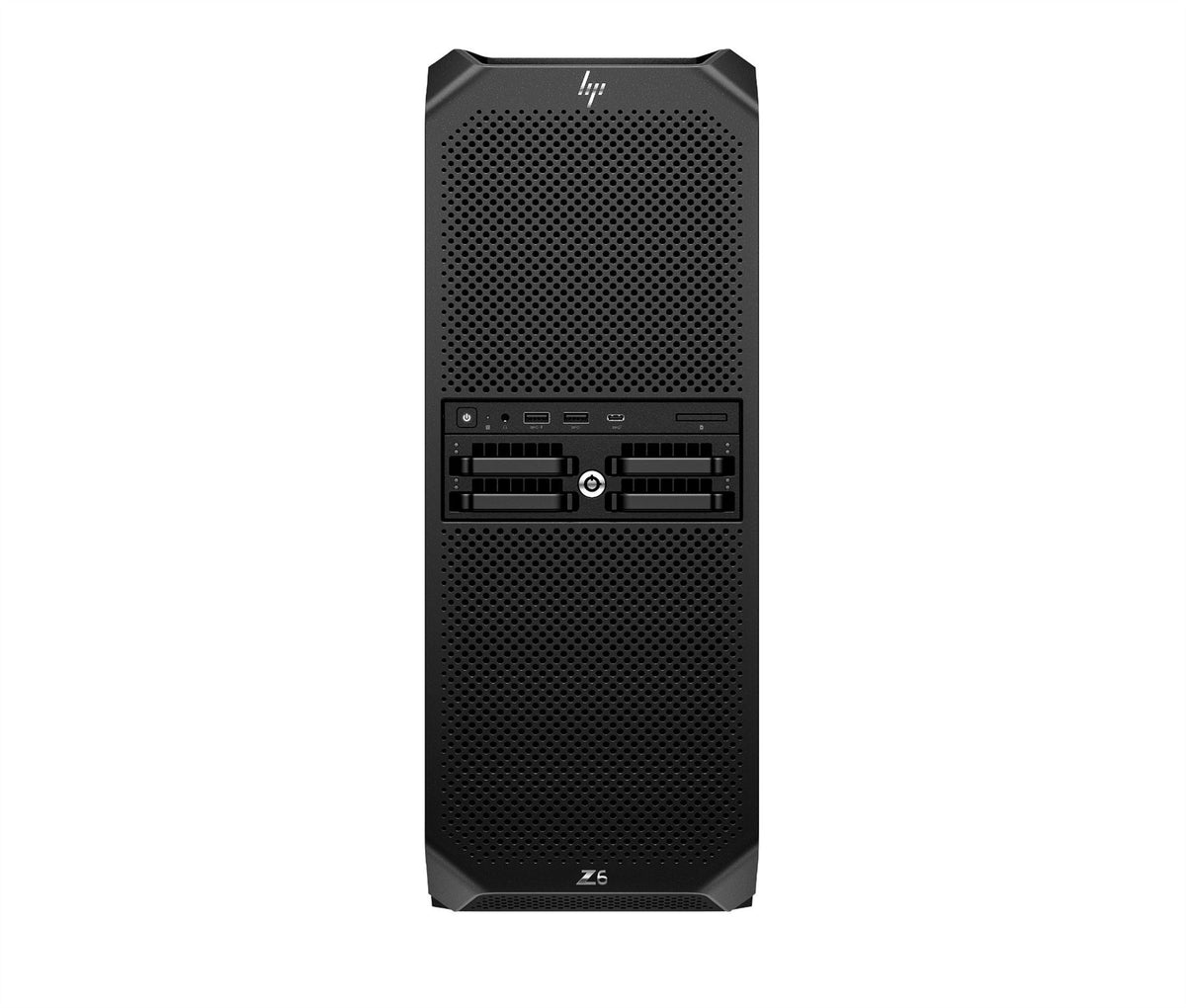

The refreshed HP Z6 G5 A is a powerhouse for AI workflows, 3D rendering and virtual production. Its innovative system design, with a next-gen AMD Ryzen Threadripper PRO CPU,[1] combines an astounding number of cores in a single CPU with up to 3 GPUs.[2] Create and render at once on intensive projects.
| Processor |
|---|
| Processor cache type |
L3 |
| Processor cache |
384 MB |
| Processor manufacturer |
AMD |
| Processor boost frequency |
5.4 GHz |
| Processor threads |
192 |
| Processor cores |
96 |
| Processor family |
AMD Ryzen Threadripper PRO |
| Memory |
|---|
| ECC |
Yes |
| Memory layout (slots x size) |
4 x 32 GB |
| Internal memory |
128 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
6400 MHz |
| Memory module type |
DIMM |
| Storage |
|---|
| Storage media |
SSD |
| Number of storage drives installed |
1 |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total storage capacity |
1 TB |
| SSD memory type |
TLC |
| SSD form factor |
M.2 |
| Total SSDs capacity |
1 TB |
| Performance |
|---|
| Market positioning |
Performance |
| Password protection |
Yes |
| Password protection type |
BIOS, Power on |
| Product type |
Workstation |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Audio chip |
Realtek ALC3205-CG |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| WLAN controller model |
Intel Wi-Fi 6E AX210 |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Intel |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
12 |
| Microphone in |
Yes |
| Line-in |
Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Expansion slots |
|---|
| Number of 3.5" bays |
2 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 5.x) slots |
4 |
| Power |
|---|
| Power supply |
1450 W |
| Technical details |
|---|
| Cable lock slot type |
Kensington |
| Product type |
Workstation |
| Trusted Platform Module (TPM) |
Yes |
| Product colour |
Black |
| Chassis type |
Tower |
| Number of 3.5" bays |
2 |
| Cable lock slot |
Yes |
| UNSPSC-code |
43211515 |
| Memory module type |
DIMM |
| Sustainable technologies and materials |
40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; Plastic cushion inserts contain 80% recycled content; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; 10% post-consumer recycled plastic; Internal power supply 90% efficiency; Ocean-bound plastic in system and CPU fans |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, EPEAT, TCO |
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://kaas.hpcloud.hp.com/pdf-public/pdf_8827218_en-US-1.pdf |
| HP GTIN (EAN/UPC) |
881767438226 |
| Design |
|---|
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Chassis type |
Tower |
| Number of 3.5" bays |
2 |
| Cable lock slot |
Yes |
| Colour name |
Black |
| Intel� vPro Platform Eligibility |
No |
| Software |
|---|
| Bundled software |
HP Wolf Pro Security Edition (1 year) |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
|---|
| Intel� vPro Platform Eligibility |
No |
| Brand-specific features |
|---|
| HP Support Assistant |
Yes |
| HP Security tools |
Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives |
| HP Management tools |
HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support |
| HP segment |
Business |
| HP Artificial Intelligence |
AI Workstation |
| HP GTIN (EAN/UPC) |
881767438226 |
| Audio |
|---|
| Audio chip |
Realtek ALC3205-CG |
| Weight & dimensions |
|---|
| Package width |
313 mm |
| Package depth |
593 mm |
| Package height |
610 mm |
| Width |
169 mm |
| Depth |
465 mm |
| Height |
169 mm |
| Package weight |
18.3 kg |
| Weight |
13.2 kg |
| Packaging data |
|---|
| Package width |
313 mm |
| Package depth |
593 mm |
| Package height |
610 mm |
| Package weight |
18.3 kg |
| Packaging content |
|---|
| Numeric keypad |
No |
| Keyboard included |
Yes |
| Input device model |
HP Wired 320M Mouse |
| Bundled software |
HP Wolf Pro Security Edition (1 year) |
| Keyboard connectivity |
Wired |
| Certificates |
|---|
| Low halogen |
Yes |
| Sustainability |
|---|
| Sustainable technologies and materials |
40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; Plastic cushion inserts contain 80% recycled content; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; 10% post-consumer recycled plastic; Internal power supply 90% efficiency; Ocean-bound plastic in system and CPU fans |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, EPEAT, TCO |
| Keyboard |
|---|
| Keyboard connectivity |
Wired |
| Other features |
|---|
| Trusted Platform Module (TPM) |
Yes |
| Processor manufacturer |
AMD |
| UNSPSC-code |
43211515 |
| Memory module type |
DIMM |
