UNPARALLELED PERFORMANCE With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming. NEXT GENERATION CONNECTIVITY GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity. DEFINITIVE AESTHETICS GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality. ULTRA DURABLE GIGABYTE Ultra Durable features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Technical details | |
---|---|
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z690 |
PC health monitoring | Fan, Temperature, Voltage |
Parallel processing technology support | 2-Way CrossFireX, Quad-GPU CrossFireX |
Motherboard form factor | ATX |
Component for | PC |
Audio | |
Audio output channels | 7.1 channels |
Performance | |
Supported storage drive types | HDD & SSD |
Windows operating systems supported | Windows 10 x64 |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z690 |
RAID levels | 0, 1, 5, 10 |
PC health monitoring | Fan, Temperature, Voltage |
Audio output channels | 7.1 channels |
Motherboard form factor | ATX |
Component for | PC |
Processor | |
Processor manufacturer | Intel |
Compatible processor series | Intel Core i5, Intel Core i7, Intel Core i9 |
Processor socket | LGA 1700 |
Memory | |
Number of memory slots | 4 |
Memory slots type | DIMM |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
ECC | Yes |
Non-ECC | Yes |
Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
Maximum internal memory | 128 GB |
Unbuffered memory | Yes |
Storage controllers | |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Graphics | |
Parallel processing technology support | 2-Way CrossFireX, Quad-GPU CrossFireX |
HDCP | Yes |
Internal I/O | |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Supported storage drive interfaces | M.2, SATA III |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Peripheral (Molex) power connectors (4-pin) | 1 |
Number of SATA III connectors | 6 |
EPS power connector (8-pin) | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
RGB LED pin header | Yes |

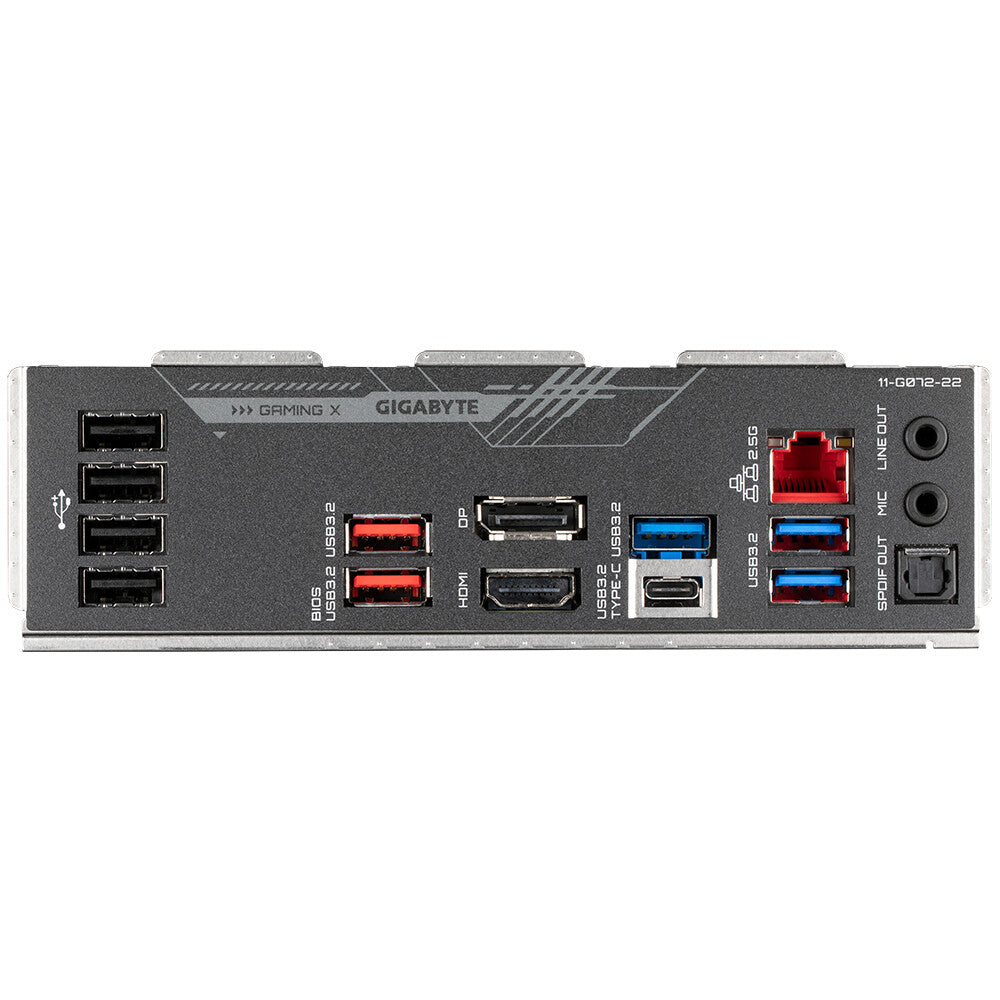

Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 2.0 ports quantity | 4 |
S/PDIF out port | Yes |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
Network | |
Ethernet LAN | Yes |
Wi-Fi | No |
Ethernet interface type | 2.5 Gigabit Ethernet |
Features | |
Windows operating systems supported | Windows 10 x64 |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z690 |
PC health monitoring | Fan, Temperature, Voltage |
Audio output channels | 7.1 channels |
Motherboard form factor | ATX |
Component for | PC |
Audio chip | Realtek ALC1220-VB |
Harmonized System (HS) code | 84733020 |
Expansion slots | |
PCI Express x16 slots | 1 |
BIOS | |
BIOS type | UEFI AMI |
Clear CMOS jumper | Yes |
BIOS memory size | 256 Mbit |
ACPI version | 5.0 |
System Management BIOS (SMBIOS) version | 2.7 |
Desktop Management Interface (DMI) version | 2.7 |
Video | |
HDCP | Yes |
Software | |
Windows operating systems supported | Windows 10 x64 |
Logistics data | |
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
Height | 70 mm |
Weight | 1 kg |
Width | 305 mm |
Depth | 244 mm |
Other features | |
Height | 70 mm |
Weight | 1 kg |
