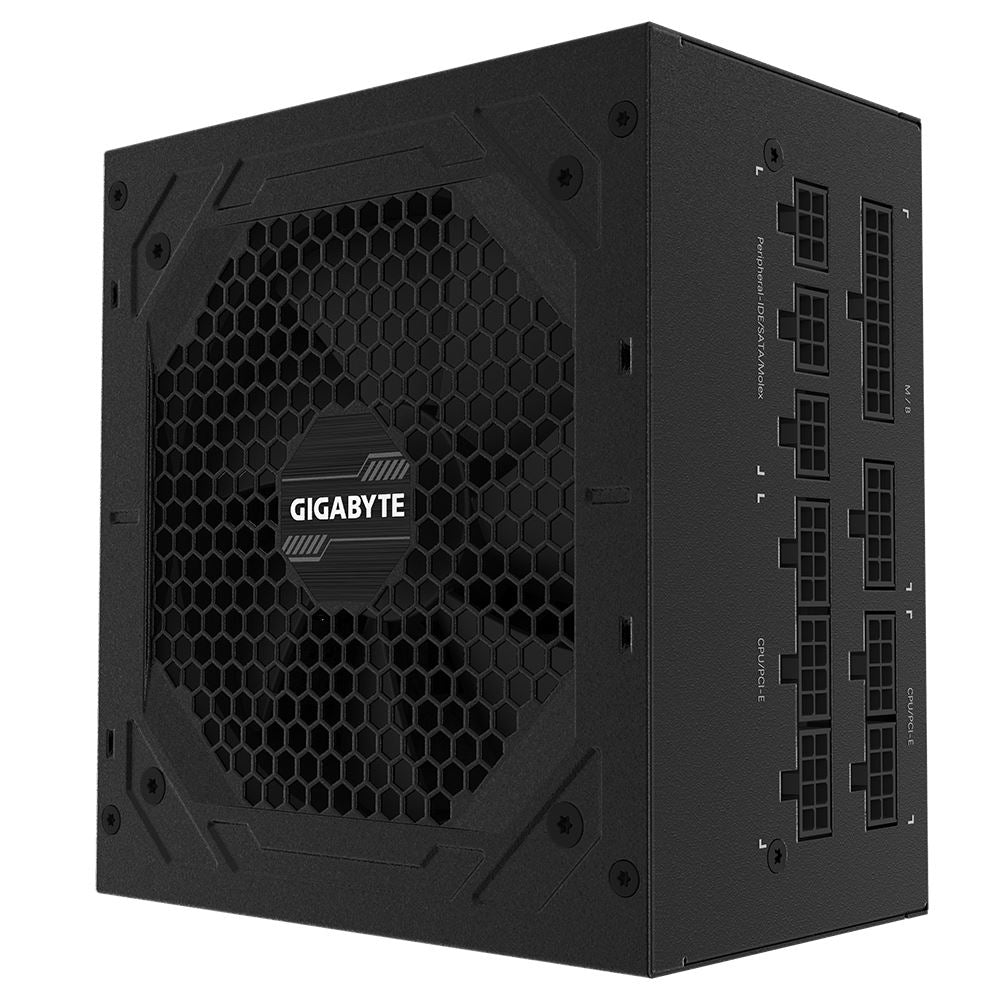

GIGABYTE P1000GM power supply unit 1000 W 20+4 pin ATX ATX Black
Regular price
$143.00
Why Shop Clove?
Lower Carbon Footprint
Choosing refurbished saves an estimated 50–70kg of CO2 compared to buying new.
Independently Tested
Every device is tested to 80+ quality checkpoints via PhoneCheck certification.
Repaired by Experts
Our in-house repair team refurbishes every device before it reaches you.
Close the Loop
Done with your old device? Send it back via Clove Recycling and keep it out of landfill.
FULLY MODULAR DESIGN All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
HIGH QUALITY JAPANESE CAPACITORS The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.
120MM SMART HYDRAULIC BEARING (HYB) FAN The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
PROTECTION In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
DIMENSIONS Compact size to fit any small chassis.
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Purpose
PC
ATX version
2.31
Mean time between failures (MTBF)
100000 h
Bearing technology
HDB
Harmonized System (HS) code
84733020
Design
80 PLUS certification
80 PLUS Gold
Product colour
Black
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Fan location
Top
Power
Total power
1000 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
6.5 - 15 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
999.6 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
25 A
Max output current (+12V)
83.3 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current, Over power, Over voltage, Short circuit, Under voltage
Hold time
16 ms
Efficiency
90%
Ports & interfaces
Motherboard power cable length
61 cm
SATA power cable length
1050,600,750,900 mm
Peripheral (Molex) power cable length
500,620,740 mm
PCI Express power cable length
75 cm
CPU power cable length
60 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
8
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6+2 pin)
6
CPU power connector (4+4 pin)
Yes
Floppy drive power connector
1
ATX power connector (20+4 pin)
Yes
Cabling type
Fully-Modular
EPS power connector (4+4 pin)
Yes
Packaging content
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width
140 mm
Depth
150 mm
Height
86 mm
Packaging data
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Package type
Box
Certificates
80 PLUS certification
80 PLUS Gold
Logistics data
Harmonized System (HS) code
84733020
Other features
Harmonized System (HS) code
84733020
