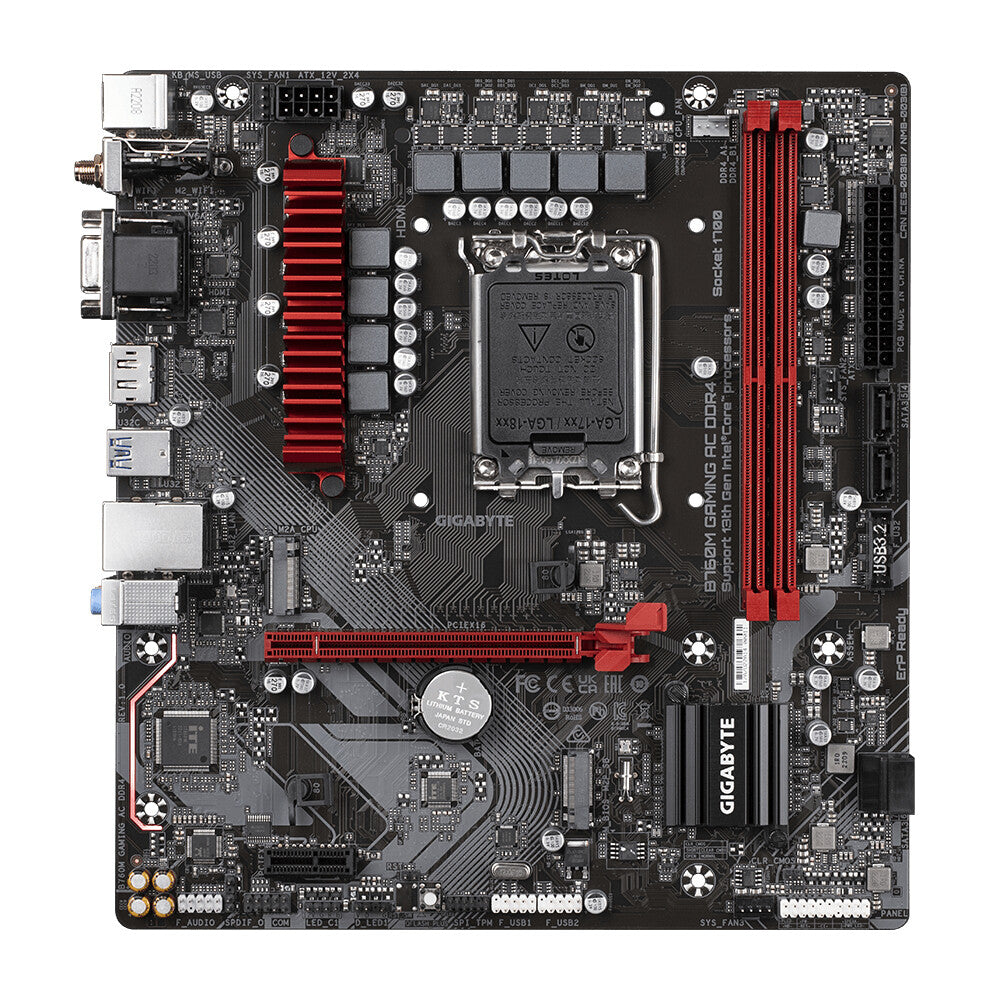

LGA1700, 2 x DDR4, B760, WIFI, Micro ATX, 1 x HDMI, 1 x D-Sub, 1 x DisplayPort
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Processor |
|---|
| Maximum internal memory supported by processor |
64 GB |
| Supported processor sockets |
LGA 1700 |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
64 GB |
| Supported memory module capacities |
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Supported memory clock speed (max) |
5333 MHz |
| Supported memory clock speeds |
5333, 5133, 5000, 4933, 4800, 4700, 4600, 4500, 4400, 4300, 4266, 4133, 4000, 3866, 3800, 3733, 3666, 3600, 3466, 3400, 3333, 3300, 3200, 3000, 2933, 2666, 2400, 2133 MHz |
| Non-ECC |
Yes |
| ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
|---|
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
|---|
| Number of displays supported |
3 |
| Discrete graphics support |
Yes |
| HDCP |
Yes |
| Maximum resolution |
4096 x 2304 pixels |
| Parallel processing technology support |
Not supported |
| Internal I/O |
|---|
| RGB LED pin header |
Yes |
| Serial port headers |
1 |
| Thunderbolt headers |
2 |
| TPM connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
3 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| S/PDIF out connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |

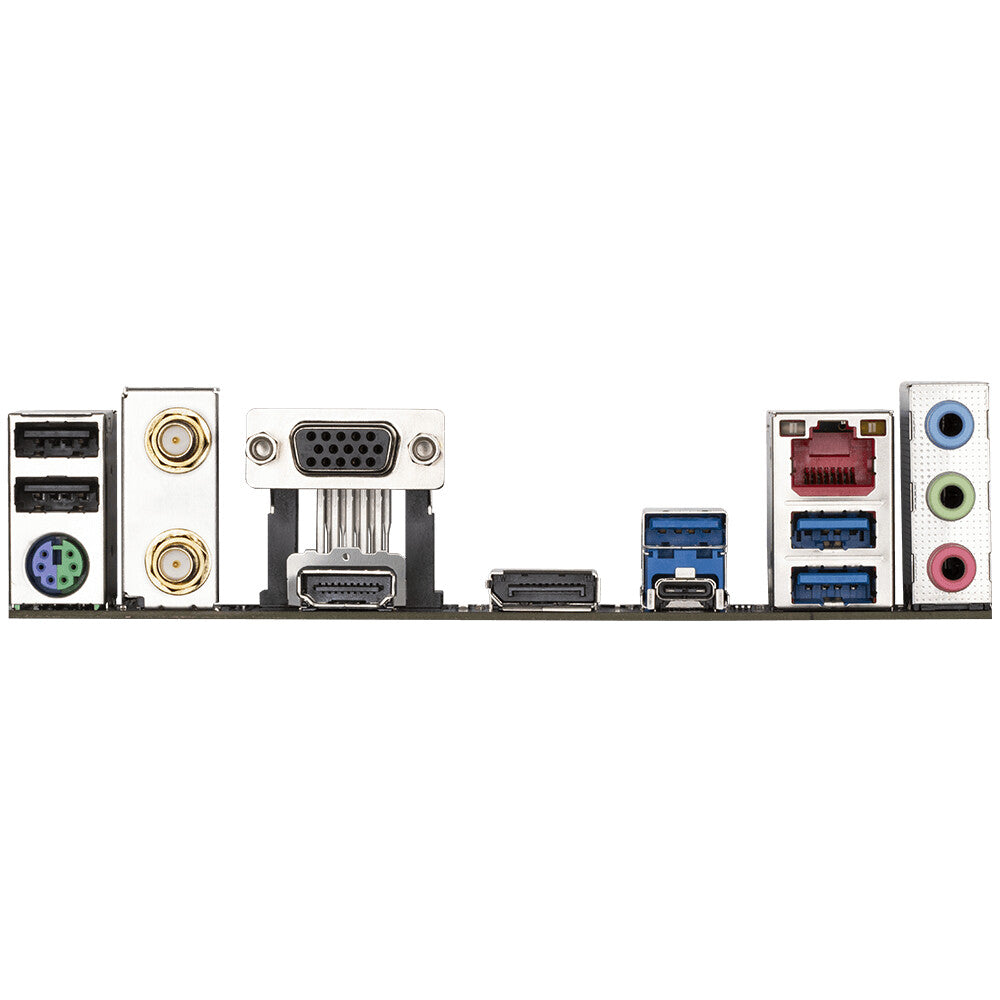

| Rear panel I/O ports |
|---|
| Microphone in |
Yes |
| Line-in |
Yes |
| Headphone outputs |
1 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| Network |
|---|
| Bluetooth version |
4.2 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Power source type |
ATX |
| Cooling type |
Active |
| PC health monitoring |
Fan, Temperature, Voltage, Water cooling |
| Product colour |
Black |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC897 |
| Motherboard chipset |
Intel B760 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| BIOS |
|---|
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
| Clear CMOS button |
Yes |
| Clear CMOS jumper |
Yes |
| ACPI version |
5.0 |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
|---|
| Package weight |
1.07 kg |
| Package height |
68 mm |
| Package depth |
268 mm |
| Package width |
270 mm |
| Battery |
|---|
| Battery type |
CR2032 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells |
1 |
| Battery weight |
3 g |
| Lithium weight per battery |
0.07 g |
| Logistics data |
|---|
| Country of origin |
China |
| Products per shipping (inner) case |
1 pc(s) |
| Weight & dimensions |
|---|
| Height |
35 mm |
| Depth |
225 mm |
| Width |
244 mm |
| Packaging content |
|---|
| Bundled software |
Norton Internet Security (OEM version)LAN bandwidth management software |
| Drivers included |
Yes |
| Cables included |
SATA |
| Batteries included |
Yes |
| Technical details |
|---|
| Warranty period |
3 year(s) |
