If you asked us to name one of our best projects, we’d say Arx 500 Air – we took all the best solutions we know and put them together. As a result, we’ve made a large (but slightly shorter than Arx 700 series) PC case for you your components that's as breathable as a room where someone opened all the windows wide.
And replaced one of the walls (and the ceiling) with dust filters.
Arx 500 Air
We’ve seen a lot when it comes to PC cases – but the Arx 500 Air still brings a big smile to our faces. No wonder, because we packed all our knowledge into it. Spoiler alert – it came out like a dream.

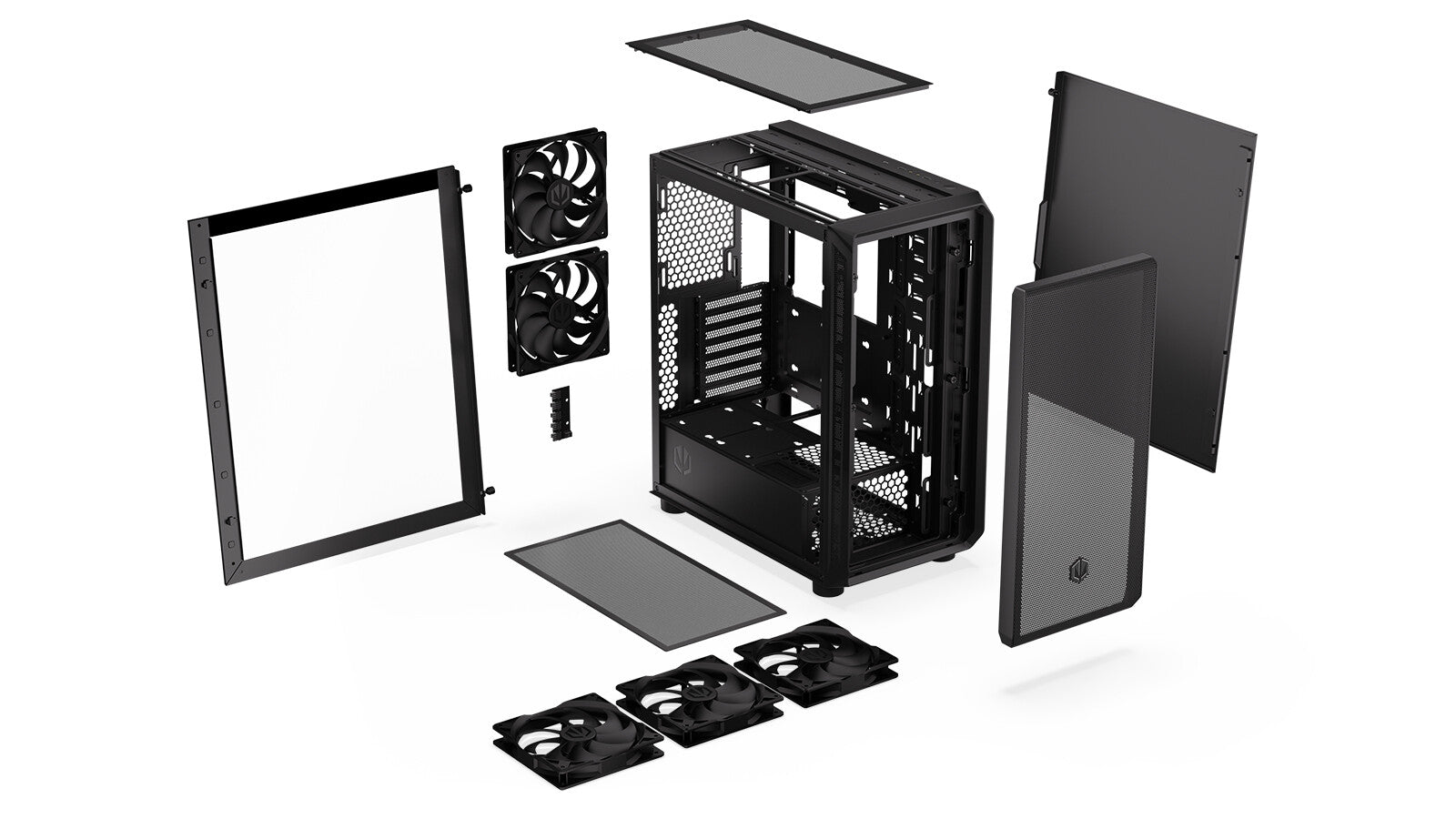

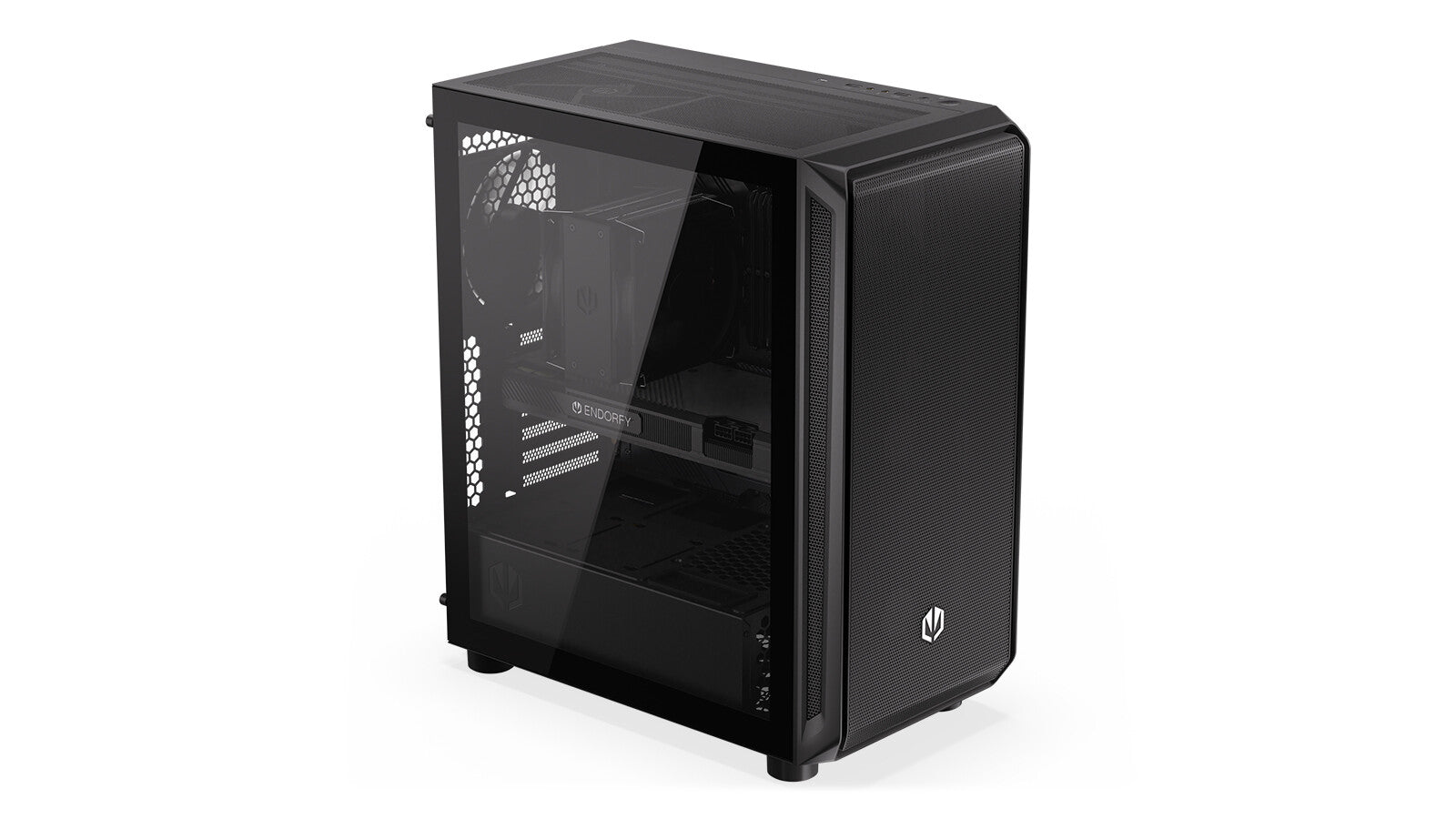

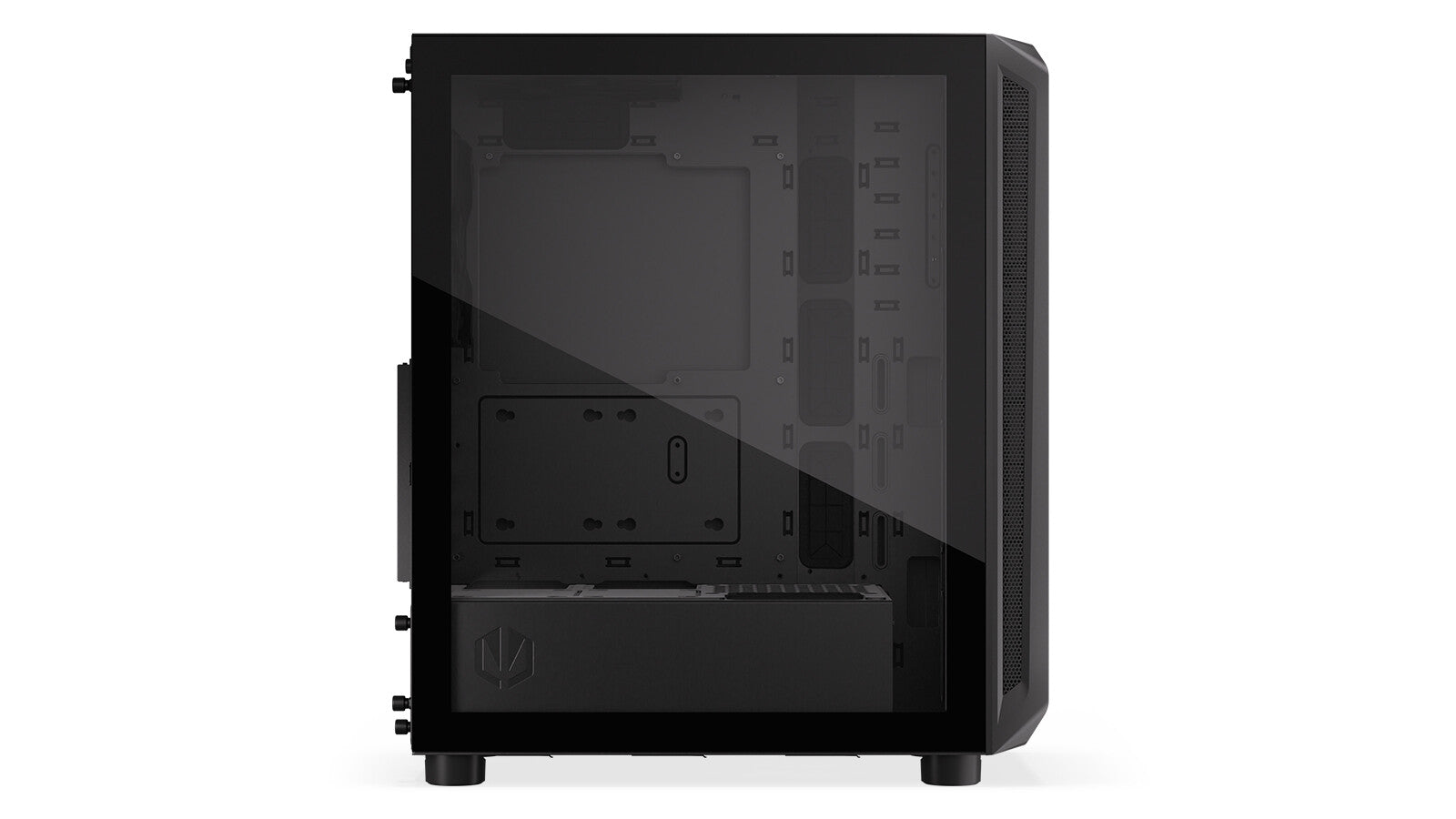

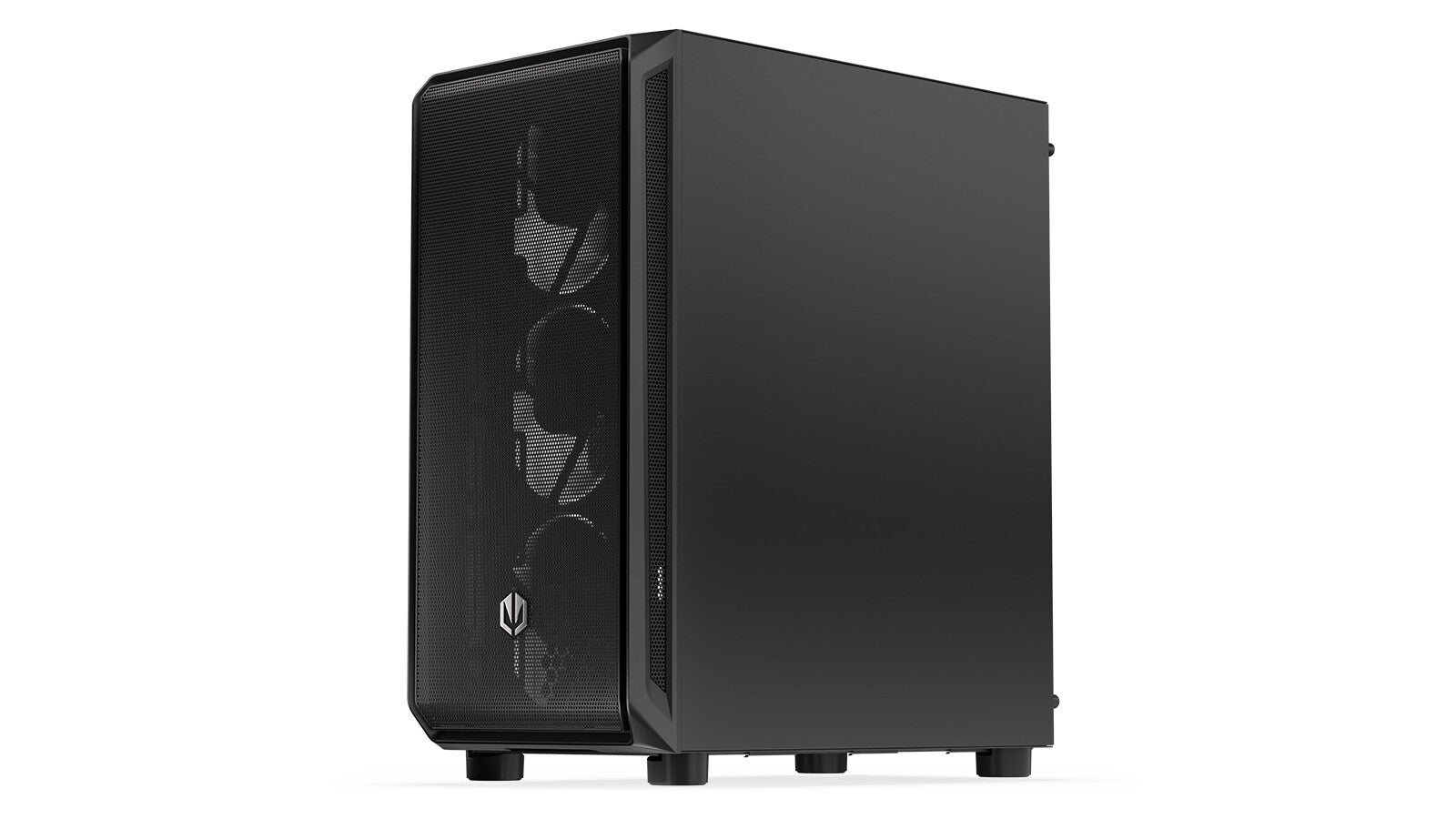

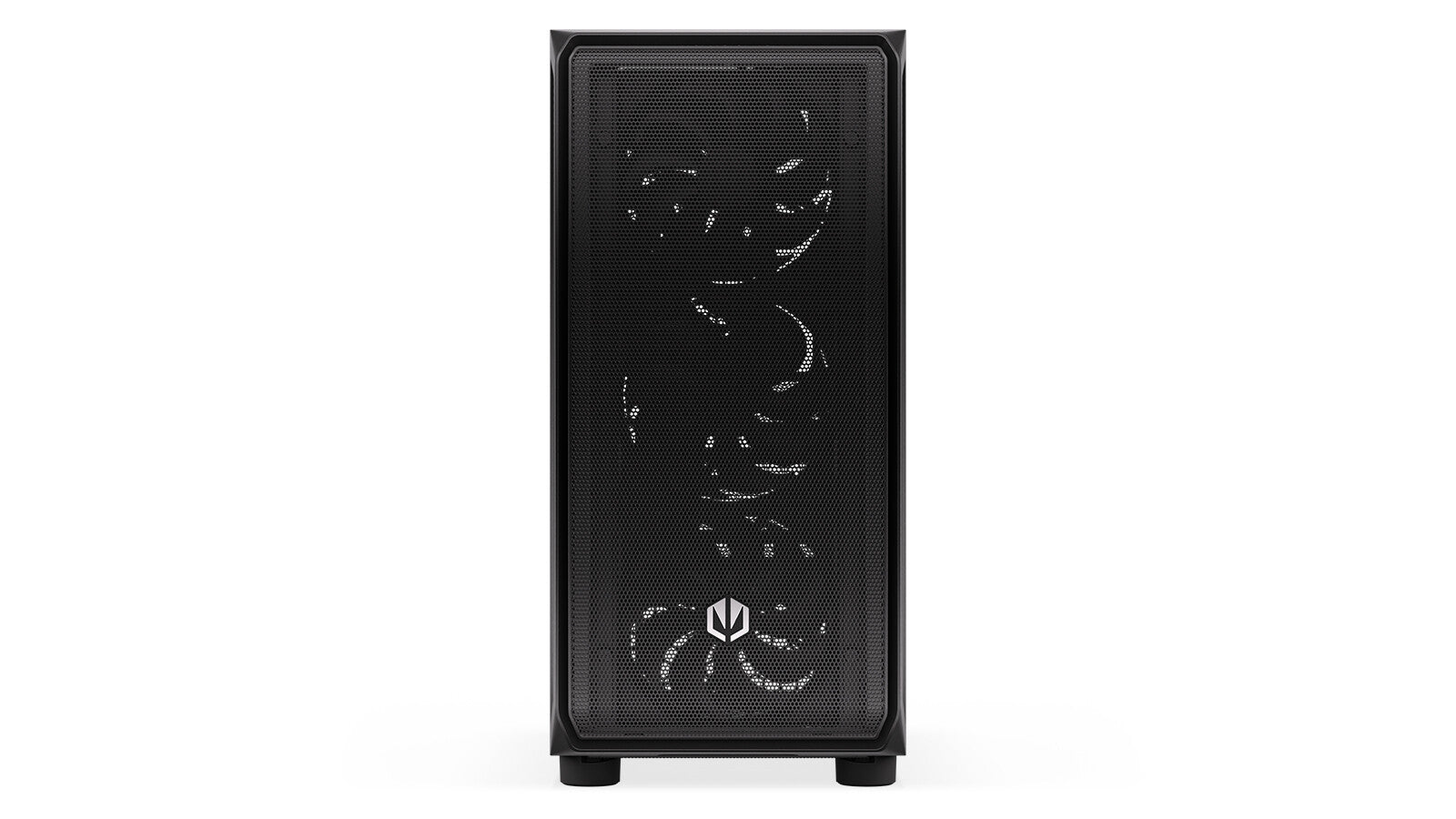

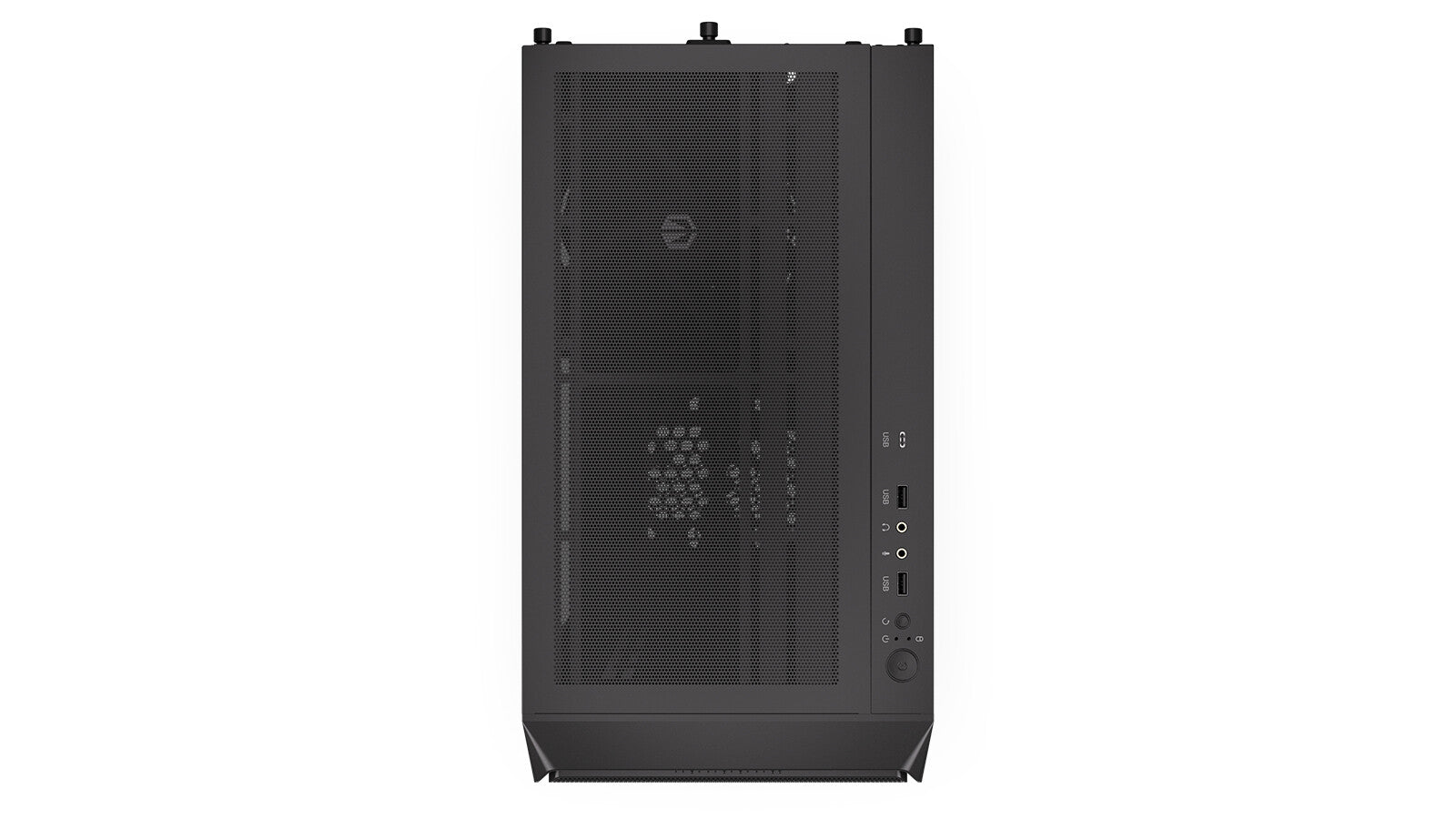

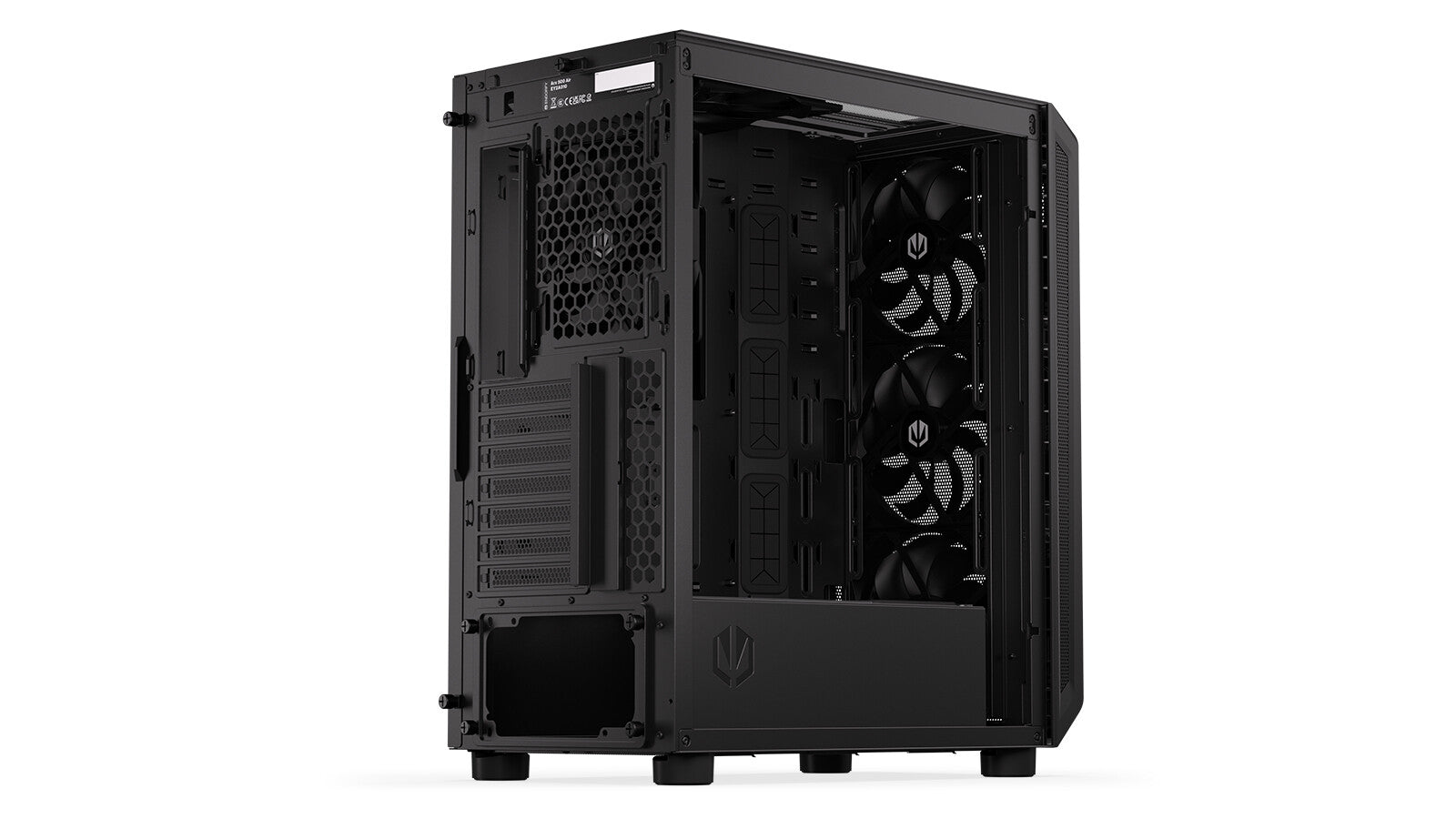

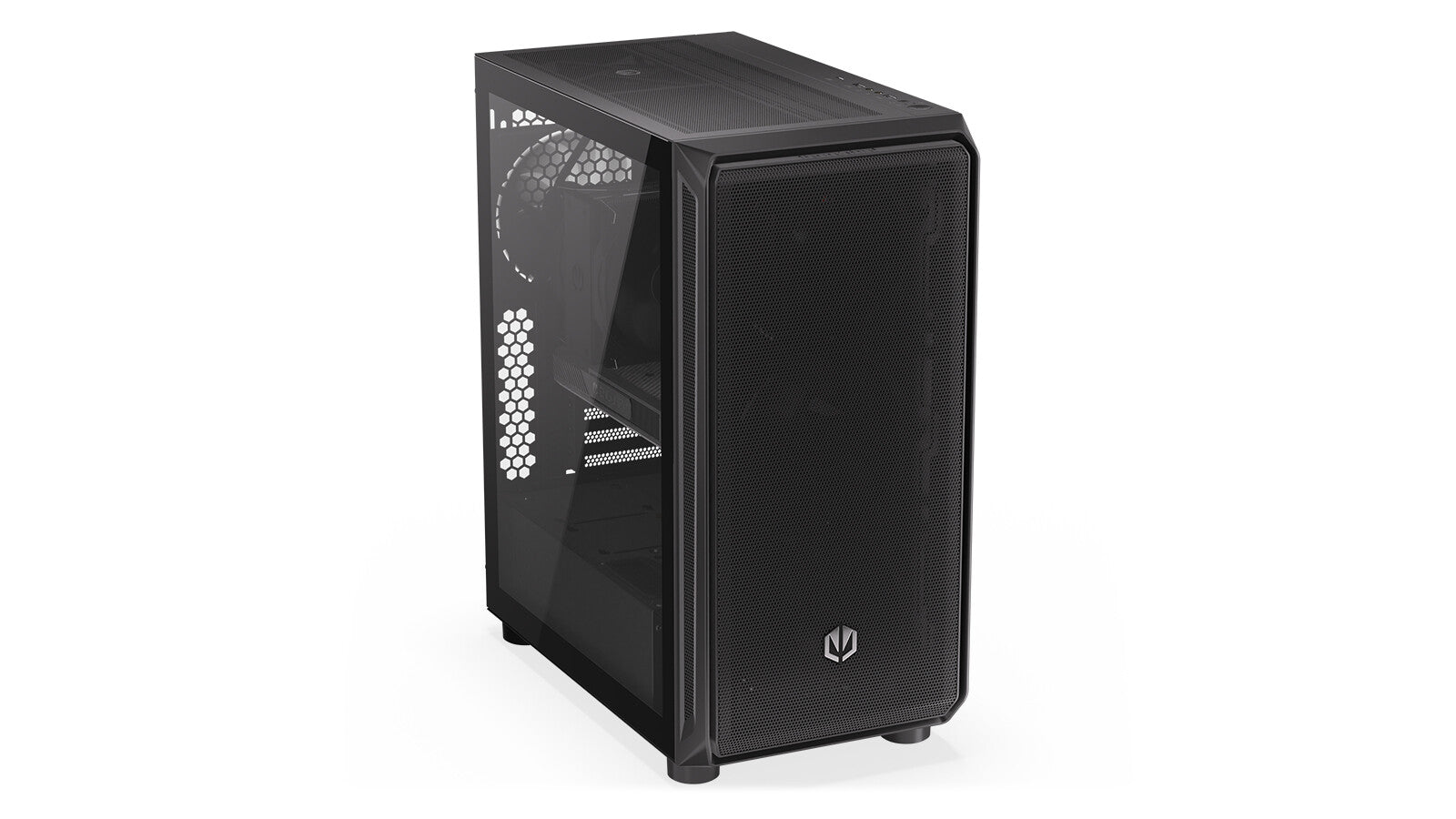

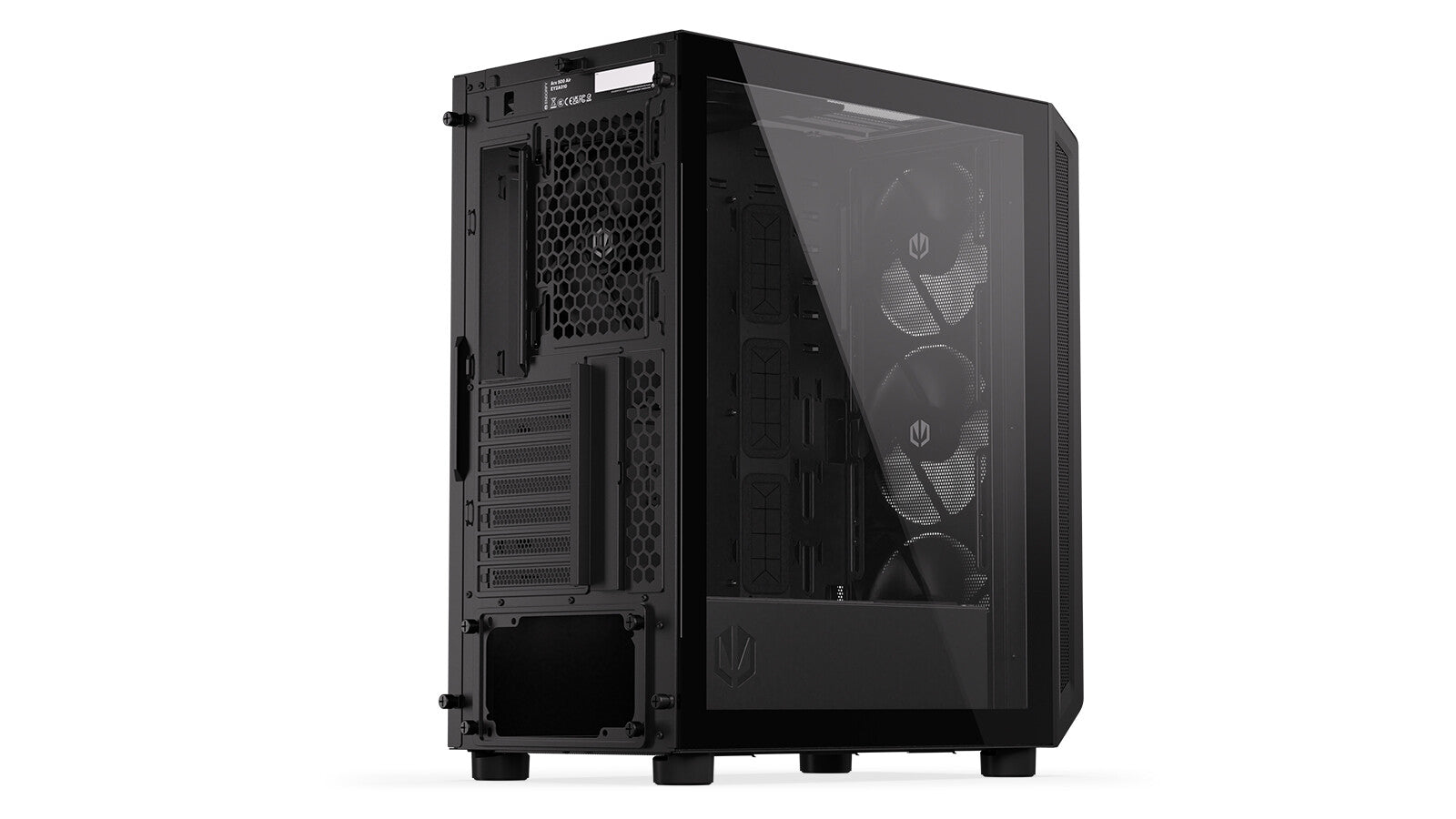

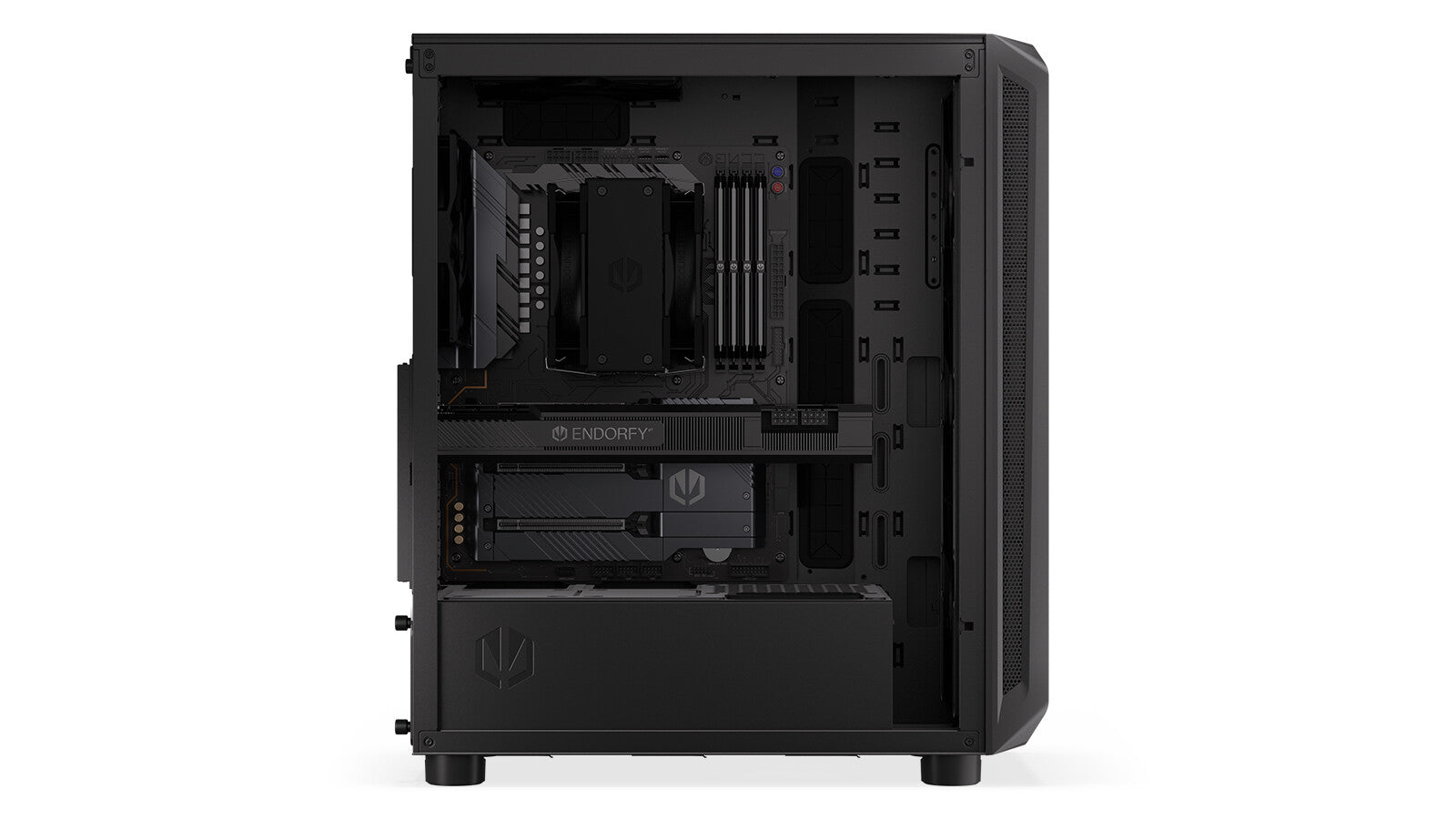

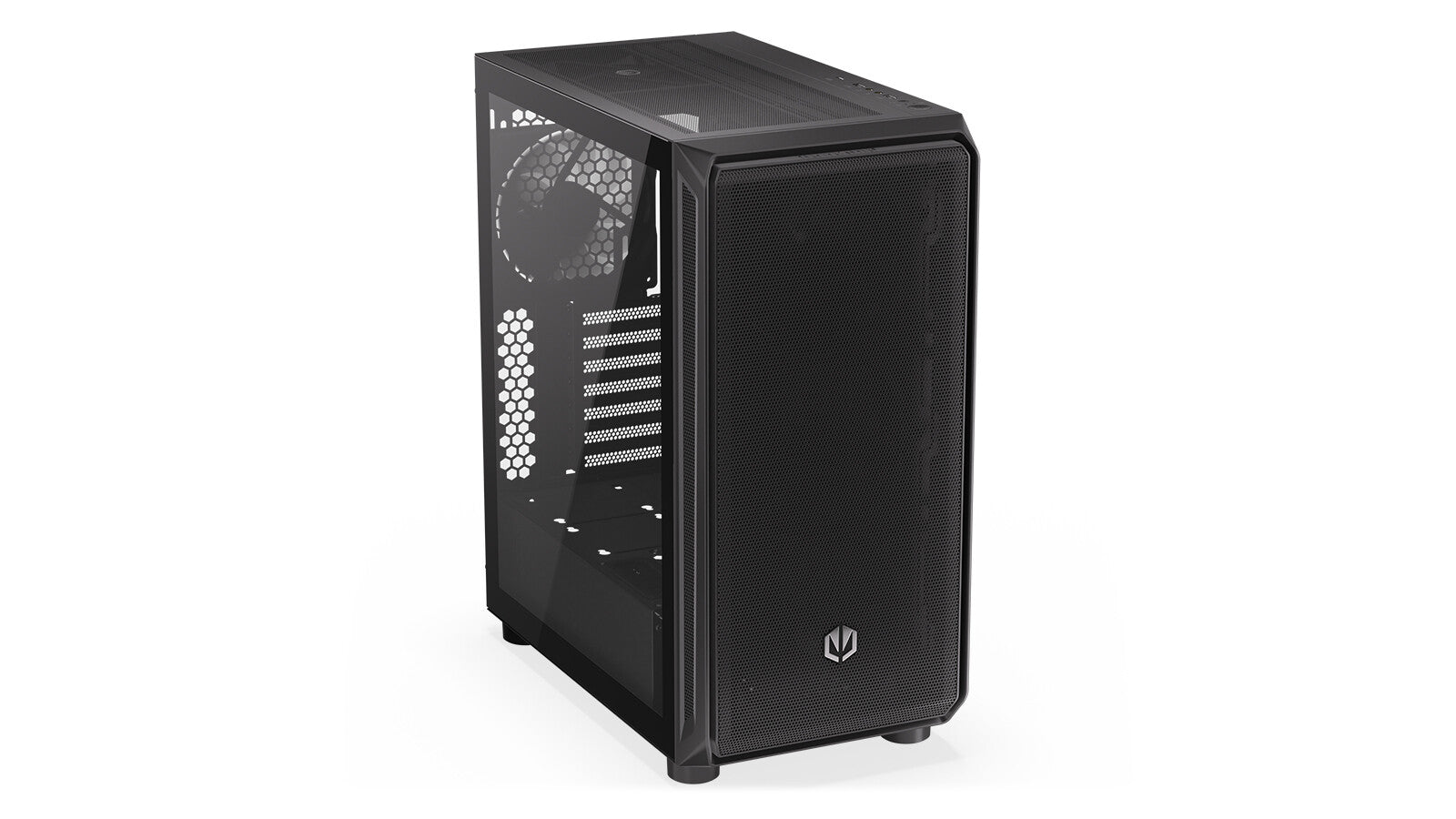

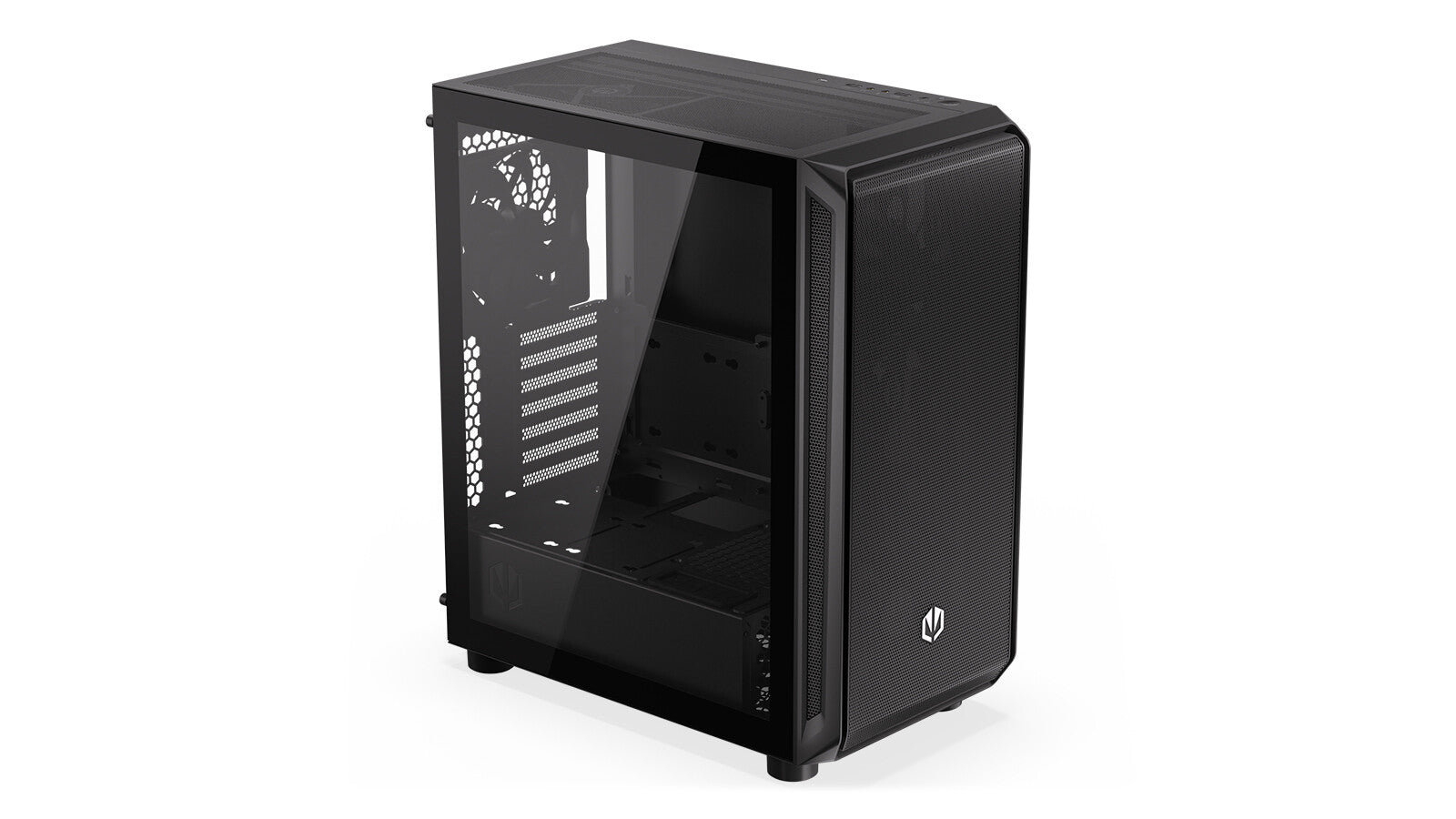

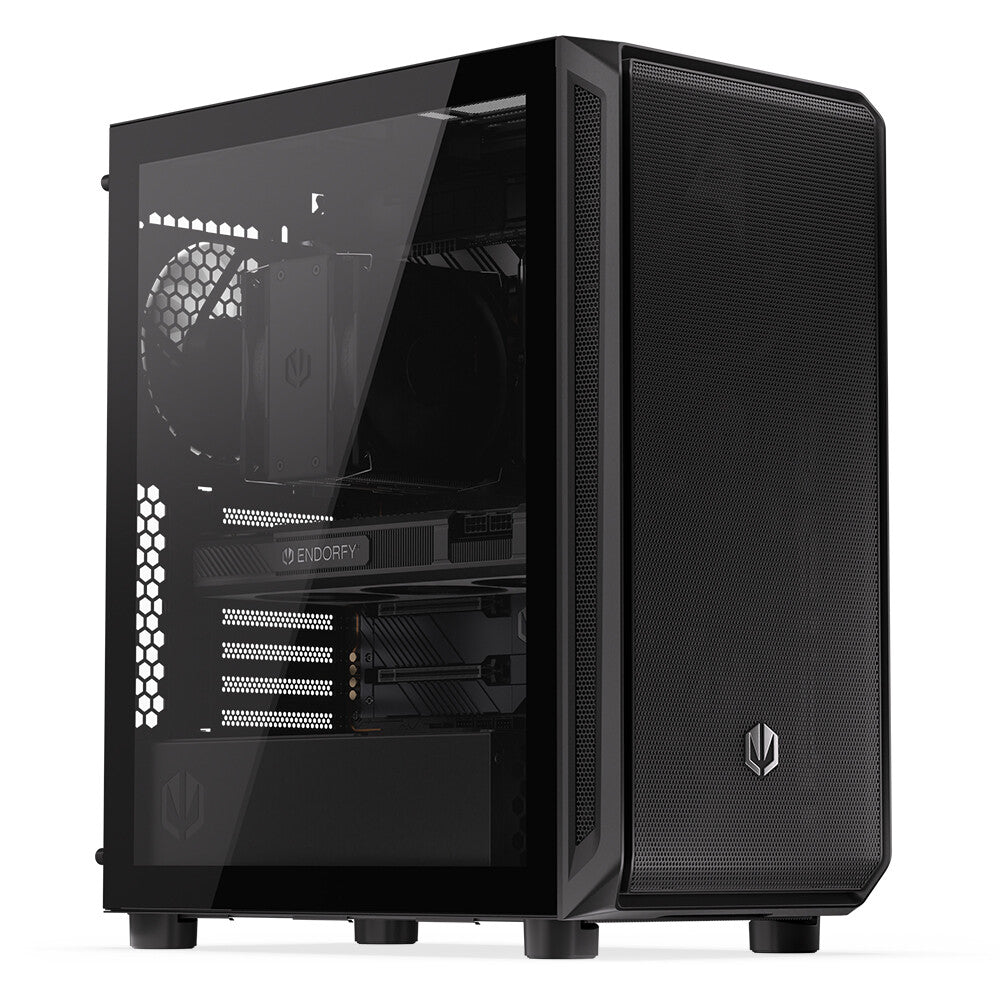

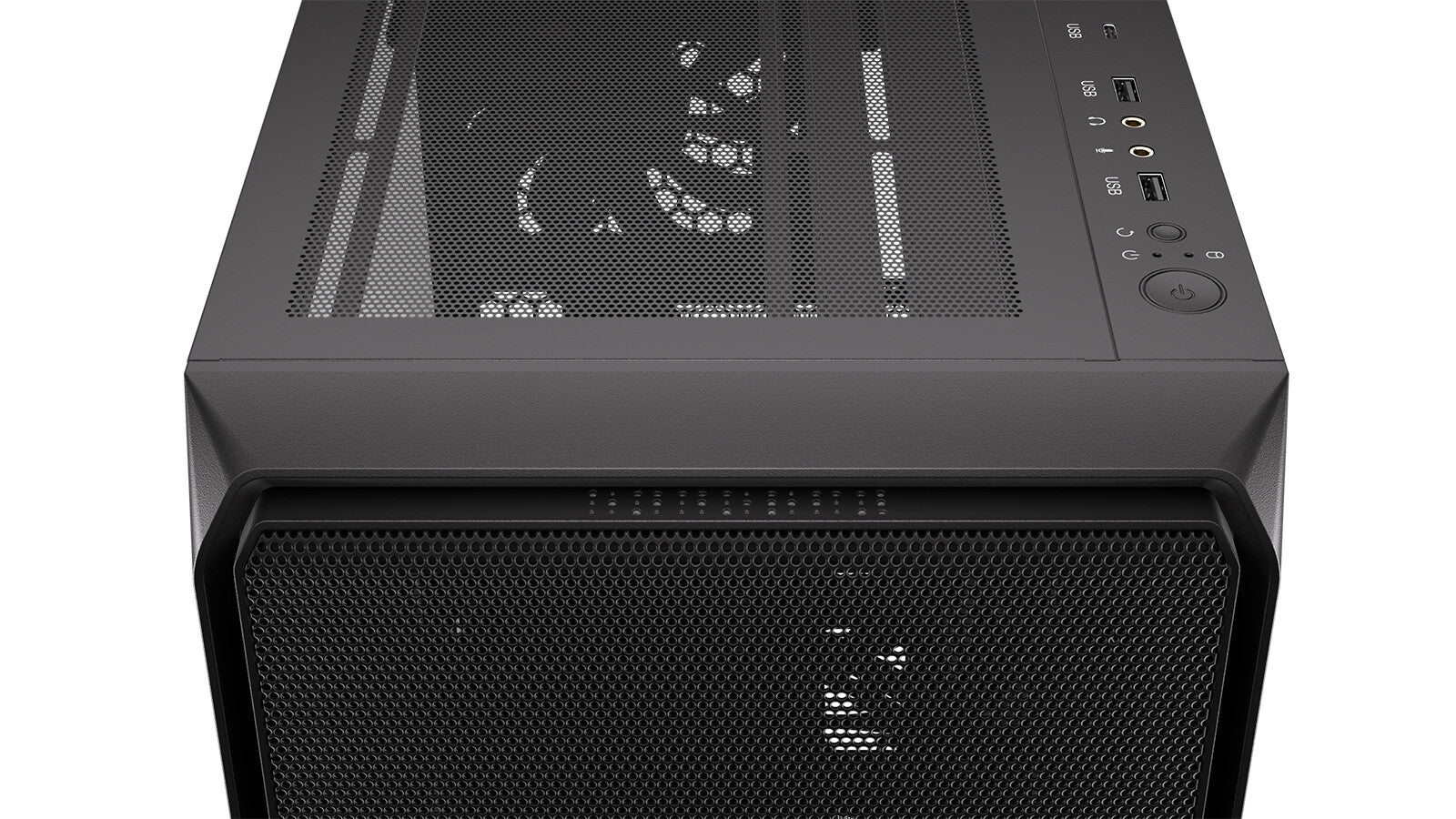

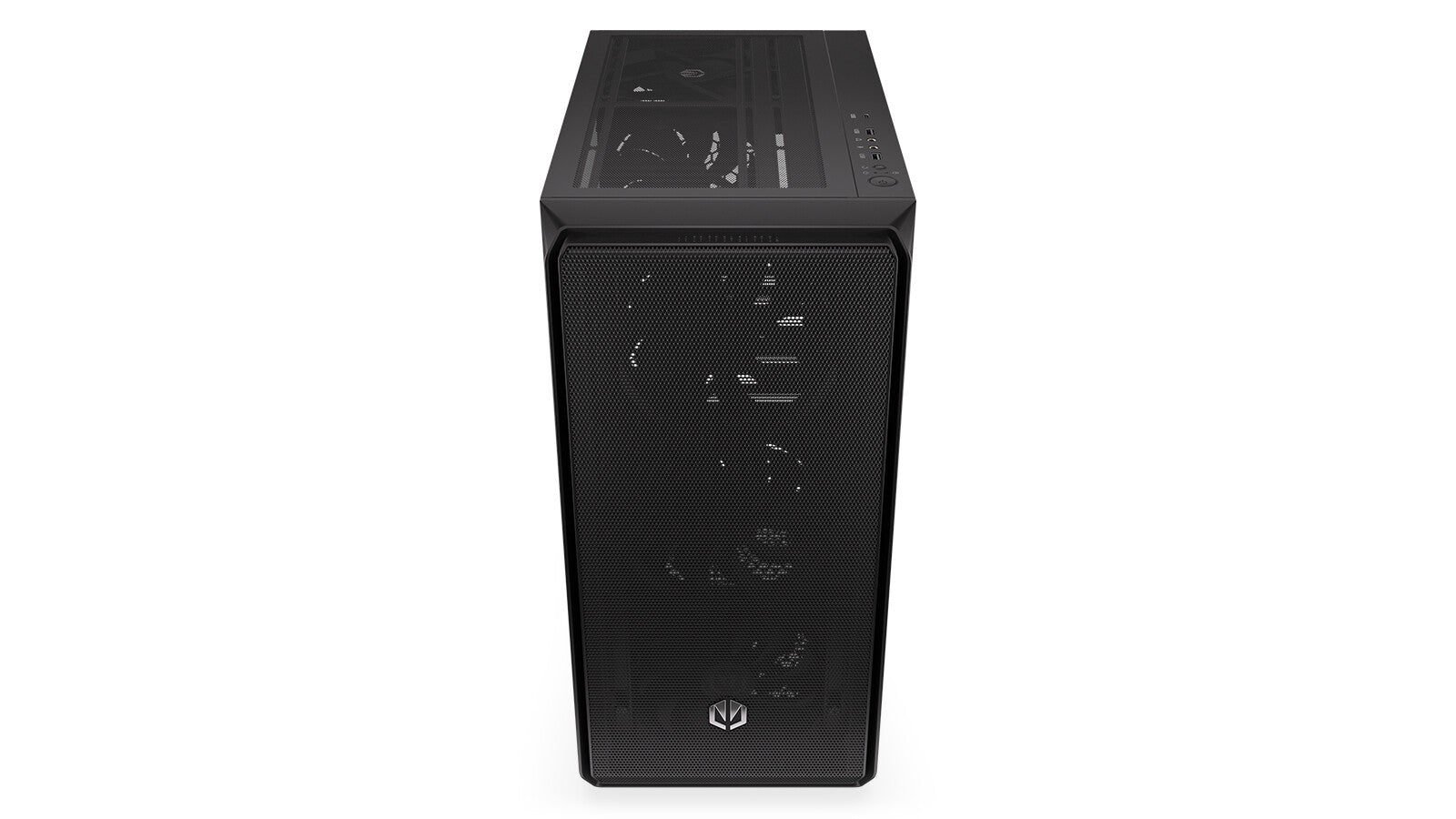

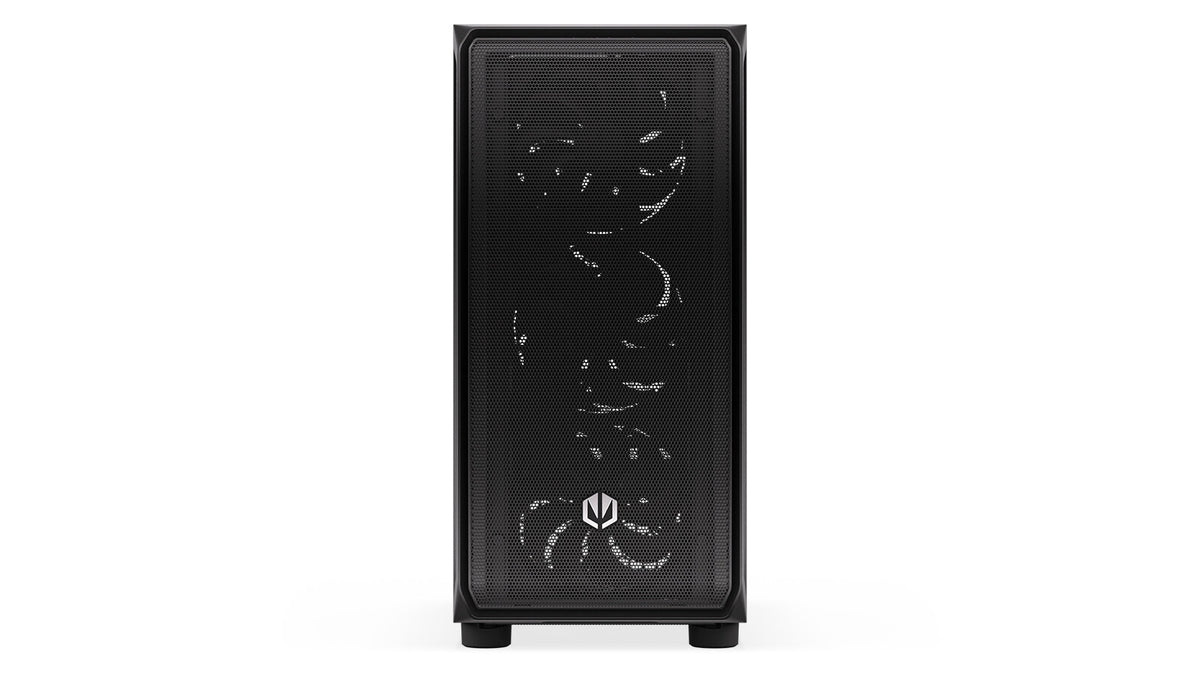

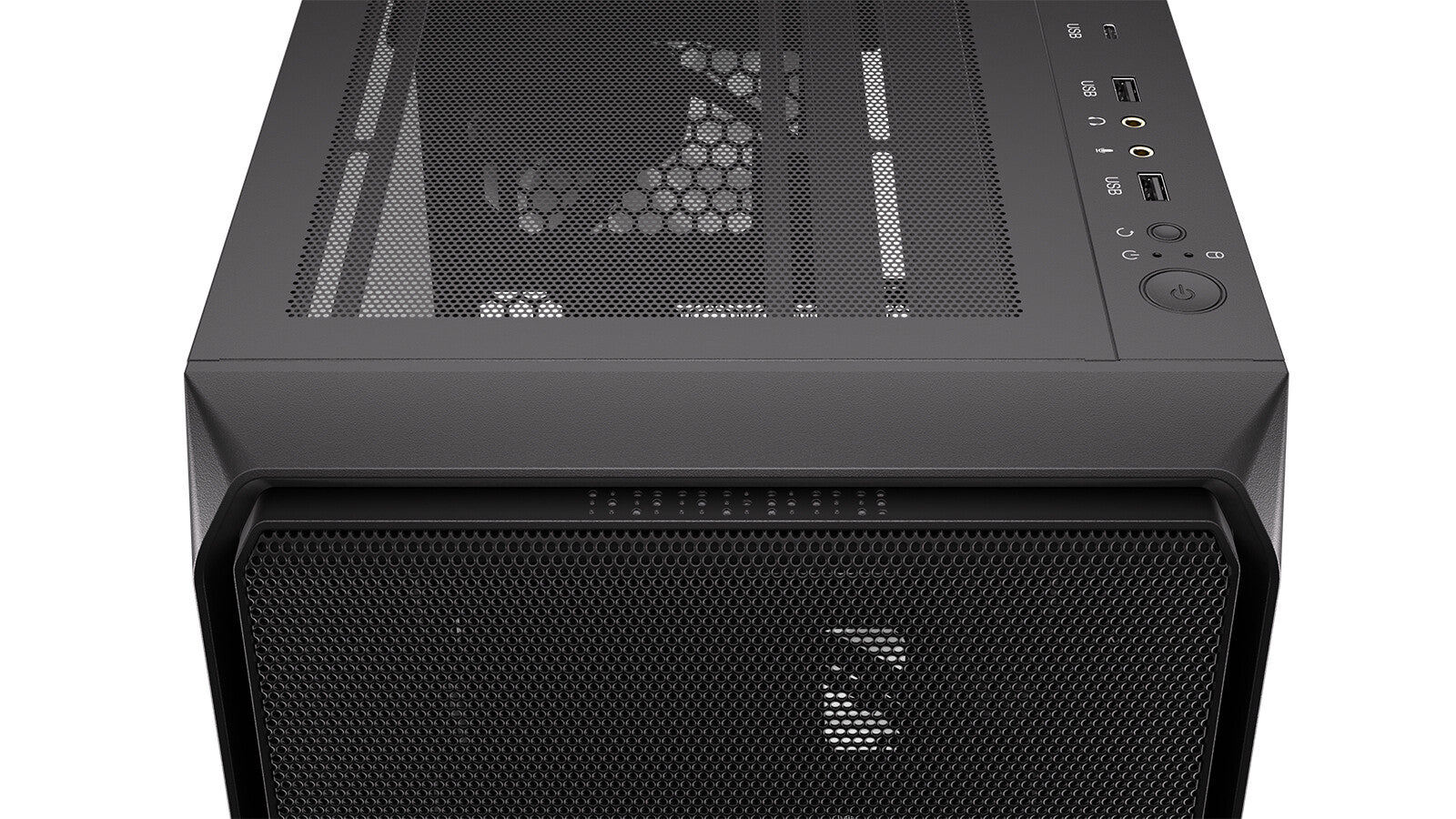

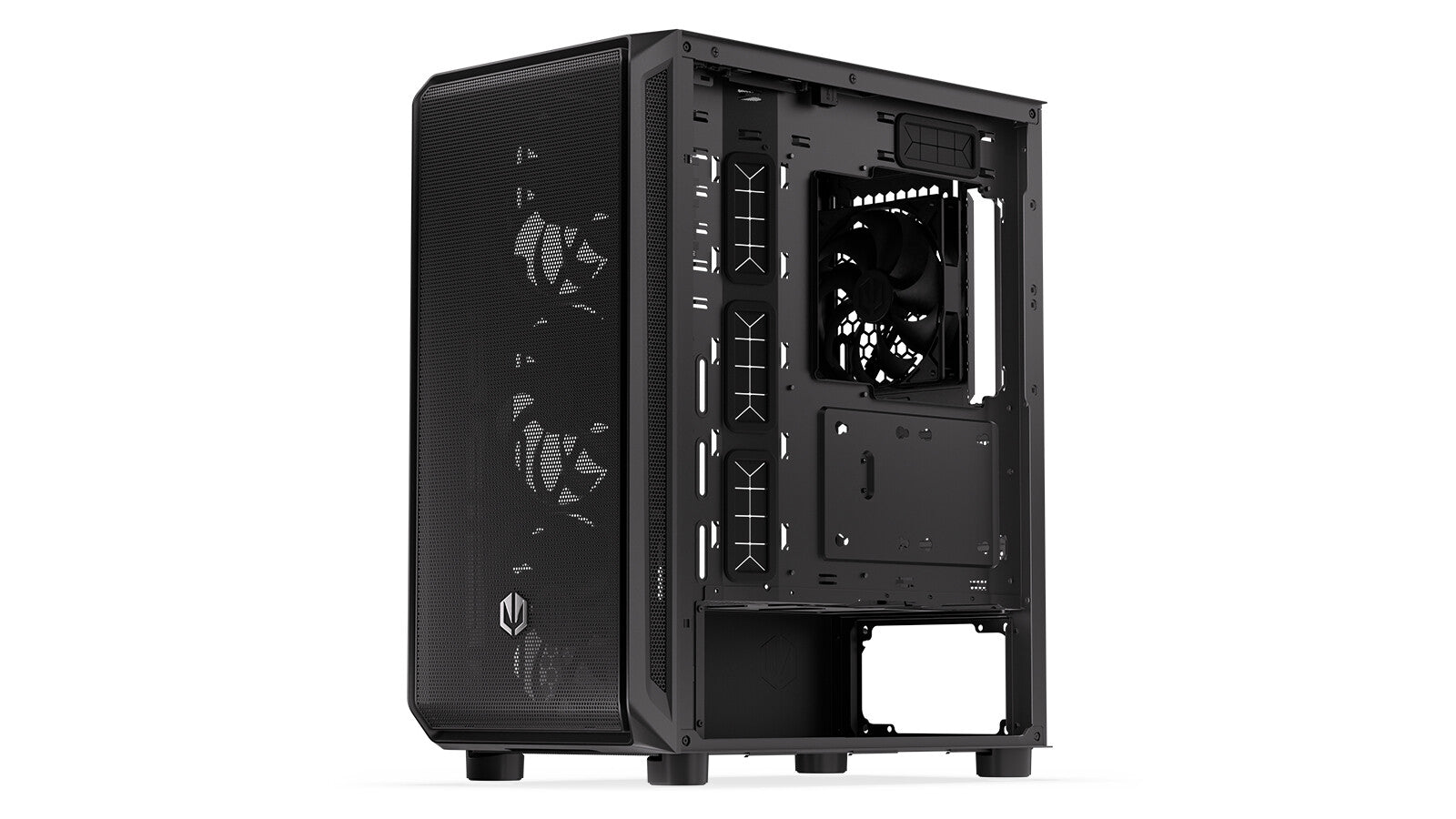

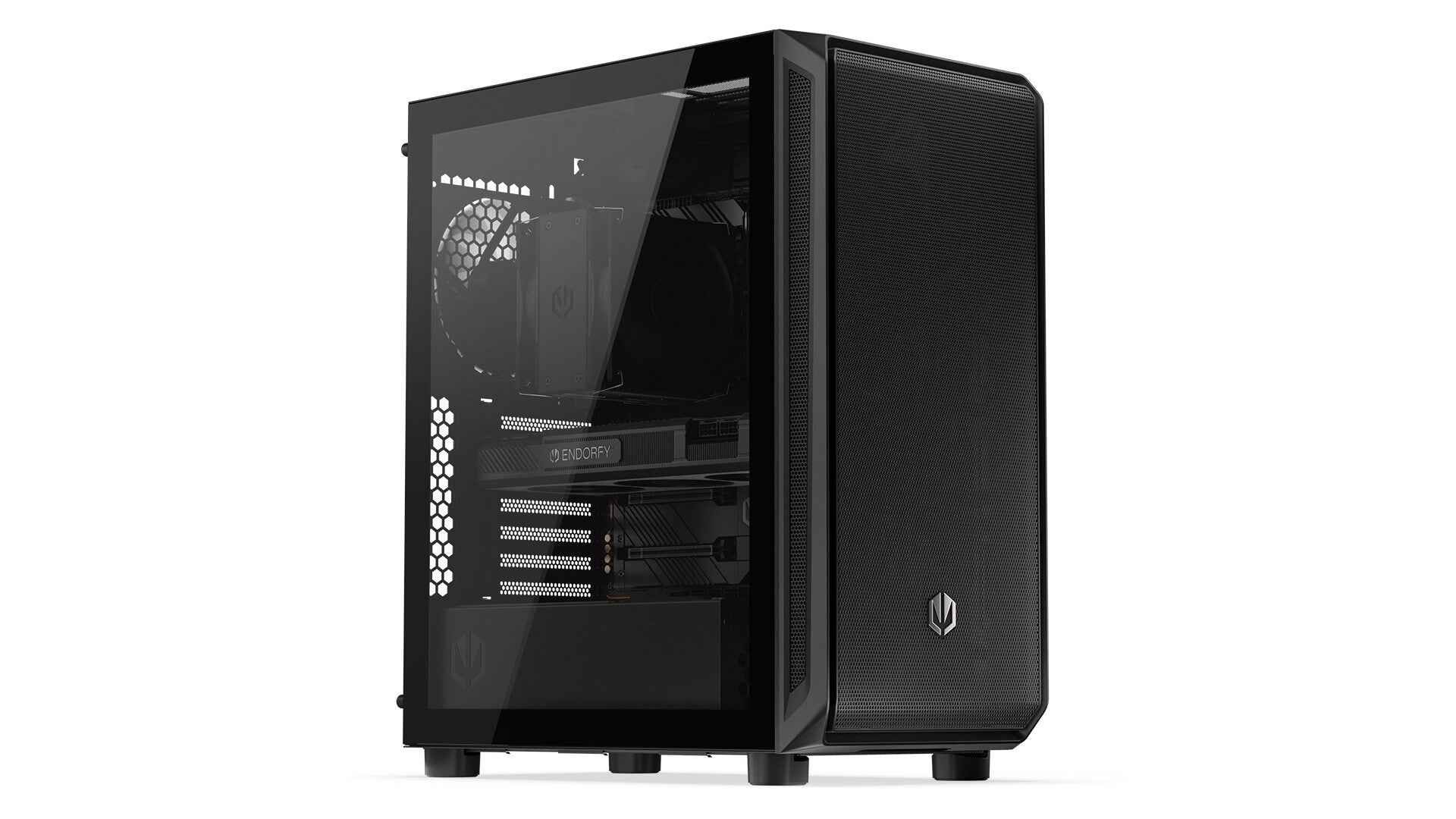

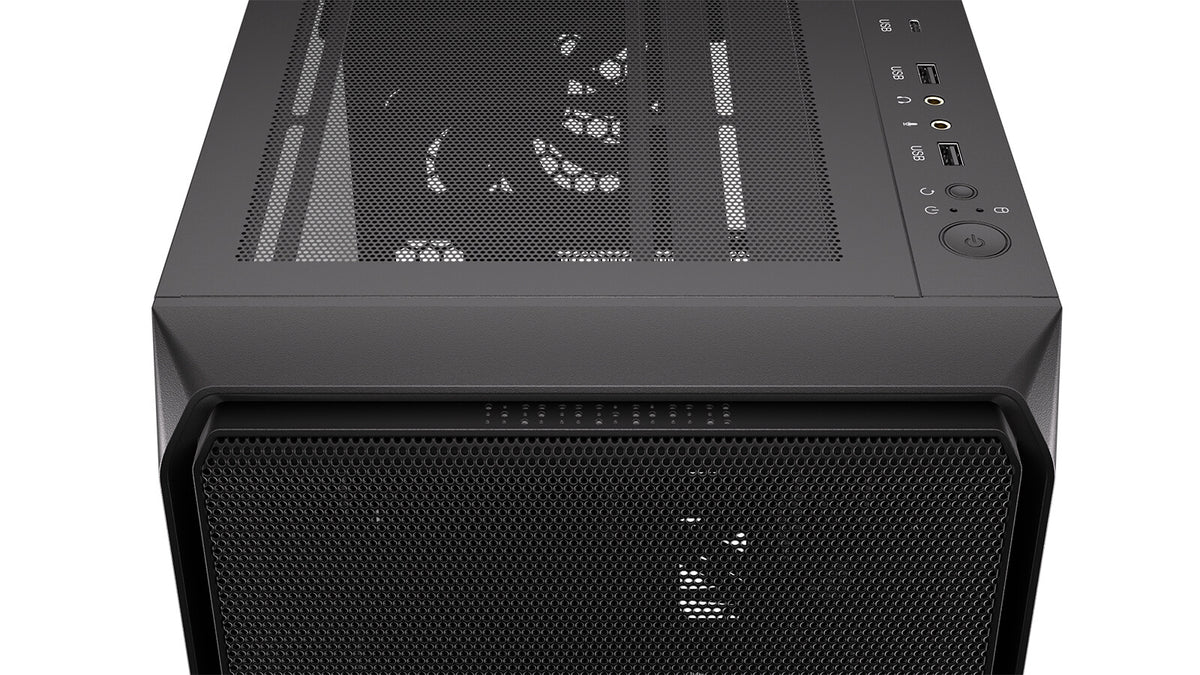

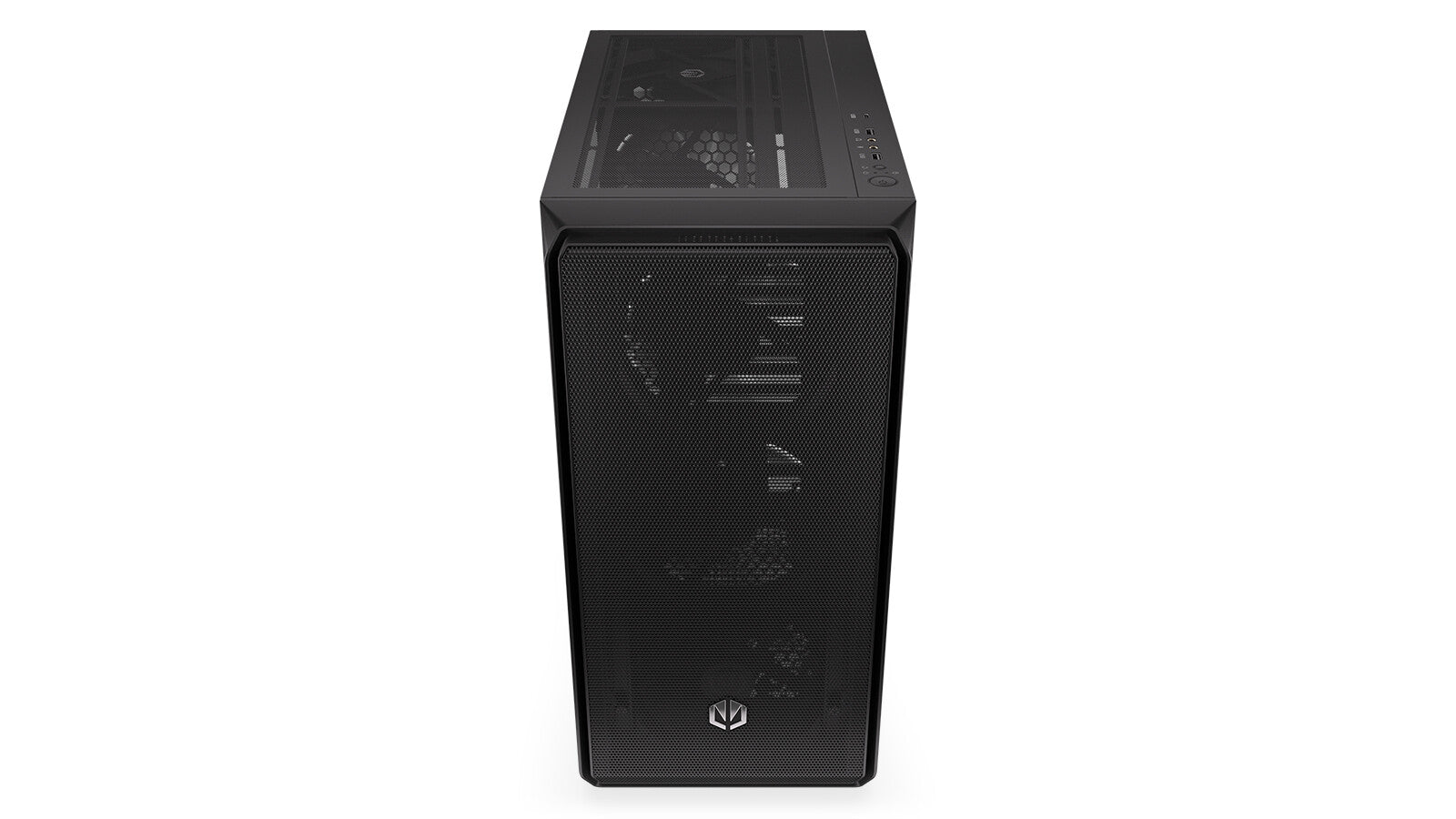

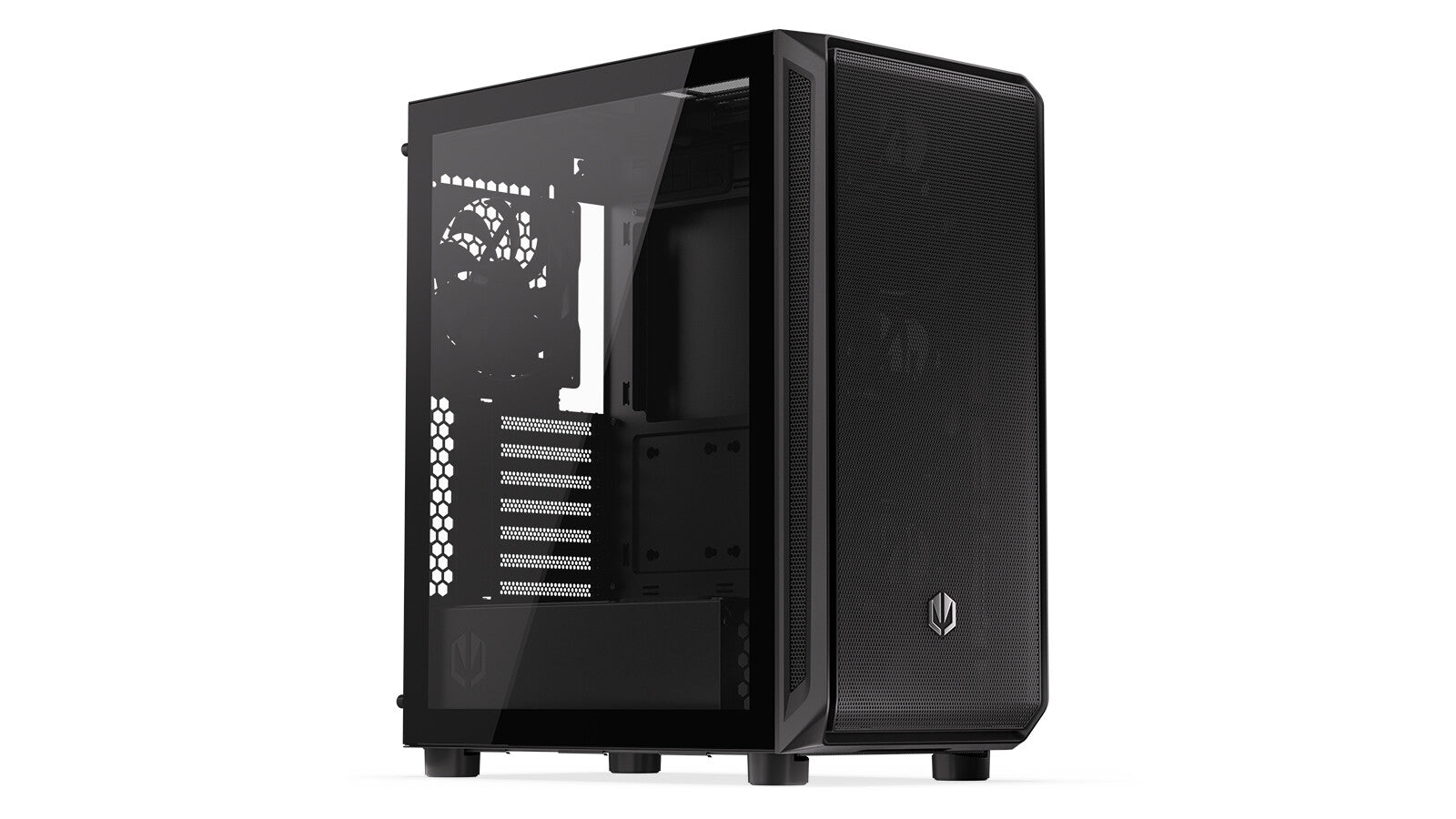

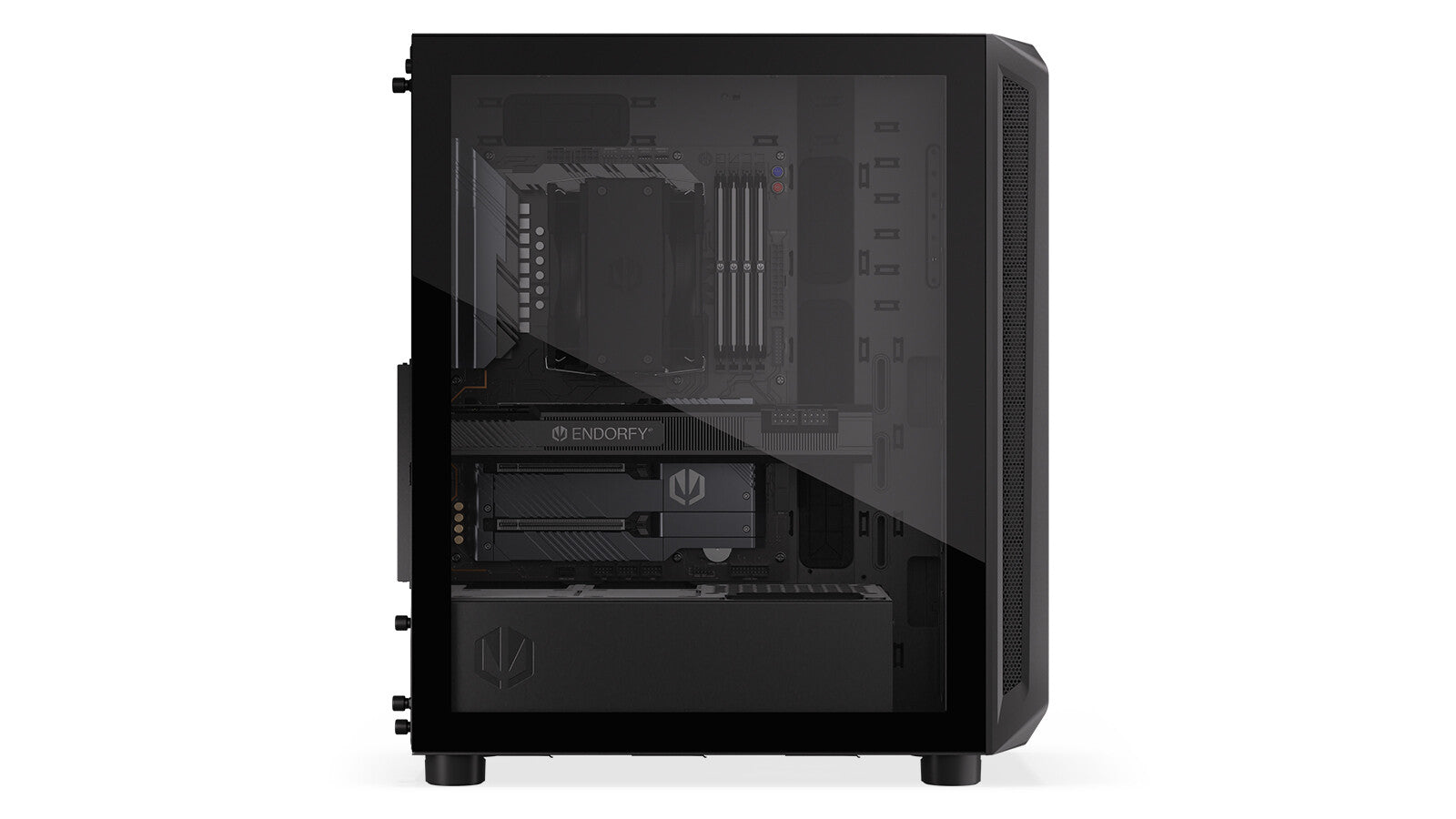

This is one of the largest cases we’ve ever created, only slightly shorter than Arx 700 series. It measures 486×228×429 mm – enough to fit a tall cooling system (up to 179 mm), 7 fans (including 5 Stratus 140 PWM that we give you for a good start), and most graphics cards available on the market (up to 350 mm long). Everything sits in a pleasant breeze, because the finely perforated front and top panels let in fresh air and block dust. You can check it out through the tempered glass window.
| Design | |
|---|---|
| Maximum PSU length | 30 cm |
| Maximum graphics card length | 35 cm |
| Maximum CPU cooler height | 17.9 cm |
| On/off button | Yes |
| Reset button | Yes |
| Transport wheels | No |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Case fans |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of 2.5" bays | 6 |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | ATX, ITX, micro ATX |
| Product colour | Black |
| Material | Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| USB Type-C ports quantity | 1 |
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,240,280 mm |
| Rear radiator sizes supported | 120,140 mm |
| Front radiator sizes supported | 120,240,280,360 mm |
| Rear fans diameters supported | 140 mm |
| Rear fans installed | 1x 140 mm |
| Front fans diameters supported | 140 mm |
| Front fans installed | 3x 140 mm |
| Storage | |
|---|---|
| SSD form factor | 2.5" |
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5" |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 7.5 kg |
| Height | 486 mm |
| Depth | 429 mm |
| Width | 228 mm |
