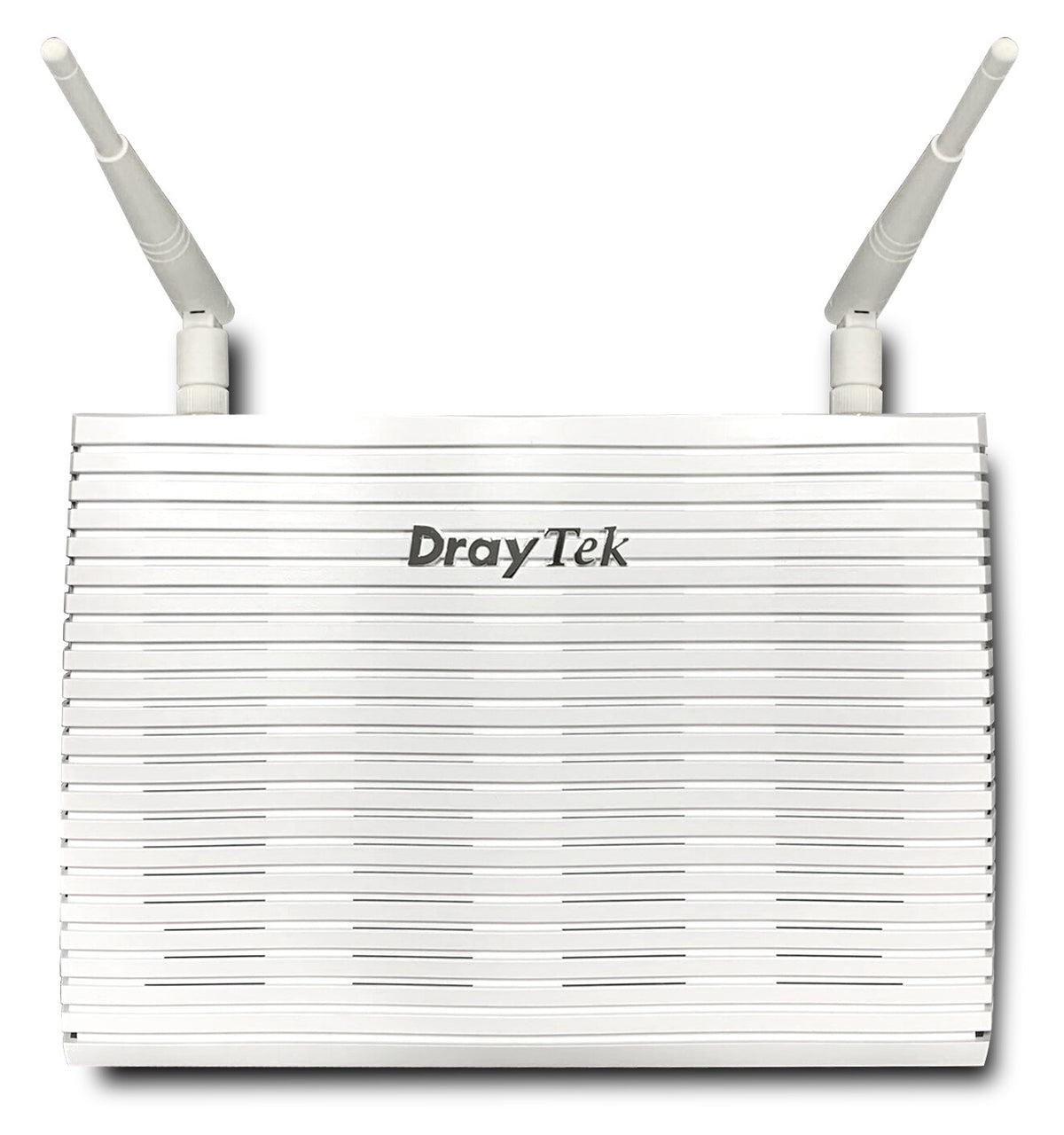

Wi-Fi 6, VDSL2 / VDSL2 35b / ADSL2+, RJ-11, 5x Gigabit Ethernet (1G/100M/10M), RJ-45, 241 x 165 x 44mm
The Ideal DSL Router with VPN for Small Business and Remote Working
DrayTek’s Vigor 2865 series Multi-WAN Firewall VPN routers are ideal for Superfast VDSL Broadband and Ethernet-based FTTP Fibre Broadband. With Gigabit throughput, Quality of Service, VPN client/server, comprehensive Firewall and Content Filtering controls.
Options for Wi-Fi 6 on ‘ax’ models, or Wi-Fi 5 ‘ac’ models provide fast & efficient wireless connectivity, while the integrated 4G+ LTE modem on ‘Lac’ models takes full advantage of mobile broadband. The Vigor 2865 series provides a reliable, flexible, and secure networking solution, that’s ideal for Home Offices, Small Business and Satellite Offices.
VDSL and Ethernet Load Balancer
Connect the Vigor 2865ax to Superfast Fibre with the integrated VDSL modem. Use the Ethernet WAN with Cable and Ultrafast FTTP. Load Balance multiple connections to boost performance.
Wi-Fi 6 - AX3000 Performance
Wi-Fi 6 wireless provides gigabit Wi-Fi with reliable throughput. Ideal for time-sensitive video conferencing, low latency gaming and handling 4K Ultra-HD streaming, without buffering.
Packed With Features
Take advantage of DrayTek’s rich feature set and useful functionality such as Quality of Service, Route Policy, VPN Matcher, DrayDDNS and more.
Robust SMB VPN Router
Quickly and securely connect remote sites with up to 32 VPN tunnels. Enable remote workers to access resources with DrayTek SSL VPN and OpenVPN support.

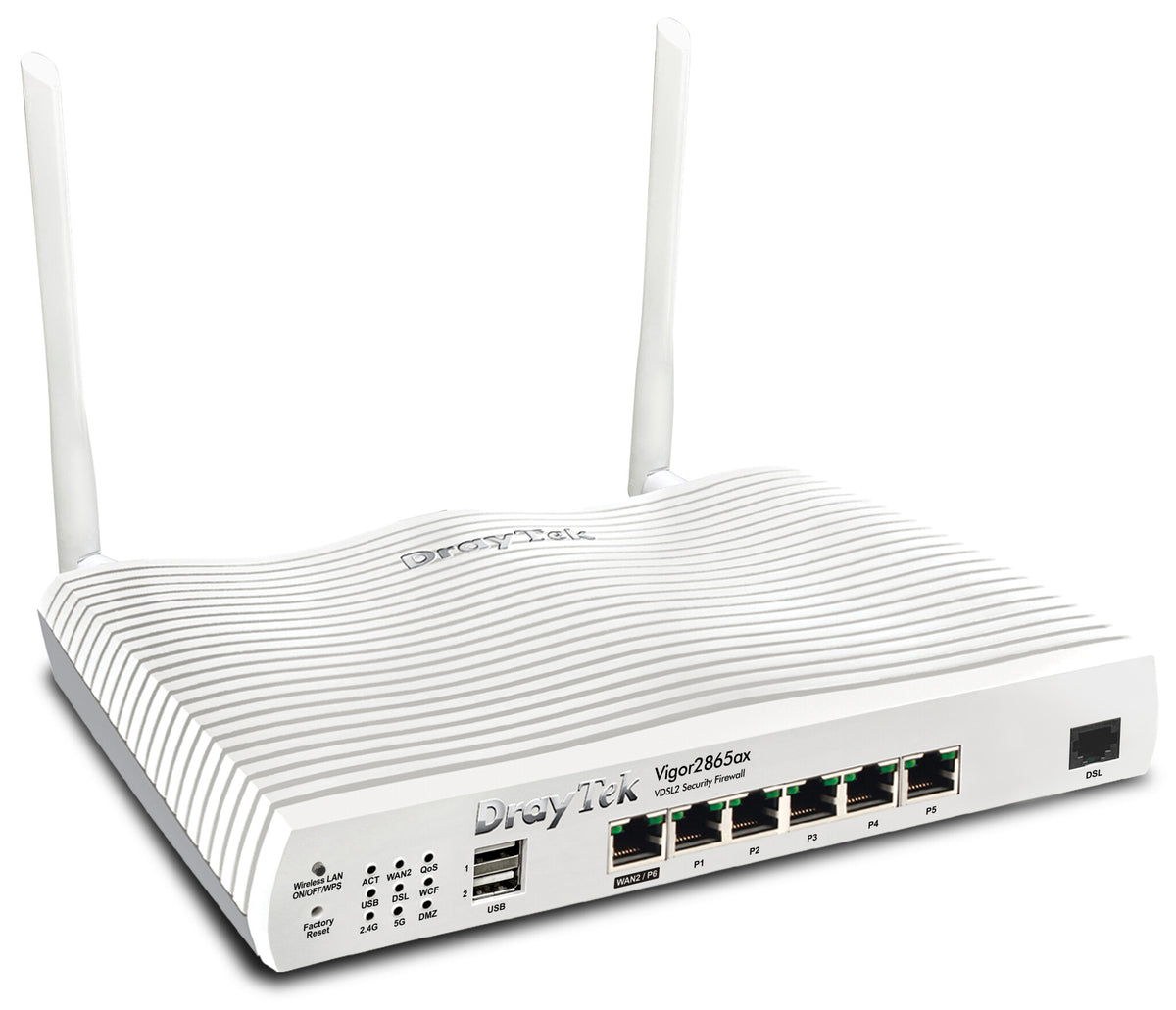

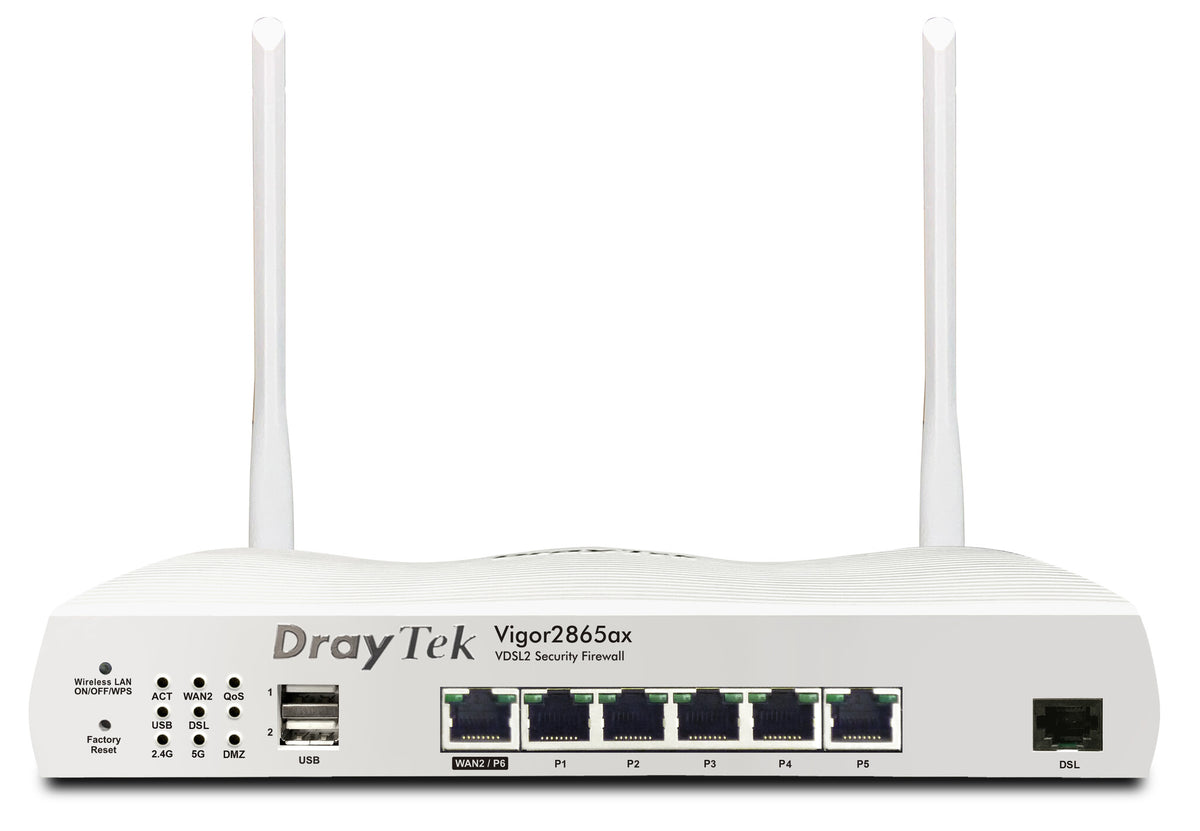

5+1 Gigabit LAN Ports with VLANs
Link Server, Computers, and Network Attached Storage directly, with up to 6 Gigabit LAN ports. VLANs allow for as many as 8 separate networks, with options for Hotspot Captive Portal.
VigorACS SD-WAN Central Management
Manage the Vigor 2865 remotely and utilise DrayTek’s powerful SD-WAN features with the VigorACS 3 management platform. Centrally manage & provision whole networks across multiple sites.
| WAN connection |
|---|
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
No |
| DSL WAN |
Yes |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
800 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| Wireless Distribution System (WDS) bridge |
Yes |
| Policy-based routing |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| DSL features |
|---|
| VDSL |
Yes |
| ADSL2 |
Yes |
| Ports & interfaces |
|---|
| RJ-11 ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
5 |
| Management features |
|---|
| Web-based management |
Yes |
| Security |
|---|
| Network address translation (NAT) |
Yes |
| Firewall |
Yes |
| Protocols |
|---|
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| On/off switch |
Yes |
| Indication light |
Yes |
| Wall mountable |
Yes |
| Product colour |
White |
| Product type |
Tabletop router |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Antenna included |
Yes |
| Antenna |
|---|
| Antennas quantity |
2 |
| Antenna gain level (max) |
5 dBi |
| Antenna connector type |
RP-SMA |
| Antenna type |
1x1 |
| Antenna design |
External |
| Power |
|---|
| Power consumption (typical) |
28.2 W |
| Output voltage |
12 V |
| AC input voltage |
100 - 240 V |
| Power source type |
AC, DC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-25 - 70 °C |
| Weight & dimensions |
|---|
| Width |
241 mm |
| Depth |
165 mm |
| Height |
44 mm |
| Weight |
780 g |
