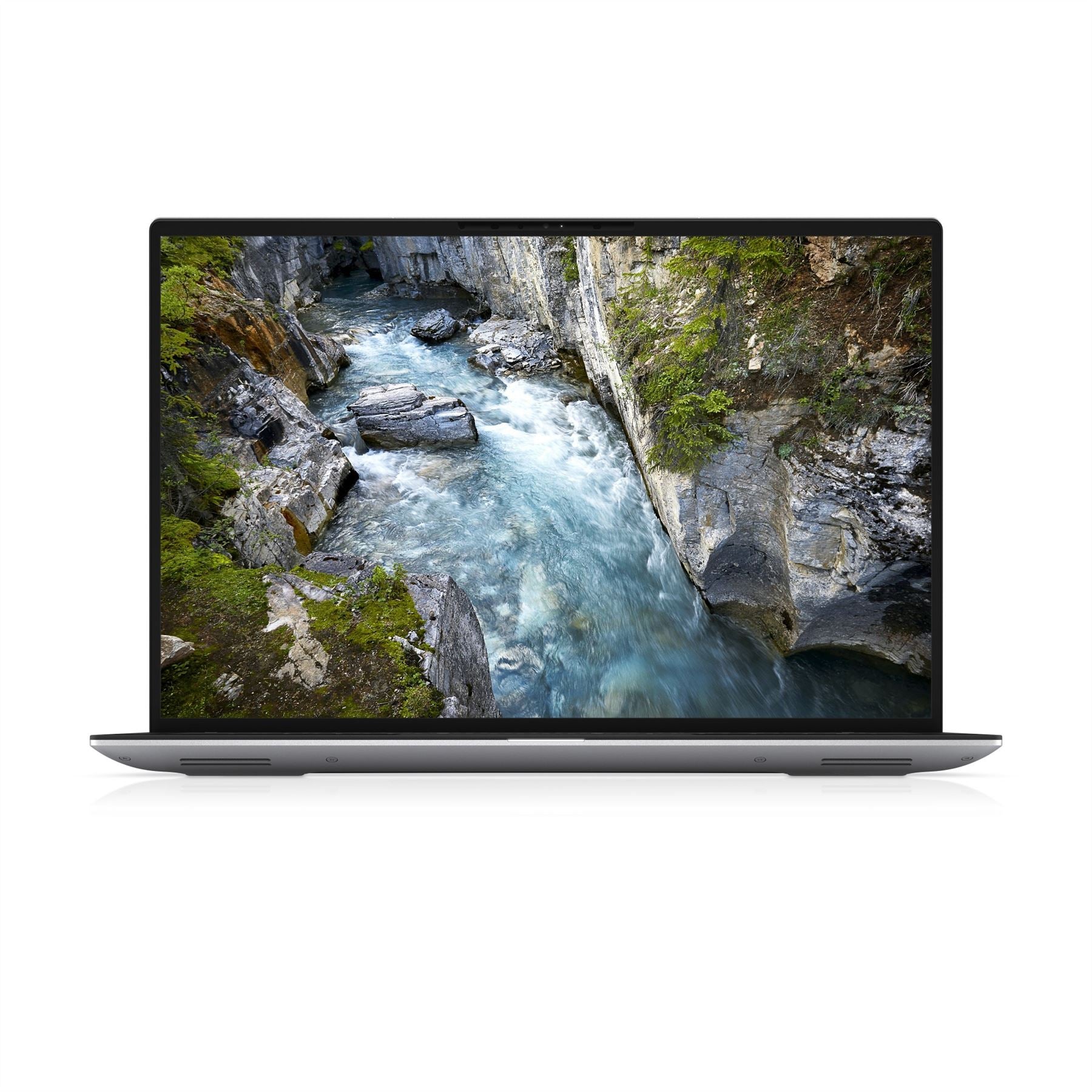

Power your creative zone 14" mobile workstation featuring 4-sided InfinityEdge display, up to 12 Gen Intel Core i9 and professional graphics from Intel or NVIDIA.
Design | |
---|---|
Product type | Mobile workstation |
Market positioning | Business |
Form factor | Clamshell |
Product colour | Grey |
Intel vPro Platform Eligibility | Yes |
Display | |
HD type | Full HD+ |
Pixel density | 161 ppi |
Panel type | WLED |
LED backlight | Yes |
Display brightness | 500 cd/m� |
Display response rise/fall | 35 ms |
Pixel pitch | 0.1572 x 0.1572 mm |
Contrast ratio (typical) | 1200:1 |
Touchscreen | No |
Display resolution | 1920 x 1200 pixels |
Display diagonal | 35.6 cm (14") |
Anti-glare screen | Yes |
Maximum refresh rate | 60 Hz |
RGB colour space | sRGB |
Colour gamut | 100% |
Native aspect ratio | 16:10 |
Processor | |
Processor generation | 12th gen Intel Core i7 |
Thermal Design Power (TDP) | 45 W |
Configurable TDP-down | 35 W |
Processor cache | 24 MB |
Processor model | i7-12800H |
Processor boost frequency | 4.8 GHz |
Processor cores | 14 |
Processor threads | 20 |
Processor manufacturer | Intel |
Processor family | Intel Core i7 |
Memory | |
Memory form factor | On-board |
Internal memory | 16 GB |
Internal memory type | LPDDR5-SDRAM |
Memory clock speed | 5200 MHz |
Maximum internal memory | 16 GB |
Storage | |
SSD form factor | M.2 |
Storage media | SSD |
Optical drive type | No |
Number of SSDs installed | 1 |
SSD capacity | 512 GB |
SSD interface | PCI Express 4.0 |
Card reader integrated | Yes |
Compatible memory cards | SDXC, SD, SDHC |
Total storage capacity | 512 GB |
Total SSDs capacity | 512 GB |
NVMe | Yes |
Graphics | |
Discrete graphics card | Yes |
Discrete graphics card memory | 4 GB |
On-board graphics card | Yes |
On-board graphics card model | Intel Iris Xe Graphics |
Discrete graphics card model | NVIDIA RTX A1000 |
Discrete graphics memory type | GDDR6 |
Discrete GPU manufacturer | NVIDIA |
Audio | |
Number of microphones | 2 |
Number of built-in speakers | 4 |
Speaker power | 8 W |
Built-in microphone | Yes |
Camera | |
Front camera | Yes |
Front camera resolution (numeric) | 0.92 MP |
Front camera resolution | 1280 x 720 pixels |
Video capturing speed | 30 fps |
Front camera HD type | HD |
Infrared (IR) camera | Yes |
Optical drive | |
Optical drive type | No |
Network | |
Mobile network connection | No |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
WLAN controller model | Intel Wi-Fi 6E AX211 |
Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n) |
Ethernet LAN | No |
Bluetooth | Yes |
Wi-Fi data rate (max) | 2400 Mbit/s |
MIMO | Yes |
Antenna type | 2x2 |
WLAN controller manufacturer | Intel |
Ports & interfaces | |
USB Type-C DisplayPort Alternate Mode | Yes |
Combo headphone/mic port | Yes |
USB Power Delivery | Yes |
Charging port type | USB Type-C |
Thunderbolt 4 ports quantity | 4 |
Intel Thunderbolt 4 | Yes |
Performance | |
Ambient light sensor | Yes |
Accelerometer | Yes |
Keyboard | |
Pointing device | Touchpad |
Numeric keypad | No |
Keyboard backlit | Yes |
Keyboard language | UK English |
Software | |
Operating system language | German, Dutch, English, French, Italian |
Operating system architecture | 64-bit |
Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
Operating system installed | Windows 10 Pro |
Windows 11 free upgrade | Yes |
Technical details | |
Market positioning | Business |
Form factor | Clamshell |
Product colour | Grey |
Discrete graphics card memory | 4 GB |
Processor special features | |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel Trusted Execution Technology | Yes |
Intel Stable Image Platform Program (SIPP) | Yes |
Intel Flex Memory Access | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Execute Disable Bit | Yes |
Embedded options available | No |
CPU configuration (max) | 1 |
Intel Virtualization Technology (VT-x) | Yes |
Intel vPro Platform Eligibility | Yes |
Battery | |
Battery technology | Lithium-Ion (Li-Ion) |
Number of battery cells | 4 |
Battery capacity | 72 Wh |
Battery recharge time | 4 h |
Battery voltage | 15.4 V |
Fast charging | Yes |
Battery weight | 285 g |
Power | |
AC adapter power | 130 W |
AC adapter frequency | 50/60 Hz |
AC adapter input voltage | 100 - 240 V |
USB charging voltage | 20,5 V |
USB charging current | 6.5 A |
Security | |
Password protection | Yes |
Trusted Platform Module (TPM) | Yes |
Cable lock slot | Yes |
Trusted Platform Module (TPM) version | 2.0 |
Operational conditions | |
Operating temperature (T-T) | 0 - 35 �C |
Storage temperature (T-T) | -40 - 65 �C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 0 - 95% |
Operating altitude | -15.2 - 3048 m |
Non-operating altitude | -15.2 - 10668 m |
Operating shock | 110 G |
Non-operating shock | 160 G |
Operating vibration | 0.66 G |
Non-operating vibration | 1.3 G |
Weight & dimensions | |
Width | 310.6 mm |
Depth | 210.3 mm |
Height (front) | 7.49 mm |
Height (rear) | 1.11 cm |
Weight | 1.48 kg |
Other features | |
Wi-Fi data rate (max) | 2400 Mbit/s |
Ambient light sensor | Yes |
WLAN controller model | Intel Wi-Fi 6E AX211 |
On-board graphics card | Yes |
Anti-glare screen | Yes |
Sensors | |
Ambient light sensor | Yes |
Accelerometer | Yes |
