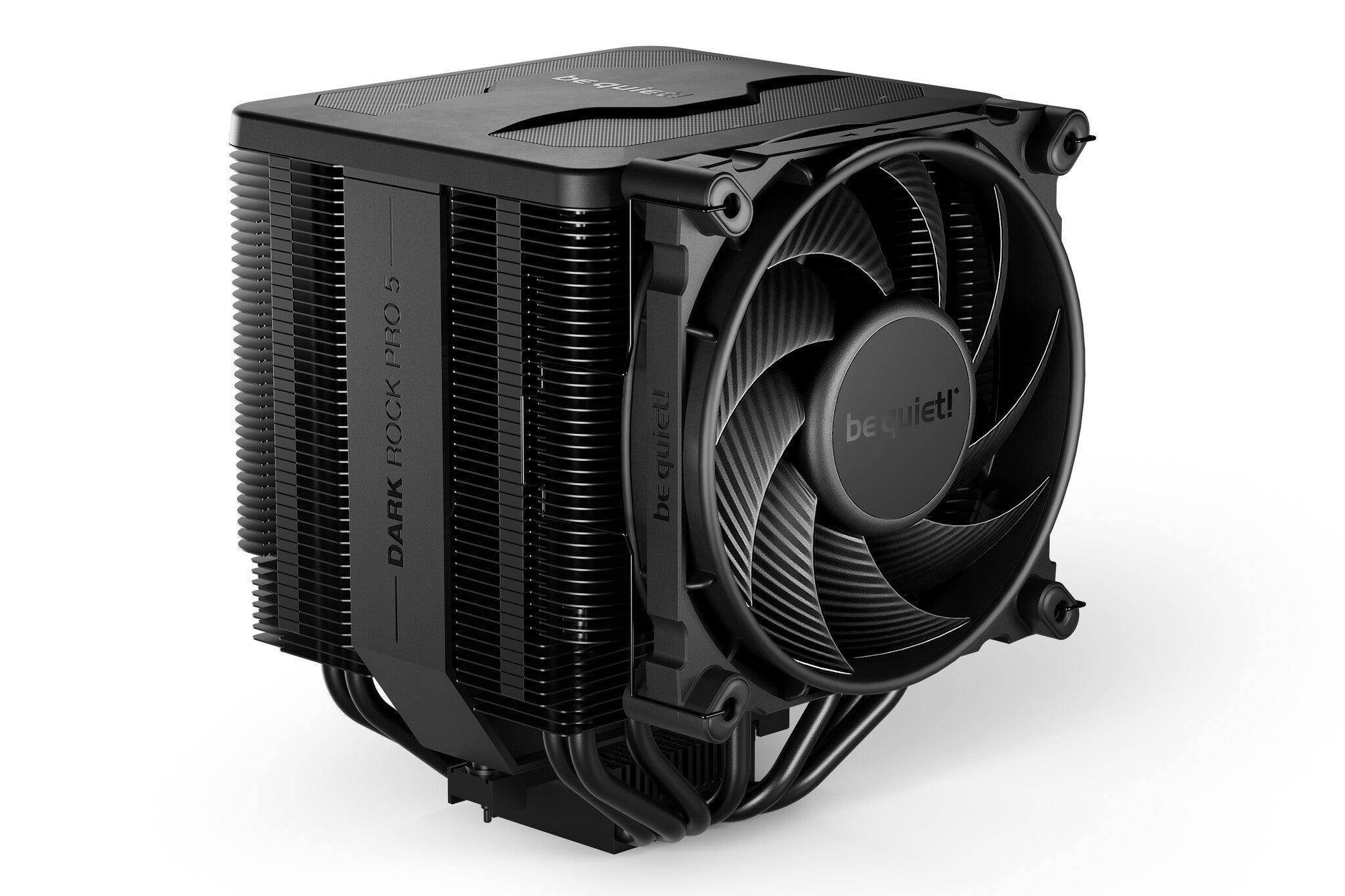

No Compromise Performance and Silence

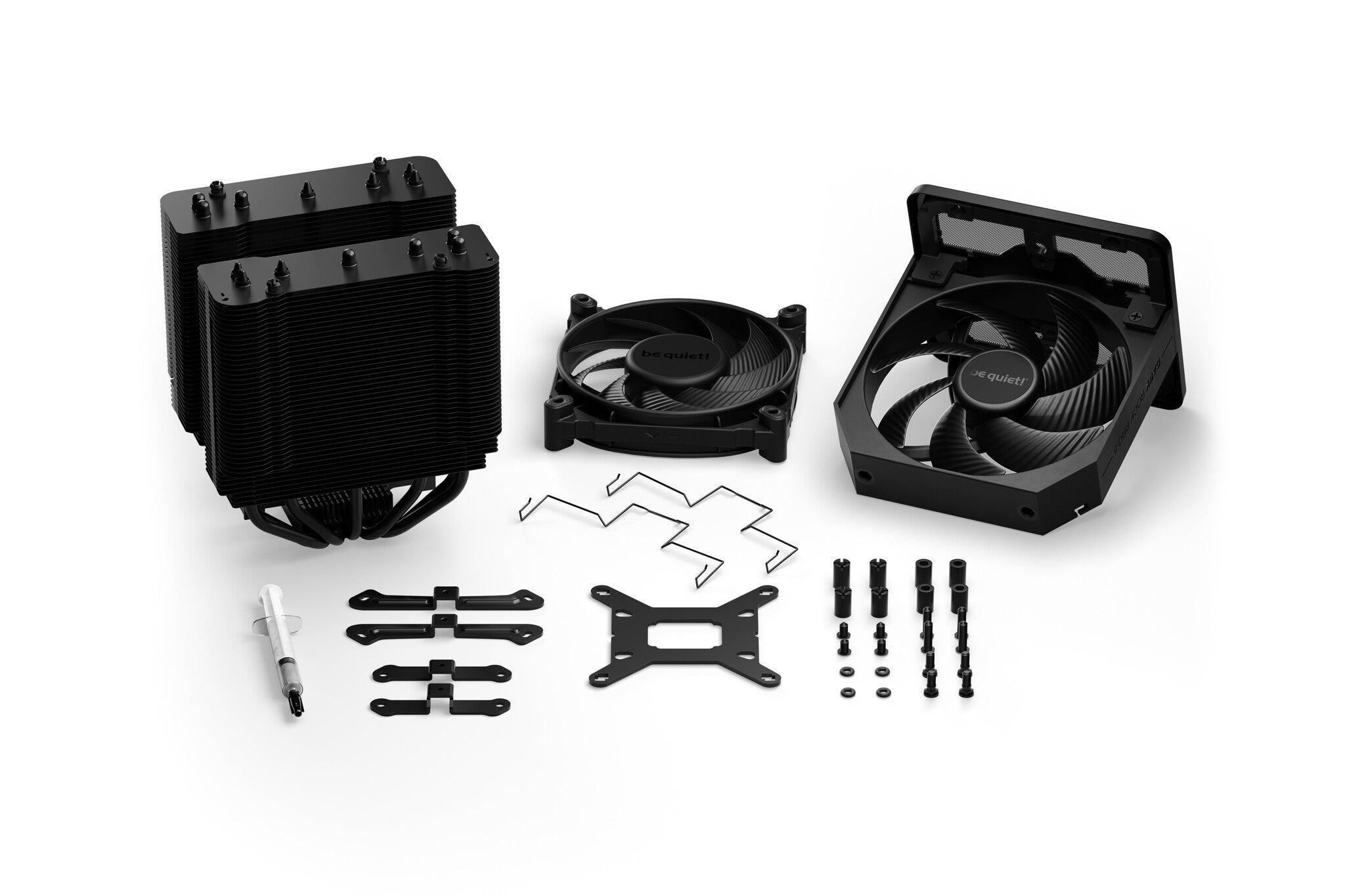

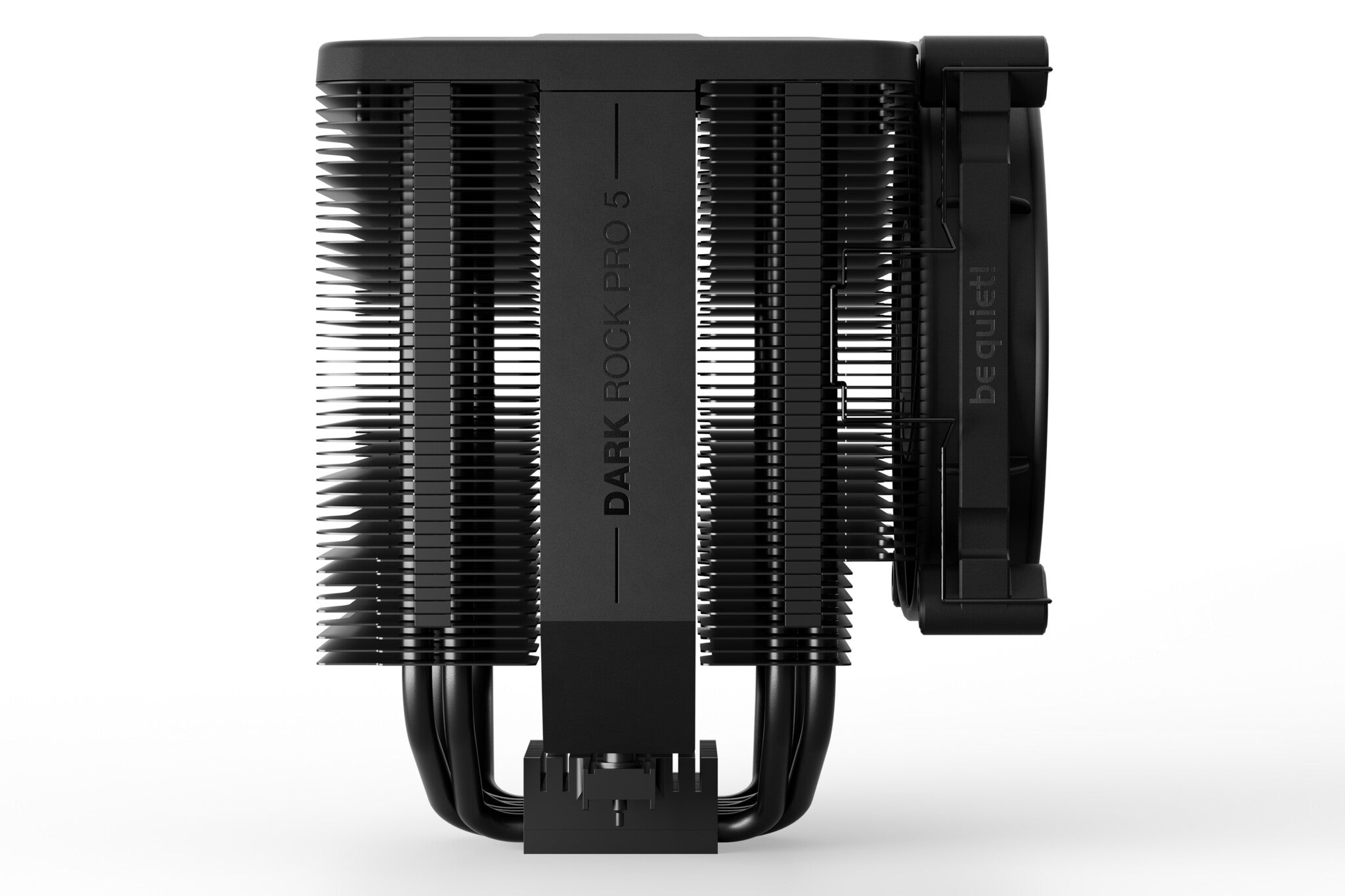

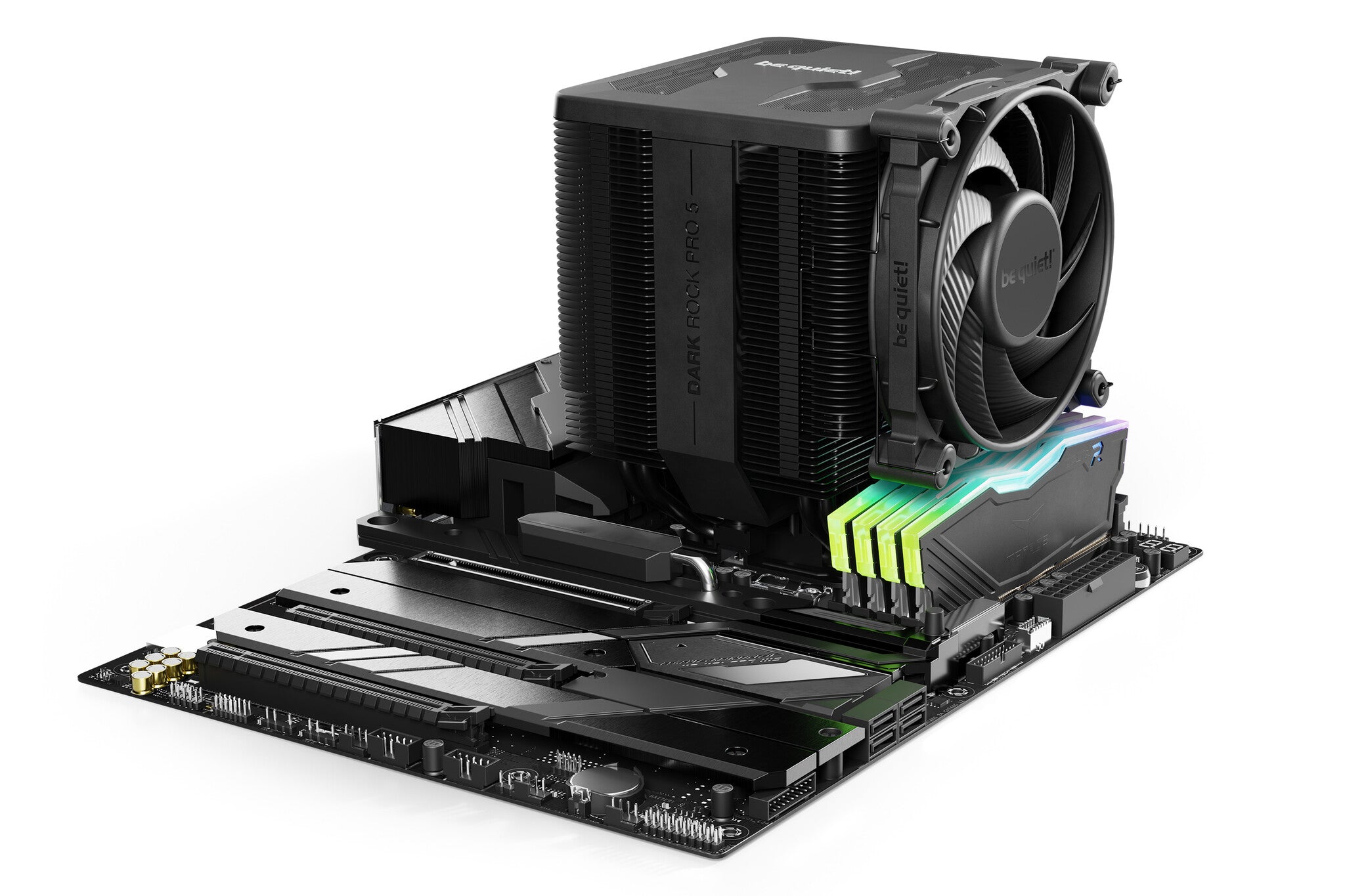

Dark Rock Pro 5 offers an immense cooling performance and virtually inaudible operation. Excellent for heavily overclocked systems and demanding workstations. Dark Rock Pro 5 aims for users that have highest claims on performance but do not want to dispense on virtually inaudible operation at the same time.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 300000 h |

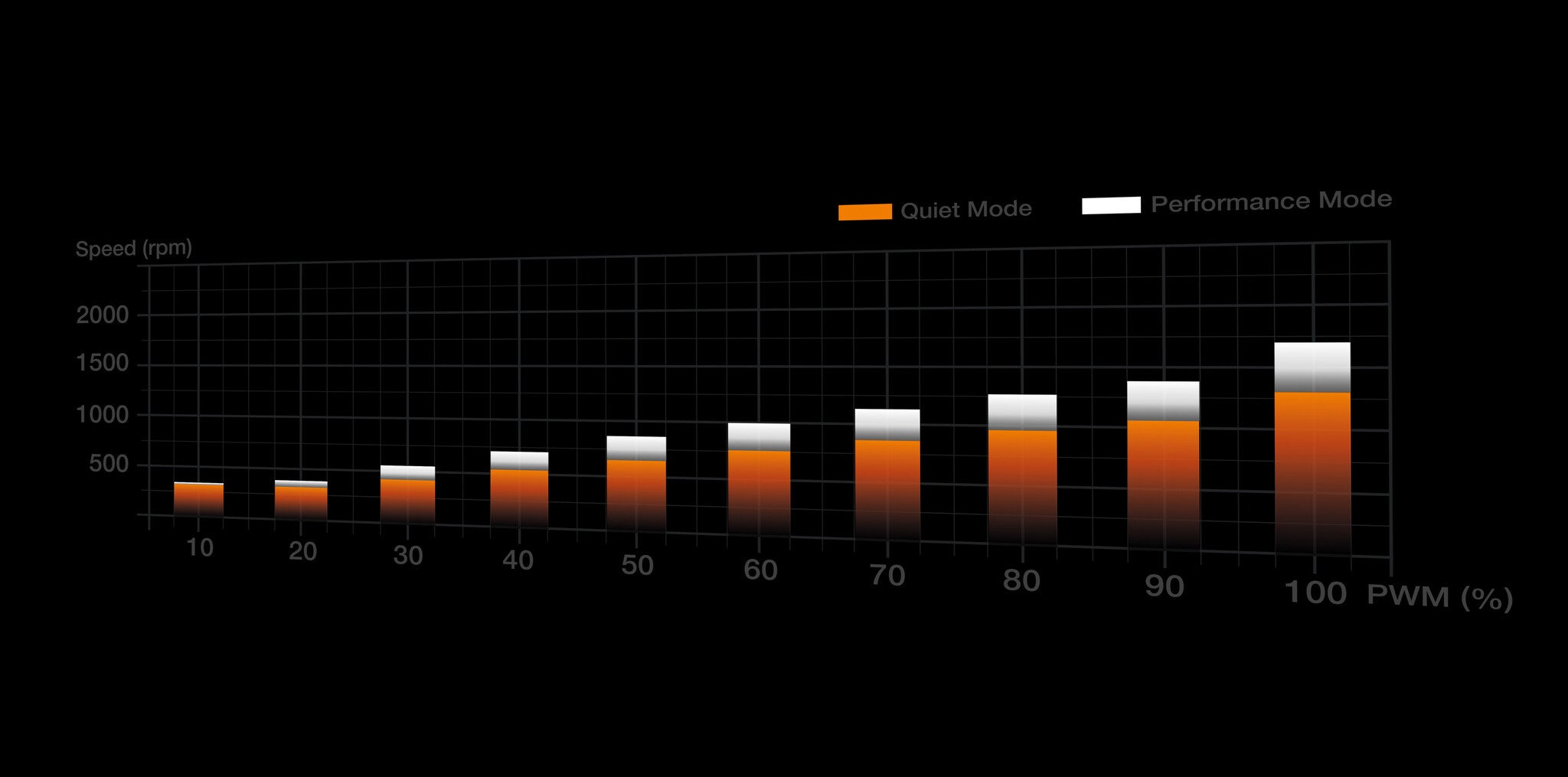

| Fan speed (min) | 1300 RPM |
| Fan speed (max) | 1500 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Fan 2 rotational speed (max) | 2000 RPM |
| Fan 2 rotational speed (min) | 1700 RPM |
| Noise level (high speed) | 23.3 dB |
| Noise level (low speed) | 8.9 dB |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Fan diameter | 120/135 mm |
| Type | Air cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |

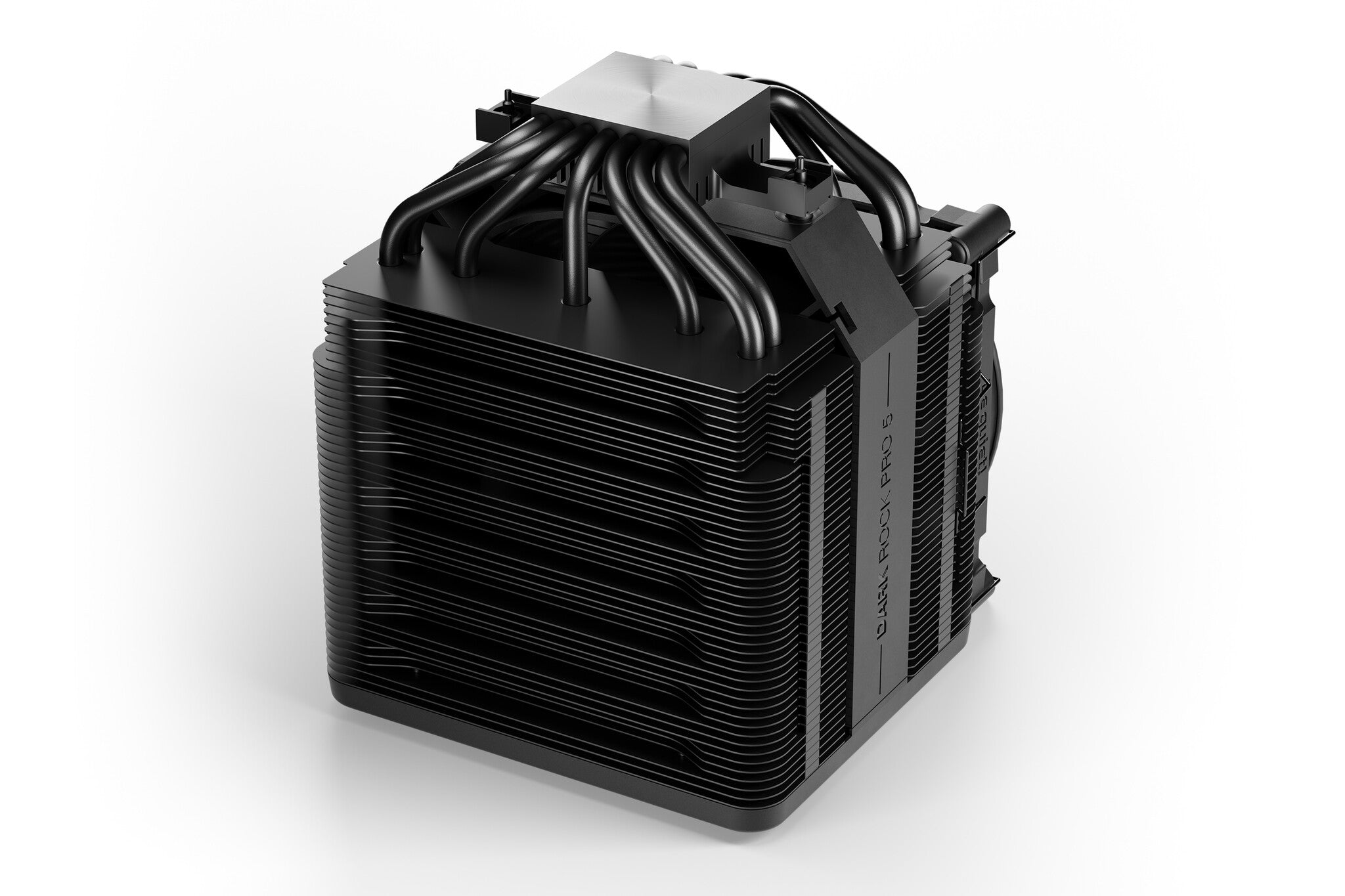

| Number of heat pipes | 7 |
| Fins material | Aluminium |
| Number of fans | 2 fan(s) |
| Base plate material | Copper |
| Product colour | Black |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 270 W |
| Fan voltage | 12 V |

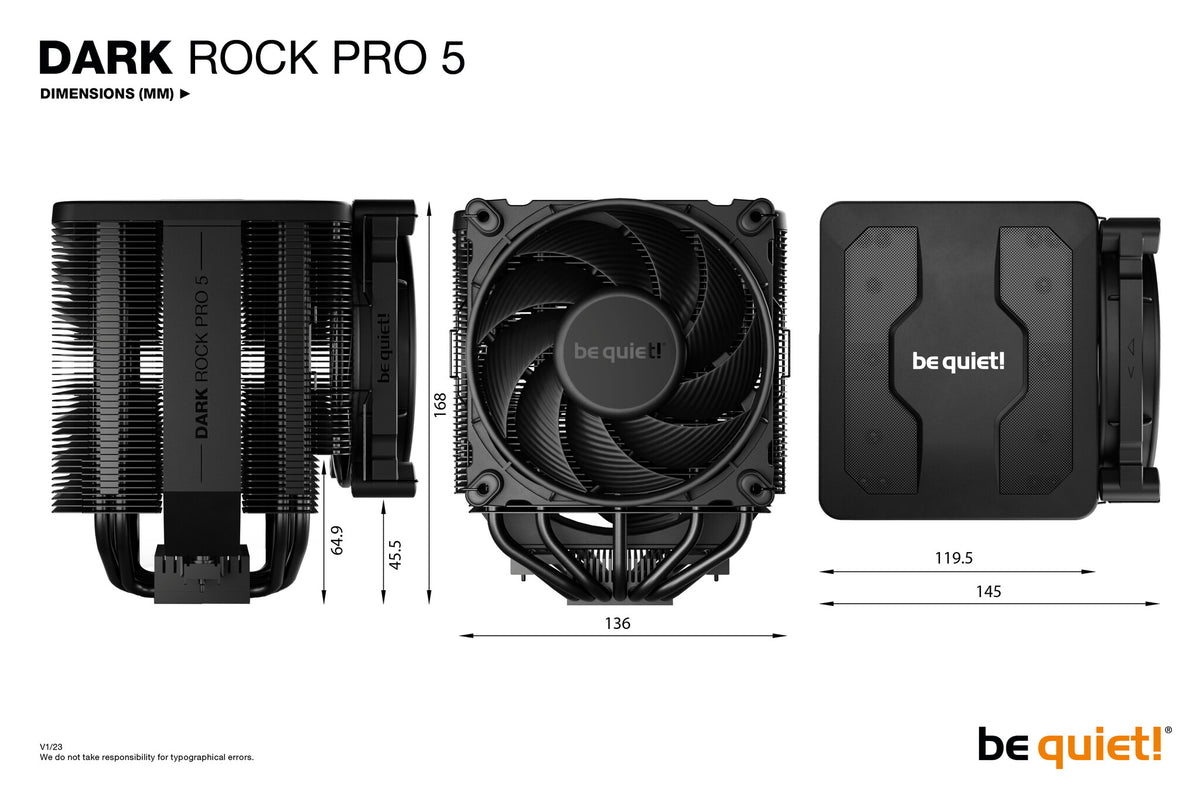

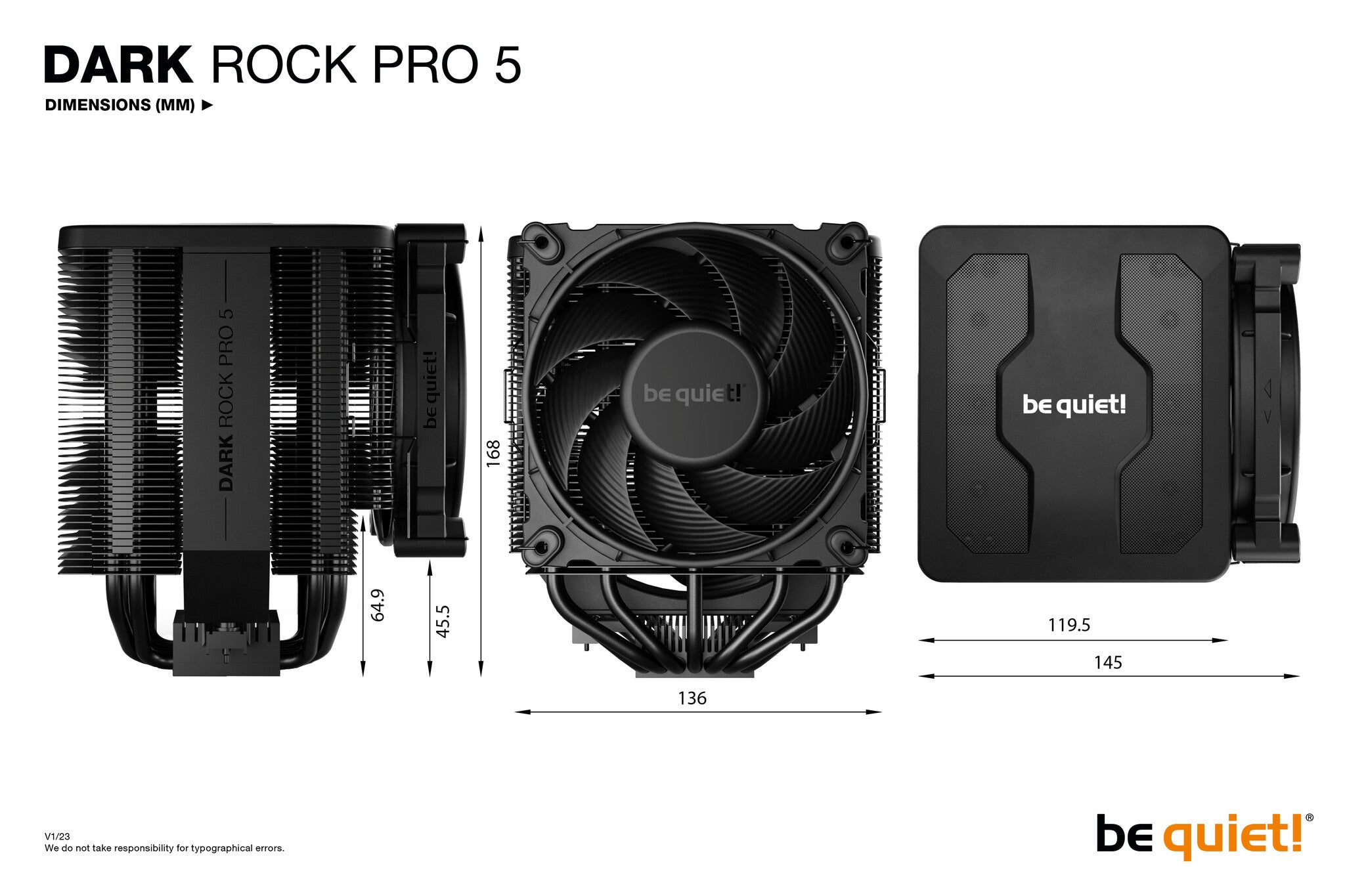

| Weight & dimensions | |
|---|---|
| Package weight | 1.74 kg |
| Package height | 220 mm |
| Package depth | 202 mm |
| Package width | 180 mm |
| Heat pipes diameter | 6 mm |
| Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan thickness | 2.5 cm |
| Fan dimensions (W x D x H) | 135 x 135 x 25 mm |
| Weight | 1.29 kg |
| Height | 168 mm |
| Depth | 145 mm |
| Radiator height | 16.8 cm |
| Radiator depth | 11.9 cm |
| Radiator width | 13.6 cm |
| Width | 136 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS, TUV, Triman, UKCA, UL ECOLOGO, WEEE |
| Logistics data | |
|---|---|
| Shipping (inner) case gross weight | 22.1 kg |
| Shipping (inner) case height | 46.7 cm |
| Shipping (inner) case length | 62.5 cm |
| Shipping (inner) case width | 38 cm |
| Products per shipping (inner) case | 12 pc(s) |
