1100W, ATX3.0, SFX 12V Ver. 3.42, 100-240V, 14-6.5A, 50-60Hz, 92mm, FDB, 100 - 150 ms, UK
A Revolution to SFX
Leading the SFX power supply industry, the V SFX Platinum delivers not only the most powerful SFX power supply but fully compatable with ATX3.0, both ITX and ATX cases, bringing a revolution to SFX power supply.
High Power Density
Adopting with the components miniaturization technology by the improvement of materials engineering, manufacturing process and leading thermal technology, the V SFX Platinum has achieved one of the highest power density, 30% more than V SFX Gold 850W power supply, in the small form factor.
Miniaturized But Solid

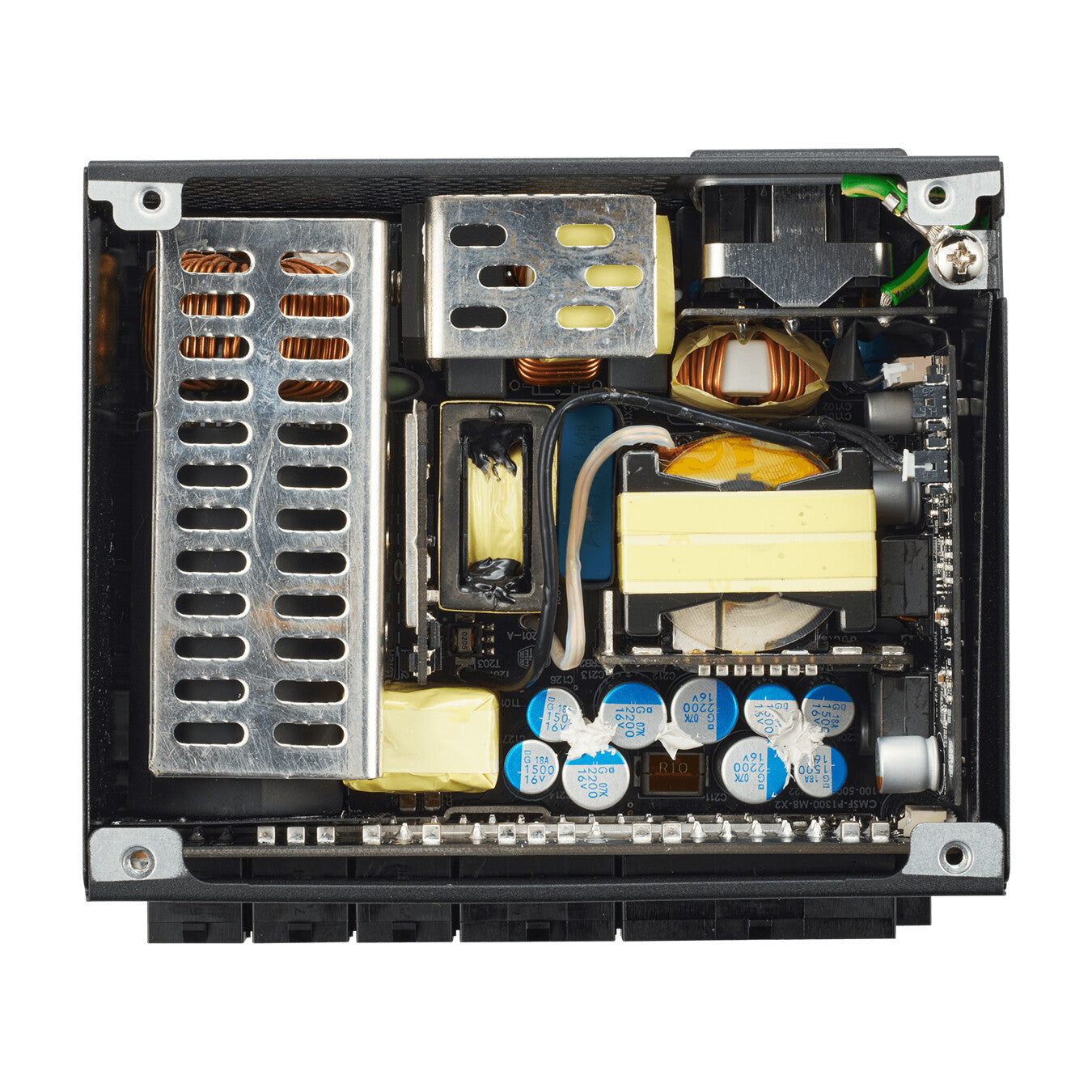

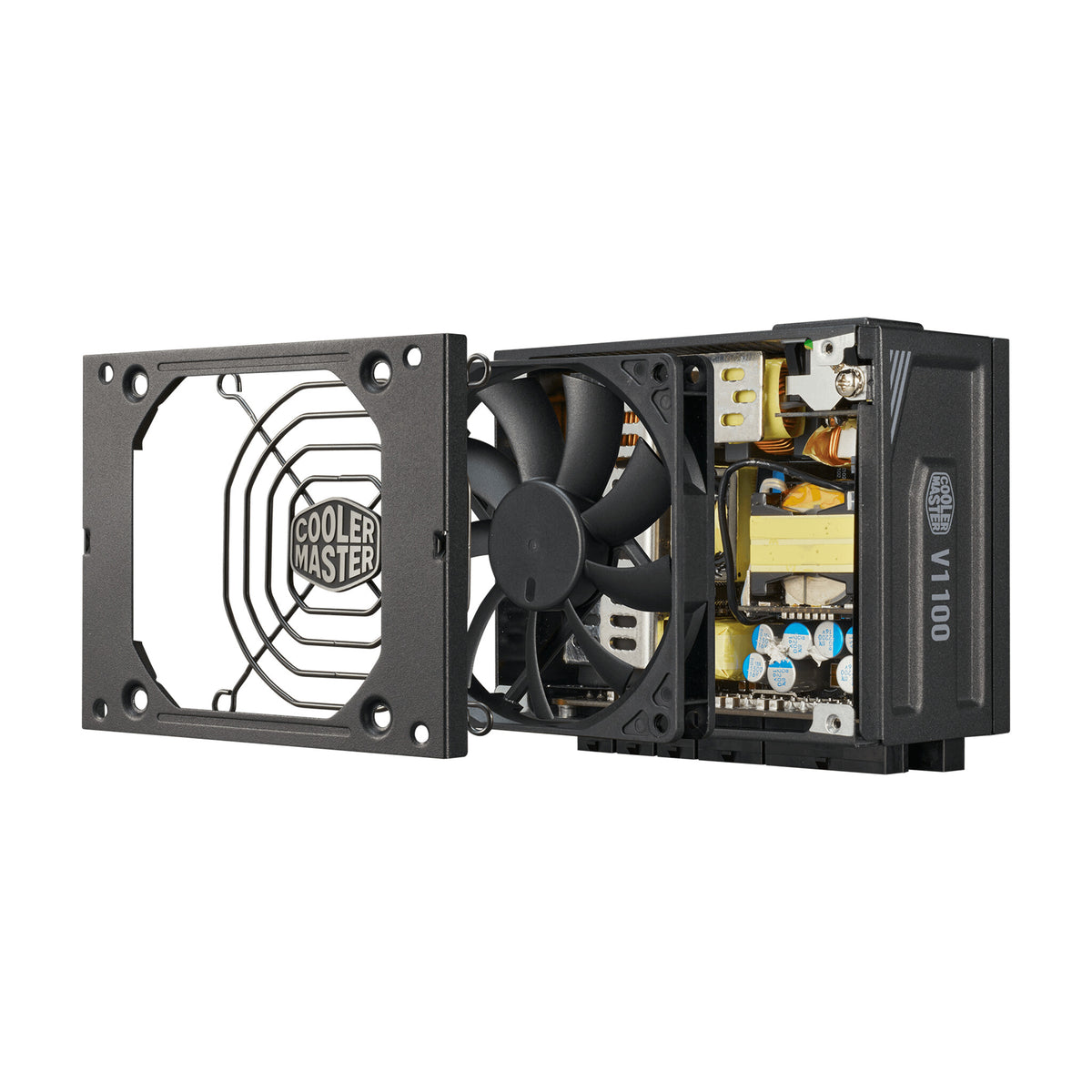

Crafted with flat copper wire on Choke of DC-DC, flat transformer piling and aluminum plate dissipation structure on full-bridge LLC, it can effectively achieve components miniaturization. Adopting with advanced manufacturing process, it simultaneously keeps miniaturized but solid.
Enhanced Dissipation
With the integration of transformer and rectifier, full-bridge LLC heat dissipation structure, and the EMI-inhibited amorphous metal materials, the V SFX Platinum provideds advanced performance and heat dissipation.
Full & Flexible Compatibility

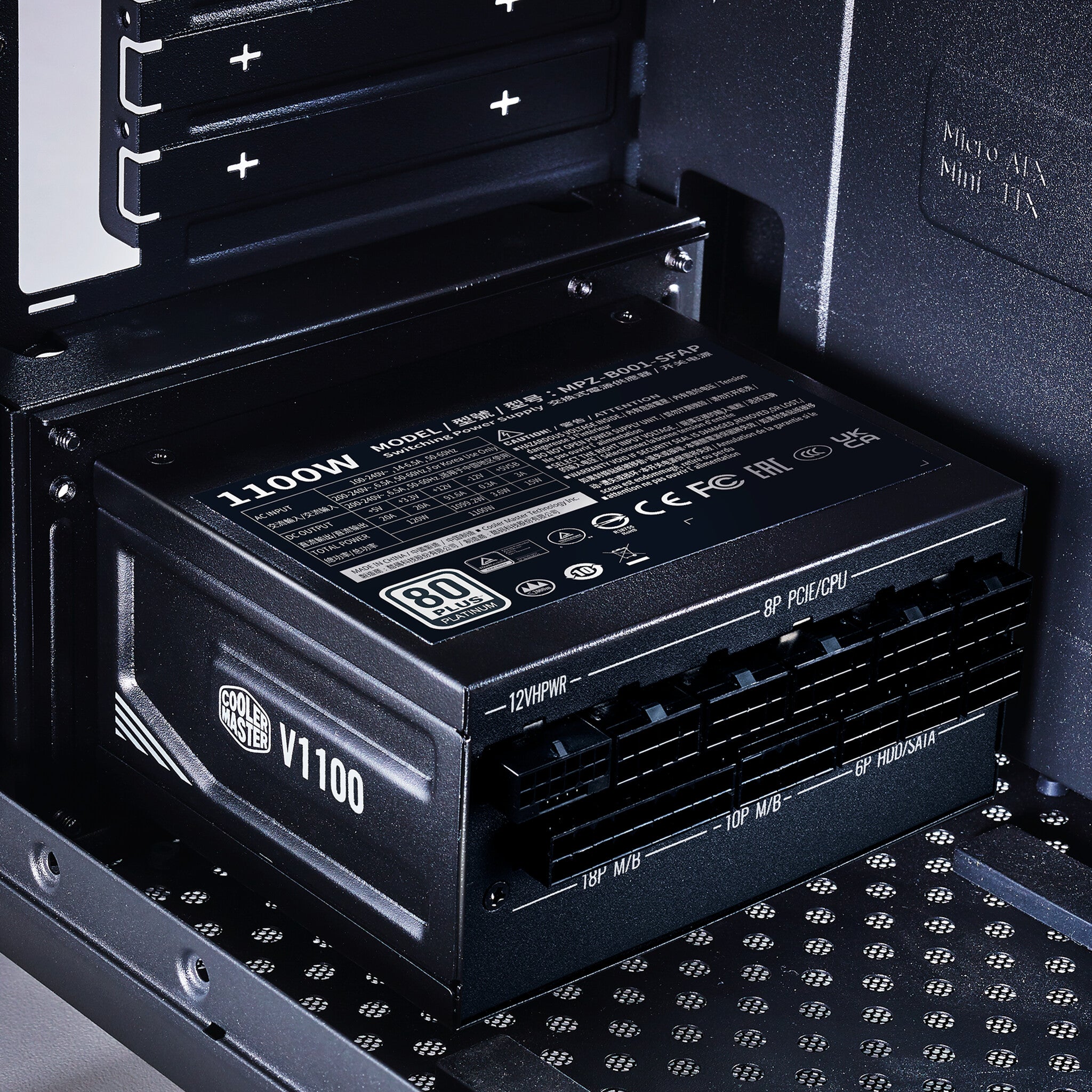

Designed to fully support ATX3.0 and provide backward compatibility, supporting both RTX 40 and 30 series graphics cards, and alongside with included bracket to support both ITX and ATX cases, the V SFX Platinum offers a PSU with the most complete compatibility.
100% Japanese capacitors
Implementing large and high-quality Japanese capacitors to increase efficiency and reduce ripple noise.

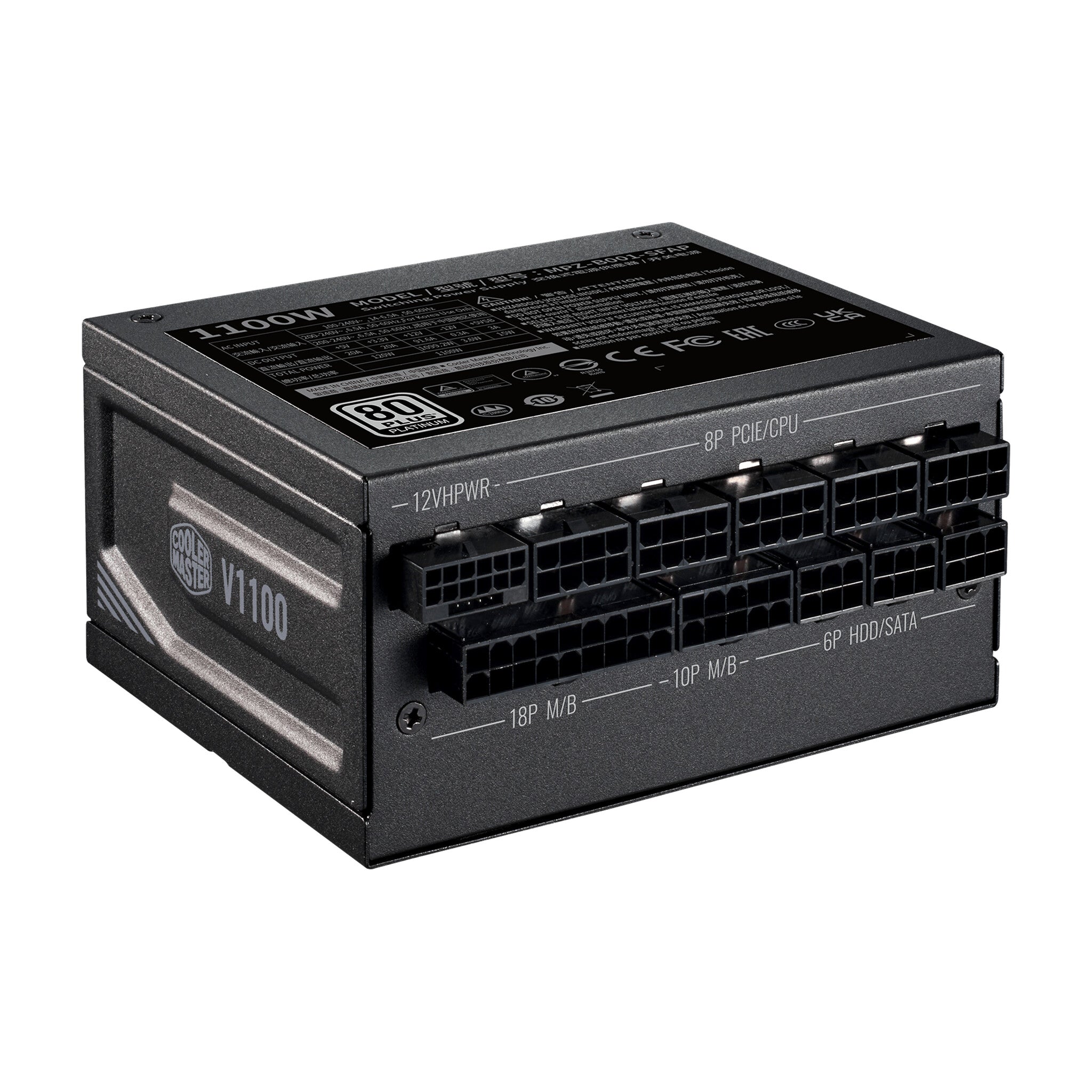

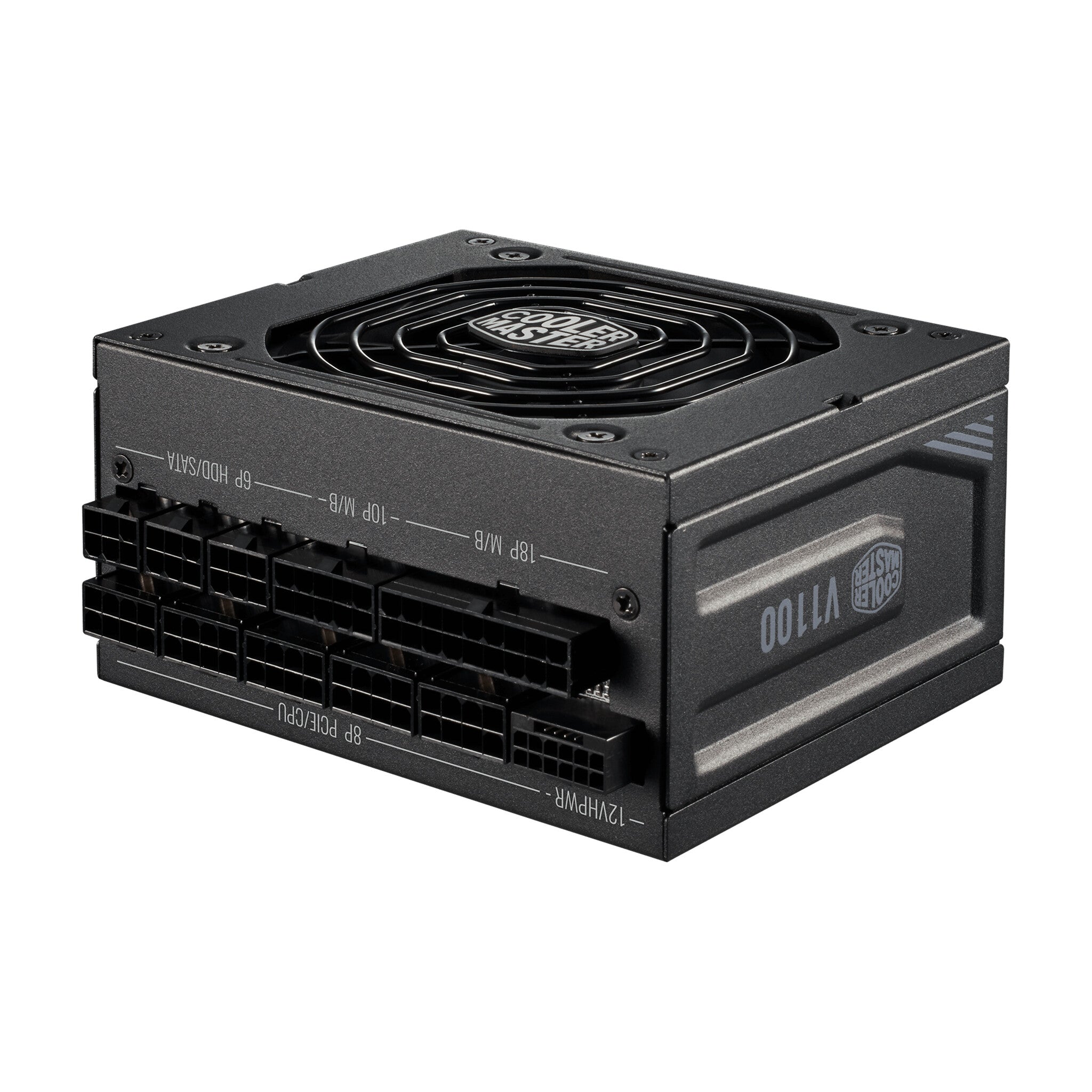

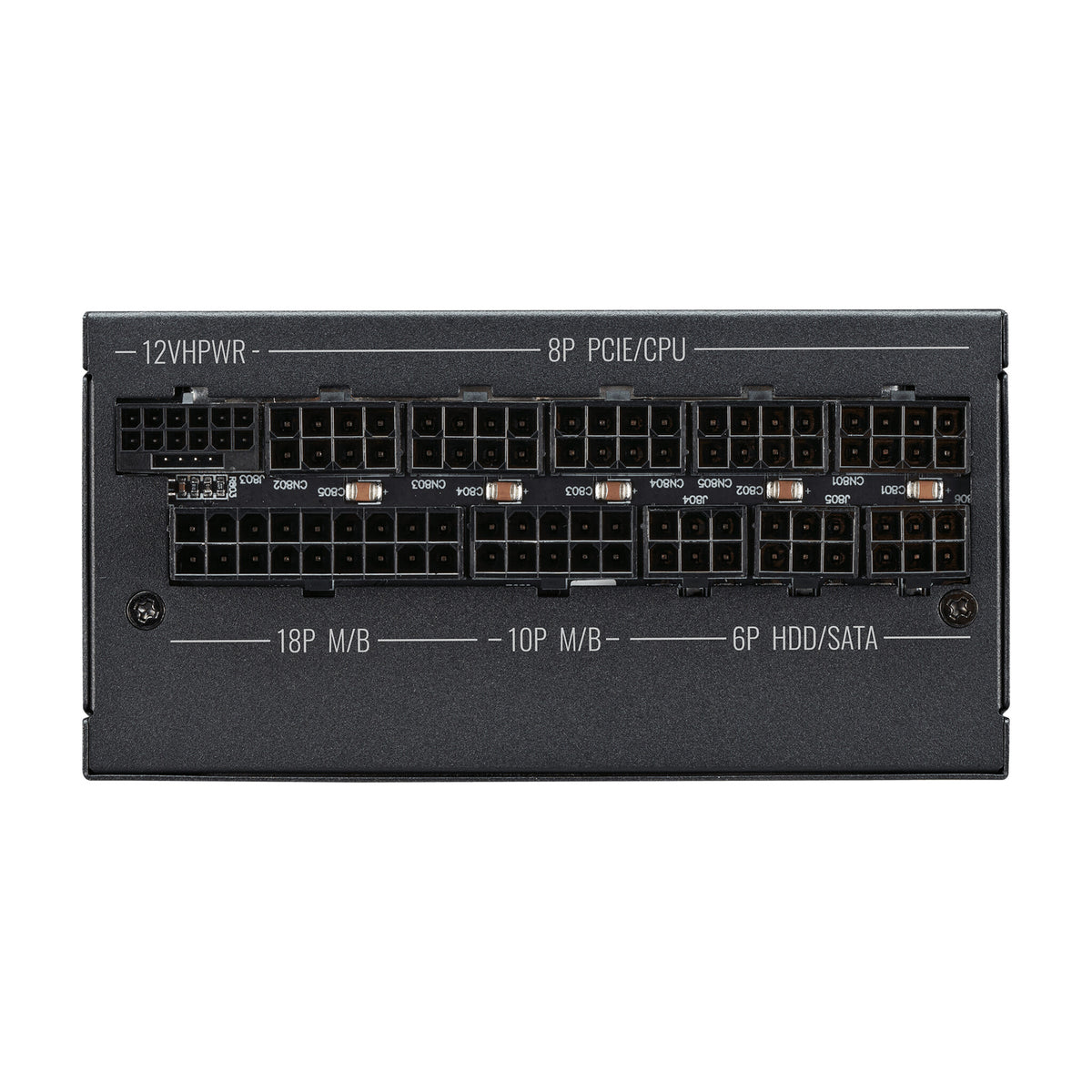

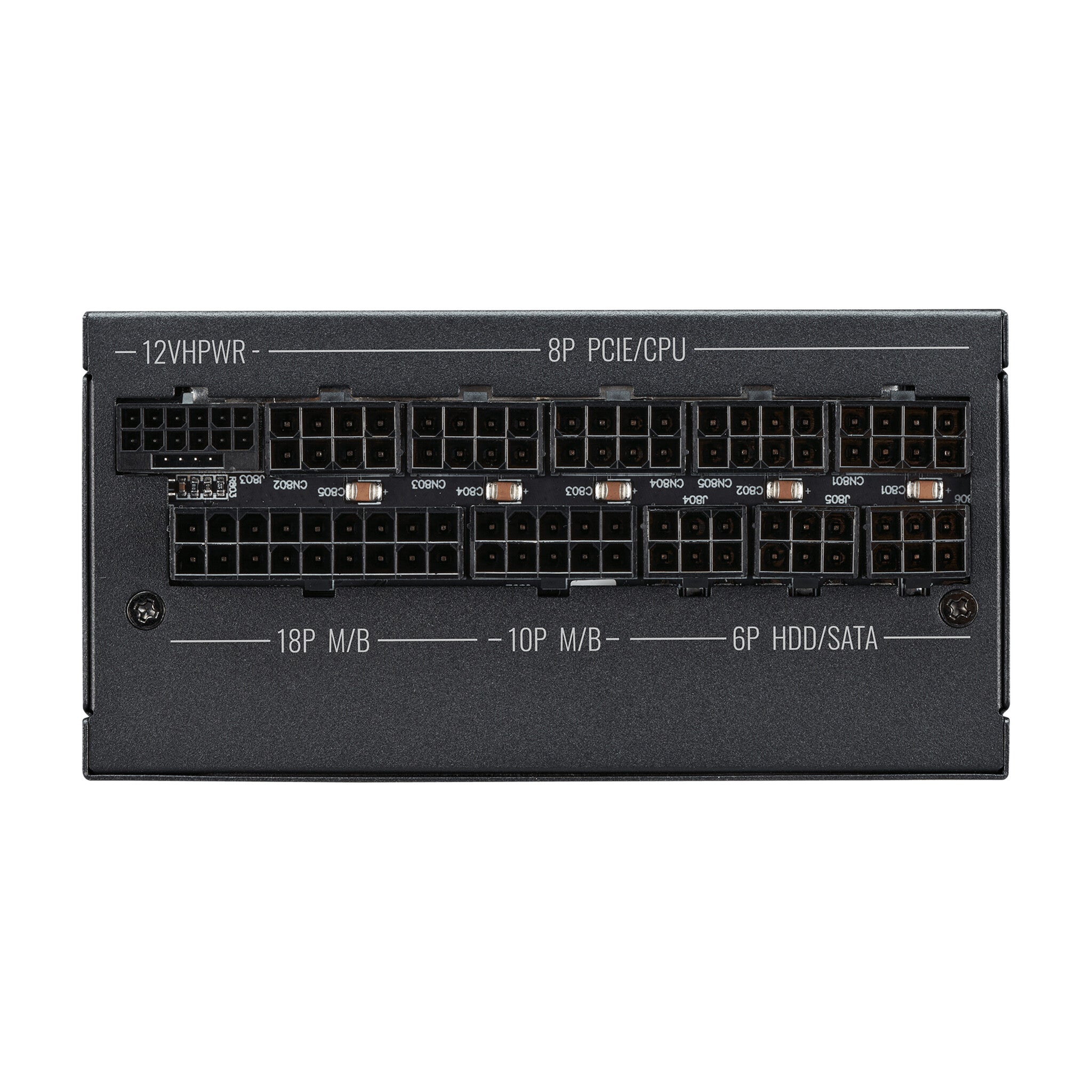

Fully Modular Cabling
Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
| Power |
|---|
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time |
16 ms |
| Efficiency |
92% |
| Power Good signal delay range |
100 - 150 ms |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
91.6 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
1099.2 W |
| Combined power (+3.3V) |
120 W |
| Power Factor Correction (PFC) type |
Active |
| Input current |
6.5 - 14 A |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Total power |
1100 W |
| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| ATX power connector (12+4 pin) |
Yes |
| PCI Express power cable length |
40 cm |
| PCI Express power connectors (6+2 pin) |
3 |
| EPS power connector (4+4 pin) |
Yes |
| EPS power connector (8-pin) |
Yes |
| Peripheral (Molex) power cable length |
100,220,340,460 mm |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| SATA power cable length |
100,250,400,550,700 mm |
| Number of SATA power connectors |
8 |
| Motherboard power cable length |
30 cm |
| Motherboard power connector |
24-pin ATX |
| Performance |
|---|
| Certification |
ErP 2014 Lot 3, TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
FDB |
| ATX version |
3.0 |
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply unit (PSU) form factor |
SFX |
| Purpose |
PC/Server |
| Design |
|---|
| Number of fans |
1 fan(s) |
| Fan diameter |
9.2 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
1.95 kg |
| Height |
63.5 mm |
| Depth |
100 mm |
| Width |
125 mm |
| Packaging data |
|---|
| Package weight |
2.27 kg |
| Package height |
100 mm |
| Package depth |
272 mm |
| Package width |
197 mm |
| Logistics data |
|---|
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case height |
235 mm |
| Master (outer) case length |
525 mm |
| Master (outer) case width |
290 mm |
| Master (outer) cases per pallet |
32 pc(s) |
| Other features |
|---|
| EPS cable length |
45 cm |
