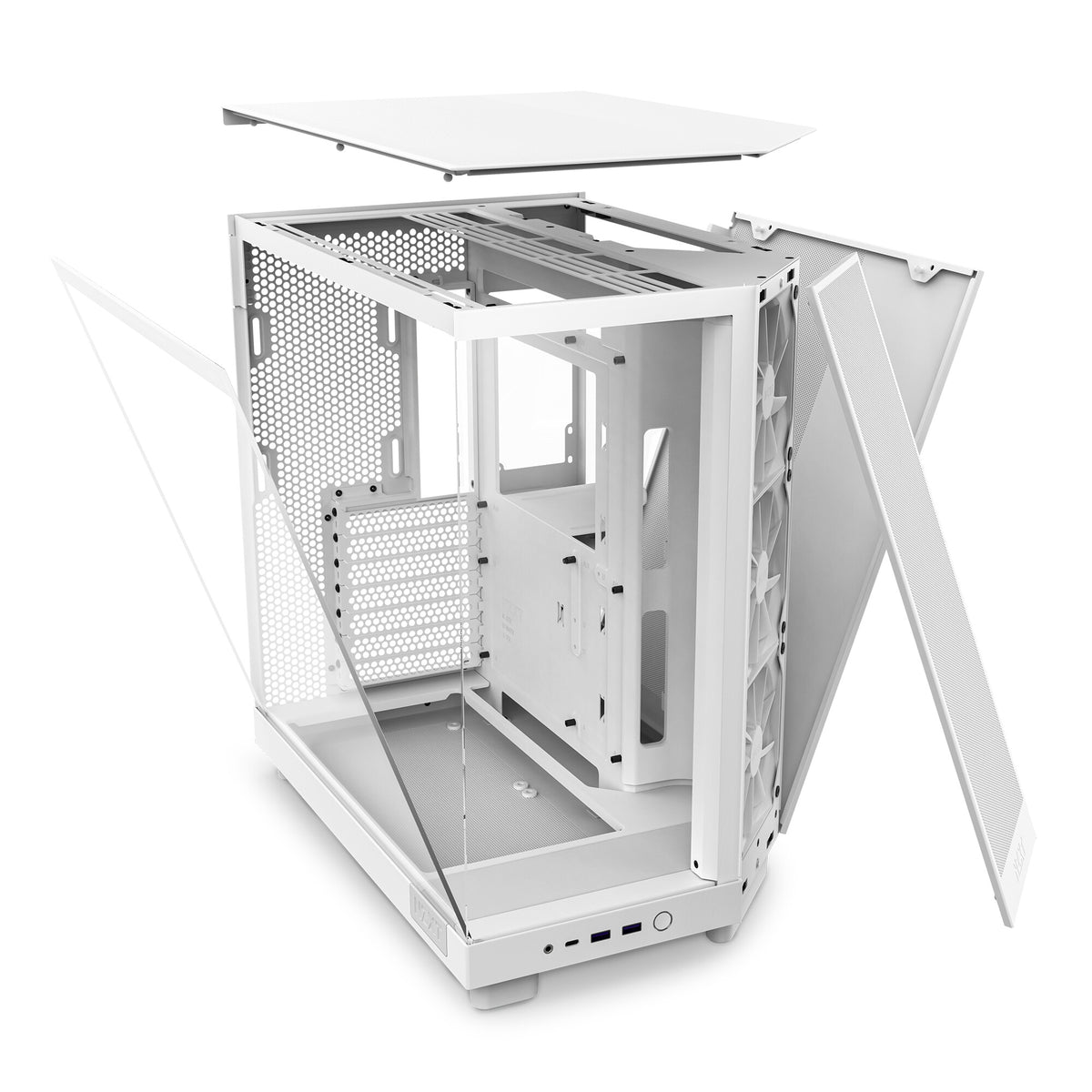

Experience performance with a fresh perspective. The H6 Flow's innovative compact design emphasizes GPU cooling with a strategically angled front corner, so the fans direct air where it's most needed. The panoramic glass proudly showcases the interior, while the dual-chamber layout frees up space for a cleaner look and better cooling performance
A SEAMLESS SHOWCASE

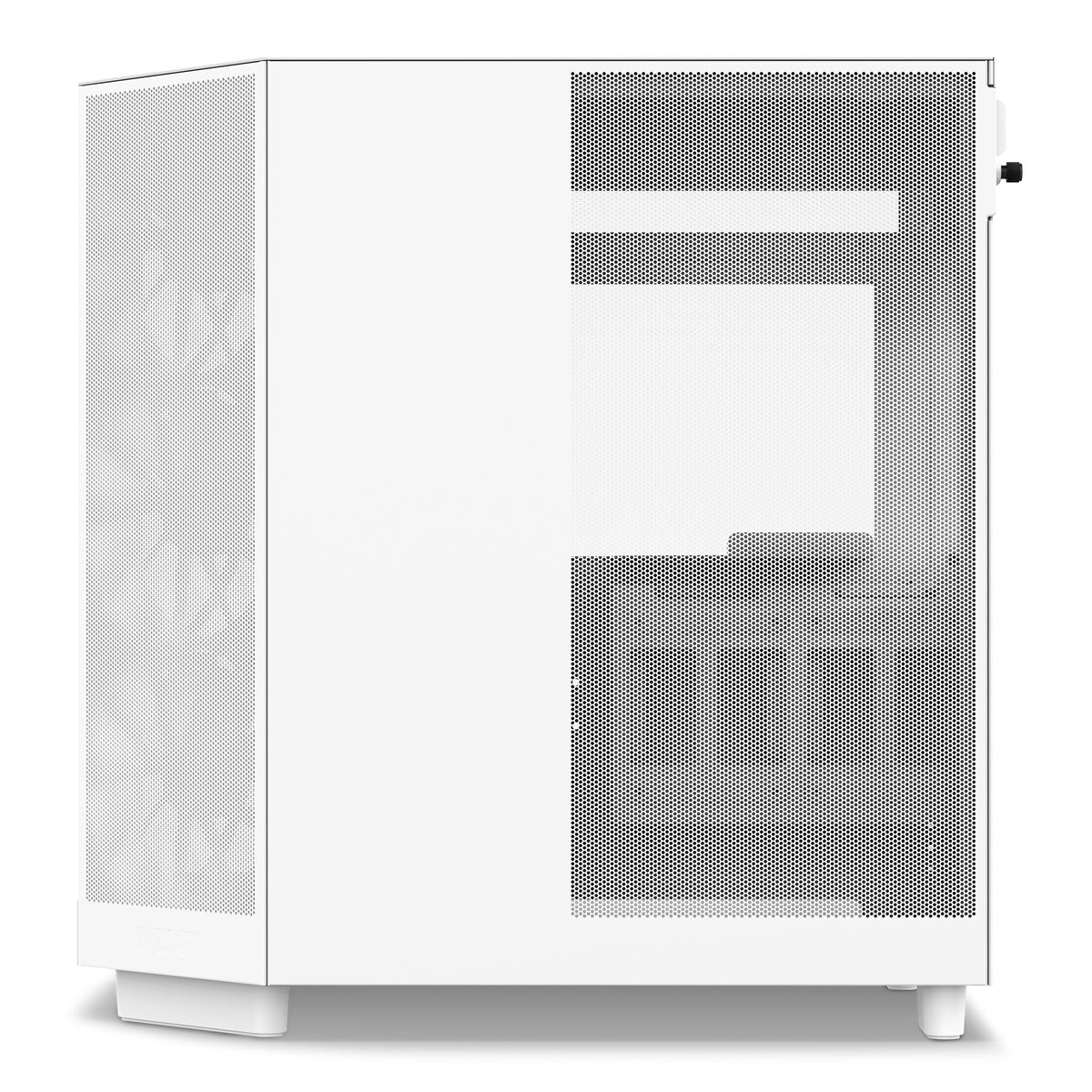

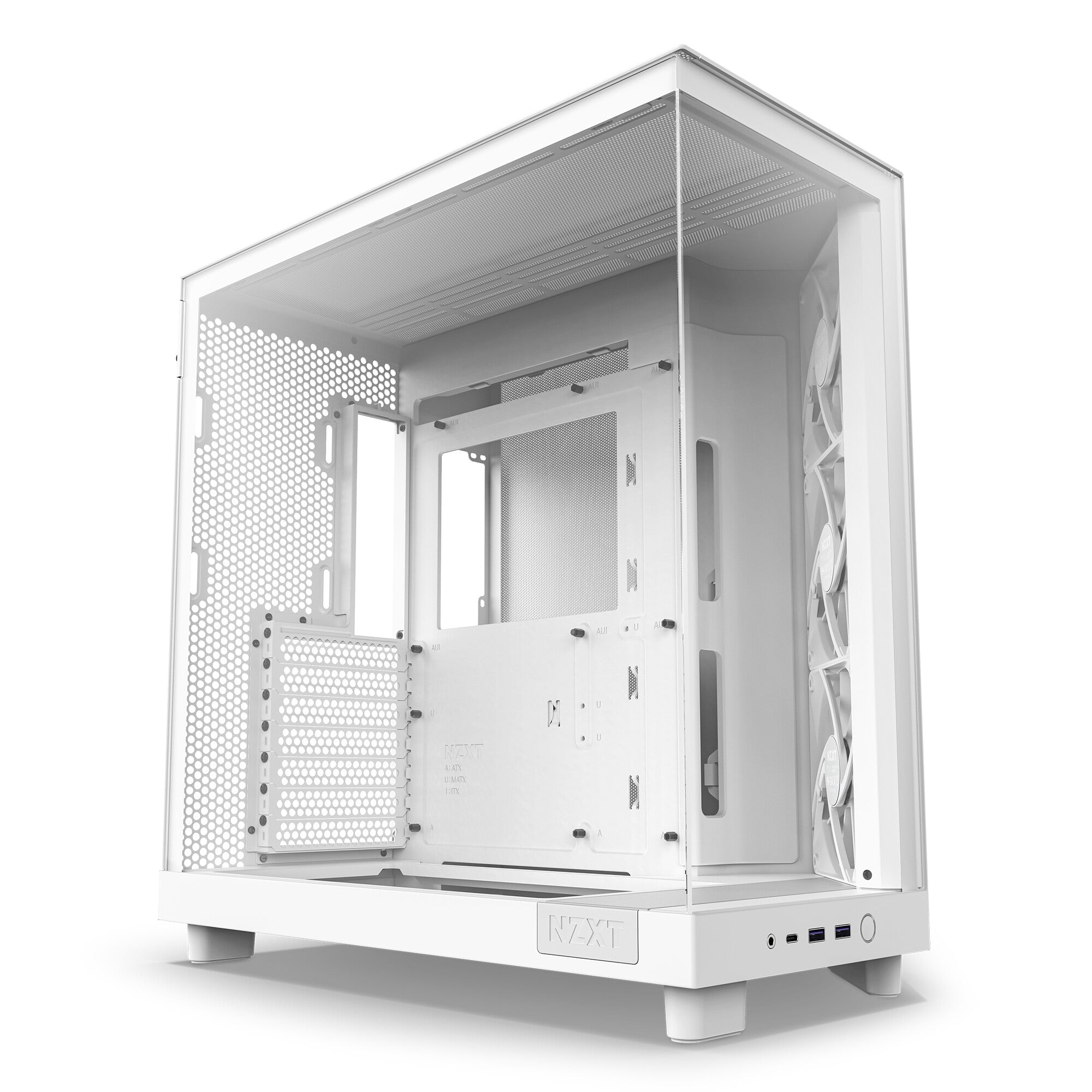

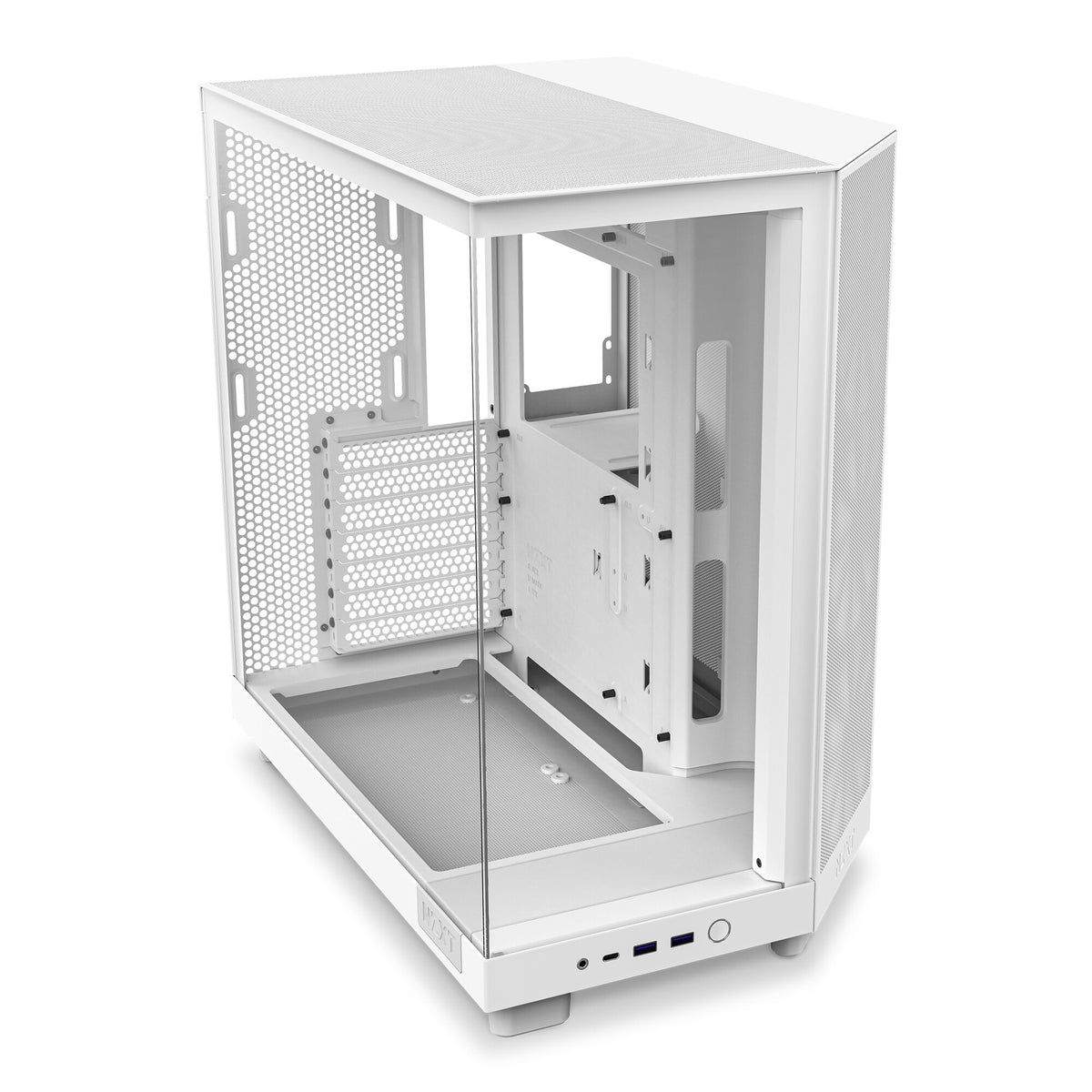

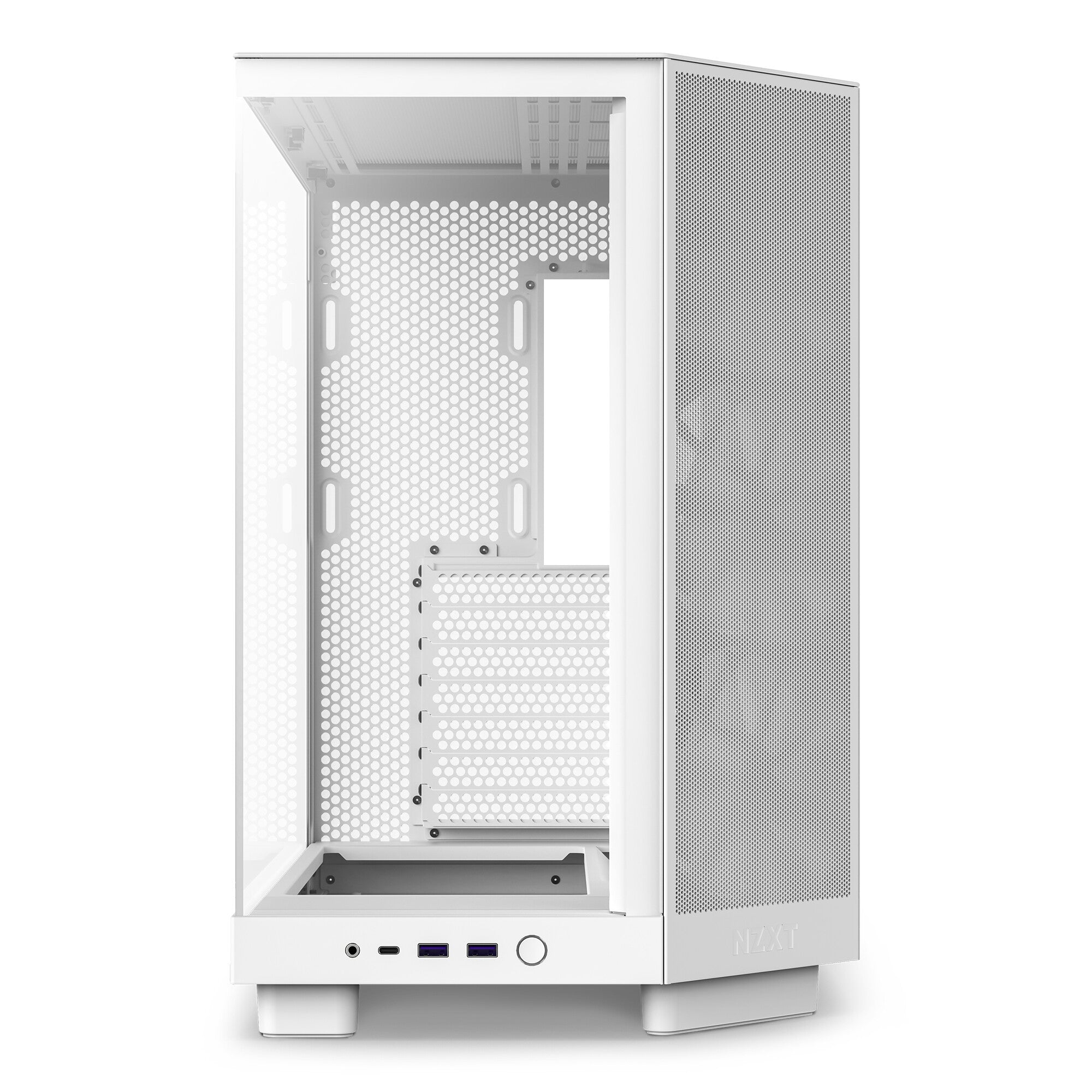

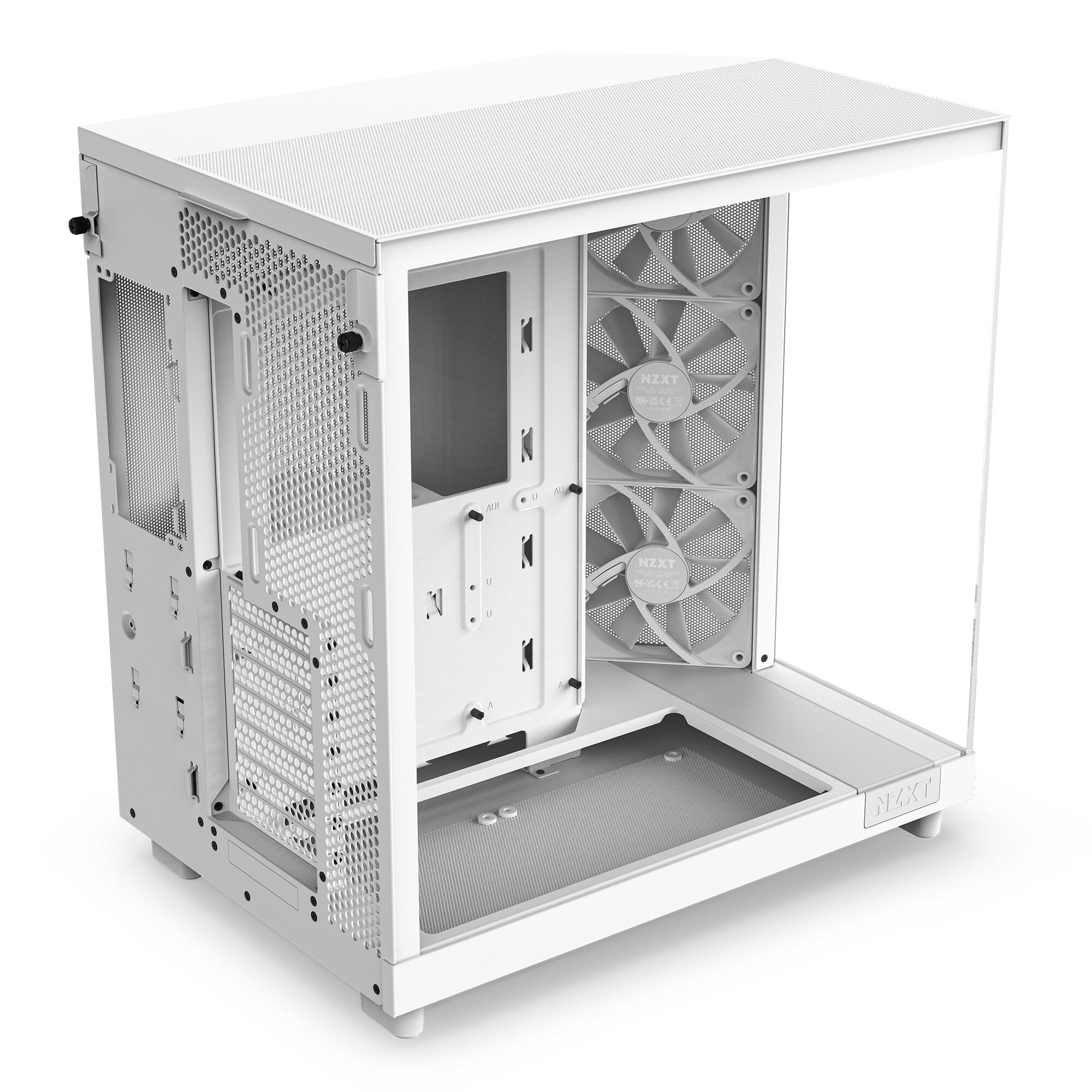

Tempered glass front and side panels offer an uninterrupted view of components, while the dual-chamber design hides PSU and storage for a sleek, compact, and standout look

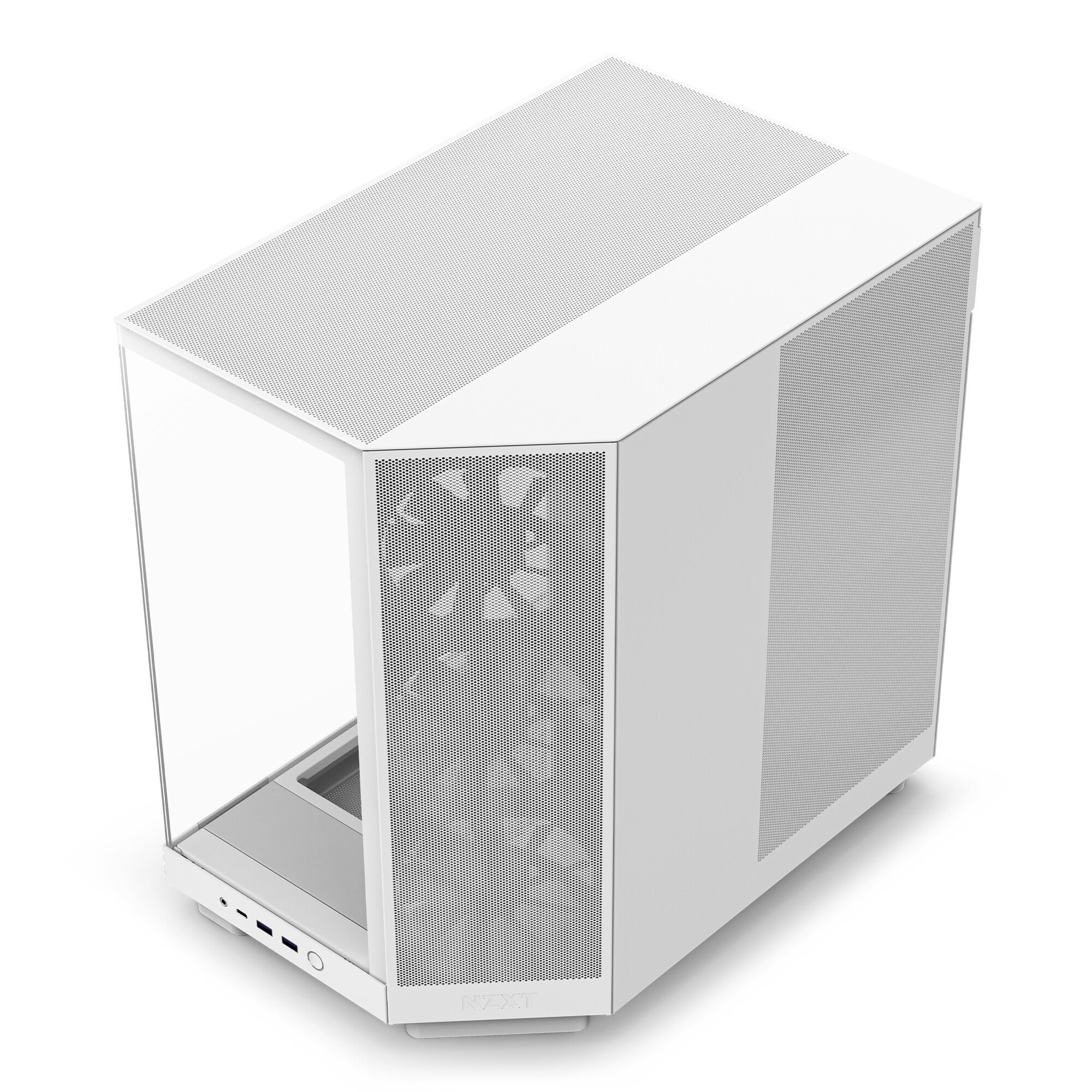

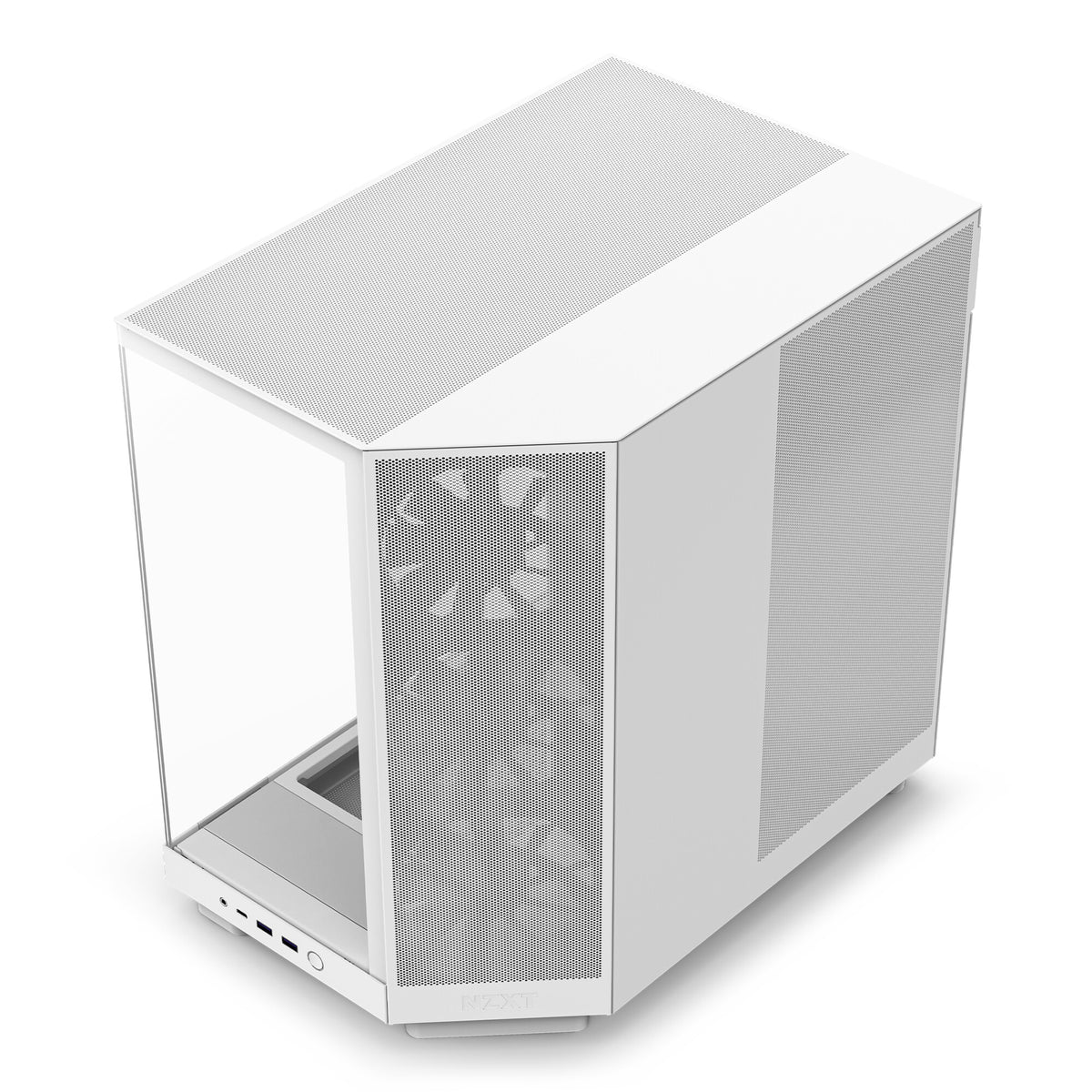

ANGLED AIRFLOW

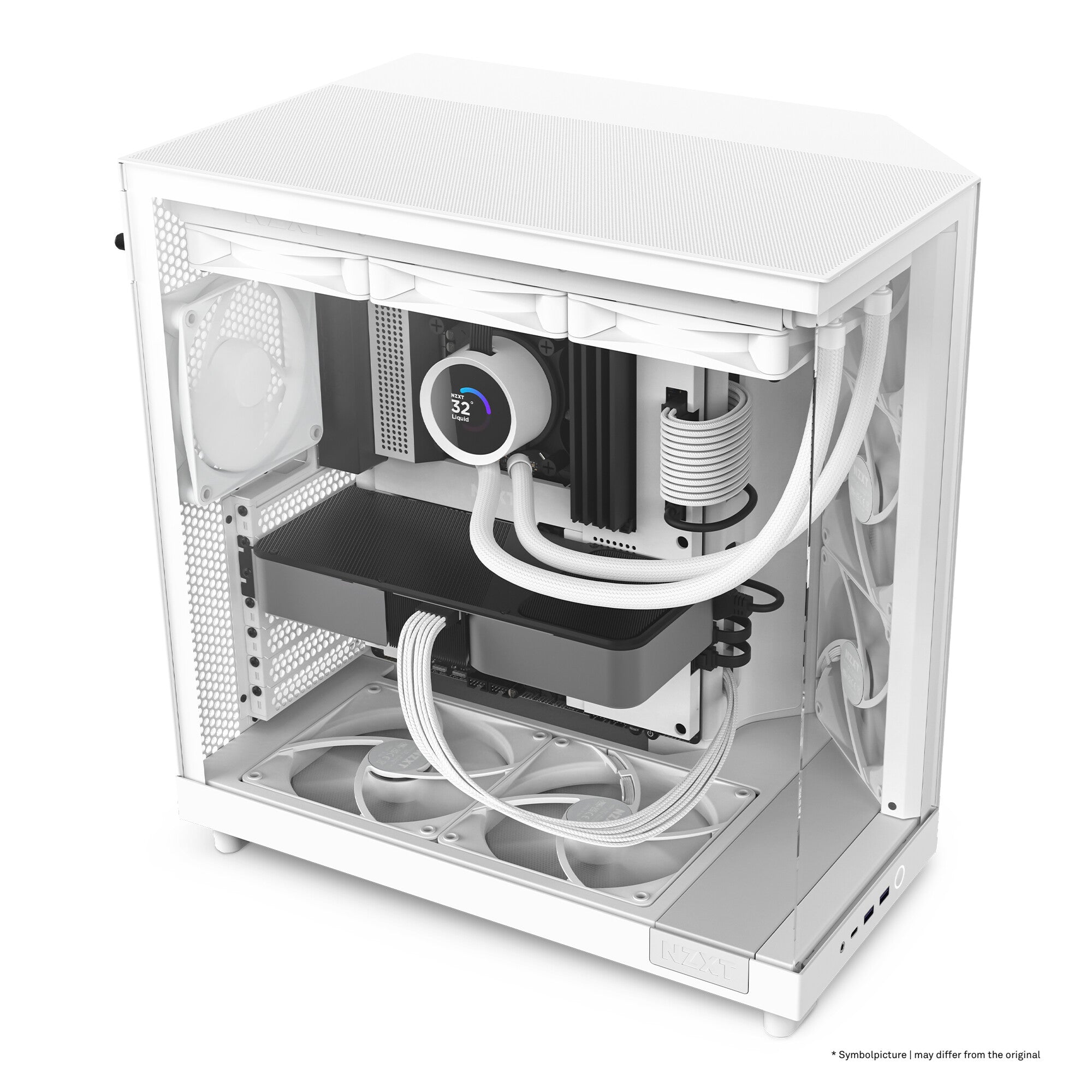

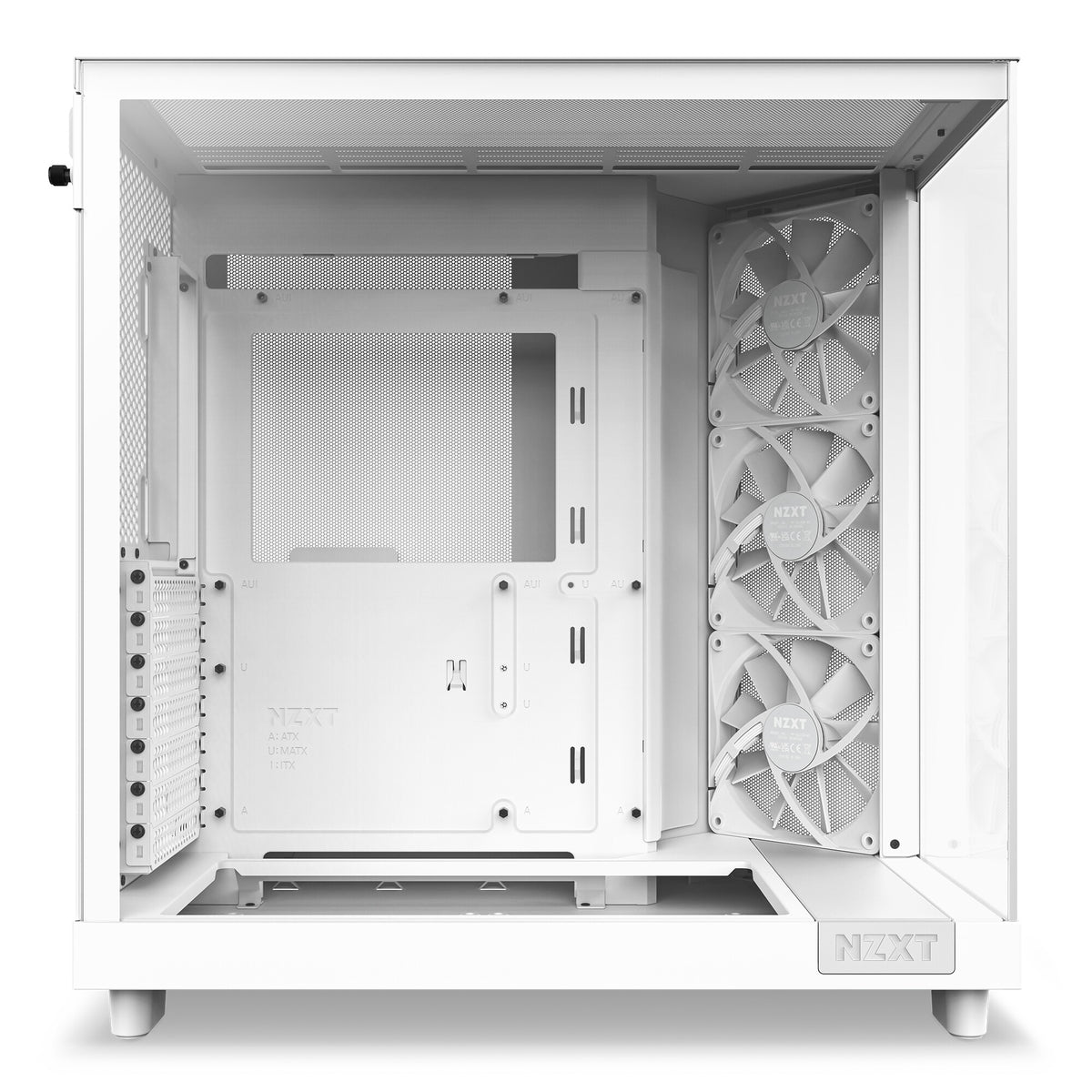

The angled front-right corner with 3 x 120mm fans targets heat-prone components. Supports 2 x 140mm fans beneath the GPU for optimal cooling while perforated panels enhance airflow.
BUILDING MADE SIMPLE

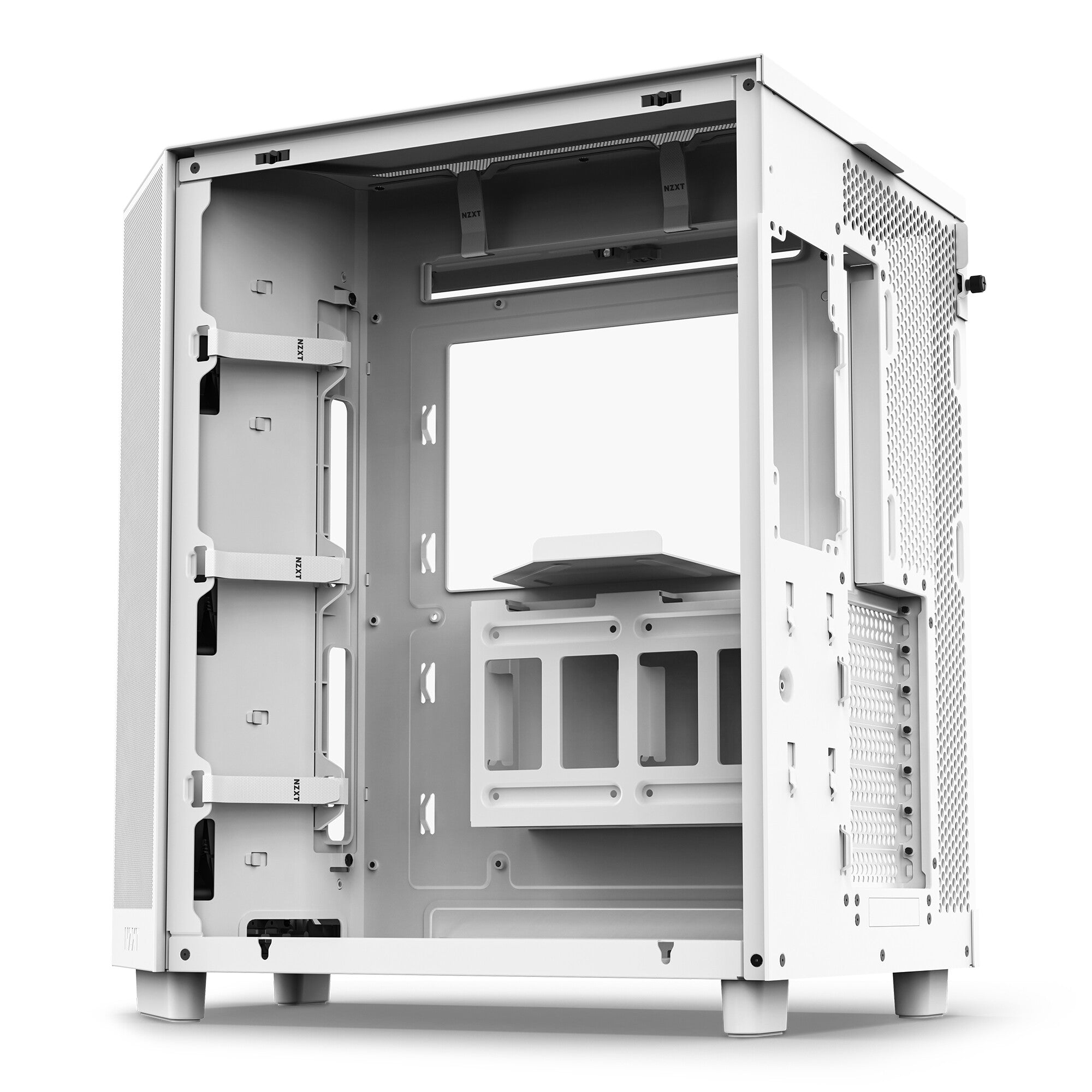

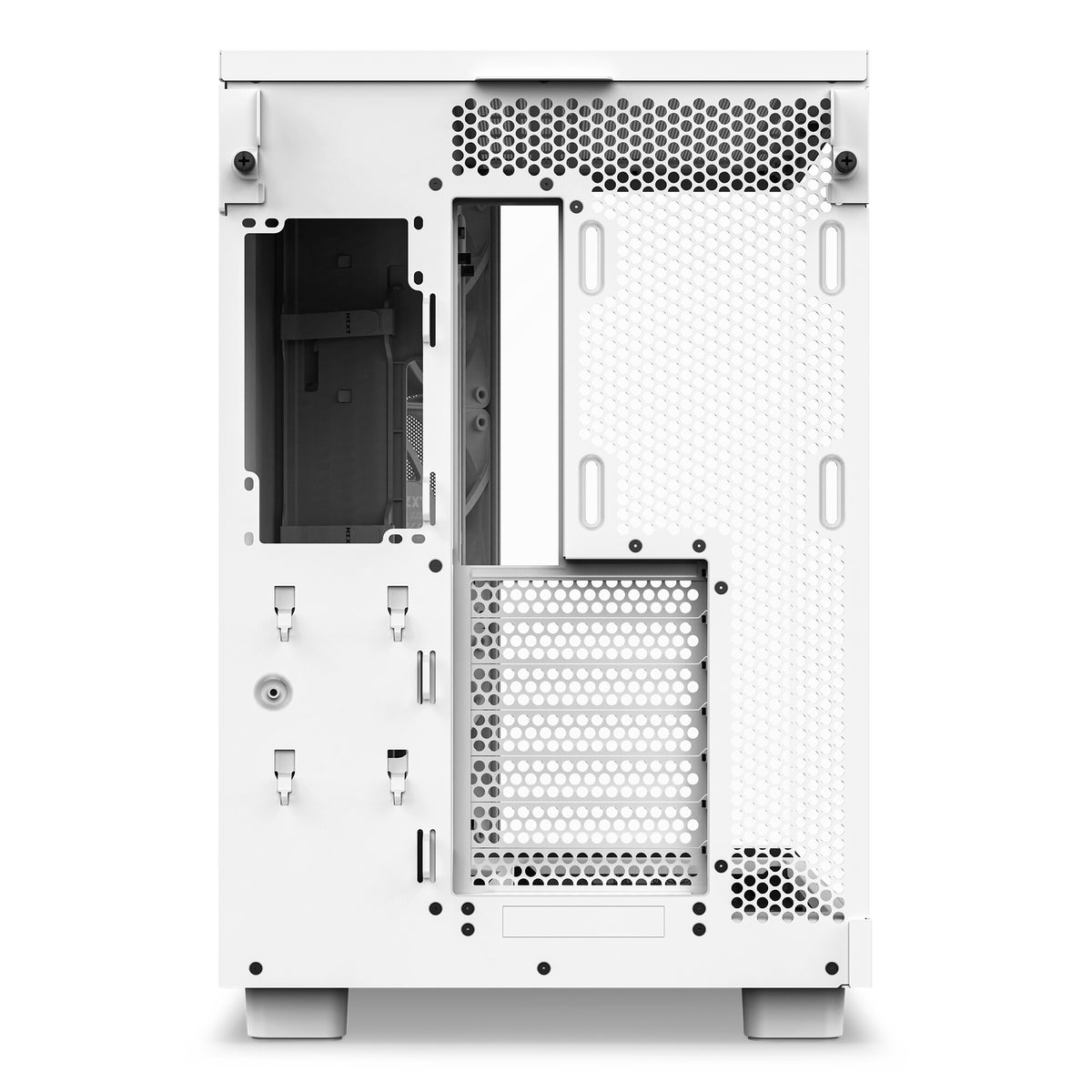

H6 Flow's intuitive design makes building a breeze. Wide channels and included straps aid cable management. Tool-less access to top and side panels simplifies tinkering and upgrading.
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum graphics card length | 36.5 cm |
| Maximum CPU cooler height | 16.3 cm |
| On/off button | Yes |
| Cable management | Yes |
| Tempered glass panel(s) | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | White |
| Material | Steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 120 mm |
| Fan speed | 0 - 1200 RPM |
| Maximum airflow | 62.18 cfm |
| Maximum air pressure | 1.05 mmH2O |
| Bottom fans diameters supported | 140 mm |
| Number of bottom fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 120 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 9.4 kg |
| Height | 435 mm |
| Depth | 415 mm |
| Width | 287 mm |
| Packaging data | |
|---|---|
| Package weight | 11.2 kg |
| Package height | 515 mm |
| Package depth | 361 mm |
| Package width | 508 mm |
