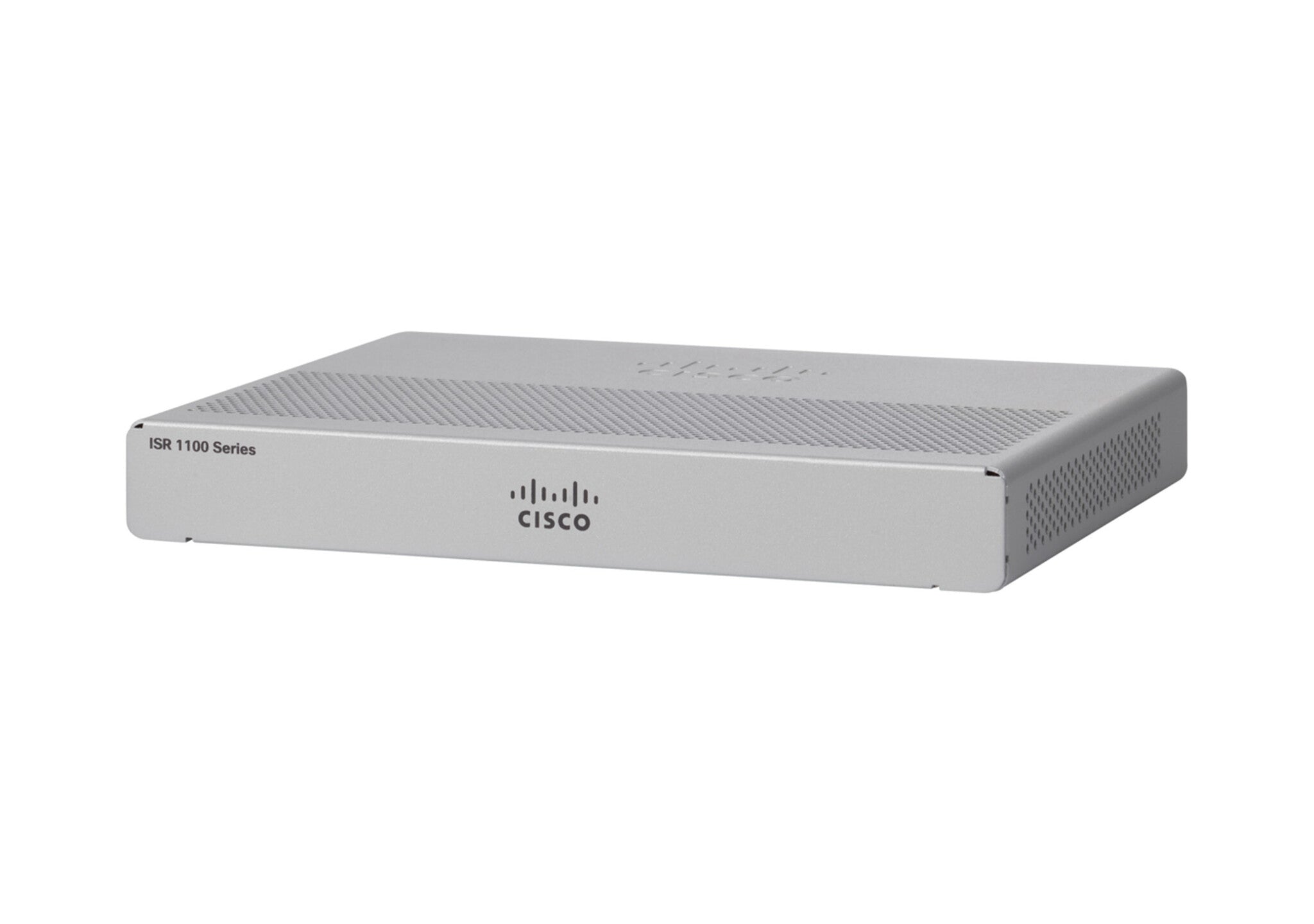

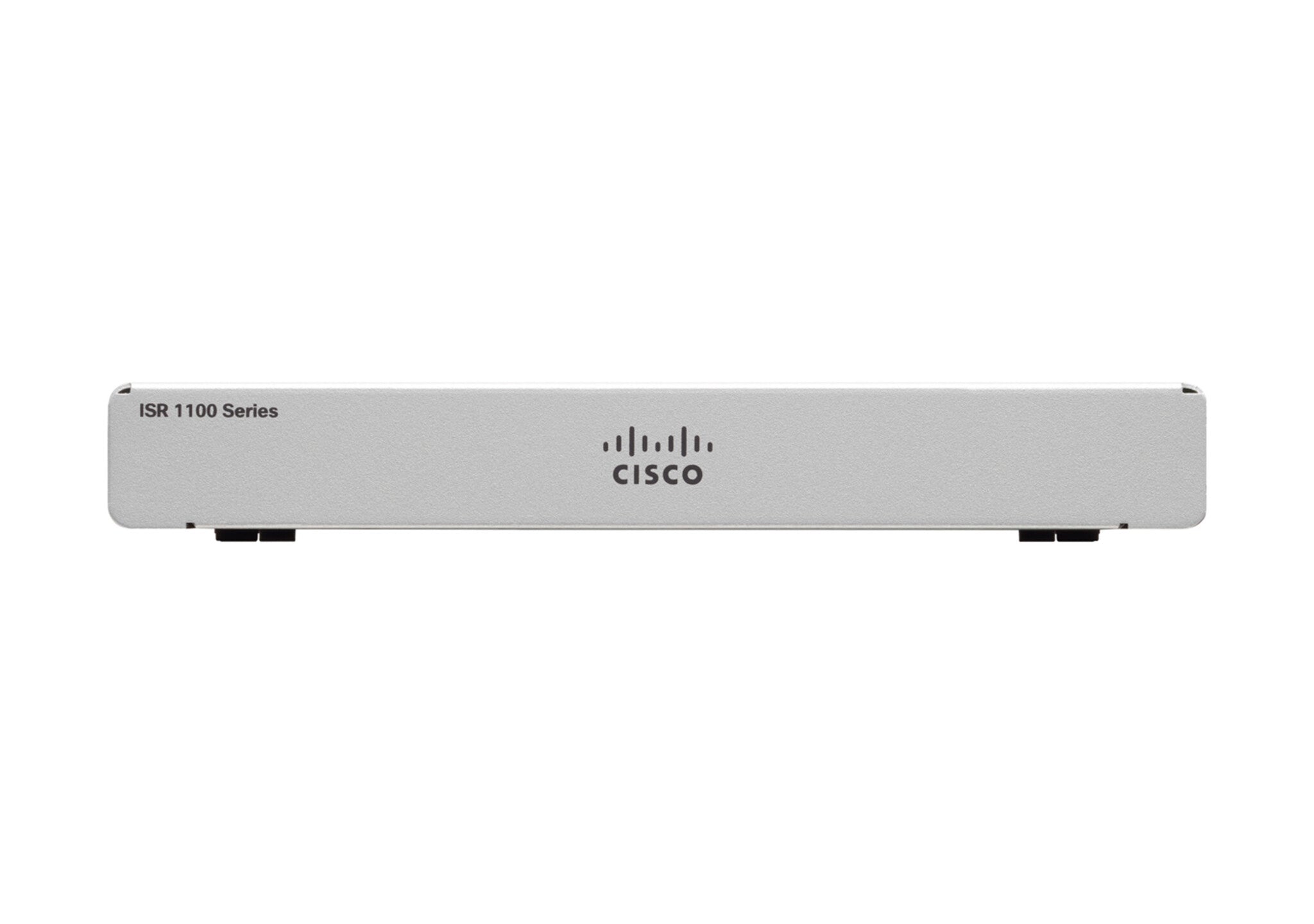

The Cisco C1101-4P Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.
| WAN connection | |
|---|---|
| 3G/4G USB modem compatibility | Yes |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| DSL features | |
|---|---|
| VDSL2 | Yes |
| ADSL2 | Yes |
| ADSL | Yes |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| Security algorithms | AES, WPA2 |
| Design | |
|---|---|
| Country of origin | China |
| Indication light | Yes |
| Product colour | Grey |
| Product type | Tabletop router |
| Features | |
|---|---|
| Internal memory | 4000 MB |
| Power | |
|---|---|
| Power consumption (typical) | 30 W |
| Output voltage | 12 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power source type | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | 0 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4570 m |
| Packaging data | |
|---|---|
| Package weight | 3.08 kg |
| Package height | 177.8 mm |
| Package depth | 333.5 mm |
| Package width | 254 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
