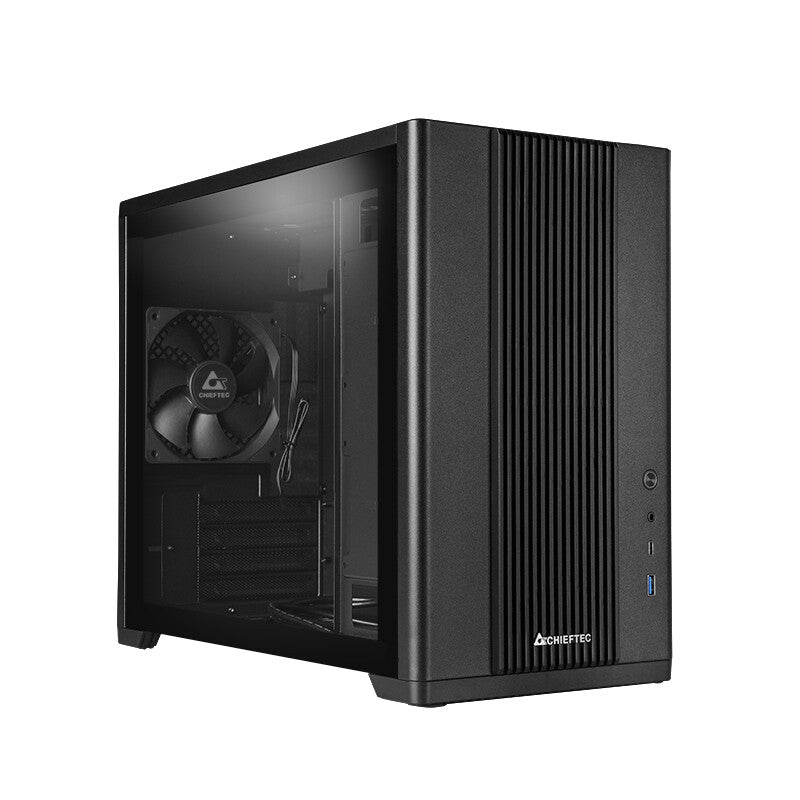

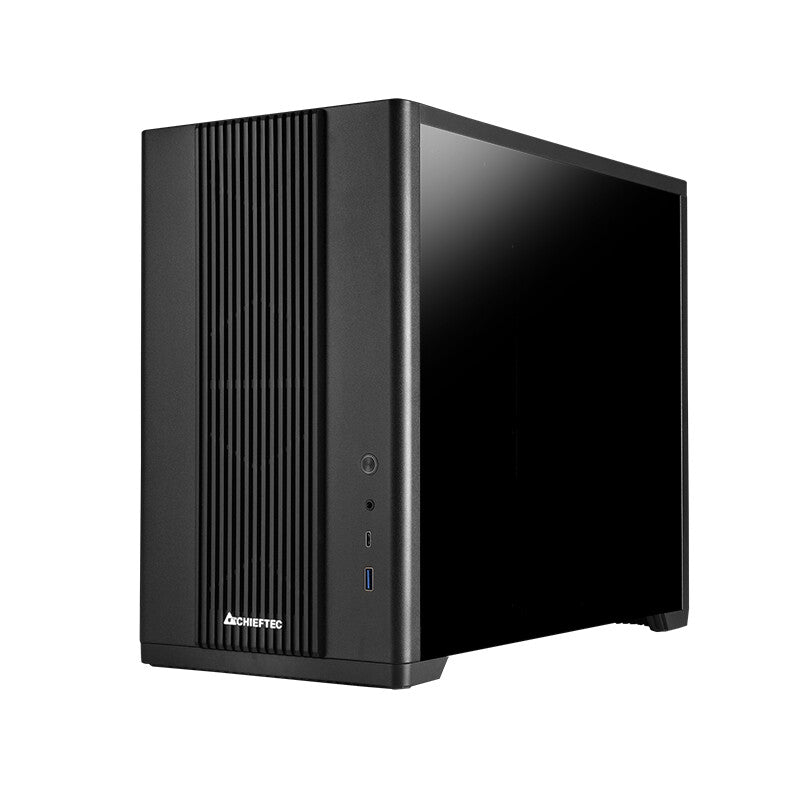

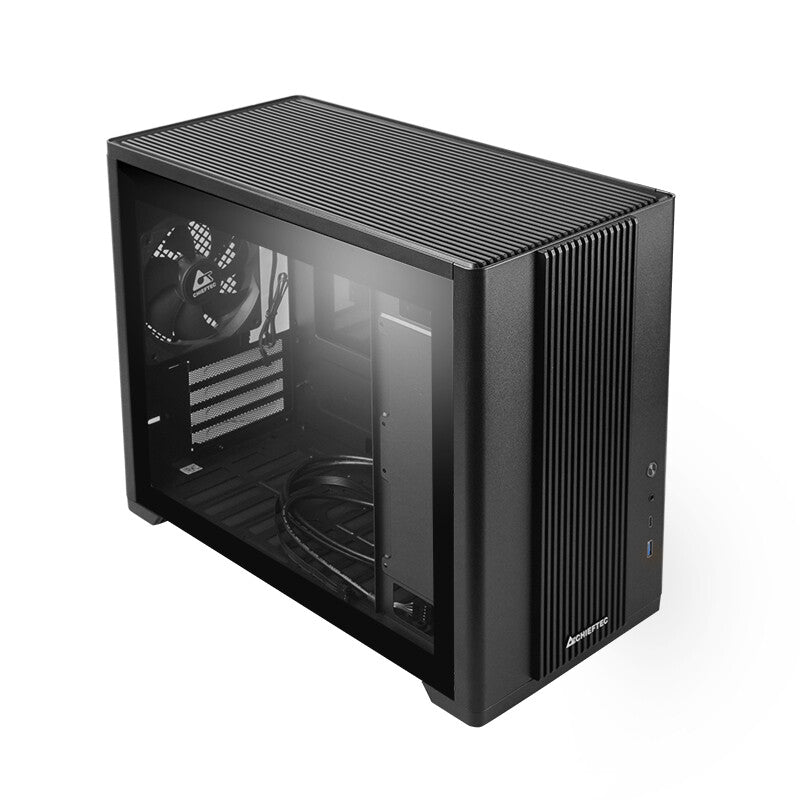

The CHIEFTEC BX-10B-OP is a modern, compact mini tower that combines elegant and subtle design with high functionality and easy-installation for a capable system. Featuring standard ATX PSU compatibility, m-ATX boards and graphics cards up to a maximum length of 380mm, as well as a total of 6 possible installed fans, modern configurations should have no trouble being installed into the BX-10B-OP from a space or cooling perspective.
| Design | |
|---|---|
| Maximum graphics card length | 38 cm |
| Maximum CPU cooler height | 16.5 cm |
| On/off button | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination | No |
| Side window | Yes |
| Number of expansion slots | 4 |
| Full-Height expansion slots | 4 |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Product colour | Black |
| Material | SPCC, Carbon steel |
| Type | PC |
| Form factor | Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 240 mm |
| Liquid cooling capability | Yes |
| Liquid cooling installed | No |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Material thickness | 0.6 mm |
| Weight | 4.78 kg |
| Height | 325 mm |
| Depth | 415 mm |
| Width | 204 mm |
| Packaging data | |
|---|---|
| Package weight | 5.48 kg |
