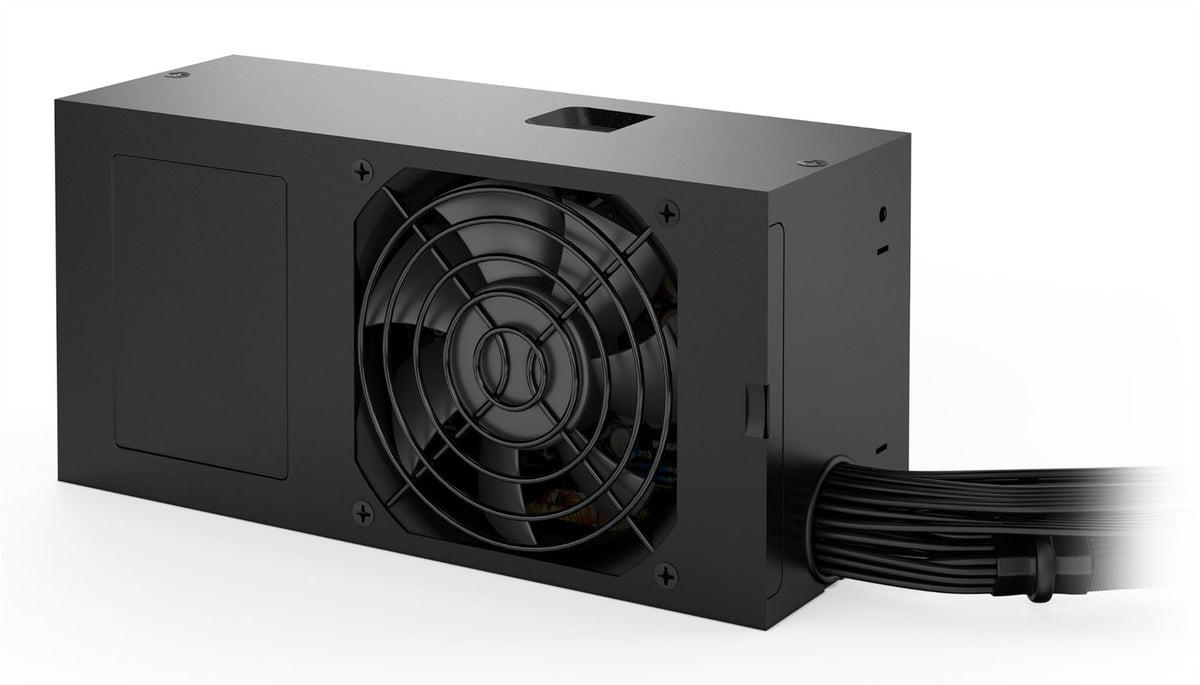

be quiet! TFX Power 3 300W Gold power supply unit 20+4 pin ATX Black
Regular price
$74.00
Why Shop Clove?
Lower Carbon Footprint
Choosing refurbished saves an estimated 50–70kg of CO2 compared to buying new.
Independently Tested
Every device is tested to 80+ quality checkpoints via PhoneCheck certification.
Repaired by Experts
Our in-house repair team refurbishes every device before it reaches you.
Close the Loop
Done with your old device? Send it back via Clove Recycling and keep it out of landfill.
COMPACT AND SILENT ENERGY TFX Power 3 300W Gold, the advanced, high-efficiency be quiet! compact PSU gives you more for your mini or media PC. It supports the latest standards while providing solid voltages and enough power to support a PCIe graphics card. The combination of quiet operation and reliability make the TFX Power 3 300W Gold the perfect choice for PCs with TFX form factor.
Cooling
Fan diameter
8 cm
Number of fans
1 fan(s)
Fan speed
0 - 1323 RPM
Cooling type
Active
Performance
On/off switch
No
Power supply unit (PSU) form factor
TFX
80 PLUS certification
80 PLUS Gold
Purpose
PC
EPS version
2.92
Noise level
21.7 dB
Mean time between failures (MTBF)
100000 h
Bearing technology
Rifle
Design
80 PLUS certification
80 PLUS Gold
Product colour
Black
Fan diameter
8 cm
On/off switch
No
Number of fans
1 fan(s)
Fan speed
0 - 1323 RPM
Cooling type
Active
Power
Total power
300 W
Maximum input current (@220V)
2 A
Peak power
350 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power factor
0.98
Maximum input current (@110V)
4 A
Combined power (+3.3V)
103 W
Combined power (+12V)
288 W
Combined power (+5V)
103 W
Max output current (+3.3V)
18 A
Max output current (+12V1)
13 A
Max output current (+12V2)
13 A
Max output current (+5V)
18 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage
Hold time
29 ms
Efficiency
90.6%
Number of +12V rail(s)
2
Ports & interfaces
Motherboard power cable length
35 cm
SATA power cable length
300,450,600 mm
Peripheral (Molex) power cable length
300,450 mm
PCI Express power cable length
40 cm
CPU power cable length
35 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
3
Number of PATA power connectors
2
Peripheral (Molex) power connectors (4-pin)
2
PCI Express power connectors (6+2 pin)
1
CPU P4 connector (4-pin)
1
Floppy drive power connector
1
Cabling type
Non-Modular
Number of SATA power cables
1
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Technical details
Shipping (inner) case width
27.5 cm
Shipping (inner) case net weight
9.4 kg
Shipping (inner) case length
47.4 cm
Shipping (inner) case height
19.5 cm
Products per shipping (inner) case
6 pc(s)
Sustainability certificates
ENERGY STAR, ErP, Triman
Warranty period
3 year(s)
Compliance certificates
CB, CE, RoHS, TÜV mark, WEEE
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
CB, CE, RoHS, TÜV mark, WEEE
80 PLUS certification
80 PLUS Gold
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Weight & dimensions
Width
85 mm
Depth
175 mm
Height
65 mm
Weight
1.1 kg
Packaging data
Screws included
Yes
Cable ties included
Yes
Package depth
82 mm
Package width
159 mm
Package height
215 mm
Package weight
1.4 kg
Manual
Yes
Manual languages
German, English, Spanish, French, Polish, Russian
Packaging content
Screws included
Yes
Cable ties included
Yes
Manual
Yes
Logistics data
Shipping (inner) case width
27.5 cm
Shipping (inner) case net weight
9.4 kg
Shipping (inner) case length
47.4 cm
Shipping (inner) case height
19.5 cm
Products per shipping (inner) case
6 pc(s)
Warranty period
3 year(s)
Other features
Screws included
Yes
Cable ties included
Yes
Manual
Yes
