450W, DC/DC, 80 PLUS Bronze, 120 mm, 1800 RPM, 19.2 dB, 20+4-pin, PCI-e 6+2-pin, 5x SATA, 150 x 140 x 86 mm
PROVEN RELIABILITY, QUIET OPERATION
System Power 10 450W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 450W offers even at entry-level.
VERY QUIET OPERATION
High-quality fan for low noise
System Power 10 450W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU
System Power 10 450W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.
80 PLUS® BRONZE CERTIFICATION
Efficient operation
The 80 PLUS Bronze certification of System Power 10 450W Bronze with an efficiency rating of up to 88.5% is convincing evidence of this PSU’s power saving operation.
STRONG 12V RAIL
For a stable PCIe graphics support
System Power 10 450W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.
| Power |
|---|
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time |
17 ms |
| Efficiency |
88.5% |
| Power Good signal delay range |
100 - 150 ms |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
37.5 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
100 W |
| Combined power (+12V) |
450 W |
| Combined power (+3.3V) |
100 W |
| Power Factor Correction (PFC) type |
Active |
| Power factor |
0.95 |
| Input current |
4 A |
| AC input frequency |
50 Hz |
| AC input voltage |
200 - 240 V |
| Total power |
450 W |

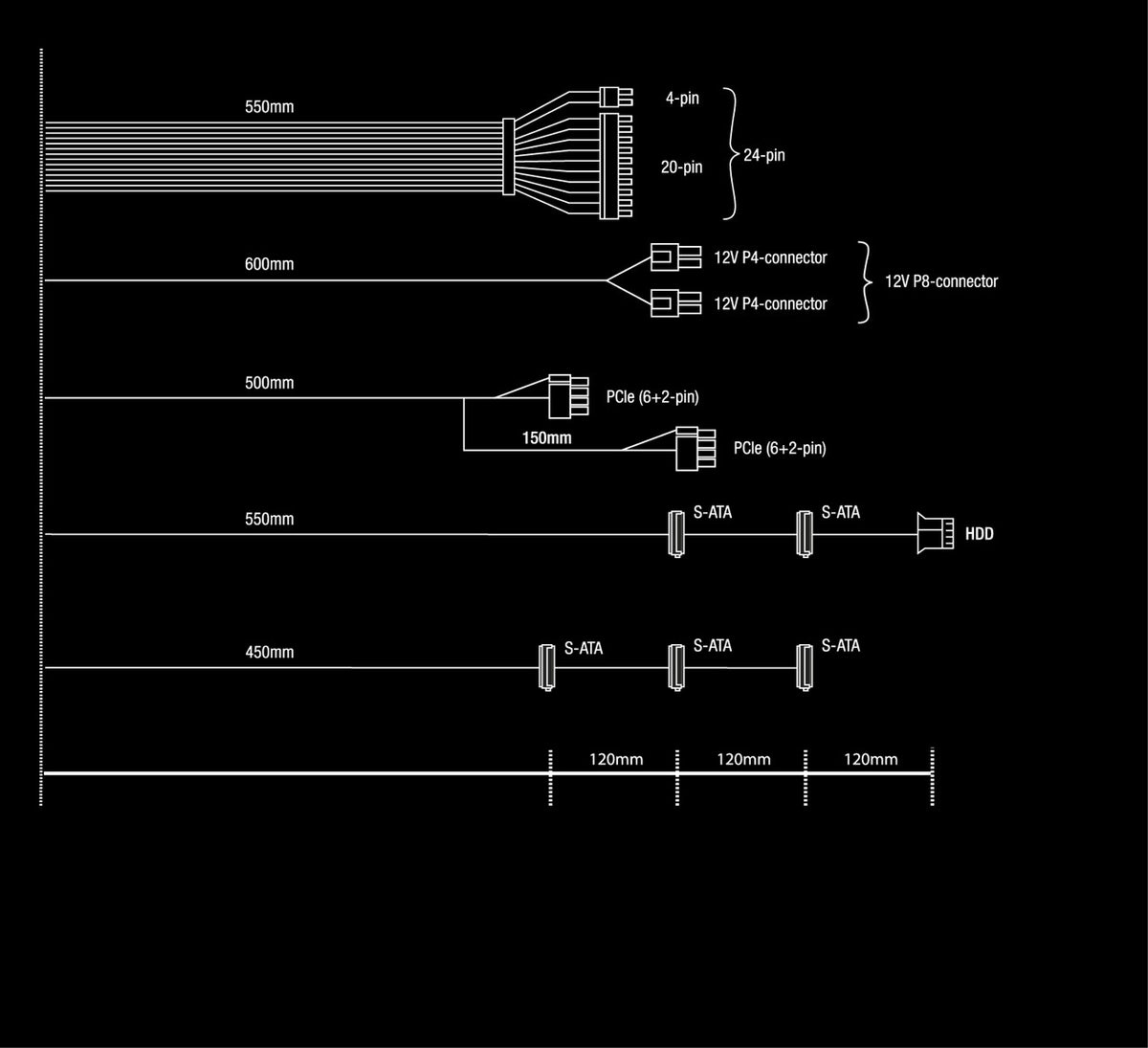

| Ports & interfaces |
|---|
| Cabling type |
Non-Modular |
| ATX power connector (20+4 pin) |
Yes |
| CPU power cable length |
60 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
65 cm |
| PCI Express power connectors (6+2 pin) |
2 |
| Peripheral (Molex) power cable length |
790 mm |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| SATA power cable length |
450,550,570,670,690,790 mm |
| Number of SATA power connectors |
5 |
| Number of PATA power connectors |
1 |
| Motherboard power cable length |
55 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
|---|
| Country of origin |
Germany |
| Certification |
CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia) |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
Sleeve |
| Noise level |
19.2 dB |
| EPS version |
2.92 |
| ATX version |
2.52 |
| 80 PLUS certification |
80 PLUS Bronze |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Fan speed |
0 - 1800 RPM |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
1.74 kg |
| Height |
150 mm |
| Depth |
86 mm |
| Width |
140 mm |
| Packaging data |
|---|
| Package weight |
2.1 kg |
| Package height |
97 mm |
| Package depth |
268 mm |
| Package width |
195 mm |
| Manual languages |
German, English, Spanish, French, Polish, Russian |
| Manual |
Yes |
| Technical details |
|---|
| Sustainability certificates |
CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, WEEE |
| Warranty period |
5 year(s) |
| Other features |
|---|

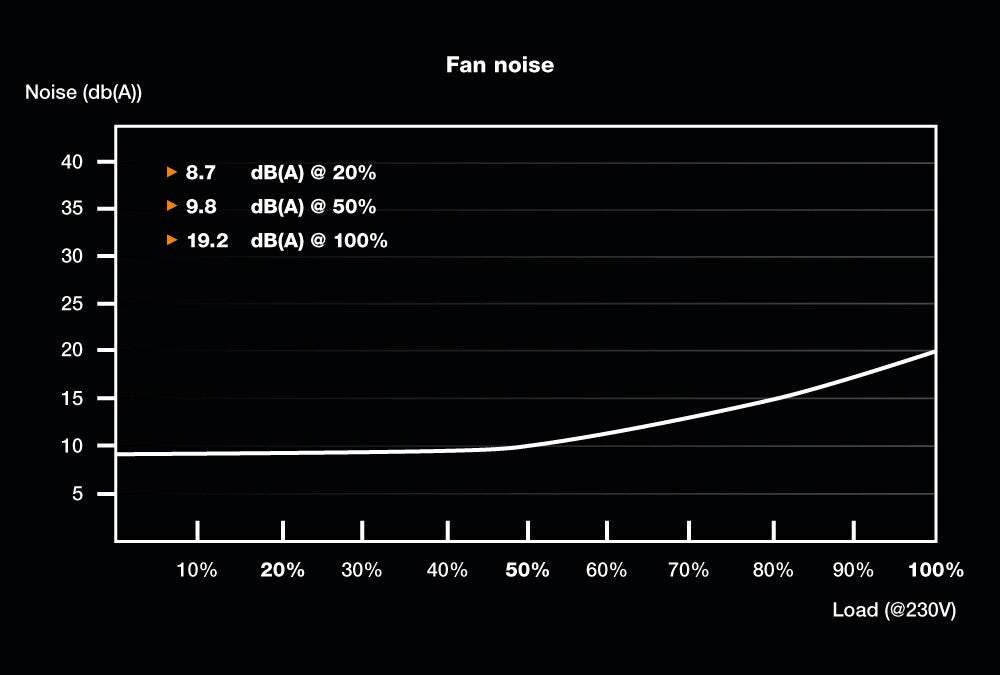

| Noise level (full-load mode, 100%) |
19.2 dB |
| Noise level (quiet mode, 50%) |
9.8 dB |
| Noise level (silent mode, |
8.7 dB |
| Screws included |
Yes |
