600 W, SFX 12V 3.3/ATX 2.4, 120mm fan, 28.7dB max., ATX 20+4-pin, 4x PCI-E 6+2-pin, 1x P4+4, 6x SATA, 3x PATA
Compact and Silent Energy

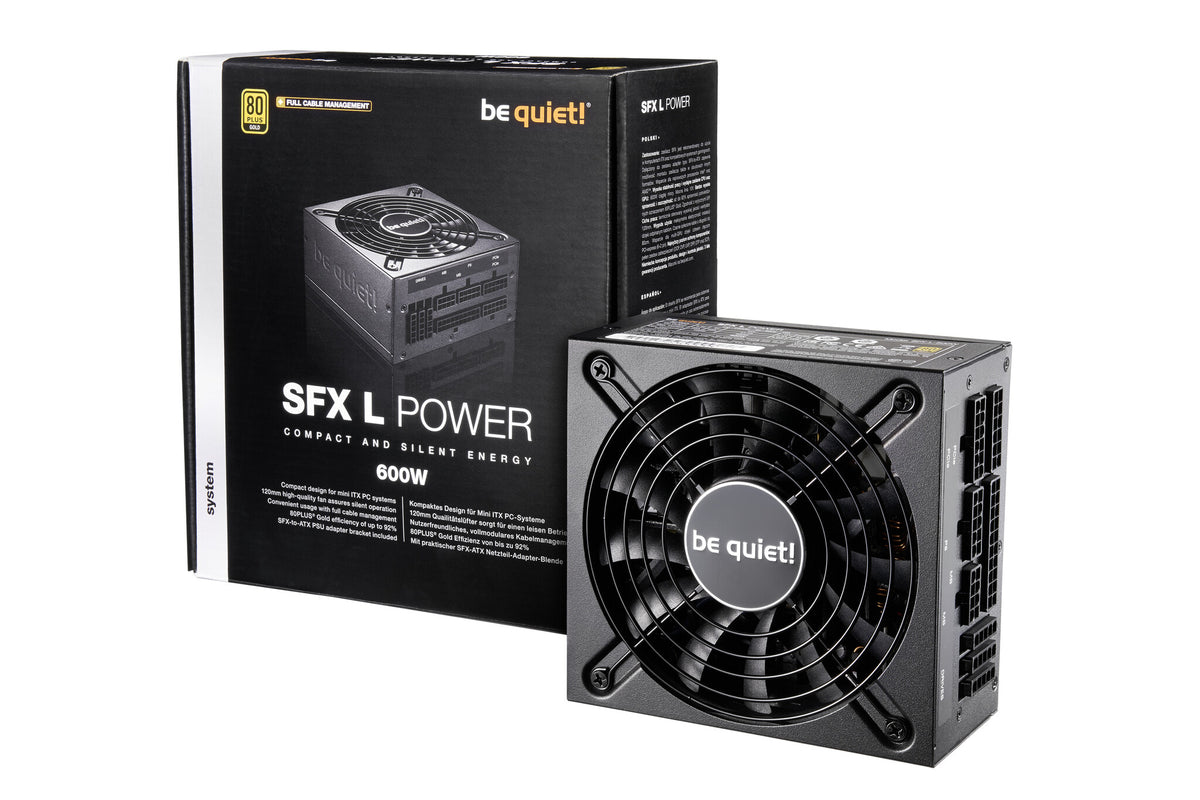

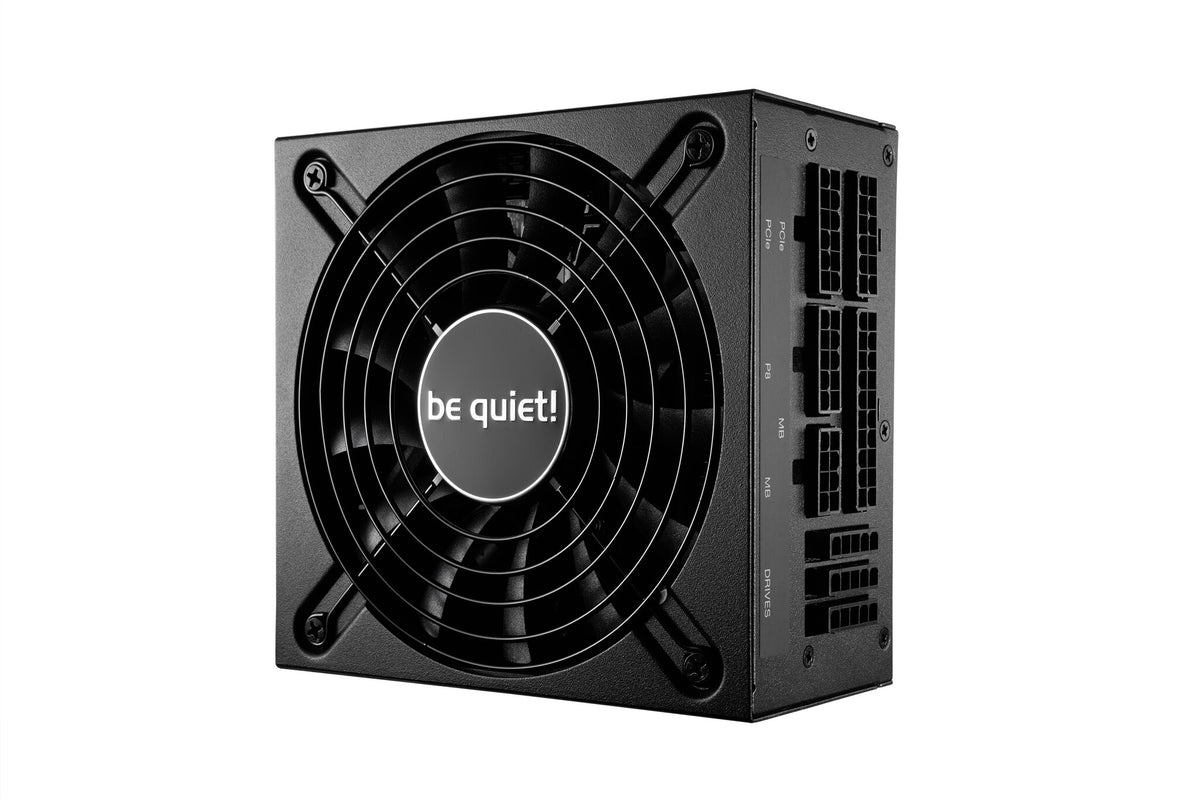

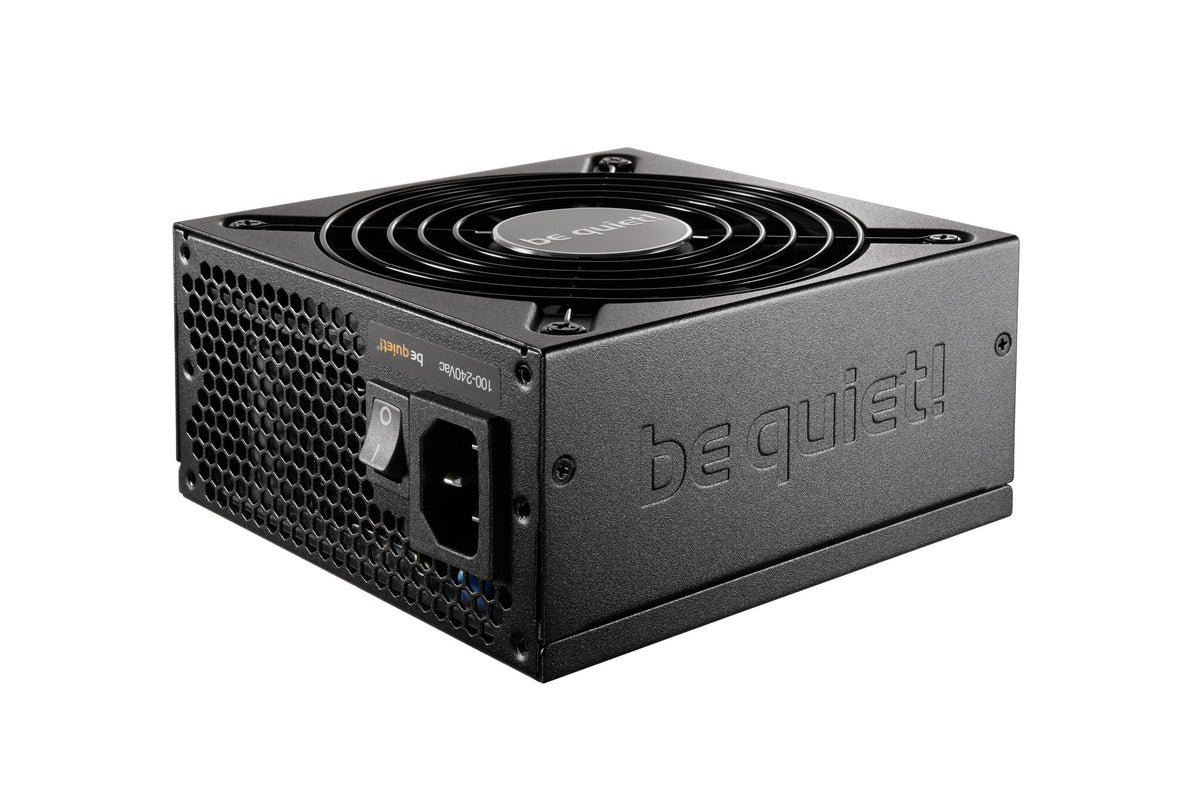

be quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.
POWERFUL, RELIABLE AND STABLE
A strong partner for Mini ITX and compact gaming PCs
The SFX L Power supplies CPUs and GPUs with steady and dependable power thanks to a stable 12V-rail, high quality Japanese capacitors and innovative technologies such as LLC, Synchronous Rectifier and DC-to-DC conversion. 4 PCIe connectors to support multi-GPU setups.
QUIET OPERATION FOR COMPACT SYSTEMS
Optimized for low-noise operation
This PSU is perfect for compact gaming PC or HTPC users who are looking for an SFX PSU that is fitted with a 120mm fan. This model includes a temperature-controlled fan. The SFX L Power was built to be very silent thanks to the fan technology used and it produces little wasted heat.
80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
SFX L Power 600W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs with cooler and quieter operation.

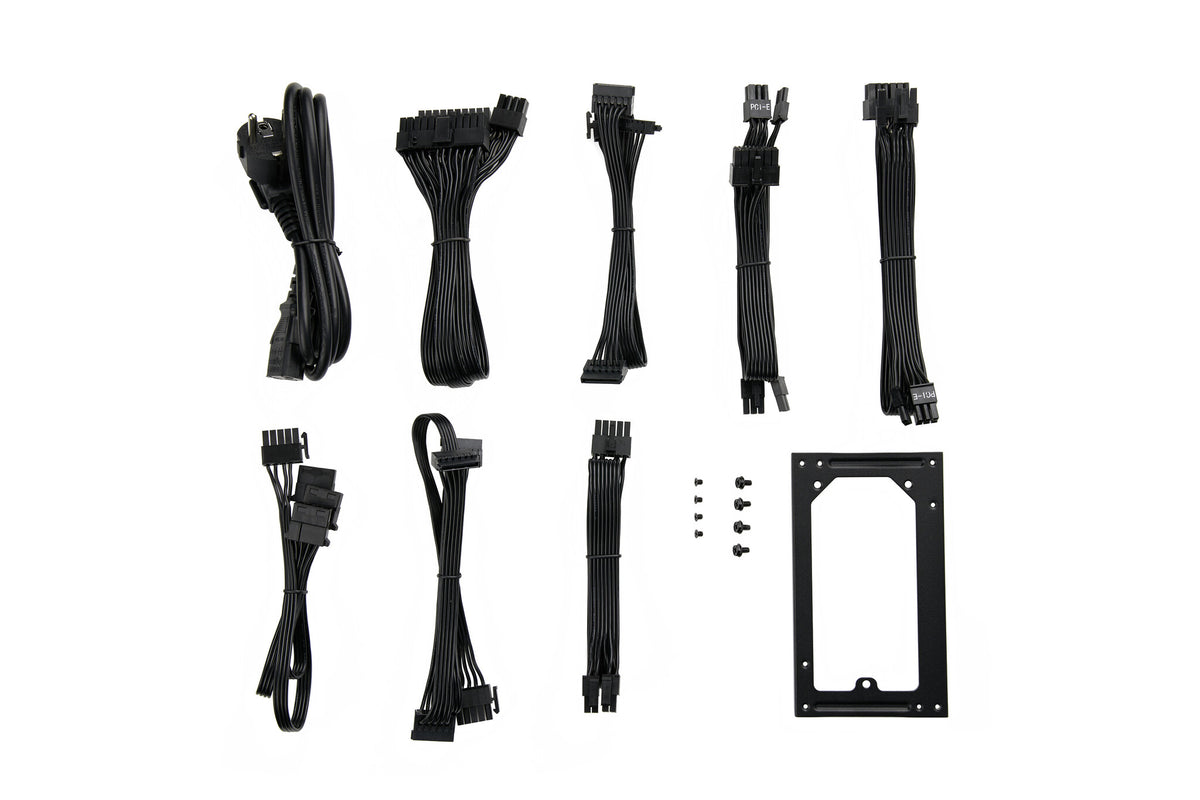

MODULAR AND FLAT CABLES
Highly compatible and convenient
Entirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.
SUPER VERSATILE INSTALLATION
Adapts to your individual requirements
This power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.
| Power |
|---|
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time |
16.8 ms |
| Efficiency |
92% |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
22 A |
| Max output current (+12V) |
50 A |
| Max output current (+3.3V) |
22 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
110 W |
| Combined power (+12V) |
600 W |
| Combined power (+3.3V) |
110 W |
| Power Factor Correction (PFC) type |
Active |
| Power factor |
0.99 |
| Input current |
10 A |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Peak power |
650 W |
| Total power |
600 W |
| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| CPU power cable length |
40 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
40 cm |
| PCI Express power connectors (6+2 pin) |
4 |
| Number of SATA power connectors |
6 |
| Number of PATA power connectors |
3 |
| Motherboard power cable length |
30 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
|---|
| Certification |
CE, CB, TÜV, FCC, cTUVus, RCM |
| Bearing technology |
Sleeve |
| Silent mode |
Yes |
| ATX version |
2.4 |
| Supported motherboard form factors |
Mini-ITX |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
SFX |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Weight |
1.16 kg |
| Height |
64 mm |
| Depth |
130 mm |
| Width |
125 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
2.04 kg |
| Package height |
80 mm |
| Package depth |
220 mm |
| Package width |
205 mm |
| Manual |
Yes |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case gross weight |
21.5 kg |
| Harmonized System (HS) code |
84733020 |
| Master (outer) case height |
240 mm |
| Master (outer) case length |
430 mm |
| Master (outer) case width |
430 mm |
| Other features |
|---|
| Noise level (full-load mode, 100%) |
28.7 dB |
| Noise level (quiet mode, 50%) |
14.5 dB |
| Noise level (silent mode, |
9.9 dB |
| Cable ties included |
Yes |
| Screws included |
Yes |
